Jumping Sumo:
3D radiation pattern
Meryam ABOU EL ANOUAR, Qualification 28/05/2014
3D radiation pattern: measurement Setup
• The measurement was made at Parrot radio test laboratory, with Diagray3D system
• The antennas were connected to a CW signal generator: signal level @2.4GHz=5dBm;
@5GHz=10dBm
• Angular resolution is : 10°
• Measurement uncertainty : ±1dB
Meryam ABOU EL ANOUAR, Qualification 28/05/2014
X-
+y
+z
+X
3D radiation pattern: measured antennas
Jumping Sumo is integrating 2 Wifi Dual-band antennas
Dual band antennas
ant1ant2
Meryam ABOU EL ANOUAR, Qualification 28/05/2014
• Antennas dimensions: 12mmx10mm
• Distance between antennas: 33mm
• Space and radiation pattern diversity

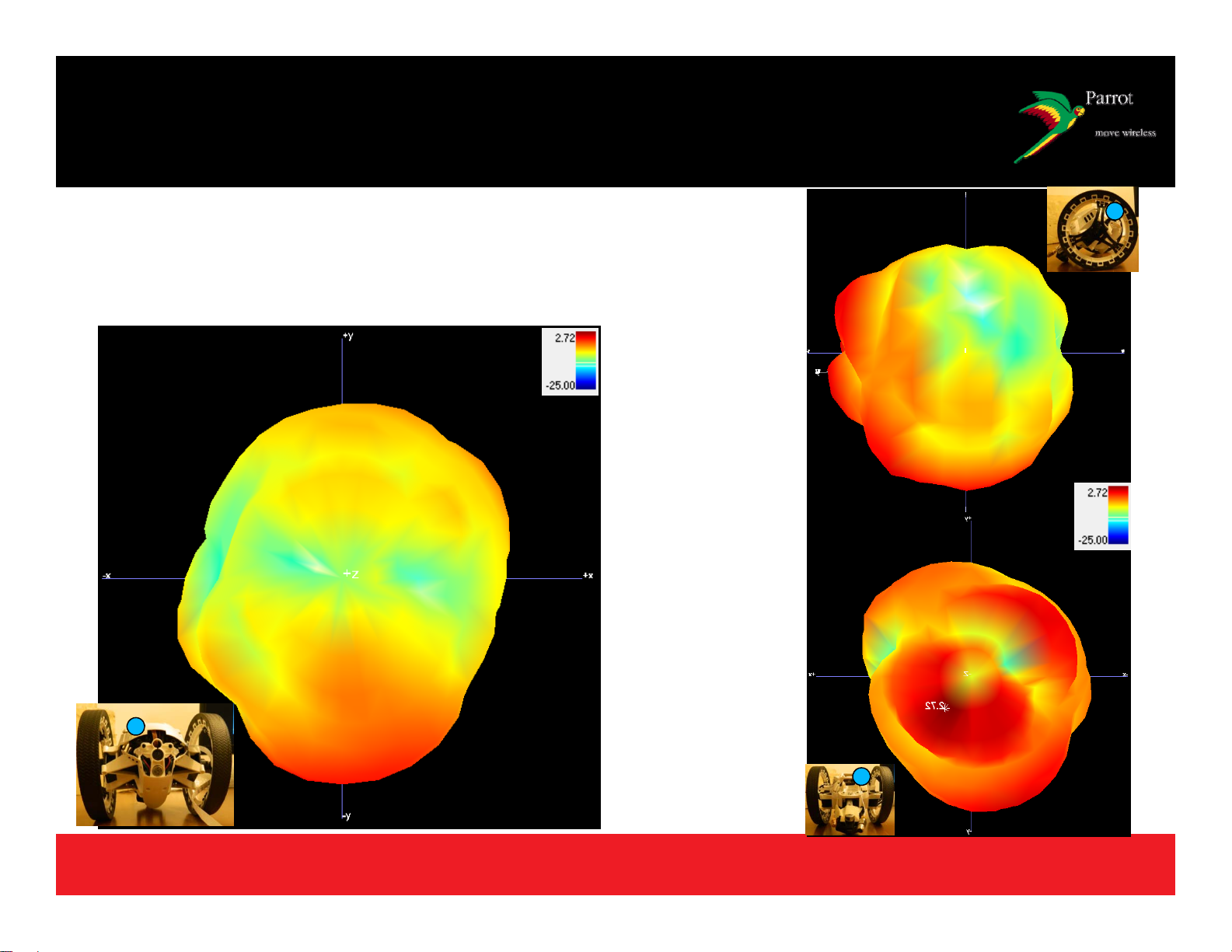

Antenna 1: 3D radiation pattern @2440MHz
Max gain @2440MHz= 1.34dBi
Min gain @2440MHz= -24.8dBi
Mean gain @2440MHz = -4.9dBi
max
Meryam ABOU EL ANOUAR, Qualification 28/05/2014
Antenna 1: 3D radiation pattern @5500MHz
Max gain @5500MHz = 2.67dBi
Min gain @5500MHz = -12.7dBi
Mean gain @5500MHz= -3.92dBi
max
Meryam ABOU EL ANOUAR, Qualification 28/05/2014
Antenna 1: max gain VS frequency
Meryam ABOU EL ANOUAR, Qualification 28/05/2014
2.4GHz band 5GHz band
Antenna 2: 3D radiation pattern @2440MHz
Max gain @2440MHz = 2.72dBi
Min gain @2440MHz = -17.7dBi
Mean gain @2440MHz= -4.94dBi
Meryam ABOU EL ANOUAR, Qualification 28/05/2014
Antenna 2: 3D radiation pattern @5500MHz
Meryam ABOU EL ANOUAR, Qualification 28/05/2014
Max gain @5500MHz = 3.29dBi
Min gain @5500MHz = -15.9dBi
Mean gain @5500MHz = -3.43dBi
Antenna 2: max gain VS frequency
Meryam ABOU EL ANOUAR, Qualification 28/05/2014
2.4GHz band 5GHz band
