Parrot CK3100 LCD Manuel utilisateur
LEON
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
LEON
Installation manual:
Parrot MKi + Parrot
CK3100 range
The brand name SEAT LEON and the SEAT logo are the property of the SEAT Group.
This document is only valid for the vehicle model LEON® year 2009 to 2011, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.
LEON
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Disassembly
30min
Mounting kit
30min
Reassembly
30min
Testing
15min
Total
1h45min
NO
+IGN
NO
ISO
N/A
UNIKA
FRONT LOUDSPEAKER
TEL mode
ALL
MUSIC mode

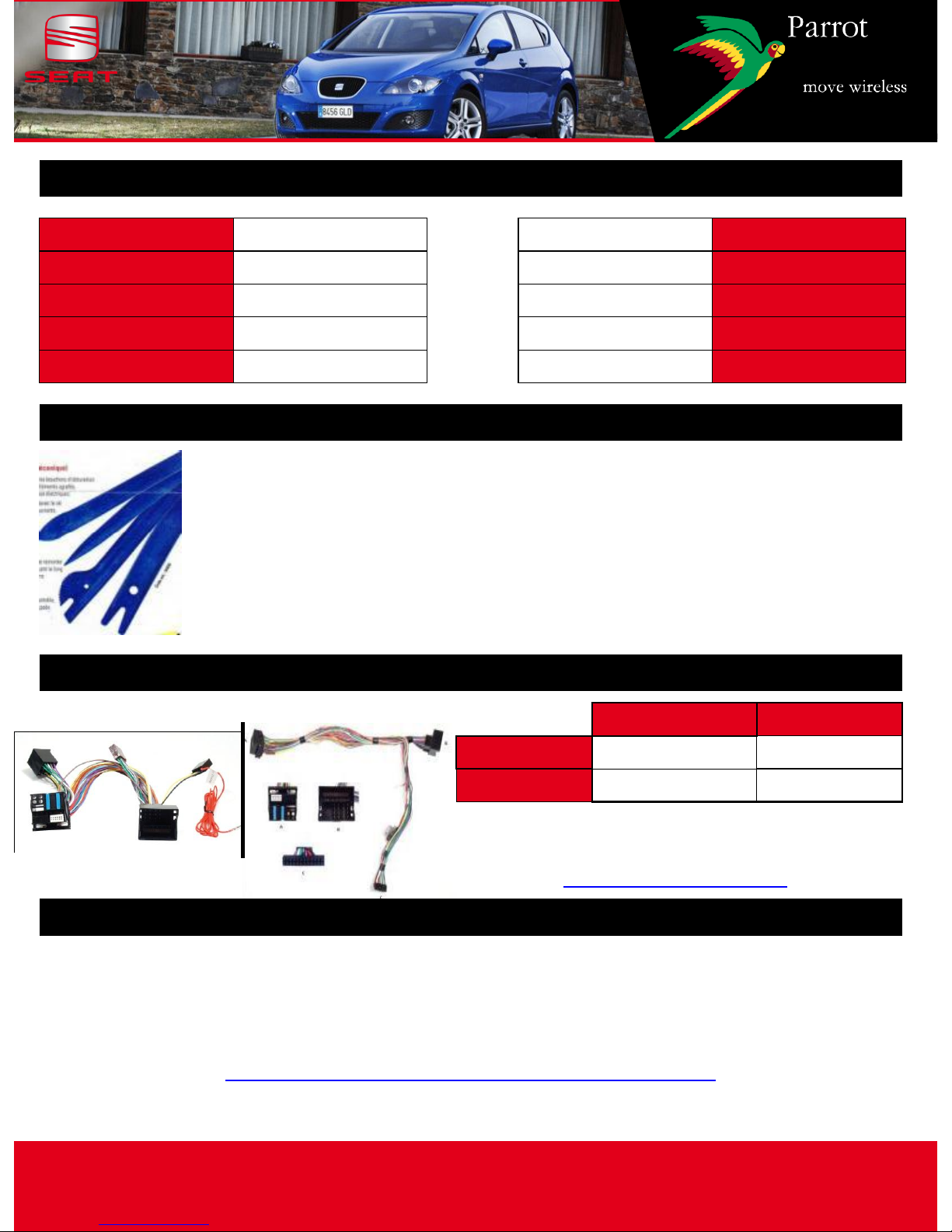

Fitting time (estimated) / Main features
Tools
-TORX screwdriver
- Cutting pliers
- Crimping pliers
- Multimeter or Test lamp
- Wire tie
- Electrical tape
- Soldering Iron
Plastic trim removal tools
FACOM / BOJO
Accessories required
To get the most out of your hands-free kit we recommend that you update your
software regularly. The update procedure can be found at
http://www.parrot.com/usa/support/downloads
UpdatingUpdating
"Please contact your wholesaler to purchase
accessories. A list of wholesalers is available at
www.certified.parrot.com. "
Kram ref.
Dealer ref.
CK range
86 942
YY 138 CABL 2
MKi range
84 942
YY 138 CABL 2
Photos for illustration purposes
CK range MKi range
LEON
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.

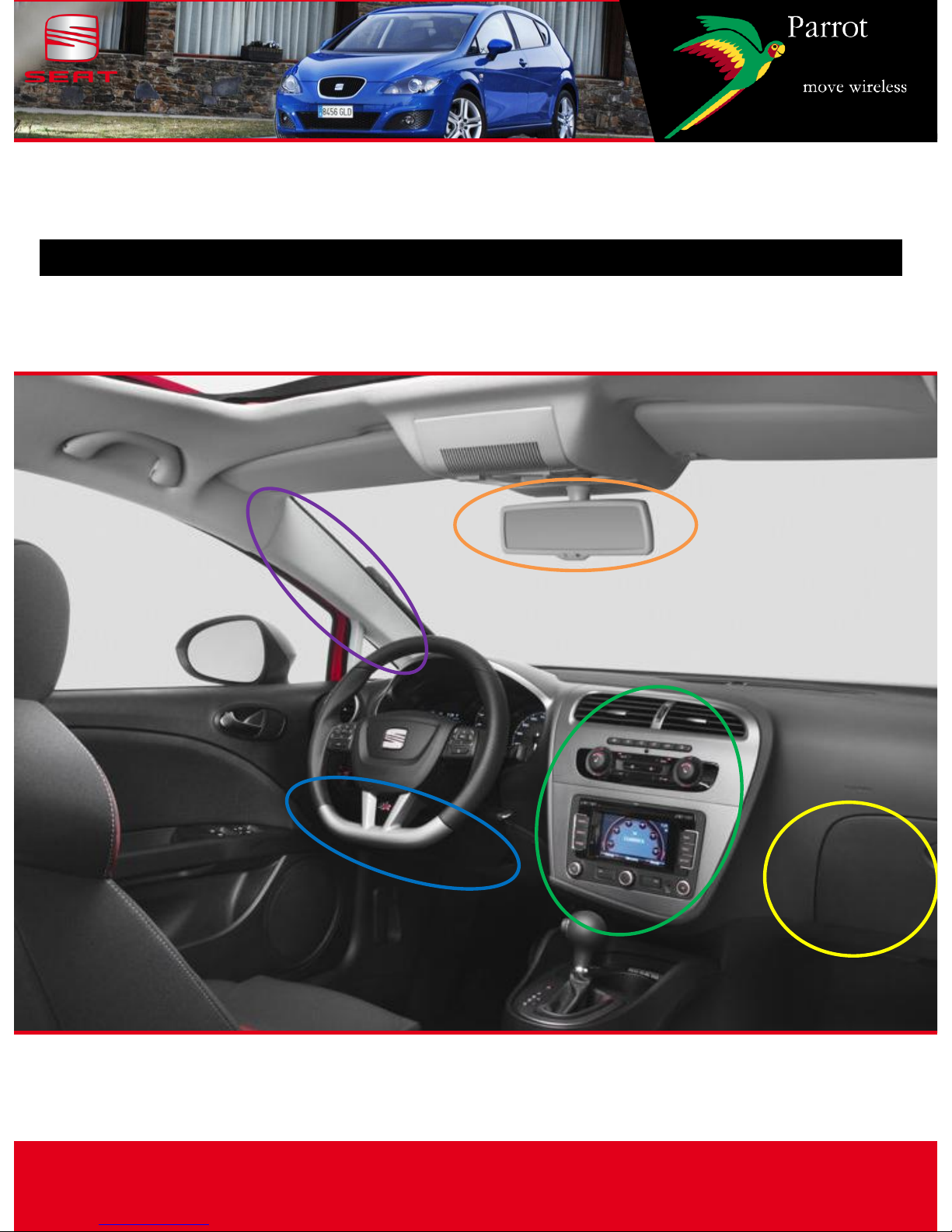

Disassembly
LEON
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.

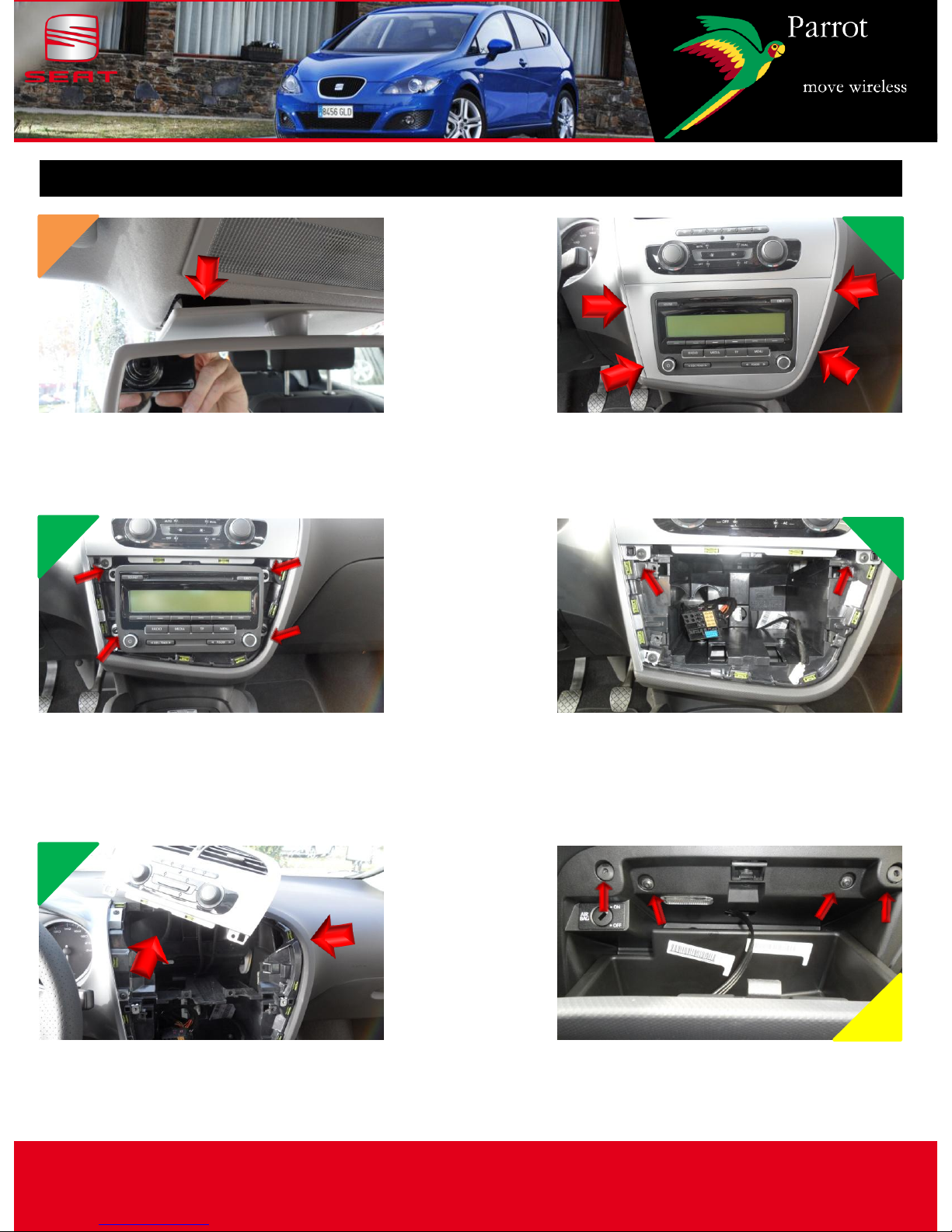

Disassembly 1 / 2
Using the plastic trim tools,
unhook the left-hand side of the
rear-view mirror cover.
Using the plastic trim tools, unclip
the radio surround.
Remove screws 1, 2, 3 and 4
around the car stereo, then
disconnect the connector and
the aerial cables.
Unscrew screws 5 and 6 from the
air conditioning unit.
5
6
Unclip the cover then remove it
taking care not to disconnect anything
Place the cover on the top.
Unscrew screws 7, 8, 9 and 10
located at the top of the glove
box.
1
3
2
4
1
2
3
4
5 6
7 8 9 10
LEON
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.

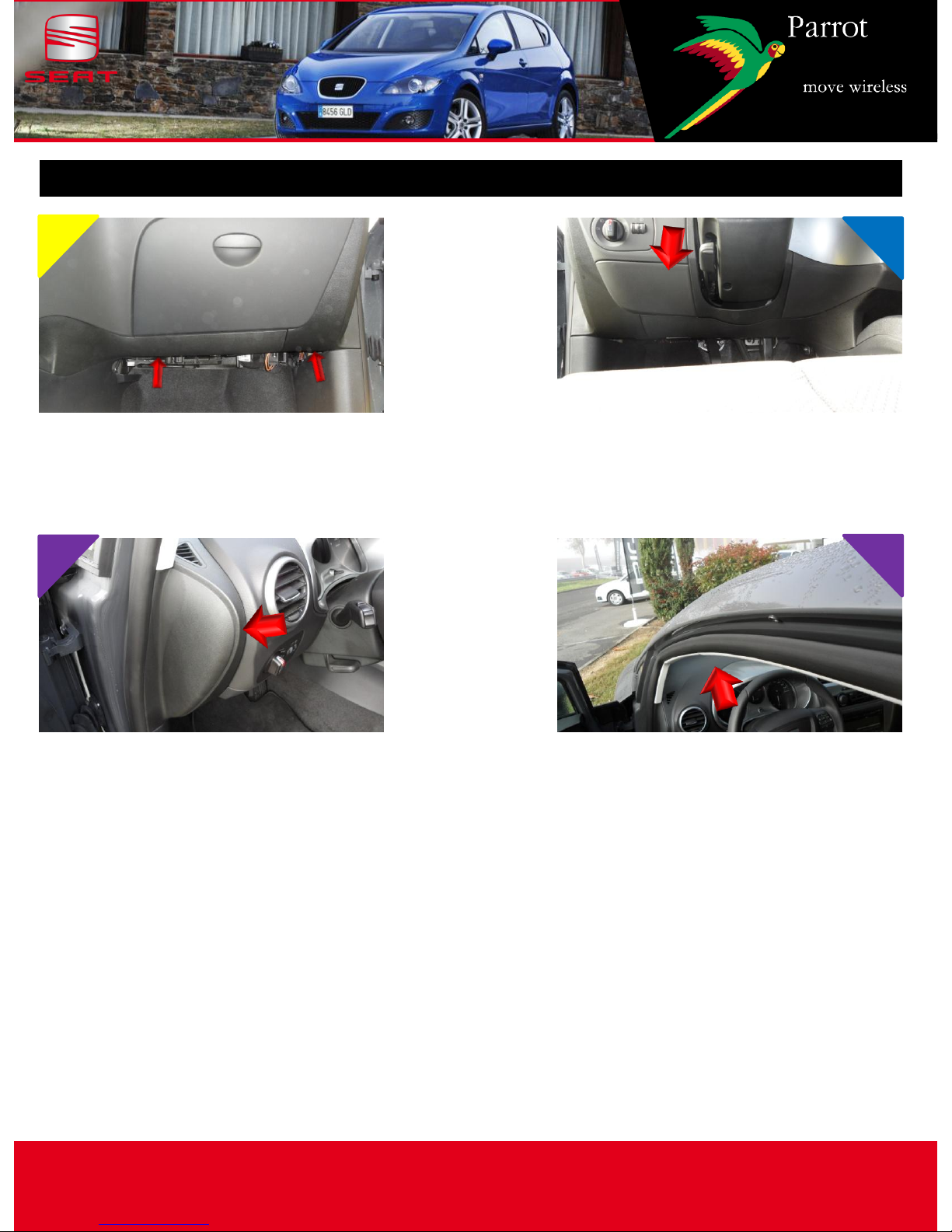

Disassembly 2 / 2
Unscrew screws 11 and 12 located
under the glove box.
Using the plastic trim tools,
unclip the cover underneath the
steering wheel.
Using the plastic trim tools,
unclip the driver's side of the
dashboard.
Remove the door seal.
7
9
8
10
11 12
LEON
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.

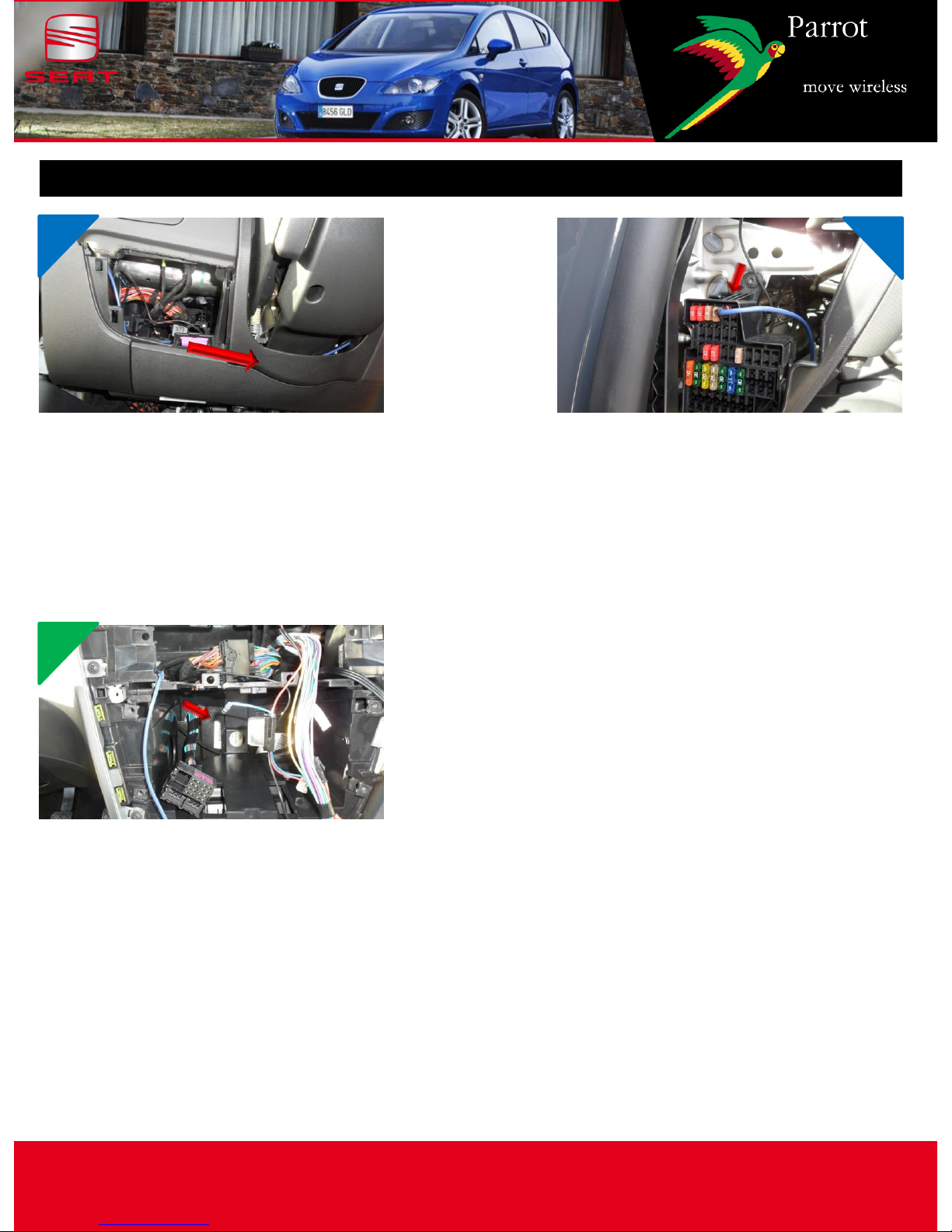

Finding an IGN wire
Using a guide, feed an electric
wire from under the steering
wheel to the car stereo control
housing. Feed the wire to the left
into the fusebox housing.
Fit a 1.5 mm terminal and insert it
into one of the small fuse slots at
the top of the box (using a
multimeter, check that the +12V
supply is indeed controlled by the
ignition key).
Connect the +IGN using a male
round terminal to the blue wire
of the 84942 adapter in front of
the fuse holder or on the red
wire of the 86492 or
YY138CABL2 adapter.
1
3
2
LEON
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.

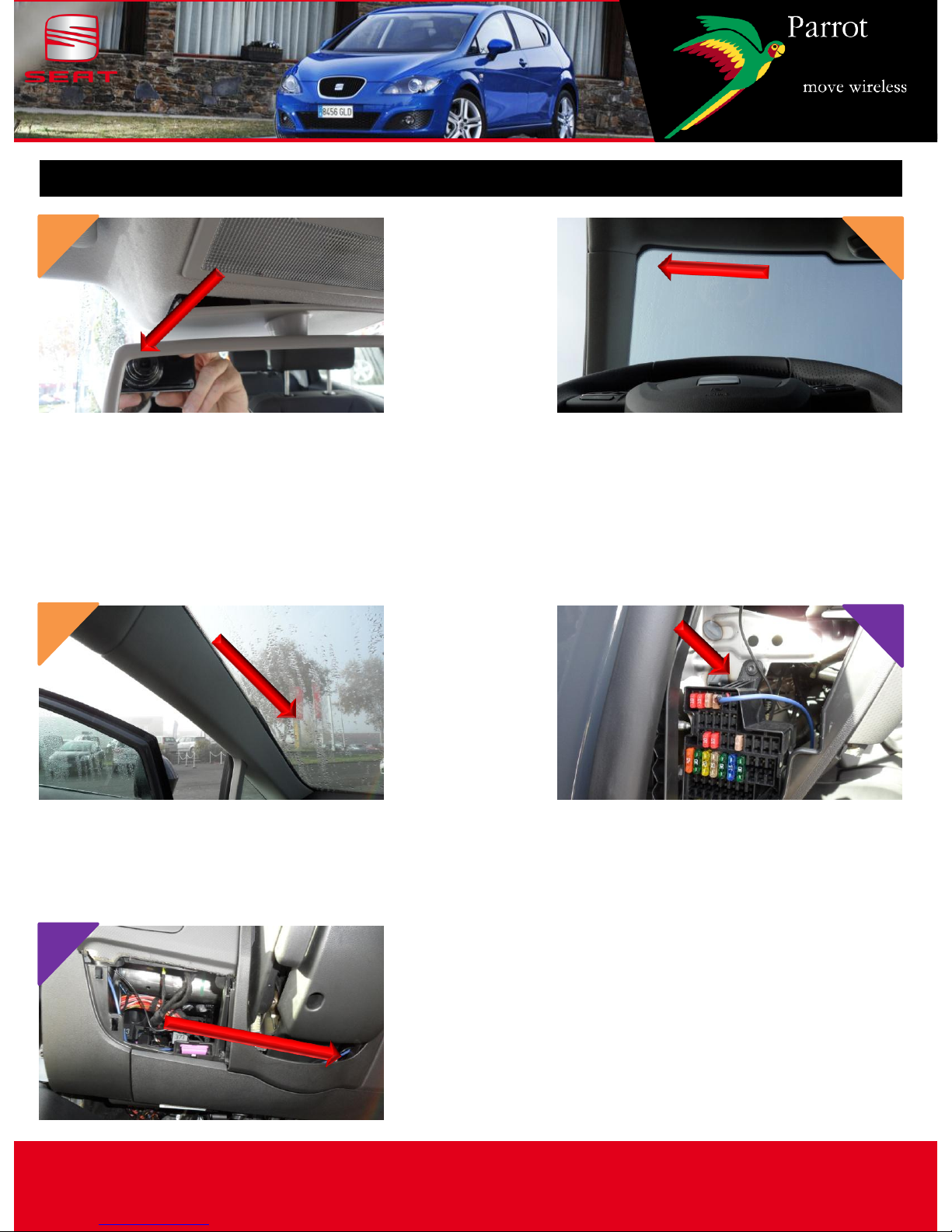

Wiring the microphone
Using a guide, feed the cable from
the cabin light to the windscreen.
Glue the bracket (supplied) to the
left of the rear-view mirror cover,
after having thoroughly
degreased the surface.
Using a guide, feed the cable from
along the windscreen under the
head liner.
Slide the cable along the driver's
door pillar while replacing the
door seal.
Feed the cable through the
fusebox.
4
5
Using a guide, feed the cable
under the steering wheel
towards the car stereo housing.
1
3
2
LEON
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.

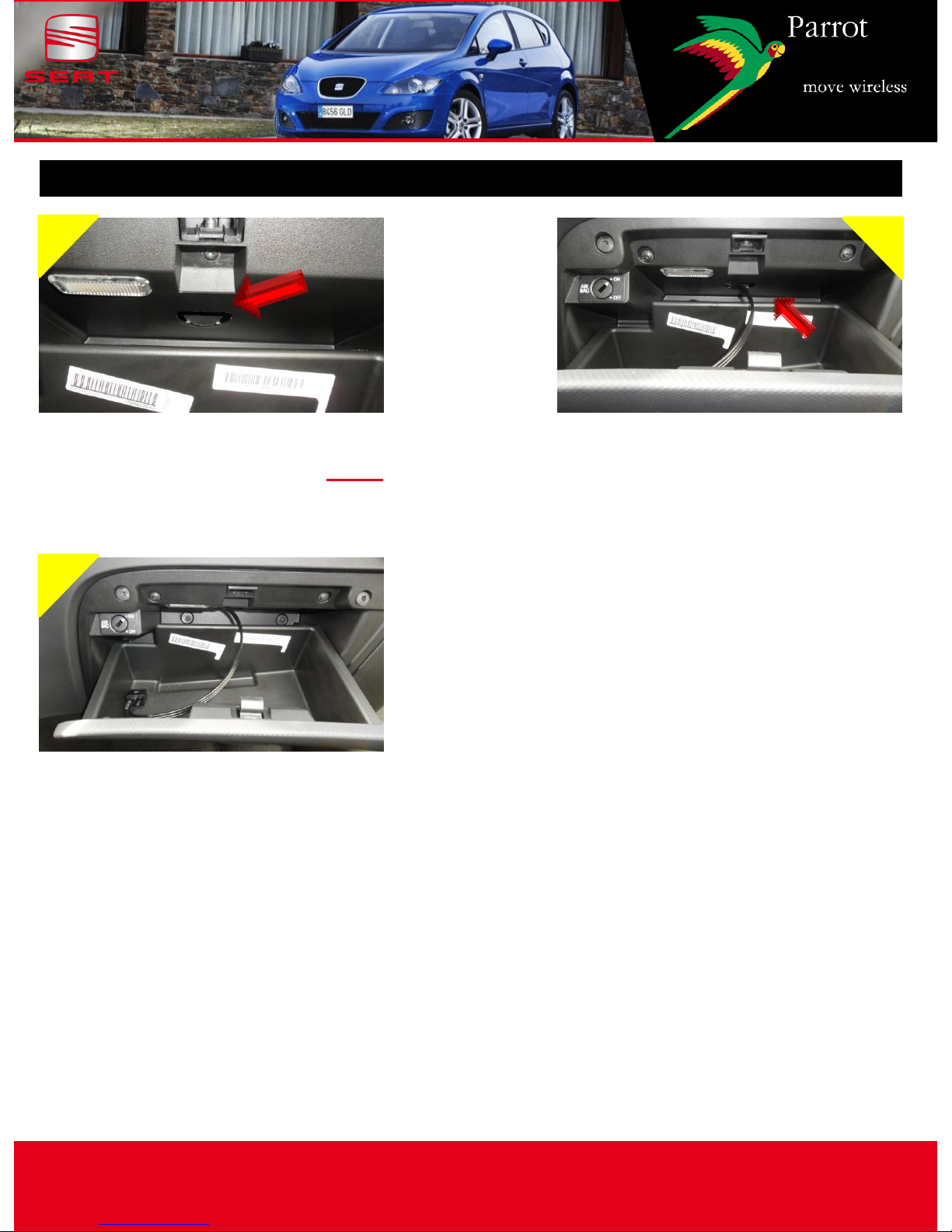

Feeding the accessory cable
On the top of the glovebox, break
the cable blank.
Using a guide, feed the cable into
the top part of the glove
compartment and towards the air
conditioning control unit housing.
1 2
Then feed the cable being careful
to leave enough length.
3
LEON
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.

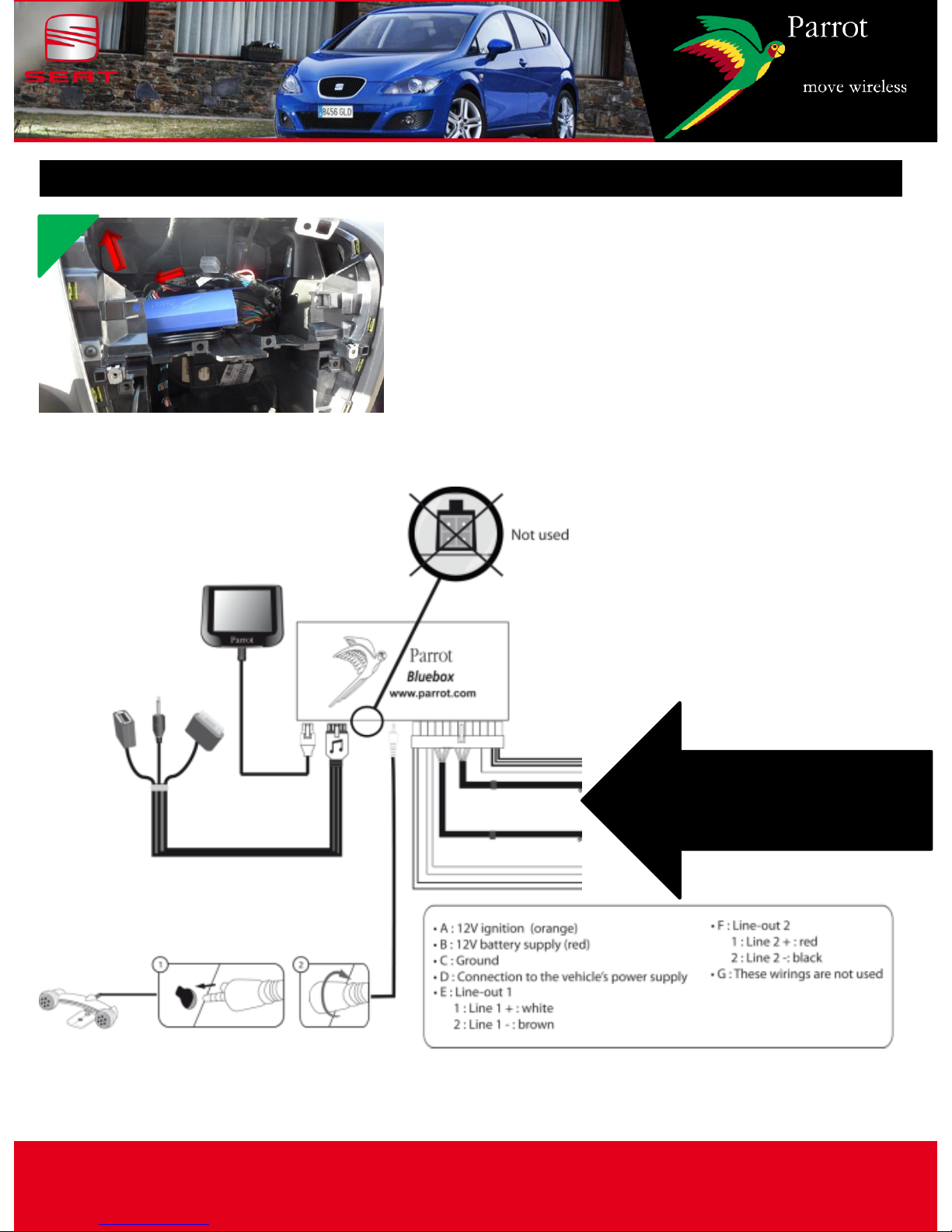

Fitting the hands-free system 1 / 2
Bring out the original connector from below and slide
it towards the top in the air conditioning housing.
Then feed the adapter connector to the radio.
Connect the adaptor to the original connector and
connect all of the wires to the blue box as shown in
the diagram below. Test the assembly before
completing fitting and then slide everything behind
the air conditioning control unit.
1
Direct adaptor cable
LEON
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.

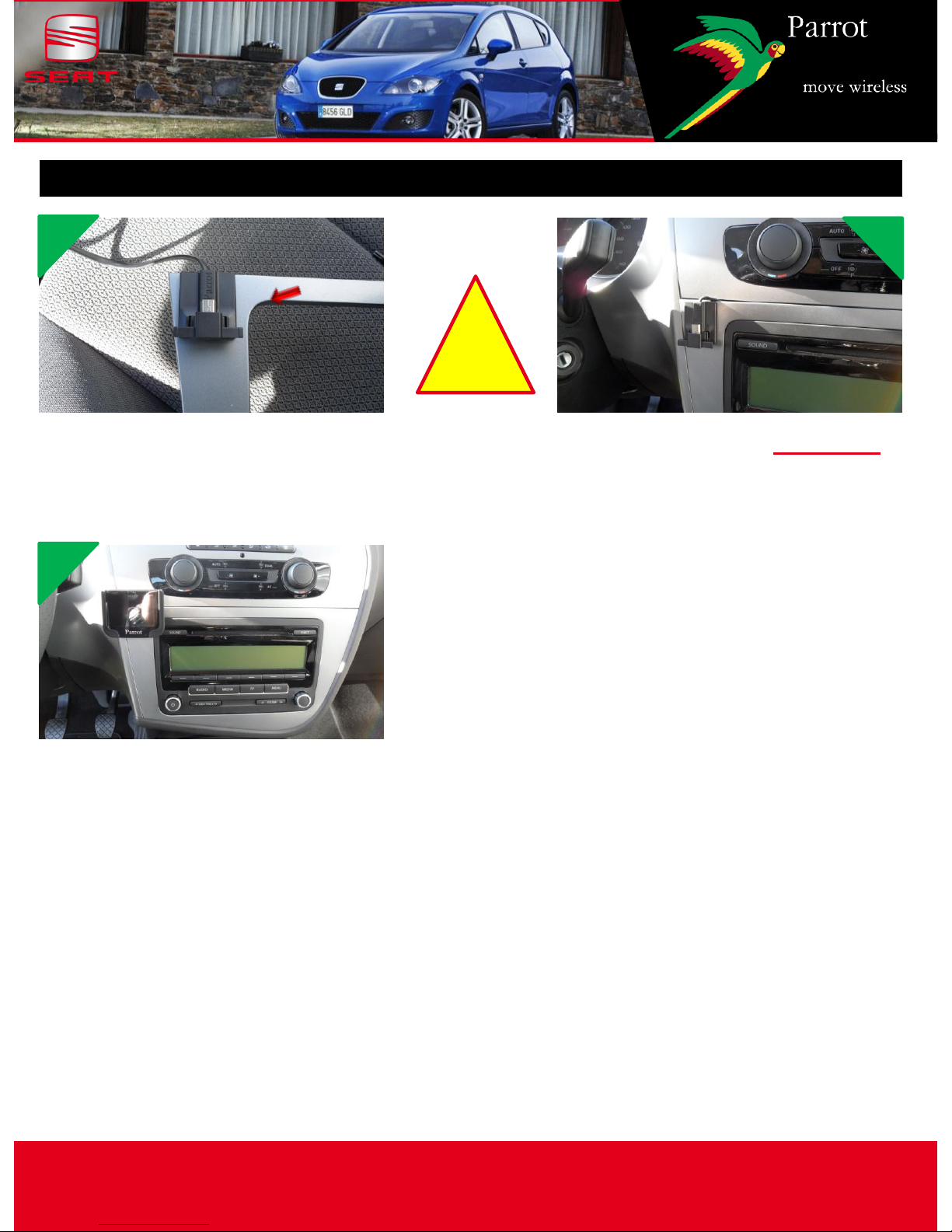

Fitting the hands-free system 2 / 2
Glue the bracket (supplied) to
the top-left corner of the radio
surround.
When reassembling TAKE CARE
not to cut the wire with the radio
fixings.
Then position the screen.
2
4
3
12
!
