Air tool set PDSS A1

Introduction

We congratulate you on the purchase of

your new device. You have chosen a high

quality product. The instructions for use

are part of the product. They contain important infor-

mation concerning safety, use and disposal. Before

using the product, please familiarise yourself with

all of the safety information and instructions for use.

Only use the unit as described and for the speciﬁed

applications. If you pass the product on to anyone

else, please ensure that you also pass on all the

documentation with it.

Q Proper use

This tyre inﬂator gauge is intended for pumping up

cycle tyres, inﬂatable boots, inﬂatable mattresses,

balls etc. The blow gun is intended for cleaning

and blowing out material from objects and diﬃcult

to access places. Any other use or modiﬁcation to

the device shall be considered as improper use and

could give rise to considerable risk of accident. We

will not accept liability for loss or damage arising

from improper use. The device is intended for private

domestic use only.

Q Features and equipment

1Gauge

2Tyre inﬂator gauge

3Deﬂator valve

4Plug-in nipple

5Hose with valve connector, straight

6Trigger

7Blow gun

8Extension nozzle

Accessory:

9Cap for 14 , 15 , 16

10 Ball needle

11 Universal adapter,

for valves with internal Ø of approx. 9mm

12 Universal adapter,

for valves with internal Ø of approx. 6mm

13 Valve adapter, e.g. for cycle tyre valves

14 Universal adapter.

for valves with internal Ø of approx. 8mm

15 Adapter for screw valves, e.g. on inﬂatable

dinghies

16 Adapter for deﬂator valves

Q Included items

1 Tyre inﬂator gauge

1 Blow gun

2 Extension nozzles

1 Adapter set (8-piece)

1 Operating instructions

Q Technical data

Working pressure: Max. 8 bar

Compressed air quality: Cleaned, oil- and

condensate-free

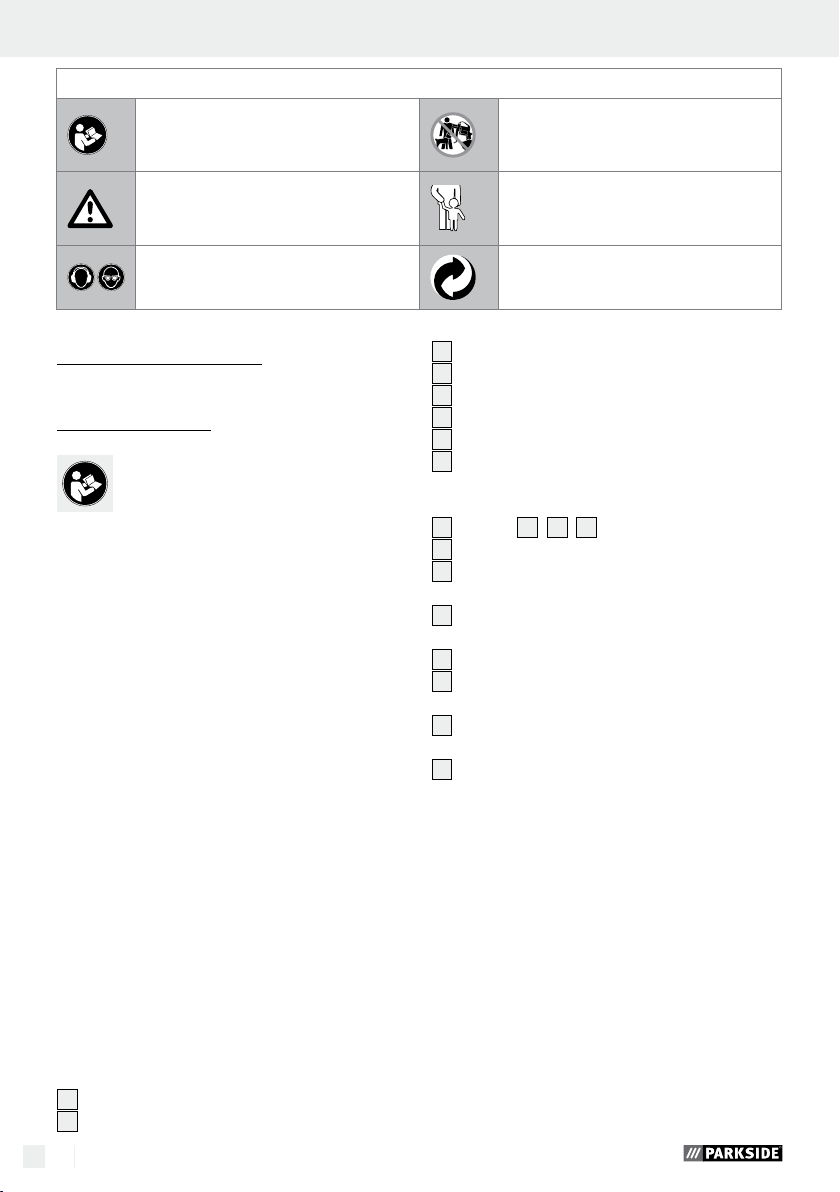

The following pictograms are used in these operating instructions/on the device:

Read instruction manual! Never point the device at people or

animals.

Observe caution and safety notes! Keep children away from the device!

Wear hearing protection and

protective glasses Dispose packaging and appliance in

an environmentally-friendly way!

7GB

Introduction/Safety advice

Volume ﬂow rate: Typically 170–300

Ltr. / Min.

Sound pressure level: 86dB(A)

Sound power level: 98dB(A)

Values determined in accordance with EN 14462

(EN1953/A1:2009).

Safety advice

Read all the safety advice

and instructions. Failure to observe the safety

advice and instructions could result in serious inju-

ry and/or damage to property.

Keep all the safety advice and instruc

tions

in a safe place for future reference!

Check the air pressure with

a suitable manometer after filling.

DANGER OF SUFFOCA-

TION! Working with nitrogen presents

a danger of suffocation! Work in well

ventilated spaces only.

RISK OF FIRE, EXPLOSION

AND DAMAGE TO HEALTH! The device

must be used in well-ventilated areas only.

DANGER OF INJURY!

Never exceed the maximum allowable working

air pressure of 8 bar. Use a pressure reducer

to set the working air pressure.

RISK OF RECOIL FORCES!

High working pressures can give rise to recoil

forces that under certain conditions can result

in danger from continuous loading.

DANGER OF INJURY!

IMPROPER USE! Never point the

device at people or animals.

DANGER OF INJURY!

Never use oxygen or other combustible gas as

the energy source.

DANGER OF INJURY!

First disconnect the hose from the

compressed air source and only then

disconnect the compressed air supply

hose from the device. This will ensure that

the compressed air supply hose does not wave

around or recoil in an uncontrolled manner.

For your own safety, wear

suitable personal protective

equipment.

Keep children and other peo

ple

away while you are operating

the device. Distractions can cause

you to lose control of the device.

Disconnect the device from the compressed air

source before carrying out any repairs or main-

tenance of the device or moving it to another

location.

When removing the hose coupling, hold the

hose tightly in your hand to avoid injury

caused by the hose shooting backwards.

Look out for damage on the device.

Check the device for damage before bringing

it into use. Do not use the device if you discov-

er any defects.

Do not kink the device’s hose, otherwise you

may damage it.

NOTE! Observe the safety advice provided

by the manufacturer of your inflatable article.

Do not remove rating plates or labels - they

are safety-relevant parts of the device.

If you are inexperienced in the use of this type

of device, you should seek out information or

training to learn how to handle it safely.

Q Original accessories/

attachments

Use only the accessories and attach-

ments detailed in the operating in-

structions. The use of accessories other than

those recommended in the operating instructions

could lead to you being in danger of injury.

Introduction

8 GB

Q Bringing into use

Q Connecting the

compressed air source

NOTE: Operate the product only with cleaned, conden-

sate- and oil-free compressed air and never exceed the

maximum working air pressure at the device of 8 bar.

NOTE: The compressed air source must be ﬁtted

with a (ﬁlter)/pressure reducer so that the air pres-

sure can be regulated.

Connect the product to a suitable compressed air

source by connecting the quick-release coupling

of the air supply hose with the plug-in nipple 4to

the product. It locks itself in place automatically.

Q Using the tyre inﬂator gauge 2

1. Place the valve connector 5on to the valve.

Schrader valve

(e.g. often used on mountain bikes)

2. Press the trigger 6to start the delivery of air.

3. Release the trigger 6to stop the delivery of air.

Read oﬀ the ﬁlling pressure on the gauge 1.

4. If the object is overﬁlled with air (air pressure

too high): Press the deﬂator valve 3to release

some air.

5. Press the lever of the valve connector 5down-

wards and pull the valve connector 5oﬀ the

valve.

6. After you ﬁnish work, disconnect the device

from the compressor.

NOTE: First disconnect the hose from the com-

pressor and only then disconnect the compressed

air supply hose from the device. This will ensure

that the compressed air supply hose does not

wave around in an uncontrolled manner.

Using accessories:

Press the lever of the valve connector 5and

insert the desired accessory 10 to 13 or the

cap 9into the valve connector 5.

Presta valve, e.g. cycle tyre valve

Dunlop valve, traditional cycle tyre valve

TIP: Use the valve adapter 13 for the cycle tyre

valves shown.

Q Using the blow gun 7

1. Screw an extension nozzle 8on to the blow

gun 7.

2. Press the trigger 6to start the delivery of air.

3. Release the trigger 6to stop the delivery of air.

4. After you ﬁnish work, disconnect the device

from the compressor.

NOTE: First disconnect the hose from the com-

pressor and only then disconnect the compressed

air supply hose from the device. This will ensure

that the compressed air supply hose does not

wave around in an uncontrolled manner.

Maintenance and cleaning/Service centre /Warranty /DisposalBringing into use

9GB

Q Maintenance and cleaning

DANGER OF INJURY!

Always disconnect the device from the compres

sed

air source before you clean or maintain it.

The device requires no maintenance.

Do not use sharp objects for cleaning the device.

Do not allow any liquids to enter the device.

Otherwise the device could be damaged.

Clean the device frequently; for best results, do

this immediately after you have ﬁnished using it.

Clean the housing with a dry cloth.

Q Service centre

Have your device

repaired only by qualified specialist

personnel using original manufacturer

parts only. This will ensure that your device

remains safe to use.

QWarranty

The warranty for this appliance is for 3

years from the date of purchase. The ap-

pliance has been manufactured with care

and meticulously examined before deliv-

ery. Please retain your receipt as proof of

purchase. In the event of a warranty claim,

please make contact by telephone with our

Service Department. Only in this way can a

ost-free despatch for your goods be assured.

The warranty covers only claims for material and

maufacturing defects, but not for transport damage,

for wearing parts or for damage to fragile compo-

nents, e.g. buttons or batteries. This product is for pri-

vate use only and is not intended for commercial use.

The warranty is void in the case of abusive and im-

proper handling, use of force and internal tamper-

ing not carried out by our authorized service branch.

Your statutory rights are not restricted in any way

by this warranty.

The warranty period will not be extended by repairs

made unter warranty. This applies also to replaced

and repaired parts. Any damage and defects extant

on purchase must be reported immediately after

unpacking the appliance, at the latest, two days after

the purchase date. Repairs made after the expiration

of the warranty period are subject to payment.

Service Great Britain

Tel.: 0871 5000 720

(0,10 GBP/Min.)

e-mail: k[email protected]

IAN 73785

Disposal

The packaging is wholly composed of

environmentally-friendly materials that can

be disposed of at a local recycling centre.

Do not dispose of the product with

household rubbish!

Contact your local refuse disposal authority for

more details of how to dispose of your worn out

electrical devices.

Maintenance and cleaning/Service centre /Warranty /DisposalBringing into use

10 GB

Spis zawartości

Q Declaration of Conformity/

Manufacturer

We, Kompernaß GmbH, the person responsible for

documents: Mr Semi Uguzlu, Burgstr. 21, D-44867

Bochum, Germany, hereby declare that this product

complies with the following standards, normative

documents and EU directives:

Machinery Directive

(2006/42/EC)

Applicable harmonized standards

DIN EN 1953:1998+A1:2009

(EN 1953:1998+A1:2009)

DIN 31000:1979+A1:2007

Type / Device description:

Air tool set PDSS A1

Date of manufacture (DOM): 03–2012

Serial number: IAN 73785

Bochum, 31.03.2012

Semi Uguzlu

- Quality Manager -

We reserve the right to make technical modiﬁca-

tions in the course of further development.

Declaration of Conformity/Manufacturer

Autres manuels pour PDSS A1

Table des matières

Langues :

Autres manuels Parkside Pompe à eau

Parkside

Parkside PKZ 180 C5 Manuel utilisateur

Parkside

Parkside PHGA 1300 A1 Guide rapide

Parkside

Parkside PKA 20-Li B2 Manuel utilisateur

Parkside

Parkside PRP 400 B1 Manuel utilisateur

Parkside

Parkside PTPS 1100 A1 Manuel utilisateur

Parkside

Parkside PBZS 5 A1 Manuel utilisateur

Parkside

Parkside PALP 16 A1 Manuel utilisateur

Parkside

Parkside PKZ 180 C5 Manuel utilisateur

Parkside

Parkside PTPS 1100 B2 Manuel utilisateur

Parkside

Parkside PRP 400 A1 Manuel utilisateur

Parkside

Parkside PGPS 1100 A1 Manuel utilisateur

Parkside

Parkside PBZS 5 A1 Manuel utilisateur

Parkside

Parkside 363935 2010 Manuel utilisateur

Parkside

Parkside PTPK 270 A1 Manuel utilisateur

Parkside

Parkside PGPS 1100 A1 Manuel utilisateur

Parkside

Parkside PKZ 180 C5 Manuel utilisateur

Parkside

Parkside KH 4125 DRILL-POWERED WATER PUMP Manuel utilisateur

Parkside

Parkside PRPA 20-Li A1 Manuel utilisateur

Parkside

Parkside PHWW 1200 A1 Manuel utilisateur

Parkside

Parkside PKZ 180 C5 Manuel utilisateur

Parkside

Parkside PDSS A1 Manuel utilisateur

Parkside

Parkside PALP 16 A1 Manuel utilisateur

Manuels Pompe à eau populaires d'autres marques

Neptun

Neptun NPHW 5500 Manuel utilisateur

Sensidyne

Sensidyne Gilian BDX-II Instructions d'installation et d'utilisation

Draper

Draper 47808 Manuel utilisateur

Trolla

Trolla 12820 Manuel utilisateur

Sunfab

Sunfab SVH Series Manuel utilisateur

WilTec

WilTec 50740 Manuel utilisateur

Fieldmann

Fieldmann FVC 5015 EK Manuel utilisateur

Everbilt

Everbilt EFSUB5-122HD Manuel utilisateur

Graco

Graco Husky 3300e Manuel utilisateur

esotec

esotec 101018 Manuel utilisateur

moyno

moyno 2000 CC Manuel utilisateur

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuel utilisateur

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guide de dépannage

DUROMAX

DUROMAX XP WX Series Manuel utilisateur

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuel utilisateur

Franklin Electric

Franklin Electric IPS Manuel utilisateur

Xylem

Xylem e-1532 Series Manuel utilisateur

Milton Roy

Milton Roy PRIMEROYAL Manuel utilisateur
