Parkside AIR SANDBLASTING GUN - 2 Manuel utilisateur

AIR SANDBLASTING GUN

AIR sAndblAstIng gun

Operation and Safety Notes

ΠΙΣΤΟΛΙ ΑΜΜΟΒΟΛΗΣ ΑΕΡΟΣ

Υποδείξεις χειρισμού και ασφαλείας

sAndblÆsEpIstol mEd tRykluft

Brugs- og sikkerhedsanvisninger

dRuCkluftsAndstRAHlpIstolE

Bedienungs- und Sicherheitshinweise

Druckluft-Sandstrahlpistole_Cover_LB3 (GB-DK-GR-DE).indd 6 24.06.09 11:37

GB/IE/CY Operation and Safety Notes Page 5

DK Brugs- og sikkerhedsanvisninger Side 17

GR/CY Υποδείξεις χειρισμού και ασφαλείας Σελίδα 29

DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 41

sAndblÆsEpIstol mEd tRykluft

Brugs- og sikkerhedsanvisninger

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions

of the device.

Før du læser, vend siden med billeder frem og bliv bekendt med alle apparatets funktioner.

Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με τις εικόνες και εξοικειωθείτε με όλες τις

λειτουργίες της συσκευής.

Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend

mit allen Funktionen des Gerätes vertraut.

Druckluft-Sandstrahlpistole_Cover_LB3 (GB-DK-GR-DE).indd 7 24.06.09 11:37

215

C ED

A EB

6 109 12 138 117

Druckluft-Sandstrahlpistole_Cover_LB3 (GB-DK-GR-DE).indd 8 24.06.09 11:37

5GB/IE/CY

Introduction

Proper use............................................................. Page 7

Features and equipment ...................................... Page 7

Included items ...................................................... Page 8

Technical data...................................................... Page 8

Safety advice................................................ Page 9

Operation

Connecting the compressed air source .............. Page 10

Filling the blast medium container....................... Page 11

Using the air sandblasting gun............................ Page 11

Cleaning ............................................................ Page 12

Service................................................................ Page 12

Warranty.......................................................... Page 13

Disposal............................................................. Page 14

Declaration of Conformity/

Manufacturer............................................... Page 15

Table of contents

Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 5 24.06.09 11:34

6 GB/IE/CY

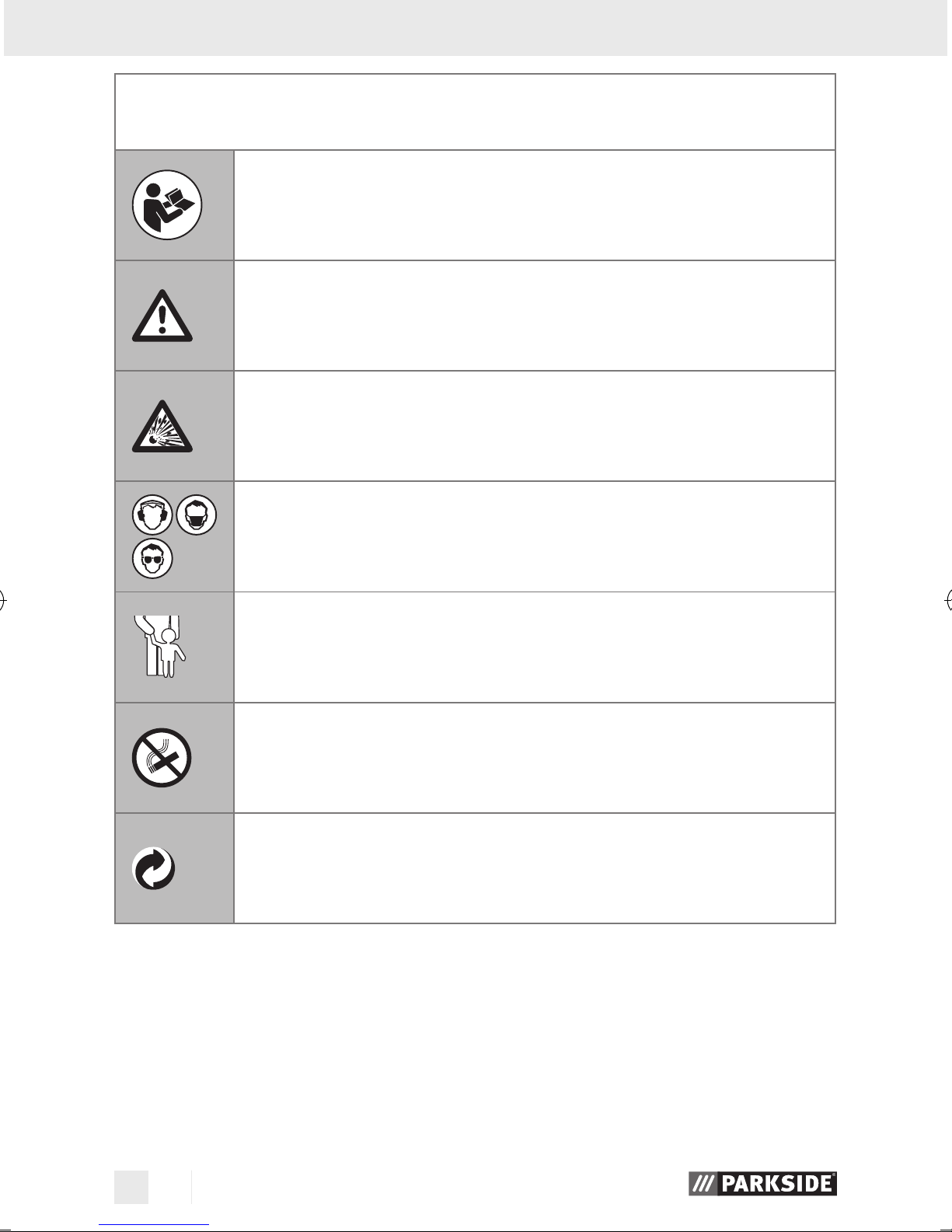

The following icons/symbols are used in

this instruction manual:

Read instruction manual!

Observe caution and safety notes!

Risk of explosion!

Wear hearing protection, dust protection mask

and protective glasses.

Keep children away from the device!

No smoking!

Dispose packaging and appliance in an

environmentally-friendly way!

Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 6 24.06.09 11:34

7GB/IE/CY

Air sandblasting gun

Q Introduction

Please make sure that you familiarise yourself fully with the

way the air sandblasting gun works before you use it for the

ﬁrst time and that you understand how to handle compressed

air sand blasting guns correctly. To help you do this, please read the

accompanying operating instructions. Keep these instructions in a safe

place. If you pass the air sandblasting gun on to anyone else, please

ensure that you also pass on all the documentation. Keep these instruc-

tions in a safe place. If you pass the device on to anyone else, please

ensure that you also pass on all the documentation.

Q Proper use

This device is intended for the removal of rust and paint from metal

surfaces. Any other use or modiﬁcation to the device shall be considered

as improper use and could give rise to considerable risk of accident.

We will not accept liability for loss or damage arising from improper

use. The device is intended for private, domestic use only.

Q Features and equipment

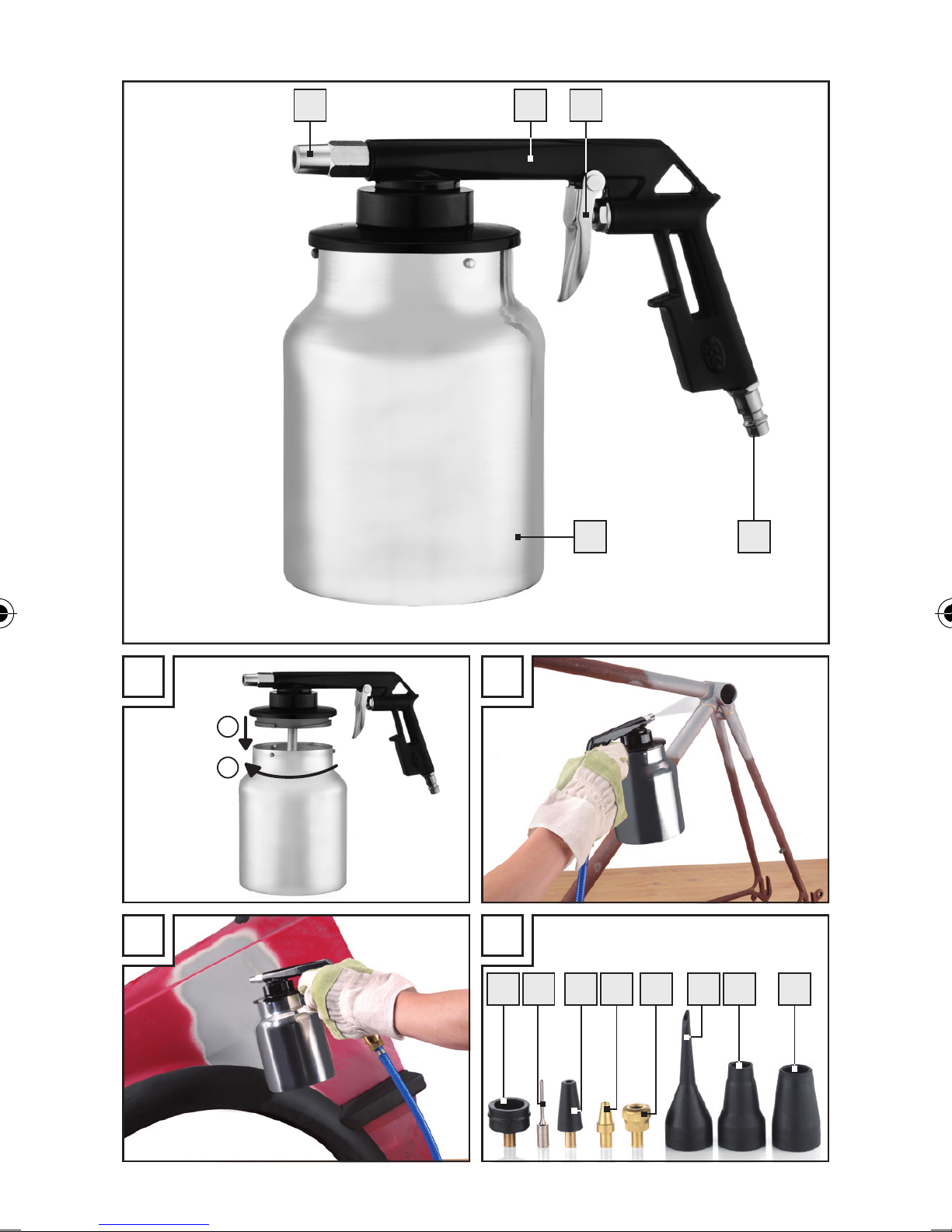

1Air sandblasting gun

2Trigger

3Plug-in nipple for compressed air connection

4Blast medium container

5Blast nozzle

Introduction

Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 7 24.06.09 11:34

8 GB/IE/CY

Introduction

Accessory (see Figs. D):

6Cap for 11, 12, 13

7Ball needle

8Universal adapter, for valves with internal Ø of approx. 9mm

9Universal adapter, for valves with internal Ø of approx. 6mm

10 Valve adapter, e.g. for cycle tyre valves

11 Universal adapter

12 Adapter for screw valves, e.g. on inﬂatable dinghies

13 Adapter for deﬂator valves

Q Included items

1 Air sandblasting gun

1 Operating instructions

1 Valve set (for use with a compressor)

Q Technical data

Max. Working pressure: 8bar

Recommended working air pressure: 6.3–8bar

Compressed air consumption: 130–260l/min

Nozzle ø: 2,8mm

Container capacity: 1000ml

Required air quality: Cleaned and oil-free

Working settings: Working air pressure setting at

the pressure reducer max. 8bar.

Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 8 24.06.09 11:34

9GB/IE/CY

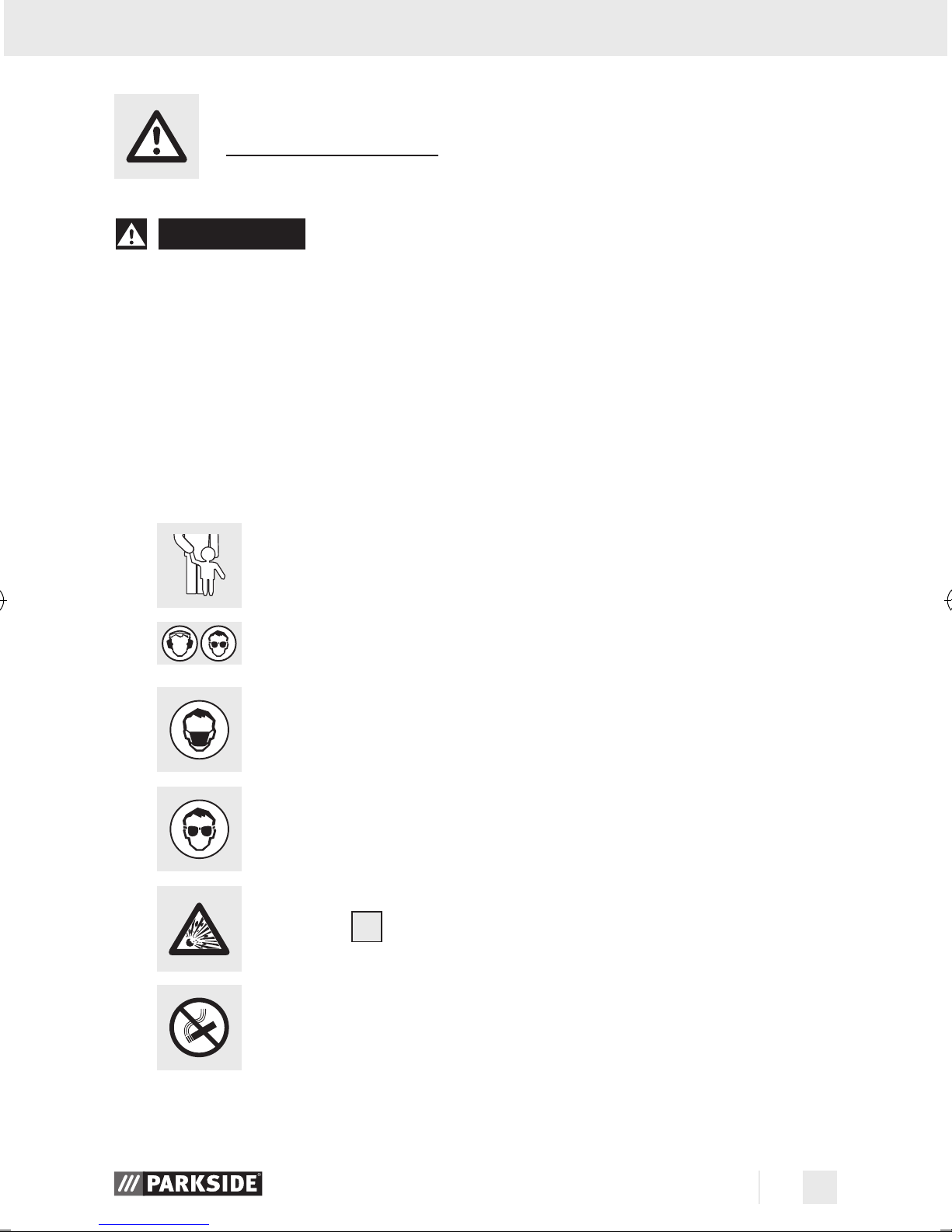

Safety advice

WARNING! Read all the safety advice and instructions. Even

minor failures to observe the safety advice and instructions could lead

to severe injury.

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE

PLACE FOR FUTURE REFERENCE.

JCheck the device for damage before bringing it into

use. Do not use the device if you discover any defects.

JKeep children and other people away while

you are operating the air sandblasting gun.

Distractions can cause you to lose control of the device.

JFor your own safety, wear suitable personal

protective equipment.

JWear an approved dust mask/

protective hood

JWear protective glasses!

JRISK OF EXPLOSION! Do not use the air sandblast-

ing gun 1in environments containing gases, open

ﬂames, ﬁres or gas-operated water heaters.

JNO SMOKING!

JWork in adequately ventilated spaces only.

Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 9 24.06.09 11:34

10 GB/IE/CY

JNever use oxygen or other combustible gas as the

energy source.

JNever exceed the maximum working air pressure of

8bar.

JDANGER OF INJURY! Disconnect the device from the compressed

air source before carrying out any repairs or maintenance of the

device or moving it to another location.

JDANGER OF INJURY! Disconnect the device from the compressed

air source before ﬁlling it with blast medium.

JUse only materials for the blast medium that are suit-

able for the air sandblasting gun. Do not use quartz

sand. There is the danger of toxic silicon dust forming.

JTake precautions to ensure that other people are not

contaminated (dust generation).

JEnsure that the spent blast medium is trapped and

collected so that it can be disposed of in an environ-

mentally compatible manner.

Q Operation

Q Connecting the compressed air source

NOTE: Operate the air sandblasting gun 1only with cleaned, con-

densate- and oil-free compressed air and never exceed the maximum

working air pressure at the device of 8bar.

NOTE: The compressed air source must be ﬁtted with a (ﬁlter)/pres-

sure reducer so that the air pressure can be regulated.

jConnect the air sandblasting gun to a suitable compressed air

source by connecting the quick-release coupling of the air supply

hose with the plug-in nipple 3to the air sandblasting gun 1. It

locks itself in place automatically.

Safety advice/Operation

Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 10 24.06.09 11:34

11GB/IE/CY

Operation

Q Filling the blast medium container

JAlways use a suitable blast medium for your sand blasting work.

NOTE: We recommend using a silica-free blast medium

(e.g. ground blast furnace slag) with a grading of 0.2mm–0.8mm.

jEnsure that the blast medium is completely dry and not too coarse.

NOTE: The maximum particle size is 0.8mm.

jTurn the bayonet cap of the blast medium container 4to open it.

jPull the blast medium container 4oﬀ downwards.

jFill the blast medium container 4with the desired amount of

blast medium.

jEnsure that the maximum capacity of the container (1000ml) is

not exceeded.

jScrew the blast medium container 4back on and lock it in place

by inserting and turning it on to the container lid (see Figs. A).

QUsing the air sandblasting gun

(see Figs. B, C)

jCarefully prepare the workpiece before sand blasting it.

Clean it if necessary.

NOTE: Deposits of dust and grease can have a considerably

detrimental eﬀect on the result.

jCarefully mask or tape oﬀ everything that is not to be sand blasted.

jEnsure that there is always a minimum distance of 20cm between

the air sandblasting gun 1and the surface being sand blasted.

Switching on:

jPress the trigger 2to start operating the air sandblasting gun 1.

Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 11 24.06.09 11:34
