WIDE ANGLE REVRESE CAMERA
with GRID-LINES & FLIP IMAGE
INSTALLATION / USER MANUAL
MODEL: CMD-14N
www.parkmate.com.au
Thank you for purchasing Parkmate’s CMD-14N camera. We are certain that our product will
give you trouble-free operation while providing you with a safety feature that enhances your
driving experience.
Our products, like most after-market safety enhanced devices, are to assist and aid the driver,
not to replace the manual function of the person operating the vehicle.
Although this is a visual aid and will allow you to view what is behind the vehicle, it does not
remove the responsibility of driving the vehicle from the driver. The legal responsibility and
safe driving practise remains with the driver at all times. You have purchased this product
with the understanding that its use is as an aid only. We highly recommend that you have
this product professionally installed to ensure that it will provide the functions it is set out to
perform.
CMD-14N
Component List:
Notes:
• Please read this manual carefully before using the product.
• This system is intended as an aid to safe reverse operation. Drivers must always use
extreme caution when operating a vehicle.
• Specifications subject to change without prior notice.
Warning:
• Do not disassemble the camera or cut the camera cable as this voids the warranty.
Disassembling the camera will compromise the waterproof seal.
• Do not remove the Directed warranty sticker as this voids warranty.
Technical Specifications: Wiring Diagram:
Signal System: NTSC
Horizontal Resolution: 550TVL
Minimum Illumination: 0.2Lux
Diagonal Angle: 170°
Waterproof Grade: IP67
Nominal Voltage: DC12V
Working Temp.: -20°C to 85°C
Front view option: CMD-14N functions as a rear view
camera standard and also supports front view. For front
view application, you can cut the thin WHITE wire near the
camera lead and restart power to see the image reversed.
Grid-Line option: CMD-14N has parking grid-lines as a
default. To remove grid-lines, cut the thin GREEN wire
near the camera lead. Power on and the grid-lines will
now be removed.
camera
bumper adaptor
hole saw
3M tape
power harnessscrews 6m video cable
splitter cable
RED to Reversing Light +
BLACK to Ground
Switching Wire
Monitor Video Input
video extension cable

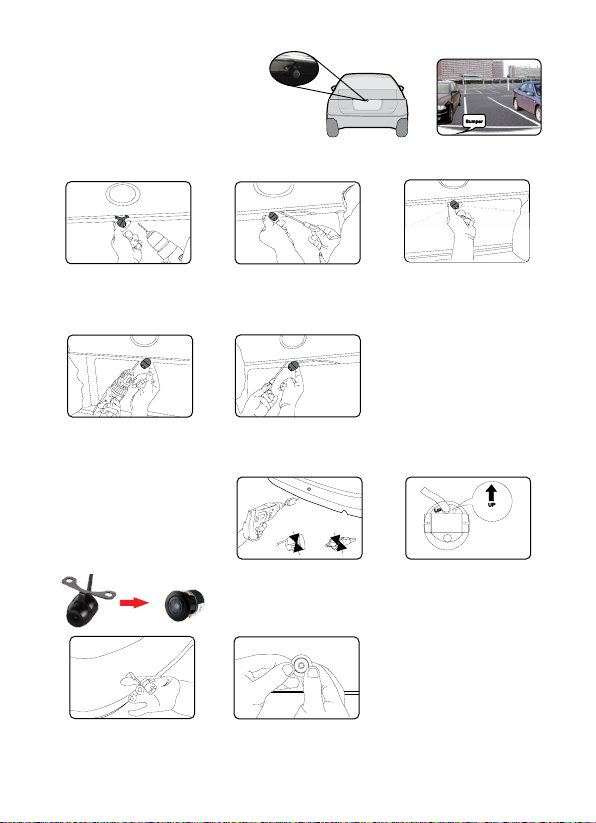

Installation - Butterfly Mount
1. Select a flat and centred location
near the number plate lamp at the
rear of the vehicle to mount camera.
IMPORTANT: When selecting this location it is highly recommended that the image transmitted
by the camera show the rear bumper and area behind the vehicle.
Installation - Flush Mount
1. Unscrew the upper part of
the camera anticlockwise,
detach the upper part and
bracket, and place the
bumper adaptor instead.
2. Attach the 3M tape to the
bracket of the camera, and
drill a small hole for the
first screw.
3. Use a screw driver to fix
the first screw, but don’t
tighten it yet.
4. Insert camera wire through
newly drilled hole and
mount securely in place.
5. Mark the position suitable
for the second screw and
drill a small hole for it.
6. Fix the second screw and
tighten both screws.
4. Pull the camera lead
through the bumper hole
before fixing the camera.
5. Put the camera into the
hole and use both your
thumbs to press it evenly
to ensure tight and flat
mounting.
2. Mark the middle position
of rear bumper, and drill
a hole with the provided
16.5mm hole saw.
3. Adjust the camera to turn
the UP arrow straight
up-wards.
Suggested location
to mount camera
Testing
How to test:
1. Apply the parking brakes. (Saftey Precaution)
2. Turn Ignition on. (DO NOT TURN ON VEHICLE)
3. Shift into reverse gear.
4. Image should appear on the monitor.
Trouble Shooting:
Maintenance:
Always keep camera clear from dirt and mud. Clean camera with a soft moist cloth.
Australian Residents - Warranty Terms & Conditions:
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and for compensation for
any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
This warranty is provided in addition to your rights under the Australian Consumer Law.
Directed Electronics warrants that this product is free from defects in material and
workmanship for a period of 12 months from the date of purchase or for the period stated on
the packaging. This warranty is only valid where you have used the product in accordance
with any recommendations or instructions provided by Directed Electronics.
This warranty excludes defects resulting from alterations of the product, accident, misuse,
abuse or neglect.
In order to claim the warranty, you must return the product to the retailer from which it was
purchased or if that retailer is part of a National network, a store within that chain, along with
satisfactory proof of purchase. The retailer will then return the goods to Directed Electronics.
Directed Electronics will repair, replace or refurbish the product at its discretion. The retailer
will contact you when the product is ready for collection. All costs involved in claiming this
warranty, including the cost of the retailer sending the product to Directed Electronics, will be
borne by you.
Directed Electronics Address: 44 Translink Drive, Keilor Park Victoria Australia 3042
Ph: +61 03 8331 4800
Email: [email protected]
To view the complete Parkmate range or for details on how to contact us, please visit our
website at www.parkmate.com.au
Problem Solution
“No Signal” appears while reversing 1. Check video input connections
2. Check camera power connections
Video image is not sharp Check camera lens for debris
