Parkinson Cowan SG 505X Manuel utilisateur
SG 505X
Operating
and
Installation Instructions
Introduction
This gas appliance has been designed and manufactured to all the
necessary British Standards. It also carries the C.E. mark. The
appliance complies with European Council Directive 90/396/EEC.
It is important that you understand how to use and care for the
appliance properly before you use it for the first time.
We have written this booklet with your safety in mind. Read the
booklet thoroughly before you use the appliance. Keep the booklet in a
safe place so that anyone who uses the appliance can read it. Pass the
booklet on with the appliance if you give or sell it to someone else.
We have included several drawings to show the right and wrong way
of doing things.
The right way will have a smiling face by it.
A sad face shows something is wrong.
RATING PLATE
This is situated on the lower front frame of the appliance and can be
seen upon opening the door. Alternatively the rating plate may also be
found on the back or top of some models (Where applicable). Do not
remove the rating plate from the appliance as this may invalidate
the guarantee.
For your safety
This appliance is not intended to be operated by means of an
external timer or separate remote control system.
This appliance is designed for domestic use to cook food. You
must not use it for any other purpose. It is not designed for
commercial use.
Keep children, babies and toddlers away from the appliance at
all times.
The installation instructions tell you how and where it can be
fitted. If the appliance is already installed you must make sure
that all instructions have been followed. If you are in any doubt
ask a registered person. More details on installation on page 32.
2
S G 5 0 5 X
Introduction
Lighting the appliance 4
The grill 7
The hotplate 10
The ovens 13
Oven cooking chart - main oven 16
- second oven 19
The electronic minute minder 22
Slow cooking 24
Care and cleaning 26
Installing the appliance 32
General information 34
What is wrong and why? 36
Servicing 38
Installation Instructions 40
Technical Data 41
Safety requirements/ventilation 42
Location of appliance 43
Installation 44
Testing 46
3
S G 5 0 5 X
Contents
Contents Page
Lighting the appliance
The system works by means of an electric spark system. Details about
the plug are given on page 34.

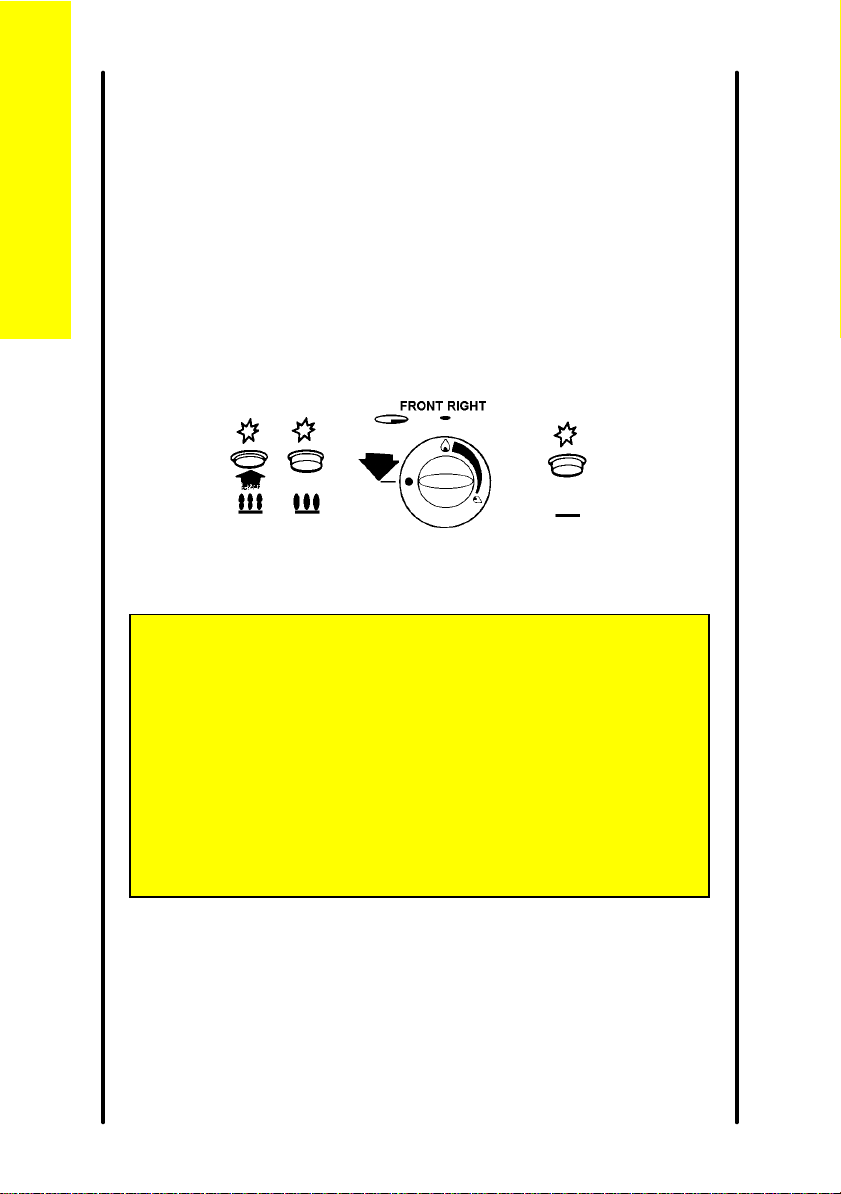

Hotplate
To light
1. Lift up the lid. You cannot use the hotplate when the lid is down.
2. Push in the control knob and turn it to the large flame symbol
(highest setting), and press the ignition button immediately. When
the burner has lit release the button.
Warning: If the ignition button is not pressed a build up of gas may
cause the flame to spread.
Please note: If you have any trouble lighting a hotplate burner turn all
the hotplate control knobs off and make sure the hotplate burner parts
have been replaced correctly.
See page 27 for more information.
4
S G 5 0 5 X
For your safety
If you close the lid of the appliance while any of the hotplate
burners are lit the gas will go out. This is because it would be
dangerous if the burners stayed on when the lid was closed.
Always use the control knob to turn off a burner. Do not use
the lid as a cut-off device. This will only cut off the gas when
the lid is closed. The gas will flow again when the lid is
opened.
Lighting the appliance

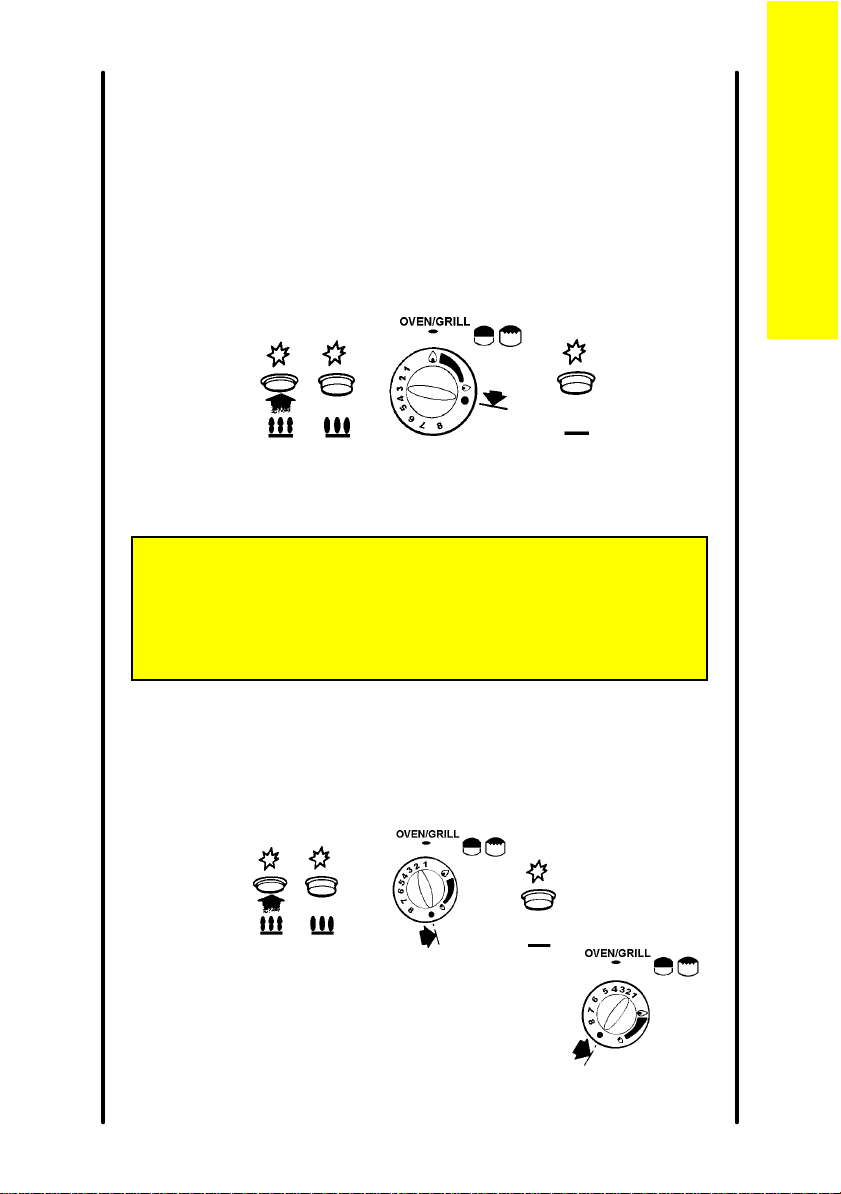

Grill/second oven
The grill and the second oven are operated by the same control so you
cannot use them both at the same time.
Grill
To light:
1 Open the door.
2 Push in the control knob and turn it to the right to the highest setting.
This is shown by a large flame symbol. Press the ignition button.
When the burner has lit release the button.
3 Leave the grill door open when you are using the grill.
Warning : If the ignition button is not pressed immediately a build up of
gas may cause the flame to spread.
Second oven
To light:
1 Open the oven door.
2 Push in the control knob and turn it to the left to gas mark 1. Press
the ignition button. When the burner has lit release the button. There
will only be small flames at first.
3 Now turn the control knob to the gas mark
you want.
4 Wait until the burner is showing large
flames.
5 Close the oven door.
Important: Remember to remove the grill pan handle before you use the
second oven.
5
S G 5 0 5 X
For your safety
Never cover the grill pan or grid with foil as this can lead to grill
fires
Lighting the appliance

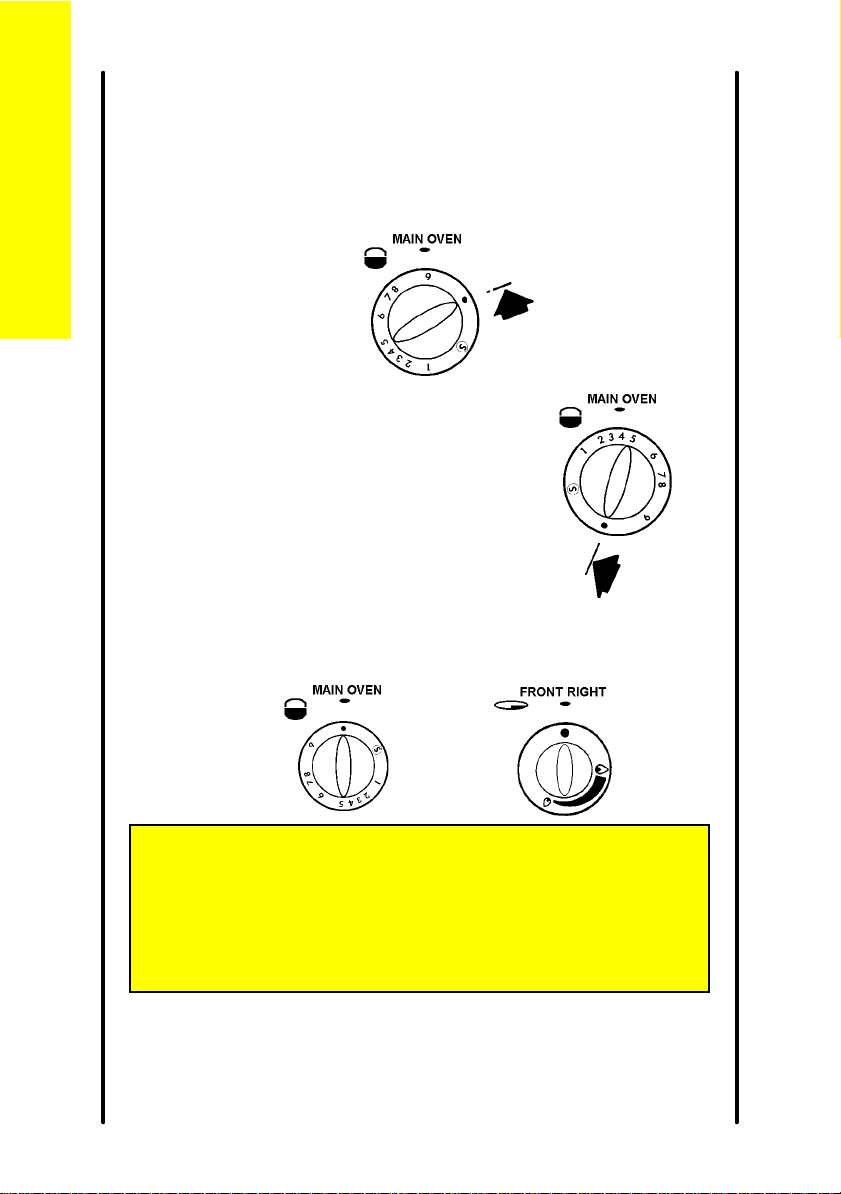

Main oven
To light:
1 Set the time of day on the clock. See page 22
2 Open the oven door.
3 Push in the control knob and turn it to gas mark 9. After a few
seconds the oven will light automatically and the oven light will
illuminate.
4 Now turn the control knob back to the gas
mark you want.
5 Wait until the burner is showing large
flames
6 Close the oven door.
If there is an electrical power failure (such as
a power cut) you cannot use the main oven.
You can use the second oven.
To turn off any burner
1 Push in the control knob and turn it to the off position. This is shown
by a large dot.
Oven light
The main oven light will come on when the oven burner is alight. If you
need to replace the oven light bulb, follow the instructions given on page
35.
6
S G 5 0 5 X
For your safety
When you are lighting any burner check that it has lit before you
leave the appliance.
When you are turning off a burner, do not leave the appliance until
the flame has gone out.
Lighting the appliance
The grill
The grill is a high-speed grill. The instructions below tell you how to vary
the heat setting and how to change the height of the grid to suit the food
you are cooking. You should remember to turn the food regularly.
You should not use the grill to keep food warm as it will continue to
cook the food.
Prior to using the grill
We suggest that you operate the grill for approximately 5 - 10 mins to
burn off any residue from the surface. During this period a slight odour
may be emitted, it is therefore advisable to open a window for ventilation.
When you first operate the grill you may hear some sounds as the
burner heats up, this is quite normal and is not a fault on the appliance.
Heat control
The grill control has two heat settings.
The control knob turns to the right
from 'OFF' to 'LOW' and then to
'HIGH'. Use the high setting for fast
cooking such as toast. Use the low
setting to cook thicker food such as
chicken after you have browned it on
the high setting.
7
S G 5 0 5 X
The grill
For your safety
The grill pan and handle must be in place before igniting the grill.
You must keep the grill door open when the grill burner is lit.
Accessible parts may be hot when the grill is used. Young
children should be kept away.
Never cover the grill pan or grid with foil as this can lead to grill
fires.
Cooking positions
There is only one position for the grill shelf
(Position 2). Positions are counted from the top
downwards.
Most food should be cooked on the grid in
the grill pan. You can turn the grid over to suit
different thicknesses of food.
You can place some dishes straight on to
the grill shelf. This is useful when you are
browning the top of food such as cauliflower
cheese.
General
The shelf in the grill/second oven is different from the shelves in the main
oven. It is important that you do not swap them over. Only use the shelf
with the solid metal plate underneath it in the grill/second oven.
When you are not using the grill you should remove the handle and store
the pan on the shelf in the grill. Turn the grill burner off before you store
the pan. Remember that the pan will get hot when you are using the
main oven.
You can use the grill compartment to warm plates when you are
using the main oven.
Preheating
You don't usually need to preheat the grill. You may wish to preheat it for
a couple of minutes when you are cooking steak or browning food.
Positioning food on the grid
Place food such as toast, tea-cakes and
muffins towards the centre of the grid.
Place food which needs a gentle heat,
such as tomatoes and mushrooms towards
the edge of the grid.
Arrange meat, meat products and fish to
suit their thickness and how you like them
cooked.
8
S G 5 0 5 X
The grill
The grill pan and handle
The grill pan is supplied with a removable handle.
To attach the handle, place the wirework under the cut out in the pan so
that the metal plate hooks over the top of the grill pan.
Slide the handle to the left and over the central bump on the grill pan.
Ensure the handle is correctly located. It is not necessary to
remove the grill pan handle during grilling.
Place the grill pan on the shelf so that the pan is positioned centrally
beneath the grill.
To remove the handle, slide the handle to the right and lift the handle
away from the cut out on the grill pan.
Note
If you require an additional handle for your grill pan, this can be ordered
from your local Service Force Centre by quoting part number
311479800\6.
9
S G 5 0 5 X
The grill
The hotplate
You can only use the hotplate when the lid is open. If you have any
trouble lighting a hotplate burner turn all hotplate control knobs off and
make sure the hotplate burner parts have been replaced correctly. See
page 27 for more information.

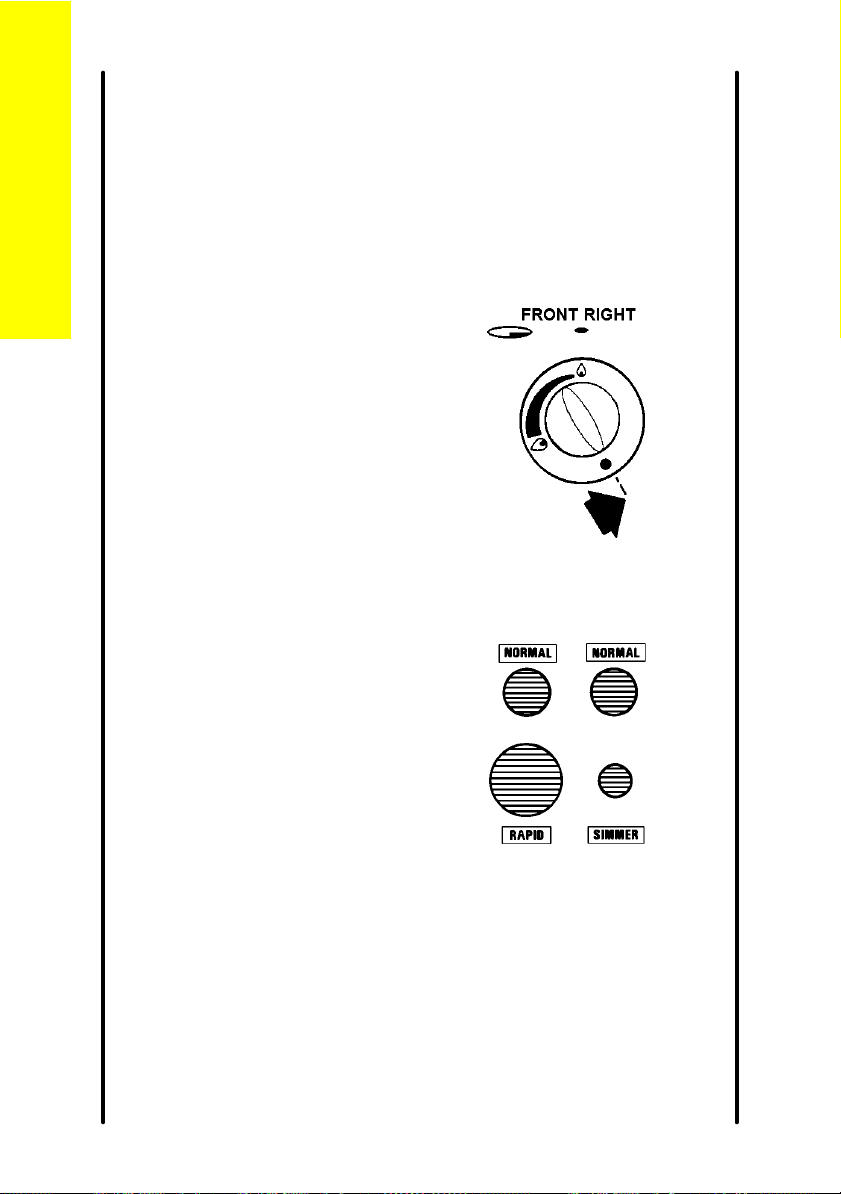

Heat control
The hotplate control knobs turn
anticlockwise from 'OFF' to 'HIGH'
and then to 'LOW'. You can adjust
the heat by turning the control
between the highest and lowest
settings. These are shown as a
large and a small flame symbol.
Burner sizes
The hotplate has three burner sizes
to suit different types of cooking:
Largest burner (Rapid) - use a large
pan for food such as chips.
Medium burners (Normal) - use for
everyday cooking.
Small burner (Simmer) - use for
simmering food such as soups and
stews.
The largest pan which you should use on any burner is 230mm (9").
The base of the smallest pan should not measure less than 100mm (4").
10
S G 5 0 5 X
The hotplate
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels Parkinson Cowan Cuisinière
Parkinson Cowan
Parkinson Cowan Sonata 55 GLXA Guide de démarrage rapide
Parkinson Cowan
Parkinson Cowan Sonata 55 GLm Manuel utilisateur
Parkinson Cowan
Parkinson Cowan CHLG50WN2 Manuel utilisateur
Parkinson Cowan
Parkinson Cowan U25062 SG 332 Manuel utilisateur
Parkinson Cowan
Parkinson Cowan SG 332 Manuel utilisateur
Parkinson Cowan
Parkinson Cowan Lyric 55V Manuel utilisateur
Parkinson Cowan
Parkinson Cowan SONATA 50GX Manuel utilisateur
Parkinson Cowan
Parkinson Cowan SIG 556 Manuel utilisateur
Parkinson Cowan
Parkinson Cowan SIG 501 Manuel utilisateur
Parkinson Cowan
Parkinson Cowan SIG 533 Manuel utilisateur
Parkinson Cowan
Parkinson Cowan Lyric 55GX3 Manuel utilisateur
Parkinson Cowan
Parkinson Cowan SIM 554 Manuel utilisateur
Parkinson Cowan
Parkinson Cowan SG 402 Manuel utilisateur
Parkinson Cowan
Parkinson Cowan Renown RHG50GGRN Manuel utilisateur
Parkinson Cowan
Parkinson Cowan Renown Manuel utilisateur
Parkinson Cowan
Parkinson Cowan Sonata 50 GL Manuel utilisateur
Parkinson Cowan
Parkinson Cowan SIG 532 Manuel utilisateur
Parkinson Cowan
Parkinson Cowan U02019 ASTORIA3 Guide de l'utilisateur
Parkinson Cowan
Parkinson Cowan CALOR Sonata 50 Guide de démarrage rapide
Parkinson Cowan
Parkinson Cowan SIG 401 Manuel utilisateur
