Paradyne 8995 Manuel utilisateur

T1 and E1 Line Cards

Models 8995-B2 and 8997-B2

Installation and User’s Guide

Document Number 8990-A2-GN10-20

March 2005

Contents

Software and Firmware License Agreement ................................................. 2

Product Documentation Online ..................................................................... 4

T1 and E1 Line Cards Description ................................................................ 5

Application Examples ................................................................................... 7

Installation Overview ..................................................................................... 10

Installing T1 and E1 Line Cards .................................................................... 10

Front Panel LEDs .......................................................................................... 12

Cabling .......................................................................................................... 13

Logging In to the BLC ................................................................................... 16

Configuration ................................................................................................. 16

Connector Pin Assignments ......................................................................... 18

Technical Specifications ................................................................................ 21

Warranty, Sales, Service, and Training Information ...................................... 22

Document Feedback ..................................................................................... 22

Trademarks ................................................................................................... 22

Software and Firmware License Agreement

The terms and conditions of this License Agreement (the “Agreement”) will apply to the

software and/or firmware (individually or collectively the “Software”) incorporated into

the Paradyne product (the “Product”) purchased by you and any derivatives obtained

from the Software, including any copy of either. If you have executed a separate written

agreement covering the Software supplied to you under this purchase, such separate

written agreement shall govern.

Paradyne Corporation (“Paradyne”) grants to you, and you (“Licensee”) agree to accept

a personal, non-transferable, non-exclusive, right (without the right to sublicense) to use

the Software, solely as it is intended and solely as incorporated in the Product

purchased from Paradyne or its authorized distributor or reseller under the following

terms and conditions:

1. Ownership: The Software is the sole property of Paradyne and/or its licensors. The

Licensee acquires no title, right or interest in the Software other than the license

granted under this Agreement.

2. Licensee shall not use the Software in any country other than the country in which

the Product was rightfully purchased except upon prior written notice to Paradyne

and an agreement in writing to additional terms.

3. The Licensee shall not reverse engineer, decompile or disassemble the Software in

whole or in part.

4. The Licensee shall not copy the Software except for a single archival copy.

ONCE YOU HAVE READ THIS LICENSE AGREEMENT AND AGREE TO ITS

TERMS, YOU MAY USE THE SOFTWARE AND/OR FIRMWARE INCORPORATED

INTO THE PARADYNE PRODUCT. BY USING THE PARADYNE PRODUCT YOU

SHOW YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE AGREEMENT.

IN THE EVENT THAT YOU DO NOT AGREE WITH ANY OF THE TERMS OF THIS

LICENSE AGREEMENT, PROMPTLY RETURN THE UNUSED PRODUCT IN ITS

ORIGINAL PACKAGING AND YOUR SALES RECEIPT OR INVOICE TO THE

LOCATION WHERE YOU OBTAINED THE PARADYNE PRODUCT OR THE

LOCATION FROM WHICH IT WAS SHIPPED TO YOU, AS APPLICABLE, AND YOU

WILL RECEIVE A REFUND OR CREDIT FOR THE PARADYNE PRODUCT

PURCHASED BY YOU.

5. Except for the Product warranty contained in the manual, the Software is provided

“AS IS” and in its present state and condition and Paradyne makes no other

warranty whatsoever with respect to the Product purchased by you. THIS

AGREEMENT EXPRESSLY EXCLUDES ALL OTHER WARRANTIES, WHETHER

EXPRESS OR IMPLIED, OR ORAL OR WRITTEN, INCLUDING WITHOUT

LIMITATION:

a. Any warranty that the Software is error-free, will operate uninterrupted in your

operating environment, or is compatible with any equipment or software

configurations; and

b. ANY AND ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION

IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE AND NON-INFRINGEMENT.

Some states or other jurisdictions do not allow the exclusion of implied warranties

on limitations on how long an implied warranty lasts, so the above limitations may

not apply to you. This warranty gives you specific legal rights, and you may also

have other rights which vary from one state or jurisdiction to another.

6. IN NO EVENT WILL PARADYNE BE LIABLE TO LICENSEE FOR ANY

CONSEQUENTIAL, INCIDENTAL, PUNITIVE OR SPECIAL DAMAGES,

INCLUDING ANY LOST PROFITS OR LOST SAVINGS, LOSS OF BUSINESS

INFORMATION OR BUSINESS INTERRUPTION OR OTHER PECUNIARY LOSS

ARISING OUT OF THE USE OR INABILITY TO USE THE SOFTWARE,

WHETHER BASED ON CONTRACT, TORT, WARRANTY OR OTHER LEGAL OR

EQUITABLE GROUNDS, EVEN IF PARADYNE HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY THIRD

PARTY.

7. The rights granted under this Agreement may not be assigned, sublicensed or

otherwise transferred by the Licensee to any third party without the prior written

consent of Paradyne.

8. This Agreement and the license granted under this Agreement shall be terminated

in the event of breach by the Licensee of any provisions of this Agreement.

9. Upon such termination, the Licensee shall refrain from any further use of the

Software and destroy the original and all copies of the Software in the possession of

Licensee together with all documentation and related materials.

10. This Agreement shall be governed by the laws of the State of Florida, without

regard to its provisions concerning conflicts of laws.

Product Documentation Online

Complete documentation for this product is available at www.paradyne.com.

Select Support →Technical Manuals.

To order a paper copy of a Paradyne document, or to speak with a sales representative,

please call 1-727-530-2000.

Document Number Document Title

8400-A2-GB20 Shelf Concentration and Processing (SCP) Card with ATM

Uplink User’s Guide

8400-A2-GB21 Shelf Concentration and Processing (SCP) Card with IP

Uplink User’s Guide

8400-A2-GZ40 Shelf Concentration and Processing (SCP) Card Installation

Instructions

8620-A2-GN20 8620 Broadband Loop Carrier Installation Guide

8820-A2-GN20 8820 Broadband Loop carrier Installation Guide

T1 and E1 Line Cards Description

The Models 8995 and 8997 line cards can be used in any 8620 or

8820 Broadband Loop Carrier (BLC) managed by a Shelf

Concentration and Processing (SCP) card.

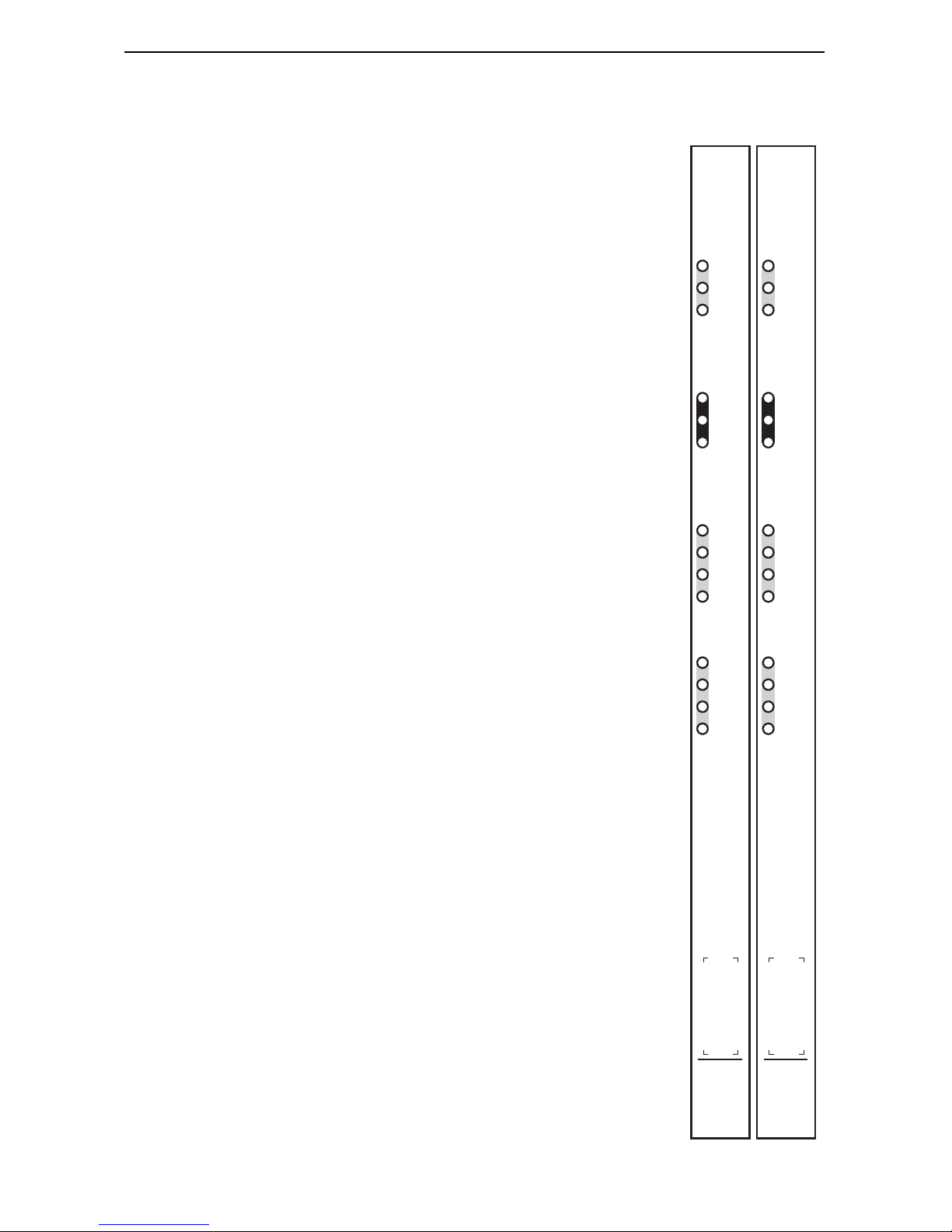

Physical Description

Each 8995 or 8997 access line card connects through one

50-position Telco connector (RJ48M) on the rear of the chassis. Each

supports:

Short haul and long haul configurations

Surge protection for standards compliance

Local and remote loopback testing functions

Selectable test patterns

Loopbacks and statistics

Each 8995 T1 line card supports:

ESF framing

B8ZS line code

Each 8997 E1 line card supports:

G.703 framing

HDB3 line code

75 Ohm or 120 Ohm operation

ATM Features

ATM features include support for:

Four service categories:

— Constant Bit Rate (CBR)

— Real-Time Variable Bit Rate (rt-VBR)

— Non-Real-Time Variable Bit Rate (nrt-VBR)

— Unspecified Bit Rate (UBR)

24 virtual circuits (VCs) per port

Virtual Path (VP) switching

Traffic shaping by virtual circuit (VC) or logical port

04-17498

8995

SYSTEM

Alrm

Test

LOC

ATM BUS

T1 PORT

PORT

04-17499

8997

SYSTEM

Alrm

Test

LOC

ATM BUS

E1 PORT

PORT

Traffic policing, configurable at the virtual channel connection (VCC) level

F4 and F5 Operation, Administration, and Maintenance (OAM)

ATM Forum Traffic Management Specification Version 4.0

Congestion Management:

— CLP 1 threshold

— CLP 0+1 threshold

— Early packet discard

— Partial packet discard

IMA Features

IMA features include support for:

ATM Forum Inverse Multiplexing Specification Version 1.1

1–8 IMA groups

IMA configuration by port

Automatic compensation for link differential delays up to 100 ms

Selectable IMA frame length

Selectable timing source:

— Building Integrated Timing Supply (BITS)

—AnyT1orE1port

— SCP card network interface

— SCP card oscillator

CES Features

CES features include support for:

24 CES Interworking Functions (IWFs) per port (8995) or 31 CES IWFs per port

(8997)

CAS – Robbed Bit Signaling (8995) or Bit Oriented Signaling (8997)

Application Examples

Applications for the 8995 and 8997 line cards include subtending T1/E1 ATM or IMA

devices, deploying ATM over T1 or E1, deploying ATM over T1 through Digital Loop

Carriers (DLCs), and transmitting voice over broadband.

Subtending ATM or IMA Devices

Figure 1 shows a scenario where excess capacity of a high speed WAN connection is

put to use by subtending DSLAMs in neighboring buildings.

Figure 1. Subtending Application

Deploying ATM Over T1 or E1

In Figure 2, broadband services are deployed over T1 or E1, such as to customers for

whom the bandwidth of bonded xDSL is insufficient.

Figure 2. ATM Over T1 or E1

ALARMS

MjorMinor

POWER

SERIAL

SMCM

CLOCK

ALARM

246810121416 18

135791113 1517

LAN/WAN SLOT

CLOCK

SERIAL

MCC

ALARM

48V RTN

48V NEG

POWER ENTRY MOD LE

LEFT NIT: LINE A

RIGHT NIT: LINE B

WARNING!

POWER MUST BE DISCONNECTED AT THE SOURCE

BEFORE REMOVING OR INSTALLING THIS PWR ENTRY MODULE

48V RTN

48V NEG

POWER ENTRY MOD LE

LEFT NIT: LINE A

RIGHT NIT: LINE B

WARNING!

POWER MUST BE DISCONNECTED AT THE SOURCE

BEFORE REMOVING OR INSTALLING THIS PWR ENTRY MODULE

MCP

8000

SYSTEM

Alrm

Test

Coll

ETHERNET

SYSTEM

Alrm

Test

Col

ETHERNET

DSL PORT

RADSL

8546

ACK

POSITION

INPUT

ESD

48VDC CLASS 2

OR LIMITED

PWR SOURCE

DC FUSES

T4A, MIN. 48VPWR

ALM

FAN

OUT

IN SERIALALM INTFMCP/123

MCP/

DSL

8610

48V

RTN

DSL PORTS 1-24

POTS 1-24

Gr nDSLAM 4200

with T1 or E1

8-Port T1/E1

IMA SCM C rd

T1/E1 IMA Line C rd

ATM

DS-3

OC-3

IMA

04-17494

ALARMS

MjorMinor

POWER

SERIAL

SMCM

CLOCK

ALARM

24681012141618

135

7911131517

LAN/WAN SLOT

CLOCK

SERIAL

MCC

ALARM

48V RTN

48V NEG

POWER ENTRY MOD LE

LEFT NIT: LINE A

RIGHT NIT: LINE B

WARNING!

POWER MUST BE DISCONNECTED AT THE SOURCE

BEFORE REMOVING OR INSTALLING THIS PWR ENTRY MODULE

48V RTN

48V NEG

POWER ENTRY MOD LE

LEFT NIT: LINE A

RIGHT NIT: LINE B

WARNING!

POWER MUST BE DISCONNECTED AT THE SOURCE

BEFORE REMOVING OR INSTALLING THIS PWR ENTRY MODULE

ATM T1/E1

IMA Device

ATM

DS-3

OC-3

IMA

04-17495

Deploying ATM Over T1 or E1 Through DLCs

In Figure 3, broadband service is deployed to customers for whom IDSL is inadequate

or prohibitively expensive.

Figure 3. ATM Over T1 or E1 Through DLCs

Voice Over T1 or E1 ATM

Figure 4 shows voice services implemented using ATM over standard T1 or E1 lines.

Figure 4. Voice Over T1 or E1 ATM

ALARMS

MjorMinor

POWER

SERIAL

SMCM

CLOCK

ALARM

246810121416 18

1357911131517

LAN/WAN SLOT

CLOCK

SERIAL

MCC

ALARM

48V RTN

48V NEG

POWER ENTRY MOD LE

LEFT NIT: LINE A

RIGHT NIT: LINE B

WARNING!

POWER MUST BE DISCONNECTED AT THE SOURCE

BEFORE REMOVING OR INSTALLING THIS PWR ENTRY MODULE

48V RTN

48V NEG

POWER ENTRY MOD LE

LEFT NIT: LINE A

RIGHT NIT: LINE B

WARNING!

POWER MUST BE DISCONNECTED AT THE SOURCE

BEFORE REMOVING OR INSTALLING THIS PWR ENTRY MODULE

ATM T1/E1

IMA Device

ATM

DS-3

OC-3

T1 IMA

04-17504

DLC

ALARMS

MjorMinor

POWER

SERIAL

SMCM

CLOCK

ALARM

246810 12 14 16 18

135791113 15 17

LAN/WAN SLOT

CLOCK

SERIAL

MCC

ALARM

48V RTN

48V NEG

POWER ENTRY MODLE

LEFT NIT: LINE A

RIGHT NIT: LINE B

WARNING!

POWER MUST BE DISCONNECTED AT THE SOURCE

BEFORE REMOVING OR INSTALLING THIS PWR ENTRY MODULE

48V RTN

48V NEG

POWER ENTRY MODLE

LEFT NIT: LINE A

RIGHT NIT: LINE B

WARNING!

POWER MUST BE DISCONNECTED AT THE SOURCE

BEFORE REMOVING OR INSTALLING THIS PWR ENTRY MODULE

8820 BLC

T1/E1 IAD

Voice G tew y

CPX-1000

05-17505-02

ATM

Network

PSTN

Voice

T1/E1

ATM

Cl ss 5 Switch

Central OfficeCustomer Premises

Voice Over T1 or E1 CES

Figure 5 shows voice services implemented using Circuit Emulation Services (CES)

over standard T1 or E1 lines.

Figure 5. Voice Over T1 or E1 CES

ALARMS

MjorMinor

POWER

SERIAL

SMCM

CLOCK

ALARM

246810 12 14 16 18

1357911131517

LAN/WAN SLOT

CLOCK

SERIAL

MCC

ALARM

48V RTN

48V NEG

POWER ENTRY MODLE

LEFT NIT: LINE A

RIGHT NIT: LINE B

WARNING!

POWER MUST BE DISCONNECTED AT THE SOURCE

BEFORE REMOVING OR INSTALLING THIS PWR ENTRY MODULE

48V RTN

48V NEG

POWER ENTRY MODLE

LEFT NIT: LINE A

RIGHT NIT: LINE B

WARNING!

POWER MUST BE DISCONNECTED AT THE SOURCE

BEFORE REMOVING OR INSTALLING THIS PWR ENTRY MODULE

T1/E1 PBX

05-17633

ATM

Network

Voice

ATM CBR

Tr ffic

Cl ss 5 Switch

CES

IWF

Installation Overview

Installation and configuration of the T1 or E1 Line Card consists of:

❑Obtain the applicable cable; refer to Cabling on page 13 for part numbers.

❑Make sure the BLC is installed and power is supplied to the chassis.

❑Install the card in the BLC.

❑Connect to the T1 or E1 uplink.

❑Configure your unit using the web or TL1 interface. Refer to the SCP card’s online

Help or the 8620 and 8820 Broadband Loop Carrier TL1 Reference for

configuration information.

Be sure to register your warranty at www.paradyne.com/warranty.

Installing T1 and E1 Line Cards

HANDLING PRECAUTIONS FOR

STATIC-SENSITIVE DEVICES

This product is designed to protect sensitive

components from damage due to electrostatic

discharge (ESD) during normal operation. When

performing installation procedures, however,

take proper static control precautions to prevent

damage to equipment. If you are not sure of the

proper static control precautions, contact your

nearest sales or service representative.

A T1 or E1 Line Card can be installed in, removed from, and replaced in a BLC without

disrupting service to the other cards in the chassis.

Procedure

To install the T1 or E1 Line Card:

1. Determine in which slot the unit will be installed. Verify that cards in adjacent slots

have been fastened.

2. Remove the filler plate from the installation slot and store for possible later use.

Autres manuels pour 8995

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Paradyne Logiciel

Paradyne

Paradyne 8995 Mode d’emploi

Paradyne

Paradyne Jetstream CPX-1000 Manuel utilisateur

Paradyne

Paradyne 8922 Manuel utilisateur

Paradyne

Paradyne OPENLANE Manuel utilisateur

Paradyne

Paradyne ACCULINK 3150 Mode d’emploi

Paradyne

Paradyne Jetstream CPX-1000 Manuel utilisateur

Paradyne

Paradyne Jetstream CPX-1000 Manuel utilisateur

Paradyne

Paradyne OpenLane SLM 5.5 Manuel de service

Paradyne

Paradyne ACCULINK 7800-D1-999 Manuel utilisateur

Manuels Logiciel populaires d'autres marques

COMPRO

COMPRO COMPROFM Manuel utilisateur

Muratec

Muratec OFFICEBRIDGE ONLINE Manuel utilisateur

Oracle

Oracle Contact Center Anywhere 8.1 Manuel utilisateur

Adobe

Adobe 65007312 - Photoshop Lightroom Manuel

Avaya

Avaya NULL One-X for RIM Blackberry Manuel utilisateur

HP ProLiant BL420c Manuel utilisateur

PS Audio

PS Audio PowerPlay Manuel du propriétaire

Brady

Brady LOCKOUT PRO 3.0 Manuel de service

Avaya

Avaya Interaction Center Manuel utilisateur

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuel

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuel utilisateur

Oracle

Oracle Application 9i Manuel utilisateur

Acer

Acer RDM Manuel utilisateur

Canon

Canon Vixia HF21 Manuel utilisateur

Canon

Canon ZR950 Manuel utilisateur

Samsung

Samsung Auto Backup Manuel utilisateur

Polycom

Polycom Vortex EF2201 Instructions d'installation et d'utilisation

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuel utilisateur
