Paradox PARAKEY Instructions de montage

Remote Arming Module V1.10

318MHz/433MHz

With

KEELOQ

high-security code encryption

Installer’s Guide

PARKEI-02

i i

TABLE OF CONTENTS

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.2 Technical Specifications. . . . . . . . . . . . . . . . . . . . 3

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.1 Location & Mounting . . . . . . . . . . . . . . . . . . . . . . 4

2.2 Power & Communication . . . . . . . . . . . . . . . . . . . 4

2.2.1 With Esprit Control Panel

. . . . . . . . . . . . . 4

2.2.2 Stand Alone

. . . . . . . . . . . . . . . . . . . . . . . 5

2.3 Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.4 Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.5 Programmable Outputs (PGMs) . . . . . . . . . . . . . . 6

2.6 Hand-Held Remote Control . . . . . . . . . . . . . . . . . 7

2.7 System Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

HOW TO PROGRAM . . . . . . . . . . . . . . . . . . . . . . 11

PROGRAMMING THE SYSTEM . . . . . . . . . . . . 13

4.1 Access Code Length . . . . . . . . . . . . . . . . . . . . . 13

4.2 Installer Code . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.3 User Parameters . . . . . . . . . . . . . . . . . . . . . . . . 13

4.3.1 User Access Codes

. . . . . . . . . . . . . . . . 14

4.3.2 Remote Control Assignment

. . . . . . . . . . 15

4.3.3 Remote Control Options

. . . . . . . . . . . . . 16

4.4 Panic Output Programming . . . . . . . . . . . . . . . . 17

4.5 Panic Lockout Timer . . . . . . . . . . . . . . . . . . . . . 18

4.6 PGM Output Timing . . . . . . . . . . . . . . . . . . . . . . 18

4.7 Button PGM Options . . . . . . . . . . . . . . . . . . . . . 19

4.8 Panic Option . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

INTRODUCTION

The PARAKEY is a wireless remote control system that

consists of a receiving module and up to eight 2 or 4-button

remote controls (transmitters). When used in conjunction

with any

Paradox Esprit Series Control Panel

, remote

controls can perform actions such as remote arming and

disarming, communicating panic alarms and/or activating

programmable outputs (PGMs). Each remote control is

assigned to a specific user and therefore, identifies the user

to the control panel when used. If desired, it can be used as

a stand-alone system where the remote controls will only

activate the on-board PGM outputs. When a button on the

remote control is pressed, it will transmit an RF signal.

When the PARAKEY receives this signal, it then processes

the request and performs the programmed action(s).

• Simple, user-friendly programming.

• Supports 8 User Codes, each linked to a unique RF

Code (2 or 4-button remote control).

• Encrypted RF codes for additional security. Does not

use DIP switch programming.

• 4 programmable outputs (PGMs).

• Stand-alone operation (trigger PGMs only) or in

conjunction with a

Paradox Esprit Series Control Panel

(arm/disarm, panic & PGM activation).

• Programming keypad connects directly to the Parakey

Receiving Module.

• Programmable Installer Code.

• Software reset.

1.2.1 Receiver:

Compatible Programming Keypads: (616 V4.2A & up)

(626 V4.1A & up)

DC input: 12VDC

PGM outputs: 4

PGM Output 1-3 Current Rating: 30mA max.

PGM Output 4 Current Rating: 5A relay

Max Transmission Range: 53.34m (175 ft.)

Operating Conditions: 0°C to 50°C

Operating Humidity: 85%

Operating Frequency: 318 or 433.92MHz

Sensitivity: -110dbm

1.2.2 Remote Control:

Water Resistant

Battery:

Lithium 3V (CR2032)

Battery Life: Apprx. 2 years

Power Transmission: 7mW

Current Consumption:

6mA (transmission)

1.2 Technical Specifications

1.1 Features

2 3

INSTALLATION

We recommend installing the receiver in a centralized

location on the main floor. Avoid installing the receiver in

the basement. Although, if desired, it can be installed in

proximity of the control panel. When selecting an

installation site please take into consideration that the

maximum reception distance of the receiver is

approximately 54 meters (175 feet) line of sight. The circuit

is static sensitive, thus take great care during handling.

Avoid installing the receiving module near or in

the path of strong RF fields, such as neon lights

or computers. Also avoid installing the receiver

on or near metal objects, circuit breaker boxes,

air conditioners and heater ducts. These devices

may cause interference, reducing the receiver's

sensitivity.

If installing the Parakey away from the control panel, mount

the Parakey Receiver Module on a wall, leaving at least 2"

around the panel box to permit adequate ventilation/heat

dissipation. Selecting a site that is not susceptible to

drastic changes in temperature and humidity.

2.2.1 With Esprit Control Panel

When used in conjunction with any

Paradox Esprit Series

Control Panel

, the auxiliary terminals (12VDC) of the

control panel may power the Parakey Receiving Module

as shown in figure 3. If using an external power source

please ensure that the "GND" of the receiver and the

power source are connected to the "AUX-" terminal of the

control panel.

The "GRN" and "YEL" terminals of the control panel must

be connected to the "GRN" and "YEL" terminals of the

Parakey Receiving Module in order to provide

communication between the modules. Alternatively, you

can use a 4-pin serial connector between the control

panel's "SERVICE KEYPAD" connector and the Parakey

Module's "PANEL" connector.

2.2.2 Stand Alone

When used as a stand-alone system, you will need a

Paradox 12VDC 801 Power Supply

and a 12VDC backup

battery. Connect the power supply and the backup

battery as shown in figure 4.

The Parakey Receiving Module is programmed using a

616 or 626 Esprit LED Keypad. Connect the keypad as

shown in figure 3 or 4. Alternatively, you can connect the

keypad to the Parakey Module's "PROGRAM" connector

using a 4-pin serial connector.

The Parakey can only be programmed using:

616 keypad version 4.2A and up or

626 keypad version 4.1A and up.

2.3 Keypad

2.2 Power & Communication

2.1 Location & Mounting

4 5

Firmly screw the vertical and horizontal antennas to the

corresponding "ANT" connections on the Receiving

Module as shown in figure 3 or 4. Use of the horizontal

antenna is optional, but is recommended for best results.

Do not cut, bend or alter the antenna in any way, as

this may reduce the receiver's sensitivity (range).

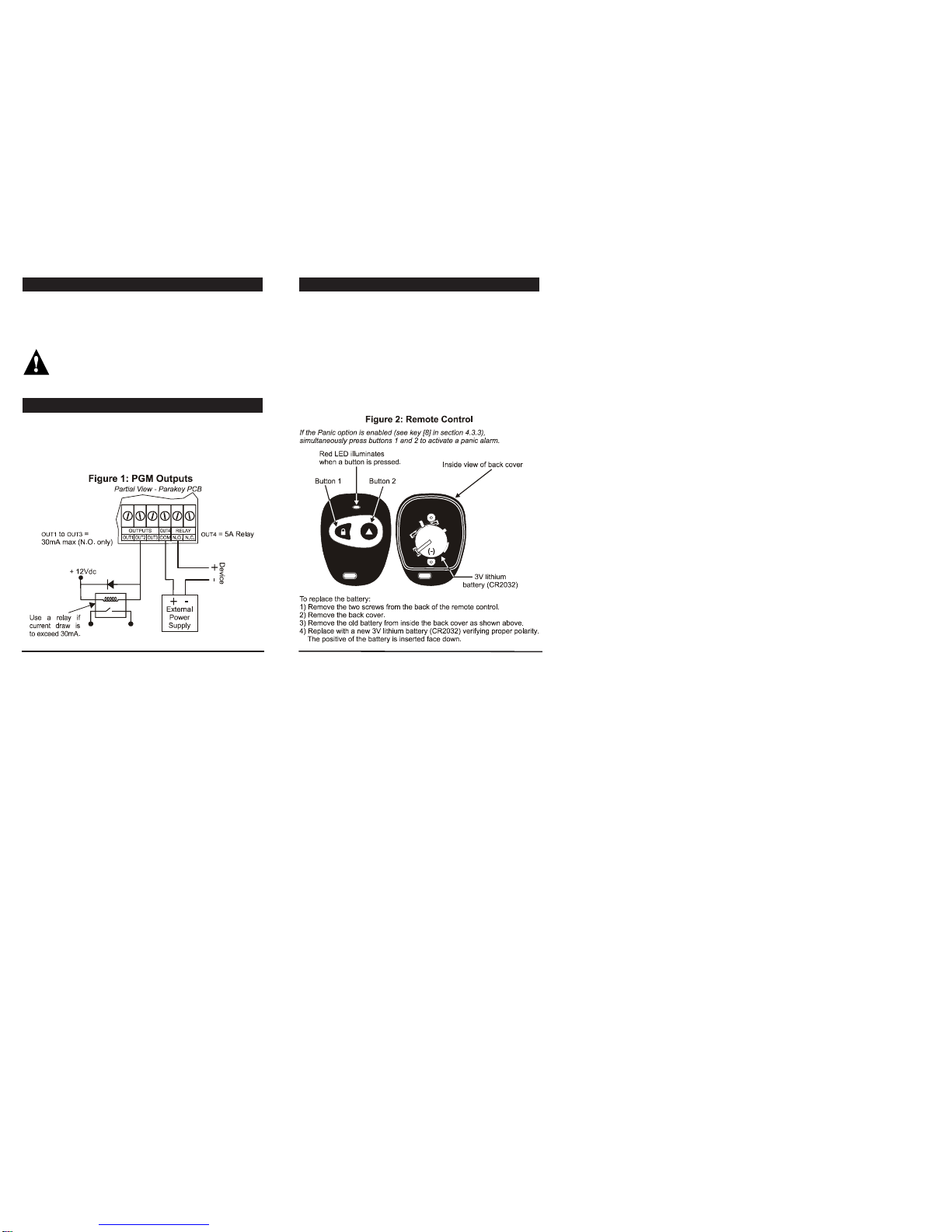

The Parakey provides four programmable outputs (OUT1 to

OUT4) each of which can be programmed for a variety of

home/office automation applications, such as opening a

garage door when button 1 is pressed on the remote control.

Please refer to figure 1 and section 4 for more information.

There are two types of hand-held PARAKEY remote

controls. There is a 2-button RF transmitter and a 4-

button RF transmitter. Each button can perform different

actions depending on how the system is programmed.

These remote controls can transmit a signal up to a

maximum of 54 meters (175ft). The remote controls are

must be changed as shown in figure 2. References to

button 3 and button 4 indicate keys on the 4-button

remote control only.

2.6 Hand-Held Remote Control

2.5 Programmable Outputs (PGMs)

2.4 Antenna

6 7

Performing a system reset will set the Parakey to default

settings. Please note that if connected to a control panel,

the reset sequence of the Parakey will not cause the

control panel to reset and vice versa. To execute a

system reset perform the following:

1) Remove the power connections ("+12" & "GND") from

the receiver.

2) Press and hold the “PROG” button and re-connect the

power connections to the receiver.

3) Wait approximately 2 seconds and release the “PROG“

button. The red LED will flash for 15 seconds, the

keypad will beep, and all system settings will be reset

to factory default.

2.7 System Reset

8 9

HOW TO PROGRAM

Press the [CLEAR] key at any time to revert to the preceding

step, unless entering data, in which case you will remain

in the section and the current data entry will be erased.

3.1.1 Step 1 - Enter the Programming Mode

When in "Normal Mode", the red LED on the Parakey

Receiver flashes on and off at 2-second intervals. To

enter the Programming Mode, press the "PROG" button

located on the Parakey Receiver. The program keypad

will beep once, the red LED will flash and the keypad's

"READY" light will illuminate.

If at any time you wait longer than 2 minutes

between each key entry, the Parakey will

automatically exit the Programming Mode.

3.1.2 Step 2 - Key in Installer Code

Press [ENTER] and key in the [INSTALLER CODE]. The [ENTER]

key will flash. Default installer code: [757575]

3.1.3 Step 3 - Key in Desired Section

Key in the desired 2-digit [SECTION] you wish to program.

The [ENTER] key will remain illuminated. The [2ND]key will

flash if the current section is empty. Pressing the [2ND]

key followed by the [ENTER]key will clear the contents of

the current section.

3.1.4 Step 4 - Key in the required data

• Sections [00] - [08]

Access Code Programming - Use any digits from 0

to 9 to enter the desired access code. When the

10 11

required data is entered, the keypad will emit a

confirmation beep and the Parakey will

automatically save and exit the section. If you make

a mistake, pressing [CLEAR] when entering data will

erase the current entry. Return to step 3 or press

[CLEAR] to exit Programming Mode.

• Sections [09] to [16]

RF Programming - Press the [ENTER] key and press

button 1 twice on the remote control to assign

remote control to corresponding user. The keypad

will emit a confirmation beep and the Parakey will

save and exit the section. Return to step 3 or press

[CLEAR] to exit Programming Mode.

• Sections [25] - [30]

Decimal Select - Each section represents one

feature and each key from [0] to [8] represents a

specific setting. Unlike feature select programming,

only one key can be selected. The selected key will

remain illuminated. Press the key representing the

desired setting and press [ENTER].

• Sections [17] - [24] & [31] - [35]

Feature Select - After entering the section, each key

from [1] to [8] represents a feature or option. The on/off

status of these keys determines the feature's setting.

Turn the keys on/off by pressing the appropriate key

until the desired options are set and press the [ENTER]

key. The keypad will emit a confirmation beep and the

Parakey will save and exit the section. Return to step

3 or press [CLEAR] to exit Programming Mode.

PROGRAMMING THE SYSTEM

Section [35] - Feature Select Programming: [1]

The Parakey can be set to accept 6-digit or 4-digit User

and Installer Access Codes.

Key [1] OFF = 4-digit access codes.

Key [1] ON = 6-digit access codes (default).

This option must be set to the same access code

length as set in the control panel at address 088,

key [9].

Section [00] - Access Code Programming

The Installer Code provides you with access to program

all the functions & features of the Parakey System. The

Installer Code can be 4 or 6 digits in length (see section

4.1) with each digit being any value from 0 to 9.

The Parakey system supports up to eight users, each with a

different remote control. As demonstrated in figure 5, the

three parameters listed below are specific to each user and

each user must be defined with all three of these parameters.

• User Access Code

• Remote Control Assignment

• User Remote Control Options

4.3 User Parameters

4.2 Installer Code (Default: 757575)

4.1 Access Code Length

12 13

4.3.1 User Access Codes

Sections [01] to [08] - Access Code Programming

When a user presses a button, the Parakey determines

which user the remote control belongs to and transmits the

corresponding User Access Code to the control panel. To

arm/disarm the system, the

Paradox Esprit Series Control

Panel

must receive a valid access code. Therefore, the

programmed User Access Code must be the same as a

User Access Code programmed in the

Paradox Esprit

Series Control Panel

. If no access code is programmed,

only the programmed PGMs will be activated. The User

Access Codes can be 4 or 6 digits in length (see section 4.1)

with each digit being any value from 0 to 9. Program the

User Access Code into the section corresponding to the

desired user, where sections [01] to [08] represent users 1

through 8 respectively (figure 5).

The User Access Code programmed in the

Parakey must be the same as a User Access

Code programmed in the Paradox Esprit Series

Control Panel.

4.3.2 Remote Control Assignment

Sections [09] to [16] - RF Programming

Every time a button is pressed on the remote control, it

transmits its RF code to the Parakey, identifying it as a user

in the system. Therefore, each remote control in the

system must be assigned to a user. After entering the

section corresponding to the desired user (see figure 5),

press the [ENTER] key and the “READY” and “ARM” lights will

illuminate. Then press button 1 on the remote control once,

the Parakey will beep once. Press button 1 again for

confirmation, the Parakey will beep twice to indicate that

the remote control was successfully assigned. One long

beep indicates that remote control assignment was

unsuccessful (i.e. remote control already assigned to

another user). To delete a remote control, enter the desired

section, press the [2ND] key and press the [ENTER] key.

14 15

4.3.3 Remote Control Options

Sections [17] to [24] - Feature Select: [1] to [8]

As described in figure 5, sections [17] to [24] correspond

to users 1 through 8 respectively. By turning keys [1] to

[8] on or off, set the desired remote control options as

described below and press [ENTER].

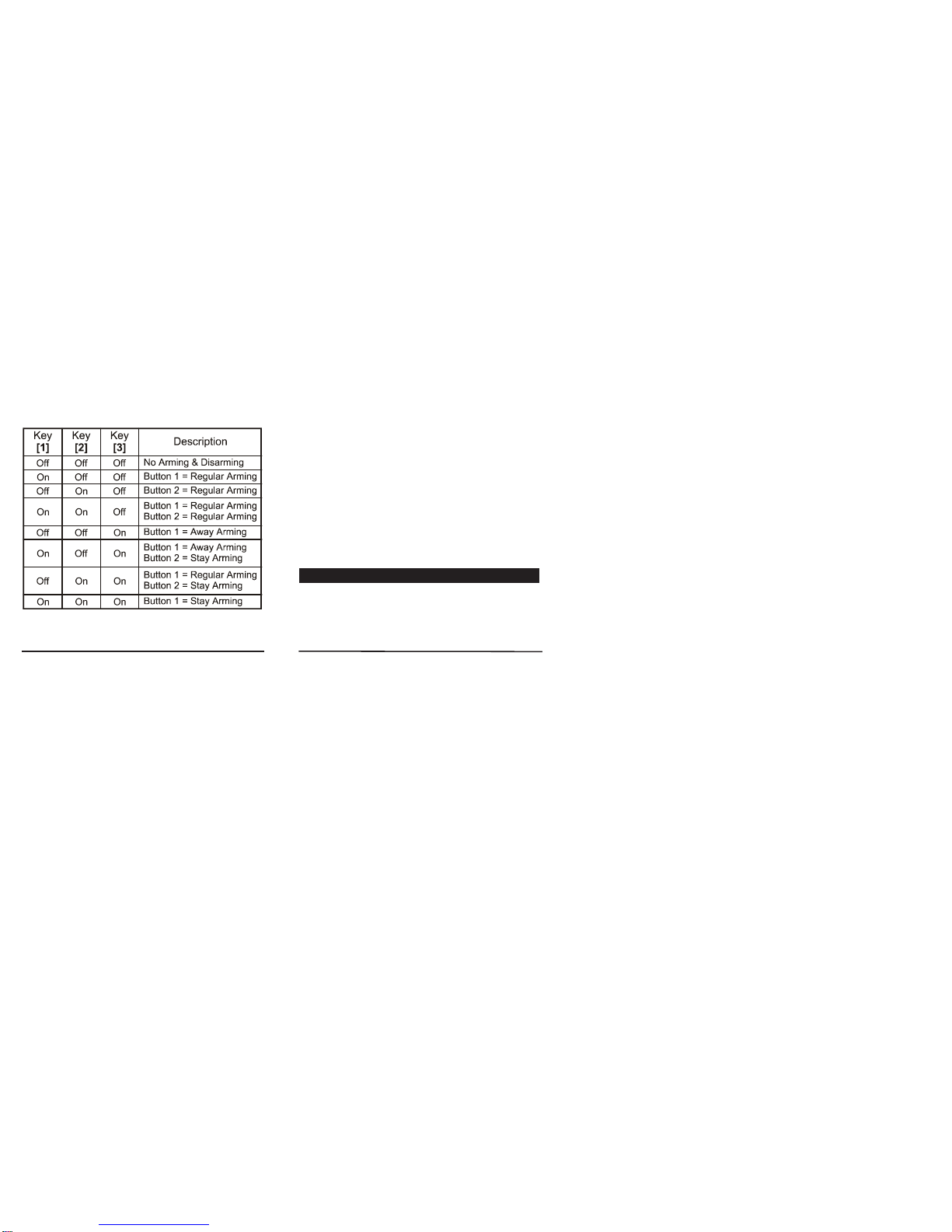

Buttons 1 and 2 on the remote controls can be set to perform

different arming and disarming actions when pressed,

depending on the setting of keys [1] to [3] as shown in the

table below. (Default: Button 1 = Regular Arming)

Each key from [4] to [7] represents buttons 1 through 4

respectively. When the key is enabled, pressing the

corresponding button will activate (toggle) any PGMs defined

by the

Button PGM Options

(section 4.7). Default all ON.

Key [4] OFF = Disabled

ON = Button 1 PGM Enabled

Key [5] OFF = Disabled

ON = Button 2 PGM Enabled

Key [6] OFF = Disabled

ON = Button 3 PGM Enabled

(4-button remote only)

Key [7] OFF = Disabled

ON = Button 4 PGM Enabled

(4-button remote only)

When the [8] key is enabled, pressing any two buttons

simultaneously on the remote control will generate a

panic alarm (see sections 4.4, 4.5 and 4.8)

Key [8] OFF = Panic Disabled

ON = Panic Enabled (Default)

Section [25] - Decimal Select: [0] to [4]

When a remote control-activated panic alarm is generated

(see section 4.3.3), the Parakey can activate one of the four

on-board PGM outputs. In section [25], select only one:

4.4 Panic Output Programming

16 17

Table des matières

Autres manuels Paradox Télécommande

Paradox

Paradox Magellan REM101 Manuel utilisateur

Paradox

Paradox Magellan REM101 Manuel utilisateur

Paradox

Paradox Magellan REM2 Manuel utilisateur

Paradox

Paradox REM25 Manuel utilisateur

Paradox

Paradox Magellan RAC1 Manuel utilisateur

Paradox

Paradox Magellan MG-REM2 Manuel utilisateur

Paradox

Paradox Magellan REM101 Manuel utilisateur

Paradox

Paradox Magellan REM2 Manuel de service

Paradox

Paradox MAGELLAN MG-REM1 Instructions d'installation et d'utilisation

Paradox

Paradox Magellan REM1 Manuel utilisateur

Paradox

Paradox Magellan REM15 Manuel utilisateur

Paradox

Paradox Magellan REM101 Manuel utilisateur

Paradox

Paradox Magellan MG-REM1 Manuel utilisateur

Paradox

Paradox Magellan REM2 Manuel utilisateur

Paradox

Paradox Magellan REM15 Manuel utilisateur

Paradox

Paradox PRK-315 Manuel utilisateur

Paradox

Paradox REM3 Manuel utilisateur

Paradox

Paradox Magellan MG-RAC1 Manuel utilisateur

Paradox

Paradox Magellan REM15 Manuel utilisateur

Paradox

Paradox REM3 Manuel utilisateur

Paradox

Paradox MAGELLAN REM1 Manuel utilisateur

Paradox

Paradox Two-Way Remote Control V2.1 Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
