Panduit TMSTEH-TOOL Manuel utilisateur

Page: 1 of 2

TMSTEH-TOOL

PA29513A01

Rev. 00 8-2019

TMSTEH-TOOL OPERATION INSTRUCTIONS

FOR USE WITH: TMSTEH SERIES STUD MOUNTS

Panduit Corp. 2019

Original Instructions

INTRODUCTION

The TMSTEH-TOOL installs stud mounts with the aid of a power drill reducing the risk of repetitive injury.

Mounts grip onto the tool due to the interference fit of the drafted side walls allowing the installation to be a one

hand operation when needed. Follow instructions below to insure optimum performance from the TMSTEHS

series stud mounts.

WARNING: SAFETY GLASSES MUST BE WORN AT ALL TIMES WHILE

USING THIS TOOL.

FIG 01

1. Insert TMSTEH-TOOL into 3/8”drill

chuck as deep as possible and tighten

chuck onto tool.

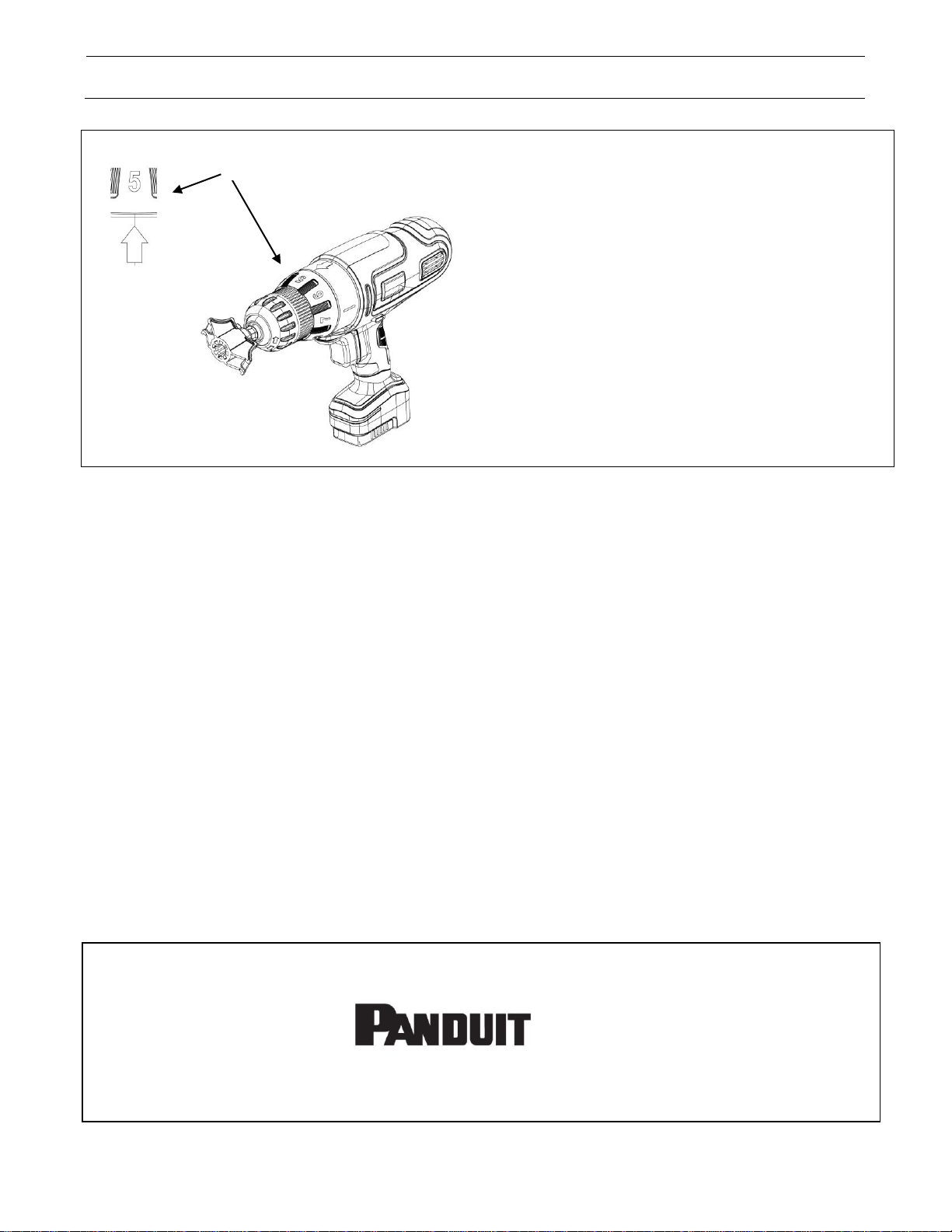

2. Set drill to “screw”or “torque”setting.

3. Set the torque control to the lowest

setting. Generally, this would be a

setting of 1.

4. Press TMSTEHS* mount on tool.

5. Center mount opening on stud and use

drill to thread the mount on until torque

setting has been reached.

OPERATION INSTRUCTIONS TMSTEH-TOOL

Page: 2 of 2

North America Tech Support:

[email protected]

Tel: 1-866-405-6654

www.panduit.com

EU Tech Support:

[email protected]

Tel: +31-546-580-452

Fax: +31-546-580-441

6. If mount is not fully seated on threaded

stud, increase torque setting on drill by 1

and attempt install again.

7. Repeat step 6 until mount is fully seated

on threaded stud.

6 & 7
