Operating & Installation

Instructions

Fully Automatic Washing Machine

(Household Use)

Model No. NA-FS16V5SSA

AWW9901D2U03_EN.indd 1AWW9901D2U03_EN.indd 1 7/2/2563 BE 13:327/2/2563 BE 13:32

Safety Precautions

Read and follow these safety precautions.

WARNING

May cause serious injury or death.

Do not allow children to use on their own.

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

Children should be supervised to ensure that they do not play

with the appliance.

Observe the following about the power plug and cord.

(To prevent ﬁre or electric shock)

Do not plug in or unplug the power cord with wet hands.

Do not hold or pull on the cord when removing the plug from the

socket.

Do not use a power cord or plug that is damaged. If the power

cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualiﬁed persons in order to avoid a

hazard.

Use a socket that satisﬁes the rating requirement solely for this

appliance. Do not use a plug adaptor or extension cord.

Always fully insert the power plug into the socket.

Wipe the power plug periodically with a dry cloth. (Accumulated

dust collects moisture, which may cause insulation failure,

resulting in ﬁre.)

Unplug the power cord before cleaning.

AWW9901D2U03_EN.indd 2AWW9901D2U03_EN.indd 2 7/2/2563 BE 13:327/2/2563 BE 13:32

Safety Precautions

WARNING

Never disassemble, repair or modify the appliance

yourself.

In case of malfunction or failure (burnt odour smell, fume, etc.),

immediately stop use, unplug the power cord, and ask your

nearest service centre for repair.

Keep away from ﬁre.

Do not put ﬂammable materials or clothes with such

things attached in the tub.

Keep them away from the appliance.

(To prevent explosion or ﬁre)

For example: Kerosene, gasoline, benzine/thinner, alcohol, etc.

Do not touch the tub until it completely stops.

(To prevent injury)

If the tub does not stop within 15 seconds when the lid

is opened during spin process, switch off the appliance

immediately and call a service person.

Be sure to provide a ground.

(To prevent electric shock if electricity leakage occurs.)

To establish a ground, ask a service person to do the grounding

work.

External water heater safety

Under certain conditions, hydrogen gas may be produced

in your hot water heater that has not been used for two

weeks or more. Hydrogen gas can be explosive under these

circumstances. To prevent the possibility of damage or injury,

you should turn on all hot water faucets in your home, and let

the water ﬂow out for several minutes before connecting to your

washer. This will allow any built-up hydrogen gas to escape.

Since hydrogen gas is ﬂammable, do not smoke or use an open

ﬂame or start appliance during this process.

AWW9901D2U03_EN.indd 3AWW9901D2U03_EN.indd 3 7/2/2563 BE 13:327/2/2563 BE 13:32

Safety Precautions (continued)

CAUTION

May cause injury or property damage.

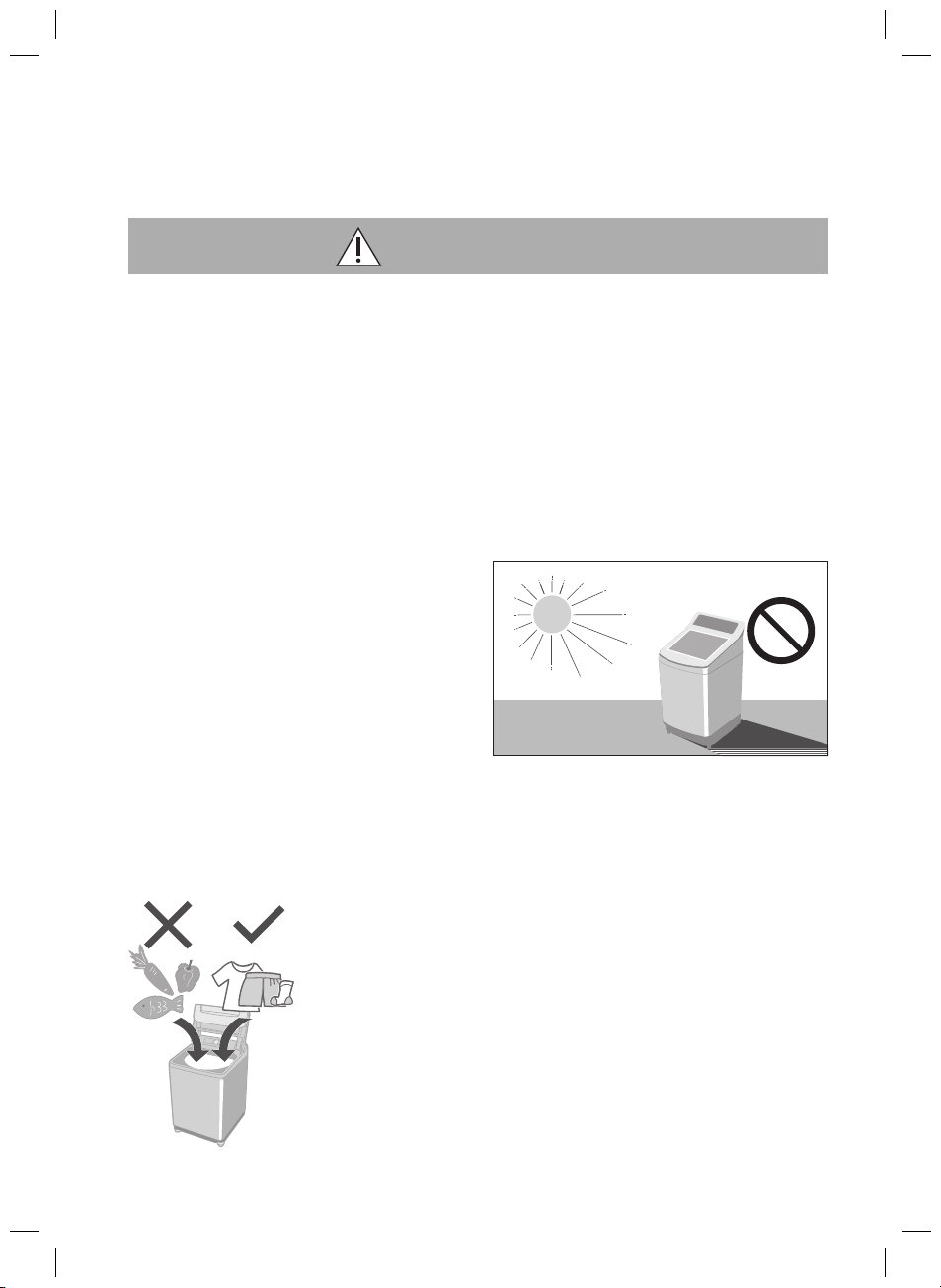

Do not wash, rinse, or spin waterproof sheets or

clothes.

(To prevent injury, damage to the main unit, walls, ﬂoor or laundry,

or water leakage if the appliance falls over or oscillates extremely

while spinning)

Raincoats, wet suits, etc.

Locate away from direct sunlight or heat.

(To prevent malfunction or

deformation)

Turn off the water faucet after operation.

(To prevent water leakage)

For Machine-washable items only.

This appliance is intended to be used in household.

This appliance is not intended to be used in applications

such as:

- staff kitchen areas in shops, ofﬁces and other working

environments;

- farm houses;

- by clients in hotels, motels and other residential type

environments;

- bed and breakfast type environments;

- areas for communal use in blocks of ﬂats or in

launderettes.

AWW9901D2U03_EN.indd 4AWW9901D2U03_EN.indd 4 7/2/2563 BE 13:327/2/2563 BE 13:32

Safety Precautions

CAUTION

Observe the following

Be careful not to get your ﬁngers caught.

Beware of sudden

lid closing.

Soft closing when

fully opened.

New hose-sets supplied with the appliance are to be used and

old hose-sets should not be reused.

Do not obstruct the openings of the bottom face with carpet, etc.

Do not insert your hands or feet under the main unit.

(To prevent injury by rotating parts.)

Do not climb or put heavy objects on the appliance.

(To prevent deformation and breakage resulting in injury)

If the lid is broken, immediately stop using the appliance.

(To prevent deformation and breakage resulting in injury)

Do not use water hotter than 60 ºC.

Do not make wrong connection for the HOT and COLD water

supply faucets.

Depending on the connected water heater, very hot water may

come out. Be careful not to burn yourself.

For maximum mass of dry cloth and pressure of tap water, see

P.30.

AWW9901D2U03_EN.indd 5AWW9901D2U03_EN.indd 5 7/2/2563 BE 13:327/2/2563 BE 13:32

Part Names / Accessories

Lint ﬁlter

(P. 21)

Lid (Soft Closing)

Leveller (P. 27)

Power cord and

plug* (P. 27)

* The plug shape

varies with the

region.

Adjustable leg (P. 27)

Drain hose

(P. 25)

Detergent and

softener drawer

(P. 13)

Detergent/

Bleach inlet (P. 12)

Pulsator

Tub

Operation panel (P. 8) Water supply

valve (P. 27)

●COLD

●HOT

Accessories

Water supply

hose (2) (P. 26)

Washing board (1)

(P. 16)

Bottom cover (1) (P. 24)

Screw (1)

Drain hose (1)

Hose band (1) (P. 25) Hose holder (1)

Screw (1) (P. 25)

AWW9901D2U03_EN.indd 6AWW9901D2U03_EN.indd 6 7/2/2563 BE 13:327/2/2563 BE 13:32

Part Names / Accessories Before Washing

Before Washing

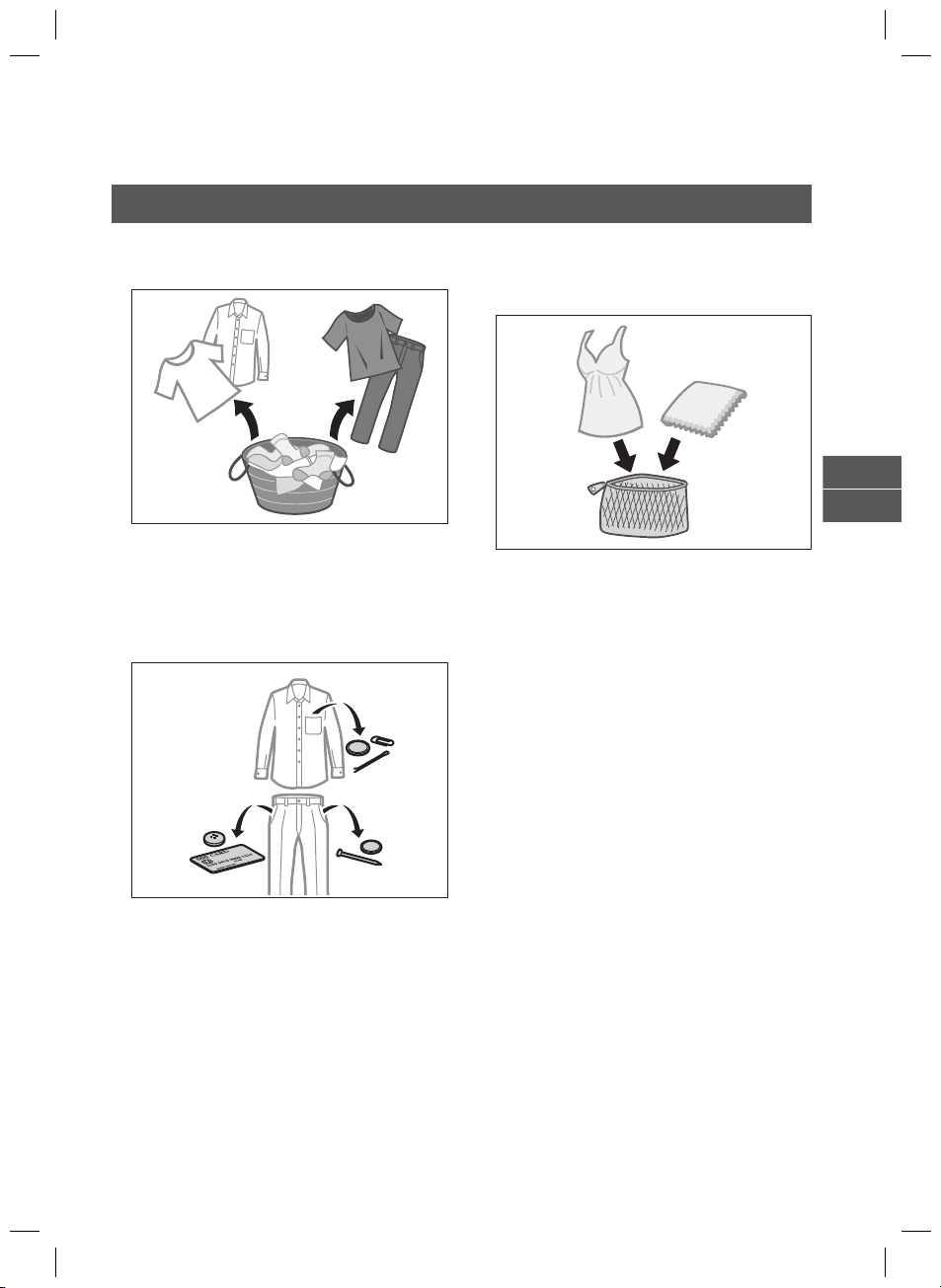

Laundry preparation and check

Wash separately for clothes

losing colour easily

Pre-laundry check

(To prevent damage to clothes,

malfunction and drainage failure)

Remove coins, pins, paper clips,

nails, etc.

Fasten buttons and close zippers.

Do not wash items (such as paper

diapers) other than laundry.

Reverse clothes likely to pill.

Use a brush to remove pet and

human hair, sand, etc.

Tie strings, etc.

Use laundry nets for delicates

Underwire brassieres, lacy clothes,

lingerie and stockings

Do not overpack.

Put the zipper's slider into the cover.

(To prevent damage to clothes and

the main unit)

Do not use the “Super Dry 90”

program. (To prevent uneven drying

and wrinkles)

For “Stain Master” program

(P. 10)

Recommended for removing stains.

Observe the instructions on the

care labels of clothes.

AWW9901D2U03_EN.indd 7AWW9901D2U03_EN.indd 7 7/2/2563 BE 13:327/2/2563 BE 13:32

Operation Panel

Preset

Set the time to ﬁnish

washing (in hours).

( lights.)

e.g.) 8 hours

later



Setting range:

2 - 24 hours later, in

one-hour increments.

(4 - 24 hours later for

the “Soak” program)



Not available for the

following programs:

“Gentle Hand Wash”,

“Comforter”,

“Tub Hygiene”,

“Super Dry 90”

Change water amount

During the wash process,

press “Water Level” to

check and change the

water amount.

Some water amounts

cannot be selected

depending on the

program.

Water amount/remaining time

After starting

operation, indicates

the water amount

according to the

amount of laundry.

After approx.

5 seconds, indicates

the approximate

remaining time

(min).

Temp Setting

For washing, cold water can be mixed with hot

water. Press the button to select Hot/Warm/Cold.

(P. 14)

Do not use water hotter than 60 ºC.



The estimated water temperature in the tub

during wash process (when hot water is 50 ºC,

and normal water is 20 ºC):

Hot approx. 40 ºC

Warm approx. 30 ºC



Lamp indications

Lighted: Hot/Warm/Cold is set.

Flashing: Hot water is being supplied.



Not available for the following programs:

Gentle Hand Wash, Tub Hygiene, Super Dry 90



Temp setting for “Soak Program” in accordance

with standard SASO 2885 : - Cotton 60: Hot

- Cotton 40: Warm

Super Dry 90 (P. 18)

Child Lock lamp (P. 20) Start/Pause

AWW9901D2U03_EN.indd 8AWW9901D2U03_EN.indd 8 7/2/2563 BE 13:327/2/2563 BE 13:32

Operation Panel

NOTE

In case of a power failure during

operation, operation will resume

from the point where it was stopped

when the power is recovered

(Auto Restart).

The power turns off automatically

if you do not press “Start/Pause”

within 10 minutes after power-on.

Touch operation

Operation buttons are capacitive

(Except for the power Off/On and

Start/Pause buttons). Touch the

buttons directly with your bare

ﬁngers.

When a towel containing water or

detergent touches an operation

button, the appliance may

malfunction.

Change process settings

Change the combination of wash,

rinse and spin processes, and the

time length or number of times for

individual processes. (P. 18)

Flashing (in progress)

Lighting

After starting operation, you can

change settings only during wash

process by pressing “Start/Pause”.

(The wash process setting of the

“Soak” and “Stain Master” program

cannot be changed.)

Water level/water amounts

Level High

10-8

Mid

7-5

Low

4-2

Extra Low

Detergent*

Water

amount (L) 99 88 81 74 66 59 52 46 38 33

* : 1 scoop of detergent

Water level for “Soak Program”

in accordance with standard SASO 2885 (Full load: 99 L / Half load: 74 L)

Each water level, except “Extra Low”, has three water amount options that

can be switched while the level is lighted by pressing “Water Level”.

e Program selection (P. 10) Power Off/On

ECONAVI (P. 15)

Stain Master (P. 17)

AWW9901D2U03_EN.indd 9AWW9901D2U03_EN.indd 9 7/2/2563 BE 13:327/2/2563 BE 13:32

Variety of Programs

Program Purpose

Normal (P. 14)

Everyday clothes

Daily washing

Speedy (P. 14) Speedy washing for light soil

Gentle Hand Wash (P. 16)

Delicates



Washing delicates gently

Baby Care (P. 14)

Clothes for babies & people with

sensitive skin

Rinsing thoroughly

Water Save (P. 14)

Saving water

* To rinse thoroughly, use the “Normal” or

“Baby Care” program.

Comforter (P. 16) Comforters and Blankets

Soak (P. 14)

Heavily soiled clothes

Presoaking to wash

(P. 17)

Light stain

Heavy stain

Sweat Sweat stains

Mud Mud stains

Sauce Sauce stains (soya, tomato, etc.)

Super Dry 90 (P. 18) Drying synthetic ﬁbre clothes

Tub drying

Tub Hygiene (P. 23)

Tub cleaning

Preventing black mould and smell

NOTE



“Normal” program and “Water Save” program are recommended for a

normally soiled load at the rated capacity of this washing machine.

AWW9901D2U03_EN.indd 10AWW9901D2U03_EN.indd 10 7/2/2563 BE 13:327/2/2563 BE 13:32

Table des matières

Autres manuels Panasonic Rondelle

Panasonic

Panasonic NA-148VX3WAU Mode d'emploi

Panasonic

Panasonic NA-148VG4 Mode d'emploi

Panasonic

Panasonic NA-F100A1 Guide produit

Panasonic

Panasonic ECONAVI NA-FS20V5SRY Guide produit

Panasonic

Panasonic NA-F70B2 Manuel utilisateur

Panasonic

Panasonic NA-148VB3 Mode d'emploi

Panasonic

Panasonic NA-120VG6 Guide produit

Panasonic

Panasonic NA-128VB6WSR Manuel utilisateur

Panasonic

Panasonic NA-140ZS1 Guide produit

Panasonic

Panasonic NA-168VX2 Manuel utilisateur

Panasonic

Panasonic NA-F68B3 Manuel utilisateur

Panasonic

Panasonic NA-F65B2 Manuel utilisateur

Panasonic

Panasonic NA-168VX2 Mode d'emploi

Panasonic

Panasonic NA-107VC6 Manuel utilisateur

Panasonic

Panasonic NA-F150A5WSA Guide produit

Panasonic

Panasonic NA-149MG4 Series Manuel utilisateur

Panasonic

Panasonic NA-F80B3 Manuel utilisateur

Panasonic

Panasonic NA-140VG4 Manuel utilisateur

Panasonic

Panasonic NA-127VC5 Mode d'emploi

Panasonic

Panasonic NA-127VB6WGB Manuel utilisateur

Panasonic

Panasonic NA-16VX1 Manuel utilisateur

Panasonic

Panasonic NA-V10FX1 Guide produit

Panasonic

Panasonic NA-127VB3WDA Manuel utilisateur

Panasonic

Panasonic NA-140VZ4 Mode d'emploi

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur

Beko

Beko WKB 51231 PTMA Manuel utilisateur
