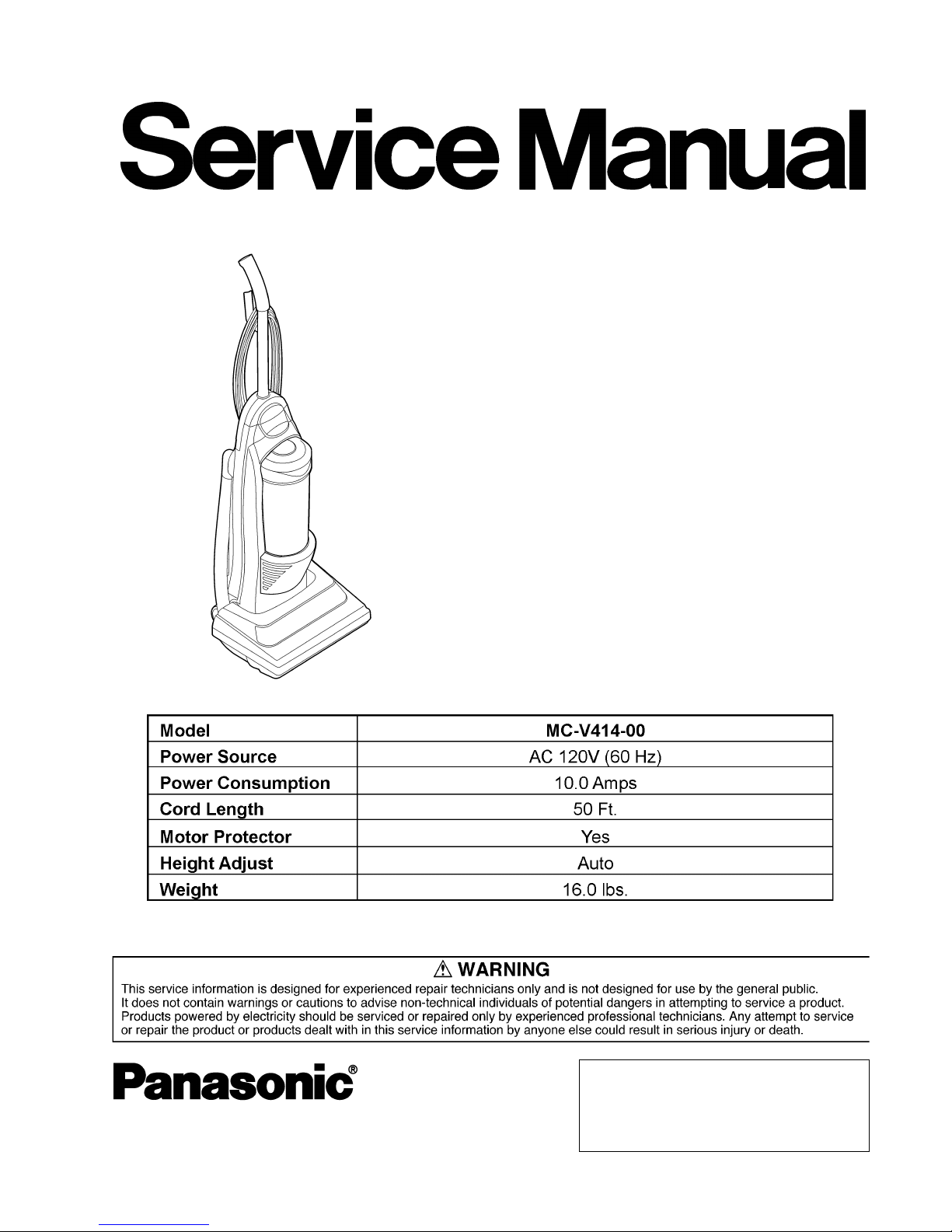

Panasonic MC-V414 Manuel utilisateur

Order Number MAC0401005C1

Vacuum Cleaner

MC-V414 00

Specifications are subject to change without notice for further

improvement.

TRONICS COMPANY, DIVISION OF MAT-

SUSHITA ELECTRIC CORPORATION OF

copying and distribution is a violation of law.

MC-V414 00

1 WIRING DIAGRAM AND DRAWING

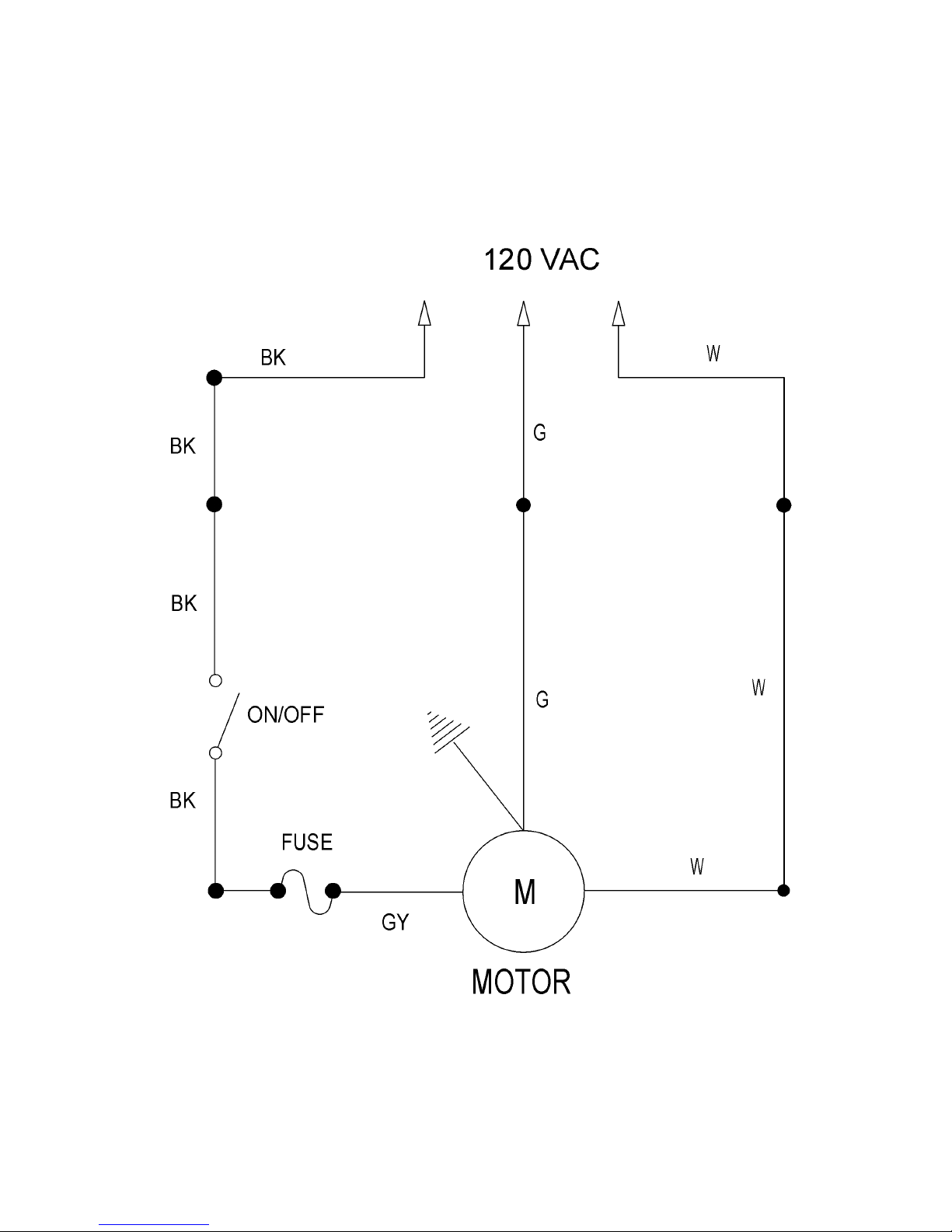

1.1. Wiring Diagram

MC-V414 00

1.2. PICTORIAL DIAGRAM

NOTE:

For general servicing, it is necessary to eliminate pinching of any wire during reassembly. After servicing any electrical compo-

nent or electrical enclosure, the unit should be reassembled and checked for dielectric breakdown or current leakage.

MC-V414 00

2 EXPLODED VIEW AND PARTS LIST

2.1. Body

2.1.1. Exploded View

MC-V414 00

2.1.2. Parts List (Body)

Ref. No. Part No. Part Name & Description Quantity Remarks

1 AC78KCHTZV07 Dust Compartment 1 Includes Items C-6 & C-7 Packing

2 AC60KBRSZU01 Dust Cover 1

3 AC94EAPNZY02 Power Cord 1

4 AMC-1CTCE23 Wire Connector 6

5 AC02LBJAZ000 Rear Cover Packing 1

6 AC40AYUZV00 Body Packing, Left 1

7 AC39AAJFZV00 Body Packing, Right 1

8 AC01EAMMZ000 On/Off Switch 1

9 AC01EAMMZV07 ON/Off Button 1

10 AC03EAMMZV07 Switch Cover 1

11 AXTN4+16BFY Screw, Switch Cover 1

12 AC60KCHTZV07 Suction Inlet 1

13 AXTN4+16BFY Screw, Body 7

14 AXWG6E115Y Washer (Wheel) 2

15 AMC01C-V00U Wheel 2

16 AC74SUSZ00 Stopper (Wheel) 2 Shipped 10 per package

17 AC16CUSZ00 Shaft, Roller 1

18 AC69KJMZV06 Protector 1

19 AC70KAGZZR00 Protector Spring 1

20 AC68KJMZV06 Protector Cover 1

21 AC95BCHTZV07 Handle Assembly 1

22 AMP21B-170 Nut, Handle 1 Shipped 10 per package

23 AMC73B-V00 Screw, Handle 1

24 AC03FAFVZ000 Motor Support, Rubber (Rear) 1

25 AC92FAWRZ00 Motor, Fan 1

26 AMC02F-E00 Motor Support, Rubber (Front) 1

27 AC26FCHTZ000 Motor Cap 1

28 AC38GARTZ000 Lead Wire, Motor 1

29 AC99WBDNZ000 Lead Wire Assembly 1

30 AC37GTEZ0U Wire Cord 1

31 AC37KBVWZ000 Filter, Exhaust (Foam) 1

32 AC43ABRSZ000 Frame, Filter 1

33 AC41KCHFZU03 Cover, Filter 1

34 AC34PVO2V06 Hose 1

35 AC74KBFEZ000 Packing, Dust 1

36 AC37KBYDZ000 Secondary Filter 1

37 AXTN4+16BFY Screw, Handle 4 Shipped 10 per package

38 AC06BCHTZV07 Handle Cover A 1

39 AC07BCHTZV07 Handle Cover B 1

40 AC14BCHFZV07 Handle Lid 1

41 AC64BBFEZV07 Handle 1

42 AC95KBRSZ000 Filter Unit 1

43 AC95KBFEZ000 Valve Grommet 1

44 AC42KCHTZBUU Screw, Handle 1

45 AC78NZAZ000 Plastic Holder 1

MC-V414 00

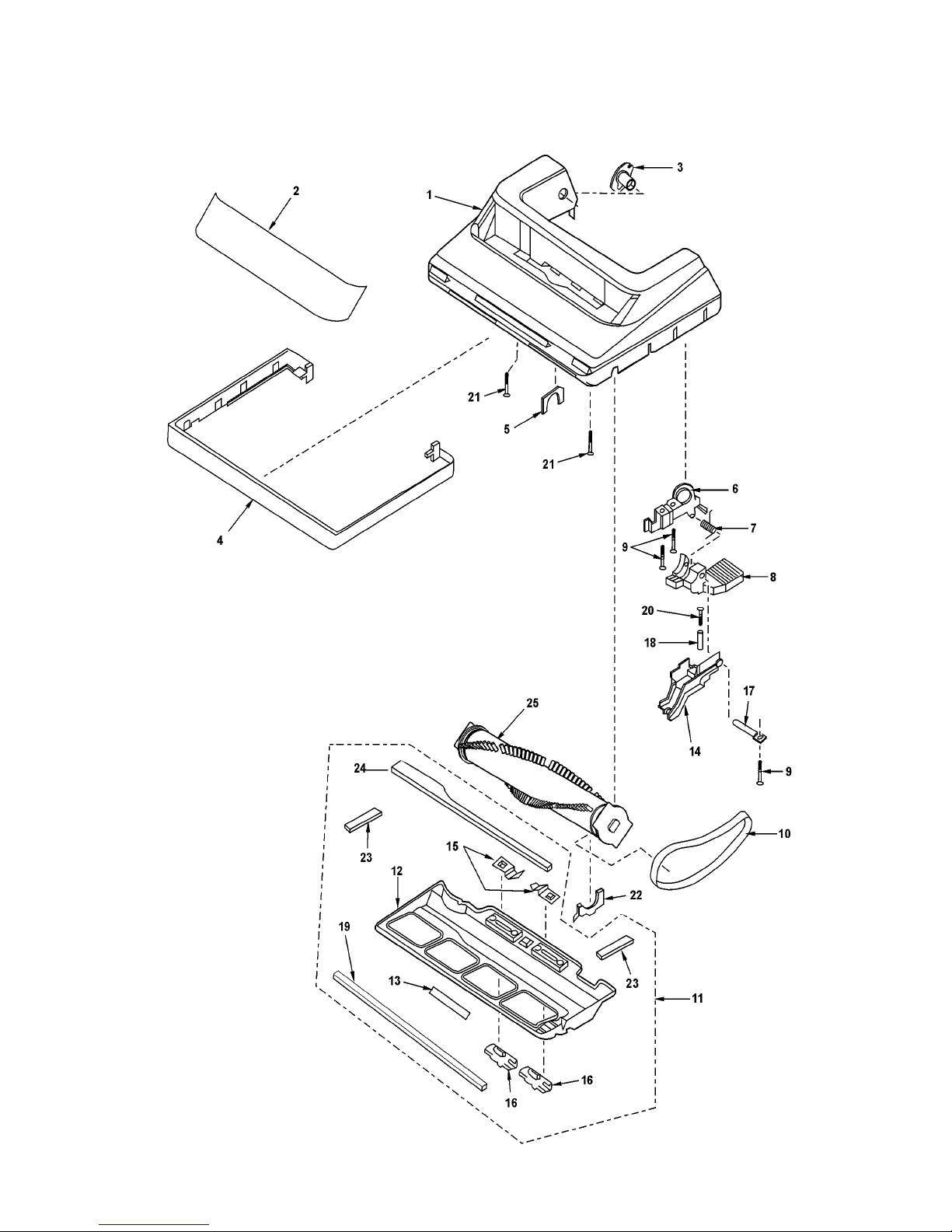

2.2. Nozzle Housing

2.2.1. Exploded View

MC-V414 00

2.2.2. Parts List (Nozzle Housing)

Ref. No. Part No. Part Name & Description Quantity Remarks

1 AC01ACHTZU03 Nozzle Housing 1

2 AC21H2XZU03 Window 1

3 AMC25S-V00 Shaft (Plastic) 1

4 AC10A2VZV07 Furniture Guard 1

5 AMC81A-V00 Packing (Nozzle) 1

6 AMC43A-2V0 Frame 1

7 AMC58A-2V0 Spring (Pedal) 1

8 AMC47A-2V0U Pedal 1

9 AXTN4+16BFY Screw (Frame) 3

10 AC28SJPZ00 Belt 1

11 AC91AARFZ00 Lower Plate Assembly 1

12 AC27AADGZ00 Lower Plate 1

13 AC07ZADFZ00 Warning Label 1

14 AMC11S-2V0W Belt Cover (Rear) 1

15 AC70NYUZ00 Stop Latch Spring 1

16 AMC68N-V30K Latch 2

17 AMC51A-2V0 Pedal Shaft 1

18 AMC74S-Z100G Spacer 1

19 AC74AAAEZ00 Packing (Lower Plate Front) 1

20 AXTN4+28BFY Screw (Spacer) 2

21 AMC68A-V30 Screw (Nozzle) 2

22 AMC82A-2V00 Agitator Holder 3

23 AMC39A-2V0 Packing (Lower Plate Sides) 1

24 AMC74A-2V0 Packing (Lower Plate Back) 1

25 AC84RBZDZ000 Agitator Unit 1

MC-V414 00

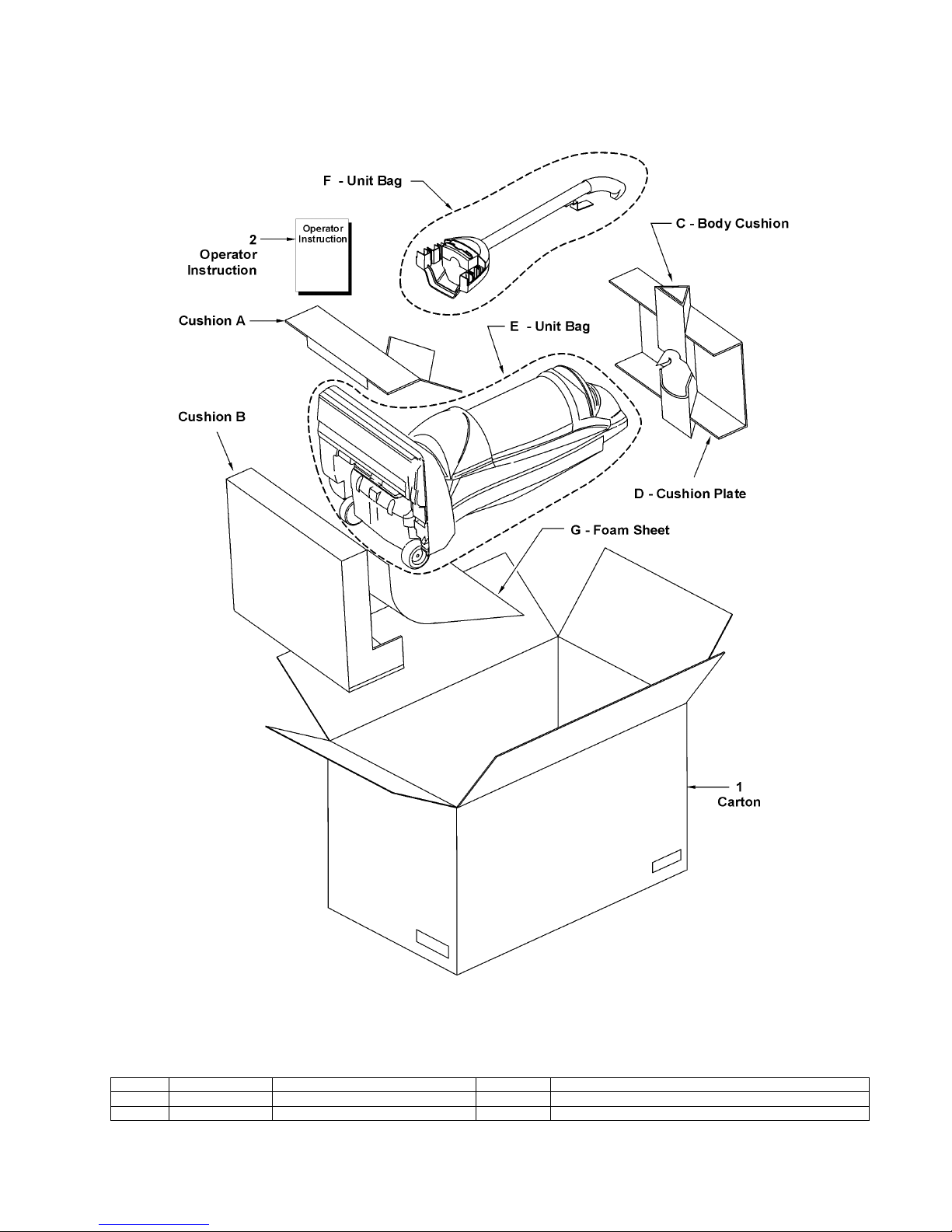

2.3. Packing Material

2.3.1. Exploded View

2.3.2. Parts List

Ref. No. Part No. Part Name & Description Quantity Remarks

1 AC61ZCHTZOOO Packaging Assembly 1 Includes 1 and items a-g

2 ACO1ZCHTZOOO Operating Instructions 1

MC-V414 00

3 REPLACEMENT INSTRUCTIONS

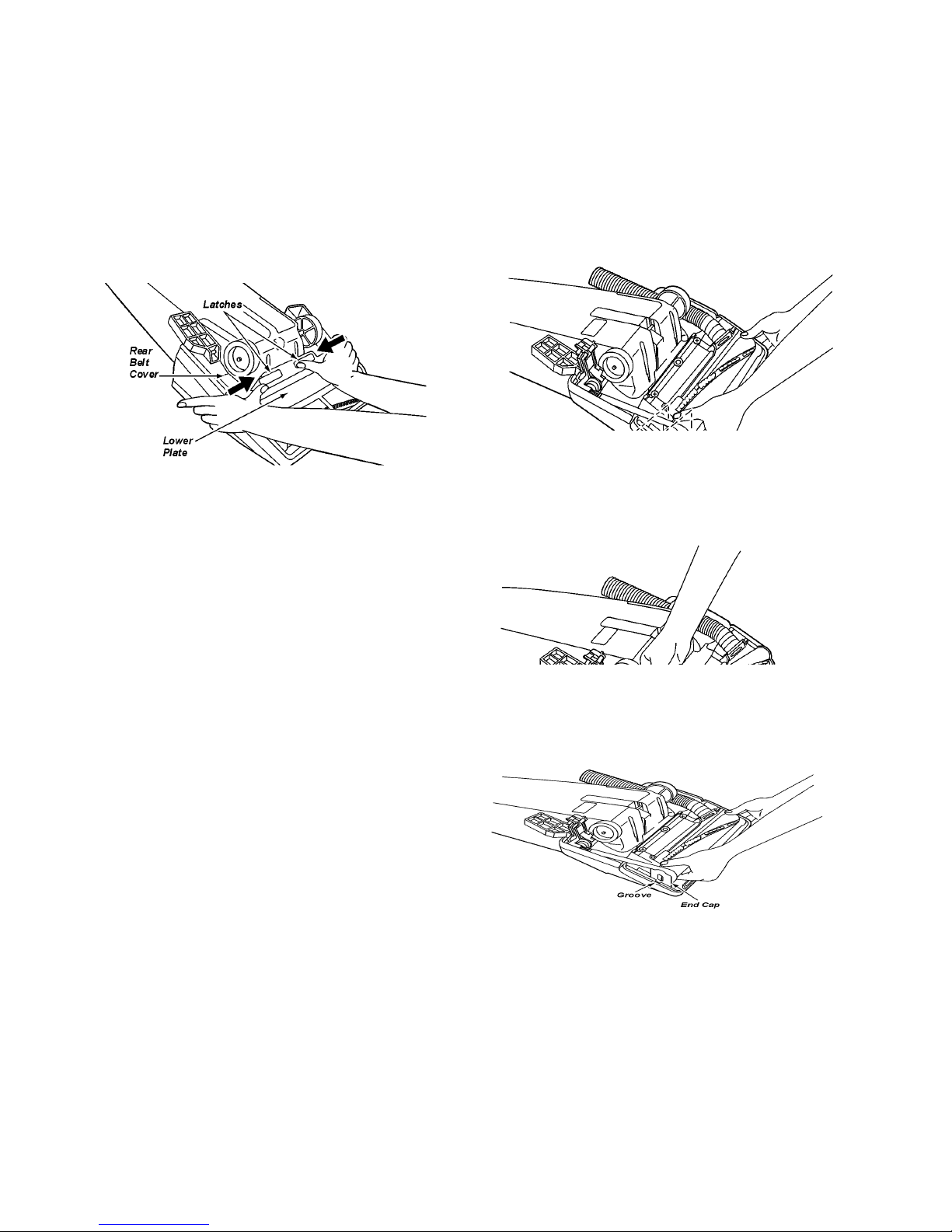

3.1. Lower Plate

3.1.1. Removal

1. Place handle in low position.

2. Turn the vacuum cleaner over exposing the underside.

Release the lower plate by pressing the two (2) latches

that secure it inward.

3. Separate the lower plate from the vacuum.

3.1.2. Installation

1. Close the rear belt cover.

3. Hook the front of the lower plate into the slots on the front

of the nozzle housing. Press the lower plate down into

place.

4. Fasten the lower plate by pushing the two (2) latches out-

ward.

5. NOTE: For general servicing, it is necessary to eliminate

pinching of any wire during reassembly. After servicing

any electrical component or enclosure, the unit should be

reassembled and checked for dielectric breakdown or

current leakage.

3.2. Belt Replacement

3.2.1. Removal

1. Follow the removal instructions outlined in the AGITATOR

ASSEMBLY REMOVAL/INSTALLATION section.

3.2.2. Installation

1. Place the new belt around the motor shaft and follow the

installation instructions in the AGITATOR ASSEMBLY

REMOVAL/INSTALLTION section.

3.3. Agitator Assembly

3.3.1. Removal

1. The brushes are not replaceable separately. When the

brushes need replacing, the agitator assembly will have

to be replaced.

2. Carefully lift up on the agitator assembly until it clear both

sides of the nozzle housing.

3. Remove the belt from the motor shaft by sliding it off

between the end of the shaft and the nozzle housing.

3.3.2. Installation

1. Place the belt around the motor shaft.

2. Place the belt around the agitator pulley on the agitator

assembly.

3. Reassemble the new agitator assembly back into the noz-

zle housing by placing the side opposite the belt partially

into the slot. The small tabs should be aligned with the

nozzle. This will hold the agitator in place and leave both

hands free to place enough tension on the belt to allow

that side of the agitator to return to the nozzle housing slot.

4. Rotate the agitator assembly by hand to insure nothing

rubs and to check for correct assembly.

5. Replace lower plate.
