Panasonic MC-UG581-01 Manuel utilisateur

COMPANY OF AMERICA, DIVISION OF

PANASONIC CORPORATION OF NORTH

and distribution is a violation of law.

MC-UG581-01

Vacuum Cleaner

Specifications are subject to change without notice for further improvement.

Order Number MAC1002001CE

1 WIRING DIAGRAM AND DRAWING 3

1.1. Wiring Diagram 3

1.2. PICTORIAL DIAGRAM 4

2 EXPLODED VIEW AND PARTS LIST 5

2.1. Body 5

2.2. Nozzle Housing 7

2.3. Packing Material 9

3 REPLACEMENT INSTRUCTIONS 10

3.1. Lower Plate Replacement 10

3.2. Belt Replacement 10

3.3. Agitator Assembly Replacement 10

3.4. NOZZLE HOUSING REPLACEMENT 11

3.5. Motor Replacement 11

CONTENTS

Page Page

MC-UG581-01

1 WIRING DIAGRAM AND DRAWING

1.1. Wiring Diagram

MC-UG581-01

1.2. PICTORIAL DIAGRAM

NOTE:

For general servicing, it is necessary to eliminate pinching of any wire during reassembly. After servicing any electrical

component or electrical enclosure, the vacuum cleaner should be reassembled and checked for dielectric breakdown or current

leakage.

Use part number AC79FCWZZ000 (FIBERGLASS CLOTH TAPE) whenever original tape is removed.

MC-UG581-01

2 EXPLODED VIEW AND PARTS LIST

2.1. Body

2.1.1. Exploded View

MC-UG581-01

2.1.2. Parts List (Body)

Ref. No. Part No. Part Name & Description Quantity Remarks

1 AC40KDKUZV07 DUST COMPARTMENT 1 INCLUDES ITEMS 45 46 & 44

2 AMC98E-V010U SWITCH 1 INCLUDES ITEMS 3 13 & 44

3 AMC62E-J20 CORD STOPPER 1

4 AXTN4+16BFY SCREW (CORD STOPPER) 2 SHIPPED 10 PER PACKAGE

5 AC97EAEKZV06 POWER CORD 1

6AMC-1CTCE23 WIRE CONNECTOR 3

7 AC66KV01V06 DUST CONTAINER PACKING 2

8 AC03EDEVZV07 SWITCH COVER 1

9 AC73KV0ZV06 SWITCH COVER PACKING 1

10 AXTN4+16BFY SCREW (SWITCH COVER) 2 SHIPPED 10 PER PACKAGE

11 AMC73B-V00 HANDLE SCREW 1 SHIPPED 10 PER PACKAGE

12 AMP21B-170 NUT 1 SHIPPED 10 PER PACKAGE

13 AC61LAGMZ00 PACKING (HANDLE SCREW) 1

14 AXTN4+16BFY SCREW (SUCTION INLET) 2 SHIPPED 10 PER PACKAGE

15 AMC32K-V00 FILTER SUPPORTER 1

16 AC37KAAEZ00 HEPA FILTER 1

17 AC01CVZV07 WHEEL 2 SHIPPED 2 PER PACKAGE

18 AC16CUSZ00 SHAFT (WHEEL) 1 INCLUDES ITEM 19

19 AC74SUSZ00 STOPPER (WHEEL) 2 SHIPPED 10 PER PACKAGE

20 AXWG6E115FY WASHER (WHEEL) 2 SHIPPED 10 PER PACKAGE

21 AC16KDDWZ000 DUST BAG (Type U12) 1

22 AC60HF74VU6 SUCTION INLET 1

23 AMC02H-F70E COVER 1

24 AC09FBJXZP0C MOTOR CASE 1

25 AC02LBJYZ00 REAR COVER PACKING 1

26 AC19FJPZV06 MOTOR CASE PACKING 1

27 AXTN4+20BFY SCREW (MOTOR CASE) 4 SHIPPED 10 PER PACKAGE

28 AC92FBNUZ000 FAN MOTOR 1

29 AC99GAMMZ00 NOISE SUPPRESSOR 1

30 AMC02F-E00 MOTOR SUPPORT (FRONT) 1

31 AMC03F-V00 MOTOR SUPPORT (REAR) 1

32 AC99WDKXZ000 LEAD WIRE (FUSE) 1

33 AC38GARTZ000 LEAD WIRE 1

34 AMC37G-V020U WIRE CORD 1

35 AMC-1CTCE23 WIRE CONNECTOR 2

36 AC64BDEVZ000 HANDLE 1

37 AC55EV0ZV07 CORD STORAGE BASE 1

38 AC53EV0ZV07 UPPER CORD STORAGE 1

39 AMC76N-F70 SPRING (CORD HOOK) 1

40 AMC58B-F70 WASHER (CORD HOOK) 1 SHIPPED 10 PER PACKAGE

41 AXTN4+30BFY SCREW (CORD HOOK) 2 SHIPPED 10 PER PACKAGE

42 AC50BDEVZV07 HANDLE GRIP 1

43 AC34PV02V06 HOSE 1

44 AMC596-702 CABLE TIE 1 SHIPPED 10 PER PACKAGE

45 AC39AYUZV00 PACKING (RIGHT) 1

46 AC40AYUZV00 PACKING (LEFT) 1

47 AC60KDEVZPUC DUST COVER 1

48 AC01DDEVZV07 LATCH 1

49 AC23DDEVZ000 SPRING 1

MC-UG581-01

2.2. Nozzle Housing

2.2.1. Exploded View

2.2.2. Parts List (Nozzle Housing)

Ref. No. Part No. Part Name & Description Quantity Remarks

1 AC01ADEVZPUC NOZZLE HOUSING 1

2 AC21HURZP0C WINDOW 1

3 AMC25S-V00 PLASTIC SHAFT 1

4 AC10AURZV07 FURNITURE GUARD 1

5 AMC81A-V00 NOZZLE PACKING 1

6 AMC57A-V00 PEDAL SPRING 1

7 AXTN4+16BFY SCREW (PEDAL SPRING) 1 SHIPPED 10 PER PACKAGE

8 AC28SCZPZ000 BELT 1

9 AC91AAGW1V07 LOWER PLATE ASSEMBLY 1 INCLUDES ITEMS 10 11 & 12

10 AC27AAGW1V07 LOWER PLATE 1

11 AMC75A-V00 BODY PACKING 1

12 AMC43S-V00 BELT COVER 1

13 AC68AZAZ00 SCREW (LOWER PLATE) 3 SHIPPED 10 PER PACKAGE

14 AMC78N-V00 PLASTIC HOLDER 1

MC-UG581-01

Ref. No. Part No. Part Name & Description Quantity Remarks

15 AC84RBZDZ000 AGITATOR 1

16 AXTN4+10BFY SCREW (Bulb Scocket) 1 SHIPPED 10 PER PACKAGE

17 AMC58B-F70 WASHER 1

18 AMC-XWA5BFY SPRING WASHER 1

19 AC28GADFZ00 BULB 1

20 AC93HURZ00 BULB SOCKET 1

MC-UG581-01

2.3. Packing Material

2.3.1. Exploded View

2.3.2. Parts List

Ref. No. Part No. Part Name & Description Quantity Remarks

1 AC61ZCRJZ000 Packaging Assembly 1 Includes 1 and items a-g

2 AC01ZDEVZ000 Operating Instructions 1

MC-UG581-01

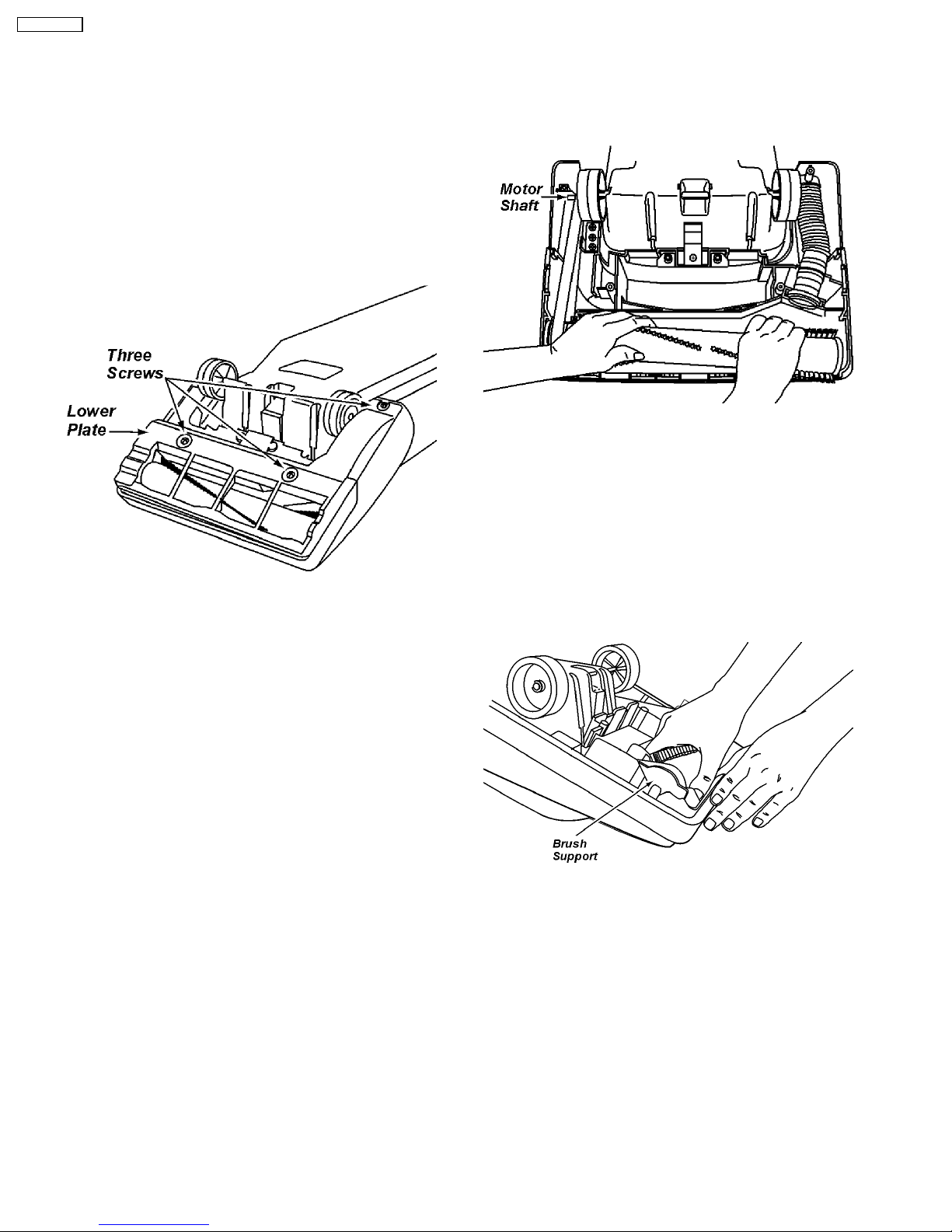

3.1. Lower Plate Replacement

3.1.1. Removal

1. Turn the vacuum cleaner over exposing the underside.

Release the lower plate by removing the three (3) screws

that secure the lower plate.

2. Remove the lower plate by grasping it at the back near the

wheels, lift up, pivoting it toward the agitator until it releases

from the slots in front. Remove any residue that may exist

in the belt area.

3.1.2. Installation

1. Hook the front of the lower plate into the slots on the front

of the nozzle housing. Press the lower plate down into

place.

2. Hook the front of the lower plate into the slots on the front

of the nozzle housing. Press the lower plate down into

place.

3. Replace the three (3) lower plate mounting screws.

NOTE: For general servicing, it is necessary to eliminate

pinching of any wire during reassembly. After servicing

any electrical component or electrical enclosure, the

vacuum cleaner should be reassembled and checked for

dielectric breakdown or current leakage.

3.2. Belt Replacement

3.2.1. Removal

1. Follow the removal instructions outlined in the AGITATOR

ASSEMBLY REMOVAL/INSTALLATION section.

3.2.2. Installation

1. Place the new belt around the motor shaft and follow the

installation instructions in the AGITATOR ASSEMBLY

REMOVAL/INSTALLTION section.

3.3. Agitator Assembly

Replacement

3.3.1. Removal

1. When the brushes need replacing, the agitator assembly

will have to be removed and replaced.

2. Remove the lower plate as outlined in the LOWER PLATE

REMOVAL/INSTALLATION section.

3. Carefully lift up on the agitator assembly until it clears both

sides of the nozzle housing. .

3.3.2. Installation

1. Place the belt around the motor shaft.

2. Start the new agitator assembly back into the nozzle

housing by placing the side opposite the belt partially into

the slot. The small tabs should be aligned with the nozzle

and the other against the lower plate. This will hold the

agitator in place and leave both hands free to place enough

tension on the belt to allow that side of the agitator to return

to the nozzle housing slot.

3. Place the belt around the agitator pulley on the agitator

assembly.

4. Use both hands to pull the belt tight, slide the agitator

assembly firmly into the slots on each end of the nozzle

housing.

5. Rotate the agitator assembly by hand to insure nothing

rubs and to check for correct assembly.

6. Replace the lower plate as outlined in the LOWER PLATE

3 REPLACEMENT INSTRUCTIONS

MC-UG581-01
