Panasonic MC-E3002-WP47 Manuel utilisateur
© 2007 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and distribu-
tion is a violation of law.
Order No.VCB0704009CE
Vacuum Cleaner
MC-E3002-WP47
Product Color : White
Destination : UK
TABLE OF CONTENTS
PAGE PAGE
1 Specifications ----------------------------------------------------- 2
2 Location of Controls and Components ------------------- 3
3 Troubleshooting Guide ----------------------------------------- 5
4 Disassembly and Assembly Instructions ---------------- 6
4.1. BELT (Beater bar belt), BELT B (Motor shaft
belt) ----------------------------------------------------------- 6
4.2. BEATER BAR UNIT--------------------------------------- 7
4.3. IDLER PULLEY UNlT ------------------------------------ 7
4.4. FAN MOTOR UNIT---------------------------------------- 8
4.5. PC board w/component, ON/OFF Switch,
Fuse unit and Power cord (Mains lead)-------------- 9
4.6. ON/OFF SWITCH ----------------------------------------11
5 Wiring Connection Diagram ---------------------------------11
6 Exploded View and Replacement Parts List -----------12
6.1. EXPLODED VIEW (BODY UNIT) --------------------12
6.2. PARTS LIST (BODY UNIT) ----------------------------13
6.3. PACKING INSTRUCTIONS --------------------------- 15
6.4. PACKING LIST ------------------------------------------- 15
2
1 Specifications
Specifications are subject to change without notice for further improvement.
Model MC-E3002-WP47
Power source AC230-240V~50Hz
Input power (MAX) 1900W
Input power (Nominal) 1600-1700W
Cord length 6.7m
Net weight 6.3kg
Dimensions (L x W x H) mm 320 x 323 x 1045
Dusting brush O
Crevice nozzle O
Extension wand O
3
2 Location of Controls and Components
4
5
3 Troubleshooting Guide
CONDITION CHECKPOINT METHOD OF INSPECTION CAUSE / REMEDY
The fan motor does not rotate. Fuse A unit Check whether or not the fuse has
blown.
If the fuse has blown, then replace
it.
Power cord (Mains lead) Check whether or not the power
cord has broken.
If the power cord has broken, then
replace it.
Fan motor conductivity Check the conductivity across the
terminals of the motor.
If they are not conductive, then
replace the motor.
Motor's carbon brushes Check whether or not the carbon
brushes have worn out.
Replace the fan motor unit.
ON/OFF Switch Check the conductivity of the
switch turned ON and OFF.
If there is no conduction, then
replace the switch.
The motor rotates, but the dust
absorbing power is not effective.
The dust bag or suction inlet
packing (central filter)
Check whether or not the dust bag
or suction inlet packing has been
clogged with dust.
If the dust bag is clogged with dust,
then replace it.
If the suction inlet packing (central
filter) is stained, then clean or
replace it.
The hose or connector pipe Check whether or not the hose or
connector pipe has been clogged
with dust.
If they are clogged with dust, then
remove the dust.
There is abnormal noise or vibra-
tion.
Fan motor unit Check whether or not dust has
entered the fan motor unit (the dust
bag (whether or not the dust bag
has broken).
If dust has entered the fan motor,
then replace the fan motor unit.
Check the dust bag and replace it
when needed.
Motor's carbon brushes Check whether or not the two car-
bon brushes of the motor have
worn out evenly.
Replace the fan motor unit.
Beater bar unit Remove the belt from the beater
bar. Check whether or not it can be
lightly rotated manually.
If the rotation resistance is large,
then replace the beater bar unit.
The beater bar does not rotate. Belt. Remove the floor nozzle lower unit.
Check whether or not the belt has
broken.
If the belt has broken, then replace
it. If it has come off, then fit it again.
Idler pulley Check whether or not the idler pul-
ley can be rotated smoothly.
If the idler pulley does not rotate,
then replace it.
Beater bar unit Remove the belt from the beater
bar. Check whether or not it can be
lightly rotated manually.
If the rotation resistance is large,
then replace the beater bar unit.
6
4 Disassembly and Assembly Instructions
IMPORTANT: Before replacing any part always DISCONNECT THE CLEANER FROM THE ELECTRICITY SUPPLY.
4.1. BELT (Beater bar belt), BELT B
(Motor shaft belt)
1. Loosen 5 screws from the base plate (Floor nozzle lower
unit) and remove it. (Fig. 1)
2. Remove the beater bar unit from the floor nozzle upper
unit. (Fig. 2)
3. Remove the 1 screw from the pedal shaft to detach the
pedal. (Fig. 3)
4. Pull out the pedal shaft slightly. Remove the tip of the
shaft from the metal plated of the idler pulley. Then
remove it together with the pedal.
5. Remove belt B from the motor shaft and then from the
idler pulley.
6. Remove the belt from the beater bar unit and then from
the idler pulley.
7. Fit a new belt and belt B by reversing the disassembly
procedure. Fit the belt first, then belt B.
7
4.2. BEATER BAR UNIT
1. Remove the base plate (floor nozzle lower unit).
2. Remove the beater bar unit from the floor nozzle upper
unit. (Fig. 4)
3. Replace the bar unit with a new one and place the belt
around the beater bar unit. (fig. 5)
4. Insert the beater bar unit in the groove of the floor nozzle
upper unit. Rotate the beater bar unit by hand and check
that it is fitted properly.
5. Replace the base plate (Floor nozzle lower unit) and
refasten screw.
4.3. IDLER PULLEY UNlT
1. Remove the base plate. (Floor nozzle lower unit)
2. Remove 1 screw from the pedal and take it out. (Fig. 5).
3. Release the two belts from the Idler pulley.
4. Remove 2 screws from the Idler pulley unit and take it
out. (Fig. 6)
5. Replace the Idler pulley unit with a new one and re-install
it.
6. Re-assemble the pedal, belts and remaining parts in the
reverse order.
8
4.4. FAN MOTOR UNIT
1. As described in paragraph 4.3 of "IDLER PULLEY UNlT",
remove the base plate (floor nozzle lower unit), pedal,
and idler pulley, and belt B, belt.
2. Disconnect the hose and connector pipe from the floor
nozzle upper unit (Fig.7).
3. Insert a flat-head screwdriver between nozzle housing
and the plastic holder, then pry out the plastic holder.
(Fig.8).
4. Turn the vacuum cleaner over and remove 4 screws from
Moter case and take it out. (Fig.9)
* Connection of Connector A unit during assembly
Connect Connector A unit as shown in Fig. 10.
9
5.

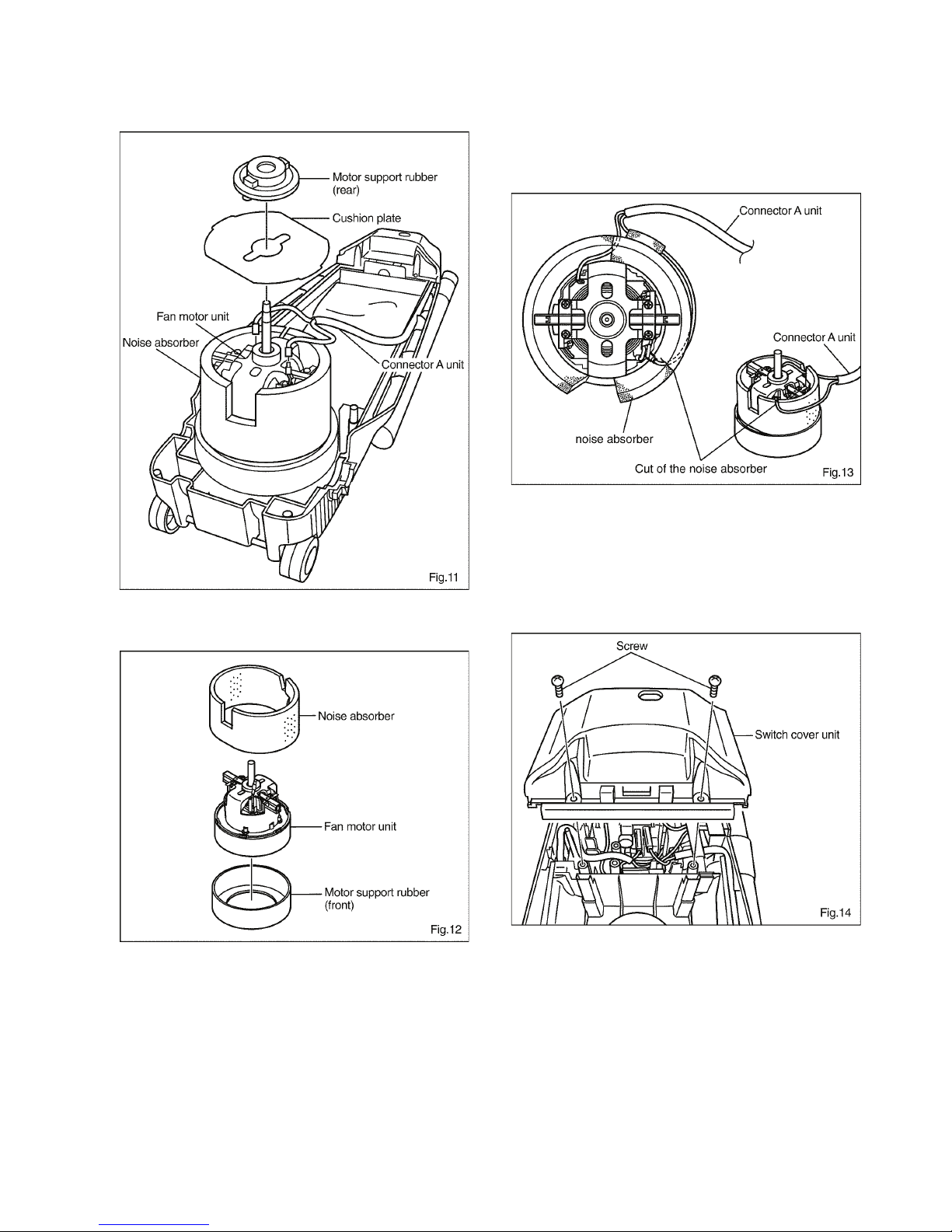

a. Take out the motor and detach the motor support rub-
ber (rear) and cushion plate (Fig. 11).
b. Disconnect the lead wires, and detach the noise
absorber and motor support rubber (front) (Fig.12)
6. Replace the motor with a new one.
7. Re-assemble front / rear motor supports, noise absorber
and connect the lead wires to the motor.
8. Re-install the motor and reassemble motor case and
remaining parts in the reverse order.
NOTE: Make sure the lead wires are correctly posi-
tioned to avoid pinching them between parts.
* Connection of Connector A unit during assembly
Connect Connector A unit as shown in Fig. 13 so that
the unit is inserted in the cut of the noise absorber.
4.5. PC board w/component,
ON/OFF Switch, Fuse unit and
Power cord (Mains lead)
1. Remove the two screws fixing the switch cover unit (Fig.
14).
10
2. Remove the indicator unit (Fig. 15).
3. Lift the printed circuit board section and remove the fast-
on terminal and the connector (Fig. 16).
4. Open P.C.B. holder A and the P.C.B. holder. Remove the
PC board w/Components inside. (Fig. 17)
Note: You can remove the ON/OFF switch, fuse unit,
and mains power cord (lead wire).
5. Connect the lead wires according to the schematic dia-
gram, restore the switch cover to its original position, and
refasten the screws.
* Connection of the lead wires for assembly
Connect the lead wires as shown in Fig. 15.
