Panasonic TX-34P150X Manuel utilisateur

OrderNo. MTV0206175C3

Colour Television

TX-34P150X

MD3AChassis

SPECIFICATIONS

Specifications

Power Source ACSINGLE220 V, 50 Hz

Power Consumption 209 W

Standbycondition :3.0W

Receiving System 21 Systems

Function

Reception ofbroadcast

transmissionsand

Playback fromVideo

CassetteTapeRecorders

1PAL B, G, H

2PAL I

3PAL D, K

4SECAMB, G

5SECAMD, K

6SECAMK1

7NTSCM(NTSC3.58/4.5MHz)

8NTSC4.43/5.5MHz

Playback fromspecial

VCRs 9NTSC4.43/6.0MHz

10 NTSC4.43/6.5MHz

11 NTSC3.58/5.5MHz

12 NTSC3.58/6.0MHz

13 NTSC3.58/6.5MHz

14 SECAMI

Playback fromSpecial

Disc 15 PAL 60 Hz/5.5MHz

Players and Special VCRs 16 PAL 60 Hz/6.0MHz

17 PAL 60 Hz/6.5MHz

18 SECAM60 Hz/5.5MHz

19 SECAM60 Hz/6.0MHz

20 SECAM60 Hz/6.5MHz

21 NTSC50 Hz/4.5MHz

Receiving Channels Regular TV

VHF BAND 2-12 (PAL/SECAMB, K1)

0-12 (PAL BAUST.)

1-9(PAL BN.Z.)

1-12 (PAL/SECAMD)

1-12 (NTSCMJapan)

2-13 (NTSCMU.S.A.)

UHF BAND 21-69 (PAL G,H,I/SECAMG,K,K1)

28-69 (PAL BAUST.)

13-57 (PAL D,K)

13-62 (NTSCMJapan)

14-69 (NTSCMU.S.A.)

CATV S1-S20 (OSCAR)

1-125 (U.S.A. CATV)

C13-C49 (JAPAN)

S21-S41 (HYPER)

Z1-Z37 (CHINA)

4A, 9A(AUST.)

Receiving Stereo System NICAMI, NICAMB/G, NICAMD, A2

(German)

Tuning System Frequencysynthesizer

Auto Search Tuning

POSITION:100 Position

DIRECT :125 Position

High Voltage 31.0± 1.0kVatzero beam current

Picture Tube Overall Picture tubemeasured

diagonally:72 cm

ViewablePicture tubemeasured

diagonally:68 cm

CRT Deflection :104°

Audio Output 36 W[2-way, 4-speaker;12 W+12

W, AFBwoofer;12 W](10%THD)

Headphones 3.5mm Plug

Aerial Impedance 75 Unbalanced Coaxial

VIdeo/Audio/Component

Terminals

S-Video In Y:1Vp-p, 75

AV1, 2, 3,4

C:0:3Vp-p 75

DVD(Y/PB/PR)

Video In 1Vp-p, 75

Audio In Approx0.4V47 k

Video Out1Vp-p, 75

MonitorOut Audio OutApprox. 0.4V1k

AV1IN(Rear):S-Video,

Video, Audio L/R

terminals/ AV2IN(Rear):

Video orY/PB/PRAudio L/

Rterminals/ AV3IN

(Front) :S-Video, Video,

Audio L/RRGBterminals

/ AV4IN(Rear):Video or

Y/PB/PR, Audio L/R

terminals

/ / / /

RGBInput High-DENSITYD-sub 15 pin

RemoteControl

Transmitter R6 (AA)Batteryx2

Dimensions(W×D×H) 75 coaxial aerial plug

652 mm x517 mm x612 mm

Weight(Mass) 53 kg (Net)

Note:/ Design and Specificationsare subjectto change

withoutnotice. Weightand Dimensionsshown are approximate.

Unauthorizedcopying and distribution isaviolation oflaw.

1. SAFETY PRECAUTIONS

1.1. General Guide

1. Itisadvisabletoinsertanisolation transformerintheACsupply

beforeservicing ahotchassis.

2. Whenservicing, observetheoriginal leaddress, especiallythe

leaddress inthehigh voltagecircuits. Ifashortcircuitisfound,

replace all parts whichhavebeenoverheatedor damagedbythe

shortcircuit.

3. Afterservicing, see toitthat all theprotectivedevices suchas

insulation barriers, insulation papers, shields, and isolation R-C

combinations, areproperlyinstalled.

4. Whenthereceiverisnottobeusedfor along period oftime,

unplug thepowercord from theACoutlet.

5. Potential, as high as 32.0kV ispresentwhenthisreceiverisin

operation. Operation ofthereceiverwithouttherearcover

involves thedangerofashock hazard from thereceiverpower

supply. Servicing shouldnotbeattemptedbyanyonewho isnot

thoroughlyfamiliarwiththeprecautionsnecessarywhenworking

on high voltageequipment. Alwaysdischargetheanodeofthe

picturetubetothereceiverchassisbeforehandling thetube.

6. Afterservicing make thefollowing leakagecurrentchecks to

preventthecustomerfrom being exposedtoshock hazards.

1.2. LeakageCurrentColdCheck

1. Unplug theACcord and connect ajumperbetweenthetwo

prongson theplug.

2. Turn on thereceiver’spowerswitch.

3. Measuretheresistance value, withanohmmeter, betweenthe

jumperACplug and eachexposedmetalliccabinet parton the

receiver, suchas screwheads, aerials, connectors, control

shafts, etc. Whentheexposedmetallicparthas areturn pathto

thechassis, thereading shouldbebetween4M and 20 M .

Whentheexposedmetal does nothaveareturn pathtothe

chassis, thereading must beinfinite.

1.3. LeakageCurrentHotCheck (See Fig. 1)

1. Plug theACcord directlyintotheACoutlet. Donotuse an

isolation transformerfor thischeck.

2. Connect a2k , 10 Wresistor inseries withanexposedmetallic

parton thereceiverand anearthsuchas awaterpipe.

3. Use anACvoltmeter, withhigh impedance type, tomeasurethe

potential across theresistor.

4. Check eachexposedmetallicpart, and measurethevoltageat

eachpoint.

5. Reverse theACplug intheACoutlet and repeat eachoftheabove

measurements.

6. Thepotential anypointshouldnotexceed1.0V rms. Inthecase

ofameasurementbeing outsideofthelimits specified, thereisa

possibilityofashock hazard, and thereceivershouldberepaired

and recheckedbeforeitisreturnedtothecustomer.

1.4. X-Radiation

Warning :

1. Thepotential sources ofX-Radiation inTV sets aretheEHT

section and thepicturetube. /

2. Whenusing apicturetubetest rigfor service, ensurethat therig

iscapableofhandling 32.0kV withoutcausing X-Radiation. /

Note:Itis important to use anaccurate periodicallycalibratedhigh voltage meter. /

1. Set thebrightness tominimum.

2. MeasuretheHigh Voltage. Themeterreading shouldindicate 31.0

±1kV. Ifthemeterindication isoutoftolerance, immediate

service and correction isrequiredtopreventthepossibilityof

prematurecomponentfailure.

3. TopreventthepossibilityofX-Radiation, itisessential touse the

specifiedpicturetube.

2. SERVICE HINTS

2.1. HOWTO REMOVE THE REARCOVER

1. Removethe9screwsas showninFig. 1.

Fig. 1

2.2. LOCATIONOFCONTROLS Fig. 2

2.3. HOWTO MOVE THE CHASSIS INTO SERVICE POSITION

1. Holdand lift therearofthechassisand gentlypull thechassis

towardsyou as showninFig. 3.

2. Release therespectivewiring clipsand rotate thechassis

verticallythrough 90° anticlockwise.

3. Afterservicing replace thebeadclamperand ensureall wiring is

returnedtoits original position beforereturning thereceiverto

thecustomer.

2.4. HOTELMODE

Purpose

1. AtHotels, thisModeprevents thecustomerfrom changing theTV

preset data suchas Channel preset data. / / Note:ThisModeis

useful for Hotels. You shouldnotget into“Hotel mode”with

Normal use.

Operation

1. Toget into“Hotel Mode”, press theremote control “Recall”

button and Channel Up“[+/ ]”keyon theTV set

simultaneously, aftersetting the“Off-Timer” mode.

2. Inthismode, theChannel Upand DownFunction will beenabled

as normal and themaximum volumelevel for thismodeisset at

thecurrentvolumelevel, iethesetting at thelevel beforeentering

themode. However, otherfunctionswill bedisabled.

3. Toexitthismode, exit“Off-Timer” modeand the“VolumeDown[-/

]”keysimultaneously. / *Thisinformation isinformedby

Service Manual only.

2.5. Service Position for DG-Board

Note:/ Extension cable kitforDGBoardis suppliedas service fixtures and tools. (PartNo.

TZSC07024)

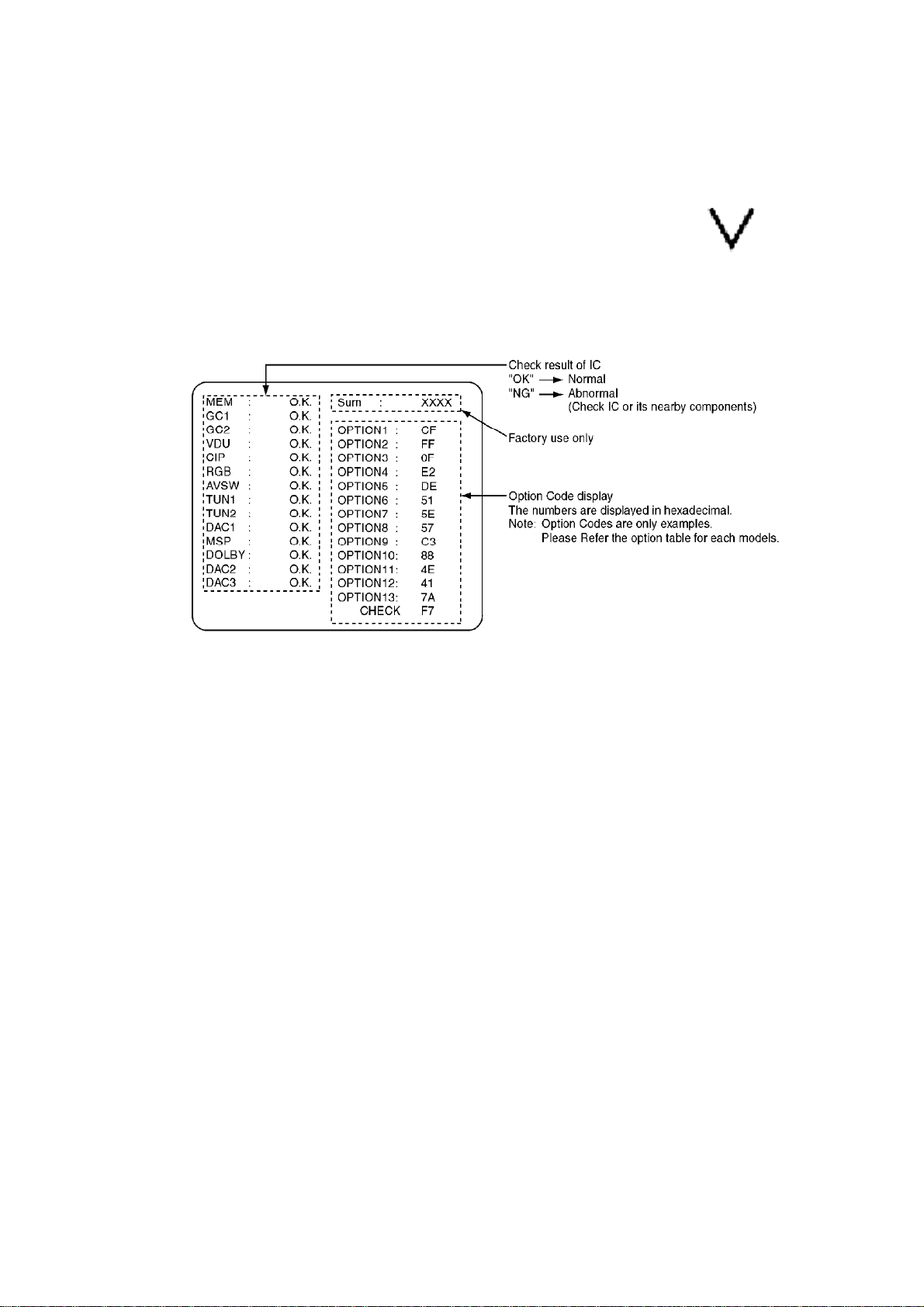

3. SELF CHECK

1. SelfCheck isusedtoautomaticallycheck thebuslines and

hexadecimal codeoftheTV set.

2. Toget intotheSelfCheck mode, press thedownn[-/ ] button

on thecustomercontrolsat thefrontoftheset, at thesametime

pressing theHELP button on theremote control and thescreen

will show:

4. SERVICE MODE FUNCTION

MPU controls the functions switching foreachIIC through IIC bus inthis chassis. The following

setting and adjustment canbe adjustedbyremote control inService Mode.

4.1. HOWTO ENTERSERVICE 1

1. Insound menu, set BASS toMAX and set TREBLE toMINIMUM.

2. Simultaneouslypress INDEX button on remote control and

VOLUME DOWNbutton [-]on theTV set.

4.2. HOWTO ENTERSERVICE 2

1. Set thechannel toCH99.

2. Press HOLDbutton on remote control. / Note:/ ToexitService

mode, press Nor Powerbutton on remote control.
