Service Manual

Colour LCD Television

TX-32LX70F

TX-32LX70L

TX-32LX70P

TX-26LX70F

TX-26LX70L

TX-26LX70P

LH64 Chassis

Specifications

(Informations in brackets [ ] refers to model 26”)

Power Source: 220-240V AC, 50/60Hz

Power Consumption 134W [100W]

Stand-by Power Consumption: 0.4W

Aerial Impedance: 75Ωunbalanced, Coaxial Type

Receiving System: LX70L LX70F, LX70P

PAL-I, PAL-I/H, B/G, D/K,

PAL-525/60 (AV only) SECAM B/G, D/K, L/L’

M.NTSC (AV only) PAL-525/60 (AV only)

NTSC(AVonly) M.NTSC(AVonly)

NTSC(AVonly)

Receiving Channels: LX70L LX70F, LX70P

UHFE21-E68 VHFE2-E12 VHFH1-H2(ITALY)

VHFA-H(ITALY) VHFR1-R2

VHFR3-R5 VHFR6-R12

UHFE21-E69 CATV(S01-S05)

CATVS1-S10 (M1-M10) CATVS11-S20 (U1-U10)

CATV S21-S41 (Hyperband)

Operating Conditions: Temperature: 0°C ÷35°C

Humidity: 20% ÷ 80% RH (non condensing)

Scanning format: 480i(60Hz), 480p(60Hz), 576i(50Hz), 576p(50Hz), 720p(60Hz), 720p(50Hz), 1.080i(60Hz),

1.080i(50Hz), 1.080p(60Hz), 1.080p(50Hz)

PC signals: VGA, SVGA, XGA, SXGA(compressed)

Horizontal scanning frequency 31 – 69 kHz

Vertical scanning frequency 59 – 86 Hz

ORDER No. PCZ0702011CE

ISSUE 2

Intermediate Frequency:

Video/Audio LX70L LX70F, LX70P

Video 38,9MHz 38,9MHz, 33,9MHz

Audio 32.90MHz 33,4MHz (B/G), 33,16MHz (A2)

32.35MHz(NICAM) 33,05MHz (NICAM B/G, D/K, L)

32,4MHz (D/K), 32,66MHz (CZSTEREO)

40,4MHz (L’), 39,75MHz (L’NICAM)

Colour 34,47MHz 34,47MHz (PAL)

34,5MHz, 34,65MHz(SECAM)

38,3MHz, 38,15MHz(SECAM L’)

Terminals:

AV1 IN Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 10kΩ

RGB (21 pin) 0,7V p-p 75Ω

AV1 OUT Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 1kΩ

AV2 IN Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 10kΩ

RGB (21 pin) 0,7V p-p 75Ω

S-video IN (21-pin)Y: 1V p-p 75Ω

C:0,3V p-p 75Ω

AV2 OUT Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 1kΩ

AV3 IN S-Video IN (4-pin)Y: 1V p-p 75Ω

C:0,3V p-p 75Ω

Audio (RCAx2) 500mV rms 10kΩ

Video (RCAx1) 1V p-p 75Ω

HDMI1, HDMI2 Type A Connector

COMPONENT Video (RCAx3) Y:1V p-p 75Ω(including synchronization)

Pb, Pr: ±0,35V p-p 75Ω

AUDIO IN Audio (RCAx2) 500mV rms 10kΩ(for YUV, HDMI1)

AUDIO OUT Audio (RCAx2) 500mV rms 1kΩ(high impedance)

PC HIGH-DENSITY D_SUB 15PIN R,G,B: 700mV p-p 75Ω

HD,VD/TTL Level 2-5V p-p (high impedance)

LCD screen: L5EDD8Q00030 [L5EDD6Q00024]

1366 x 768 XGA, 16:9

Visible Diagonal 800mm [660mm]

Audio Output: 20W (2x10W)

Headphones: 3,5mm, 8ΩImpedance

Accessories supplied : Remote Control 2 x R6 (UM3) Batteries

Dimensions:

Height: Width: Depth:

Including TV stand 615mm 791mm 248mm

[525mm] [657mm] [216mm]

TV set only 563mm 791mm 117mm

[473mm] [657mm] [117mm]

Net weight: 17,5kg [14kg]

Specifications are subject to change without notice.

Weights and dimensions shown are approximate.

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not

contain warnings or cautions to advise non-technical individuals of potencial dangers in attempting to service a product. Products

powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the

product or products deal within this service information by anyone else could result in serious injury or death.

Warning

CONTENTS

SAFETY PRECAUTIONS........................................... 4

GENERAL GUIDE LINES...................................... 4

TOUCH – CURRENT CHECK............................... 4

PREVENTION OF ELECTROSTATIC DISCHARGE

(ESD) TO ELECTROSTATICALLY SENSITIVE (ES)

DEVICES.................................................................... 5

ABOUT LEAD FREE SOLDER (PBF)......................... 6

SUGGESTED PB FREE SOLDER........................ 6

APPLICABLE SIGNALS.............................................. 7

SERVICE HINTS ........................................................ 8

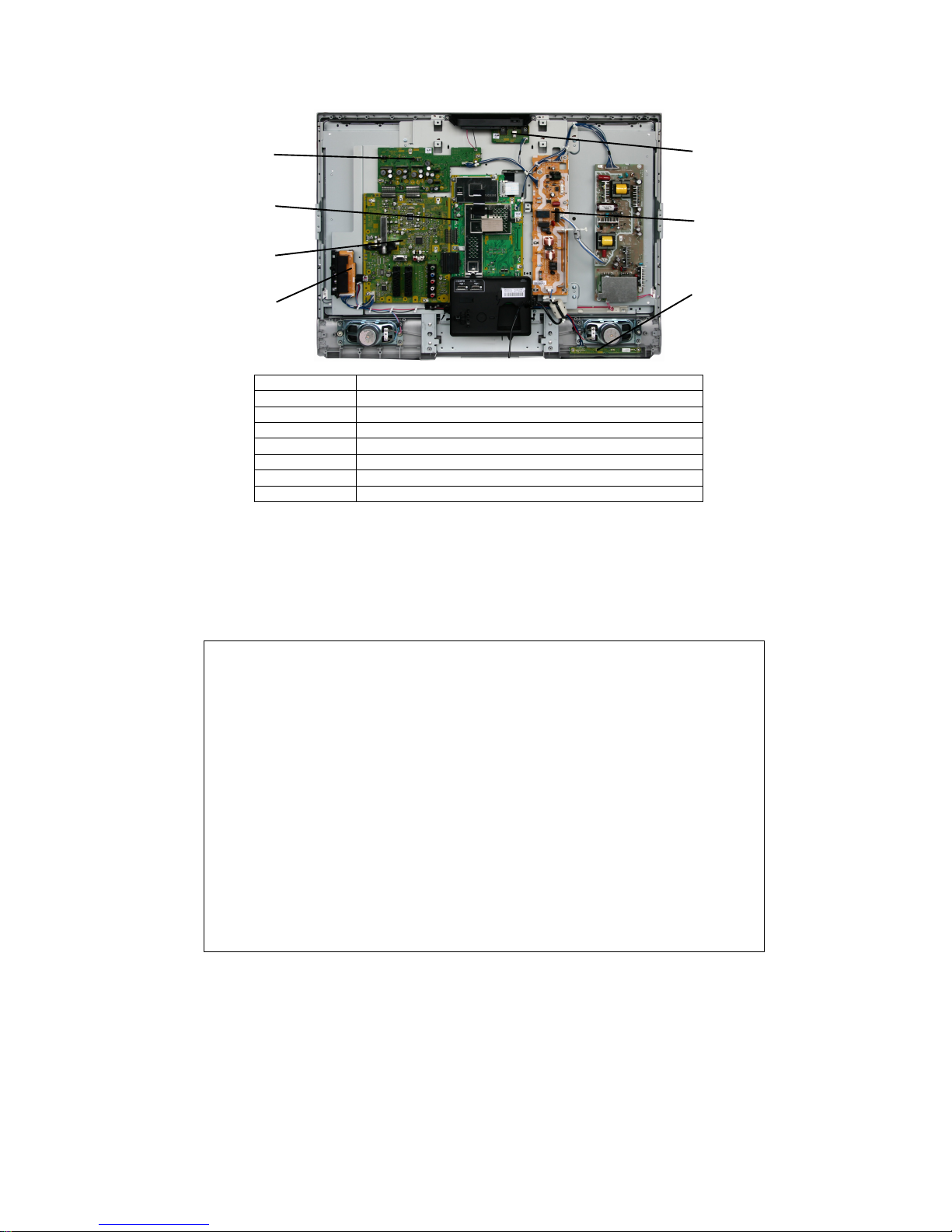

CHASSIS BOARD LAYOUT....................................... 9

SETTING INSPECTION.............................................. 9

SELF-CHECK ........................................................... 10

POWER LED BLINKING TIMING CHART................ 12

SERVICE MODE FUNCTION................................... 13

SERVICE ................................................................. 14

OPTION BYTES DESCRIPTION.............................. 15

ADJUSTMENT METHOD ......................................... 16

WIRING DIAGRAM................................................... 17

BLOCK DIAGRAMS.................................................. 18

PARTS LOCATION................................................... 21

REPLACEMENT PARTS LIST.................................. 22

SCHEMATIC DIAGRAMS......................................... 43

AP-BOARD (1 OF 2) SCHEMATIC DIAGRAM.... 44

AP-BOARD (2 OF 2) SCHEMATIC DIAGRAM.... 45

G-BOARD SCHEMATIC DIAGRAM.................... 46

K-BOARD SCHEMATIC DIAGRAM .................... 47

H-BOARD (1 OF 4) SCHEMATIC DIAGRAM...... 48

H-BOARD (2 OF 4) SCHEMATIC DIAGRAM...... 49

H-BOARD (3 OF 4) SCHEMATIC DIAGRAM...... 50

H-BOARD (4 OF 4) SCHEMATIC DIAGRAM...... 51

P-BOARD SCHEMATIC DIAGRAM .................... 52

V-BOARD SCHEMATIC DIAGRAM .................... 53

DG-BOARD (1 OF 14) SCHEM. DIAGRAM ........ 54

DG-BOARD (2 OF 14) SCHEM. DIAGRAM ........ 55

DG-BOARD (3 OF 14) SCHEM. DIAGRAM ........ 56

DG-BOARD (4 OF 14) SCHEM. DIAGRAM ........ 57

DG-BOARD (5 OF 14) SCHEM. DIAGRAM ........ 58

DG-BOARD (6 OF 14) SCHEM. DIAGRAM ........ 59

DG-BOARD (7 OF 14) SCHEM. DIAGRAM ........ 60

DG-BOARD (8 OF 14) SCHEM. DIAGRAM ........ 61

DG-BOARD (9 OF 14) SCHEM. DIAGRAM........ 62

DG-BOARD (10 OF 14) SCHEM. DIAGRAM ...... 63

DG-BOARD (11 OF 14) SCHEM. DIAGRAM ...... 64

DG-BOARD (12 OF 14) SCHEM. DIAGRAM ...... 65

DG-BOARD (13 OF 14) SCHEM. DIAGRAM ...... 66

DG-BOARD (14 OF 14) SCHEM. DIAGRAM ...... 67

CONDUCTOR VIEWS .............................................. 68

Safety Precautions

General Guide Lines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated

or damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly

installed.

3. After servicing, make the following touch current checks to prevent the customer from being exposed to shock hazards.

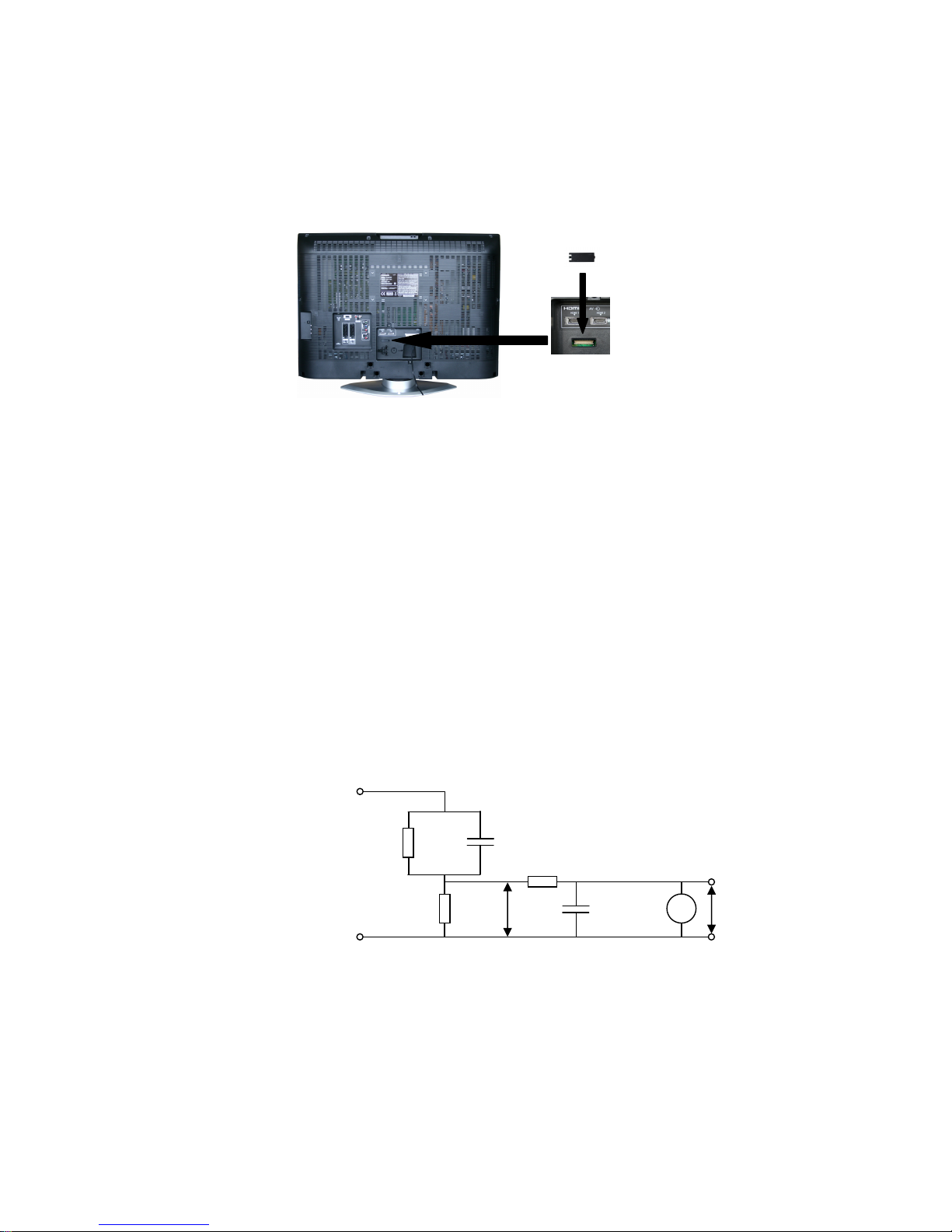

4. Always ensure panel TKP0E16001 is correctly replaced before returning to customer (see Fig.1).

Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth

ground such as a water pipe, as shown in Fig. 2.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUCH CURRENT) expressed as voltage U1 and U2, does not exceed the following values:

For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);

For d. c.: U1 = 1.0 V,

Note:

The limit value of U2 = 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and

2.0 mA d. c.

The limit value U1 = 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100

kHz.

7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should

be repaired and rechecked before it is returned to the customer.

Fig. 2

Fig. 1

APPLIANCES

EXPOSED

METAL PARTS

Resistance values in ohms (Ω)

R0=500

Ω

RS=1500

Ω

CS=0.22

10k

Ω

0.022

COLD

WATER PIPE

(EARTH GROUND)

V: Voltmetr or oscilloscope

(r.m.s. or peak reading)

Measuring network for TOUCH CURRENTS

Input resistance: ≥ 1M

Ω

Input capacitance: ≤ 200pF

Frequency range: 15Hz to 1MHz and d.c.respectively

NOTE – Appropriate measures should be taken to obtain the correct value in case of non-sinusoidal waveforms

U2(V)

Prevention of Electrostatic Discharge (ESD) to Electrostatically

Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are

called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect

transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of

component damage caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on

your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD

wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as

aluminum foil, to prevent electrostatic charge build up or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD

protected)" can generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it.

(Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil

or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective

material to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the

brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity

(ESD) sufficient to damage an ES device).

There are special components used in this equipment which are important for safety.

These parts are marked by in schematic diagrams, exploded views and replacement parts list. It is essential that

these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire, or other hazards. Do

not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements.

In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.

The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).

That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work,

we’d suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol

stamped on the back of PCB.

Caution

•Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C)

higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

•Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).

If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before

applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

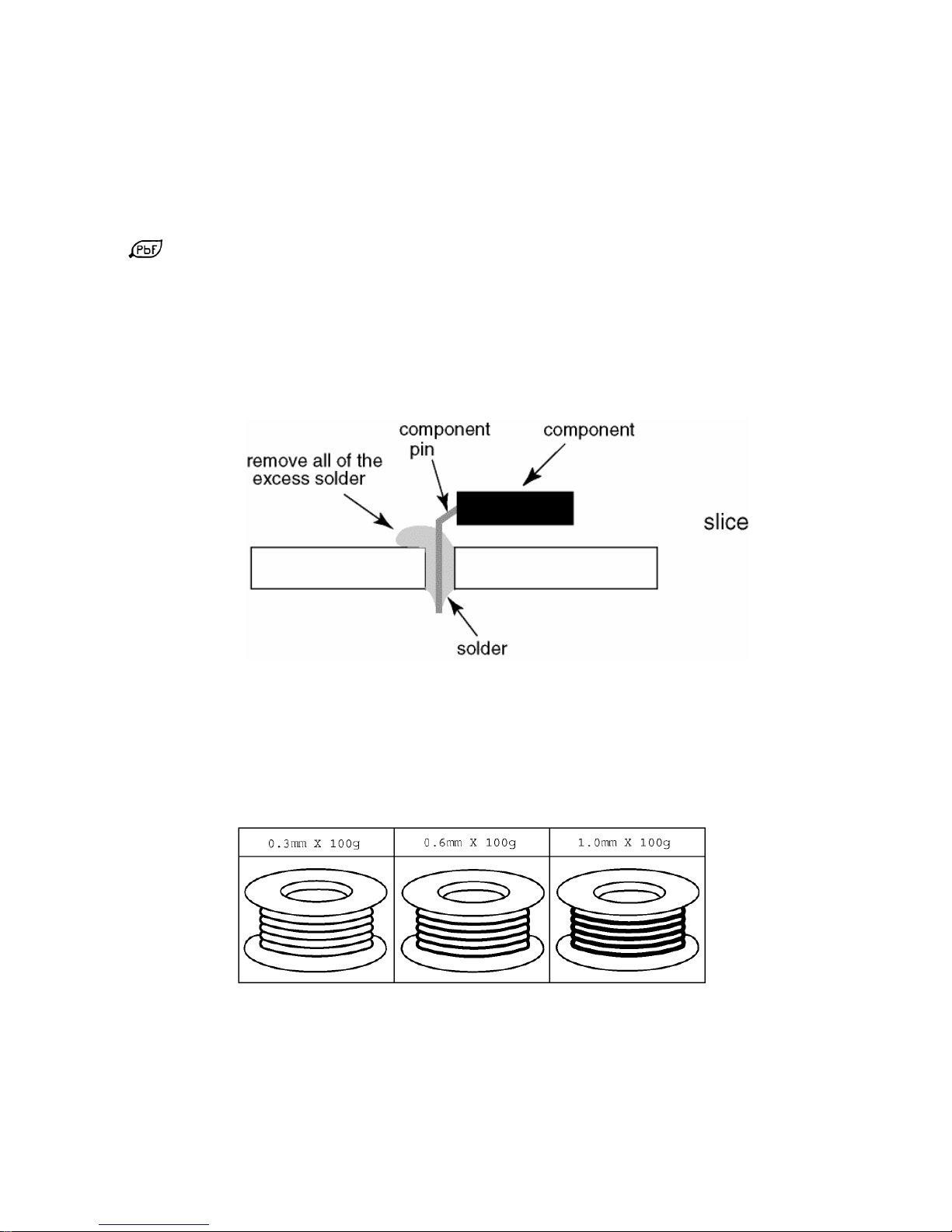

•After applying PbF solder to double layered boards, please check the component side for excess solder which may

flow onto the opposite side. (see Fig.3)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder.

However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used. (see Fig.4)

Fig.3

Fig.4

Applicable signals

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 ×400 @70 Hz 31.47 70.07

640 ×480 @60 Hz 31.47 59.94

640 ×480 @75 Hz 37.50 75.00

800 ×600 @60 Hz 37.88 60.32

800 ×600 @75 Hz 46.88 75.00

800 ×600 @85 Hz 53.67 85.06

852 ×480 @60Hz 31.44 59.89

1,024 ×768 @60Hz 48.36 60.00

1,024 ×768 @70Hz 56.48 70.07

1,024 ×768 @75Hz 60.02 75.03

1,024 ×768 @85Hz 68.68 85.00

1,280 ×1,024 @60Hz 63.98 60.02

1,366 ×768 @60Hz 48.39 60.04

Macintosh 13“ (640 ×480) 35.00 66.67

Macintosh 16“ (832 ×624) 49.73 74.55

Macintosh 21“ (1,152 ×870) 68.68 75.06

Note:

•Signals other than above may not be displayed properly.

•The above signals are reformatted for optimal viewing on your display.

•Applicable input signal for PC is basically compatible to VESA standard timing.

•PC signal is magnified or compressed for display, so that it may not be possible to show fine detail

with sufficient clarity.

Signal name COMPONENT HDMI

525 (480) / 60i * *

525 (480) / 60p * *

625 (576) / 50i * *

625 (576) / 50p * *

750 (720) / 60p * *

750 (720) / 50p * *

1,125 (1,080) / 60i * *

1,125 (1,080) / 50i * *

1,125 (1,080) / 60p *

1,125 (1,080) / 50p *

PC (D-sub 15P)

Component (Y, Pb, Pr), HDMI

Service Hints

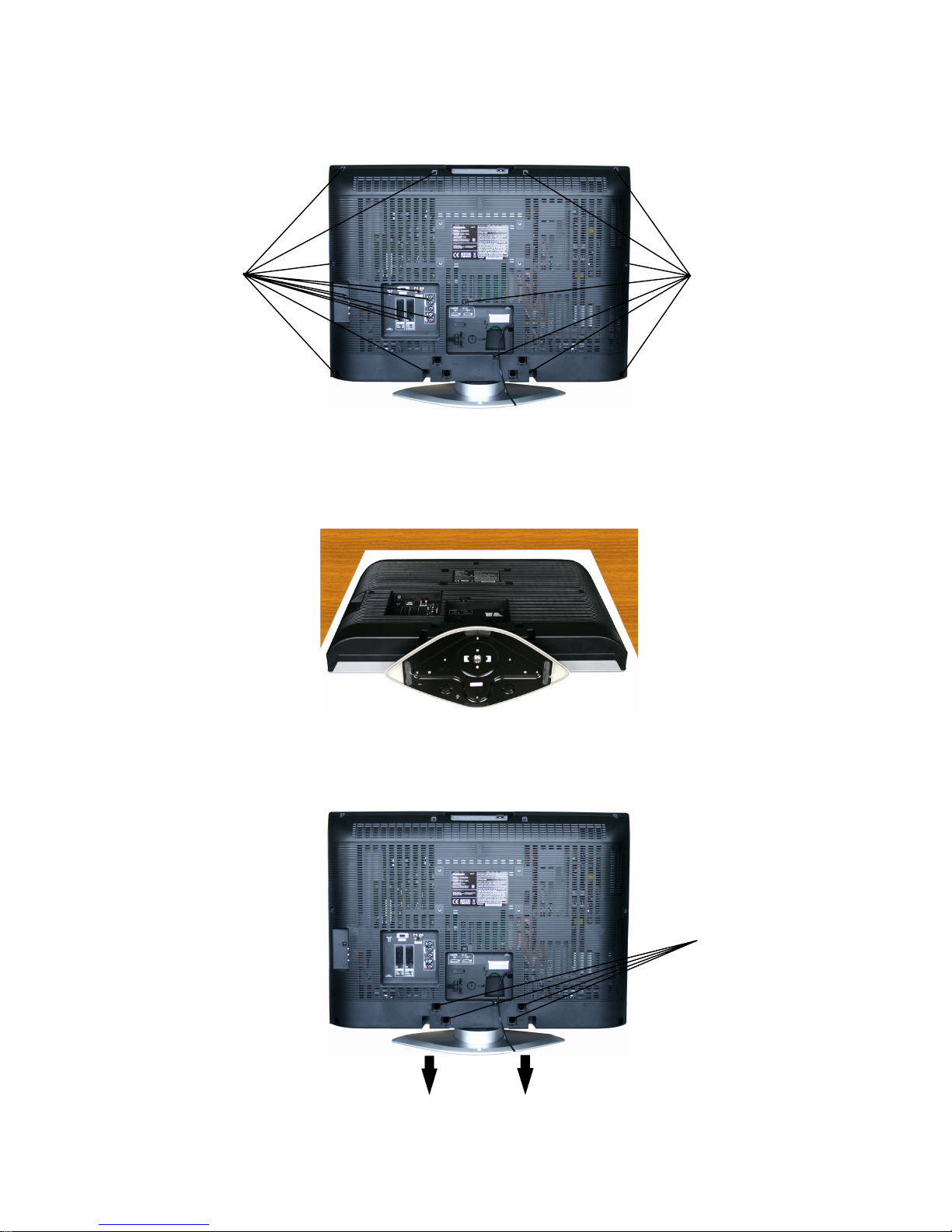

How to remove the backcover

Remove the 18 [16] fixing screws. (see Fig.5)

How to remove the Pedestal assembly

Lay the main unit face down. (see Fig.6)

Remove the 4 fixing screws and the pedestal assembly. (see Fig.7)

Fig.6

Fig.7

Fig.5

SCREWS SCREWS

SCREWS

Chassis Board Layout

Setting Inspection

Voltage Confirmation

Confirm the following voltages:

AP board

Description Test point Position Normal mode Stand by mode

Sound_Vcc TP7302 AP3, pin 2,3 15V +/- 0,8V Max 5V

DTV_9V TP7502 AP3, pin 17,18 9,1V +/- 0,45V Max 3V

Sub_5V TP7402 AP3, pin 21,22 5,1V +/- 0,25V Max 2V

Main_9V AP3, pin 23 9,1V +/- 0,45V Max 3V

LCD_3.3V TP7602 AP4, pin 16,17 3,3V +/- 0,16V Max 2V

STB_5V TP7103 AP4, pin 3 5,1V +/- 0,25V 5,1V +/- 0,25V

Panel 12V TP7702 AP4, pin 11,12 12,2V +/- 0,6V Max 4V

P board

5Vs TP823 P8, pin 1 5,1V +/- 0,25V 5,1V +/- 0,25V

24V TP825 P5, pin 1-3 24V +/- 2V Max 4V

DG board

Sub1,2V TP5601 1,17V - 1,32V

Sub1,8V TP5602 1,7V - 1,9V

Sub3,3V TP5600 3,14V - 3,46V

MHQ1,2V TP4209 1,1V - 1,3V

Board Name Function

AP-Board Power Supply Regulator

DG-Board Global Core, HDMI, IDTV Processor, D/A Converter

G-Board Side AV Connector

H-Board AV Connector, TV tuner, AV Switch

K-Board Main Switch

P-Board Main Input, Power Supply

V-Board Remote Receiver, LED IR, Cats

V-BOARD

K-BOARD

AP-BOARD

DG-BOARD

H-BOARD

P-BOARD

G-BOARD

Self Check

Self-check is used to automatically check the bus lines and hexadecimal code of the TV set. To enter Self-Check mode, keep

pressing the down (-/v) button on the TV set and press the STATUS button on the remote control. To exit Self Check,

switch off the TV set at the power button.

ADV O.K.

VSW O.K.

ADAV O.K.

ASW O.K.

GENX O.K.

MEM1 O.K.

MEM2 O.K.

TUN1 O.K.

HQ1L O.K.

PEAKS-SOFT 2.020

PEAKS-EEP 02.00.0010

GenX-SOFT 1.00.00

GenX-EEP 1.02.00

GenX-ROMCORR 1.01.00

HQ1L-EEP 20

SUM 186d

OPTION1 0c

OPTION2 ea

OPTION3 7f

CHECK 75

MODELID 04

030e0000

00000002

TX-26LX70F

ADV O.K.

VSW O.K.

ADAV O.K.

ASW O.K.

GENX O.K.

MEM1 O.K.

MEM2 O.K.

TUN1 O.K.

HQ1L O.K.

PEAKS-SOFT 2.020

PEAKS-EEP 02.00.0017

GenX-SOFT 1.00.00

GenX-EEP 1.02.00

GenX-ROMCORR 1.01.00

HQ1L-EEP 20

SUM 1891

OPTION1 2c

OPTION2 ea

OPTION3 7f

CHECK 95

MODELID 04

030e0000

00000002

TX-26LX70L

ADV O.K.

VSW O.K.

ADAV O.K.

ASW O.K.

GENX O.K.

MEM1 O.K.

MEM2 O.K.

TUN1 O.K.

HQ1L O.K.

PEAKS-SOFT 2.020

PEAKS-EEP 02.00.0011

GenX-SOFT 1.00.00

GenX-EEP 1.02.00

GenX-ROMCORR 1.01.00

HQ1L-EEP 20

SUM 188e

OPTION1 2c

OPTION2 ea

OPTION3 7f

CHECK 95

MODELID 04

030e0000

00000002

TX-26LX70P

ADV O.K.

VSW O.K.

ADAV O.K.

ASW O.K.

GENX O.K.

MEM1 O.K.

MEM2 O.K.

TUN1 O.K.

HQ1L O.K.

PEAKS-SOFT 2.020

PEAKS-EEP 02.00.0006

GenX-SOFT 1.00.00

GenX-EEP 1.02.00

GenX-ROMCORR 1.01.00

HQ1L-EEP 20

SUM 1863

OPTION1 0c

OPTION2 ea

OPTION3 7f

CHECK 75

MODELID 04

030e0000

00000004

TX-32LX70F

26 Panasonic 2007LCD 26lxd70.dat:00004f

SelfCheckCom

lete

26 Panasonic 2007LCD 26lxd70.dat:00004f

SelfCheckCom

lete

26 Panasonic 2007LCD 26lxd70.dat:00004f

SelfCheckCom

lete

32 Panasonic 2007LCD 32lxd70.dat:000054

SelfCheckCom

lete

ADV O.K.

VSW O.K.

ADAV O.K.

ASW O.K.

GENX O.K.

MEM1 O.K.

MEM2 O.K.

TUN1 O.K.

HQ1L O.K.

PEAKS-SOFT 2.020

PEAKS-EEP 02.00.0016

GenX-SOFT 1.00.00

GenX-EEP 1.02.00

GenX-ROMCORR 1.01.00

HQ1L-EEP 20

SUM 1891

OPTION1 2c

OPTION2 ea

OPTION3 7f

CHECK 95

MODELID 04

030e0000

00000004

TX-32LX70L 32 Panasonic 2007LCD 32lxd70.dat:000054

SelfCheckCom

lete

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic TV

Panasonic

Panasonic CT-13R4 Manuel utilisateur

Panasonic

Panasonic PT-51G30 Manuel utilisateur

Panasonic

Panasonic TX-32PS11D Manuel utilisateur

Panasonic

Panasonic TC-21S3M Manuel utilisateur

Panasonic

Panasonic Viera TH-50PZ800B Manuel utilisateur

Panasonic

Panasonic VIERA TX-40CS520E Instructions de montage

Panasonic

Panasonic CT-27C8 Manuel utilisateur

Panasonic

Panasonic TX-21FG25R Manuel utilisateur

Panasonic

Panasonic TX-32PX30F Manuel utilisateur

Panasonic

Panasonic CT-P31XF30 Manuel utilisateur

Panasonic

Panasonic TC-29G12P Manuel utilisateur

Panasonic

Panasonic Viera TH-50PZ750 Guide de configuration

Panasonic

Panasonic TX-P55VT30E Manuel utilisateur

Panasonic

Panasonic TC-29P10N Manuel utilisateur

Panasonic

Panasonic TX-32LSW484 Manuel utilisateur

Panasonic

Panasonic TX-28MD4P Manuel utilisateur

Panasonic

Panasonic TC-21FG20P Manuel utilisateur

Panasonic

Panasonic TX-36PL35D Guide de démarrage rapide

Panasonic

Panasonic OmniVision PV-DM2794 Manuel utilisateur

Panasonic

Panasonic TX-25AD50F Manuel utilisateur

Panasonic

Panasonic TX-28DT30 Manuel utilisateur

Panasonic

Panasonic TX-29AS10C Manuel utilisateur

Panasonic

Panasonic TC-21PM50R Manuel utilisateur

Panasonic

Panasonic TX-55CW324 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
