Panasonlc •

SuperFlat TM System Monitor-Receiver

Operating Instructions

CT-27SF35

CT-32SF35 CT-F2993

•CT-F3393 CT-F2993V

CT-F3393V CT-F2993X

CT-F3393X

CT-36SF35

TQB2AA0245

PRINTED IN USA 80402

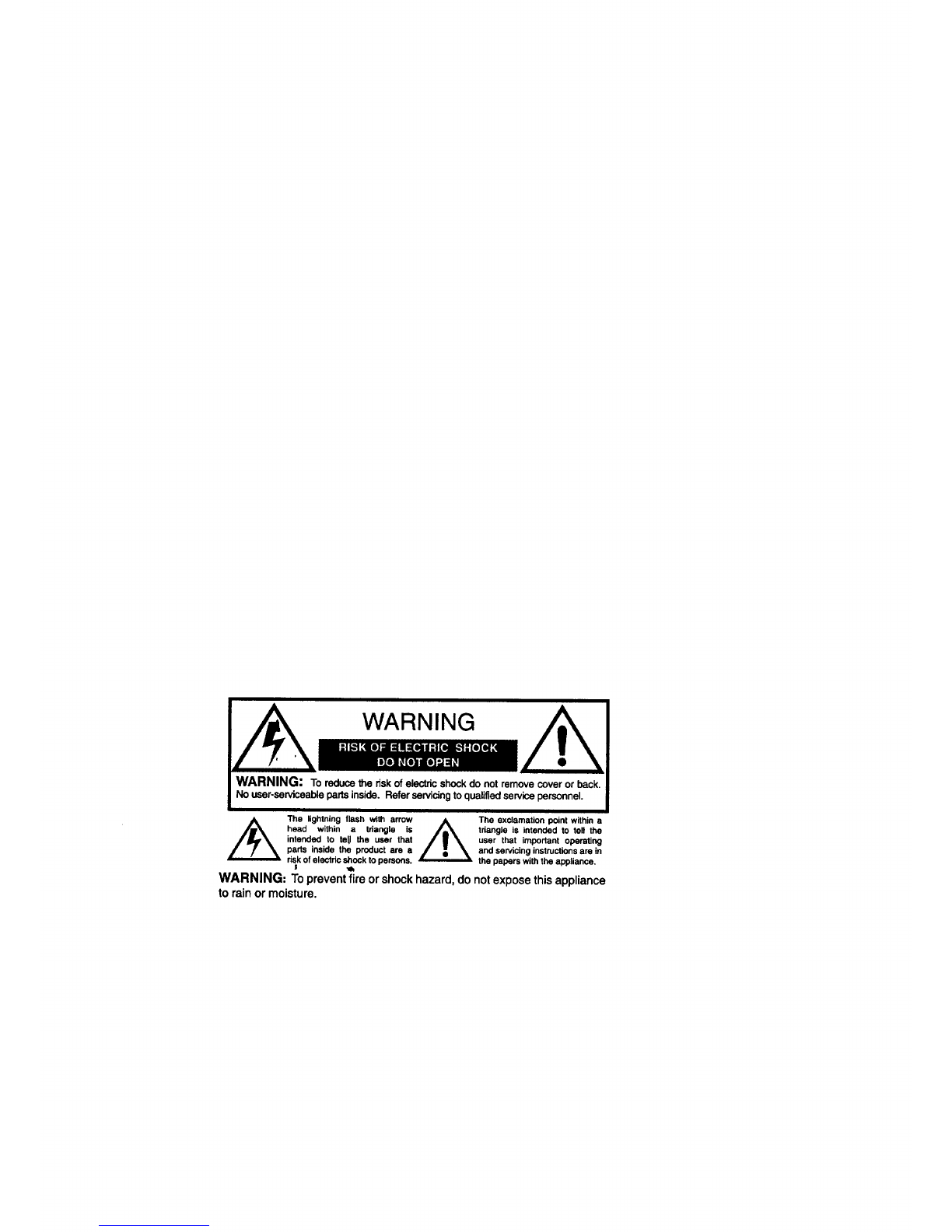

WARNING

WARNING: To reduce the risk of electric shock do not remove cover or back.

No user-serviceable parts inside. Refer servicing to qualified service personnel.

The lightning llash with arrow ,A The exclamation point within

head within a tdangle is _triangle is intended to tell the

intended to tell the user that user that important operating

parts inside the product are a and servicing instructions are in

risk of electric shock to persons, the papers with the appliance.

WARNING: To prevent fire or shock hazard, do not expose this appliance

to rain or moisture.

Table of Contents TABLE OF CONTENTS

Congratulations ........................................................ 2

Customer Record ..................................................................... 2

Care and Cleaning ................................................................... 2

Specifications ........................................................................... 2

Installation ................................................................. 3

Television Location................................................................... 3

Optional Cable Connections..................................................... 3

AC PowerSupply Cord ............................................................ 3

Cable /Antenna...._................................................................... 3

Cable Connection ..................................................................... 3

Antenna Connection ................................................................. 3

Optional Equipment Connections ............................................. 4

To Audio AMP (Amplifier) ......................................................... 4

Program Out Connection................................. _........................ 4

Dolby Center Channel Input Connection .................................. 5

Cable Converter Box Connection ............................................. 6

Picture In Picture (PIP) Operation ........................... 7

With /Without a VCR and Cable Box...................................... 7

With a VCR - No Cable Box .................................................... 8

Roller Guide Menu ........ ,........................ ................... 9

Navigation Button ..................................................................... 9

Remote Contol ......................................................................... 9

Roller Guide Feature Chart .................................... 10

Special Features ..................................................... 13

Languages .............................................................................. 13

Dolby Center Sound ............................................................... 13

Sleep Timer ............................................................................ 14

Program Timer ...................................................................... 14

Picture Adjustments ............................................................... 15

Favorite Channels and Video Labeling .................................. 15

Locking Channels and Games (Video Input).......................... 16

Unlocking Channels Lock and Game Lock ............................ 17

Troubleshooting Chart ........................................... 18

Read these instructions completely before operating TV.

Contents are subject to change without notice or obligation,

Unauthorizedcopying and distribution is a violation of law. ii

CONGRA TULATIONS

Congratulations

Yournew SUPERFLAT TM TV features state-of-the-artpicturequality,an innovativedome sound

system,and compact,elegantstylingthatis designedto give youmanyyears of enjoyment. It

was thoroughlytestedandtunedat thefactoryforbest performance.

Customer Record

The modeland serialnumberofthisproductare locatedon thebackofthe -rv. Youshouldnote

themodeland serialnumberin thespaceprovidedand retain as a permanentrecordofyour

purchase. This willaid in identificationin the event of theft or loss.Productregistrationis

availableat www.prodreg.com/panasonic.

.Model

Number

Serial

Number

Care and Cleaning

Screen (Turn TV Off)

•Use a mild soap solution or window cleaner with a soft clean cloth. DO NOT USE

ABRASIVE CLEANERS.

•Avoid excessive moisture and wipe dry.

Cabinet and Remote Control

OForcabinetsandRemoteControl,usea softclothdampenedwithwateror amilddetergent

solution.Avoidexcessivemoistureandwipe dry.

ODo notusebenzene,thinneror otherpetroleumbasedproducts.

Specifications

Power Source

CT-27SF35 CT-32SF35 CT-36SF35

2 VideoInputJacks

Audio Amp Jacks

120V AC, 60Hz

1Vp-p,75 Ohm,PhonoJackType

0-2.0V RMS 4.7K Ohm

Specificationsaresubjecttochangewithoutnoticeorobligation.

lea

INSTALLA TION

Installation

Television Location

Thisunitisintendedtobe used withan optionalstandor entertainmentcenter. Consulty.0_u_

dealerfor availableoptions.

OAvoidexcessivesunlightor brightlights,includingreflections.

OKeep away from excessiveheat or moisture. Inadequateventilationmay cause internal

componentfailure.

[3 Fluorescentlightingmay reduceRemoteControltransmittingrange. ,

[3 Keepawayfrom magneticequipment,includingmotors,fans, orexternalspeakers.

Optional Cable Connections

Shielded audio and video cables should be used between components, For best results:

17 Use 75-ohm coaxial shielded cables. "

[3 Check type of output and input connectors on your components.

0 Determine required cable lengths.

AC Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO

WIDE SLOT OF AC OUTLE-F AND FULLY INSERT, DO NOT USE A PLUG WITH A

RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE CAN BE FULLY

INSERTED TO PREVENT BLADE EXPOSURE, FOR SOME MODELS THAT ARE

NON-POLARIZED, THE USE OF AN AC ADAPTOR CONNECTOR MAY

BE NECESSARY.

Polarized plug

Cable IAntenna 1 and 2

Forproper reception,either acable or antenna connectionisrequired.

Cable Connection

Connectthecablesuppliedbyyourlocalcable company.

Note: A cable converterbox may be required for proper reception.

Check with your local Cable company for compatibility

requirements.

Antenna I and 2 Connections

Incoming Cable from

Cable Company

21,

75 Ohm VHFAJHF

on back of TV

best reception an outdoor antenna is recommended.

Antenna 1 and Antenna 2 must be set to TV in the SET UP

menu.

For proper reception of VHF/UHF channels, an external antenna is required. For

Incoming Cable from

Home Antenna

Cable Mode is preset at the factory. Antenna

users must change to Antenna 1 and

Antenna 2in the Set Up Menu.

INSTALLATION

Optional Equipment Connections

VCR's, video disc players, video game consoles, and DSS equipmentcan also be connected tb the

video inputs. See the optionalequipment manual fordetails.

VCR

CABLES NOT SUPPLIED

TERMINALS ON BACK OF "IV

Procedure

1. Connectequipmentas showntorearAudio/Videoinputjacks.

2. SelecttheVideomodebypressingW/VIDEO button.

3. Operateoptionalequipmentas instructedin equipmentmanual.

Note: The S-VIDEO connection is optional and overrides other VIDEO

connection. Use INPUT 1, AUDIO R and L with S-VIDEO connection.

TO AUDIO AMP (Amplifier)

Connect to an external audio amplifier input for listening through a stereo system.

Note: TO AUDIO AMP terminals cannot be connected directly to

external speakers.

Audio Adjustments

1. Select SPEAKERS ON located in the AUDIO menu on screen,

2. Set amplifier volume to minimum.

3. Adjust TV volume to desired level.

4. Adjust amplifier volume to match the TV.

5. Select SPEAKERS OFF&VAO from AUDIO menu.

6. Volume, mute, bass, treble and balance are now controlled from the TV.

PROG. OUT Connection (Program Out Connection)

For viewing the TV audio and v_deo with optional video equipment, connect to PROG. OUT

terminals on the back ofthe TV.

Procedure

1. Connect optional video equipment to PROG. OUT (R/L Audio and Video) terminals.

2. PROG. OUT terminal display isthe same as the on-screen display.

3. See optional equipment manual for further instructionsfor recording or monitoring.

INSTALLA"I ION

DOLBYCENTERCHANNELINPUT

YourTV can be configured to use the TV speakers as center channel speakers in Dolby* surround

soundtransmission. Connect a Dolby surroundamplifier to CENTER CHANNEL INPUT on the

back of the "IV as shown. DOLBY CENTER MODE & FIXED AUDIO OUT must be selected in the

AUDIO RollerGuide menu under SPEAKERS.

TERMINALS ON BACK OF "IV

(1) Push and hold down button.

(2) Insert bare wire into terminal

and release button.

Dolby Surround

AMPLIFIER

Left Front Right Front

Speaker TV Speakers Speaker

Center Channel

Left Rear _Right Rear

Surround Speaker Surround Speaker

*"Dolby" and "Pro-logic" are the trademarks of bolby Laboratories LicensingCorporation.

INSTALLATION

Recommended Cable Converter Box Connection

When connecting a cable Company supplied converter box for scrambled (premium)

channels, we recommend making your connections as shown below so that the

converter box is required only when viewing scrambled channels.

1. ANT 1 mode (accessedby the SET UP RollerGuide Icon in theProg.Chan submenu) will

allow you to view all non scrambled channels without the use ofthe cable converter box.

2. When a scrambled channel is desired, use ANT 2 mode (accessed by the SET

UP Roller Guide Icon in the Prog. Chan sub menu). Select channel on TV as

instructed by cable company and operate cable converter box.

Cable Converter Box

INPUT OUTPUT

@ @

Incoming Cable from

Cable TV System

TERMINALS ON BACK OF TV

Picture In Picture (PIP) Operation PICTURE IN PICTURE (PIP) OPERA TION

With /Without a VCR and Cable Box

This television includes a two tuner Picture In Picture (PIP) feature. This allows watching-two

(2) live broadcasts at the same time without or with an external video source (VCR).

Without a VCR (External Video Source)

Procedure

•Connect incoming cable to antenna (ANT) input on back of TV.

•Press the PIP button on the Remote Control to display the PIP frame,

Note: The audio is for the Main Picture, only.

•Choose channels for the PIP frame by pressing the Remote Control PIP

CHANNEL up/down buttons.

•Choose channels for the Main Picture by pressing the Remote Control CH

up/down buttons or by using the numeric keypad,

With A VCR (External Video Source) And Cable Box

Connect your television to a VCR and Cable Box, as shown.

TERMINALS ON BACK OF TV

VCR CABLE BOX

IIncoming

Cable

(Not Supplied)

CABLES NOTSUPPLIED

Note: The Remote Control must be programmed with supplied codes to operate the VCR

and Cable Box. See Programming the Remote Control in the Remote Control Quick

Reference Guide.

Procedure

Note:

Press the PIP button on the Remote Control to display the PIP frame.

Note: The audio is from the Main Picture only. I

To view scrambled channels through your Cable Box in the PIP frame:

•Press the W/VIDEO button on the Remote Control to select the same video

input which your cable box is connected to.

• Verify the CABLE' BOX and VCR are ON and the VCR tuned to channel 3.

• Choose channels for the PIP frame by pressing the CBL button on the Remote

Control and using the numeric keypad or CH up/down buttons.

•Choose channels for the Main Picture by pressing the TM button on the Remote

Control and using the numeric keypad or OH up/down buttons.

TheSWAP button switches the PIP and Main Picturesource. Press the RECALL button for PIP

and MainPicture source status,on screen. im

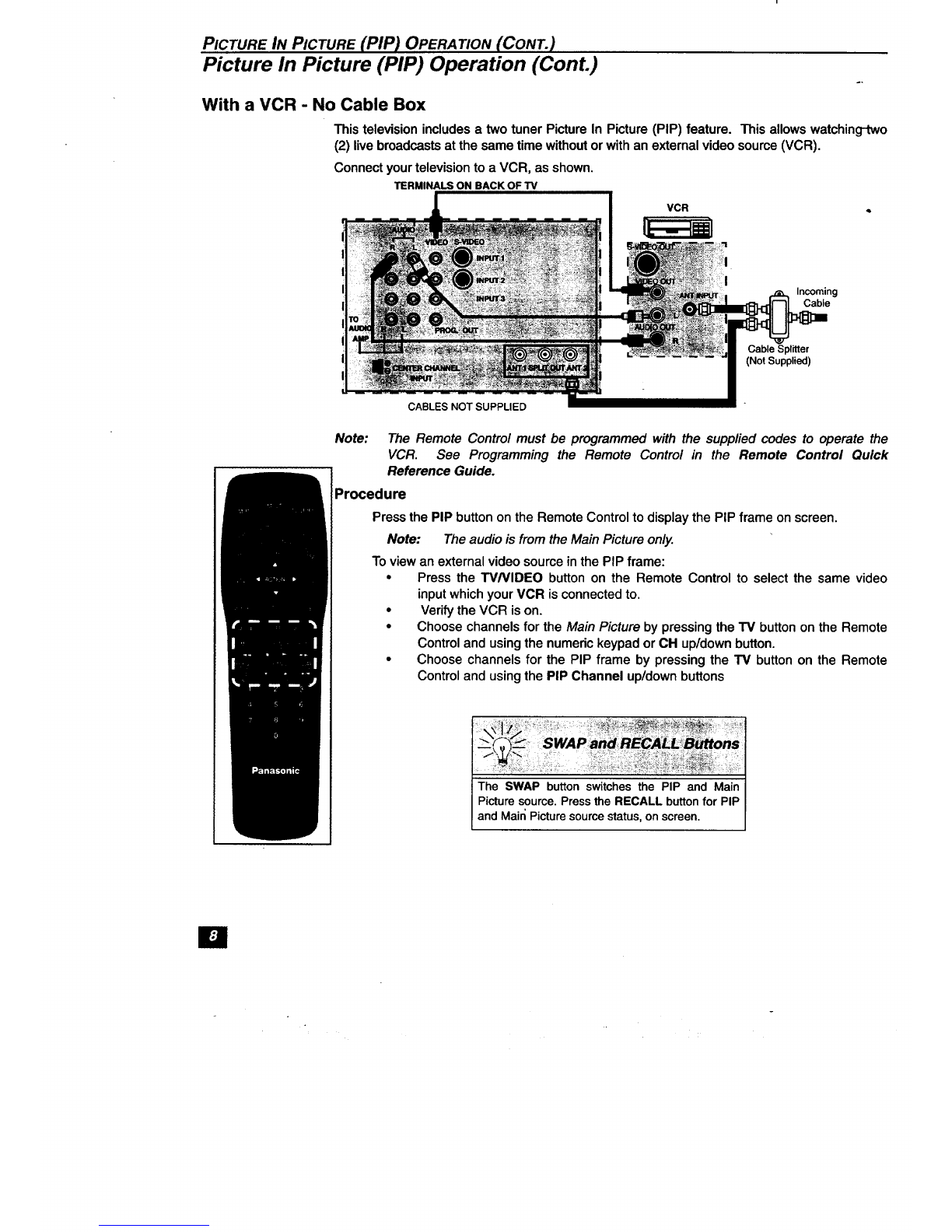

PICTURE IN PICTURE (PIP) OPERATION (CONT.)

Picture In Picture (PIP) Operation (Cont.)

With a VCR -No Cable Box

This television includes a two tuner Picture In Picture (PIP) feature. This allows watching-two

(2) live broadcasts at the same time without or with an external video source (VCR).

Connect your television to a VCR, as shown.

TERMINALS ON BACK OF "IV

VCR

Incoming

Cable

Cable Splitter

(Not Supplied)

CABLES NOTSUPPLIED

Note: The Remote Control must be programmed with the supplied codes to operate the

VCR. See Programming the Remote Control in the Remote Control Quick

Reference Guide.

Procedure

Press the PIP button on the Remote Control to display the PIP frame on screen.

Note: The audio is from the Main Picture only.

To view an external video source in the PIP frame:

°Press the W/VIDEO button on the Remote Control to select the same video

inputwhich your VCR isconnected to,

•Verify the VCR is on.

•Choose channels for the Main Picture by pressing the TV button on the Remote

Control and using the numedc keypad or CH up/down button.

•Choose channels for the PIP frame by pressing the TV button on the Remote

Control and using the PIP Channel up/down buttons

The SWAP button switches the PIP and Main

Picture source. Press the RECALL button for PIP

and Mair; Picture source status, on screen.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic TV

Panasonic

Panasonic Viera TX-L32X15P Manuel utilisateur

Panasonic

Panasonic CT-27G24 Manuel utilisateur

Panasonic

Panasonic TX-21S3TC Manuel utilisateur

Panasonic

Panasonic QuintrixF TX-29AS10P Manuel utilisateur

Panasonic

Panasonic TX-29P82X Manuel utilisateur

Panasonic

Panasonic TX-68PS12A Manuel utilisateur

Panasonic

Panasonic 42PF Series Manuel utilisateur

Panasonic

Panasonic Viera TH-50PX60B Manuel utilisateur

Panasonic

Panasonic QuintrixF TX-28PK25 Manuel utilisateur

Panasonic

Panasonic TX-32LSW484 Manuel utilisateur

Panasonic

Panasonic TX-14ST15M Manuel utilisateur

Panasonic

Panasonic QuintrixF TX-29PX20F Manuel utilisateur

Panasonic

Panasonic QuintrixF TX-29AS1D Manuel utilisateur

Panasonic

Panasonic TX-25MD1 Manuel utilisateur

Panasonic

Panasonic TX-68P82Z Manuel utilisateur

Panasonic

Panasonic TH-50LRU70 Manuel utilisateur

Panasonic

Panasonic TX-29P180B Manuel utilisateur

Panasonic

Panasonic TC-21FJ30LA Manuel utilisateur

Panasonic

Panasonic TX-21JT2C Manuel utilisateur

Panasonic

Panasonic TC-21Z99R Manuel utilisateur

Panasonic

Panasonic Viera TX-26LX600F Manuel utilisateur

Panasonic

Panasonic TX-W28R4 Manuel utilisateur

Panasonic

Panasonic Viera TX-32LX60F Manuel utilisateur

Panasonic

Panasonic TX-25LD4C Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
