Panasonic CT-F2111 Manuel utilisateur

nasonlc

Color Television

Operating Instructions

CT-20SX11

CT-F2111 CT-F2111X

CT-F2121L

For assistance, please call: 1-800-211-PANA (7262) or TQB2AA0407 10607

send e-mail to: [email protected] (USA only) PRINTED IN USA

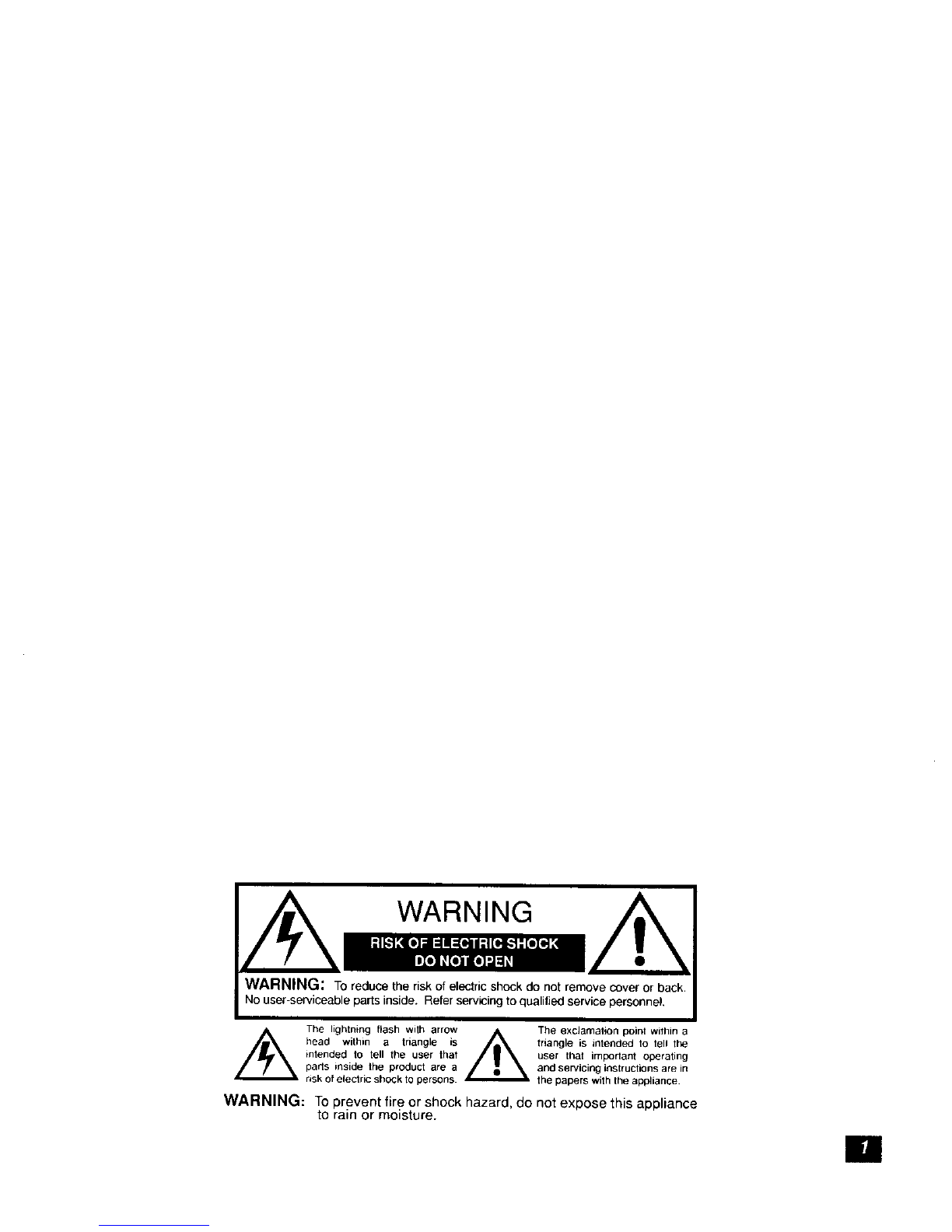

WARNING

WARNING: To reduce the risk of electric shock do not remove coveror back.

No user-serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrow The exclamation point within a

head within a triangle is triangle is intended to tell the

intended to tell the user that user that important operating

parts inside the product are a and servicing instructions are in

risk of electric shock to persons the papers with the appliance.

WARNING: Toprevent fire or shock hazard, do not expose this appliance

to rain or moisture. []

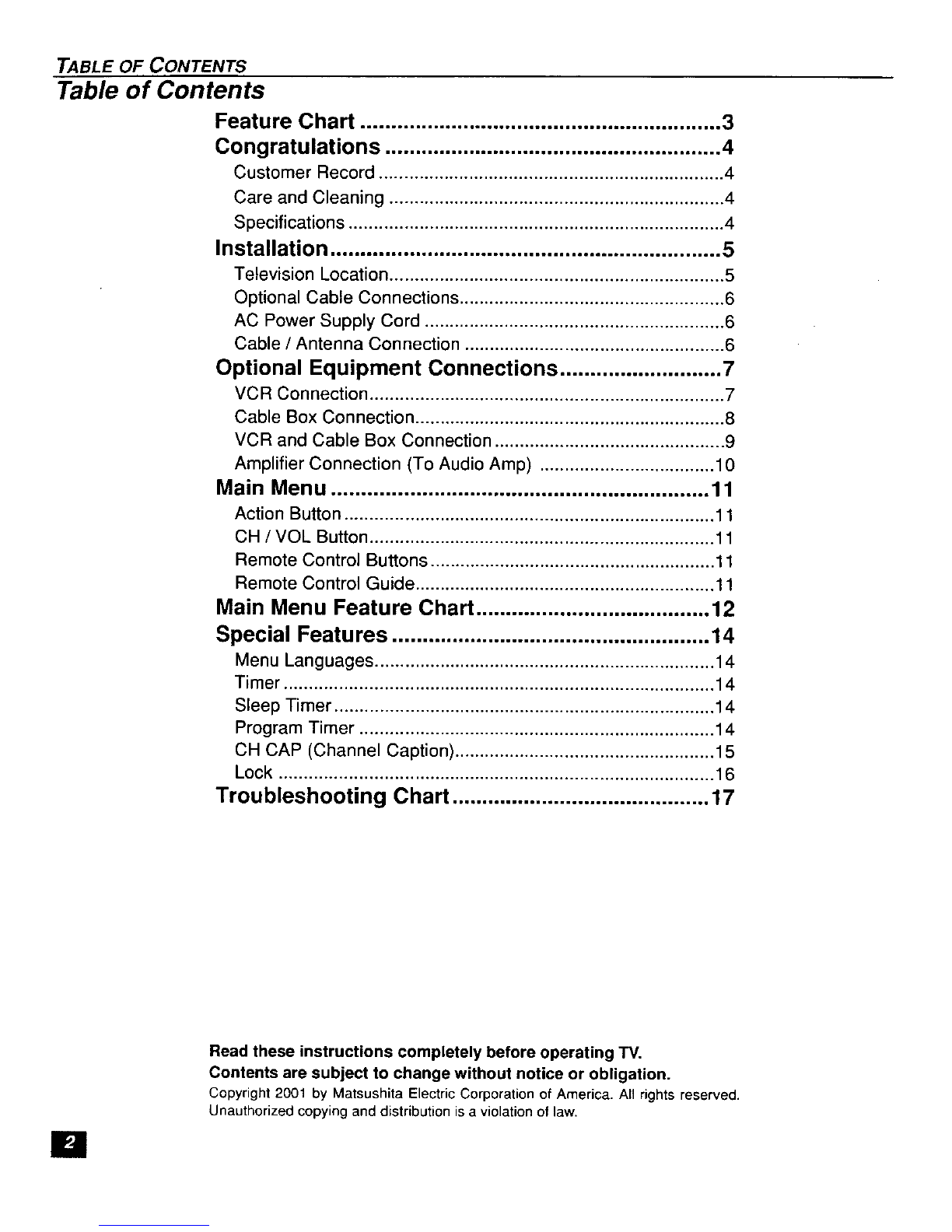

TABLE OF CONTENTS

Table of Contents

Feature Chart ............................................................ 3

Congratulations ........................................................ 4

Customer Record ..................................................................... 4

Care and Cleaning ................................................................... 4

Specifications ........................................................................... 4

Installation ................................................................. 5

Television Location ................................................................... 5

Optional Cable Connections ..................................................... 6

AC Power Supply Cord ............................................................ 6

Cable /Antenna Connection .................................................... 6

Optional Equipment Connections ........................... 7

VCR Connection ....................................................................... 7

Cable Box Connection .............................................................. 8

VCR and Cable Box Connection .............................................. 9

Amplifier Connection (To Audio Amp) ................................... 10

Main Menu ............................................................... 11

Action Button .......................................................................... 11

CH /VOL Button ..................................................................... 11

Remote Control Buttons ......................................................... 11

Remote Control Guide ............................................................ 11

Main Menu Feature Chart ....................................... 12

Special Features ..................................................... 14

Menu Languages .................................................................... 14

Timer ...................................................................................... 14

Sleep Timer ............................................................................ 14

Program Timer ....................................................................... 14

CH CAP (Channel Caption) .................................................... 15

Lock ....................................................................................... 16

Troubleshooting Chart ........................................... 17

[]

Read these instructions completely before operating TV.

Contents are subject to change without notice or obligation.

Unauthorized copying and distribution is a violation of law.

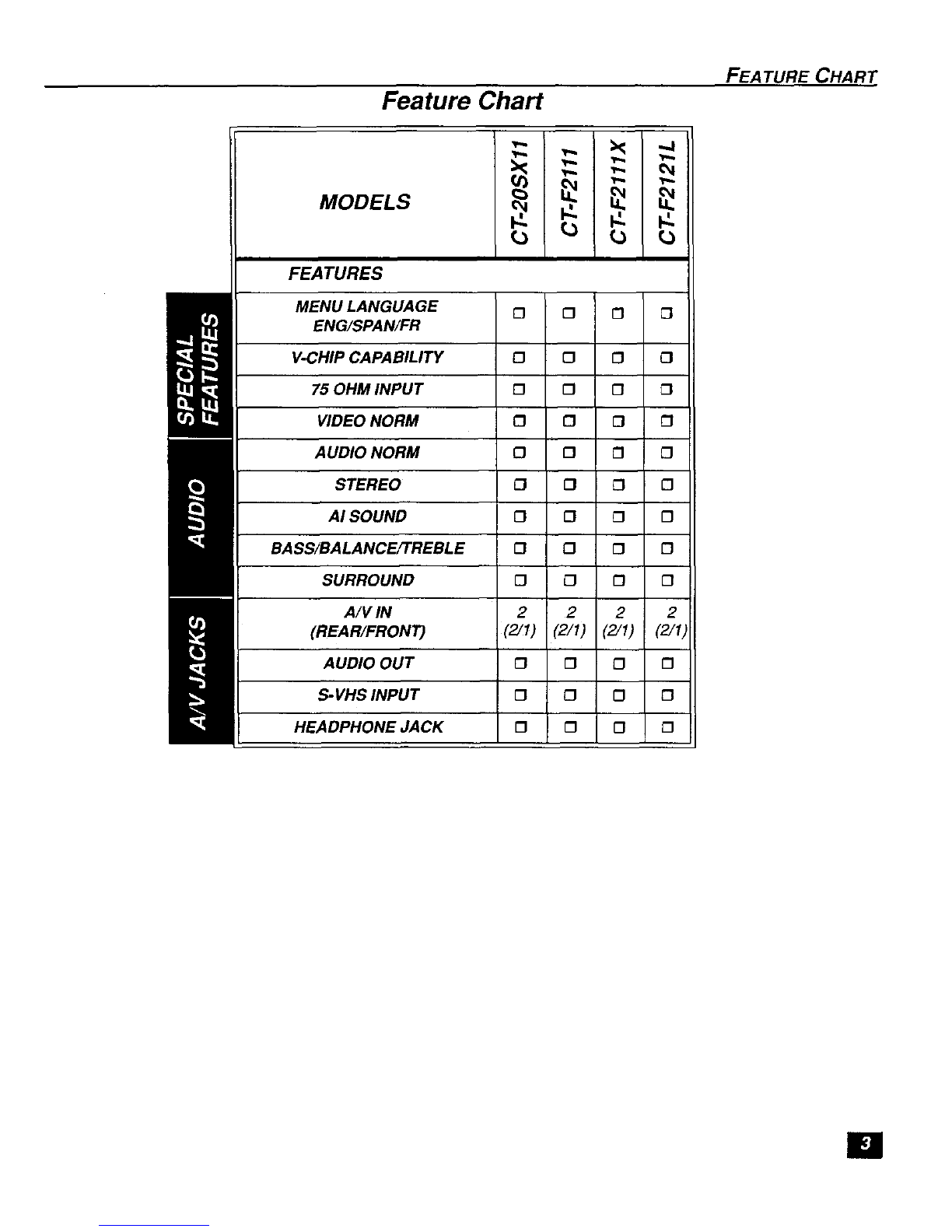

Feature Chart FEATURE CHART

MODELS

FEATURES

MENU LANGUAGE [] [] [] []

ENG/SPAN/FR

V-CHIP CAPABILITY 0 0 [] []

75 OHM INPUT [] [] [] []

VIDEO NORM [] [] [] []

AUDIO NORM [] [] [] []

STEREO {3 [] [] 0

AI SOUND [] (3 [] []

BASS/BALANCE/TREBLE [] 0 [] []

SURROUND [] 0 [] []

A/V IN 2 2 22

(REAR/FRONT) (2/1) (2/1) (2/1) (2/1)

AUDIO OUT [] [] [] []

S-VHS INPUT [] 0 D []

HEADPHONE JACK [] [] [] []

[]

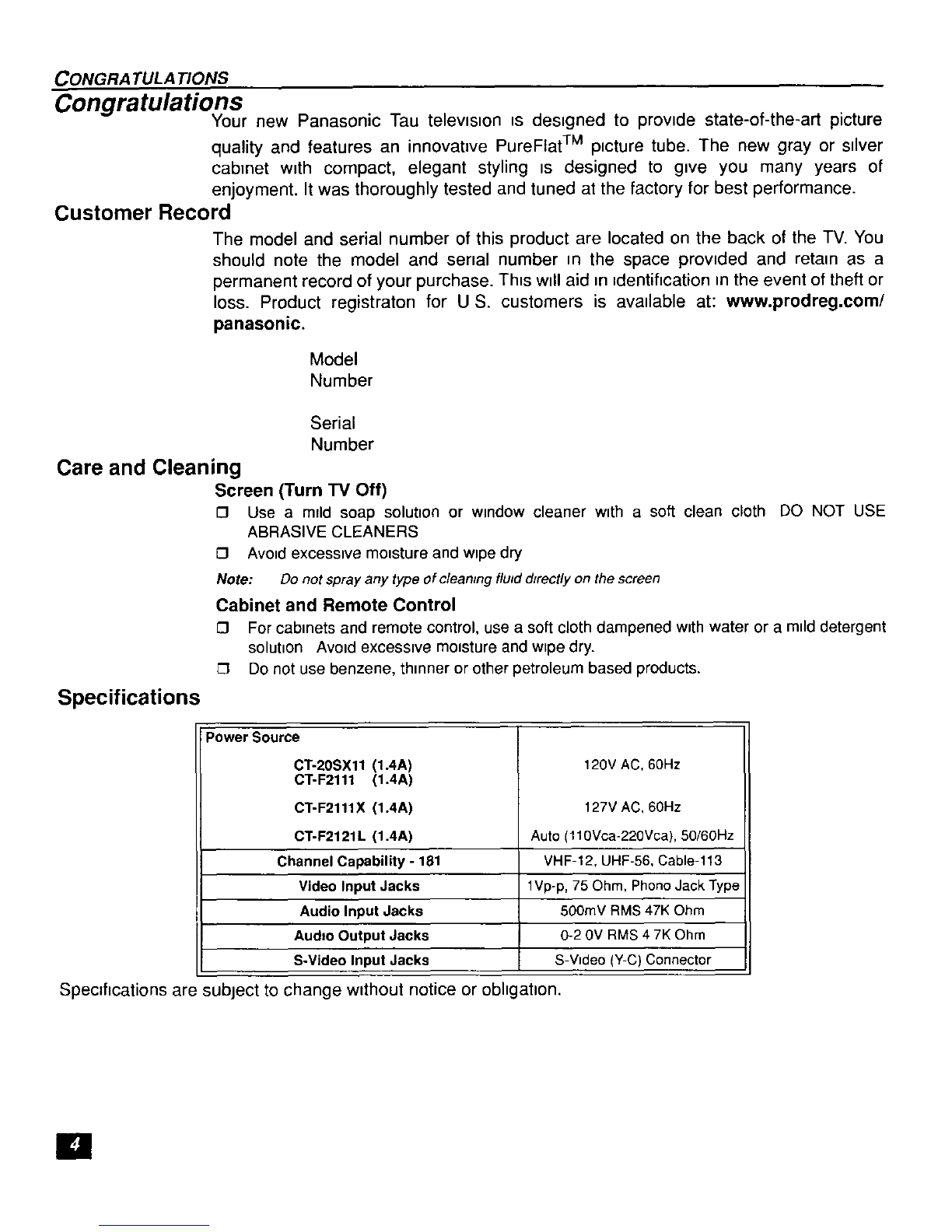

CONGRATULATIONS

Congratulations

Your new Panasonic Tau televtston ts destgned to provtde state-of-the-art picture

quality and features an innovative PureFlat TM ptcture tube. The new gray or stlver

cab=net wtth compact, elegant styling =s designed to gtve you many years of

enjoyment. It was thoroughly tested and tuned at the factory for best performance.

Customer Record

The model and serial number of this product are located on the back of the TV. You

should note the model and sertal number m the space provtded and retam as a

permanent record of your purchase. Thts wtll aid m tdentification m the event of theft or

loss. Product registraton for U S. customers is avatlable at: www.prodreg.com/

panasonic.

Model

Number

Serial

Number

Care and Cleaning

Screen (Turn TV Off)

[] Use a m_ld soap solutton or wmdow cleaner wtth a soft clean cloth DO NOT USE

ABRASIVE CLEANERS

[] Avotd excesstve motsture and wtpe dry

Note: Do not spray any type of cleamng fluid directly on the screen

Cabinet and Remote Control

[] For cabmets and remote control, use a soft cloth dampened wtth water or a mtld detergent

solutton Avotd excesstve motsture and w=pedry.

[] Do not use benzene, thmner or other petroleum based products.

Specifications

Power Source

CT-20SXll (1.4A)

CT-F2111 (1.4A)

CT-F2111X (1.4A)

CT-F2121L (1.4A)

Channel Capability -181

Video Input Jacks

Audio Input Jacks

Audto Output Jacks

S-Video Input Jacks

Specfftcations are subject to change w_thout notice or obhgatton.

120V AC, 60Hz

127V AC, 60Hz

Auto (110Vca-220Vca), 50/60Hz

VHF-12, UHF-56, Cable-113

1Vp-p, 75 Ohm, Phono Jack Type

500mV RMS 47K Ohm

0-2 0V RMS 4 7K Ohm

S-Vtdeo (Y-C) Connector

[]

INSTALLA TION

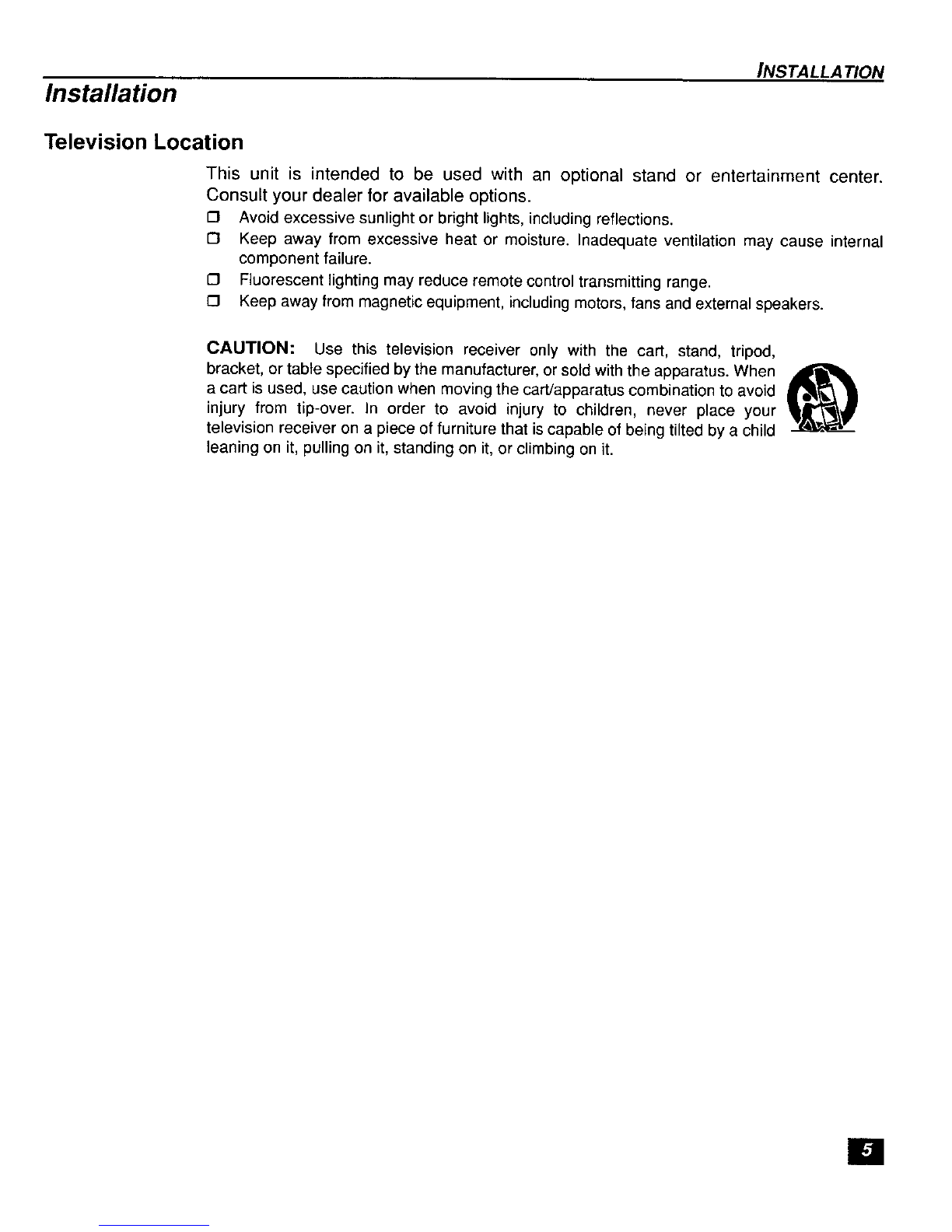

Installation

Television Location

This unit is intended to be used with an optional stand or entertainment center.

Consult your dealer for available options.

[] Avoid excessive sunlight or bright lights, including reflections.

O Keep away from excessive heat or moisture. Inadequate ventilation may cause internal

component failure.

13 Fluorescent lighting may reduce remote control transmitting range.

O Keep away from magnetic equipment, including motors, fans and external speakers.

CAUTION: Use this television receiver only with the cart, stand, tripod,

bracket, or tabte specified by the manufacturer, or sold with the apparatus. When

a cart is used, use caution when moving the cart/apparatus combination to avoid

injury from tip-over. In order to avoid injury to children, never place your

television receiver on a piece of furniture that is capable of being tilted by a child

leaning on it, pulling on it, standing on it, or climbing on it. @

[]

INSTALLATION

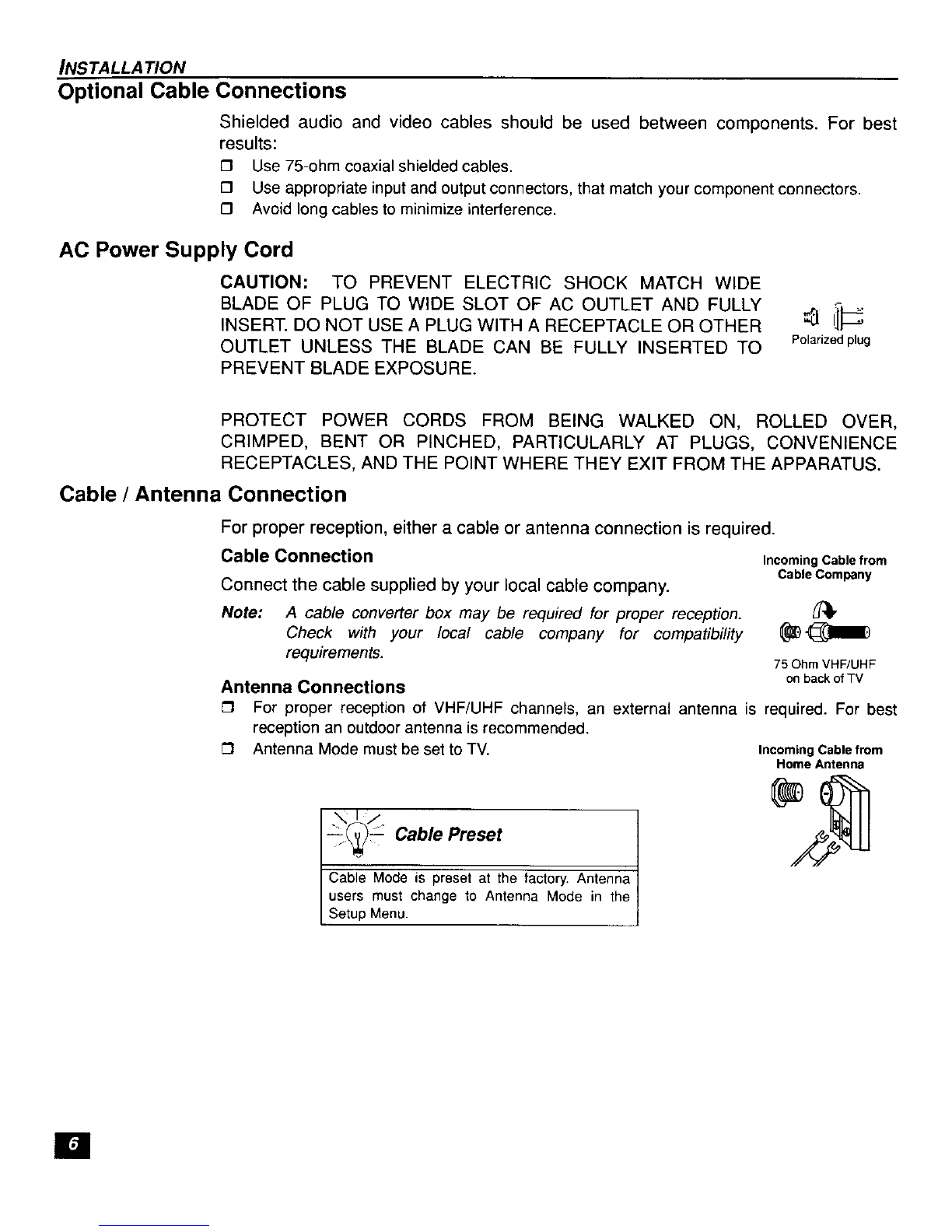

Optional Cable Connections

Shielded audio and video cables should be used between components. For best

results:

O Use 75-ohm coaxial shielded cables.

[] Use appropriate input and output connectors, that match your component connectors.

[] Avoid long cables to minimize interference.

AC Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE

BLADE OF PLUG TO WIDE SLOT OF AC OUTLET AND FULLY

INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER

OUTLET UNLESS THE BLADE CAN BE FULLY INSERTED TO

PREVENT BLADE EXPOSURE.

Polarized plug

PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER,

CRIMPED, BENT OR PINCHED, PARTICULARLY AT PLUGS, CONVENIENCE

RECEPTACLES, AND THE POINT WHERE THEY EXIT FROM THE APPARATUS.

Cable /Antenna Connection

For proper reception, either a cable or antenna connection is required.

Cable Connection

Connect the cable supplied by your local cable company.

Incoming Cable from

Cable Company

Note: Acable converter box may be required for proper reception. [_"

Check with your local cable company for compatibility _

requirements.

Antenna Connections

[]

75 Ohm VHF/UHF

on back of TV

_Cable Preset

Cable Mode is preset at the factory. Antenna

users must change to Antenna Mode in the

Setup Menu.

For proper reception of VHF/UHF channels, an external antenna is required. For best

reception an outdoor antenna is recommended.

Antenna Mode must be set to TV. IncomingCablefrom

Home Antenna

INSTAL LA TION

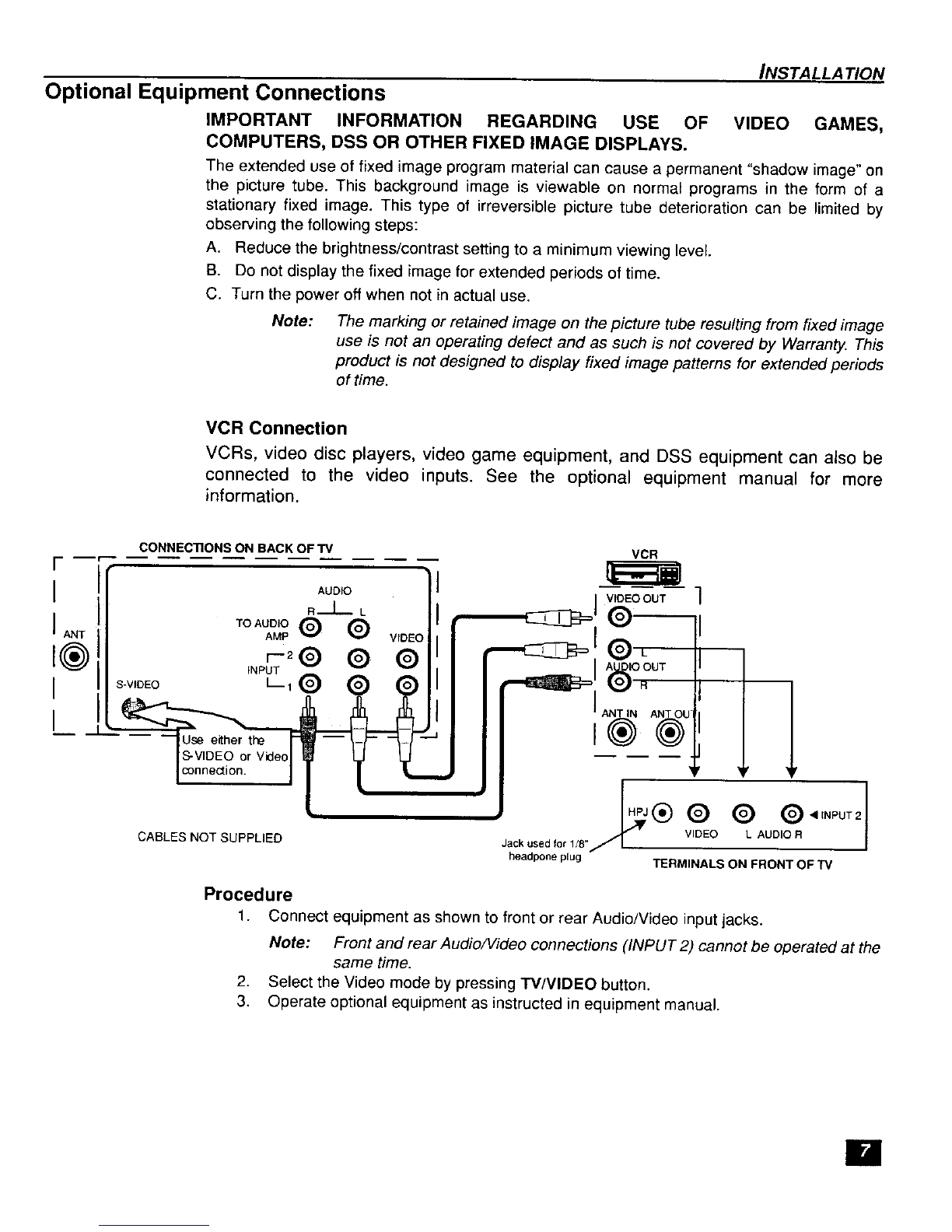

Optional Equipment Connections

IMPORTANT INFORMATION REGARDING USE OF VIDEO GAMES,

COMPUTERS, DSS OR OTHER FIXED IMAGE DISPLAYS.

The extended use of fixed image program material can cause a permanent "shadow image" on

the picture tube. This background image is viewable on normal programs in the form of a

stationary fixed image. This type of irreversible picture tube deterioration can be limited by

observing the following steps:

A. Reduce the brightness/contrast setting to a minimum viewing level.

B. Do not display the fixed image for extended periods of time.

C. Turn the power off when not in actual use.

Note: The marking or retained image on the picture tube resulting from fixed image

use is not an operating defect and as such is not covered by Warranty. This

product is not designed to display fixed image patterns for extended periods

of time.

VCR Connection

VCRs, video disc players, video game equipment, and DSS equipment can also be

connected to the video inputs. See the optional equipment manual for more

information.

CONNEC'RONS ON BACK OF TV

I AUDIO

R .-.L-. L

TOAOOio® Q

I ANT AMP VIDEO

I(_ INptr_'T 2® ® ®

Is-v,oEo " ® Q Q

,IS-VIDEOor Video

Icollne_lon.

CABLES NOT SUPPLIED

VCR

I A],,_IOOUT

I AN IN ANTOU

,@ ® ®,,,POT2

Jack used for 1/8"J-'1 v,,_=O LAUDOR

headpone plug TERMINALS ON FRONT OF TV

Procedure

1. Connect equipment as shown to front or rear Audio/Video input jacks.

Note: Front and rear Audio/Video connections (INPUT 2) cannot be operated at the

same time.

2. Select the Video mode by pressing W/VIDEO button.

3. Operate optional equipment as instructed in equipment manual.

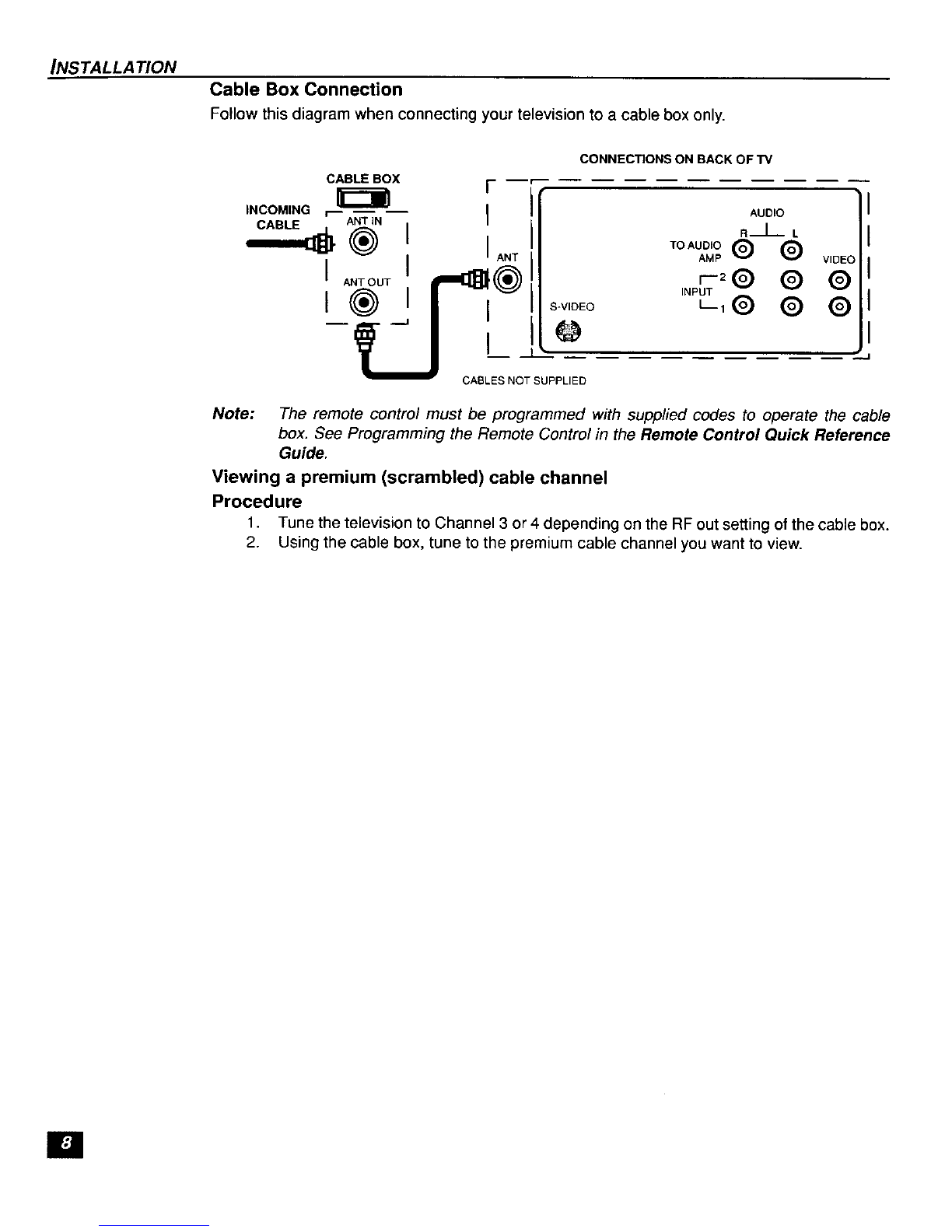

INSTALLA TION Cable Box Connection

Followthis diagram when connecting your television to a cable box only.

INCOMING

CABLE

CONNECTIONS ON BACK OF TV

AUDIO

R-...L- L

TOAUDIO (_ _(_ V_CAMPr'-2 (_

INPUT

L,Q Q ®

Note: The remote control must be programmed with supplied codes to operate the cable

box. See Programming the Remote Control in the Remote Control Quick Reference

Guide.

Viewing a premium (scrambled) cable channel

Procedure

1. Tune the television to Channel 3 or 4 depending on the RF out setting of the cable box.

2. Using the cable box, tune to the premium cable channel you want to view.

/NSTALLATION

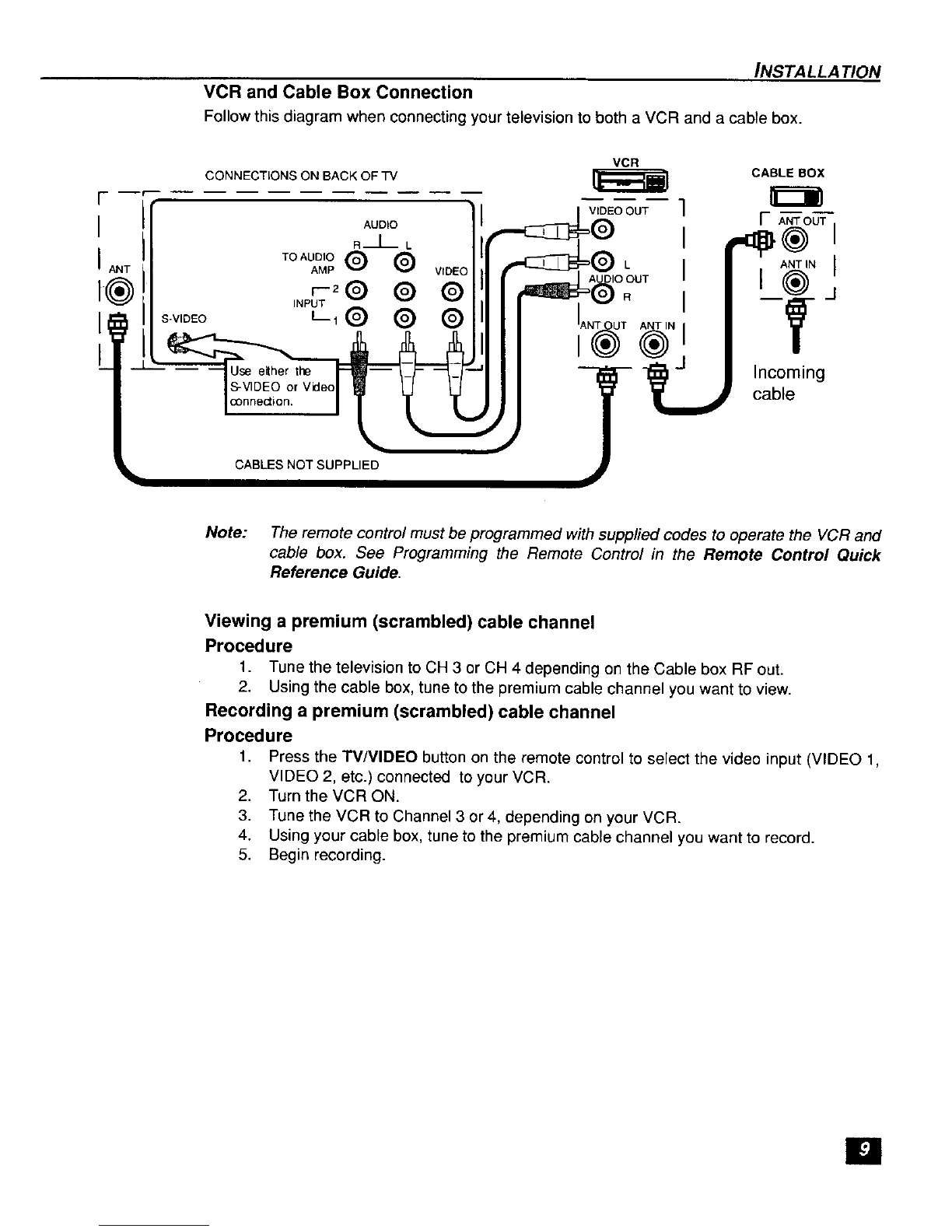

VCR and Cable Box Connection

Follow this diagram when connecting your television to both a VCR and a cable box.

F= --f

IANT

I®

CONNECTIONS ON BACKOFTV

AUDIO

a--L- L

INPUT

L,® ® ®

Use either the

S-VIDEO or Video

connection.

CABLES NOT SUPPLIED

VCR

VIDEO OUT

CABLE BOX

m===

IANT OUT

ANT IN I

l®j

Incoming

cable

Note: The remote control must be programmed with suppfied codes to operate the VCR and

cable box. See Programming the Remote Control in the Remote Control Quick

Reference Guide.

Viewing a premium (scrambled) cable channel

Procedure

1. Tune the television to CH 3 or CH 4depending on the Cable box RF out.

2. Using the cable box, tune tothe premium cable channel you want to view.

Recording a premium (scrambled) cable channel

Procedure

1. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1,

VIDEO 2, etc.) connected to your VCR.

2. Turn the VCR ON.

3. Tune the VCR to Channel 3 or 4, depending on your VCR.

4. Using your cable box, tune to the premium cable channel you want to record.

5. Begin recording.

[]

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic TV

Panasonic

Panasonic TX-21PZ1F Manuel utilisateur

Panasonic

Panasonic TX58DX800E Instructions de montage

Panasonic

Panasonic TX-48CXW404 Manuel utilisateur

Panasonic

Panasonic CT-32SX12U Manuel utilisateur

Panasonic

Panasonic QuintrixF TX-29AS1C Manuel utilisateur

Panasonic

Panasonic Quintrix TX-24DX1L Manuel utilisateur

Panasonic

Panasonic Viera TX-PF42ST30 Manuel utilisateur

Panasonic

Panasonic TX-55C320E Manuel utilisateur

Panasonic

Panasonic Viera TH-42PD60 Mode d’emploi

Panasonic

Panasonic TX-29E220T Manuel utilisateur

Panasonic

Panasonic TX-32PD50F Manuel utilisateur

Panasonic

Panasonic CT-G3387L Manuel utilisateur

Panasonic

Panasonic CT27D11E - 27" COLOR TV Manuel utilisateur

Panasonic

Panasonic Quintrix TX--25LD4C/Z Manuel utilisateur

Panasonic

Panasonic TX-29S200Z Manuel utilisateur

Panasonic

Panasonic CT-27SL15ND Operating Manuel utilisateur

Panasonic

Panasonic CT-13R32 Manuel utilisateur

Panasonic

Panasonic Viera TH-37PW5 Manuel utilisateur

Panasonic

Panasonic Color Television Manuel utilisateur

Panasonic

Panasonic TH-42PV600AZ Manuel utilisateur

Panasonic

Panasonic TC-29GF30 series Manuel utilisateur

Panasonic

Panasonic PT-50LC13 - 50" Rear Projection TV Manuel utilisateur

Panasonic

Panasonic Viera TH-P50V10Z Manuel utilisateur

Panasonic

Panasonic Viera TH-50PZ77U Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
