ORDER No, MTNC021139C1
B14

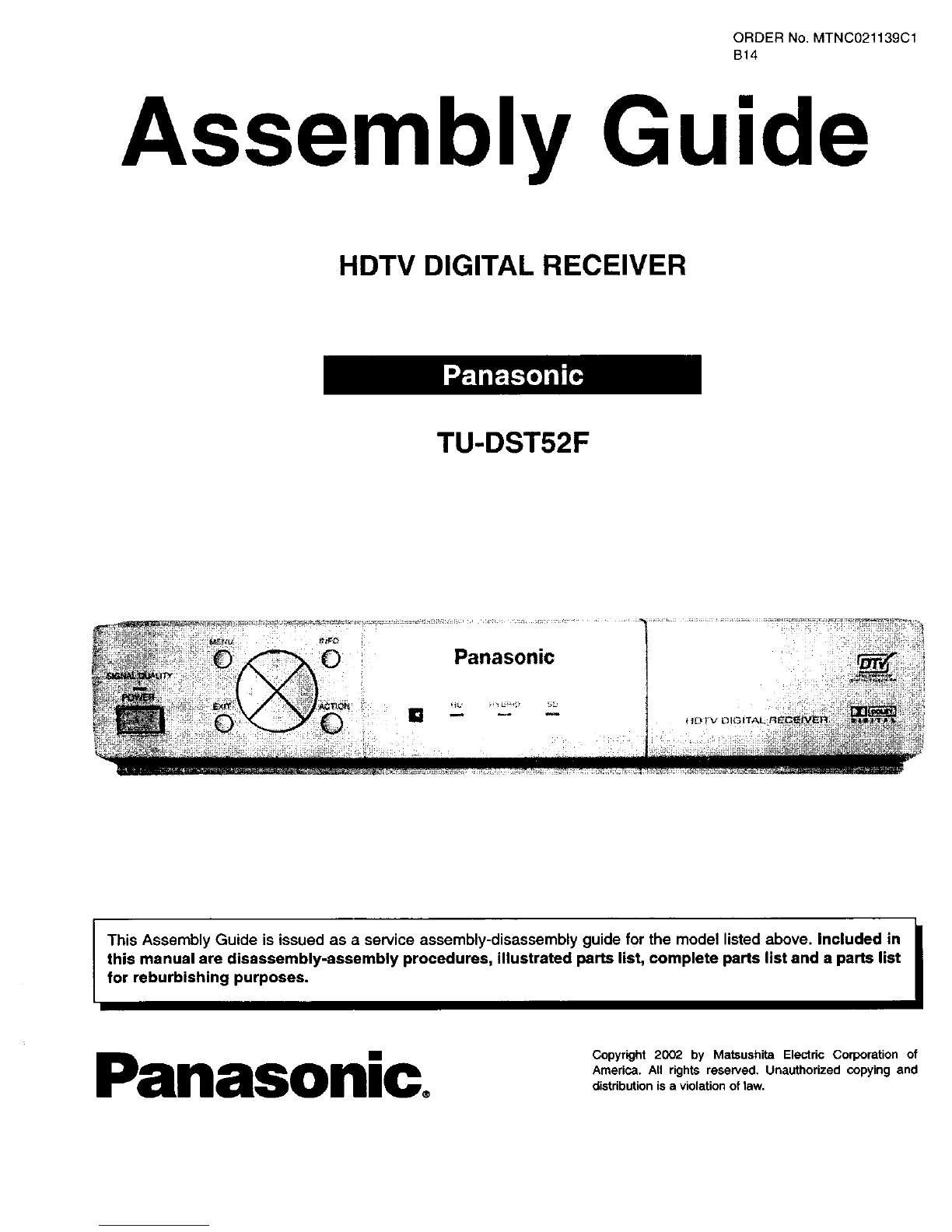

Assembly Guide
HDTV DIGITAL RECEIVER
TU-DST52F
This Assembly Guide is issued as aservice assembly-disassembly guide for the model listed above. Included in
this manual are disassembly-assembly procedures, illustrated parts list, complete parts list end a parts list
for reburbishing purposes. i
Panasonic. Copyright 2002 by Matsushita Electdc Corporation of
America. All rights reserved, Unauthorized copying and
distribution is a violation of law.
TOP COVER ............................................... 3
Removal............................................................. 3
Assembly........................................................... 3
FRONT PANEL .......................................... 4
Removal............................................................. 4
Assembly........................................................... 4
FRONT PANEL ASSY. ............................... 5
Disassembly ...................................................... 5
A BOARD ................................................... 6
P BOARD ................................................... 7
FAN=..°.,.,,m.,.,i,,,,i,.i,.o.,_,_,_,l_J_,,,°,J,,mmH*°_,_,,_7
BOTTOM CHASSIS ................................... 8
PACKING ................................................... 9
PackingBox .........................................................9
Cushion Box....................................................... 10
Complete Packing .............................................. 11
Parts List for refurbished ....................... 12
Complete parts list. ................................. 16
TOP COVER
The top cover is secured to the bottom chassis by 3 screws
REMOVAL:
Remove the 3 screws from the back that secure the cover.
Slide the cover completely to the back of the set.
ASSEMBLY:
Slide the top cover all the way to the front of the set.
Confirm that the top cover tabs are correctly assembled into the bottom chassis as shown.
-3-
FRONT PANEL
The front panel is secured to the bottom chassis by the side tabs.
TAB
FLAT CABLE
PULL FLAT CABLE UPWARDS
TAB
REMOVAL
Unplug the flat cable from the A-Board as shown above. Grab the cable from the center and pull carefully, do not
pull the cable from the sides.
Push the left and right sides of the bottom chassis near the tabs, to release the front panel.
TAB TAB
ASSEMBLY
Confirm that all the marks from the front panel match with the spaces in the bottom of the chassis and insert firmly
until the panel is secured to the bottom chassis by the side tabs.
-4-
FRONT PANEL ASSEMBLY
SIGNAL LED KEY BUTTONS
/
POWER BUTTON
VIDEO OUT LEDS
/
/
Panas_c
[]
K-BOARD
'irrT lil' llil F _:
GND METAL SCREW
FLAT CABLE
DISASSEMBLY
Remove the screw and the GND metal.
Open the locking tabs to release the K-Board from the panel.
The IR guide and the SIGNAL LED panel are mounted into a plastic guide on the panel.
SIGNAL LED
IR GUIDE
-5-
A-BOARD
A-Board is secured to bottom chassis by 4screws, 5 screws on the back, washer and the Hex nut on the tuner
jack.
SCREW
SCREW SCREW SCREW,
The connector has a tab, tryto pull the connector from this tab with a flat screw.
TAB
I IMPORTANT: I
Keep and re-use all hardware from
original set. (Screws, nuts, washer).
-6-
P-BOARD
The P-Board is secured to the bottom chassis by 4 screws on the base and 2 screws on the A.C. connector.
Ill SCREW
SCREW 2SCREWS
SCREW IIMPORTANT: I
Keep and re-use all hardware from
original set (screws, nuts, washers).
FAN
The FAN is assembled to a metallic base with two screws; this metallic base is assembled to the A-Board with one
screw to the bottom chassis and one screw to the back of the chassis
SCREW
FAN
SCREW
A13 SCREW
CONNECTOR
LIC BASE
TO A13
CONNECTOR
A13
CONNECTOR
-7-
BOTTOM VIEW
The bottom chassis include 4 rubber-feet, they are )laced in the four corners on the base of the chassis.
::::
-8-
PACKING BOX
Assembly the box as shown:
BACK
FRONT
BACK
FRONT
FRONT
FRONT
BACK
-9-
CUSHION BOX
Assembly the cushion box as shown.
TOP VIEW
SIDE VIEW
n
FRONT
-10-
