Panasonic KX-THA14 Manuel utilisateur

Please read these Operating Instructions before using the unit and save

for future reference.

For assistance, visit our website:

http://www.panasonic.com/phonehelp for customers in the U.S.A. or

Puerto Rico.

This unit is an accessory unit for use with the KX-TH102 base unit. You

must register this unit with your base unit before it can be used.

Home Communication System

USB Adapto

Model No. KX-THA14

Operating Instructions

PQQX14793XA DM1105PM3036

THA14(e).book Page 1 Tuesday, March 7, 2006 5:31 PM

Table of Contents

2For assistance, please visit http://www.panasonic.com/phonehelp

Introduction

Feature highlights. . . . . . . . . . . . . . . . . . 3

Accessory information . . . . . . . . . . . . . . 4

Expanding your phone system . . . . . . . . 5

For best performance . . . . . . . . . . . . . . . 8

Preparation

Controls . . . . . . . . . . . . . . . . . . . . . . . . . 9

Icons. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Symbols used in these operating

instructions . . . . . . . . . . . . . . . . . . . . . . 10

System requirements for your

computer . . . . . . . . . . . . . . . . . . . . . . . 11

Installation . . . . . . . . . . . . . . . . . . . . . . 12

Connections . . . . . . . . . . . . . . . . . . . . . 13

Connecting to the Base

Unit or to another

Computer

Registering the USB adaptor . . . . . . . . 14

Setting the USB adaptor options . . . . . 15

Establishing a wireless connection with the

base unit or another computer . . . . . . . 17

Useful Information

Troubleshooting . . . . . . . . . . . . . . . . . . 18

FCC and other information . . . . . . . . . . 19

Specifications . . . . . . . . . . . . . . . . . . . . 21

Customer services . . . . . . . . . . . . . . . . 22

Warranty. . . . . . . . . . . . . . . . . . . . . . . . 23

THA14(e).book Page 2 Tuesday, March 7, 2006 5:31 PM

Introduction

For assistance, please visit http://www.panasonic.com/phonehelp 3

Feature highlights

Thank you for purchasing the Panasonic Home Communication System

USB Adaptor.

Important:

LFor information about other compatible Panasonic units, see page 5.

Using the USB adaptor features

By connecting the USB adaptor to your computer you can access the Internet or another

computer using the MULTI TALK V software included with your base unit. Refer to the

“Installation Guide for MULTI TALK V Software” for installation and base unit connection

details.

Wireless connection to the Internet

You can use the USB adaptor to connect to your base unit wirelessly and access the

Internet. There are 2 connection methods, called “services”: PAN and DUN.

– PAN: Personal Area Network. This service allows you to access the Internet or another

computer using your base unit’s LAN jack. To use this feature you must establish LAN

network and subscribe a high-speed Internet service. Up to 3 wireless connections can

be established with a base unit simultaneously.

– DUN: Dial Up Network. This service allows you to access the Internet using one of your

base unit’s analog telephone line jacks. To use this feature you must subscribe a dial up

Internet service. Only 1 wireless connection can be established with a base unit.

Wireless connection to another computer or Bluetooth® devices

It is possible to establish a wireless connection to another computer or Bluetooth device

using the USB adaptor with the PAN service. A wireless connection to another computer

can be established as follows:

– You can connect to another computer that is also using a USB adaptor.

– Through the base unit, you can connect to another computer connected to the base unit

via LAN network.

THA14(e).book Page 3 Tuesday, March 7, 2006 5:31 PM

Introduction

4For assistance, please visit http://www.panasonic.com/phonehelp

Accessory information

Note:

LYou can expand your phone system by registering additional compatible Panasonic

units (page 5).

Sales and support information

LTo order these accessories, call 1-800-332-5368.

LTTY users (hearing or speech impaired users) can call 1-866-605-1277.

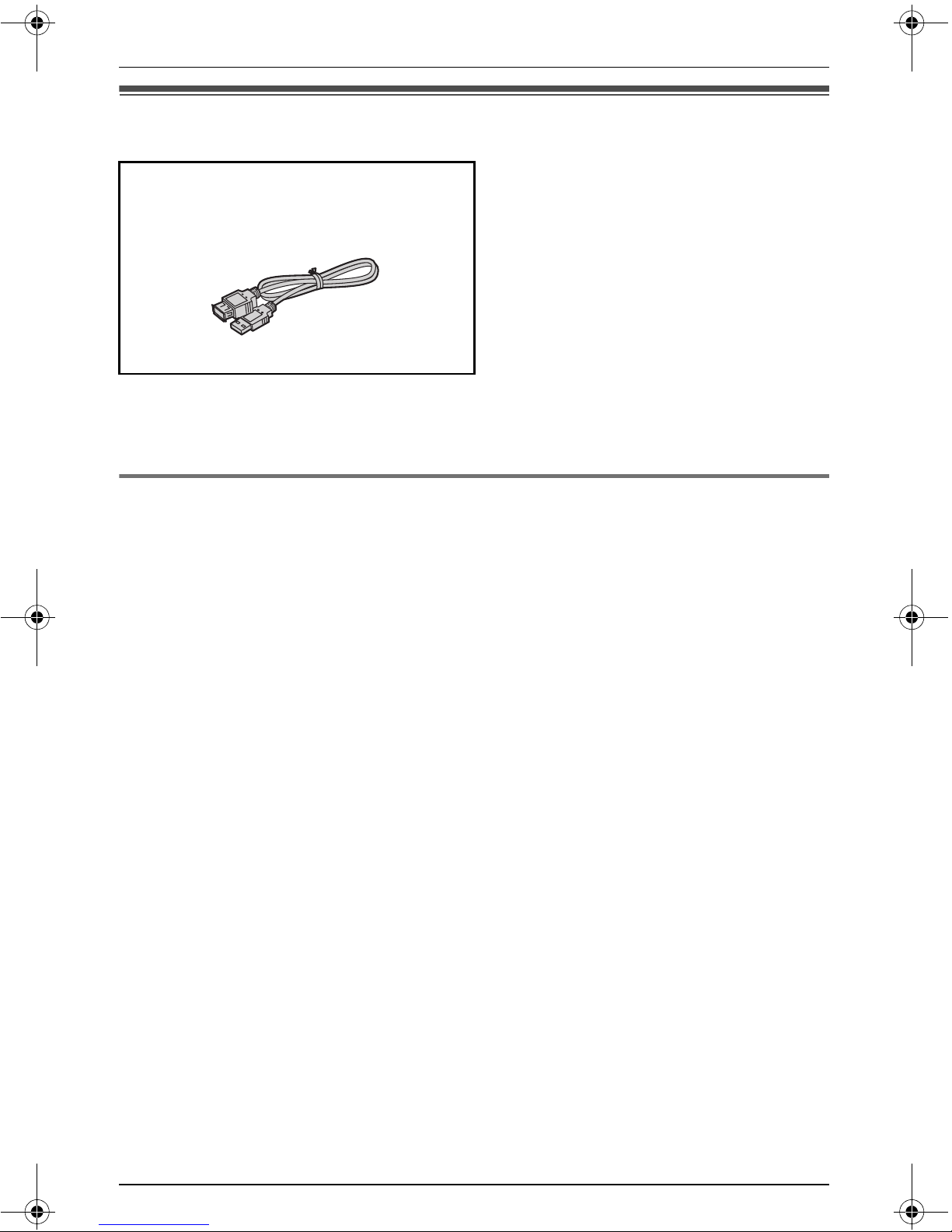

AExtension cable

(Order No. PQJA10173Z)

THA14(e).book Page 4 Tuesday, March 7, 2006 5:31 PM

Introduction

For assistance, please visit http://www.panasonic.com/phonehelp 5

Expanding your phone system

You can expand the phone system by registering the following units to a single base unit:

max. 18

Note:

LHeadset and cellular phone must have Bluetooth capability and must be compatible to

the home communication system. For more details and the list of compatible cellular

phones, please visit: www.panasonic.com/MultiTalkV

Handsets: max. 8 Other devices: max. 10

Cordless handset

KX-THA11

(Monochrome display

type)

Cordless camera

KX-THA13: max. 2

(For monitoring)

Cordless video camera

handset

KX-THA12

(Color display type)

USB adaptor

KX-THA14

(For data link)

Cordless video camera

station

KX-THA16

(Large color display

type)

Other

Bluetooth

compatible

devices

(Optional)

Headset

Cellular

phone:

max. 5

Cordless video camera

handset with A/V

output

KX-THA17

(Color display type with

audio/video output

jack)

THA14(e).book Page 5 Tuesday, March 7, 2006 5:31 PM

Introduction

6For assistance, please visit http://www.panasonic.com/phonehelp

Various features using the optional units

Video phone

Video monitor

Cellular connection (Bluetooth compatible)

This feature allows you and the

person you are talking to to see

each other in real time for an

outside call using the handsets.

If you have additional units (A,

B), you can also make a video

call during an intercom call.

AKX-THA12/KX-THA17

BKX-THA16

This feature allows you to

monitor the room where the

cordless camera (A) is located

from the units (B, C).

You can also monitor the room

between the units (B, C).

AKX-THA13

BKX-THA12/KX-THA17

CKX-THA16

This feature allows you to make

or answer cellular calls using

your unit (A, B, C, and the base

unit), if you have Bluetooth

compatible cellular phones.

AKX-THA11

BKX-THA12/KX-THA17

CKX-THA16

Your home

CA B

Your cellular phone

BAC

THA14(e).book Page 6 Tuesday, March 7, 2006 5:31 PM

Introduction

For assistance, please visit http://www.panasonic.com/phonehelp 7

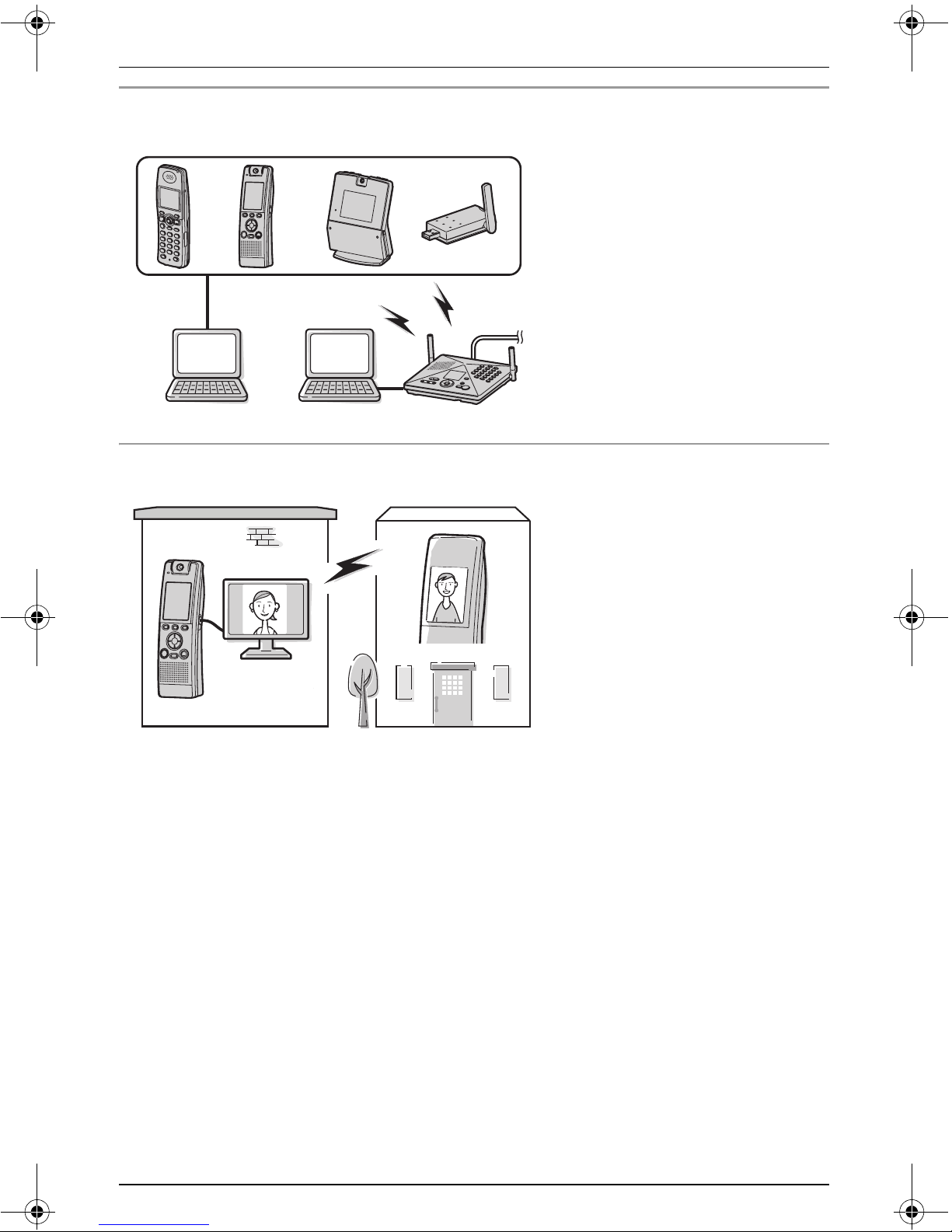

Data link feature

Video phone using TV

This feature allows you to access

the Internet or another computer

by connecting the units (A, B,

C, and the base unit) with the

USB cable or a USB adaptor (D)

to your computer.

AKX-THA11

BKX-THA12/KX-THA17

CKX-THA16

DKX-THA14

This feature allows you to use

your TV to see the other person

during a video call.

AKX-THA17

AB C D

Your home

THA14(e).book Page 7 Tuesday, March 7, 2006 5:31 PM

Introduction

8For assistance, please visit http://www.panasonic.com/phonehelp

For best performance

Location

This unit communicates using radio

waves.

For maximum distance and noise-free

operation, we recommend the following:

LPlacing the product away from electrical

appliances.

LRaising the antenna vertically.

Environment

LKeep the product away from electrical

noise generating devices, such as

fluorescent lamps and motors.

LThe product should be kept free from

excessive smoke, dust, high

temperature, and vibration.

LThe product should not be exposed to

direct sunlight.

LDo not place heavy objects on top of the

product.

LWhen you leave the product unused for

a long period of time, disconnect the

product from the computer.

LThe product should be kept away from

heat sources such as heaters, kitchen

stoves, etc. It should not be placed in

rooms where the temperature is less

than 5 °C (41 °F) or greater than 40 °C

(104 °F). Damp basements should also

be avoided.

LThe maximum data transferring distance

may be shortened when the product is

used in the following places: Near

obstacles such as hills, tunnels,

underground, near metal objects such

as wire fences, etc.

LOperating near 2.4 GHz electrical

appliances may cause interference.

Move away from the electrical

appliances.

Connections

LUse only the included extension cable.

Other extension cables may damage the

USB adaptor and your computer.

LConnect the USB adaptor to a USB port

on your computer. For optimum

performance, do not connect more than

one USB adaptor to a single computer or

the USB adaptor to your computer via a

hub.

LThe USB adaptor may not turn off and

may consume electricity regardless of

whether your computer is turned off or in

sleep mode. By connecting/

disconnecting the USB adaptor or

extension cable from an active

computer, the USB adaptor will turn on/

off. We recommend when you are not

using the USB adaptor or computer, that

you disconnect the USB adaptor or

extension cable from your computer.

Routine care

LWipe the outer surface of the product

with a soft moist cloth. Do not use

benzine, thinner, or any abrasive

powder.

THA14(e).book Page 8 Tuesday, March 7, 2006 5:31 PM

Preparation

For assistance, please visit http://www.panasonic.com/phonehelp 9

Controls

AAntenna

BStatus indicator

CUSB plug

Status indicator

The status indicator indicates the USB

adaptor status.

Icons

The following icons displayed in the Data

Link Manager window or system tray

indicate the device, service, or the status

of the USB adaptor.

Data Link Manager: Device List

*1 A device that connects your LAN and

the USB adaptor with wireless network.

Data Link Manager: Service List

System tray

Indicator Status

Light on Adaptor is on.

(Receiving power)

Light off Adaptor is off. (Not

receiving power)

Flashing Transferring data

Icons Device

Base unit

Computer with another USB

adaptor

Other Bluetooth devices

Access point*1

Icons Service

PAN service

DUN service

Icons Status

MULTI TALK V USB Utility is

running but the USB adaptor

is not connected to the

computer.

MULTI TALK V USB Utility is

running and the USB adaptor

is connected to the computer.

A wireless connection is

established with the base unit

or another computer by the

PAN service.

A wireless connection is

established with the base unit

by the DUN service.

THA14(e).book Page 9 Tuesday, March 7, 2006 5:31 PM

Preparation

10 For assistance, please visit http://www.panasonic.com/phonehelp

Symbols used in these operating instructions

Symbols used for operations

Symbol Meaning

Example:

“Deregistration”

Press the base unit navigator key up or down to select the

words in quotations shown on the display.

hPress the navigator key of the base unit up, down, left, or right

to select that menu icon shown on the display.

iProceed to the next operation.

Example: {MENU}The words in the brackets show button names on your base

unit.

Example: [OK] The words in the brackets show button names on your

computer.

THA14(e).book Page 10 Tuesday, March 7, 2006 5:31 PM

Autres manuels pour KX-THA14

Table des matières

Langues :

Autres manuels Panasonic Téléphone

Panasonic

Panasonic EASA-PHONE KX-T61630 Manuel utilisateur

Panasonic

Panasonic KX-TG5632 Manuel utilisateur

Panasonic

Panasonic KX-T2386BA Manuel utilisateur

Panasonic

Panasonic KX-TSC10EXB Manuel utilisateur

Panasonic

Panasonic KX-TGA273S - Cordless Extension Handset Manuel d'utilisation et d'entretien

Panasonic

Panasonic KX-PRS120 Manuel utilisateur

Panasonic

Panasonic KX-TGL462 Manuel utilisateur

Panasonic

Panasonic KX-TGF372 Manuel utilisateur

Panasonic

Panasonic KX-TDE600 Manuel utilisateur

Panasonic

Panasonic KX-UT670 Manuel utilisateur

Panasonic

Panasonic KX-TSC11MX Manuel utilisateur

Panasonic

Panasonic KX-TG9472C Manuel utilisateur

Panasonic

Panasonic KX-TG2236S Manuel utilisateur

Panasonic

Panasonic KX-TC1720B Manuel utilisateur

Panasonic

Panasonic KX-PRS110FX Manuel utilisateur

Panasonic

Panasonic Press IT360 TY-CSP1 Mode d'emploi

Panasonic

Panasonic KX-TD500AL Manuel utilisateur

Panasonic

Panasonic KX-PRW120AZ Manuel utilisateur

Panasonic

Panasonic KX-TG2562W Manuel utilisateur

Panasonic

Panasonic KX-DT 343 Series Manuel utilisateur

Panasonic

Panasonic KX-NCP500 Manuel utilisateur

Panasonic

Panasonic KX-T7020E Manuel utilisateur

Panasonic

Panasonic KX-T7700 Series Manuel utilisateur

Panasonic

Panasonic KX-TC1851B - 900 MHz DSS Cordless Phone Manuel utilisateur

Manuels Téléphone populaires d'autres marques

GE 2-9480 Manuel utilisateur

Geemarc

Geemarc PHOTOPHONE 155 Manuel utilisateur

D-Link

D-Link DWR-720/PW Manuel utilisateur

Interquartz

Interquartz Gemini IQ333 Manuel utilisateur

SSS Siedle

SSS Siedle HT 840-0 Manuel utilisateur

Motorola

Motorola TITANIUM Manuel utilisateur

LG H870DS Manuel utilisateur

Samsung

Samsung GT-I9500 Manuel utilisateur

AT&T

AT&T Trimline 205 Manuel utilisateur

Selta

Selta zenyth 600 Manuel utilisateur

Doro

Doro AFTI 20 Manuel utilisateur

UNIQCELL

UNIQCELL A1 Manuel utilisateur

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuel utilisateur

BT Decor 425 Manuel utilisateur

NEC

NEC SV8500 Manuel utilisateur

Teledex

Teledex PEARL Manuel utilisateur

Ericsson

Ericsson Dialog 3213 Manuel utilisateur

Yealink

Yealink VP530 Manuel utilisateur
