Panasonic KX-TDA30 Manuel utilisateur

Model No.

KX-TDA30

Thank you for purchasing a Panasonic Hybrid IP-PBX.

Please read this manual carefully before using this product and save this manual for future use.

KX-TDA30: MPR Version 2.2

Hybrid IP-PBX

Getting Started

2 Getting Started

Table of Contents

1 Before Installation .................................................................................. 3

1.1 System Connection Diagram ...........................................................................................4

1.2 Unpacking..........................................................................................................................5

2 Installation............................................................................................... 7

2.1 Opening/Closing the Covers ............................................................................................8

2.2 Installing the SD Memory Card ...................................................................................... 10

2.3 Installing the Optional Service Cards ...........................................................................10

2.4 Installing the Trunk Cards ..............................................................................................13

2.5 Installing the Extension Cards (DLC4/DLC8/SLC4/SLC8) ...........................................14

2.6 Connecting Extensions ..................................................................................................15

2.7 Frame Earth Connection ................................................................................................15

3 Starting the Hybrid IP-PBX .................................................................. 17

3.1 Starting the Hybrid IP-PBX.............................................................................................18

4 Customising the Hybrid IP-PBX .......................................................... 21

4.1 Connecting the PC..........................................................................................................22

4.2 Installing the KX-TDA30 Maintenance Console ...........................................................22

4.3 Programming the Hybrid IP-PBX ...................................................................................23

5 Confirming the Connection ................................................................. 29

5.1 Making Calls .................................................................................................................... 30

Getting Started 3

Section 1

Before Installation

1.1 System Connection Diagram

4 Getting Started

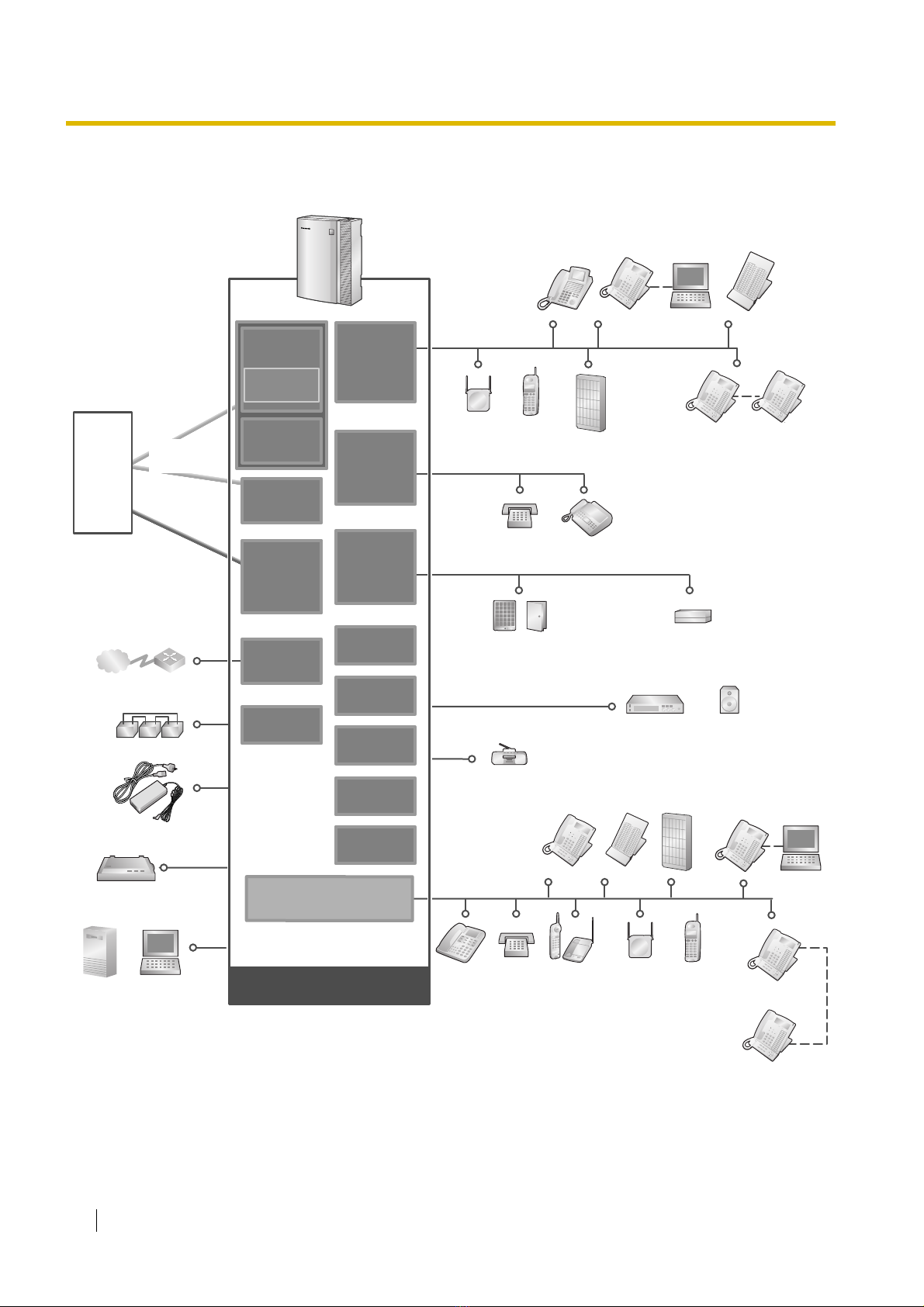

1.1 System Connection Diagram

*1In addition to the supplied AC adaptor, an additional AC adaptor can be connected to the Hybrid IP-PBX.

*2The Hybrid IP-PBX has 4 Super Hybrid Ports pre-installed.

SLT Wireless

Phone

PCKX-T7636/

KX-T7633

DSS

Console

AC Cord & AC Adaptor*

Private

IP Network

Station Message

Detail Recording (SMDR)

Router

DLC8

(KX-TDA3172)

DLC4

(KX-TDA3171)

SLC8

(KX-TDA3174)

SLC4

(KX-TDA3173)

DPH4

(KX-TDA3161)

DPH2

(KX-TDA3162)

ECHO8

(KX-TDA3166)

EXT-CID

(KX-TDA3168)

MSG2

(KX-TDA3191)

IP-GW4

(KX-TDA3480)

SLT Fax Machine

Hybrid IP-PBX

DPT

APT

DPT DSS

Console

Voice

Processing

System

Voice

Processing

System

Radio

Amplifier Pager/Speaker

CTI Server

PT-interface CS PS

4 Super Hybrid Ports

PT-interface CS PS

Batteries

Main Board

RMT

(KX-TDA3196)

for Single Line Device

for Digital Proprietary

Telephone (DPT),

DSS Console, and

Portable Station (PS)

for Single Line Device,

DPT/Analogue

Proprietary Telephone

(APT), DSS Console,

and PS

MEC

(KX-TDA3105)

LCOT2

(KX-TDA3183)

CID4

(KX-TDA3193)

LCOT4

(KX-TDA3180)

DID3

(KX-TDA3182)

ISDN BRI Line

(Digital Trunk)

ISDN BRI Line

(Digital Trunk)

Telephone

Company

Analogue

Trunk

BRI2

(KX-TDA3280)

BRI1

(KX-TDA3283)

Doorphone & Door Opener External Sensor/External Relay Device

KX-T7600 DPT

KX-T7636/

KX-T7633

KX-T7600 DPT KX-T7600 DPT

SVM2

(KX-TDA3192)

1.2 Unpacking

Getting Started 5

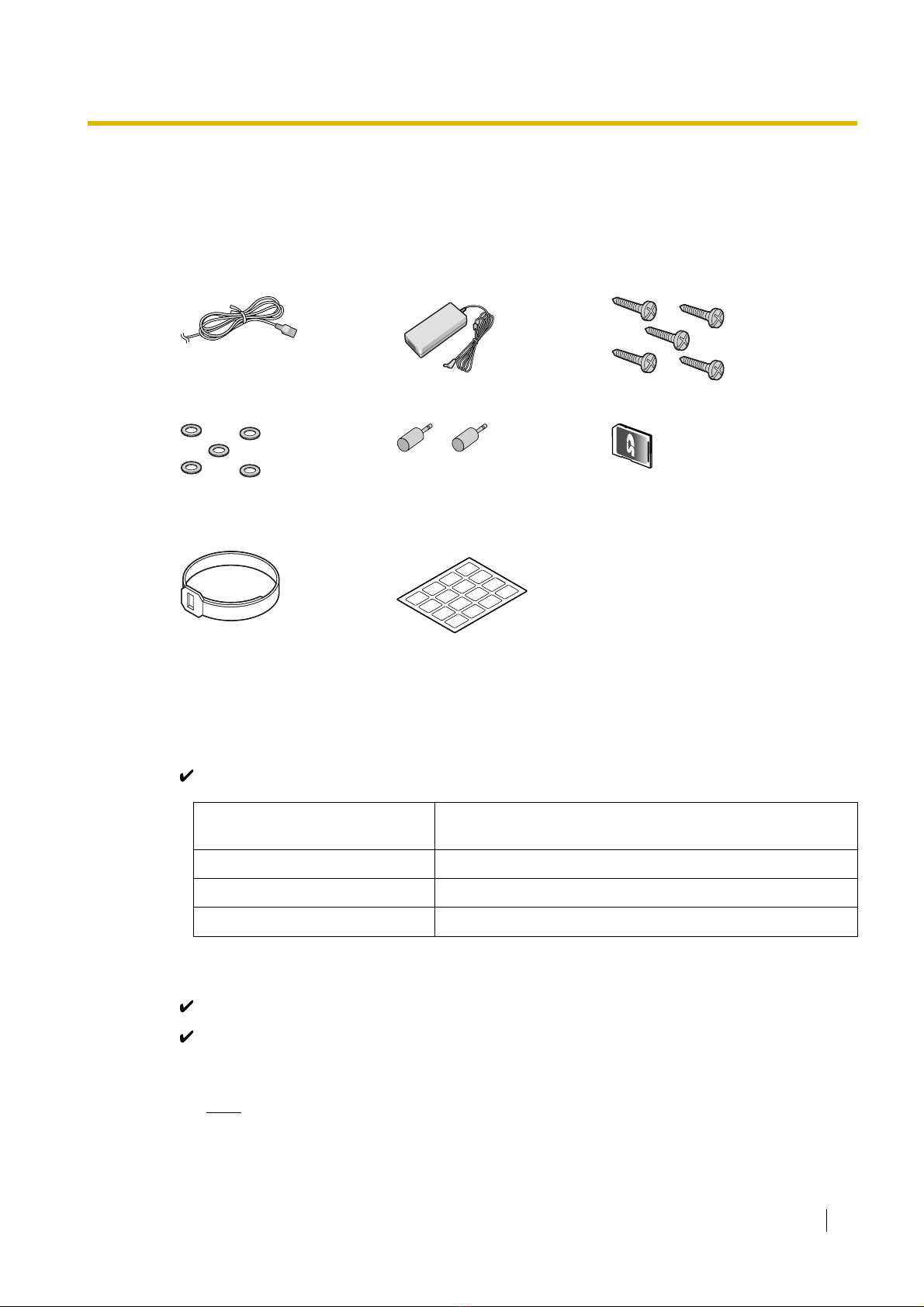

1.2 Unpacking

Check the package contents.

Main Unit × 1

CD-ROM (including manuals, etc.) × 1

Necessary tools (not supplied):

Telephone cable for extension connection:

The maximum length of the cable may vary depending on the type of the cables and installation

conditions.

An RS-232C or USB cable for PC connection

Connectors (RJ45/RJ11)* for trunk and extension connections

Note

Use a twisted pair cable for the RJ45 or RJ11 connector.

AC Cord* × 1 AC Adaptor × 1 Screw × 5

Washer × 5 Mini Plug (for pager and music

source) × 2

SD Memory Card × 1

Main Strap × 1 Optional Card Label Sheet × 1

* The type of the AC cord may vary depending on the country/area of use.

Diameter of cable

(ø 0.4 mm to ø 0.6 mm)

Maximum length of cable

ø 0.5 mm 1128 m for SLT

ø 0.5 mm 720 m for KX-T7600 series

ø 0.5 mm 229 m for other DPT, APT and DSS Console

* The connector type may be RJ45 or RJ11 depending on the country/area.

1.2 Unpacking

6 Getting Started

Getting Started 7

Section 2

Installation

2.1 Opening/Closing the Covers

8 Getting Started

2.1 Opening/Closing the Covers

Opening the Covers

1. Pull the slide button to the right and, holding it, slide the cable cover upwards. Then turn the cable

cover slightly to remove it.

2. Remove the three screws.

3. Holding the protrusions on both sides of the front cover, swing the cover open.

Slide Button

Cable Cover

Screw

2.1 Opening/Closing the Covers

Getting Started 9

Closing the Covers

1. Close the front cover, then tighten the three screws.

2. Attach the rear hooks on the cable cover to the main unit, then swing the cable cover closed so

that the front hooks fit in place.

3. Slide the cable cover down until it locks.

Screw

Cable Cover

2.2 Installing the SD Memory Card

10 Getting Started

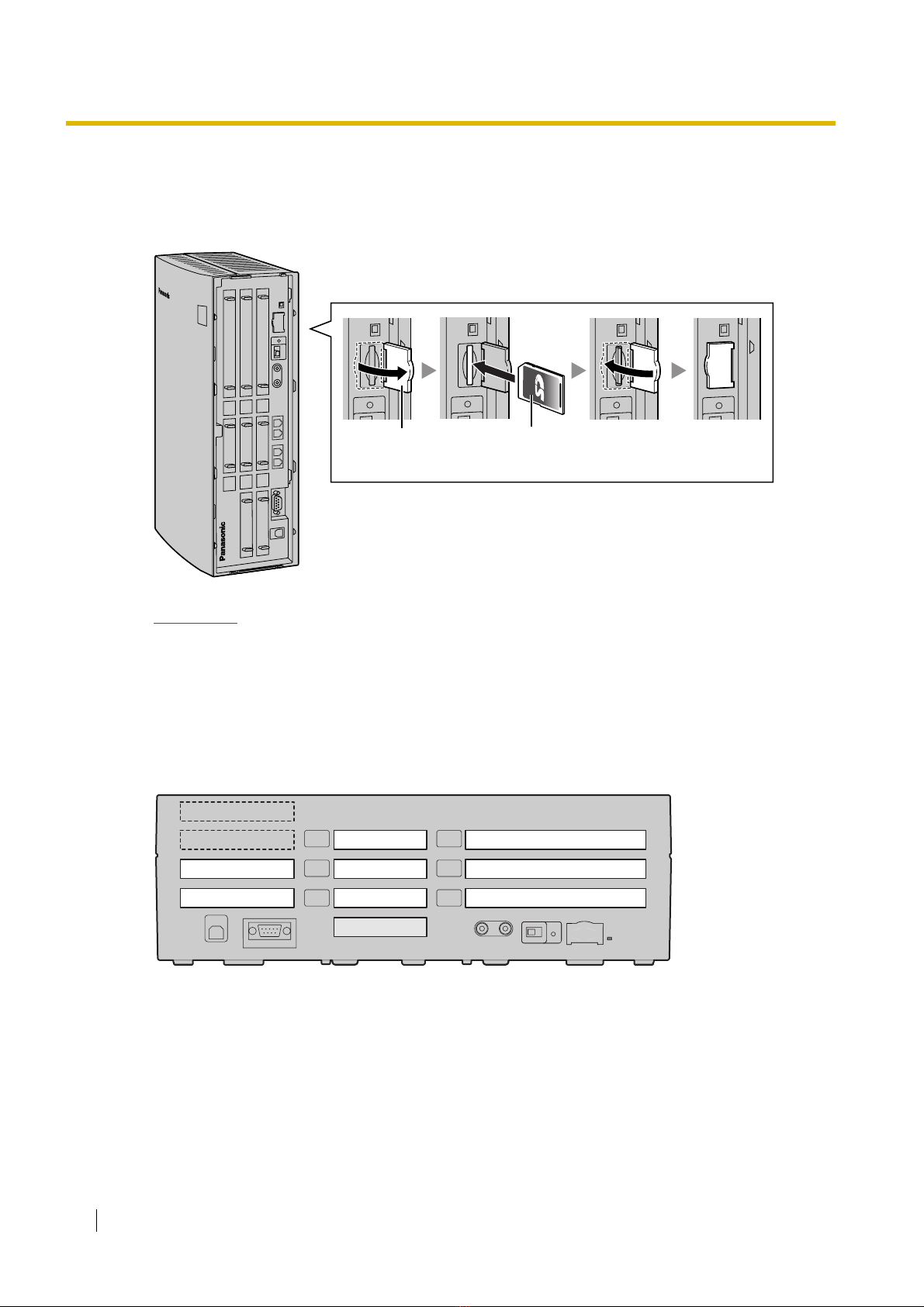

2.2 Installing the SD Memory Card

The SD Memory Card contains software for all the processes of the Hybrid IP-PBX and all the

customer data. The SD Memory Card must be inserted before start up.

CAUTION

Do not remove the SD Memory Card while power is supplied to the Hybrid IP-PBX. Doing so may

cause the Hybrid IP-PBX to fail to start when you try to restart the system.

2.3 Installing the Optional Service Cards

Slot Position

*1Slots 10 and 11 accept only cards which do not have external ports. Therefore, these slots do

not have removable cover plates.

*2Slot 01 contains the pre-installed Super Hybrid Ports. No optional service card can be installed.

SD Memory Card

Slot Cover

SD Memory

Card
