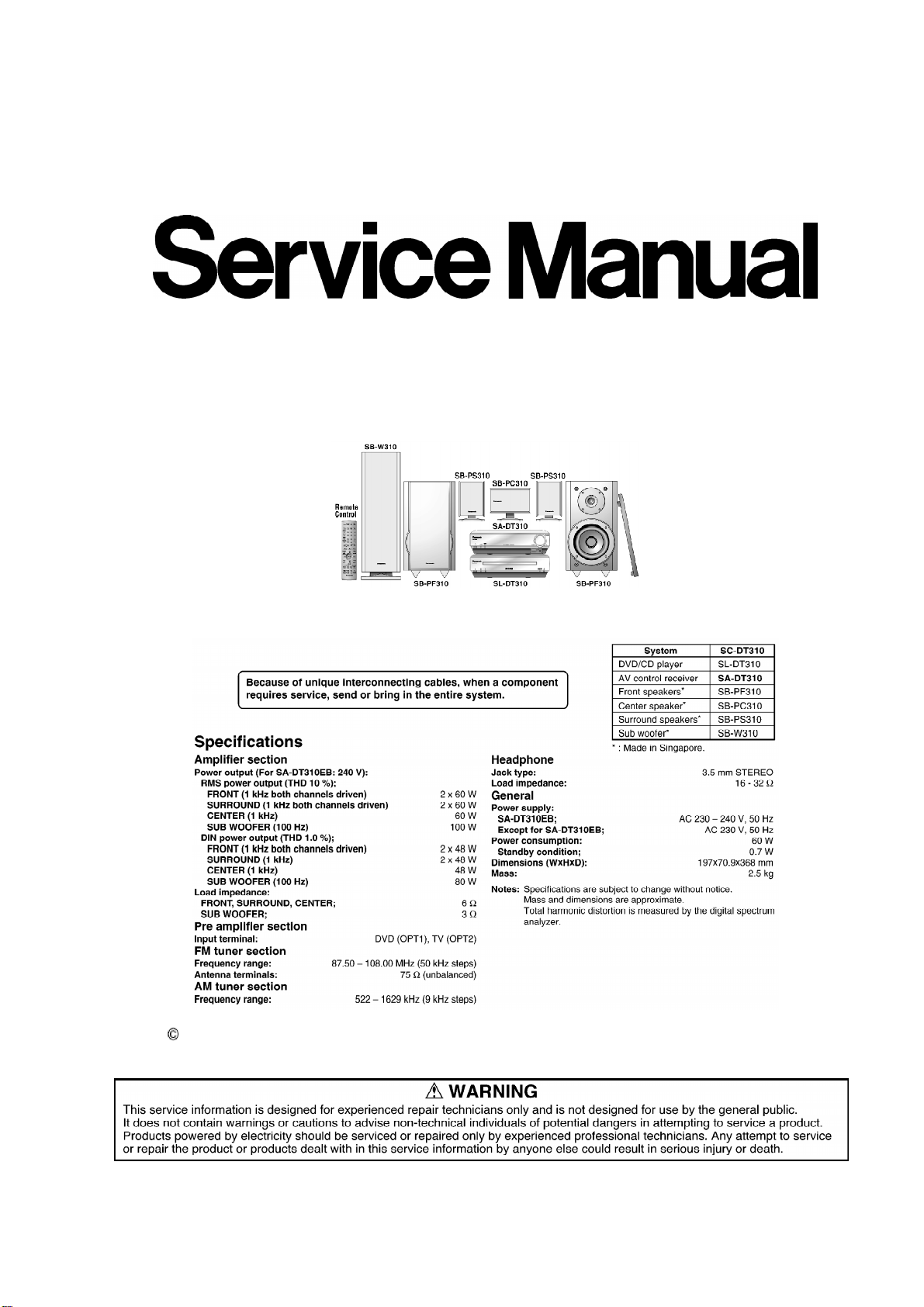

Panasonic SA-DT310E Manuel utilisateur

AD0303070C2

AVControl Receiver

SA-DT310E / SA-DT310EB / SA-DT310EE / SA-DT310EG

Colour

(S)...........Silver Type

SPECIFICATIONS

Unauthorized copying and distribution isaviolation of law.

1. Before Repairs

1. Turn off the power supply. Using a10 , 10 Wresistor, connect

both ends of power supplycapacitors (C717) inorder to discharge

the voltage.

2. Before turning the power supplyon, after completion of repair,

slowlyapplythe primaryvoltage byusing apower supplyvoltage

controller to make sure that the consumed current at 50 HzinNO

SIGNALmode (VOL: except for infinity, SELECT:DVD)shouldbe

shownbelow with respect to supplyvoltage 230/240 V.

Powersupply

voltage AC 230 V AC 240 V

Consumedcurrent

50 Hz 130 - 190 mA

2. Protection Circuitry

The protection circuitrymayhave operatedif eitherof the following conditions is noticed:

-Nosound isheard when the power isswitched ON.

-Sound stops during aperformance.

The functions of this circuitryis toprevent circuitrydamage if, forexample, the positive and

negative speakerconnection wires are shorted, orif speakersystems withanimpedance less

thanthe indicatedratedimpedance of this unit are used.

If this occurs, followthe procedures outlinedbelow.

1. Switch OFF the power.

2. Determine the cause of the problem and correct it.

3. Switch ONthe power once again.

Note:

Whenthe protection circuitryfunctions, the unit will not operate unless the poweris first

switchedOFF and thenON again.

3. Accessories

-AC mains lead for SA-DT310EB

(RJA0053-3X)..........................................................1pc.

-AC mains lead except for SA-DT310EB

(RJA0019-2X)..........................................................1pc.

-AMloop antenna

(N1DAAAA00003)...................................................1pc.

-FM indoor antenna

(RSA0007)...............................................................1pc.

-Video cable

For SA-DT310EE (RJL1P019B15)........................1pc.

Except for SA-DT310EE (VJA0815-A)...................1pc.

-Optical cable

(RJL1X008B05)......................................................1pc.

-Remote control

(EUR7623010).......................................................1pc.

-Batteries for remote control

(R6/LR6, “AA”, UM-3)...........................................2pcs.

Note: These are availableon sales route.

-Antenna plug adaptor for SA-DT310EBonly

(SJP9009)..............................................................1pc.

-RCAJadaptor

(K1JZ24D00002)...................................................1pc.

4. Caution for AC Mains Lead

5. Location of Controls

6. Self-Diagnostic Function

This unit is equippedwitha self-diagnostic function which, inthe event of a malfunction,

automaticallydisplays a code indicating the nature of the malfunction.

Use this self-diagnostic function whenservicing the unit.

6.1. To displaythe malfunction code

U70 DVD:

Automaticallydisplayson the AVcontrol receiver when a

malfunction occurs. Refer to Fig. 6-1.

F61: / F76:

Automaticallydisplayson the AVcontrol receiver when a

malfunction occurs. Refer to Fig. 6-1.

Fig. 6-1.

6.2. To redisplaythe malfunction code

1. For U70 DVD

-Press some operation buttons on the AVcontrol receiver.

-To redisplaythe code, switch the power off (Standby/on

button), and then switch power back on again.

2. For F61/F76

-IfF61/F76 isdisplayed, the power will automaticallybe

switched off and the standbyindicator will light up.

-F61/F76 will be displayed for asecond, and then the clock will

be displayed.

-To redisplaythe code, switch the power on. F61/F76 will be

redisplayed, and then the clock will be displayed and the

power will automaticallyswitch off.

6.3. Displaycontents

6.3.1. U70 DVD

-Problem or condition

Abus-line communications error has occurred as aresultof flat

cablebeing inserted incorrectly, thus preventing the system from

operating.

-IfU70 isdisplayed on the AVcontrol receiver, DVD/CD player

cannot be operated byremote control.

-Correction Procedure

1. To check for correct insertion of flat cable.

-Insert connector until you hear aclick.

-Make sure the white side of the cableison your right side.

Refer to Fig. 6-2. Fig. 6-2.

2. Breakage of flat cable. (Check and replace.)

3. Ifthe problem isnot corrected byitems 1and 2above, this

indicates afaultyIC.

SA-DT310:

IC502 (C2CBKJ000061)

SL-DT310:

IC402 (C2BBFD000394)

Check these ICsand replace.

6.3.2. F61

-Problem or condition

When the Standby/on switch isswitched on, itautomatically

switches back off, making itimpossibleto switch power on.

-Correction procedure

FaultyAVcontrol receiver (SA-DT310) output IC(IC1001 -05)

(When aDC voltage isapplied to speaker terminals) or fan motor

breaks down. (Check and replace.)

6.3.3. F76

-Problem or condition

When the Standby/on switch isswitched on, itautomatically

switches back off, making itimpossibleto switch power on.

-Correction procedure

FaultyAVcontrol receiver (SA-DT310) power supplysignal line.

(Check and replace.)

7. Operation Checks and Component Replacement /

Procedures

-Thissection describes procedures for checking the operation of

the major printed circuitboards and replacing the main

components.

-For reassemblyafter operation checks or replacement, reverse the

respective procedures. Special reassemblyprocedures are

described onlywhen required.

7.1. Checking for the mainP.C.B.
