Panasonic SC-ALL2GN Manuel utilisateur

RQT0A27-B

Operating Instructions

Wireless Speaker System

Model No. SC-ALL2

Thank you for purchasing this product.

Please read these instructions carefully before using this product,

and save this manual for future use.

- 2 -

Table of contents

Accessories............................................................................................. 3

Unit care.................................................................................................. 4

About Bluetooth®..................................................................................... 5

Control reference guide........................................................................... 7

Network indicator illumination ................................................................. 8

Connections .......................................................................................... 10

Network settings.................................................................................... 12

Streaming music over the network ........................................................ 21

Bluetooth®operations............................................................................ 30

AUX input .............................................................................................. 35

Rear surround ....................................................................................... 36

Firmware updates ................................................................................. 38

Others ................................................................................................... 39

Troubleshooting..................................................................................... 47

Specifications ........................................................................................ 52

How to use this manual

Click/Tap this icon to jump to “Table of contents”.

≥Pages to be referred to are indicated as “l±±”. You can jump to the

corresponding page by clicking/tapping this.

- 3 -

Accessories



≥Do not use AC mains lead with other equipment.

≥Product numbers provided in this operating instructions are correct as of May

2015. These may be subject to change.

1 AC mains lead

For the black model: (K2CT2YY00097)

For the white model: (K2CT2YY00110)

For the black model: (K2CQ2YY00119)

For the white model: (K2CQ2YY00136)

(K2CJ2YY00101)

- 4 -

Unit care

Clean this unit with a soft, dry cloth.

≥Never use alcohol, paint thinner or benzine to clean this unit.

≥Before using chemically treated cloth, carefully read the cloth’s instructions.

∫To dispose or transfer this unit

The unit may keep the user settings information in the unit. If you discard

this unit either by disposal or transfer, then follow the procedure to return

all the settings to the factory defaults to delete the user settings.

(l47, “To restore the settings to the factory defaults”)

≥The operation history may be recorded in the memory of this unit.

Disposal of Old Equipment

Only for European Union and countries with recycling

systems

This symbol on the products, packaging, and/or

accompanying documents means that used electrical and

electronic products must not be mixed with general household

waste.

For proper treatment, recovery and recycling of old products,

please take them to applicable collection points in accordance

with your national legislation.

By disposing of them correctly, you will help to save valuable

resources and prevent any potential negative effects on

human health and the environment.

For more information about collection and recycling, please

contact your local municipality.

Penalties may be applicable for incorrect disposal of this

waste, in accordance with national legislation.

- 5 -

About Bluetooth®

∫Frequency band used

This system uses the 2.4 GHz frequency band.

∫Certification of this device

≥This system conforms to frequency restrictions and has received

certification based on frequency laws. Thus, a wireless permit is not

necessary.

≥The actions below are punishable by law in some countries:

– Taking apart or modifying the unit.

– Removing specification indications.

∫Restrictions of use

≥Wireless transmission and/or usage with all Bluetooth®equipped

devices is not guaranteed.

≥All devices must conform to standards set by Bluetooth SIG, Inc.

≥Depending on the specifications and settings of a device, it can fail to

connect or some operations can be different.

≥This system supports Bluetooth®security features. But depending on

the operating environment and/or settings, this security is possibly not

sufficient. Transmit data wirelessly to this system with caution.

≥This system cannot transmit data to a Bluetooth®device.

∫Range of use

Use this device at a maximum range of 10 m.

The range can decrease depending on the environment, obstacles or

interference.

∫Interference from other devices

≥This system may not function properly and troubles such as noise and

sound jumps may arise due to radio wave interference if this system is

located too close to other Bluetooth®devices or the devices that use the

2.4 GHz band.

Panasonic bears no responsibility for data and/or information that is

compromised during a wireless transmission.

- 6 -

≥This system may not function properly if radio waves from a nearby

broadcasting station, etc. are too strong.

∫Intended usage

≥This system is for normal, general use only.

≥Do not use this system near an equipment or in an environment that is

sensitive to radio frequency interference (example: airports, hospitals,

laboratories, etc.).

- 7 -

Control reference guide

1Display

2Network indicator (l8, 9)

3Internet radio preset channel

switches [1] to [6] (l28)

(These switches are without

illumination.)

Display switch and indicator [DISP]

5Alarm switch and indicator [ ]

6AUX switch and indicator [AUX]

7Bluetooth®switch and indicator

[]

8Network switch and indicator

[NET]

Enter WPS pairing mode (l17) /

firmware update mode (l38)

9Standby/on switch and

indicator [Í/I]

Touch to switch the unit from on to

standby mode or vice versa. In

standby mode, the unit is still

consuming a small amount of

power.

10 Volume control switch and

indicator [VOL –]/[VOL +]

Adjust the volume (0 (min) to

50 (max))

§These switches work just by

touching the marks. Each time you

touch the switch, there will be a

beep sound. The beep sound can

be set to off. (l45)

45678

910

※

※※※※※

※※

Top view

- 8 -

Network indicator illumination

The below illustrates the network indicator illumination patterns.

Network indicator Description

Illumination: blue/red Blinks alternately

≥The unit is carrying out an internal

process.

– Wait for approximately 1 minute

before the blinking stops.

– Do not disconnect the AC mains lead.

Doing so may cause malfunction or

damage.

Illumination: blue Blinks slowly

≥The unit is ready for network setup.

(l12)

Blinks

≥The unit is waiting for the WPS

PUSH connection. (l17)

Blinks fast

≥The unit is waiting for the WPS PIN

code connection. (l17)

- 9 -

Network indicator Description

Illumination: blue Lights up

≥The unit is connected to the

network.

Illumination: red Blinks

≥The unit is connecting to the

network.

– When the network connection

cannot be established, the blinking

keeps going. Check the network

connection. (l12)

- 10 -

Connections



≥This unit consumes a small amount of AC power (l52) even when turned off.

≥For the purpose of power conservation, disconnect the power supply if you will

not be using it for extended period of time.

Some settings will be lost after you disconnect the system. You have to set

them again.

≥This speaker does not have magnetic shielding. Do not place them near a TV,

PC or other magnetic devices.

≥Do not disconnect the AC mains lead when the unit is on. Doing so may cause

malfunction or damage.

To an AC outlet

AC mains lead

(supplied)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Système de haut-parleurs

Panasonic

Panasonic SC-NE1 Manuel utilisateur

Panasonic

Panasonic Technics SB-C600 Manuel utilisateur

Panasonic

Panasonic SB-HEP20 Manuel utilisateur

Panasonic

Panasonic SB-HEP10 Manuel utilisateur

Panasonic

Panasonic SB-AK340GC Manuel utilisateur

Panasonic

Panasonic SB-FS1000P Manuel utilisateur

Panasonic

Panasonic SBTP70 - SPEAKER SYSTEM Manuel utilisateur

Panasonic

Panasonic SB-MAF6000PU Manuel utilisateur

Panasonic

Panasonic SC-NE5 Mode d’emploi

Panasonic

Panasonic SC-ALL2 Manuel utilisateur

Panasonic

Panasonic SC-HT930P-S Manuel utilisateur

Panasonic

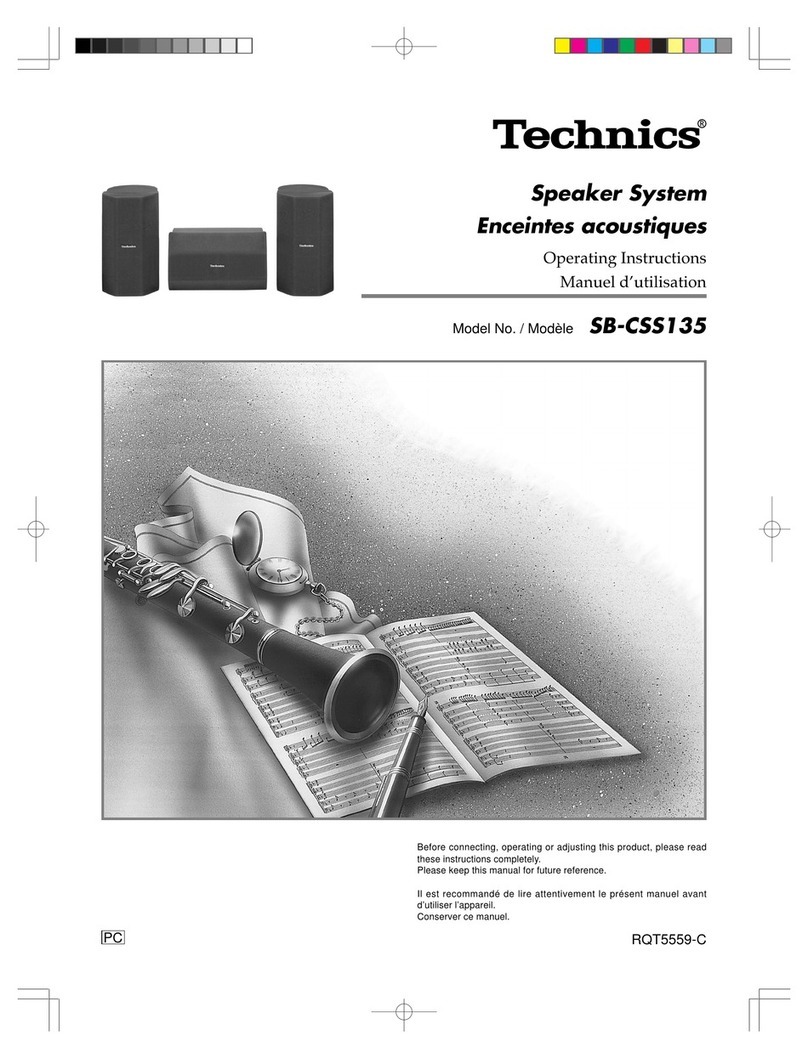

Panasonic SB-CSS135 Manuel utilisateur
