Panasonic SB-HF950P Manuel utilisateur

Type 2 way, 2 speaker system (Bass reflex)

Speaker unit(s) Impedance 6 Ω

Full range 6.5 cm (2-1/2”) cone type

Input power (IEC) 250 W* (Max)

Output sound pressure 83 dB/W (1.0 m)

Cross over frequency 5kHz

Frequency range 79 Hz - 25 kHz (-16 dB)

95 Hz - 22 kHz (-10 dB)

Dimensions (W x H x D) 252 x 1123 x 235 mm

1 System Combination 3

1.1. System Breakdown 3

2 Assembling and Disassembling 4

2.1. Disassembly flow chart 4

rights reserved. Unauthorized copying and

distribution is a violation of law.

SB-HF950P

Colour

(K)... Black Type

(9-29/32” x 44-7/32” x 9-1/4”)

Mass 3.8kg(8.4lbs)

Notes :

1. Specifications are subject to change without notice.

Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum

analyzer.

* : Rating with low-cut filter equipped amplifier.

2.2. Disassembly of Upper box assembly 5

2.3. Disassembly of Upper rear cabinet 5

2.4. Disassembly of Woofer 1 6

Speaker System

Specification

CONTENTS

Page Page

ORDER NO. MD0702010CE

2.5. Disassembly of Woofer 2 6

2.6. Disassembly of Terminal jack 7

2.7. Disassembly of Lower box assembly 8

2.8. Disassembly of Lower rear cabinet assembly 9

2.9. Disassembly of Base stand assembly 9

2.10. Assembly of Front Speakers 10

3 Connection of the Speaker Cables 11

4 Connection of the Wiring Diagram 14

5 Exploded view 15

5.1. Cabinet Parts Location 15

5.2. Packaging 16

6 Replacement Parts List 17

SB-HF950P

1 System Combination

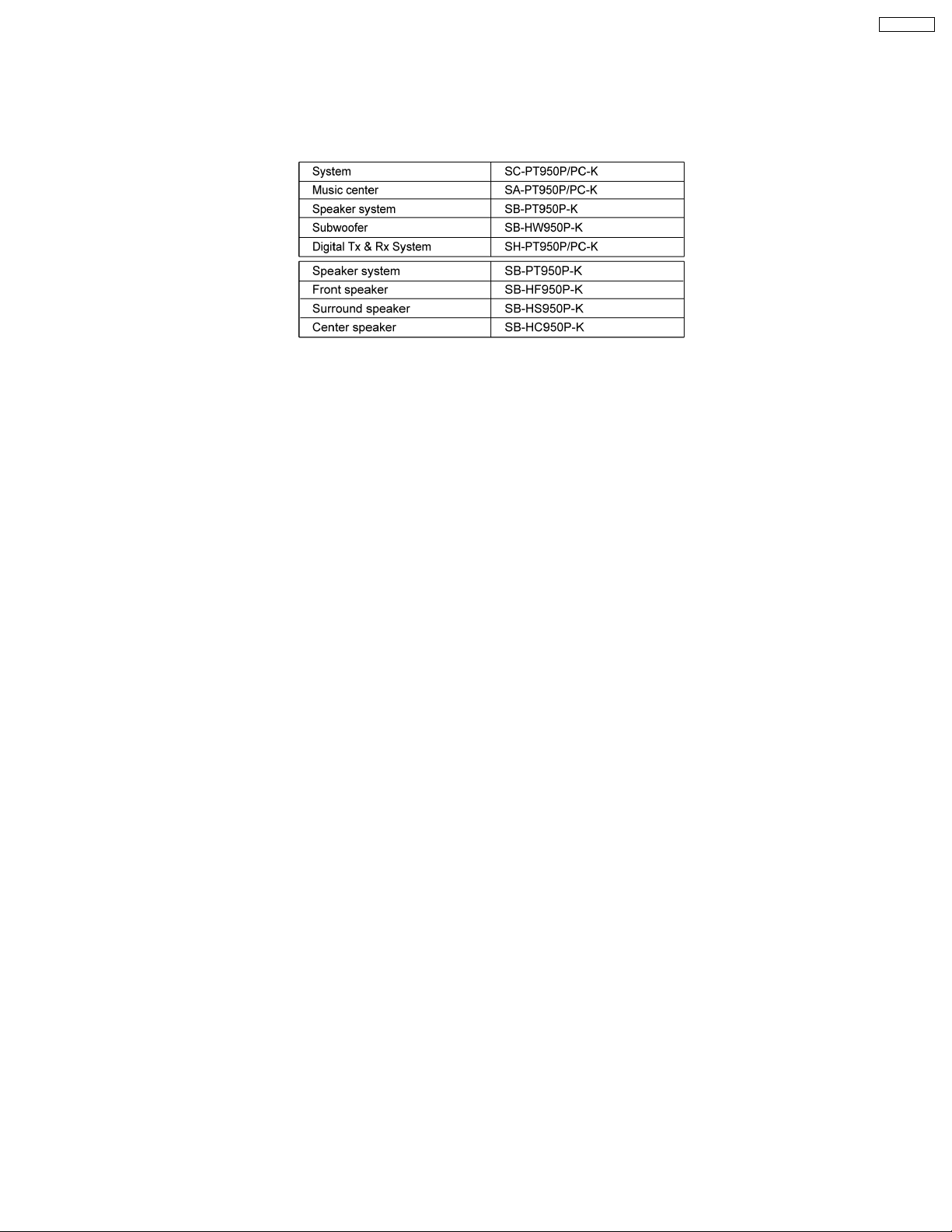

1.1. System Breakdown

Note :

The diagrams below show the breakdown for speaker combinations used in main unit systems.

SB-PT950P-K consists of SB-HF950P-K (x2), SB-HS950P-K (x2), SB-HC950P-K (x1)

SB-HF950P

2 Assembling and Disassembling

“ATTENTION SERVICER”

Some chassis components may have sharp edges. Be careful when disassembling and servicing.

1. This section describes procedures for checking the operation of the major printed circuit boards and replacing the main

components.

2. For reassembly after operation checks or replacement, reverse the respective procedures.

Special reassembly procedures are described only when required.

3. Select items from the following index when checks or replacement are required.

4. Refer to the Parts No. on the page of “Parts Location and Replacement Parts List” (Section 6), if necessary.

Below is the list of disassembly sections

Disassembly of Upper box assembly

Disassembly of Upper rear cabinet

Disassembly of Woofer 1

Disassembly of Woofer 2

Disassembly of Terminal jack

Disassembly of Lower box assembly

Disassembly of Lower rear cabinet assembly

Disassembly of Lower base stand assembly

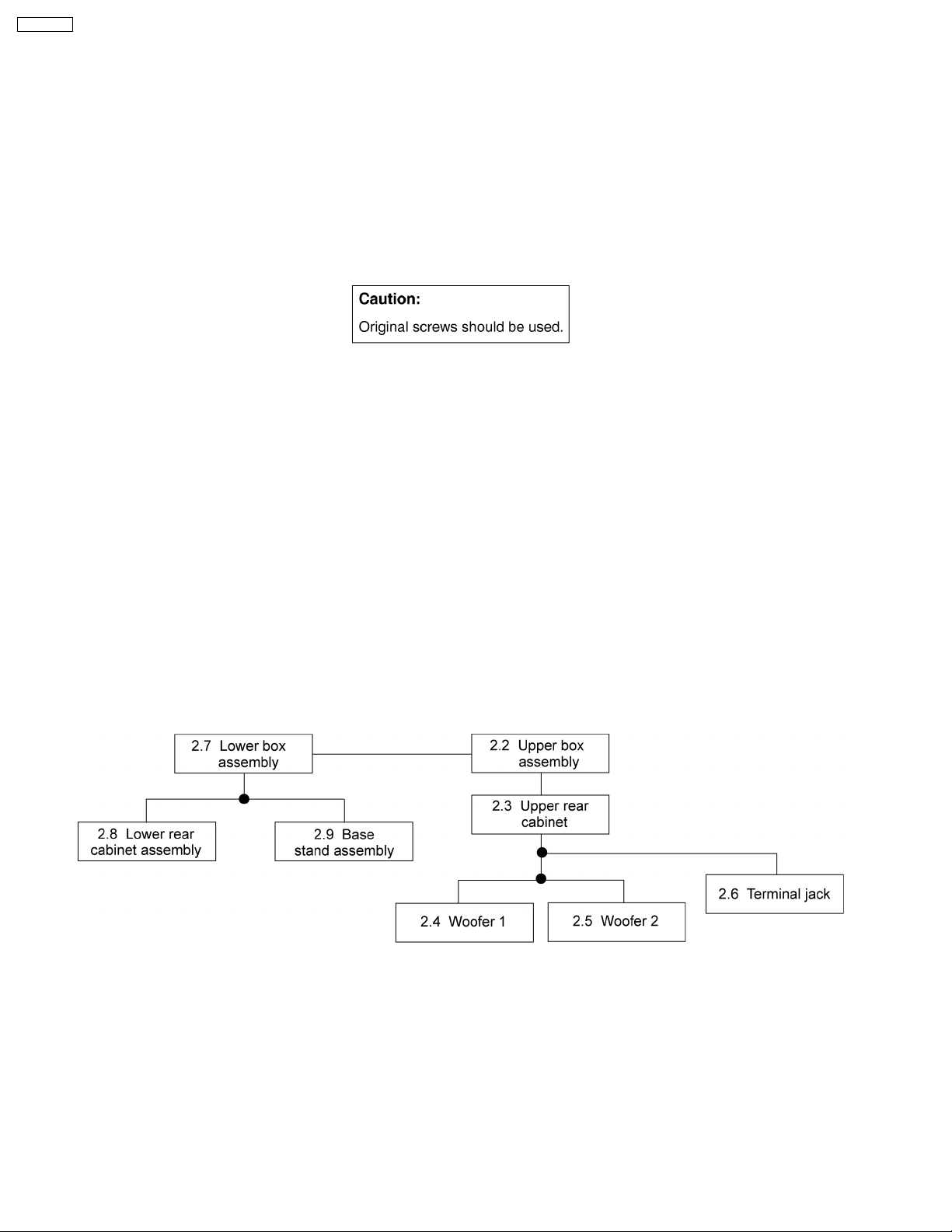

2.1. Disassembly flow chart

The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the

servicing.

To assemble the unit, reverse the steps shown in the chart as below.

SB-HF950P

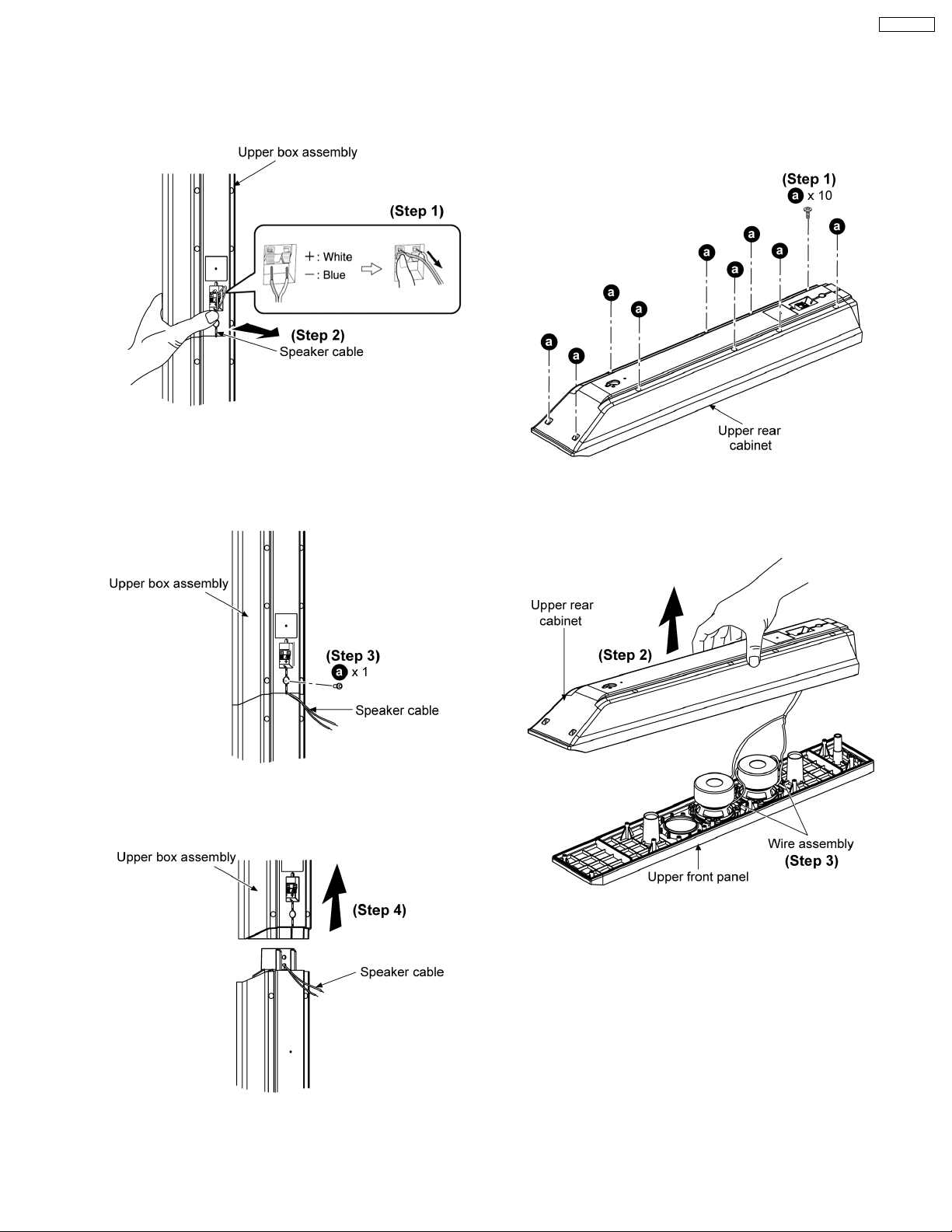

2.2. Disassembly of Upper box

assembly

Step 1: Remove the white (+) and blue (-) wires.

Step 2: Pull out the speaker cable from the groove.

Step 3: Remove 1 screw.

Step 4: Remove the upper box assembly unit as arrow shown.

2.3. Disassembly of Upper rear

cabinet

Follow (step 1) to (step 4) in item 2.2.

Step 1: Remove 10 screws.

Step 2: Lift up the upper rear cabinet as arrow shown.

Step 3: Detach wire assembly to remove it.

SB-HF950P

2.4. Disassembly of Woofer 1

Follow (step 1) to (step 4) in item 2.2.

Follow (step 1) to (step 2) in item 2.3.

Step 1: Detach the blue (-) and red (+) wires.

Step 2: Remove 4 screws.

2.5. Disassembly of Woofer 2

Follow (step 1) to (step 4) in item 2.2.

Follow (step 1) to (step 2) in item 2.3.

Step 1: Detach the black (-) and blue (+) wires.

Step 2: Remove 4 screws.

SB-HF950P

2.6. Disassembly of Terminal jack

Follow (step 1) to (step 4) in item 2.2.

Follow (step 1) to (step 2) in item 2.3.

Step 1: Detach the black (-) and red (+) wires.

Step 2: Remove 1 screw from the terminal jack.

Step 3: Remove terminal jack as arrow shown.

SB-HF950P

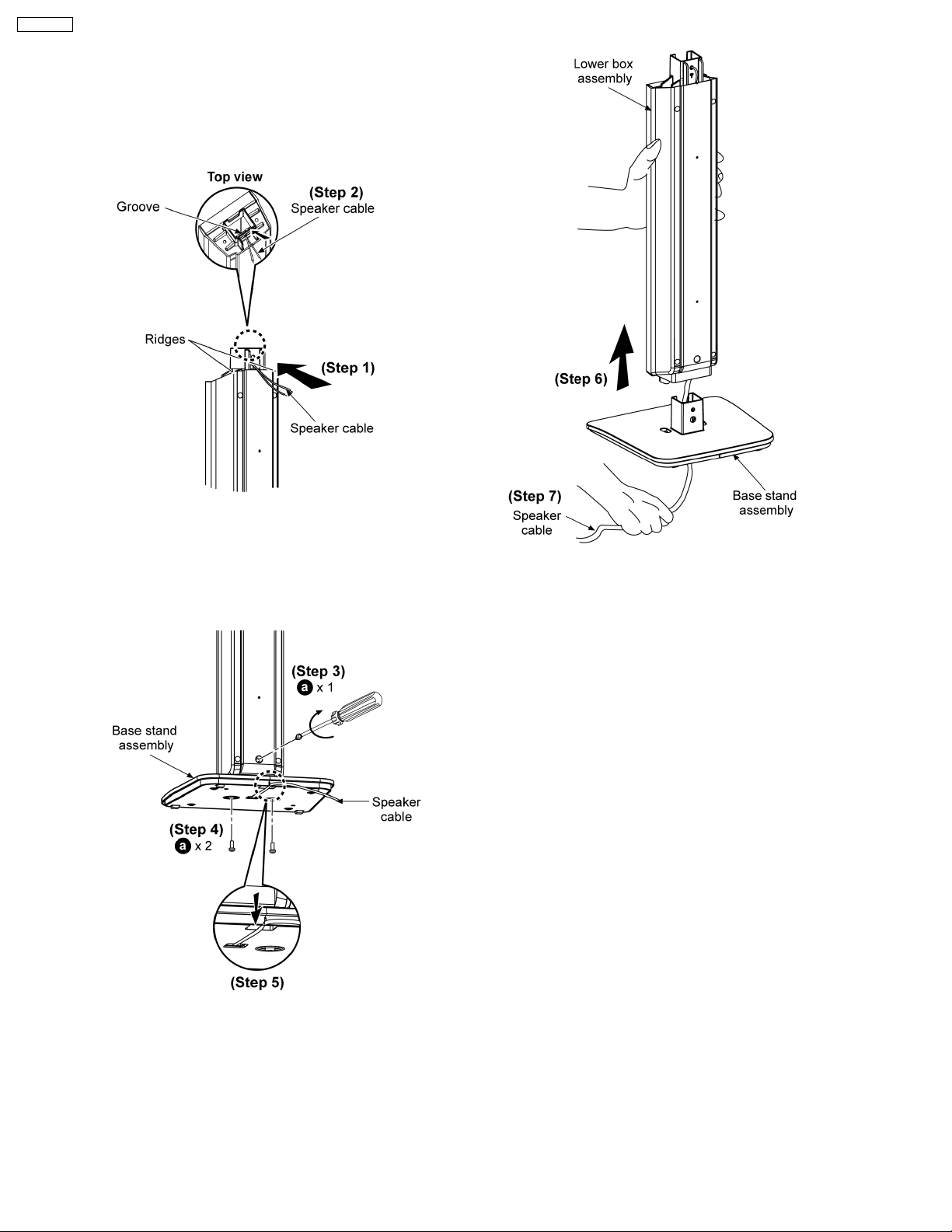

2.7. Disassembly of Lower box

assembly

Follow (step 1) to (step 4) in item 2.2.

Step 1: Pull out the speaker cable from the ridges.

Step 2: Pull out the speaker cable from the groove inside by

using hand.

Step 3: Remove 1 screw.

Step 4: Remove 2 screws.

Step 5: Pull out the speaker cable from the groove as arrow

shown.

Step 6: Remove the lower box assembly as arrow shown.

Step 7: Pull out the speaker cable.

SB-HF950P

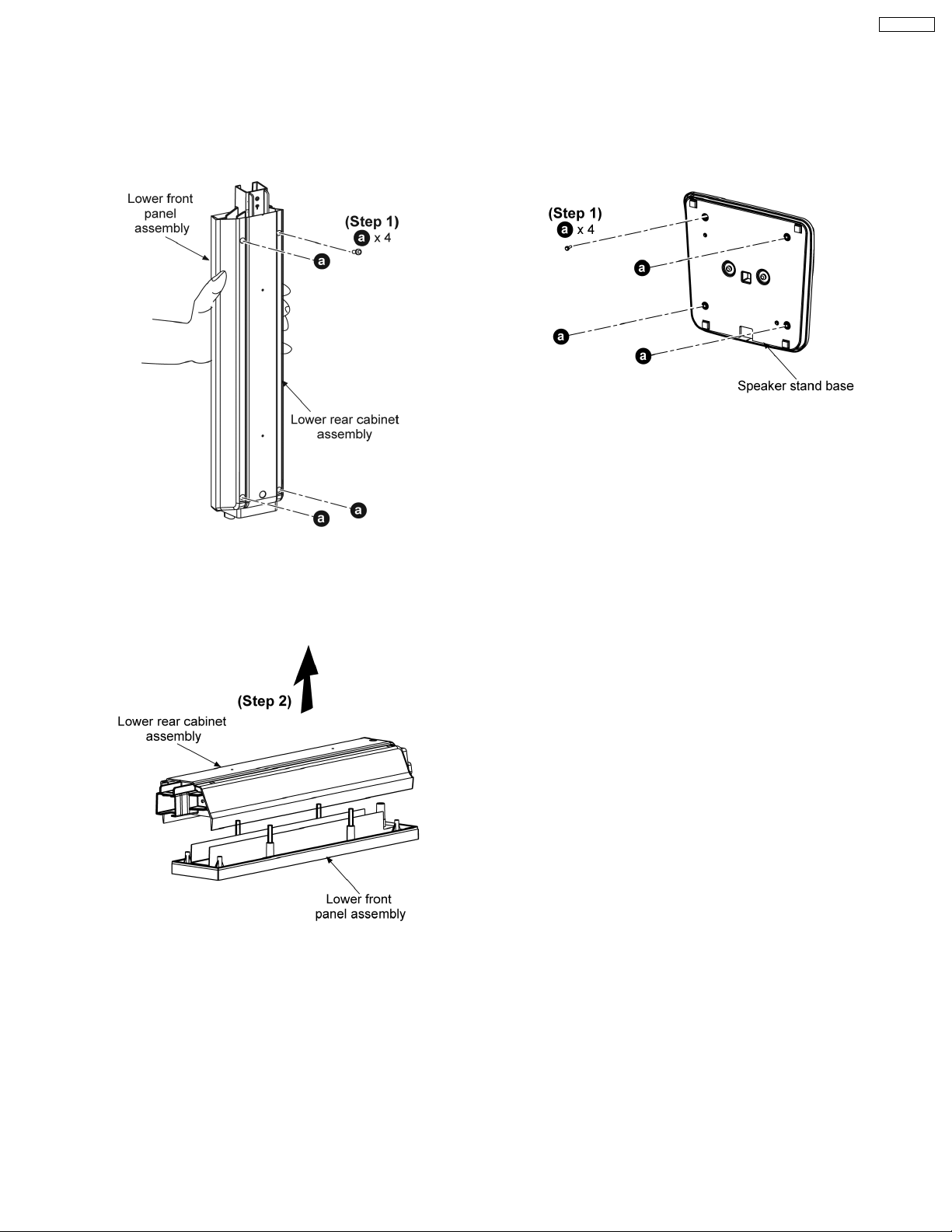

2.8. Disassembly of Lower rear

cabinet assembly

Follow (step 1) to (step 4) in item 2.2.

Follow (step 1) to (step 7) in item 2.7.

Step 1: Remove 4 screws.

Step 2: Remove the lower rear cabinet assembly.

2.9. Disassembly of Base stand

assembly

Follow (step 1) to (step 4) in item 2.2.

Follow (step 1) to (step 6) in item 2.7.

Step 1: Remove 4 screws.

SB-HF950P

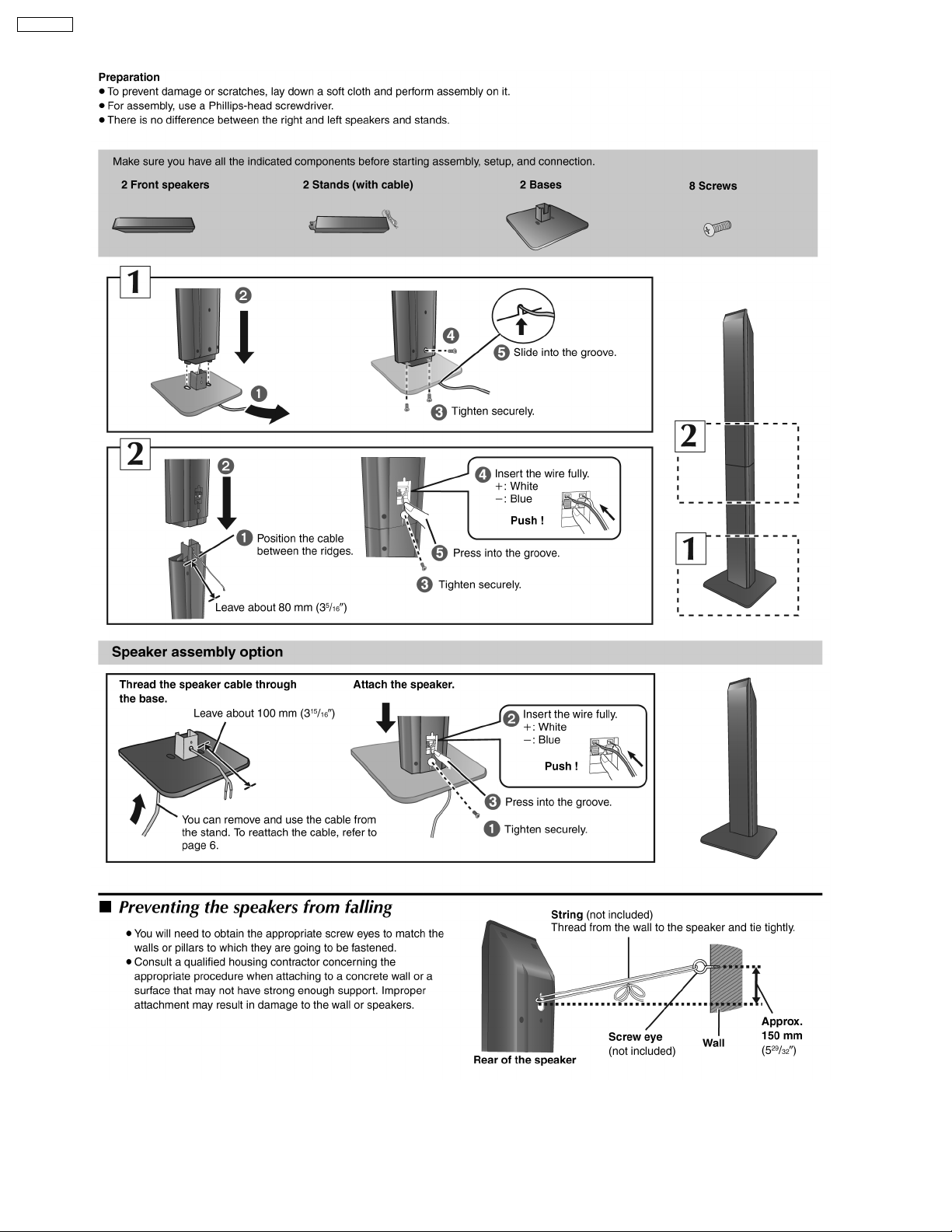

2.10. Assembly of Front Speakers

SB-HF950P
