6295-6298 ENCLOSED HEAT DETECTOR - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION

Table of Contents

1. INTRODUCTION 3

2. ABBREVIATIONS 4

3. GENERAL DESCRIPTION 5

3.1. DETECTOR 5

3.1.1. LATCHING 5

3.1.2. EXTERNAL LED 6

3.2. CONNECTION BOX 6

3.3. ZONE LINE INPUT 6

4. MOUNTING 7

5. INSTALLATION AND WIRING 8

5.1. COMMON INSTALLATION (6295-6298) 8

5.2. INTRINSICALLY SAFE INSTALLATION (6295-6296) 9

5.2.1. RATING LABEL 10

5.2.2. CABLE GLAND 10

6. TEST MODE 11

7. TECHNICAL DATA 6295 12

8. TECHNICAL DATA 6296 13

9. TECHNICAL DATA 6297 14

10. TECHNICAL DATA 6298 15

11. APPROVALS 16

6295-6298 ENCLOSED HEAT DETECTOR - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION

1. INTRODUCTION

This document describes the enclosed heat detectors, type number 6295-6298.

The document contains information about the product and instructions on how to mount and connect it.

6295-6298 ENCLOSED HEAT DETECTOR - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION

2. ABBREVIATIONS

CIE Control and indicating equipment = control unit

LED Light Emitting Diode

6295-6298 ENCLOSED HEAT DETECTOR - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION

3. GENERAL DESCRIPTION

The heat detectors are conventional xed temperature heat detectors. The detectors will give an alarm at a certain xed tempera-

ture (57 °C / 72 °C / 87 °C / 117 °C).

The detector is intended for outdoor use or indoor use in high humidity premises.

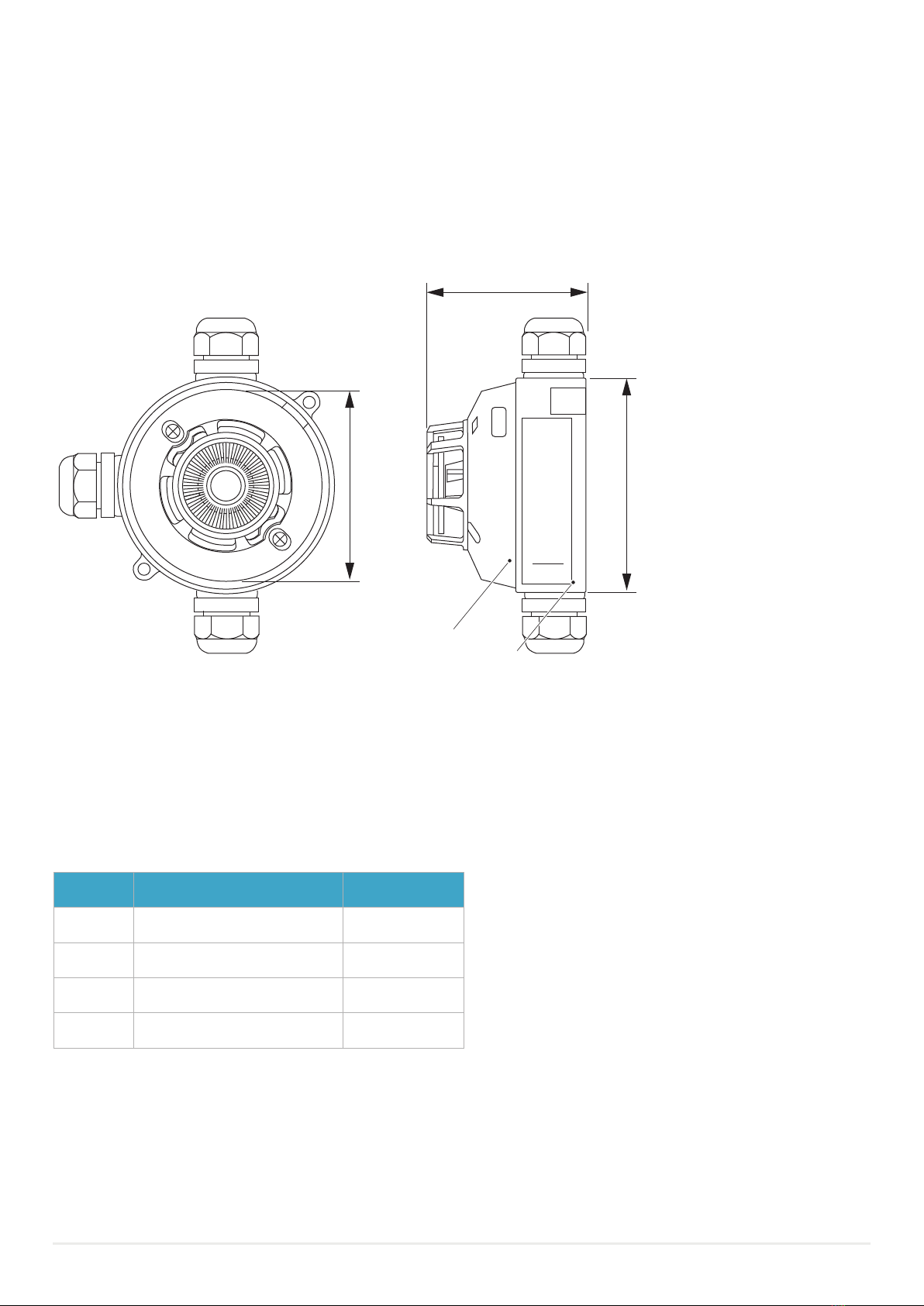

10095

(Measure in mm)

1. Detector

2. Connection box

3.1. DETECTOR

The sensing element is a heat pick-up shield and a bimetal switch.

The detectors will give an alarm within a response temperature range in accordance with EN54-5, see table below.

Type Static response temperature Category

6295 57 °C A2 S

6296 72 °C B S

6297 87 °C C S

9298 117 °C E S

3.1.1. LATCHING

The detector is latching. The detector will not be automatically reset if the temperature, after the alarm, falls below the detector's

static response temperature. The detector's LED and a connected external LED will be lit until the detector is reset via the CIE.

6295-6298 ENCLOSED HEAT DETECTOR - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION

3.1.2. EXTERNAL LED

One External Indicator (LED) can be connected to the screw terminals E+ and E-:

• E+ Ext. LED, for example Ext. indicator 2218; J2:2 (+)

• E- Ext. LED, for example Ext. indicator 2218; J2:3 (-)

Do not connect an external indicator (LED) to terminals (E+, E-) when the detector is used as intrinsically

safe detector in hazardous (Ex) areas, see 5.2. INTRINSICALLY SAFE INSTALLATION (6295-6296)

on page 9.

3.2. CONNECTION BOX

The connection box is prepared for required number of compression glands, one, two, or three.

3.3. ZONE LINE INPUT

The conventional detector is connected to a zone line input (for conventional detectors) in the CIE The last unit on the zone line has

an End-of-line device to be connected. The type of end-of-line device is depending on the CIE and the type of zone line input.

6295-6298 ENCLOSED HEAT DETECTOR - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION

4. MOUNTING

The connection box must be mounted in the ceiling. Screws are not supplied.

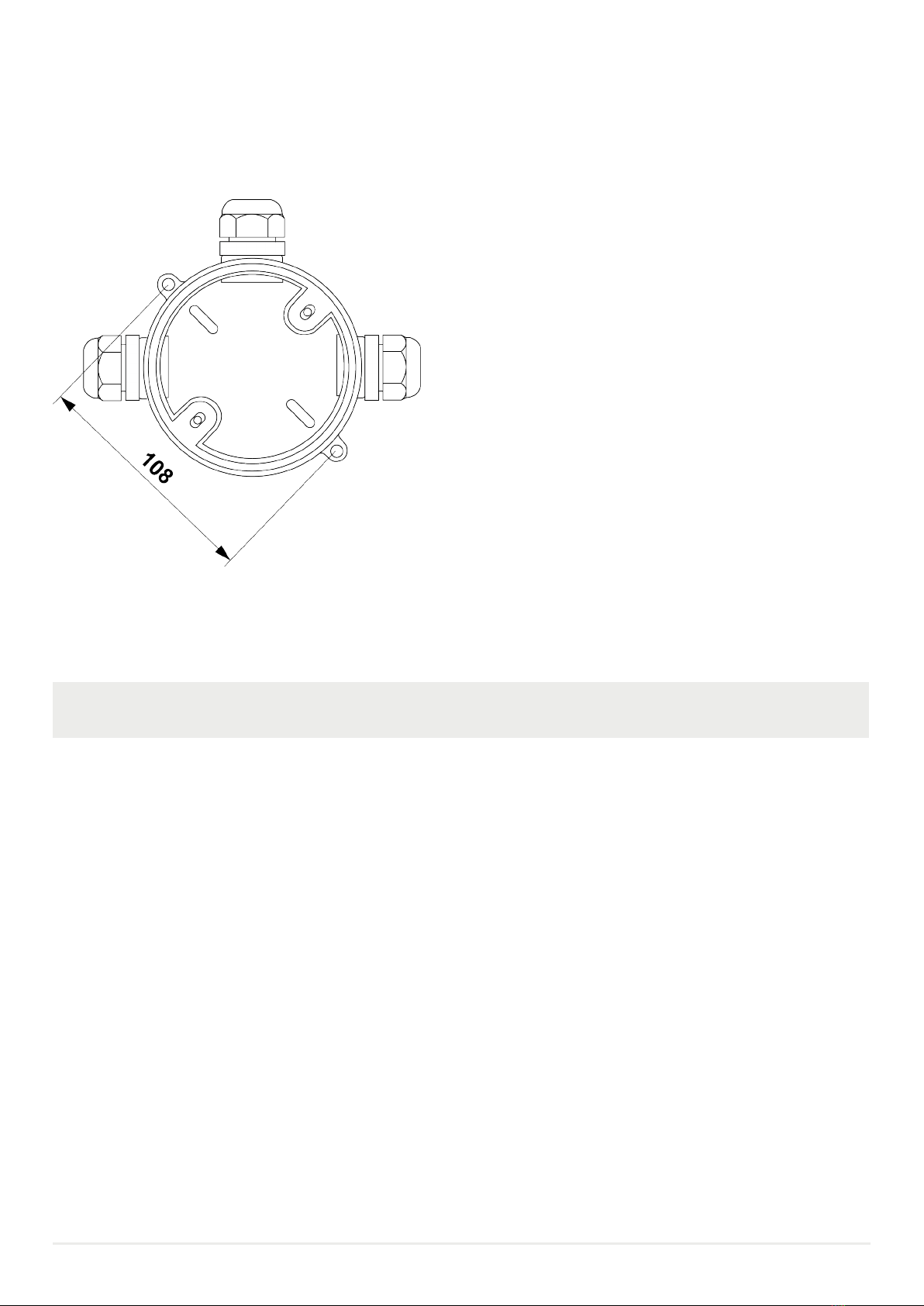

(Measure in mm)

a) Cut out the required number of knockouts and apply the compression glands. Tighten the compression glands rmly.

b) Mount the connection box in the ceiling.

c) Insert the cables in the compression glands.

If the outer cable diameter is < 6 mm, insert the enclosed rubber tube before installation of the cable. If the

outer cable diameter is ≥ 6 mm, do not use the enclosed rubber tube.

d) Tighten all compression glands with 4 Nm or more.

e) Connect the wires from the CIE to the A and B push-on connectors.

f) Connect the next unit or the end-of-line device to the other pair of A and B push-on connectors.

g) Mount the detector on the connection box with the two enclosed screws. Tighten the screws rmly with 1.4 Nm or more.

6295-6298 ENCLOSED HEAT DETECTOR - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION

5. INSTALLATION AND WIRING

5.1. COMMON INSTALLATION (6295-6298)

Screen wire termination is not provided.

6295-62986295-6298

End-of-line device

Wire size (Min) Ø 0.6 mm (0.3 mm²)

Wire size (Max) Ø 1.2 mm (1.13 mm²)

C.i.e.

E+

E-

B-

A+

B-

E+

E-

6295-6298 ENCLOSED HEAT DETECTOR - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION

E+

E-

B-

A+

B-

E+

E-

In2+

In2-

N.C.

In1(+)

Z/In0(+)

Re1b

Re1a

In1(-)

Z/In0(-)

Re0b

Re0a

J2J1

2 (-)

1 (+)

5.2. INTRINSICALLY SAFE INSTALLATION (6295-6296)

Screen wire termination is not provided.

If cable screen is used, it should be connected to the closest earth point (protective earth) outside the

hazardous (Ex) area and should be capable of withstanding a test voltage (500 V AC) for one minute.

Do not clean by rubbing or with solvents to avoid electrostatic hazard.

Do not install in a continuous dust ow to avoid propagating brush discharges.

COM loop

24 V DC

Interconnecting cable

Hazardous (Ex) area

Zone line

Channel

Alternative A

Alternative B

Zone Zone

4461 2822

Exp. Board 4580

EX zone line input

Galvanic Isolator / Barrier unit **

A+, B-

Ui = 30 V

Ii = 40 mA

Ci = 3 nF

Li = 0 H

Uo<=Ui (=30V)

Io<=Ii (=40mA)

Co > = Ci x 5 (15nF)

Lo >= Li (0 H)

6295-62966295-6296

End-of-line device

Alternative A:

The conventional IS detectors are connected via a galvanic

isolator / barrier unit to an expansion board 4580 zone line

input.

The zone line input is programmed as:

Ex zone line input (EOL resistor).

End-of-line resistor 10K.

Alternative B:

The conventional IS detectors are connected via a galvanic

isolator / barrier unit to an addressable isolated zone

interface 2822 that is connected to an I/O unit 4461 zone line

input.

The I/O unit 4461 require an Addressable Isolated zone

interface 2822 with PCB 2823 revision ≥ 2.

End-of-line resistor 8K2 is supplied with 2822.

6295-6298 ENCLOSED HEAT DETECTOR - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION

Channel: Maximum 5 units on the Zone line (Channel), Cable FKAR-PG 2x0.5 mm², blue

(with aluminum polyester foil shield + tinned copper drain wire 1 mm² is normally not used/connected)

Zone: EKKR / ELQRB 2x0.6 mm (0.3 mm²) Connection of alarm points is not allowed on this line.

The interconnecting cable should have the following maximum parameters:

Group Capacitance Inductance Inductance to resistance ratio

µF mH or µH / ohm

IIC 0.13 4.2 55

Maximum total cable resistance is 40 ohm. The zone line cable in the Ex area + the zone line cable in the

safe area should be ≤ 40 ohm.

** Please use appropriate galvanic isolator / barrier unit when using is as ATEX ic detector.

It must be compliant with EN60079-11:2012:

Uo<=Ui (=30V)

Io<=Ii (=40mA)

Co > = Ci x 5 (15nF)

Lo >= Li (0 H)

5.2.1. RATING LABEL

Serial Number of type 6295/6296 is indicated on the rating label.

5.2.2. CABLE GLAND

Specication for included cable gland: PA6, Marking: “bimed” “PF1/2”

Wire size min-max, circular cable : Ø 4.0 - 8.0 mm

Running number (1-99999)

Production month

Production year

SILVER GROUND

PRINTED BLACK
