Panasonic WVBP550 - CCTV CAMERA Manuel utilisateur

CCTV Cameras

WV-BP550/WV-BP554

(Lens : option)

Before attempting to connect or operate this product,

please read these instructions completely.



FRANÇAIS ENGLISH

WARNING:

TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The lightning flash with arrowhead

symbol, within an equilateral triangle, is

intended to alert the user to the pres-

ence of uninsulated "dangerous volt-

age" within the product's enclosure that

may be of sufficient magnitude to con-

stitute a risk of electric shock to per-

sons.

The exclamation point within an equi-

lateral triangle is intended to alert the

user to the presence of important oper-

ating and maintenance (servicing)

instructions in the literature accompa-

nying the appliance.

The serial number of this product may be found on the top

of the unit.

You should note the serial number of this unit in the space

provided and retain this book as a permanent record of your

purchase to aid identification in the event of theft.

Model No.

Serial No.

Warning:

This equipment generates and uses radio frequency energy

and if not installed and used properly, i.e., in strict accor-

dance with the instruction manual, may cause harmful

interference to radio communications. It has been tested

and found to comply with the limits for a Class A computing

device pursuant to Subpart J of Part 15 of FCC Rules,

which are designed to provide reasonable protection

against such interference when operated in a commercial

environment.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER SER-

VICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PER-

SONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

SA 1965

SA 1966

For U.S.A

CONTENTS

PREFACE ........................................................................................................................................................................ 2

FEATURES ...................................................................................................................................................................... 2

PRECAUTIONS ............................................................................................................................................................... 3

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ......................................................................................... 4

CONNECTIONS .............................................................................................................................................................. 7

FOCUS OR FLANGE-BACK ADJUSTMENT ................................................................................................................. 12

INSTALLATION OF CAMERA ....................................................................................................................................... 13

SETUP ........................................................................................................................................................................... 14

1. CAMERA SET UP MENU ....................................................................................................................................... 14

2. SETUP OPERATION .............................................................................................................................................. 16

SETTING PROCEDURES .............................................................................................................................................. 19

PREVENTION OF BLOOMING AND SMEAR ................................................................................................................ 31

SPECIFICATIONS ......................................................................................................................................................... 32

STANDARD ACCESSORIES ......................................................................................................................................... 33

OPTIONAL ACCESSORIES .......................................................................................................................................... 33

-1-

ENGLISH

1. The following functions are built in.

(1) Auto Light Control (ALC)/Electronic Light

Control (ELC)

(2) The SUPER-D function eliminates interference

by strong background lighting which makes

the camera picture dark, such as a spotlight.

Dynamic range of 40 dB.

(3) Various External Sync Functions, including

Gen-Lock

(4) Electronic Shutter Function

2. Signal-to-noise ratio of 50 dB

3. Minimum illumination of 0.08 lux (0.008 footcandle)

with F 1.4 lenses.

4. Minimum illumination of 0.02 lux (0.002 footcandle)

with Panasonic aspherical high speed (F0.75)

lenses.

5. 570 lines of horizontal resolution

ture elements), and digital signal processing LSI's. This

model offers cutting-edge technology for advanced

video surveillance.

-2-

PREFACE

Panasonic's WV-BP550 series digital camera intro-

duces a new level of high picture quality and high res-

olution through the use of a 1/3-inch interline transfer

CCD image sensor having 771 horizontal pixels (pic-

FEATURES

6. High quality picture:

(a) 2H type vertical enhancer for greater picture

sharpness

(b) Minimum of aliasing on fine objects

cuit

(d) Highlight aperture correction for greater pic-

ture detail of bright object

7. Ability to shoot indoor scenes with fixed iris lens by

use of Electronic Light Control (ELC) function.

8. Selectable electronic sensitivity enhancing modes

including : AUTO, MANUAL and OFF

9. Built in Digital Motion Detector

1. Do not attempt to disassemble the camera.

To prevent electric shock, do not remove screws

or covers.

There are no user serviceable parts inside. Ask a

qualified service person for servicing.

2. Handle the camera with care.

Do not abuse the camera. Avoid striking, shaking,

etc. The camera could be damaged by improper

handling or storage.

3. Do not expose the camera to rain or moisture,

or try to operate it in wet areas.

Turn the power off immediately and ask a qualified

service person for servicing. Moisture can damage

the camera and also create the danger of electric

shock.

4. Do not use strong or abrasive detergents when

cleaning the camera body.

Use a dry cloth to clean the camera when dirty.

In case the dirt is hard to remove, use a mild

detergent and wipe gently.

5. Clean the CCD faceplate with care.

Do not clean the CCD with strong or abrasive

detergents. Use lens tissue or a cotton tipped

applicator and ethanol.

6. Never face the camera towards the sun.

Do not aim the camera at bright objects. Whether

the camera is in use or not, never aim it at the sun

or other extremely bright objects. Otherwise,

blooming or smear may be caused.

7. Do not operate the camera beyond the

specified temperature, humidity or power

source ratings.

Use the camera under conditions where tempera-

ture is between −10°C - +50°C (14°F - 122°F), and

humidity is below 90%. The input power source is

120V AC 60Hz for WV-BP550 and DC 12V/AC 24V

for WV-BP554.

-3-

Caution:

To prevent fire or electric shock hazard, a UL

listed wire (VW-1, style 1007) should be used for

DC 12V or AC 24V Input Terminals.

PRECAUTIONS

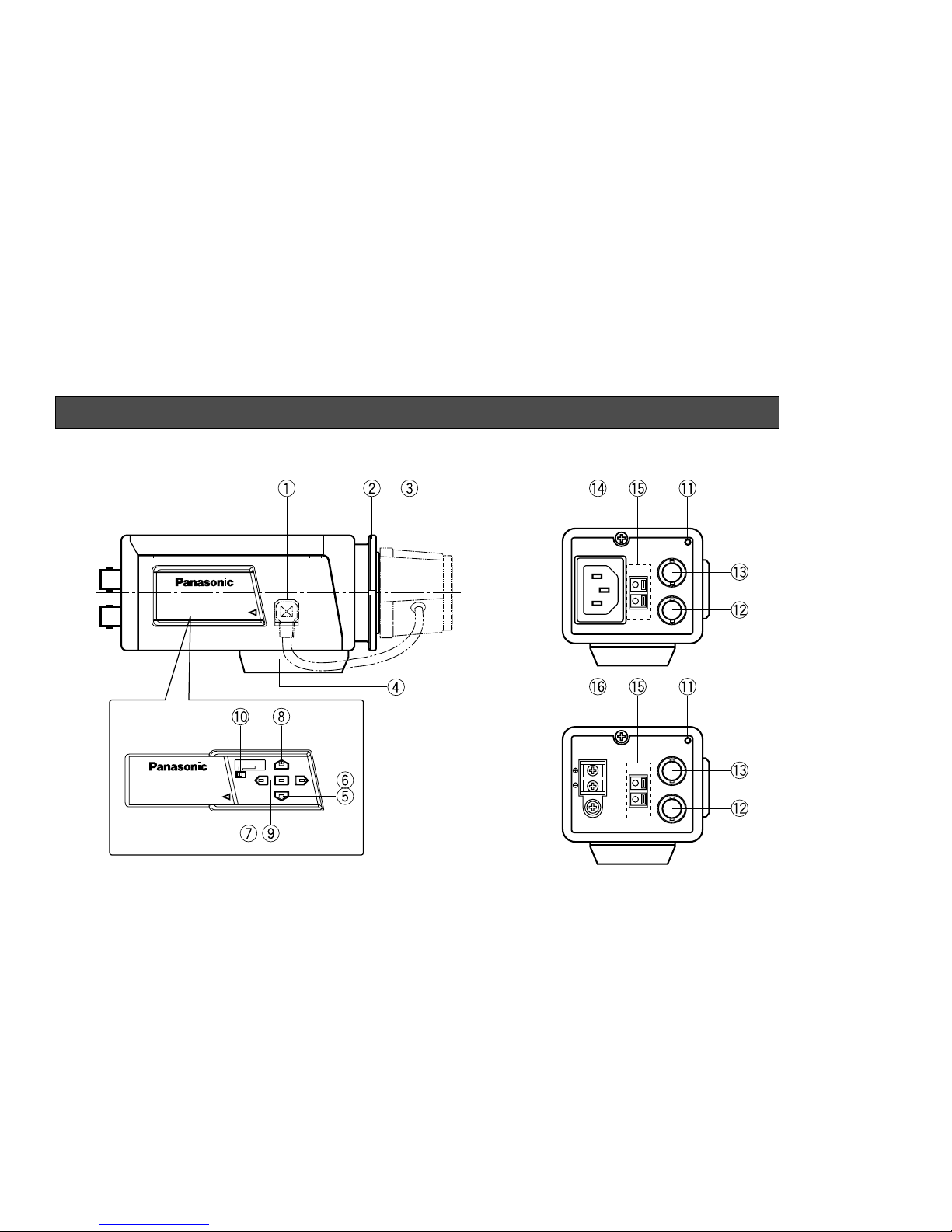

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS

-4-

SUPER

DYNAMIC

WV-

BP550

SUPER

DYNAMIC

WV-

BP550

Hi-Z G/L 75Ω

VIDEO OUT

POWER

120V AC 60Hz

GEN-LOCK

ALARM OUT

GND

VIDEO OUT

POWER

GEN-LOCK

ALARM OUT

GND

AC 24V

DC 12V

GND

<WV-BP550>

<WV-BP554>

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS

Slide the panel to the left until it locks.

qAuto Iris Lens Connector

This connector is used to connect with the auto iris

lens by a 4-pin male connector that is supplied as

a standard accessory (Part No. YFE4191J100).

wFlange-back Adjusting Ring

This ring is used to adjust the back focal length or

picture focus. Rotate this ring clockwise for a C-

mount lens or counterclockwise for a CS-mount

lens.

eLens (Option)

rCamera Mounting Screw Hole

This hole is used to mount the camera onto a

mounting bracket.

tDown Button ( )

This button is used to move the cursor downward.

It is also used to select items in the CAM SET UP

menu.

yRight Button ( )

This button is used to move the cursor to the right.

It is also selects the mode and can be used to

adjust some levels.

uLeft Button ( )

This button is used to move the cursor to the left. It

also selects the mode and can be used to adjust

some levels.

iUp Button ( )

This button is used to move the cursor upward. It

is also used to select items in the CAM SET UP

menu.

oSet Button ( )

This button is used to activate an item selected in

the CAM SET UP menu.

!0 Gen-lock Termination Switch (Hi-Z, G/L 75Ω)

Set this switch to Hi-Z when a gen-lock video input

signal is looped through. In all other cases, set this

switch to 75Ω.

!1 Power indicator

This indicator lights up when the power of this

camera is on.

!2 Gen-lock Input Connector (GEN-LOCK)

This connector is used to connect an external sys-

tem for synchronization.

-5-

!3 Video Output Connector (VIDEO OUT)

This connector is used to connect with the VIDEO

IN connector of the monitor.

!4 Power Cord Socket

This socket is used to connect the power cord

(supplied as a standard accessory).

!5 Alarm Output Terminal (ALARM OUT/GND)

This terminal is used to connect to the ALARM

INPUT connector (terminal) of an external equip-

ment. When this camera detects motion, the alarm

output signal is supplied to the connected external

equipment.

(Open collector output: 16V DC 100mA max.)

!6 AC/DC Compatible Input Terminal

(DC 12V IN/AC 24V IN)

This terminal is for connecting the 12 V DC or 24 V

AC power supply cord.

-6-

Cautions:

1. Connect to 12V DC (10.5V-16V) or 24V AC

(19.5V-28V) class 2 power supply only.

Make sure to connect the grounding lead

to the GND terminal when the power is

supplied from a 24V AC power source.

2. To prevent fire or electric shock hazard,

use a UL listed wire VW-1, style 1007 cable

for the Input Terminal.

Copper wire #24 #22 #20 #18

size (AWG) (0.22mm2) (0.33mm2) (0.52mm2) (0.83mm2)

Resistance 0.078 0.050 0.030 0.018

Ω/m

Resistance 0.026 0.017 0.010 0.006

Ω/ft

-7-

A. WV-BP550 (120V AC 60Hz)

1. Connect the AC power cord (supplied as standard

accessory) to the power cord socket of the cam-

era.

2. Connect the AC power cord to an electrical outlet

of 120V AC 60 Hz.

Notes:

• Connect the power cord firmly.

• The power cord should be long enough for pan-

ning and tilting.

If the cable is too short, the power cord plug may

pulled off the camera when the camera pans or

tilts.

B. WV-BP554 (12V DC/24V AC)

The WV-BP554 has an AC/DC compatible input termi-

nal. The 12V DC or 24V AC power supply cord can be

connected to this terminal. The camera detects the

power source automatically.

1. 12 V DC Power Supply

Connect the power cord to

the AC/DC compatible

input terminal on the rear

panel of the camera.

Resistance of copper wire [at 20°C (68°F)]

AC 24V

DC 12V

GND

12 VDC

(10.5 V - 16 V)

• Calculation method of maximum cable length

between camera and power supply.

10.5V DC ≤VA−(R x 0.42 x L) ≤16V DC

L : Cable length (meter)

R : Resistance of copper wire (Ω/meter)

VA: DC output voltage of power supply unit

VA−12

L standard = (meters)

0.42 x R

VA−16

L minimum = (meters)

0.42 x R

VA−10.5

L maximum = (meters)

0.42 x R

CONNECTIONS

2. 24 V AC Power Supply

Connect the power cable to the AC/DC compatible

input terminal on the rear panel of the camera.

Copper wire #24 #22 #20 #18

size (AWG) (0.22mm2) (0.33mm2) (0.52mm2) (0.83mm2)

Length (m) 95 150 255 425

of Cable

(Approx.) (ft) 314 495 842 1,403

Recommended wire gauge sizes for 24V AC line.

AC 24V

DC 12V

GND

24 VAC, 60 Hz

(19.5 V - 28 V)

-8-

Caution:

To prevent fire or electric shock hazard, a

UL listed wire (VW-1, style 1007) should be

used for the cable.

Video Cable

1. It is recommended to use a monitor whose resolu-

tion is at least equal to that of the camera.

2. Set the termination switch to the 75Ωposition on

the last monitor.

A. Use a 75Ωcoaxial cable.

B. Set the termination switch to the 75Ωposition

on the last monitor and to the Hi-Z position on

the other monitors. Do not change the posi-

tions after setting.

C. The maximum extensible coaxial cable length

between the camera and the monitor is shown

below.

OUTIN 75Ω

Hi-Z

VIDEO

OUTIN 75Ω

Hi-Z

VIDEO

Monitor Monitor

Autres manuels pour WVBP550 - CCTV CAMERA

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Caméra de sécurité

Panasonic

Panasonic BL-C210A Manuel utilisateur

Panasonic

Panasonic WV-CW240S Manuel utilisateur

Panasonic

Panasonic AW-HE42KP Manuel utilisateur

Panasonic

Panasonic WV-BP140 Manuel utilisateur

Panasonic

Panasonic WVBP330 - B/W CCTV CAMERA Manuel utilisateur

Panasonic

Panasonic BL-C111A - Network Camera - Pan Manuel utilisateur

Panasonic

Panasonic WV-CF400 Manuel utilisateur

Panasonic

Panasonic Super Dynamic III WV-CW974 Manuel utilisateur

Panasonic

Panasonic Super Dynamic III WV-CP480 Manuel utilisateur

Panasonic

Panasonic PI-BUA5MWA Manuel utilisateur

Panasonic

Panasonic WV-CW474A Series Manuel utilisateur

Panasonic

Panasonic BB-HCA10CE Manuel utilisateur

Panasonic

Panasonic WV-SFV310A Manuel utilisateur

Panasonic

Panasonic WV-CS400 Manuel utilisateur

Panasonic

Panasonic K-EW114L03E Manuel utilisateur

Panasonic

Panasonic BL-C140 Manuel utilisateur

Panasonic

Panasonic AJ-HDC27FP Manuel utilisateur

Panasonic

Panasonic CV-CFN203L Manuel utilisateur

Panasonic

Panasonic WV-NW484S - i-Pro Network Camera Manuel utilisateur

Panasonic

Panasonic WV-NW484S - i-Pro Network Camera Manuel utilisateur

Panasonic

Panasonic WV-X4172 Instructions d'installation et d'utilisation

Panasonic

Panasonic VIDEOLARM PCF3 Feuille d'instructions

Panasonic

Panasonic WV-SF330 Series Manuel utilisateur

Panasonic

Panasonic WV-SF138 Manuel d'installation et d'exploitation

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
