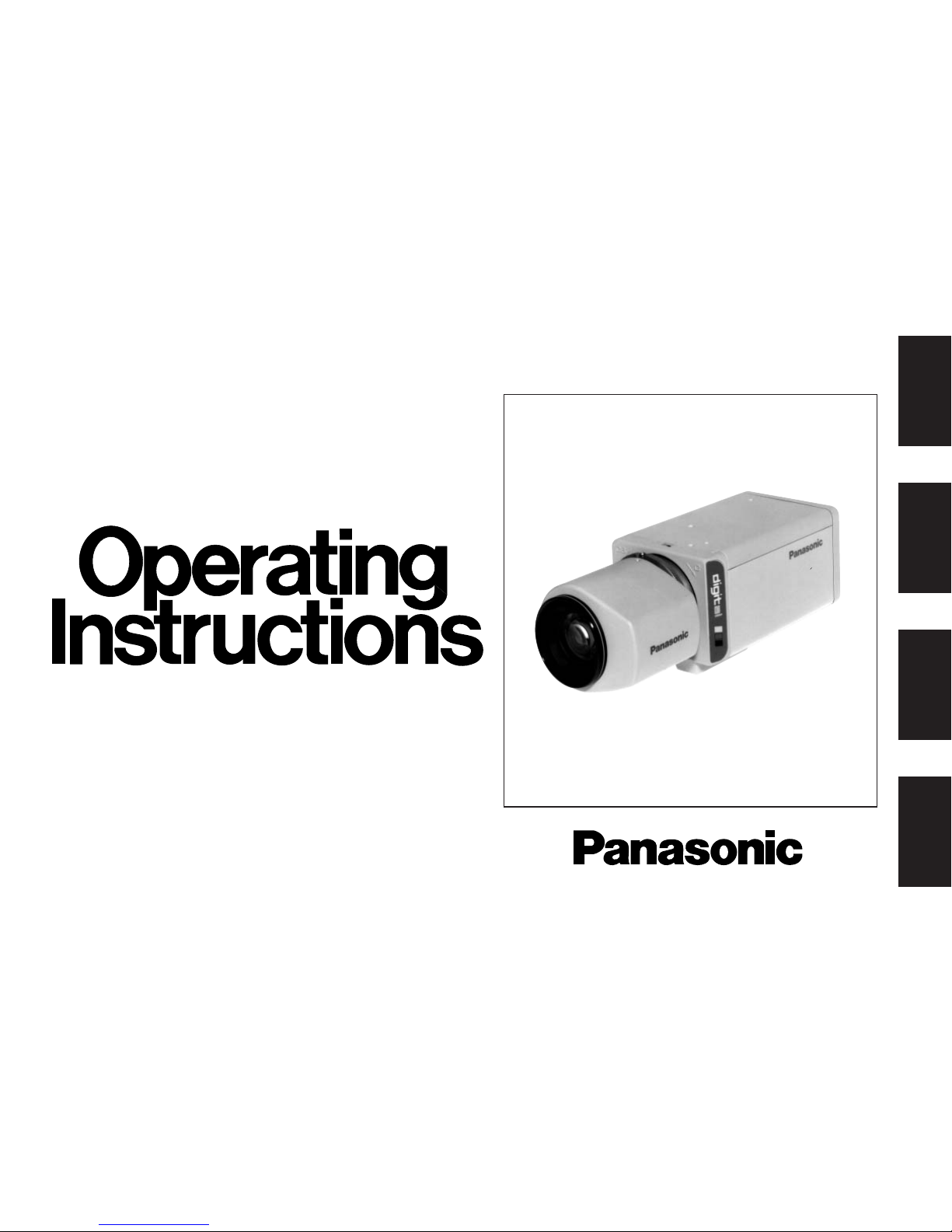

Panasonic WVBP330 - B/W CCTV CAMERA Manuel utilisateur

(Lens : option)

Before attempting to connect or operate this product,

please read these instructions completely.

CCTV Cameras

WV-BP330/WV-BP332/WV-BP334

ENGLISHDEUTSCHFRANÇAISESPAÑOL

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR

BACK), NO USER SERVICEABLE PARTS

INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The exclamation point within an equilat-

eral triangle is intended to alert the user

to the presence of important operating

and maintenance (servicing) instruc-

tions in the literature accompanying the

appliance.

WARNING:

TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The lightning flash with arrowhead sym-

bol, within an equilateral triangle, is

interned to alert the user to the pres-

ence of uninsulated "dangerous volt-

age" within the product's enclosure that

may be of sufficient magnitude to con-

stitute a risk of electric shock to per-

sons.

ENGLISH VERSION

Wij verklaren als enige aansprakelijke, dat het product waarop

deze verklaring betrekking heeft, voldoet aan de volgende nor-

men of andere normatiefve dokumenten, overeenkomstig de

bepalingen van Richtlijnen 73/23/EEC en 89/336/EEC.

Vi erklærer os eneansvarlige for, at dette produkt, som denne

deklaration omhandler, er i overensstemmelse med den

følgende standarder eller andre normative dokumenter i følge

bestemmelserne i direktivene 73/23/EEC og 89/336/EEC.

Vi deklarerar härmed värt fulla ansvar för att den produkt till

vilken denna deklaration hänvisar är i överensstämmelse med

standarddokument, eller andra normativa dokument som

framstölls i Direktiv 73/23/EEC och 89/336/EEC.

Ilmoitamme yksinomaisella vastuullamme, että tuote, jota tämä

ilmoitus koskee, noudattaa seuraavia standardeja tai muita

ohjeellisia asiakirjoja, jotka noudattavat direktiivien 73/23/EEC

ia 89/336/EEC. säädöksiä.

Vi erklærer oss alene ansvarlige for at produktet som denne

erklæringen gjelder for, er i overensstemmelse med følgende

normer eller andre normgivende dokumenter som fælger

bestemmelsene i direktiven 73/23/EEC og 89/336/EEC.

We declare under our sole responsibility that the product to

which this declaration relates is in conformity with the stan-

dards or other normative documents following the provisions of

Directives EEC/73/23 and EEC/89/336.

Noi dichiariamo sotto nostra esclusiva responsabilità che il

prodotto a cui si riferisce la presente dichiarazione risulta con-

forme ai seguenti standard o altri documenti normativi conformi

alle disposizioni delle direttive CEE/73/23 e CEE/89/336.

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CARE-

FULLY.

This appliance is supplied with a moulded three pin mains plug for your

safety and convenience.

A 13 amp fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement

fuse has a rating of 13 amp and that it is approved by ASTA or BSI to

BS1362.

Check for the ASTA mark Hor the BSI mark Gon the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refit-

ted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement

cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic

Dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET

OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED

AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT

OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET.

If a new plug is to be fitted please observe the wiring code as shown below.

If in any doubt please consult a qualified electrician.

WARNING: This apparatus must be earthed.

ENGLISH

-1-

The serial number of this product may be found on the top

of the unit.

You should note the serial number of this unit in the space

provided and retain this book as a permanent record of

your purchase to aid identification in the event of theft.

Model No.

Serial No.

For U.K.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following

code. Green-and-yellow: Earth

Blue: Neutral

Brown: Live

As the colours of the wire in the mains lead of this appliance may not

correspond with the coloured markings identifying the terminals in your

plug, proceed as follows.

The wire which is coloured green-and-yellow must be connected to

the terminal in the plug which is marked with the letter E or by the earth

symbol Ior coloured greenor green-and-yellow.

The wire which is coloured blue must be connected to the terminal in

the plug which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal

in the plug which is marked with the letter L or coloured red.

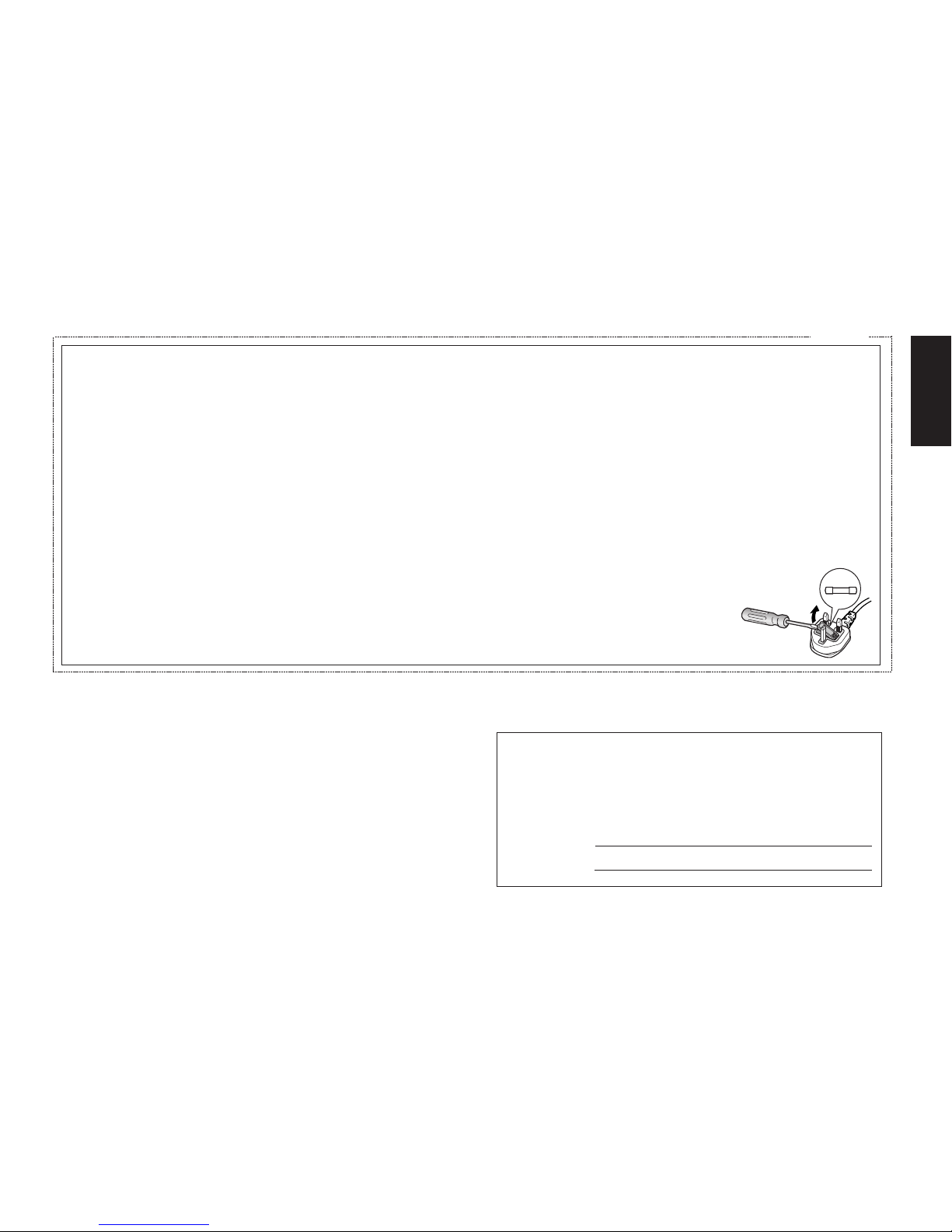

How to replace the fuse

Open the fuse compartment with

a screwdriver and replace the fuse

and fuse cover.

FUSE

CONTENTS

PREFACE ........................................................................................................................................................................ 3

FEATURES ...................................................................................................................................................................... 3

PRECAUTIONS ............................................................................................................................................................... 4

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ......................................................................................... 5

CONNECTIONS .............................................................................................................................................................. 9

FOCUS OR BACK-FOCAL ADJUSTMENT .................................................................................................................... 14

INSTALLATION OF CAMERA ........................................................................................................................................ 15

PREVENTION OF BLOOMING AND SMEAR ................................................................................................................ 16

SPECIFICATIONS .......................................................................................................................................................... 17

STANDARD ACCESSORIES ......................................................................................................................................... 18

-2-

-3-

1. The following functions are built-in.

(1) Auto Light Control (ALC)/Electronic Light

Control (ELC)

(2) Back Light Compensation (ON: Photometric

weight is given to the centre of the

screen/OFF: Effective if the object is not in the

centre of the screen)

(3) Various External Sync Functions, including

Gen-Lock

2. Signal-to-noise ratio of 50 dB

3. Minimum illumination of 0.08 lx (0.008 foot-candle)

with F1.4 lenses

4. Horizontal resolution of 570 lines

5. Shooting of indoor scenes with fixed iris lens by

use of Electronic Light Control (ELC) function

ture elements), and digital signal processing LSI’s. This

model offers cutting-edge technology for advanced

video surveillance.

PREFACE

Panasonic’s WV-BP330 series digital cameras intro-

duce a new level of high picture quality and high reso-

lution through the use of a 1/3-inch interline transfer

CCD image sensor having 752 horizontal pixels (pic-

FEATURES

6. Selectable auto iris control signal for the lens from

a video signal or DC control signal

-4-

1. Do not attempt to disassemble the camera.

To prevent electric shock, do not remove screws

or covers.

There are no user serviceable parts inside. Ask a

qualified service person for servicing.

2. Handle the camera with care.

Do not abuse the camera. Avoid striking, shaking,

etc. The camera could be damaged by improper

handling or storage.

3. Do not expose the camera to rain or moisture,

or try to operate it in wet areas.

Turn the power off immediately and ask a qualified

service person for servicing. Moisture can damage

the camera and also create the danger of electric

shock.

4. Do not use strong or abrasive detergents when

cleaning the camera body.

Use a dry cloth to clean the camera when dirty.

In case the dirt is hard to remove, use a mild

detergent and wipe gently.

5. Clean the CCD faceplate with care.

Do not clean the CCD with strong or abrasive

detergents. Use lens tissue or a cotton tipped

applicator and ethanol.

6. Never face the camera towards the sun.

Do not aim the camera at bright objects. Whether

the camera is in use or not, never aim it at the sun

or other extremely bright objects. Otherwise,

blooming or smear may be caused.

7. Do not operate the camera beyond the

specified temperature, humidity or power

source ratings.

Use the camera under conditions where tempera-

ture is between –10°C - +50°C (14°F - 122°F), and

humidity is below 90%. The input power source is

220-240V AC 50Hz for WV-BP330, 12V DC for WV-

BP332, and 24V AC 50Hz for WV-BP334.

PRECAUTIONS

-5-

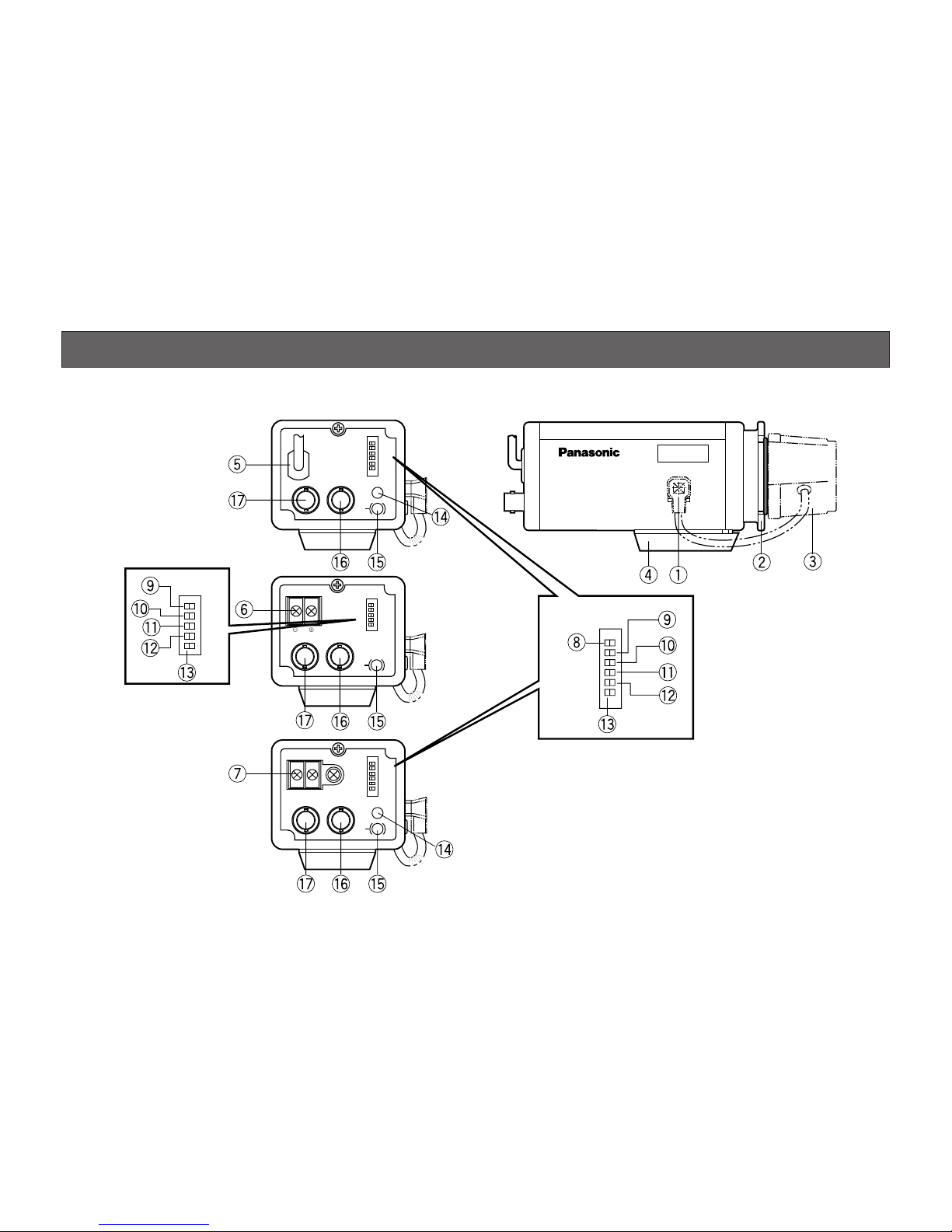

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS

WV-

BP330

VIDEO OUT

GEN-LOCK

INT

AGC ON

ALC

BLC ON

VIDEO

G/L 75

VIDEO

LEVEL

V. PHASE

Ω

OFF

ELC

OFF

Hi-Z

GND

AC 24V IN

VIDEO OUT

GEN-LOCK

INT

AGC ON

ALC

BLC ON

VIDEO

G/L 75

VIDEO

LEVEL

V. PHASE

Ω

OFF

ELC

OFF

Hi-Z

DC 12V IN

VIDEO OUT

GEN-LOCK

AGC ON

ALC

BLC ON

VIDEO

G/L 75

VIDEO

LEVEL H

Ω

OFF

ELC

OFF

Hi-Z

<WV-BP330>

<WV-BP332>

<WV-BP334>

-6-

qAuto Iris lens Connector

This connector is for connecting auto iris lens by a

4-pin male connector supplied as a standard

accessory (Part No. YFE4191J100).

wBack-focal Adjusting Ring

This ring is adjusts the back-focal length or picture

focus. Rotate this ring clockwise for a C-mount

lens or counterclockwise for a CS-mount lens.

eLens (option)

rCamera Mounting Screw Hole

This hole is for mounting the camera onto a mount-

ing bracket.

tPower Cord (only WV-BP330)

Connect this power cord to an electrical outlet of

220-240V AC 50Hz.

yDC 12 V Input Terminal

(DC 12V IN (only WV-BP332))

This terminal is for connecting the 12V DC power

supply cord.

uAC 24V Input Terminal

(AC 24V IN (only WV-BP334))

This terminal is for connecting the 24V AC 50Hz

power supply cord.

iSynchronization Mode Selector

(INT, LL (only WV-BP330 and WV-BP334))

Selects the camera synchronization mode from

internal sync mode (INT) or line-lock mode (LL).

INT: When no signal is supplied to the GEN-LOCK

connector, the camera synchronization mode

is set to internal 2:1 interlace. Whenever the

gen-lock video signal is supplied to the GEN-

LOCK connector, the camera synchronization

mode is automatically set to external synchro-

nization.

LL: The camera synchronization mode is set to

line-lock even if the gen-lock video signal is

supplied to the GEN-LOCK connector.

Note: Set this selector to INT for gen-lock opera-

tion.

oAGC ON/OFF Selector (AGC ON, OFF)

Selects the gain of the video amplifier as follows:

AGC ON: When the lens iris is fully open under

low light condition, a clear picture is obtained

by automatic increase of the gain.

OFF: A natural and low-noise picture is obtained

under low light conditions.

-7-

!0 Automatic Light Control / Electronic Light

Control Selector (ALC , ELC)

Lets you select the mode according to the lens

type that is used with this camera.

ALC: Select this mode when an auto iris lens (ALC

lens) is used with this camera.

ELC: Select this mode when a fixed iris lens or

manual iris lens is used with this camera.

!1 Back Light Compensation Mode Selector (BLC

ON, OFF)

Lets you select the mode according to the position

of the object and light conditions on the screen.

BLC ON: More photometric weight is given to the

centre of the screen than to the edge of the

screen. Select this mode if the background

light is strong such as a spotlight.

OFF: Lets you this mode if the main object is not

located in the centre of the screen and a

source of bright light is located near the cen-

tre of the screen.

!2 Lens Drive Signal Selector (VIDEO, DC)

Lets you select the mode according to the type of

auto iris lens drive signal to be supplied to the lens

from the auto iris lens connector.

VIDEO: Select this mode if you are using the auto

iris lens that requires a video drive signal.

DC: Select this mode if you are using the auto iris

lens that requires a DC drive signal.

!3 Gen-lock Termination Selector (Hi-Z, G/L75Ω)

Set this selector to Hi-Z when a gen-lock video

input signal is looped through. In all other cases,

set this selector to 75Ω.

!4 Vertical Phase Control

(V. PHASE (only WV-BP330 and WV-BP334))

Allows you to adjust the vertical phase of the cam-

era signal to match the vertical phase of the line

power.

!5 Video Level Control (VIDEO LEVEL, H(High)-

L(Low))

Allows you to adjust the video level when the Lens

Drive Signal Selector is set to DC and the auto iris

lens requiring the DC drive signal is mounted on

the camera.

Note: The video level should be adjusted by the

lens when the auto iris lens requiring the video

drive signal is mounted on the camera.

!6 Video Output Connector (VIDEO OUT)

This connector is for connecting with the VIDEO IN

connector of the monitor.

-8-

Caution:

Connect to 12V DC (10.5V-16V) or 24V AC

(19.5V-28V) class 2 power supply only.

Make sure to connect the grounding lead

to the GND terminal when the power is

supplied from a 24V AC power source.

!7 Gen-lock Input Connector (GEN-LOCK)

This connector is for connecting an external sys-

tem for synchronization.

Autres manuels pour WVBP330 - B/W CCTV CAMERA

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Caméra de sécurité

Panasonic

Panasonic WV-SFV631L Manuel d'utilisation

Panasonic

Panasonic EggCam GP-KR001 Manuel utilisateur

Panasonic

Panasonic WV-SW175 Manuel utilisateur

Panasonic

Panasonic KX-HN1007 Manuel utilisateur

Panasonic

Panasonic WV-S15700-V2L Series Manuel utilisateur

Panasonic

Panasonic WV-S4550L Manuel d'utilisation

Panasonic

Panasonic WV-NW484S - i-Pro Network Camera Manuel utilisateur

Panasonic

Panasonic WV-SUD638 Manuel utilisateur

Panasonic

Panasonic AW-HN40HKPJ Manuel utilisateur

Panasonic

Panasonic WV-SW559 Manuel utilisateur

Panasonic

Panasonic WV-SPN311 Manuel utilisateur

Panasonic

Panasonic WV-SFN130 Manuel utilisateur

Panasonic

Panasonic OneHome BB-HCM311A Manuel utilisateur

Panasonic

Panasonic WV-CF284 Series Manuel utilisateur

Panasonic

Panasonic GP-MH330 Manuel d'installation et d'exploitation

Panasonic

Panasonic AWHE50HN - HD INTEGRATED CAMERA Manuel utilisateur

Panasonic

Panasonic WV-BF300 Manuel utilisateur

Panasonic

Panasonic WV-CW374 Manuel utilisateur

Panasonic

Panasonic AGDVC15 - DV CAMCORDER Manuel utilisateur

Panasonic

Panasonic WV-CF634 Manuel utilisateur

Panasonic

Panasonic WV-CW244 Series Manuel utilisateur

Panasonic

Panasonic WVNF302 - NETWORK CAMERA Manuel utilisateur

Panasonic

Panasonic WVCW244F - COLOR CAMERA Manuel utilisateur

Panasonic

Panasonic AWHE50HN - HD INTEGRATED CAMERA Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
