Installation Guide

Home Monitoring Camera

HomeHawk Outdoor

Model No. KX-HNC710

Thank you for purchasing a Panasonic product.

This document explains how to install the outdoor camera properly.

Refer to the Installation Guide supplied with KX-HN7001/KX-HN7002/

KX-HN7003 for details.

Charge the camera for about 7 hours before camera installation

(page 14). Then register the camera to the access point

(page 16).

Please read this document before using the unit and save it for future

reference.

For assistance, please contact us at 1-800-272-7033 or visit our Web

site:

http://shop.panasonic.com/support for customers in the U.S.A.

Please register your product: http://shop.panasonic.com/support

Printed in China

HNC710_(en_en)_0207_ver.110.pdf 1 2018/02/07 20:11:46

Introduction
Accessory information ...............3
Important Information
Graphical symbols for use on
equipment and their
descriptions ...............................4
About this system ......................4
For your safety ...........................4
Important safety instructions ......7
Privacy and rights of portrait ......7
Other information .......................7
Installation Location
Installation location
examples .................................10
Do not install in these
locations ..................................11
Setup
Part names and functions ........13
Charging the camera ...............14
Charging LED indicators ..........15
Turning the power on for the
camera .....................................16
Registering the camera ...........16
Confirming the camera installation
area .........................................17
Installation ...............................17
Accessing the User’s Guide ....20
Appendix
Specifications ..........................21
FCC and other information ......21
Customer services ...................23
Limited Warranty (ONLY FOR
U.S.A.) .....................................24
2
Table of Contents
HNC710_(en_en)_0207_ver.110.pdf 2 2018/02/07 20:11:46

Accessory information

Supplied accessories

No. Accessory item/Part number Qty.

AUSB cable/PNWYAC700W00 1

BWall mounting adaptor/PNWYAC710W00 1

CWall mounting screws 25 mm (1 inch)/PNWYAC700W02*1 3

DSuspension wire tool

– Safety wire/PNWYAC710W01

– Washer/PNWYAC710W02

The washer for attaching safety wire to wall ø16 mm (5/8 inches)

– Safety wire ring/PNWYAC710W03

The safety wire ring for attaching the safety wire to the camera

*1 The supplied screws can be used as follows.

– 2 screws for the wall mounting adaptor

– 1 screw for suspension wire tool

ABCD

Other information

RDesign and specifications are subject to change without notice.

RThe illustrations in these instructions may vary slightly from the actual product.

RHomeHawk Outdoor is referred to as outdoor camera or camera in this document.

Trademarks

RAndroid and Google Play are registered trademarks or trademarks of Google Inc.

RMicrosoft, Windows, and Internet Explorer are either registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries.

RAll other trademarks identified herein are the property of their respective owners.

For assistance, please visit http://shop.panasonic.com/support 3

Introduction

HNC710_(en_en)_0207_ver.110.pdf 3 2018/02/07 20:11:46

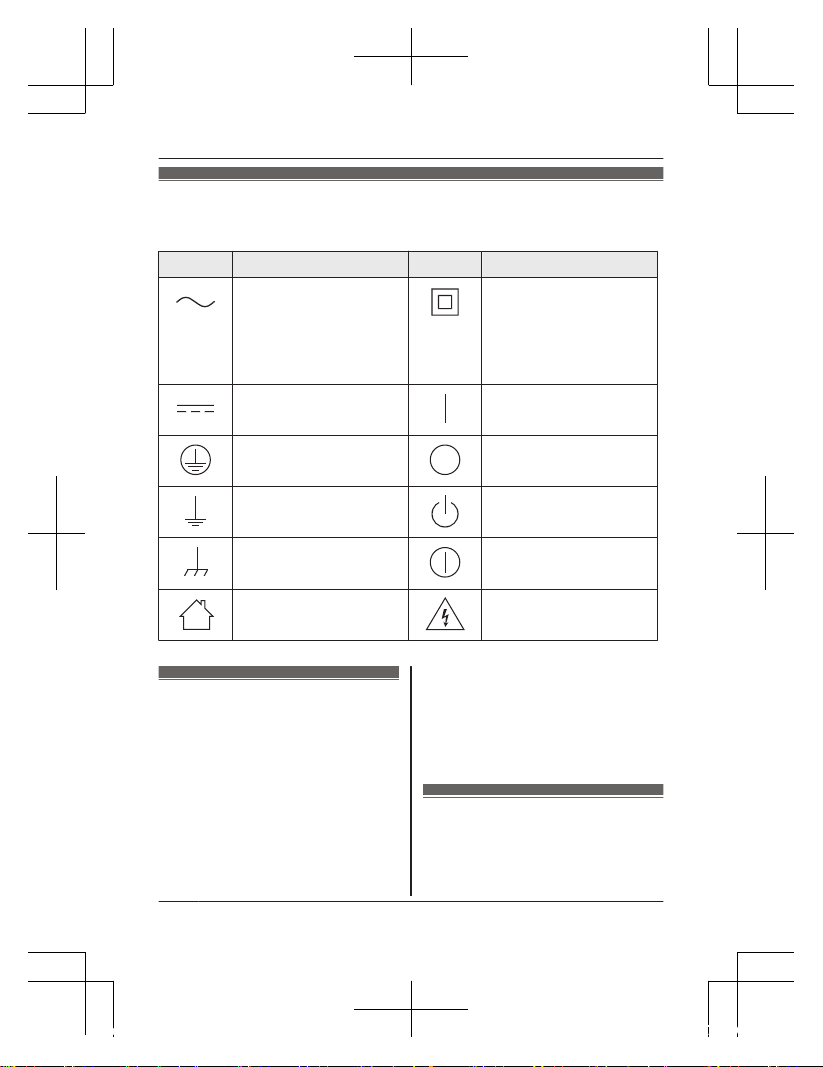

Graphical symbols for use on equipment and their

descriptions

Symbol Explanation Symbol Explanation

Alternating current (A.C.) Class P equipment

(equipment in which protection

against electric shock relies on

Double Insulation or

Reinforced Insulation)

Direct current (D.C.) “ON” (power)

Protective earth “OFF” (power)

Protective bonding earth Stand-by (power)

Functional earth “ON”/“OFF” (power; push-push)

For indoor use only Caution, risk of electric shock

About this system

RThis system is an auxiliary system; it is not

designed to provide complete protection

from property loss. Panasonic will not be

held responsible in the event that property

loss occurs while this system is in

operation.

RThe system’s wireless features are subject

to interference, therefore functionality in all

situations cannot be guaranteed.

Panasonic will not be held responsible for

injury or damage to property that occurs in

the event of wireless communication error

or failure.

For your safety

To prevent severe injury and loss of life/

property, read this section carefully before

4For assistance, please visit http://shop.panasonic.com/support

Important Information

HNC710_(en_en)_0207_ver.110.pdf 4 2018/02/07 20:11:46

using the product to ensure proper and safe

operation of your product.

WARNING

Power connection

RUse only the 5.0 V, 1.0 A or higher

power source.

RDo not overload power outlets and

extension cords. This can result in

the risk of fire or electric shock.

RUnplug the product from power

outlets if it emits smoke, an

abnormal smell, or makes an

unusual noise. These conditions

can cause fire or electric shock.

Confirm that smoke has stopped

emitting and contact us at http://

shop.panasonic.com/support

RUnplug from power outlets and

never touch the inside of the

product if its casing has been

broken open. Danger of electric

shock exists.

RNever touch the plug with wet

hands. Danger of electric shock

exists.

RDo not connect non-specified

devices.

Installation

RDo not place or use this product

near automatically controlled

devices such as automatic doors

and fire alarms. Radio waves

emitted from this product may

cause such devices to malfunction

resulting in an accident.

RDo not allow the power cord to be

excessively pulled, bent or placed

under heavy objects.

RDo not mount the bracket in a

location higher than 2.2 m (7 feet 3

inches), in an unstable location, in a

location subject to frequent

vibration, on a ceiling, or on a weak

wall. (Do not mount on gypsum

board, concrete blocks, wooden

materials exposed to the outdoors,

walls with very rough surfaces, or

surfaces that are narrower than the

width of the wall mount bracket.)

There is a risk of injury if the

product falls, or of fire or electric

shock if water enters the product.

RKeep small parts (screws, washers,

etc.) out of the reach of children.

There is a risk of swallowing. In the

event they are swallowed, seek

medical advice immediately.

Operating safeguards

RUnplug the product from power

outlets before cleaning. Do not use

liquid or aerosol cleaners.

RDo not disassemble the product.

RNever put metal objects inside the

product. If metal objects enter the

product, turn off the circuit breaker

and contact an authorized service

center.

For assistance, please visit http://shop.panasonic.com/support 5

Important Information

HNC710_(en_en)_0207_ver.110.pdf 5 2018/02/07 20:11:47

Medical

RConsult the manufacturer of any

personal medical devices, such as

pacemakers or hearing aids, to

determine if they are adequately

shielded from external RF (radio

frequency) energy. Wireless LAN

features operate between

2.412 GHz and 2.462 GHz with a

peak transmission power of 100

mW.

RDo not use the product in health

care facilities if any regulations

posted in the area instruct you not

to do so. Hospitals or health care

facilities may be using equipment

that could be sensitive to external

RF energy.

CAUTION

Installation and location

RNever install wiring during a

lightning storm.

RAlthough this camera conforms to

the IPX5* code, do not intentionally

expose it to water.

*IPX5 indicates that the product is

protected against water jets: water

projected at all angles through a

6.3 mm (1/4 inches) nozzle flow rate

of 12.5 liters/minute at a pressure

of 30 kN/m2 for 3 minutes from a

distance of 3 meters (9 feet 10

inches).

RAlthough this camera conforms to

the IP6X* code, do not intentionally

expose it to grit and dust.

*IP6X indicates that the product is

protected against grit and dust: this

product has shown the capabilities

of preventing dust from entering

inside the product after the product

was in a device that contained dust

with a diameter of 75 µm or less for

7 hours and was shaken and

removed from that device.

RThe USB cable is used as the main

disconnect device. Ensure that the

AC outlet is installed near the

product and is easily accessible.

RDo not place magnetic cards or

similar objects near the outdoor

camera. Magnetic data on the

cards, etc. may be deleted.

Preventing accidents and injuries

RThe safety wire must be used when

mounting the product. There is a

risk of injury if the product falls.

RDo not put your ear(s) near the

speaker, as loud sounds emitted

from the speaker may cause

hearing impairment.

Lithium Ion (Li-Ion) battery (built-in

battery)

RCAUTION:

Risk of explosion if battery is

replaced by an incorrect type.

6For assistance, please visit http://shop.panasonic.com/support

Important Information

HNC710_(en_en)_0207_ver.110.pdf 6 2018/02/07 20:11:47

Dispose of used battery according

to local regulations.

Important safety

instructions

When using your product, basic safety

precautions should always be followed to

reduce the risk of fire, electric shock, and

injury to persons, including the following:

1. Use only the power cord indicated in this

document.

SAVE THESE INSTRUCTIONS

Privacy and rights of

portrait

When installing or using the camera, please

take into consideration the rights of others with

regard to privacy.

It is generally said that “privacy” means the

ability of an individual or group to stop

information about themselves from becoming

known to people other than those whom they

choose to give the information. “Rights of

portrait” means the right to be safe from

having your own image taken and used

indiscriminately without consent.

Other information

This product has a rechargeable lithium ion

battery. Do not throw into fire, apply heat, or

charge, use, or leave in a high temperature

environment.

– Doing so may cause fluid leak,

overheating, or explosion.

Routine care

RWipe the outer surface of the product with

a soft moist cloth.

RDo not use benzine, thinner, or any

abrasive powder.

Camera image quality

RCamera images may have the following

characteristics.

– Colors in images may differ from the

actual colors.

– When there is light behind the subject

(i.e., backlighting), faces may appear

dark.

– Image quality may be reduced in dark

locations.

– Images may appear hazy when there

are outdoor lights in use.

Notice for product disposal, transfer, or

return

RThis product can store your private/

confidential information. To protect your

privacy/confidentiality, we recommend that

you erase information from the memory

For assistance, please visit http://shop.panasonic.com/support 7

Important Information

HNC710_(en_en)_0207_ver.110.pdf 7 2018/02/07 20:11:47

before you dispose of, transfer, or return

the product.

Notice for built-in battery

ATTENTION:

A lithium ion battery that is recyclable powers

the product you have purchased. Please call

1-800-8-BATTERY (1-800-822-8837) for

information on how to recycle this battery.

WARNING for Lithium Ion (Li-Ion) Battery:

Risk of fire and burns. Do not open, crush,

heat above 50 °C (122 °F) or incinerate.

Follow the instructions in the operating

instructions.

Remove the built-in rechargeable battery

before disposing of the cameras. Do not

dismantle or replace the battery so that you

can use the camera again. This could cause

fire or an electric shock. Replace it at an

authorized service center.

Battery removal procedure

RDisconnect the power cord from the

camera when removing the battery.

Battery

RPerform steps A to H, lift the

battery (

), and then remove it.

8For assistance, please visit http://shop.panasonic.com/support

Important Information

HNC710_(en_en)_0207_ver.110.pdf 8 2018/02/07 20:11:47

Notice

For assistance, please visit http://shop.panasonic.com/support 9

Important Information

HNC710_(en_en)_0207_ver.110.pdf 9 2018/02/07 20:11:47

Installation location examples

I want to detect visitors approaching the house

Refer to the table below for detecting visitors at an entrance or gate without detecting cars in the

street.

Ideal example Poor example

Approx. 6 m (19 feet 8 inches)

Visitors pass in front of the camera from side

to side, cars in the street are less likely to

cause false detections.

Cars in the street are more likely to cause

false detections.

Note:

RThe visual detection range is as follows.

– Horizontal: 150°

– Vertical: 85°

10 For assistance, please visit http://shop.panasonic.com/support

Installation Location

HNC710_(en_en)_0207_ver.110.pdf 10 2018/02/07 20:11:47

Table des matières

Langues :

Autres manuels Panasonic Caméra de sécurité

Panasonic

Panasonic WV-CP300 Series Manuel utilisateur

Panasonic

Panasonic WV-CF20 Manuel utilisateur

Panasonic

Panasonic Super Dynamic III WV-CW960 Manuel utilisateur

Panasonic

Panasonic WV-SPN531 Manuel utilisateur

Panasonic

Panasonic BL-VT164W Manuel utilisateur

Panasonic

Panasonic WV-SP500 Series Manuel utilisateur

Panasonic

Panasonic WV-CL270 Manuel utilisateur

Panasonic

Panasonic WV-CP300 Series Manuel utilisateur

Panasonic

Panasonic K-EW114L01E Manuel utilisateur

Panasonic

Panasonic WV-BP510 Manuel utilisateur

Panasonic

Panasonic WV-CW594 Manuel utilisateur

Panasonic

Panasonic WV-SC387 Manuel utilisateur

Panasonic

Panasonic AK-HC1800G Manuel utilisateur

Panasonic

Panasonic WV-SBV131M Manuel d'utilisation

Panasonic

Panasonic BL-C30A - Wireless 802.11 b/g Network Camera Manuel utilisateur

Panasonic

Panasonic BL-C10 Manuel utilisateur

Panasonic

Panasonic WVCS564 - COLOR CCTV CAMERA Manuel utilisateur

Panasonic

Panasonic WVCS574 - COLOR CCTV CAMERA Manuel utilisateur

Panasonic

Panasonic K-EF134L01E Manuel utilisateur

Panasonic

Panasonic WV-CF374E Manuel utilisateur

Panasonic

Panasonic WV-NW484S - i-Pro Network Camera Guide de l'utilisateur

Panasonic

Panasonic WV-CF212 Manuel utilisateur

Panasonic

Panasonic BB-HCM580A - 21x Optical Zoom Pan/Tilt Security Network... Manuel utilisateur

Panasonic

Panasonic WV-CF284 Series Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
