Panasonic VIEW 3 Manuel utilisateur

IIoT Solutions

Document: SPC-ENG-0000004-03

2021-02-02

View Tag

Product Family Specification & User Information Guide

VT03-G3

VT03-G3C

VT03-G3BKT

VT04-G3

VT04-G3C

VT04-G3BKT

VT07-G3

VT07-G3BKT

Attention

Please read entire guide before product use

View Tag Product Family

User Information Guide

2.2.2021

Document: SPC-ENG-0000004-03

page 1of 19

Contents

Introduction............................................................................................................................................................................................................... 3

Model Overview....................................................................................................................................................................................................... 4

Model Delineation.............................................................................................................................................................................................. 4

VIEW 3................................................................................................................................................................................................................ 4

VIEW 3 Bracket............................................................................................................................................................................................... 4

VIEW 4................................................................................................................................................................................................................ 4

VIEW 4 Bracket............................................................................................................................................................................................... 4

VIEW 7................................................................................................................................................................................................................ 5

VIEW 7 Bracket............................................................................................................................................................................................... 5

View Tag Specifications ................................................................................................................................................................................... 6

Physical.............................................................................................................................................................................................................. 6

Communication .............................................................................................................................................................................................. 6

Environment & Testing............................................................................................................................................................................... 7

Bracket.................................................................................................................................................................................................................... 7

Using Panasonic View Tags ................................................................................................................................................................................. 8

Installation & Integration................................................................................................................................................................................ 8

Connecting to Your System........................................................................................................................................................................ 8

User/View Tag Interaction ............................................................................................................................................................................. 8

Screen................................................................................................................................................................................................................. 8

LED....................................................................................................................................................................................................................... 8

Button(s)........................................................................................................................................................................................................... 8

GPIO Port........................................................................................................................................................................................................... 9

System/View Tag Interaction........................................................................................................................................................................ 9

Bracket Mounting.............................................................................................................................................................................................10

Mounting Position.......................................................................................................................................................................................10

Mounting Options........................................................................................................................................................................................10

Contact Us.................................................................................................................................................................................................................11

Economic operators’ information in EU ......................................................................................................................................................11

Safety& Legal Information.................................................................................................................................................................................12

Health and Safety Warnings.........................................................................................................................................................................12

Safety Considerations.....................................................................................................................................................................................12

Acceptance Inspection....................................................................................................................................................................................12

Product Disclaimer ..........................................................................................................................................................................................12

General Disclaimer...........................................................................................................................................................................................13

Warranty Details...............................................................................................................................................................................................13

Guide Terms & Conditions............................................................................................................................................................................13

View Tag Product Family

User Information Guide

2.2.2021

Document: SPC-ENG-0000004-03

page 2of 19

Consideration for EU Battery Directive (2006/66/EC, Its Amended Directive 2013/56/EU ).......................................13

General notes and Information on Collection and Disposal of Used Batteries in accordance with EU Battery

Directive (2006/66/EC)................................................................................................................................................................................13

Information on the batteries that are installed in this product ....................................................................................................14

In Case of Disposal in Other Region Outside the European Union...............................................................................................14

Information Pertaining to EU Battery Directive (2006/66/EC)...................................................................................................14

Regulatory Certifications...............................................................................................................................................................................15

FCC Interface Statement................................................................................................................................................................................15

Industry Canada Statement..........................................................................................................................................................................15

Disposal of VIEW Tags and Batteries .......................................................................................................................................................16

For European Union and countries with recycling systems......................................................................................................16

Consideration for Battery Recycling....................................................................................................................................................16

Battery Removal ...............................................................................................................................................................................................16

VIEW 3 and VIEW 4 ....................................................................................................................................................................................16

View Tag Product Family

User Information Guide

2.2.2021

Document: SPC-ENG-0000004-03

page 3of 19

Introduction

Welcome to the Panasonic View Tag product line

With current manufacturing processes constantly pushing the capabilities of operation speed and efficiency forward, you

want to be sure to get up-to-date information into the hands of the people who need it the most.

Printed instructions leave your bottom line at risk. Not only is it costly to edit, print, and distribute information when a

change is necessary, but the amount of time from change order initiation to implementation can be wasteful to production

time and/or materials. With Panasonic View Tags, information and instruction can be changed in-process, as soon as it is

received. This will allow you to serve your customers better, as well as reduce the potential costs associated with running

your operation using out-of-date information.

The Panasonic View Tag product line is intended to be used as a replacement for written instruction. Each Tag features an

ePaper display, providing an easily readable, customizable format to get the information you want, exactly where, and when

you want it. In addition to conveying information to your team, the View Tag family of products offers a multitude of

information sharing options and settings, as well as different interactive and automated features which can be custom

tailored to suit the specific needs of your operation.

In this guide you will find an overview of the Panasonic View Tag family of products, as well as a starter guide on usage and

installation.

View Tag Product Family

User Information Guide

2.2.2021

Document: SPC-ENG-0000004-03

page 4of 19

Model Overview

Model Delineation

VIEW 3 Bracket

Model Numbers(s)

VT03-G3 & VT03-G3C

VT03-G3BKT

Features

1. ePaper Screen

2. LED Light

3. Button

4. GPIO Port*

Figure 1

Figure 2

Figure 3

Figure 4

VIEW 4 Bracket

Model Numbers(s)

VT04-G3 & VT04-G3C

VT04-G3BKT

Features

1. ePaper Screen

2. LED Light

3. Button

4. GPIO Port*

Figure 5

Figure 6

Figure 7

Figure 8

View Tag Product Family

User Information Guide

2.2.2021

Document: SPC-ENG-0000004-03

page 5of 19

VIEW 7 Bracket

Model Numbers(s)

VT07-G3

VT07-G3BKT

Features

1. ePaper Screen

2. LED Light

3. Buttons

4. GPIO Port*2

Figure 9

Figure 10

Figure 11

Figure 12

Tolerance Table3

(mm)

6 or Less

+/- 0.3

Over 6 to 30 incl.

+/- 0.4

Over 30 to 120 incl.

+/- 0.8

Over 120 to 315 incl.

+/- 1.2

Over 315 to 630 incl.

+/- 1.8

Over 630 to 1000 incl.

+/- 2.5

The VIEW 7 model will be available in the second quarter of 2021

For GPIO Pinout diagram, see Figure 14, located in the

GPIO Port section

All tolerances adhere to table unless otherwise specified

View Tag Product Family

User Information Guide

2.2.2021

Document: SPC-ENG-0000004-03

page 6of 19

View Tag Specifications

Physical

VIEW 3 CM4

VIEW 4 CM

Model Number(s)

VT03-G3

VT03-G3C

VT04-G3

VT04-G3C

VT07-G3

Physical Measurements

Height

(mm)

48.5

90.5

209.7

Width

(mm)

137.8

124.6

130.8

Depth

(mm)

13.5

13.3

15.4

Mass

(grams)

90.0

137.0

375.0

Reference

Figure 3

Figure 7

Figure 11

Materials

Upper

Polycarbonate

Lower

ABS Plastic

Buttons

Silicone

Display

Active Area

(mm)

66.9 × 29.06

84.8 × 63.6

163.2 x 97.92

Resolution

(pixels)

296 × 128

400 × 300

640 x 384

Pixel Pitch

(mm)

0.227 × 0.226

0.212 × 0.212

0.255 x 0.255

Battery

Composition

Single Cell Primary LiMnO2

(model: CP603956)

Voltage

3 Volts

Quantity

Weight

25 g (typical)

Est. Life Expectancy

5 years5

Communication

System

Radio

Frequency

(MHz)

433.056 to 434.784

Channels

1 ; 5 ; 9 ; 13

Effective Radiated Power

(dBm)

Modulation

2-GFSK

Passive

RFID

Standard

EPC Gen 2

Device

Impinj MonzaX-2K

VIEW 3 CM and VIEW 4 CM can operate in Gen2 compatible mode.

Typical battery life under normal operating conditions; results will vary based on usage.

View Tag Product Family

User Information Guide

2.2.2021

Document: SPC-ENG-0000004-03

page 7of 19

Environment & Testing

Operating

Environment

Temperature

(°C)

0 to 40

Relative Humidity

(%RH)

≤65

(@40°C)

Storage

Environment

Temperature

(°C)

-20 to 50

Relative Humidity

(%RH)

10 to 95

(@25°C non-condensing)

Testing6

Vibration

MIL-STD-810G method 514.6 Cat. 24

Ingress Protection

IP 50

Shock

Survives 1-meter drop to concrete

Button Actuation

5 million

Bracket

VIEW 3 Bracket

VIEW 4 Bracket

VIEW 7 Bracket

Model number

VT03-G3BKT

VT04-G3BKT

VT07-G3BKT

Physical Specifications

Height

(mm)

52.8

94.7

212.7

Width

(mm)

170.0

157.2

133.8

Depth

(mm)

15.9

17.0

Mass

(grams)

10.6

15.0

92.0

Material

ABS Plastic

Reference Diagram

Figure 4

Figure 8

Figure 12

All testing carried out within recommended environmental conditions

View Tag Product Family

User Information Guide

2.2.2021

Document: SPC-ENG-0000004-03

page 8of 19

Using Panasonic View Tags

Installation & Integration

Connecting to Your System

For the View Tag to send and receive information, it will first need to be paired with your Gateway Network. Due to varying application options we

offer, navigating the pairing process may be slightly from system to system. For a detailed step-by-step guide to pairing your View Tag to your

Gateway Network, refer to the information manual specific to your application.

User/View Tag Interaction

Screen

The View Tag product line features an electrophoretic ePaper display. This display is designed specifically for displaying information, in a two-tone

format, that is easily readable and reduces strain in various lighting conditions.

LED

Each View Tag has a single, green LED located next to the screen. The actuation of this LED can be programmed and specified by the system to

operate in several different modes, including:

➢Blink when a button is pressed

➢Blink when radio is actively transmitting

➢Blink when passive RFID channel is active

➢Blink 10 times

➢Blink until Tag user presses button

Button(s)

The VIEW 3, VIEW 4, and VIEW 7 feature a single, round button for the user to interact with the tag, locally and system via designated

communication channels. The following functions are supported:

➢Announce - An “active” transmission from a View Tag, including information about the tag, as well as setting tag to enter Receive Mode

(information payload contents & local tag action configured by administrator)

•Press (x1): Sends out “single button press” announce signal

•Press (x2 consecutively): Sends out “double button press” announce signal

•Long Press (>2 seconds): Sends out “extended button press” announce signal

➢Press (x3 consecutively)

•Tag will display the UID and EPC numbers in an alpha-numeric and barcode formats

•Repeating this procedure will bring the user back to the tag’s previously displayed screen

➢Long Press (>7 seconds)

•Tag will generate a diagnostic page which will display various tag configuration settings

➢Long Press (>20 seconds)

•Tag’s embedded processor will perform a soft reset

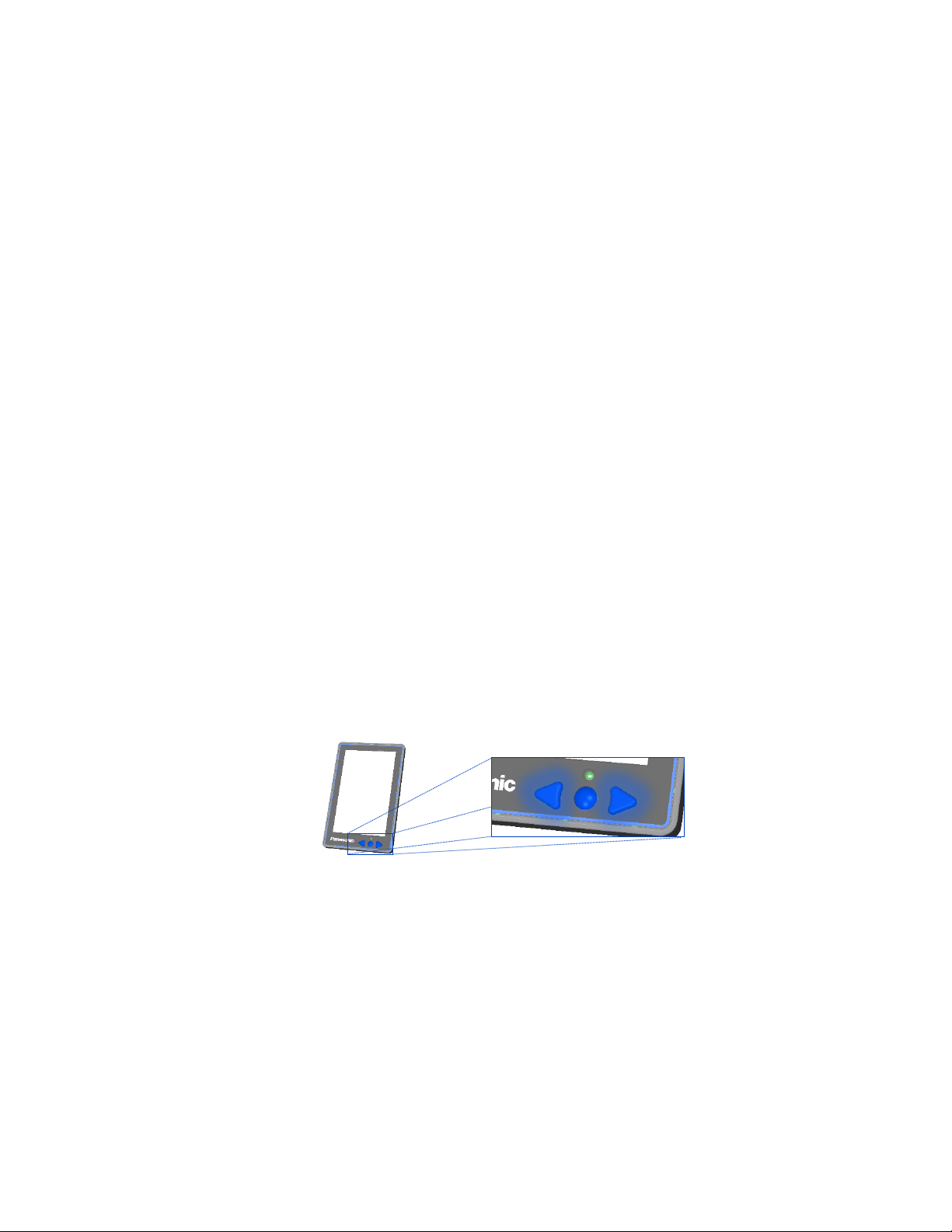

Our newest product in the View Tag Line is the VIEW 7. The VIEW 7 offers two additional buttons, increasing the ways in which a user can interact

with the View Tag. The functionality of these buttons can be set using the Logiscend software at your network workstation. (See Figure 13 below)

2 additional buttons

Figure 13

View Tag Product Family

User Information Guide

2.2.2021

Document: SPC-ENG-0000004-03

page 9of 19

GPIO Port

The View Tag product line features a proprietary GPIO port allowing the user to attach various optional expansion modules. This feature allows

the tag increased functionality that can be tailored to fit the needs of your operation.

GPIO

Connections

Input (x1)

Output (x1)

Data Line (x1)

Shared Ground

Output

24V @ 0.1A

(internally current limited)

Input

24V max

(use only with normally open switch to save battery power)

Data

3.3V logic signal only

(NOT 24V TOLERANT)

Pinout Reference

See Pinout Table below

Figure 14

GPIO Pinout

Description

Type

GPIO OUT

OUT

GPIO IN

GROUND

GND

DATA

IN/OUT

System/View Tag Interaction

The Panasonic View Tag product line has embedded firmware allowing interaction with two separate administrative software packages. Utilizing

the features in these applications, an administrator can interact with any specific tag or several at once depending on intent. Some of the most used

features include:

➢Determine what information is displayed by which tags

➢Edit information displayed, in real-time

➢Set Tag parameters including:

•LED function attributes

•Passive and Responsive Communication Parameters

•Image display

➢Retrieve information about the Tag including:

•Temperature

•Battery Level

•User interaction information

(These are a few examples of the functionality when using a View Tag. To learn more, refer to your system-specific user guide)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Système RFID

Panasonic

Panasonic FZ-VFP401 Series Manuel utilisateur

Manuels Système RFID populaires d'autres marques

Chainway

Chainway R1 Manuel utilisateur

IFM

IFM DTC600 Manuel utilisateur

Elatec

Elatec TWN4 MULTITECH NANO LEGIC 63 M Manuel utilisateur

RHOMBUS

RHOMBUS DR20 Manuel utilisateur

Sirit

Sirit IDentity 6204 Manuel utilisateur

SOREX

SOREX FLEX Manuel utilisateur

Omron

Omron V780-HMD68-EIP-KR Manuel utilisateur

IDENTEC SOLUTIONS

IDENTEC SOLUTIONS iPOINT Si Instructions d'utilisation

Shuttle

Shuttle BR06 Instructions d'utilisation

Digilock

Digilock Curve Keypad Basic Manuel utilisateur

Atid

Atid AT870 Manuel utilisateur

Chacon

Chacon 34958 Manuel utilisateur

Paxton

Paxton PROXIMITY architectural reader Manuel utilisateur

CipherLab

CipherLab 1800 series Manuel utilisateur

Brady

Brady FR22 Manuel utilisateur

Kronotech

Kronotech BLUEBOX GEN2 M30 UHF Manuel utilisateur

Unitech

Unitech RH767 Manuel utilisateur

Honeywell

Honeywell 026366.00 Manuel utilisateur
