Panasonic K-SRC14 Manuel utilisateur

Rev.1.1

1.9GHz Wireless Receiver

K-SRC14

Rev.1.1

FCC CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful

Compliance with FCC requirement 15.407(c)

Data transmission is always initiated by software, which is the passed down through the MAC,

through the digital and analog baseband, and finally to the RF chip. Several special packets are

initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF

transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on

only while one of the aforementioned packets is being transmitted. In other words, this device

automatically discontinue transmission in case of either absence of information to transmit or

operational failure.

Radio Frequency (RF) Exposure Warning

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment

should be installed and operated keeping the radiator at least 20cm or more away from person’s

body (excluding extremities: hands, wrists, feet and ankles).

MEDICAL:

Consult the manufacturer of any personal medical devices, such as pacemakers, to determine if

they are adequately shielded from external RF (radio frequency) energy. The unit operates in the

frequency range of 1.92 GHz to 1.93 GHz.

Do not use the unit in health care facilities if any regulations posted in the area instruct you not to

do so. Hospitals or health care facilities may be using equipment that could be sensitive to

external RF (radio frequency) energy.

Rev.1.1

Notice

FCC ID can be found on the bottom of the units.

WARNING:

- The mains plug or an appliance coupler shall remain readily operable.

- To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with

the installation instructions.

- The connections should comply with local electrical code.

- The installation shall be carried out in accordance with all applicable installation rules.

- To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

- The apparatus should not be exposed to dripping or splashing and that no objects filled with

liquids, such as vases, should be placed on the apparatus.

- All work related to the installation of this product should be made by qualified service personnel

or system installers.

- This product has no power switch. When turning off the power, disconnect the power supply from

the PoE device.

CAUTION:

Before attempting to connect or operate this product, please read the label on the bottom.

The model number and serial number of this product may be found on the surface of the unit.

You should note the model number and serial number of this unit in the space provided and

retain this book as a permanent record of your purchase to aid identification in the event of

theft.

Model No.

Serial No.

Rev.1.1

Important safety instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and

the point where they exit from the apparatus.

10) Only use attachments/accessories specified by the manufacturer.

11) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury

from tip-over.

12) Unplug this apparatus during lightning storms or when unused for long periods of time.

13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate

normally, or has been dropped.

14) Make sure that the wall that the shelf will be attached to is strong enough to support the shelf. If not, it is

necessary for the wall to be reinforced.

15) For safety reasons, do not physically modify the product or any optional equipment.

16) To prevent possible fire or electric shock, do not expose this product to rain or moisture.

17) Follow all warnings and instructions marked on this product.

18) To reduce the risk of electric shock, do not disassemble this product. Only qualified personnel should

service this product. Opening or removing covers may expose you to dangerous voltages or other risks.

Incorrect reassembly can cause electric shock.

19) Unplug the AC adaptor from the AC outlet and have the product serviced by qualified service personnel in

the following cases:

A. When the power supply cord or plug is damaged or frayed.

B. If liquid has been spilled into this product.

Rev.1.1

If the product has been exposed to rain or water.

D. If the product does not operate according to this manual. Adjust only the controls that are explained in

this manual. Improper adjustment of other controls may result in damage and may require service by a

qualified technician to restore the product to normal operation.

If the product has been dropped or damaged.

F. If product performance deteriorates.

20) The product should never be placed near or over a radiator or other heat source.

21) Do not use a microwave oven to dry this product.

22) The product may only be installed and serviced by qualified service personnel.

Rev.1.1

Major operating controls and their functions

[1][LINK] button

Pressing this button will becomes register mode with a microphone.

(Linkup connection is established or progress of 20 seconds will cancel this mode.)

Refer to Operating procedures.

[2] POWER indicator [POWER]

(Green/Yellow/Red)

This LED lights green when the power is on and this unit is receivable under normal conditions.

This LED lights as follows to indicate other states:

E2 signal output provided: lighting red (Lighting green at Power OFF)

Page mute signal received: lighting yellow

[3]MIC1/MIC2 indicator [MIC1/MIC2]

This LED lights green when this unit is receiving signals from each microphone under normal conditions.

This LED lights as follows to indicate other states:

E2 signal output provided: lighting red. (Lighting green at E2 ACK input provided)

Page mute signal received: lighting yellow

E1 signal output provided: lighting (300ms) red

Feedback blocker in operation: lighting(5sec) yellow

[4] LINK indicator [LINK]

This LED lights yellow(500ms) when this unit is during ID registration(Pairing)

This LED lights red when this unit is system error

4 12

Rev.1.1

[5]Control terminals

8-pin and 7-pin Euro blocks are used.

The following terminals are equipped.

E1 CNT: provides E1 signal * output controlled by K-STD14.

E2 CNT: provides E2 signal * output controlled by K-STD14.

* Those are available when K-STD14 is used. Settings of E1 and E2 are performed with K-STD14.

E2 ACK: connects acknowledge signals responding to E2 output.

PAGE MUTE: provides make signal inputs externally when the paging function is used.

RS-232C: is used to control this unit via communication from an external device.

LINK button: provides make signal inputs externally when the external link button is used.

Alert notification button; provides make signal inputs externally when the external Alert notification button is used.

[6] Amplifier interface connector

This connector is used to connect the cable to the amplifier.

A standard CAT5 or CAT5e cable is used to connect to the amplifier.

[7] MIX OUT (unbalanced) connector

This connector provides the audio output of LINE IN of the main unit. Setting the No. 4 of the DIP switch1 to ON allows the audio

outputs of the microphone CH1 and CH2 received by this unit to be provided after mixing with LINE IN. This is an unbalanced

output. A stereo mini plug (φ3.5 mm) is used.

[8] LINE IN connector

This connector is used to provide an audio input from external sources such as a projector or CD. This is a stereo, line level input,

and is internally mixed to a monaural signal. A stereo mini plug (φ3.5 mm) is used.

[9]DIP Switches

Two DIP switches are used.

The settings of this switch are updated at the time of turning on the power.

Settings changed while powered up are not updated until the power is turned off and then back on. (Excluding No.7 of DIP

Switch 1)

Rev.1.1

Operating procedures

A standard CAT5 or CAT5e cable is used to connect to the amplifier,. After that, turned on amplifier.

The POWER LED of the receiver lights green.

2. Power ON of the microphone .

[K-STD14] : Turn on the [PWR/MUTE] button.

[K-SHH14] : Turn on the [PWR LINK] button. And Push [TALK push]button.

The MIC1 or MIC2 LED indicator of the lights green ( depending on a channel to be received.)

3 .Adjust the volume of external devices such as an amplifier.

The overall volume is adjusted with the external amplifier or the like. Use of the volume button of K-STD14 allows the volume of

itself to be adjusted. In addition, selection of the target with the selection button of K-STD14 allows the volume of the other

microphone received by this unit and the volume of LINE IN of this unit to be adjusted.

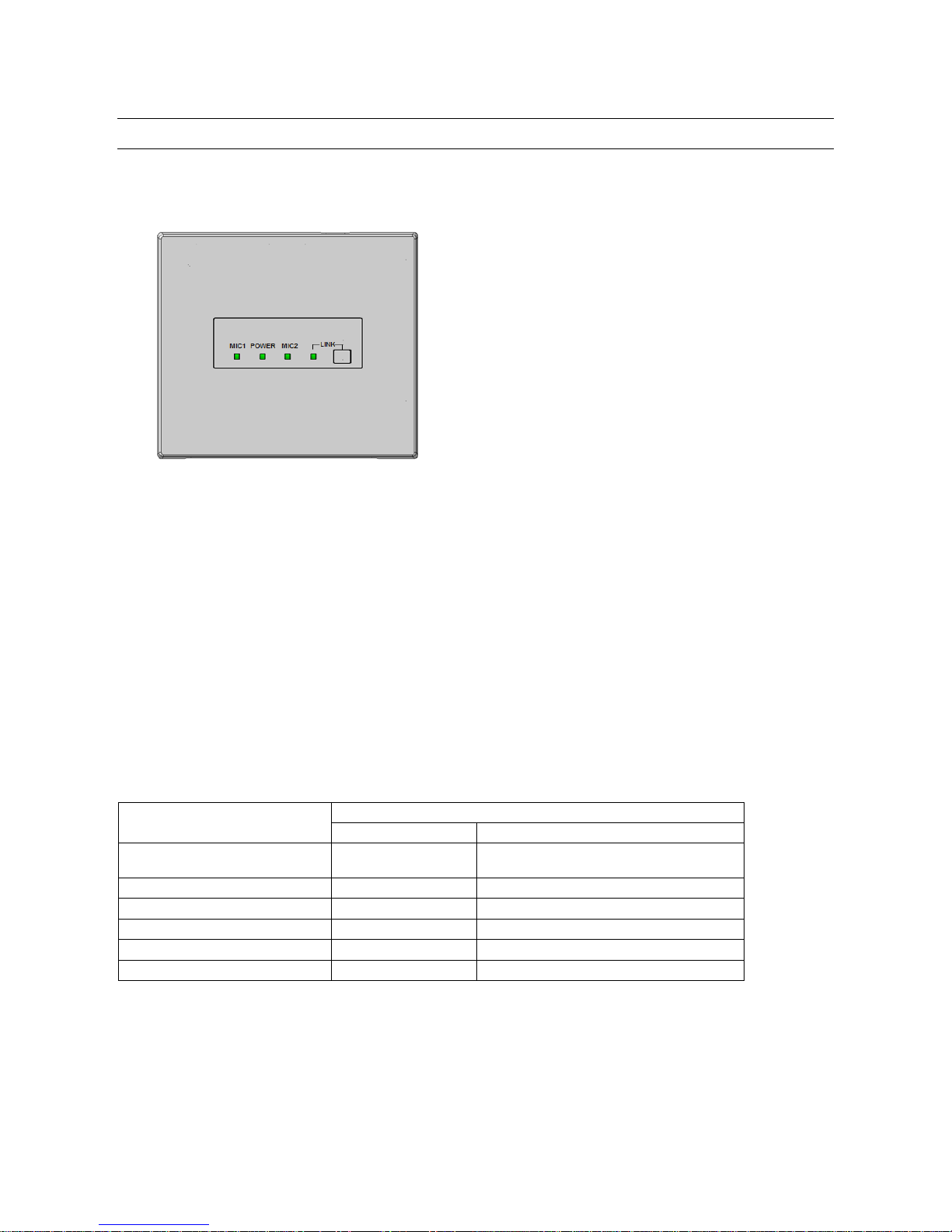

4. The LED of the POWER/MIC1/MIC2 indicates the operating state of this unit during operation.

LED

POWER indicator

MIC1/MIC2 indicator

E2 signal output provided* Lighting red Lighting red

(lighting green at E2 ACK input provided)

E1 signal output provided* Lighting green Lighting red (for 300 ms)

Page mute signal input provided Lighting yellow Lighting yellow

Microphone volume operated* Lighting green No lighting (for 300 ms)

Feedback blocker operated Lighting green Lighting yellow (for 5 s)

Audio link establishment Lighting green Lighting green

* Applicable when K-STD14 is used

5. The LED of the LINK indicates the operating state of this unit during operation.

Rev.1.1

Audio link establishment with the DECT AP Lighting Green

During ID registration/pairing Blink yellow at 500ms period

System error Lighting Red

Rev.1.1

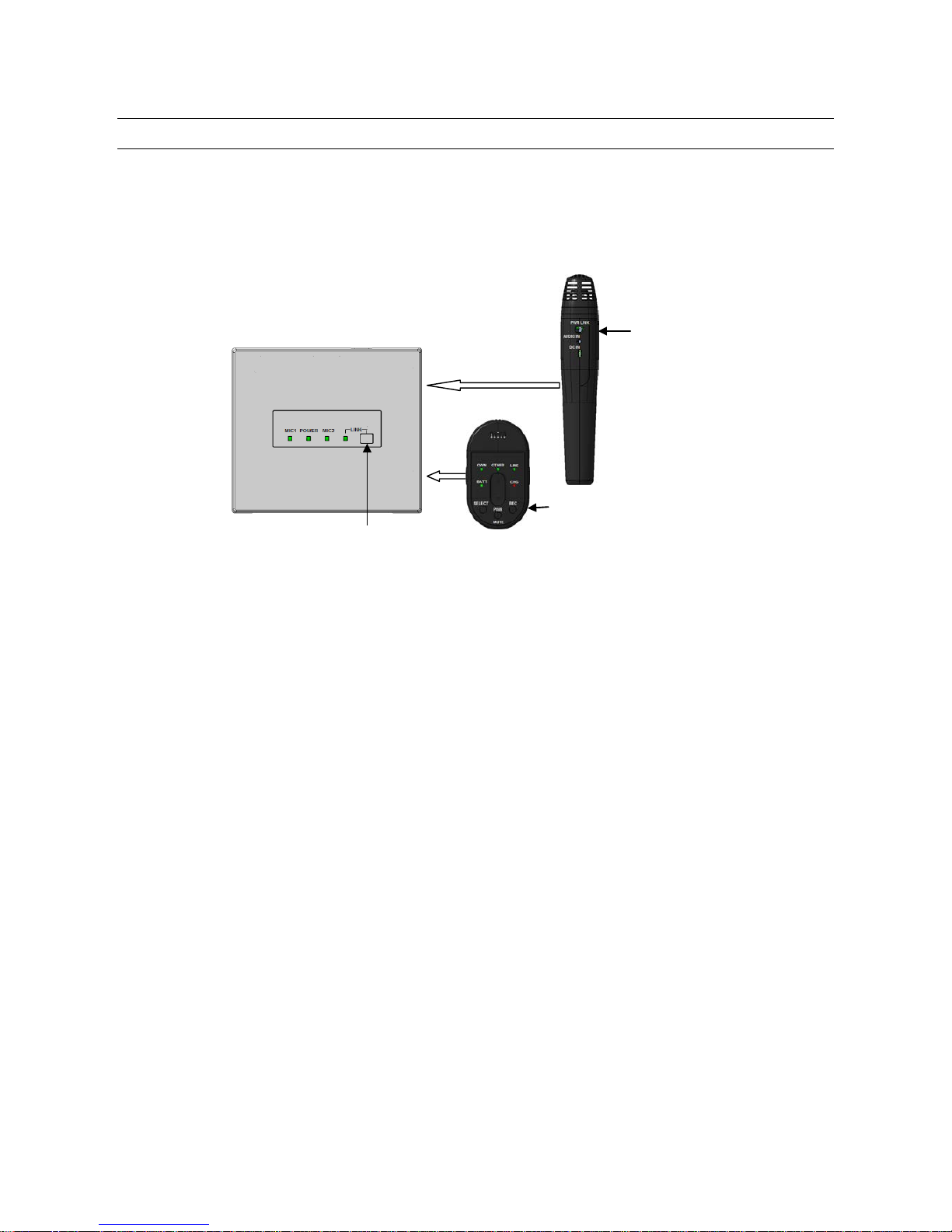

Connection registration of the microphone to a receiver

When connecting it with the receiver which has not connected once, pairing registration is needed first.

Please perform pairing registration according to the following procedure.

(Only the alert operates without registration work.)

1. Press a receiver's [LINK] button, and a receiver is made into register mode

2. (a) Pendant microphone:

Press [PWR/MUTE] button and [REC] button will register for receiver.

Pendant microphone [BATT] indicator is green light.

(b)Handheld microphone:

Microphone LINK switch (inside the battery cover) is ON. (Different receiver connection)

(Please read the operating instructions of the Handheld Microphone (K-SHH14).)

Press [PWR LINK] button will register for receiver.

Handheld microphone [BATT] indicator is blinking ( green ).

A pairing setup is required first.

[LINK] button

[PWR LINK] button

[PWR/MUTE] button

Table des matières

Autres manuels Panasonic Récepteur

Panasonic

Panasonic DMREZ485V - DVD RECORDER - MULTI LANGUAGE Manuel utilisateur

Panasonic

Panasonic RF-SW100 Manuel utilisateur

Panasonic

Panasonic TUIRD10 - DSS RECEIVER Manuel utilisateur

Panasonic

Panasonic CF-AA Series Manuel utilisateur

Panasonic

Panasonic CF-AA Series Manuel utilisateur

Panasonic

Panasonic WVRC100 - BROADCAST RECEIVER Mode d'emploi

Panasonic

Panasonic AG-IA671 Manuel utilisateur

Panasonic

Panasonic SA-HE100S Operating Manuel utilisateur

Panasonic

Panasonic WVRC150 - CONTROLLER Manuel utilisateur

Panasonic

Panasonic SAXR70 - RECEIVER Manuel utilisateur

Panasonic

Panasonic TU-PT600B Manuel utilisateur

Panasonic

Panasonic PS-2000ST Manuel utilisateur

Panasonic

Panasonic CZ-RWRY3 Manuel utilisateur

Panasonic

Panasonic SAHE9 - RECEIVER Manuel utilisateur

Panasonic

Panasonic SAXR25 - DIGITAL A/V RECEIVER Manuel utilisateur

Panasonic

Panasonic RF-P50 Manuel utilisateur

Panasonic

Panasonic Ramsa WX-RP810 Manuel utilisateur

Panasonic

Panasonic WX-SE200P Manuel utilisateur

Panasonic

Panasonic SAHE100 - RECEIVER Manuel utilisateur

Panasonic

Panasonic CF-AA Series Manuel utilisateur

Panasonic

Panasonic WJNT204 - NETWORK IF UNIT Manuel utilisateur

Panasonic

Panasonic WX-SR202P Manuel utilisateur

Panasonic

Panasonic TU-PT600E Manuel utilisateur

Panasonic

Panasonic CQ4500U - AUTO RADIO/CD TRUCK Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
