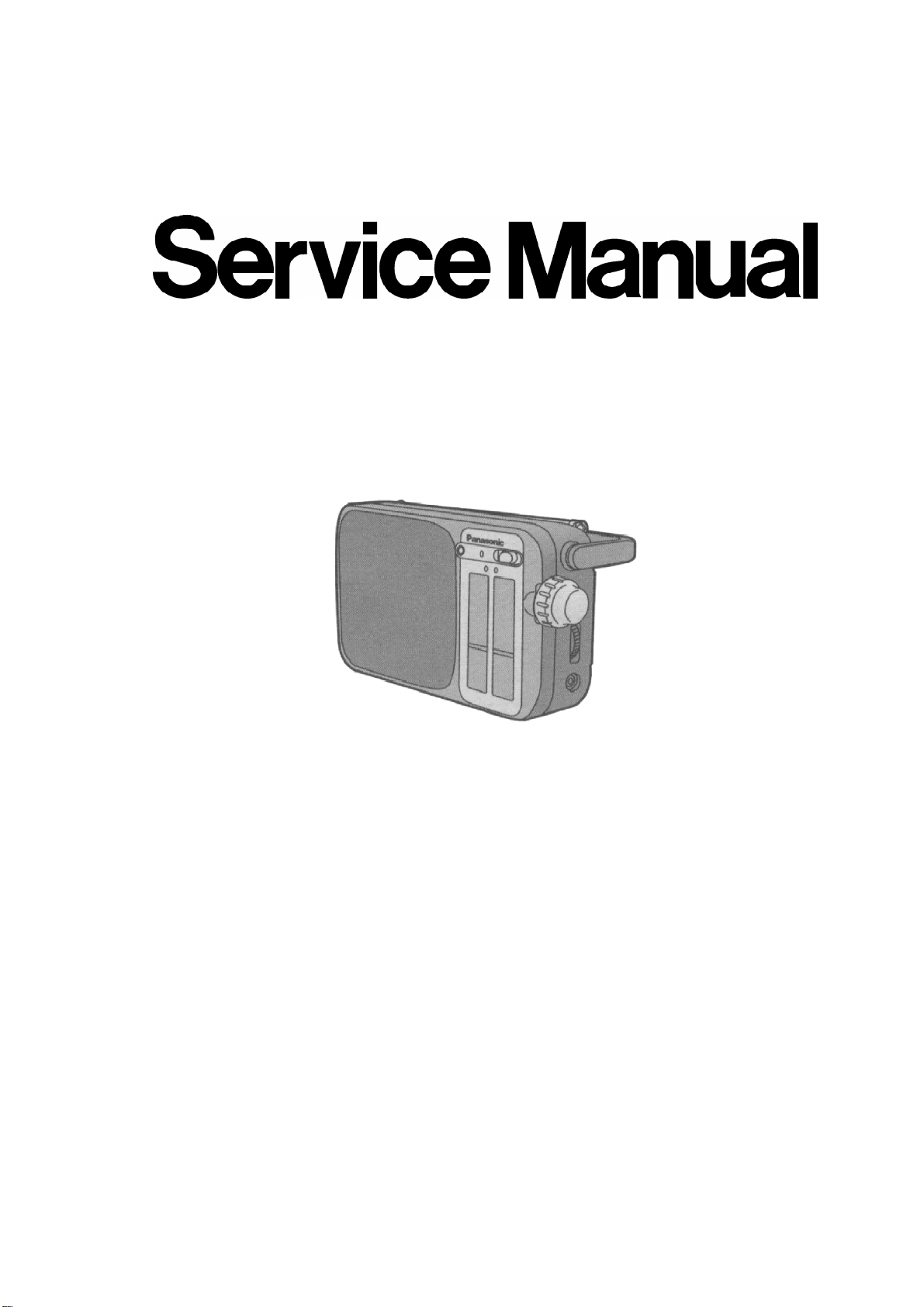

Panasonic RF-2400 Manuel utilisateur

ORDERNO. AD0102029C1

Radio

RF-2400

Colour

(S)............Silver Type

Areas

(P)............U.S.A.

(PC)..........Canada.

SPECIFICATIONS

Specifications

RadioFrequencyrange:

FM; 88.0- 108.0MHz

AM; 525 - 1710kHz

IntermediateFrequency:

FM; 10.7MHz

AM; 455kHz

Sensitivity:

FM; 3.55 V/50mWoutput / (-3dB

limit sens.)

AM; 178 V/m/50mWoutput /

(max.sens.)

Speaker: 10cm (4”)

Output jack: Earphone

Power requirement:

AC; 120V, 60Hz

Battery; DC6V(fourR6/LR6, AA, UM-3

batteries)

Power consumption: 3W

Dimensions(W×H×D): 234×122×82mm / (9-1/4”×4-3/4”×

3-1/4”)

Mass (without batteries): 670g(1lb. 7.6oz.)

Note: / Specificationsare subject tochangewithout notice. /

Mass and dimensionsare approximate.

[Power consumption instandbymode: 0.4W]

Unauthorized copying and distribution isaviolation of law.

1. Cabinet Parts Location

2. Replacement Parts List

Notes:

-Important safetynotice:

Components identified bymark have special characteristics

important for safety. / Furthermore, special parts which have

purposes of fire-retardant (resistors), high-qualitysound

(capacitors), low-noise / (resistors), etc. are used. / When

replacing anyof components, be sure to use onlymanufactures

specified parts showninthe parts list.

-The parenthesized indications inthe Remarks columns specifythe

areas. (Refer to the cover page for area.)/ Parts without these

indications can be used for all areas.

-“<IA>, <IB>”marks inRemarks indicates languages of instruction

manuals. / <IA>:English / <IB>:English, Canadian French

Ref. No. PartNo. PartName& Description Pcs Remarks

1RGWW0004-S KNOB,TUNING 1

2 RKKW0003-H BATTERYCOVER 1

3 XEARK160DA-C ROD ANTENNA 1

4XYN3+F8FY SCREW 1

A1 RJA0065-1D AC CORD 1

A2 RQT5882-P O/I BOOK 1 <IA>(P)

A2 RQT5883-C O/I BOOK 1 <IB>(PC)

K010200000YH

ORDERNO. AD0104103C3

FM-AM2-BAND RECEIVER

RF-2400

Colour

(S)............Silver Type

Areas

(GN)..........Oceania.

SPECIFICATIONS

Specifications

Radiofrequencyrange:

FM; 87.50-108.00MHz

AM; 520-1610kHz

Intermediatefrequency:

FM; 10.7MHz

AM; 459kHz

Sensitivity:

FM; 3.16 V/50mWoutput (-3dB

limit sens.)

AM; 141 V/m/50mWoutput (Max.

sens.)

Output jack: Earphone, 8

Speaker: 10cm

Power output: 770mW(RMS...max.)

Power requirement:

AC; 230-240V, 50Hz

DC; 6V (fourR6/LR6, AA, UM-3

batteries)

Power consumption: 3W

Dimensions(W×H×D): 234×122×82mm

Mass (without batteries): 670g

Playtime:

(Whenusedat 25°C on aflat, stablesurface)

Panasonicalkalinedrycell

battery: AM; About 47 hours

Fm; About 36 hours

Theplaytime maybeless depending on theoperating

conditions.

Note:

Specificationsare subject tochangewithout notice.

Mass and dimensionsare approximate.

Suppliedaccessory: AC mainslead(RJA0035-

X)...1pc.

Unauthorized copying and distribution isaviolation of law.

1. Operation Checks and Component Replacement

Procedures

-Thissection describes procedures for checking the operation of

the major printed circuitboards and replacing the main

components.

-For reassemblyafter operation checks or replacement, reverse the

respective procedures. Special reassemblyprocedures are

described onlywhen required.

1.1. Checking for the mainP.C.B.

-Check the mainP.C.B. as shownbelow.

1.2. Replacement for the handle

-Follow the (Step 1) , (Step 2) of item 1.1.

1.3. Replacement for the speaker

-Follow the (Step 1) , (Step 2) of item 1.1.

1.4. Replacement for the dial rope and pointer

-Follow the (Step 1) -(Step 4) of item 1.1.
