Panasonic KX-T7640 Manuel utilisateur

Digital DSS Console

Quick Reference Guide

Model No. KX-T7640

Before Initial Use

Caution

• If there is any trouble, disconnect the Digital DSS Console from the telephone line and have it

repaired.

•

Keep the unit away from heating appliances and electrical noise generating devices such

as fluorescent lamps, motors and televisions. These noise sources can interfere with the

performance of the unit.

•

This unit should be kept free of dust, moisture, high temperature (more than 40 oC) and

vibration, and should not be exposed to direct sunlight.

•

Do not use benzine, thinner, or the like, or any abrasive powder to clean the cabinet.

Wipe it with a soft cloth.

WARNING:

TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR ANY TYPE OF MOISTURE.

•

This Class B digital apparatus complies with Canadian ICES-003.

Thank you for purchasing the Panasonic KX-T7640, Digital DSS Console. Please

read this manual carefully before using this product and save this manual for future

use.

This manual is designed to be used with your Digital DSS Console and a Panasonic KX-

TDA series Business Telephone System.

The Digital DSS Console can be used with any Panasonic model KX-T7600 series,

Digital Proprietary Telephone (e.g., KX-T7625, KX-T7630, KX-T7633, KX-T7636).

The Digital DSS Console must be connected directly to the main unit.

Accessories

Telephone line cord........................................................................................ 1

Attachment Plate............................................................................................ 1

Screws............................................................................................................ 4

Wall Mounting Adaptor *................................................................................ 1

* This telephone comes with the wall mounting adaptor already attached. To remove the adaptor for

desktop operation, push the adaptor toward the top of the unit while pressing the two tabs.

The telephone line cord (included)

Connect to a KX-TDA series Business Telephone System

( ).

CAUTION

Ensure the cord is inserted in the groove

to prevent damage to the connector.

< Back view >

TO MAIN UNIT

/ PABX

Location of Controls

Connection

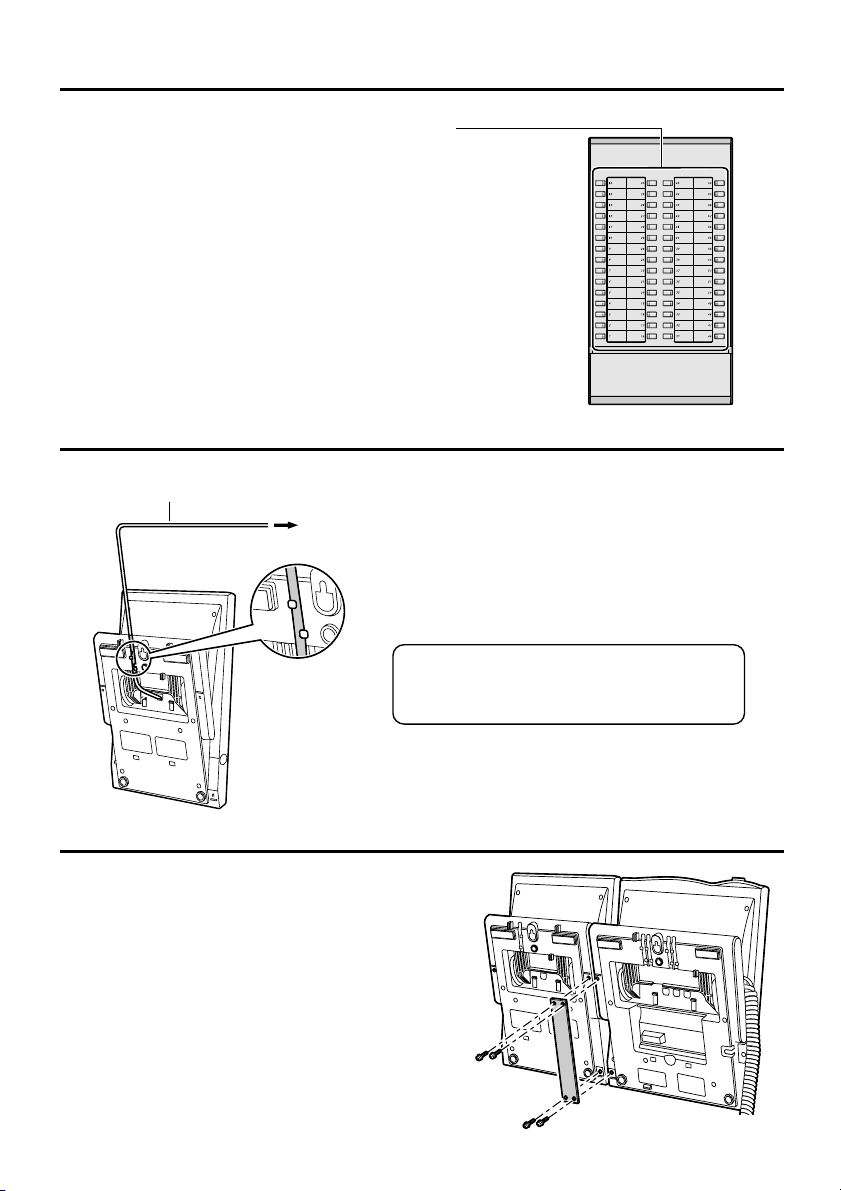

Attaching a Proprietary Telephone

DSS Buttons with Busy Lamp Field (BLF):

To access an extension, simply press a DSS

button.

These buttons also can be assigned for the One-

touch Dialling and reassigned to other features.

The BLF indicates the current status of the

corresponding extension.

This unit can be bolted to a Panasonic digital

proprietary telephone (KX-T7625, KX-T7630, KX-

T7633, KX-T7636).

Use the attached plate and screws.

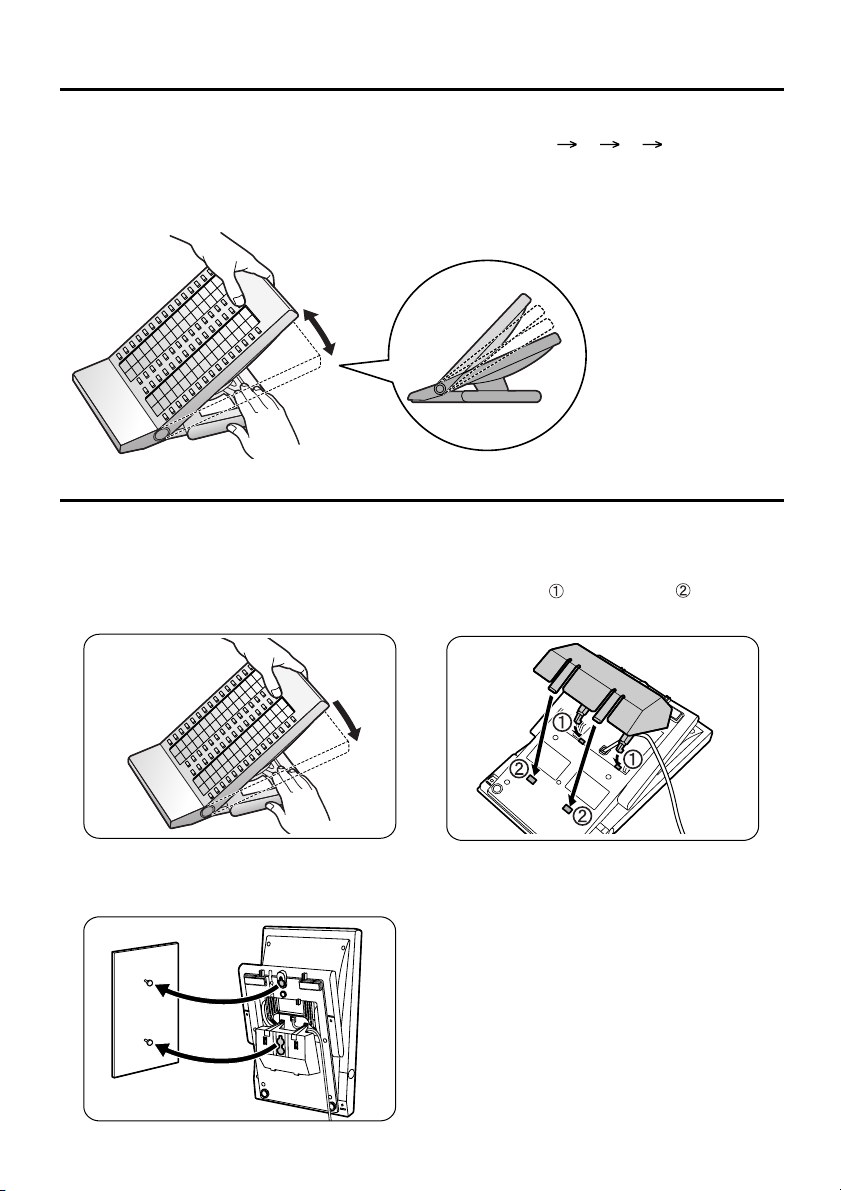

Tilt Angle Adjustment

The tilt angle of the operation board can be adjusted to one of four angles.

To lift: Lift up the operation board to the desired step-angle (1 2 3 4).

To set down:

Lift up the operation board to the highest angle and then press down to step-angle 1.

Be careful not to get your fingers caught between the base and the operation

board.

Wall Mounting

This unit can be mounted on a wall.

1Set the operation board to

step-angle 1.

2Connect the telephone line cord, and

then attach first and then of the wall

mounting adaptor.

Mount the unit on the wall.

This manual is copyrighted by Panasonic Communications Co., Ltd. (PCC).

Under the applicable copyright laws, this manual may not be reproduced in any

form, in whole or part, without the prior written consent of PCC.

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, ON L4W2T3

PSQX2672ZA KK0503TT0
