Order Number MTV1112129CE

FULL HD LCD Display

Model No. TH-42LF25W

TH-47LF25W

TABLE OF CONTENTS

PAGE PAGE

1 Safety Precautions----------------------------------------------- 3

1.1. General Guidelines---------------------------------------- 3

1.2. Touch-Current Check ------------------------------------- 3

2 Warning -------------------------------------------------------------- 4

2.1. Prevention of Electrostatic Discharge (ESD)

to Electrostatically Sensitive (ES) Devices---------- 4

2.2. About lead free solder (PbF)---------------------------- 5

3 Service Navigation ----------------------------------------------- 6

3.1. Applicable signals ----------------------------------------- 6

4 Specifications ----------------------------------------------------- 8

5 Operating Instructions------------------------------------------ 9

6 Service Mode -----------------------------------------------------11

6.1. Service Menu Function (1) -----------------------------11

6.2. Service Menu Function (2) -----------------------------12

6.3. Service Mode Function (1) -----------------------------13

6.4. Service Mode Function (2) -----------------------------14

7 Troubleshooting Guide ----------------------------------------15

8 Disassembly and Assembly Instructions ---------------16

8.1. Flowchart for disassembly------------------------------16

8.2. Preparations----------------------------------------------- 17

8.3. Pedestal (option) removal------------------------------ 17

8.4. Rear cover removal-------------------------------------- 17

8.5. Replacement method for main board and jack

board -------------------------------------------------------- 18

8.6. Replacement method for Power board ------------- 19

8.7. Replacement method for AC cord bracket -------- 19

8.8. Cabinet back removal (42 type) ---------------------- 20

8.9. Cabinet back removal (47 type) ---------------------- 20

8.10. When removing the cabinet back with the

board connected ----------------------------------------- 20

8.11. Replacement method for speakers ------------------ 20

8.12. Key SW board replacement --------------------------- 20

8.13. Connector board removal ------------------------------ 21

8.14. LCD panel replacement -------------------------------- 21

8.15. Replacement method for RC+LED board---------- 22

8.16. Cabinet front replacement ----------------------------- 22

8.17. Cabinet back replacement----------------------------- 23

9 Block Diagram --------------------------------------------------- 27

TH-42LF25W / TH-47LF25W

9.1. Block (1 of 2) Diagram ---------------------------------- 27

9.2. Block (2 of 2) Diagram ---------------------------------- 28

10 Wiring Connection Diagram --------------------------------- 29

10.1. Wiring Connection Diagram (1)----------------------- 29

10.2. Wiring Connection Diagram (2)----------------------- 31

10.3. Wiring Connection Diagram (3)----------------------- 32

10.4. Wiring Connection Diagram (4)----------------------- 33

11 Exploded View and Replacement Parts List ----------- 34

11.1. Exploded View and Mechanical Replacement

Parts List --------------------------------------------------- 34

11.2. Mechanical Replacement Parts List (42 inch) ---- 50

11.3. Mechanical Replacement Parts List (47 inch) ---- 51

11.4. Electrical Replacement Boards list (42 inch) ------ 52

11.5. Electrical Replacement Boards list (47 inch) ------ 52

11.6. Boards Layout--------------------------------------------- 52

TH-42LF25W / TH-47LF25W

1 Safety Precautions

1.1. General Guidelines

1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.

2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the

wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.

3. When conducting repairs and servicing, do not twist the Fasten connectors but plug them straight in or unplug them straight

out.

4. When servicing, observe the original lead dress.If a short circuit is found, replace all parts which have been overheated or

damaged by the short circuit.

5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly

installed.

6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

1.2. Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground

such as a water pipe, as shown in Figure 1.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUCH CURRENT) expressed as voltage U1and U2, does not exceed the following values:

For a. c.: U1= 35 V (peak) and U2= 0.35 V (peak);

For d. c.: U1= 1.0 V,

Note:

The limit value of U2= 0.35 V (peak) for a. c. and U1= 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and 2.0

mA d. c.

The limit value U1= 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.

7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be

repaired and rechecked before it is returned to the customer.

Figure 1

TH-42LF25W / TH-47LF25W

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensi-

tive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec-

trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and

semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage

caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your

body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,

which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alumi-

num foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static (ESD protected)” can

generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most

replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or compara-

ble conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brush-

ing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient

to damage an ES device).

TH-42LF25W / TH-47LF25W

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements.

In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.

The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).

That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d

suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please

use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).

If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb sol-

der. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the

opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. How-

ever, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

TH-42LF25W / TH-47LF25W

3 Service Navigation

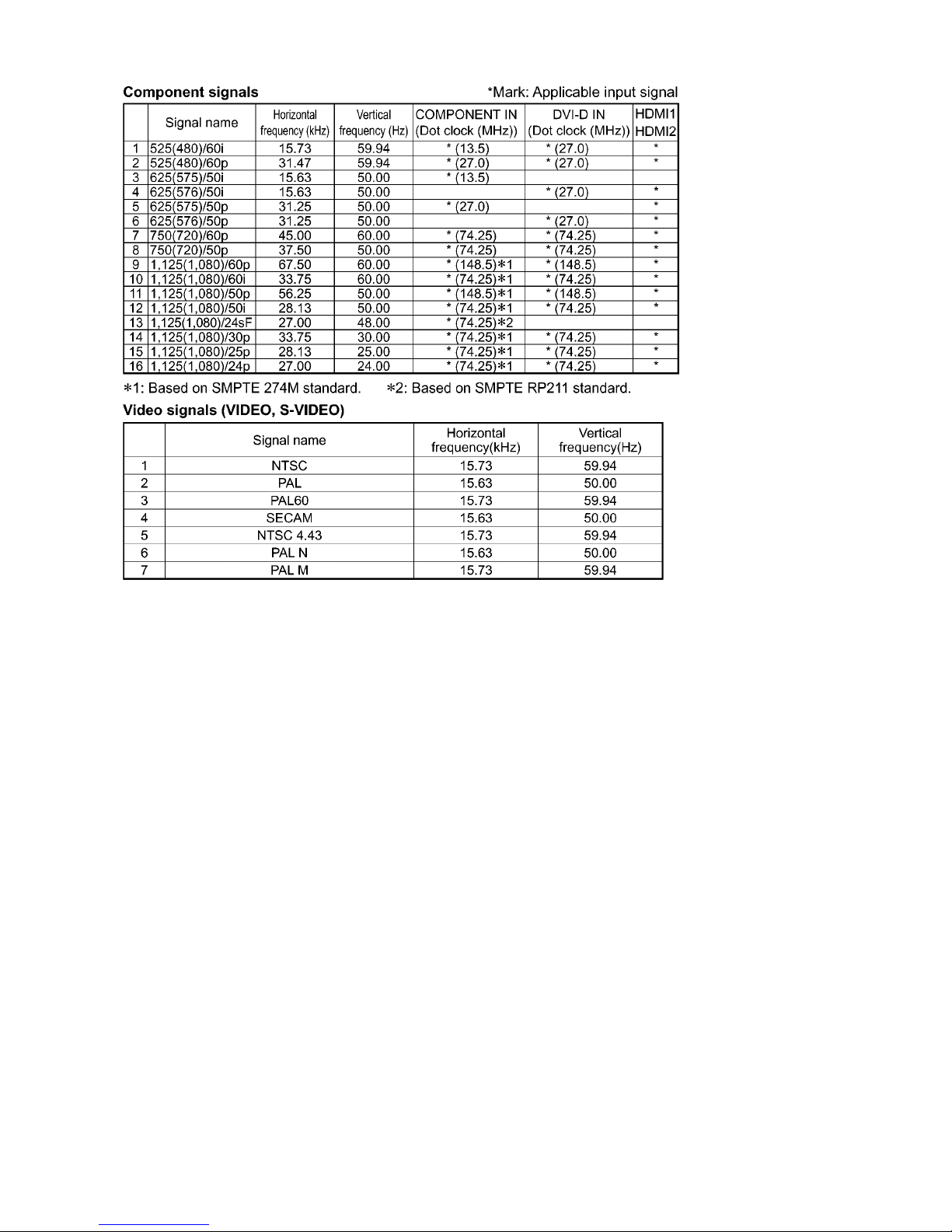

3.1. Applicable signals

TH-42LF25W / TH-47LF25W

4 Specifications

Power Source 220 - 240 V AC, 50/60Hz

Power Consumption

Power on 240 W (42 inch) 290 W (47 inch)

Stand-by condition 0.2 W (42 inch) 0.2 W (47 inch)

Power off condition 0.2 W (42 inch) 0.2 W (47 inch)

LCD Display panel 42-inch IPS panel, 16:9 aspect ratio (42 inch) 47-inch IPS panel, 16:9 aspect ratio (47 inch)

Screen size 930 mm (W) ×523 mm (H) ×1,067 mm (diagonal) (42 inch)

1,040 mm (W) ×585 mm (H) ×1,193 mm (diagonal) (47 inch)

(No.of pixels) 2,073,600 (1,920 (W) ×1,080 (H)) (42 inch) 2,073,600 (1,920 (W) ×1,080 (H)) (47 inch)

[5,760 ×1,080 dots] [5,760 ×1,080 dots]

Operating condition

Temperature 0 °C - 40 °C

Humidity 20 % - 80 %

Applicable signals

Colour System NTSC, PAL, PAL60, SECAM, NTSC 4.43, PAL M, PAL N

Scanning format 525 (480) / 60i 60p, 625 (575) / 50i 50p, 750 (720) / 60p 50p, 1125 (1080) /

60i 60p 50i 50p 24p 25p 30p 24sF

PC signals VGA, SVGA, XGA, SXGA

UXGA ..... (compressed)

Horizontal scanning frequency 30 - 110 kHz

Vertical scanning frequency 48 - 120 Hz

Connection terminals

AV IN VIDEO BNC 1.0 Vp-p (75-ohm)

S-VIDEO Mini DIN 4PIN Y: 1.0 Vp-p (75-ohm), C: 0.286 Vp-p (75-ohm)

AUDIO L-R RCA Pin jack ×2 0.5 Vrms

HDMI 1/2 TYPE A Connector

COMPONENT / RGB IN

G/Y BNC with sync 1.0 Vp-p (75-ohm)

B/PB/CBBNC 0.7 Vp-p (75-ohm)

R/PR/CRBNC 0.7 Vp-p (75-ohm)

AUDIO L-R RCA Pin jack ×2 0.5 Vrms

DVI-D IN DVI-D 24 Pin Compliance with DVI Revision 1.0

Content Protection Compatible with HDCP 1.1

AUDIO Stereo mini jack (M3) ×1 0.5 Vrms, Shared with PC IN

PC IN High-Density Mini D-sub 15 Pin G with sync 1.0 Vp-p (75-ohm)

G without sync 0.7 Vp-p (75-ohm)

B:0.7 Vp-p (75-ohm)

R:0.7 Vp-p (75-ohm)

HD / VD:1.0 - 5.0 Vp-p (high impedance)

AUDIO Stereo mini jack (M3) ×1 0.5 Vrms, Shared with DVI-D IN

SERIAL External Control Terminal

D-sub 9 Pin RS-232C compatible

Sound

Speakers 50 mm ×90 mm ×2 pcs

Audio Output 10 W [5 W + 5 W] (10 % THD)

Accessories Supplied

Remote Control Transmitter N2QAYB000535

Batteries R6 Size ×2

Dimensions (W ×H ×D) 968 mm ×561 mm ×101 mm (42 inch) 1,079 mm ×624 mm ×101 mm (47 inch)

Mass (weight) approx. 18.0 kg (42 inch) approx. 23.0 kg (47 inch)

Note:

• Design and specifications are subject to change without notice. Mass and dimensions shown are approximate.

TH-42LF25W / TH-47LF25W

5 Operating Instructions

TH-42LF25W / TH-47LF25W

Autres manuels pour TH-42LF25W

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Moniteur

Panasonic

Panasonic TH32LHD7UXK - 32" IND LCD TV Manuel utilisateur

Panasonic

Panasonic WVCM1420 - COLOR MONITOR Manuel utilisateur

Panasonic

Panasonic PANASYNC S70 Manuel utilisateur

Panasonic

Panasonic WV-CK2020A - 20" CRT Display Manuel utilisateur

Panasonic

Panasonic BTLH1700W - 17" HD MONITOR Manuel utilisateur

Panasonic

Panasonic TH-55LFV50U Manuel utilisateur

Panasonic

Panasonic TH-65PF20ER Manuel utilisateur

Panasonic

Panasonic PT-43LC14K Manuel utilisateur

Panasonic

Panasonic TH-80BF1U Manuel utilisateur

Panasonic

Panasonic PANASYNC S50 Manuel utilisateur

Panasonic

Panasonic TH-65PF10WK Manuel utilisateur

Panasonic

Panasonic TH-55LFV9W Manuel utilisateur

Panasonic

Panasonic PT-50LCZ70 - 50" Rear Projection TV Manuel utilisateur

Panasonic

Panasonic TH-32LHD7B Manuel utilisateur

Panasonic

Panasonic TH-37PW7BX Manuel utilisateur

Panasonic

Panasonic BTH1700BP - IND. MONITOR Manuel utilisateur

Panasonic

Panasonic BT-LH900 Manuel utilisateur

Panasonic

Panasonic TH-37PR10B Manuel utilisateur

Panasonic

Panasonic TH-70LF50ER Manuel utilisateur

Panasonic

Panasonic PANASYNC TX-D9S55 Manuel utilisateur

Panasonic

Panasonic WVLC1710 - LCD MONITOR Manuel utilisateur

Panasonic

Panasonic TH-37PG9U Manuel utilisateur

Panasonic

Panasonic TH50PF9UK - 50" Plasma Panel Manuel utilisateur

Panasonic

Panasonic WVBM1700 - 17" B/W MONITOR Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation

LG M1950D-PZ Manuel utilisateur
