Panasonic 65PF9UK - TH - 65" Plasma Panel Manuel utilisateur

[ Product summary ]

- 65" 1080p High Definition Plasma Display for Professional use

- "Super Cinema Mode" - perfectly tuned color setting for true professional users - enables a reference

monitor level of color reproduction on native 1080p high resolution panel

- Equipped with three interchangeable slots - provides flexible and powerful system solution

by adding/exchanging a wide variety of optional plug-in boards

- New optional plug-in boards are also available to maximize 1080p resolution panel performance - TY-FB9FDD

(UxGA compatible DVI board (pre-installed when shipped)), TY-FB9HD (full 10 bit processing HD-SDI board)

- Available with various unique professional features like, Dual picture mode, Digital zoom,

Built-in video wall image enlarger, etc…

[ Product s

ecification

]

(

desi

n and s

ecification sub

ect to chan

e without notice

)

Dis

Screen Size (Diagonal) 65 - inch (165 cm )

Aspect ratio 16:9

Effective Display Area (W x H) 56.5" x 31.8" (1,434 x 807 mm)

Resolution (H x V) 1,920 x 1,080 pixels (1pixel=3cells for R,G and B)

Pixel Pitch (H x V) 0.747 x 0.747 mm

Brightness 1,000 cd/㎡

Contrast Ratio (Bright room) Max. 5,000:1 (400:1)

Gradation 4,096 steps (equivalent)

nal Com

atibilit

Scan Rate Horizontal frequency 15-110 kHz

Vertical frequency 48 -120Hz

PC Signal Compatibility VGA, SVGA, WVGA, WSVGA, XGA, SXGA, XGA+, SXGA+, WXGA

UXGA, WUXGA ・・・・・(Compressed)

Supported Video Standards NTSC, PAL, PAL 60, SECAM, Modified NTSC

Video Signal Compatibility 525(480)/60i・60p, 625(575)/50i・50p, 750(720)/60p・50p,

1125(1080)/60i・50i・24p・24sF・25p・30p・60p・50p, 1250(1080)/50i

ut / Out

Fixed Terminal PC IN Mini D-sub 15pin x 1 Analog RGB / Component

- Plug & Play (VESA DDC 1/2B)

AUDIO IN M3 jack x 1

SERIAL D-sub 9-pin x 1 External control, RS-232C compatible

Interchangeable Terminals

(Slot1) Vacant

(Slot2:TY-FB9FDD) DVI-D IN DVI 24 pin x 1

AUDIO IN M3 jack x 1

(Slot3:TY-42TM6A) COMPONENT IN BNC x 3 Analog RGB / Component

AUDIO IN (L/R) RCA pin jack x 2

ELECTRICA

Power Requirements AC 120 V,　50Hz/60Hz

Power Consumption 790 W

Power off condition 0.1 W

Stand-by condition Save Off 1.0 W, Save On 0.8 W

SOUND Audio Output 20 W [10 W + 10 W]

MECHANICA

Dimensions (W x H x D) 61.2" x 36.4" x 3.9" (1,554 x 925 x 99 mm) (exclusive protruding portion)

Weight approx. 163.1lbs (74 kg)

Cabinet color Black

ENVIRONMENTA

Operating environment Temperature 32°F - 104°F (0 ℃- 40 ℃)

Humidity 20 % - 80 % (Non condensation)

Altitude 0 - 9,100 feet ( 0 - 2,800m )

Storage environment Temperature -4°F - 140°F (-20℃- 60 ℃)

Humidity 20% - 90% (Non condensation)

Altitude 0 - 10,800 feet (0 - 3,300m)

EMI REGULATION

FCC Part 15 Class-B, ICES-003

SAFETY STANDARD

UL6500 Ver.2

IR REMOTE CONTRO

Power Requirements DC 3V (UM3 battery x 2)

Operation distance approx. 23 feet (7m) in front of plasma display

Weight approx. 4.6 oz (130g) including batteries

INCLUDED ACCESSORIE

- Remote controller - Batteries - Fixing Band x 2　　　- AC Power cord 　　- Operating instruction book

OPTIONAL ACCESSORIE

- Wall-hanging bracket ( vertical, angled )　- Pedestal - Touch Panel - Speakers

- Anti-glare filter - Terminal boards

TH-65PF9UK_060831(1/3)

TH - 65PF9UK

High Definition

Plasma Display

Panasonic

TH-65PF9(2/3)

M060830

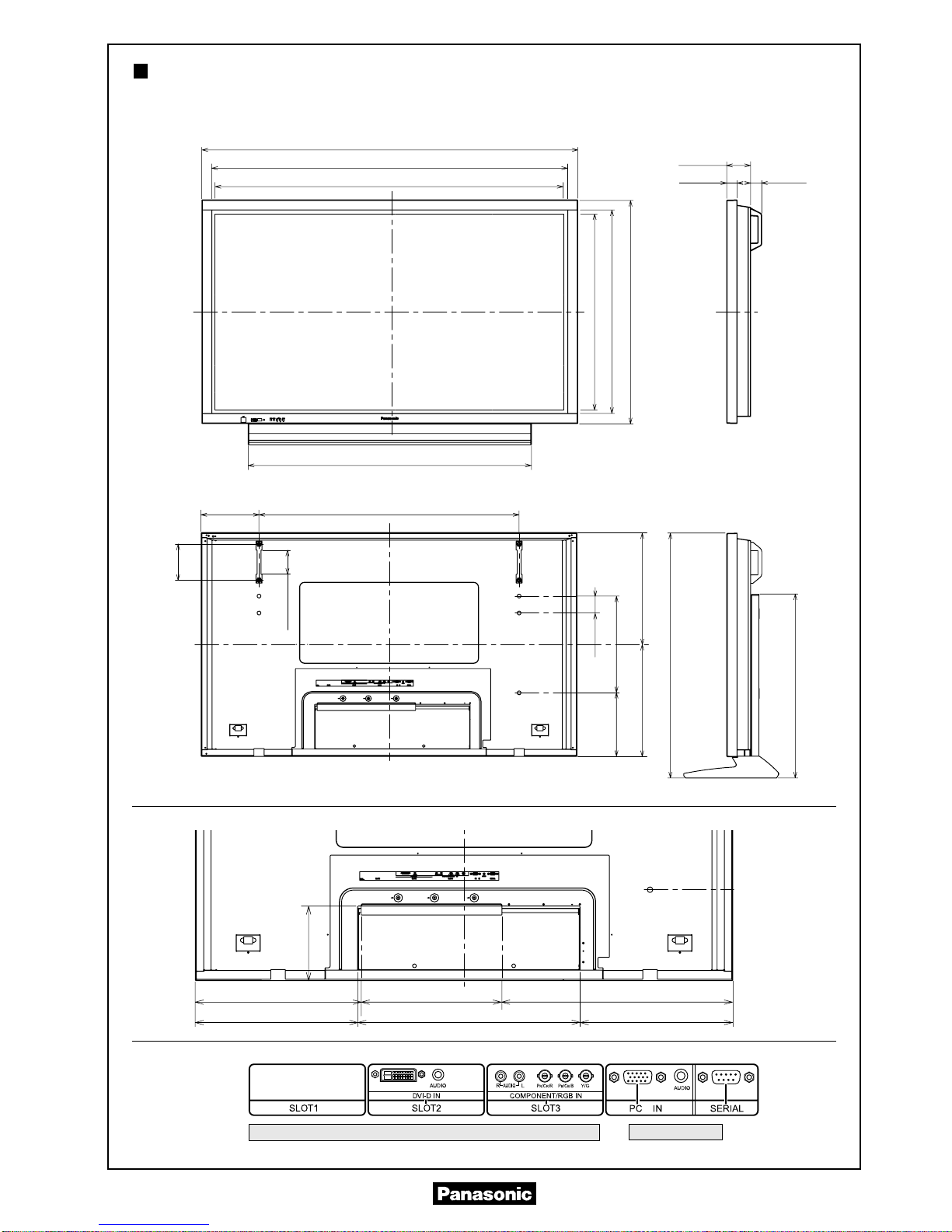

Dimensions (Shown with optional Pedestal stand)

925 (36.4 )

841 (33.1)

807 (31.8)

1554 (61.1)

1471 (57.9)

1434 (56.5) 46 (1.8)

99 (3.8)

42.5 (1.6)

1012 (39.8)

759 (29.8)

70 (2.7)

400 (15.7)

262.5 (10.3)

1171 (46.1)

1075 (42.3)239.5 (9.4)

462.5 (18.2 )462.5 (18.2)

150 (5.9)

100 (4)

Multi-Function slots Fixed part

Units : mm (inches)

480 (18.8) 407 (16.0) 667.5 (26.2)

215 (8.4)

472 (18.5) 638 (25.1) 444 (17.4)

When installed pedestal

Preset Input Signals

Composite/Component

VideoTY-42TM6Y

Component Video

TY-42TM6A/Z

PC Input

TY-42TM6P

RGB Active Through

TY-42TM6G

Composite Video

TY-42TM6B/V

BNC Dual Video

TY-FB9BD

DVI-D

TY-FB9FDD

SDI

TY-FB7SD

HD-SDI

TY-FB9HD

HDMI

TY-FB8HM

Serial RS232C : D-sub 9-Pin (Male)

Pin Assignment and Signal Nam

NTSC 15.73 59.94 YYY Pin No. Signal name

PAL 15.63 50.00 YYY 1CD

PAL60 15.73 59.94 YYY 2 RXD

SECAM 15.63 50.00 YYY 3 TXD

Modified NTSC 15.73 59.94 YYY 4 DTR

525(480)/60i 15.73 59.94 YYYY YY Y 5 GND

525(480)/60p 31.47 59.94 YYYY Y YY 6 DSR

625(575)/50i 15.63 50.00 YYYY YY Y 7 RTS

625(575)/50p 31.25 50.00 YYYY Y 8 CTS

625(576)/50p 31.25 50.00 YY

9RI

750(720)/60p 45.00 60.00 YYYY Y YYY

750(720)/50p 37.50 50.00 YYYY Y YYY Transmitting Conditions

1125(1080)/60i 33.75 60.00 YYYY Y YYY

1125(1080)/60p 67.50 60.00 YYYY Y Y

1125(1080)/50i 28.13 50.00 YYYY Y YYY

1125(1080)/50p 56.25 50.00 YYYY Y Y

1125(1080)/30p 33.75 30.00 YYYY Y Y

1125(1080)/25p 28.13 25.00 YYYY Y Y

1125(1080)/24p 27.00 24.00 YYYY Y Y

1125(1080)/24sF 27.00 48.00 YYYY Y Y

1250(1080)/50i 31.25 50.00 YYYY Y

640×400@70 31.46 70.07 YYYY Y

640×480@60 31.47 59.94 YYYY Y YY

640×480@72 37.86 72.81 YYYY Y PC Input : D-Sub 15-Pin (Female)

640×480@75 37.50 75.00 YYYY Y

640×480@85 43.27 85.01 YYYY Y

852×480@60 31.47 59.94 YYYY Y Y

800×600@56 35.16 56.25 YYYY Y

800×600@60 37.88 60.32 YYYY Y Y

800×600@72 48.08 72.19 YYYY Y Signal Name

800×600@75 46.88 75.00 YYYY Y Pin No.

800×600@85 53.67 85.06 YYYY Y 1

1066×600@60 37.88 60.32 YYYY Y Y 2

1024×768@50 39.55 50.00 Y3

1024×768@60 48.36 60.00 YYYY Y Y 4

1024×768@70 56.48 70.07 YYYY Y 5

1024×768@75 60.02 75.03 YYYY Y 6

1024×768@85 68.68 85.00 YYYY Y 7

1366×768@50 39.55 50.00 Y8

1366×768@60 48.36 60.00 YYYY Y Y 9

1152×864@60 53.70 60.00 Y10

1152×864@75 67.50 75.00 YYYY Y 11

1280×960@60 60.00 60.00 YYYY Y 12

1280×960@85 85.94 85.00 YYYY Y 13

1280×1024@60 63.98 60.02 YYYY Y Y 14

1280×1024@75 79.98 75.03 YYYY Y 15

1280×1024@85 91.15 85.02 YYYY Y

1400×1050@60 65.22 60.00 Y

1600×1200@60 75.00 60.00 YYYY Y Y

1600×1200@65 81.25 65.00 YYYY Y

1920×1200@60 74.04 59.95 Y

Mac13”（640×480）35.00 66.67 YYYY Y

Mac16”（832×624）49.72 74.54 YYYY Y

Mac21”（1152×870）68.68 75.06 YYYY Y

TH-50/65/103PF9 series

20060831 (3/3)

Parity

Character Length

Stop Bit

Flow control

9600 bps

Synchronization

method Asynchronous

Baud Rate

SCL

GND (Ground)

NC (Not connected)

SDA

HD/SYNC

GND (Ground)

NC (Not connected)

G (Y)

B (PB/CB)

NC (Not connected)

GND (Ground)

Short Circuit

Signal name

R (PR/CR)

Signal Level Complied with RS232C

None

8 bits

1 bit

Not used

Ground

Not used

PC IN(D-sub 15-pin)

Fixed Terminal

Descriptions

Receive Data

Transmit Data

Component / RGBRGB

Optional Terminal Board

Signal name

horizontal frequency

(kHz)

vertical frequency

(Hz)

Composite

Panasonic
