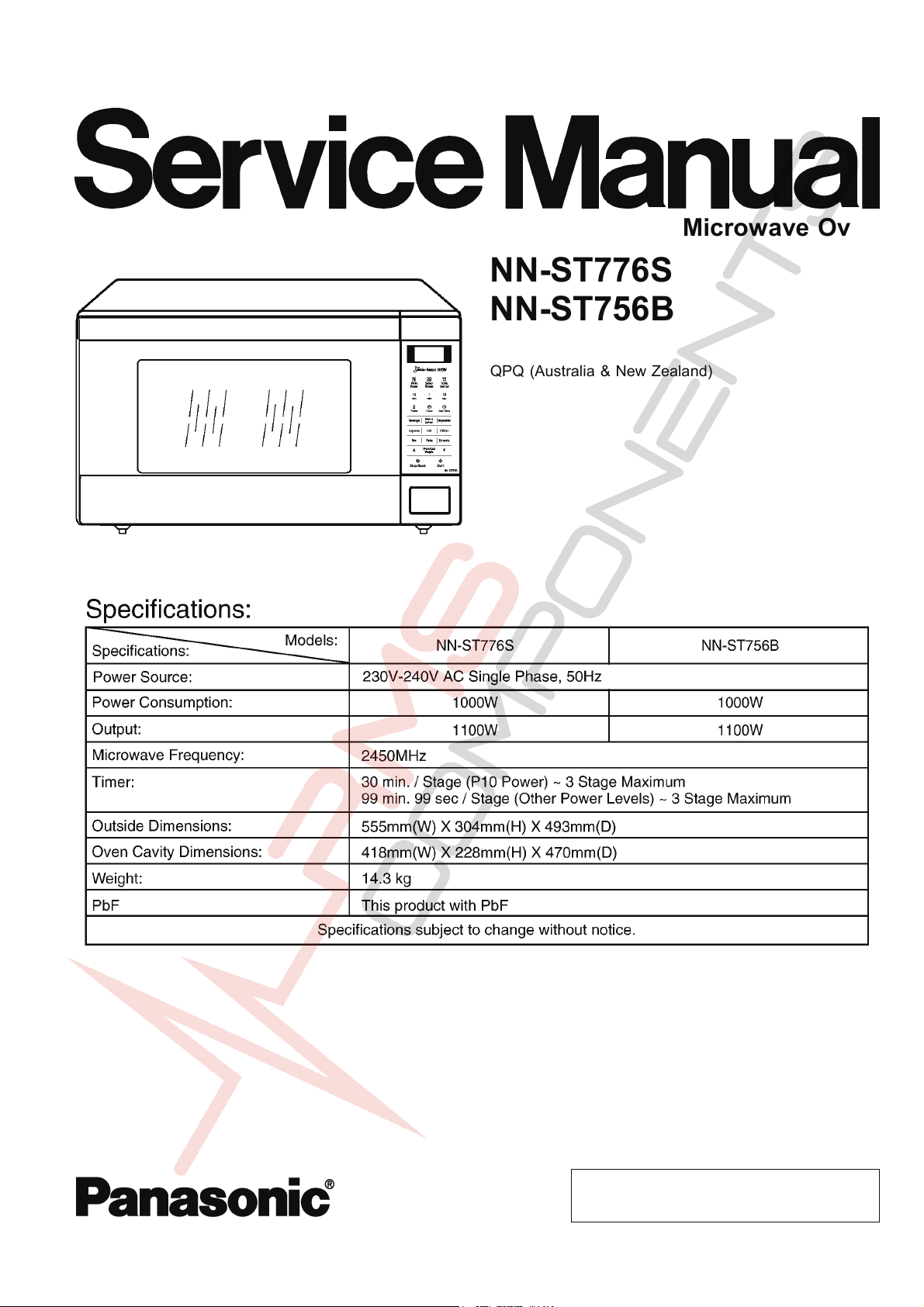

Panasonic NN-ST776S Manuel utilisateur

(Shanghai) Co., Ltd. 2016.

NN-ST776S

NN-ST756B

QPQ (Australia & New Zealand)

Microwave Oven

ORDER NO.PAPMOSH1605026CE

8 EXPLODED VIEW AND PARTS LIST

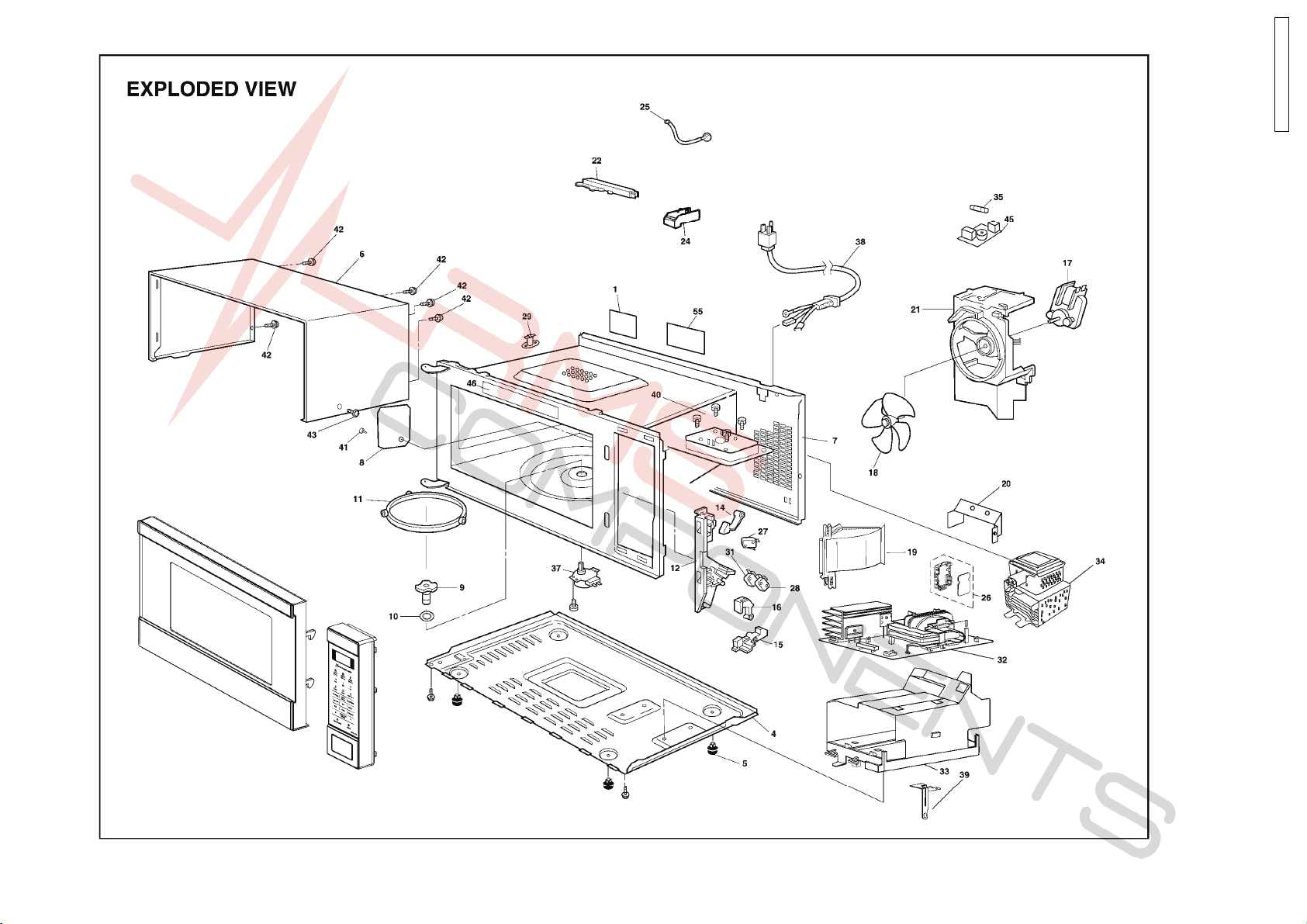

8.1. EXPLODED VIEW

NN-ST776S / NN-ST756B

8.2. PARTS LIST

NOTE:

1. When ordering replacement part(s), please use part number(s) shown in this part list.

Do not use description of the part.

2. Important safety notice:

Components identified by mark have special characteristics important for safety.

When replacing any of these components, use only manufacture’s specified parts.

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

1 F00066V00HP CAUTION LABEL 1

4 F10016H60APG BASE 1

5 F10084T00APS RUBBER FOOT 4

6 F10095X20SCP CABINET BODY 1 ST776S

6 F10095X20BCP CABINET BODY 1 ST756B

7 F200ABP40HAP OVEN (U) 1

8 F20555K00AP COVER 1

9 F21315Y00AP PULLY SHAFT 1

10 F2177-F80 WASHER 1

11 F290D9330AP ROLLER RING (U) 1

12 F30206G30AP DOOR HOOK 1

14 F31366G30AP HOOK LEVER A 1

15 F31376G30AP HOOK LEVER B 1

16 F31386G30AP HOOK LEVER C 1

17 F400A6V00QP FAN MOTOR 1 AC240V,SINGLE PHASE,50Hz

18 F40084T00AP FAN BLADE 1

19 F4025BP20AP AIR GUIDE A 1

20 F40264T60APG AIR GUIDE B 1

21 F41445W00AP ORIFICE 1

22 F64508660AP SENSOR COVER B 1

24 F65434W00AP SENSOR COVER C 1

25 J607S4M00AP STEAM SENSOR 1

26 F612EBQ00QP LAMP (U) 1 LED LAMP INSIDE

27 F61425U30XN MICRO SWITCH 1 (PRIMARY LATCH SWITCH)

28 F61415U30XN MICRO SWITCH 1 (SECONDARY LATCH SWITCH)

29 F61455L00CP THERMAL CUTOUT 1 105°C

31 F61785U30XN MICRO SWITCH 1 (SHORT SWITCH)

32 F606YBA00QP H.V.INVERTER (U) 1

33 F65856K50AP INVERTER BRACKET 1

34 2M261-M32JP MAGNETRON 1

35 F62306V60BP FUSE 1 10A/240V,50Hz

37 F63269P00HP TURNTABLE MOTOR 1

38 F900C9J20QP AC CORD W/PLUG 1

39 F66626H60AP GROUNDING PLATE 1

40 XTWFL4+12T SCREW 4 FOR MAGNETRON

41 F90804W00AP CANOE CLIP 1 FOR COVER

42 XTWFA4+12D SCREW 5 FOR CABINET BODY

43 XTTFA4+6BFZ SCREW 1 FOR CABINET BODY SIDE

45 F607XBQ00QP NOISE FILTER 1

46 F0334BQ60QP MENU LABEL 1 ST776S

46 F0334BQ00QP MENU LABEL 1 ST756B

NN-ST776S / NN-ST756B

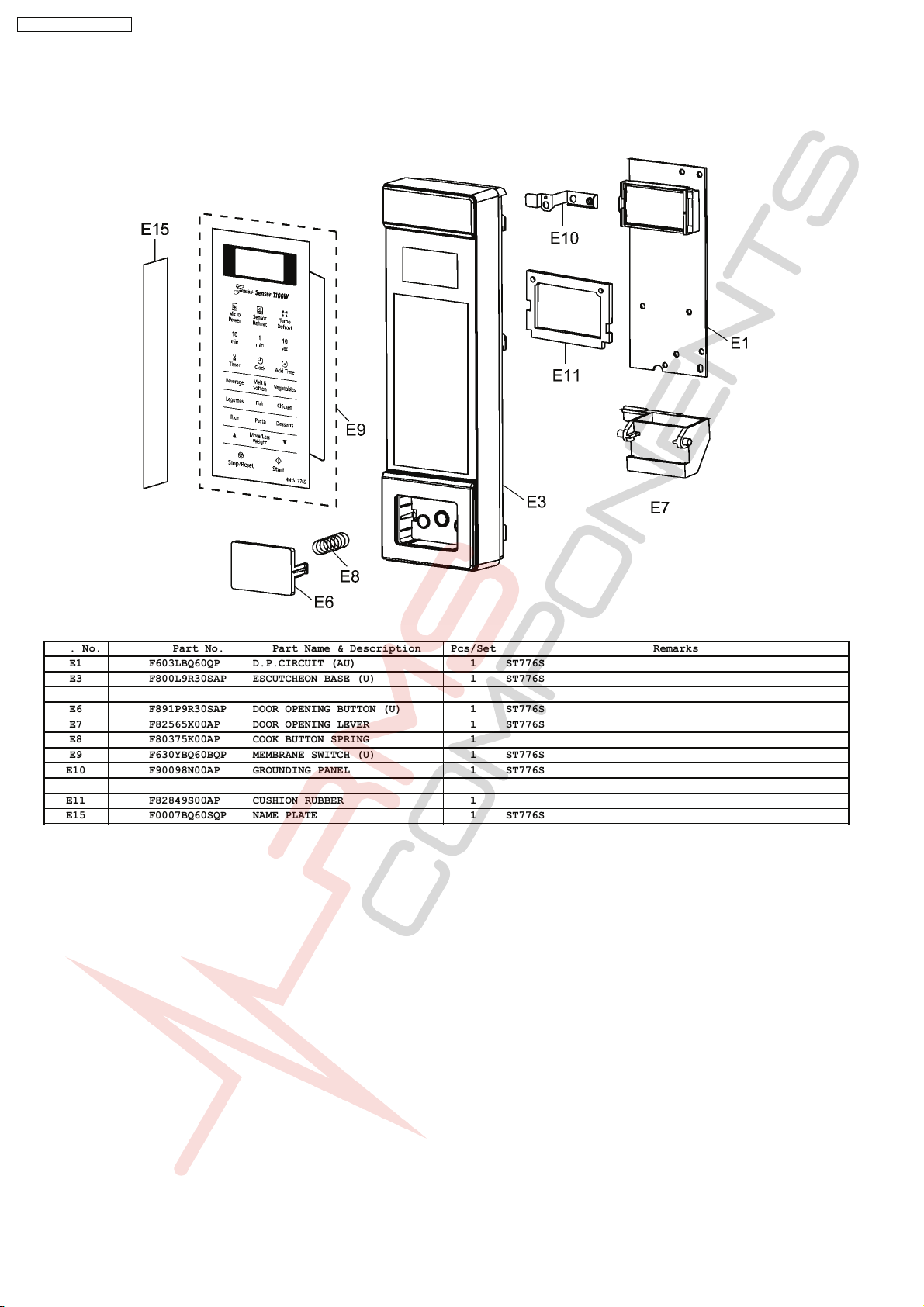

8.3. ESCUTCHEON BASE ASSEMBLY

8.3.1. NN-ST776S

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

E1 F603LBQ60QP D.P.CIRCUIT (AU) 1 ST776S

E3 F800L9R30SAP ESCUTCHEON BASE (U) 1 ST776S

E6 F891P9R30SAP DOOR OPENING BUTTON (U) 1 ST776S

E7 F82565X00AP DOOR OPENING LEVER 1 ST776S

E8 F80375K00AP COOK BUTTON SPRING 1

E9 F630YBQ60BQP MEMBRANE SWITCH (U) 1 ST776S

E10 F90098N00AP GROUNDING PANEL 1 ST776S

E11 F82849S00AP CUSHION RUBBER 1

E15 F0007BQ60SQP NAME PLATE 1 ST776S

NN-ST776S / NN-ST756B

8.3.2. NN-ST756B

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

E21 F603LBR40QP D.P.CIRCUIT (AU) 1 ST756B

E23 F630YBR40BQP MEMBRANE SWITCH (U) 1 ST756B

E24 F8034BR40BAP ESCUTCHEON BASE 1 ST756B

E26 F8072BR40BAP DOOR OPENING BUTTON 1 ST756B

E27 F82564W00AP DOOR OPENING LEVEL 1

E28 F80375K00AP COOK BUTTON SPRING 1

E29 F82849S00AP CUSHION RUBBER 1

E35 F0007BR40BQP NAME PLATE 1 ST756B

NN-ST776S / NN-ST756B

8.4. DOOR ASSEMBLY

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

D1 F30186P40AG DOOR KEY A 1

D2 F301ABQ60SRP DOOR A (U) 1 ST776S

D3 F302KBF20AP DOOR E (U) 1

D4 F30216P40AG DOOR KEY SPRING 1

D5 F3085BF20AP DOOR C 1

D6 F31454W00AP DOOR SCREEN A 1

D7 F3001BF60BQP DOOR A 1 ST756B

D8 F0172BN50QP CAUTION LABEL B 1

D9 F31468E30BAP DOOR SCREEN B 1 ST756B

NN-ST776S / NN-ST756B

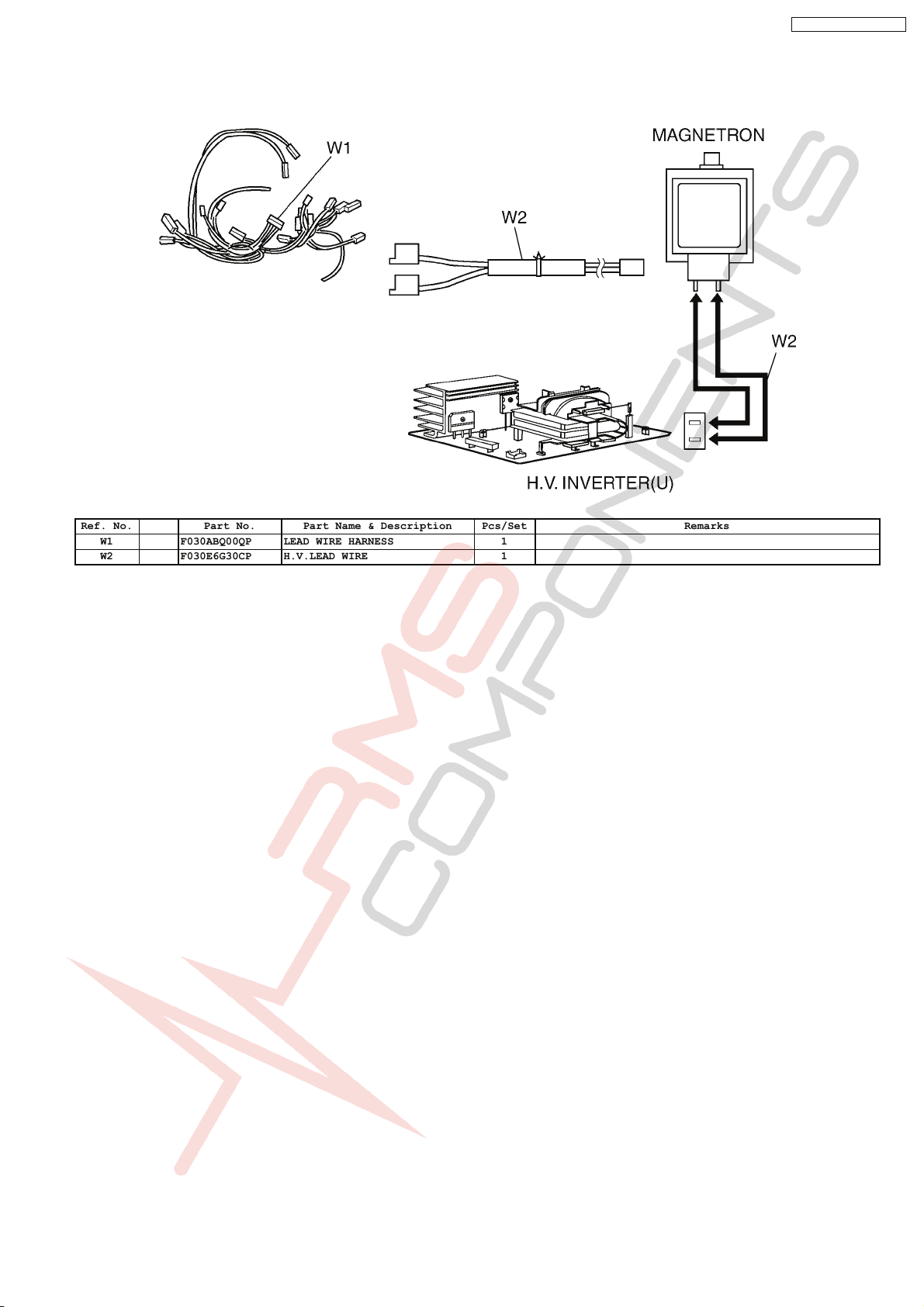

8.5. WIRING MATERIALS

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

W1 F030ABQ00QP LEAD WIRE HARNESS 1

W2 F030E6G30CP H.V.LEAD WIRE 1

NN-ST776S / NN-ST756B

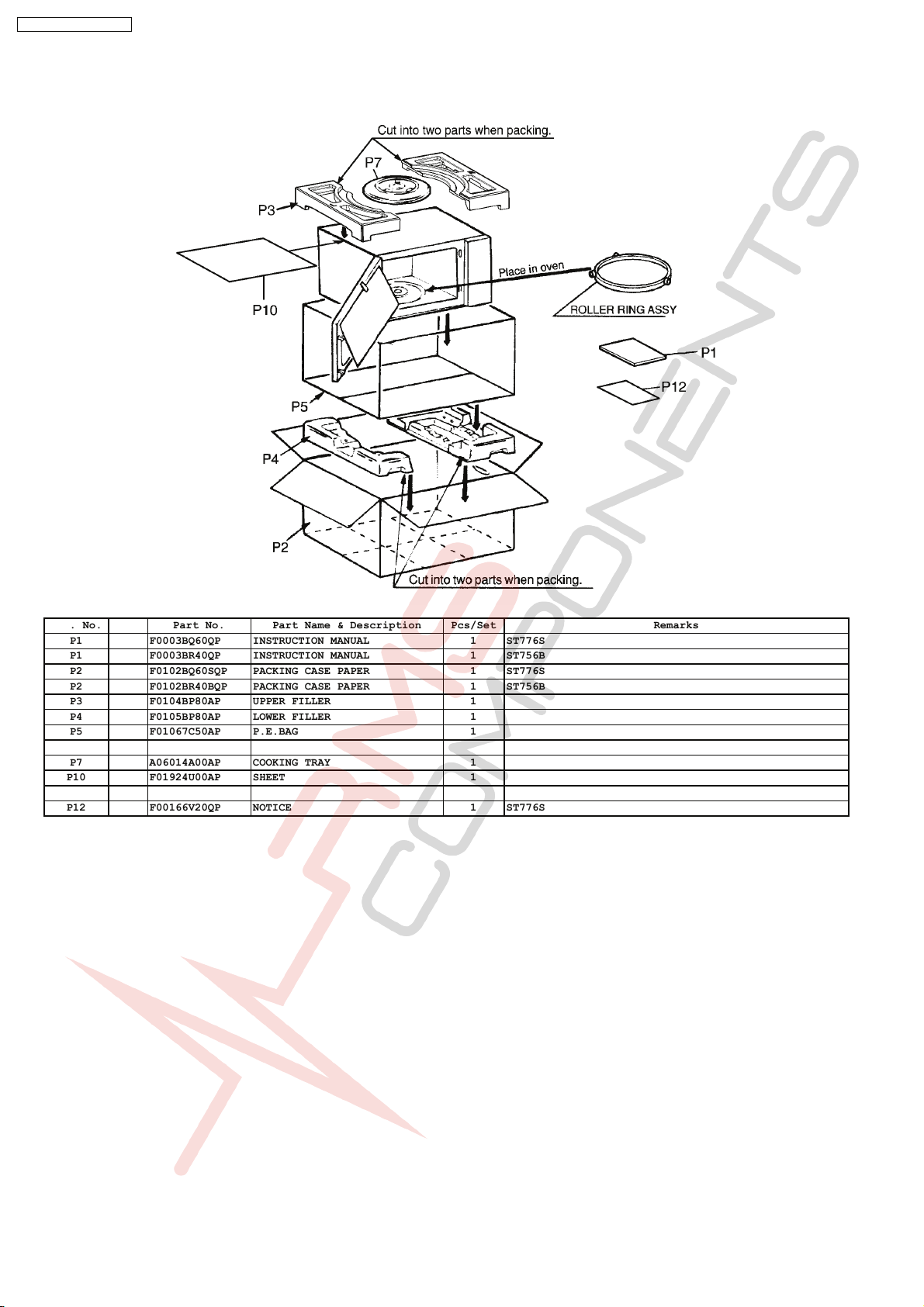

8.6. PACKING AND ACCESSORIES

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

P1 F0003BQ60QP INSTRUCTION MANUAL 1 ST776S

P1 F0003BR40QP INSTRUCTION MANUAL 1 ST756B

P2 F0102BQ60SQP PACKING CASE PAPER 1 ST776S

P2 F0102BR40BQP PACKING CASE PAPER 1 ST756B

P3 F0104BP80AP UPPER FILLER 1

P4 F0105BP80AP LOWER FILLER 1

P5 F01067C50AP P.E.BAG 1

P7 A06014A00AP COOKING TRAY 1

P10 F01924U00AP SHEET 1

P12 F00166V20QP NOTICE 1 ST776S

NN-ST776S / NN-ST756B
