Microwave Oven

Model No.

copying and distribution is a violation of law

NN-ST342W

Order No. MOD12 07 366C E

25L

White/Silver

CIS

NN-ST342M

Power Requirement

Power Output

Microwave Frequency

Magnetron

Timer

Outside Dimensions

Cavity Dimensions

Net Weight

Shipping weight

Specifications subject to change without notice.

1,270 Watts (

Single phase, 3 wire grounded

2,450 MHz

12.7kg (approx.)

2M219J

Volts AC 50 Hz

13.7 kg (approx.)

220

800 Watts full microwave power (IEC60705)

0 ~ 99 min. and 50 sec.

5.9 A)

4 (W) x (H) x 400(D) mm

85 287

315(W) x 227(H) x 349 (D) mm

This device is to be serviced only by properly qualified service personnel.

Consult the service manual for proper service procedures to assure continued safety operation and for precautions to be

taken to avoid possible exposure to excessive microwave energy.

PRECAUTIONS TO BE OBSERVED BEFORE AND

DURING SERVICING TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

A) Do not operate or allow the oven to be operated with the door open.

B) Make the following safety checks on all ovens to be serviced before activating the magnetron or other

microwave source, and make repairs as necessary; (1) interlock operation, (2) proper door closing, (3)

seal and sealing surfaces (arcing, wear, and other damage), (4) damage to or loosening of hinges and

latches, (5) evidence of dropping or abuse.

C) Before turning on microwave power for any service test or inspection within the microwave generating

compartments, check the magnetron, wave guide or transmission line, and cavity for proper alignment,

integrity, and connections.

D) Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation

and transmission systems shall be repaired, replaced, or adjusted by procedures described in this manual

before the oven is released to the owner.

E) A microwave leakage check to verify compliance with the Federal Performance Standard should be

performed on each oven prior to release to the owner.

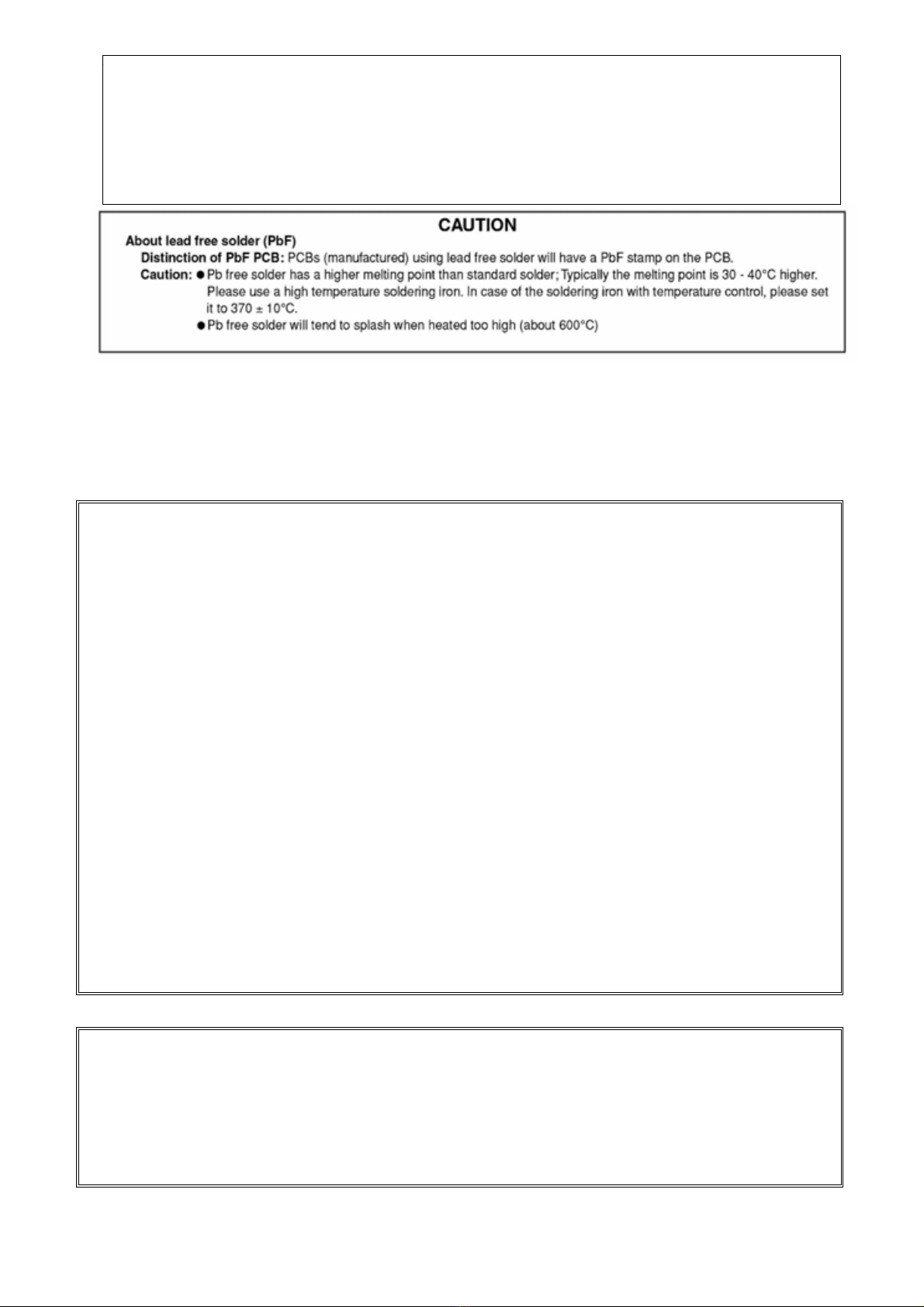

SAFETY PRECAUTIONS

CAUTION

MICROWAVE RADIATION

DO NOT BECOME EXPOSED TO RADIATION FROM THE MICROWAVE GENERATOR

OR OTHER PARTS CONDUCTING MICROWAVE ENERGY.

WARNING 

Thisproductshouldbeservicedonlybytrainedqualifiedpersonnel.

Thisservicemanualcoversproductsforfollowingmarkets.

Whentroubleshootingorreplacingparts,pleaserefertothecountryidentificationsshownbelowforyour

applicableproductspecification.



ZPE……ForCIScountries

(Page)

SAFETY PRECAUTIONS

---------------------------------------------------------------------

Inside front cover

SPECIFICATIONS

-----------------------------------------------------------------------------------------------------

1-1

CAUTIONS

--------------------------------------------------------------------------------------------------------------

2-1

INSTALLATIONS

------------------------------------------------------------------------------------------------------

3-1

OPERATING INSTRUCTIONS

------------------------------------------------------------------------------------

4-1

FEATURES

------------------------------------------------------------------------------------------------------------------------

4-1

CONTROL PANEL

--------------------------------------------------------------------------------------------------------------

4-1

OPERATING SEQUENCE

----------------------------------------------------------------------------------------------------

4-2

SCHEMATIC DIAGRAM

------------------------------------------------------------------------------------------------------

4-3

CIRCUIT DESCRIPTION

-----------------------------------------------------------------------------------------------------

4-4

SERVICE INFORMATION

------------------------------------------------------------------------------------------

5-1

TOOLS AND MEASURING INSTRUMENTS

---------------------------------------------------------------------------

5-1

MICROWAVE LEAKAGE TEST

--------------------------------------------------------------------------------------------

5-1

MEASUREMENT OF MICROWAVE POWER OUTPUT

-----------------------------------------------------------

5-3

DISASSEMBLY AND ADJUSTMENT

-------------------------------------------------------------------------------------

5-3

INTERLOCK CONTINUITY TEST

------------------------------------------------------------------------------------------

5-7

COMPONENT TEST PROCEDURE

--------------------------------------------------------------------------------------

5-8

TROUBLE SHOOTING

------------------------------------------------------------------------------------------------------

5-12

CONTENTS

EXPLODED VIEW

-----------------------------------------------------------------------------------------------------

6-1

REPLACEMENT PARTS LIST

------------------------------------------------------------------------------------

7-1

SCHEMATIC DIAGRAM OF P.C.B.

------------------------------------------------------------------------------

8-1

1-1

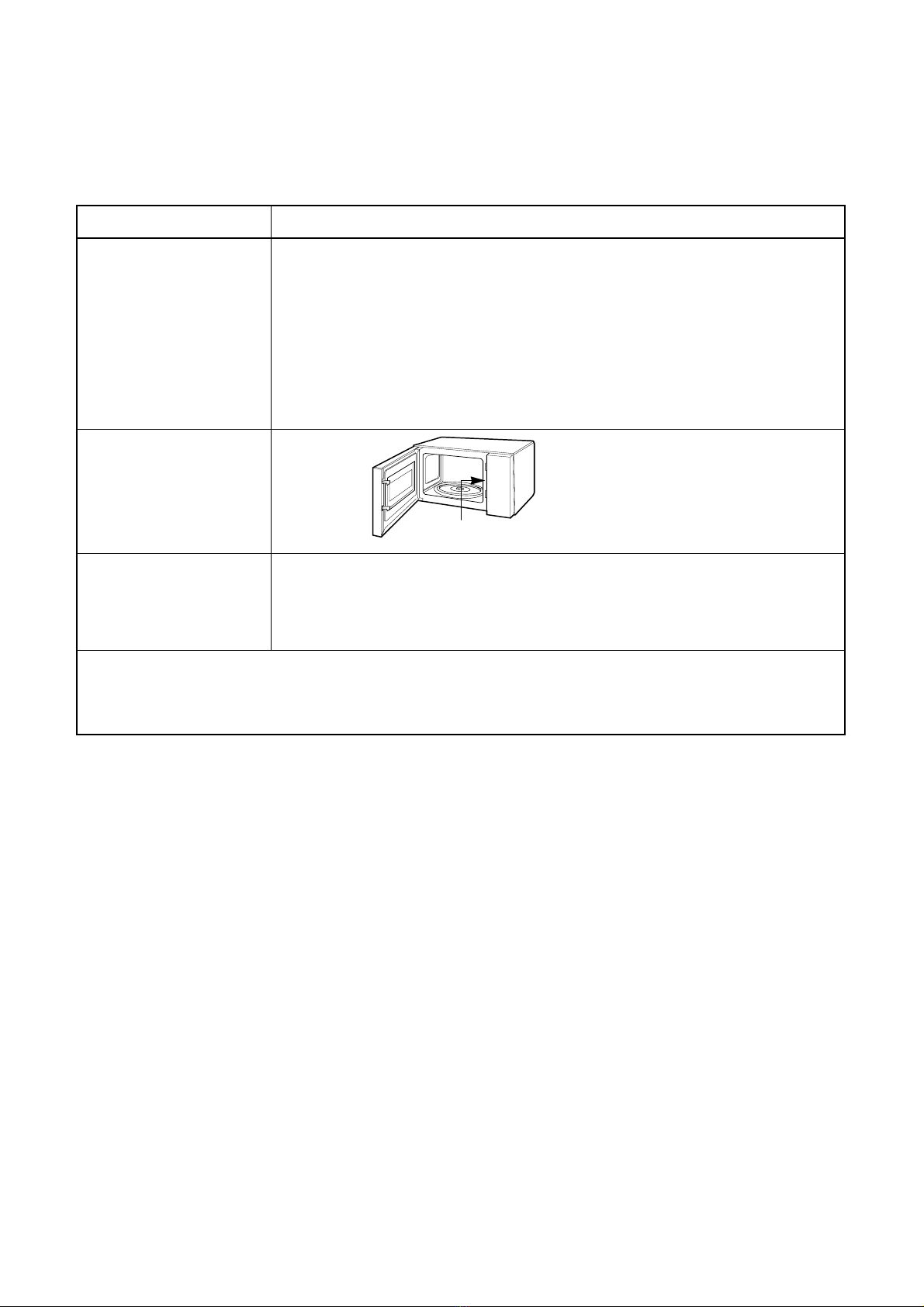

POWER LEVEL & ACCESSORIES

This microwave oven is designed for household use only.

It is not recommended for commercial purposes.

DESCRIPTION

Microwave Power for Variable Cooking

Power level

ITEM

Control Complement

Rating Label Location

Accessories

Glass Tray

Ro Rller ing

Instruction manual

Inside

220 Watts

HGigh

DeGfrost

MGedium

LGow

800 Watts

80 Watts

440 Watts

550 Watts

Med

• DO NOT operate on a 2-wire extension cord during

repair and use.

• NEVER TOUCH any oven components or wiring during

operation.

• BEFORE TOUCHING any parts of the oven, always

remove the power plug from the outlet.

• For about 30 seconds after the oven stops, an electric

charge remains in the high voltage capacitor. When

replacing or checking, you must discharge the high

voltage capacitor by shorting across the two terminals

with an insulated screwdriver.

•

Remove your watches whenever working close to or

replacing the Magnetron.

• NEVER operate the oven with no load.

• NEVER injure the door seal and front plate of the oven

cavity.

• NEVER put iron tools on the magnetron.

• NEVER put anything into the latch hole and the

interlock switches area.

• Proper operation of the microwave oven requires that

the magnetron be assembled to the waveguide and

cavity. Never operate the magnetron unless it is

properly installed.

• Be sure that the magnetron gasket is properly

installed around the dome of the tube whenever

installing the magnetron.

2-1

CAUTIONS

Unlike other appliances, the microwave oven is

high-voltage and high-current equipment.

Though it is free from danger in ordinary use,

extreme care should be taken during repair.

THE OVEN IS TO BE SERVICED ONLY

BY PROPERLY QUALIFIED SERVICE

PERSONNEL.

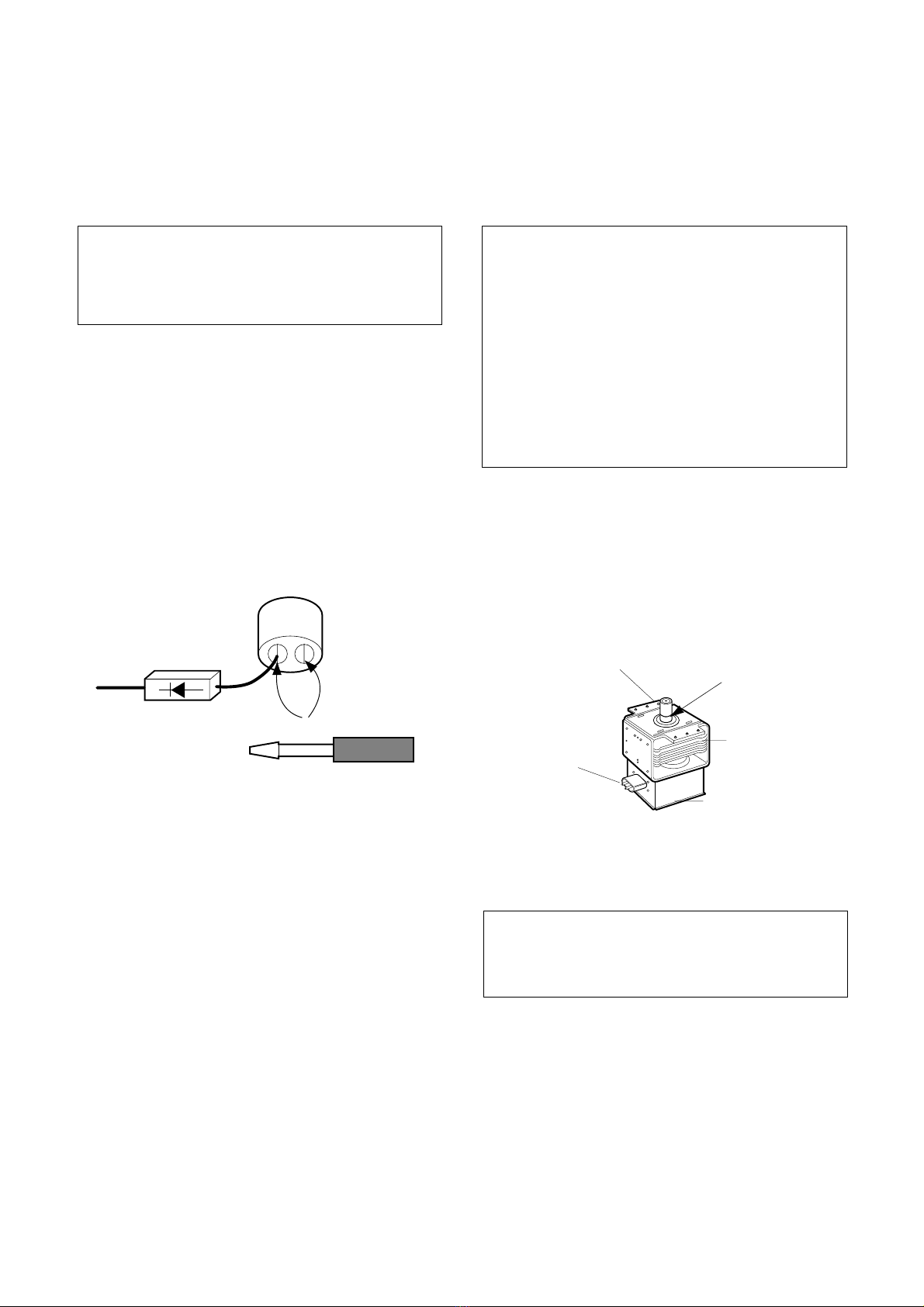

MICROWAVE RADIATION

Personnel should not be exposed to the

microwave energy which may radiate from the

magnetron or other microwave generating

device if it is improperly used or connection.

All input and output microwave connections,

waveguide, flange and gasket must be secure

never operate the device without a microwave

energy absorbing load attached.

Never look into an open waveguide or antenna

while the device is energized.

ANTENNA

COOLING FIN

MAGNETRON

CHASSIS GROUND

FILAMENT

TERMINALS

MAGNETRON

GASKET

INSTALLATIONS

3-1

INSTALLING

1. Empty the microwave oven and clean inside it with

a soft, damp cloth. Check for damage such as

misaligned door, damage around the door or dents

inside the cavity or on the exterior.

2. Put the oven on a counter, table, or shelf that is

strong enough to hold the oven and the food and

utensils you put in it. (The control panel side of the

oven is the heavy side. Use care when handling.)

3. Do not block the vent and the air intake openings.

Blocking vent or air intake openings can cause

damage to the oven and poor cooking results.

Make sure the microwave oven legs are in place to

ensure proper air flow.

4. The oven should not be installed in any area where

heat and steam are generated, because they may

damage the electronic or mechanical parts of the

unit.

Do not install the oven next to a conventional

surface unit or above a conventional wall oven.

5. Use microwave oven in an ambient temperature

less than 104°F(40°C).

6. Place the microwave oven on a sturdy and flat

surface at least 10 cm(4 inches) from the wall.

7. Place the microwave oven as far away as possible

from TV, RADIO, COMPUTER, etc., to prevent

interference.

EARTHING INSTRUCTIONS

This microwave oven is designed to be used in a fully

earthed condition.

It is imperative, therefore, to make sure it is properly

earthed before servicing

WARNING-

THIS APPLIANCE

MUST BE EARTHED

IMPORTANT

As the colors of the wires in the mains lead of this

appliance may not correspond with the colored

markings identifying the terminals in your plug,

proceed as follows.

The wire which is colored green-and-yellow must be

connected to the terminal in the plug which is marked

with the letter Eor by the earth symbol ( ) or

colored green or green-and-yellow.

The wire which is colored blue must be connected to

the terminal in the plug which is marked with the letter

Nor colored black.

The wire which is colored brown must be connected

to the terminal in the plug which is marked with the

letter Lor colored red.

BEFORE YOU BEGIN, READ THE FOLLOWING INSTRUCTIONS COMPLETELY AND CAREFULLY.

10cm

The wires in this mains lead are colored in

accordance with the following code:

Green-and-yellow: Earth

Blue: Neutral

Brown: Live

4-1

OPERATING INSTRUCTIONS

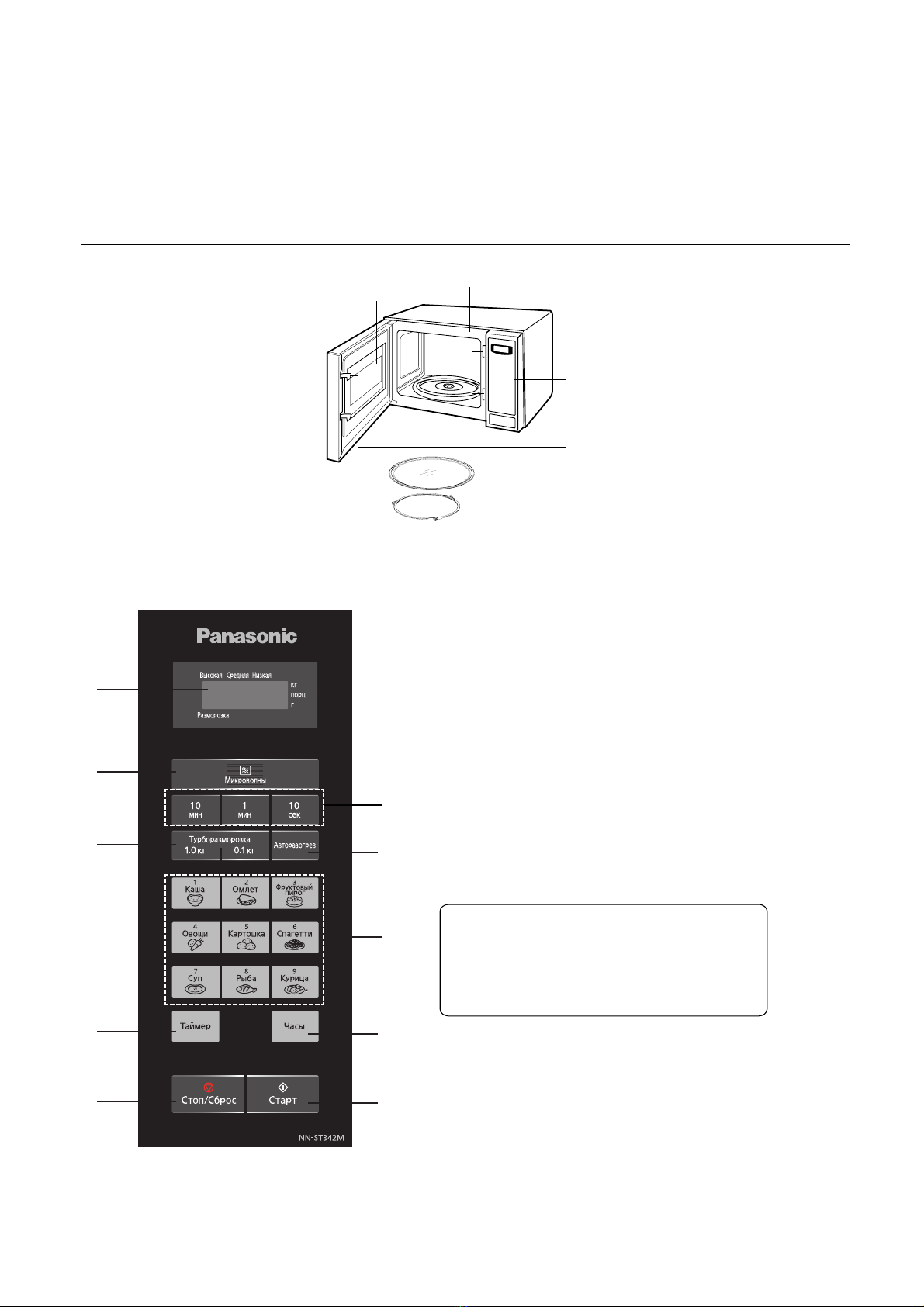

FEATURES

CONTROL PANEL

Oven Front Plate

Safety Door Lock System

Control Panel

Roller Ring

Glass Tray

See-Through oven window

Door C

(1)

(2)

(4)

(7)

(9)

(3)

(5)

(6)

(8)

(10)

(1) Display Window

(2) Micro Power Pad

(3) Time Pads

(4) Turbo Defrost Pads

(5) Auto Reheat Pad

(6) Auto Cook Pads

(7) Timer Pad

(8) Clock Pad

(9) Stop/Reset Pad

Before cooking: One tap clears your instructions.

During cooking: One tap temporarily stops the cooking process.

time of day appears in the display window.

(10) Start Pad

After cooking program setting, one tap allows oven to begin functioning.

Start Pad must be pressed again to restart oven.

Another tap cancels all your instructions and colon or

If door is opened or Stop/Reset Pad is pressed once during oven operation,

Beep Sound:

When a pad is pressed correctly, a beep will be heard.

If a pad is pressed and no beep is heard, the unit did

programmed stages. At the end of any

not or cannot accept the instruction. The oven will beep

twice between

complete program, the oven will beep 5 times.

NN-

ST342W(ZPE) NN-ST342M(ZPE)

OPERATING SEQUENCE

The following is a description of component functions

during oven operation.

1. SETTING THE CLOCK

NOTE: You can set 24 hour clock.

2. CANCEL FUNCTION

Touch the Stop/Cancel pad whenever you need to

cancel an entry or a function currently in use.

The display will either return to the last item entered

or to the clock.

This oven has a CHILD LOCK feature

• TO SET CHILD LOCK

• Press start pad three times

Lappear in the display.

• TO CANCEL CHILD LOCK

• Press stop/cancel pad three times

Ldisappears.

4-2

Stop/

Cancel Clock Set the time

by pressing

Stop/

Cancel Desired

defrost Desired

Start

Stop/

Cancel Desired

cooking time

Desired

cooking power Start

3. MICROWAVE COOKING

time pads

program weight

Stop/

Cancel Desired Desired

Start

program weight

reheat

Clock

4. AUTO WEIGHT DEFROST

5. AUTO WEIGHT REHEAT

6. CHILD LOCK

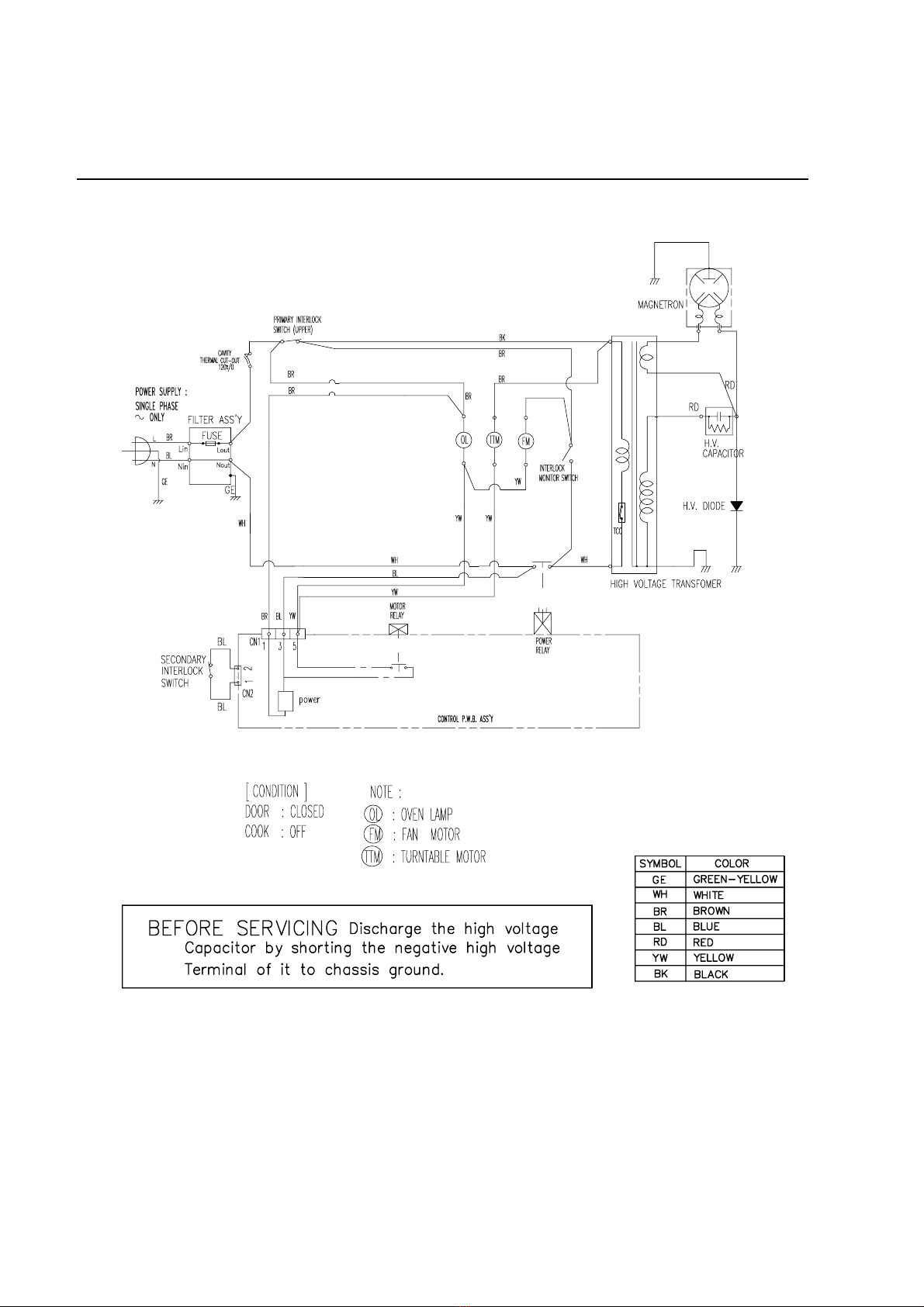

SCHEMATIC DIAGRAM

4-3

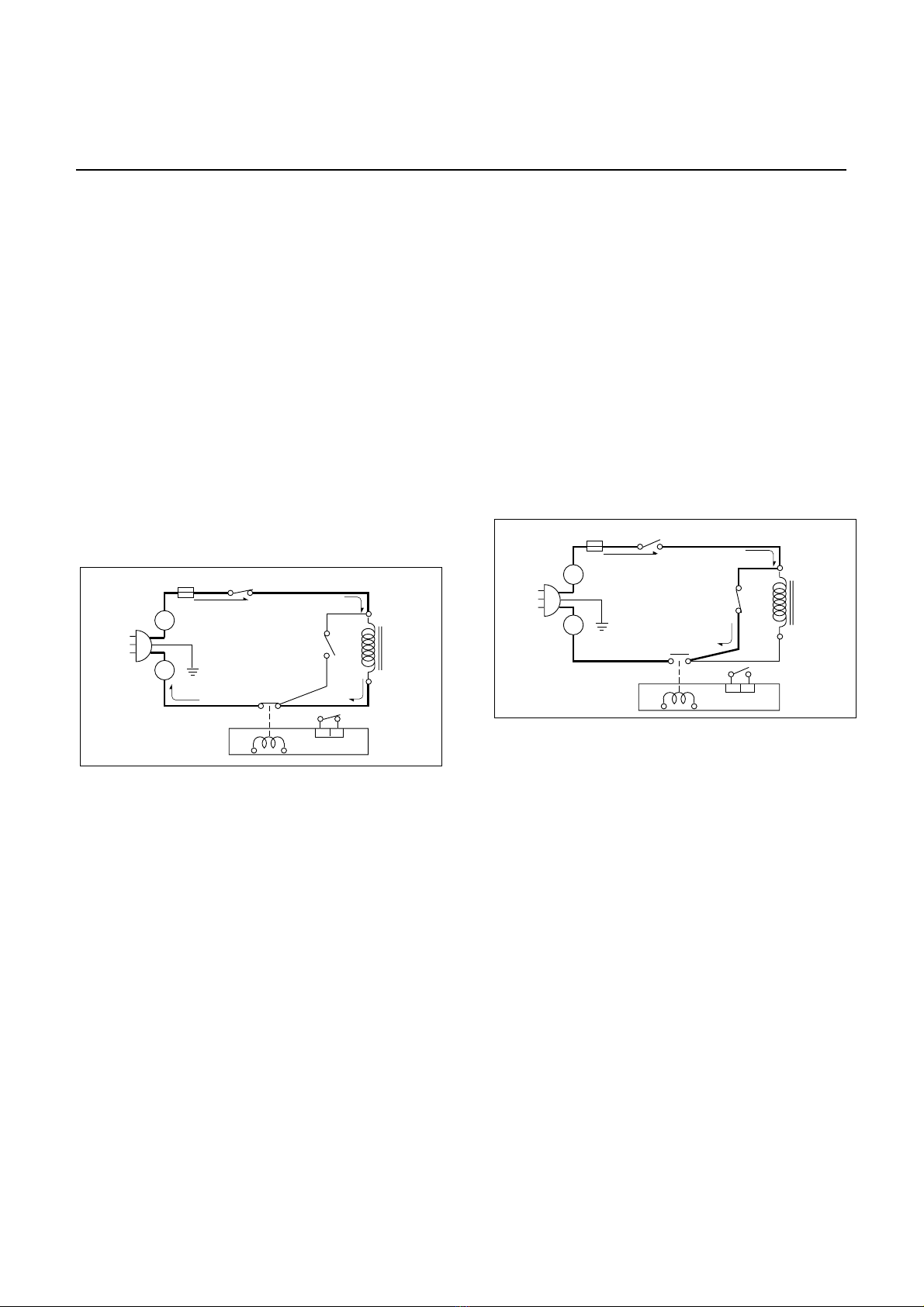

CIRCUIT DESCRIPTION

GENERAL DETAILS

• The low voltage transformer supplies the necessary

voltage to the micom controller when power cord is

plugged in.

• When the door is closed, the primary switch is ON, the

secondary switch is ON, and the monitor switch opens

(contact COM and NO).

WHEN SELECTING COOKING POWER

LEVEL AND TIME

• The micom controller memorizes the function you set.

• The time you set appears in the display window.

• Each indicator light turns on to indicate that the stage

has been set.

WHEN TOUCHING THE START PAD

• The coil of the relay is energized by the micom

controller.

• Power input is supplied to the high voltage transformer

through the fuse to the primary switch and relay 2.

• Turntable rotates.

• Cooking time starts counting down.

• 3.2 volts AC is generated from the filament winding of

the high voltage transformer. This 3.2 volts is applied to

the magnetron to heat the magnetron filament through

two noise-preventing choke coils.

• A high voltage of approximately 2100 volts AC is

generated in the secondary of the high voltage

transformer which is increased by the action of the high

voltage diode and charging of the high voltage

capacitor.

• The negative 4000 Volts DC is applied to the filament

of the magnetron.

WHEN THE OVEN IS SET AT ANY LEVEL

EXCEPT MAXIMUM.

• The micom controller controls the ON-OFF time of relay

2 by the applied signal to vary the average output

power of microwave oven as POWER LEVEL.

(refer to page 1-1)

WHEN THE DOOR IS OPENED DURING

COOKING

• Both the primary switch and relay 2 are cut off primary

winding voltage of the high voltage transformer.

• ON-OFF of relay 2 is coupled electrically with opening

and closing of the secondary switch.

• When the door is opened, the secondary switch is

opened and when the door is closed, the secondary

switch is closed.

• The cooking time stops counting down.

• Relay stops functioning.

• As the door is opened, if the contact of primary switch

and relay 2 and/or secondary switch fails to open, the

fuse opens due to the large current surge caused by

the monitor switch activation, which in turn stops

magnetron oscillation.

4-4

FUSE

TRANS-

FORMER

RELAY 2

MICOM CONTROLLER

SECONDARY

SWITCH

MONITOR

SWITCH

PRIMARY

MONITOR

SWITCH

FUSE

RELAY 2

MICOM CONTROLLER

SECONDARY

SWITCH

PRIMARY

SWITCH

• The fan motor rotates and cools the magnetron by

blowing the air (coming from the intake on the

• The air is also directed into the oven to exhaust the

vapor in the oven through the left side.

backplate).

TRANS-

FORMER

Autres manuels pour NN-ST342W

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Four à micro-ondes

Panasonic

Panasonic NN-ST 342M Mode d'emploi

Panasonic

Panasonic NN-E20JWM Manuel utilisateur

Panasonic

Panasonic NN-L939 Manuel utilisateur

Panasonic

Panasonic NN-S253 Manuel utilisateur

Panasonic

Panasonic NE-2156-2 Manuel utilisateur

Panasonic

Panasonic NN-S454 Manuel utilisateur

Panasonic

Panasonic NN-ST253W Manuel d'utilisation et d'entretien

Panasonic

Panasonic NN-ST665B Mode d'emploi

Panasonic

Panasonic NE-1064F Manuel utilisateur

Panasonic

Panasonic NE1021 - COMMERCIAL MICROWAVE Manuel utilisateur

Panasonic

Panasonic ne-1037 BTQ Manuel utilisateur

Panasonic

Panasonic NN-MX26 Manuel utilisateur

Panasonic

Panasonic NN-GD37HS Mode d'emploi

Panasonic

Panasonic NN-ST661 Manuel utilisateur

Panasonic

Panasonic NN-ST25JW Manuel utilisateur

Panasonic

Panasonic NN-K105WB BPQ Manuel utilisateur

Panasonic

Panasonic NNS255WF - MICROWAVE - 2.0CUFT Manuel utilisateur

Panasonic

Panasonic NN-SD691S Manuel d'utilisation et d'entretien

Panasonic

Panasonic NN-SN789S Mode d’emploi

Panasonic

Panasonic NN-SD787 Manuel utilisateur

Panasonic

Panasonic NE1064T - COMMERCIAL MICROWAVE Manuel utilisateur

Panasonic

Panasonic NN-CF778S Guide produit

Panasonic

Panasonic NNS262BF - MICROWAVE OVEN/OTR Manuel utilisateur

Panasonic

Panasonic NN-SD691S Manuel utilisateur

Manuels Four à micro-ondes populaires d'autres marques

Daewoo

Daewoo KOG-574R0S Manuel utilisateur

LG MH7040SS Manuel utilisateur

Sharp

Sharp R-895(AL)M Manuel utilisateur

Dometic

Dometic DOTRM13W Manuel utilisateur

Sanyo

Sanyo EM-X680 Manuel utilisateur

Sharp

Sharp R-393M Manuel utilisateur

KitchenAid

KitchenAid KMCX4510 Instructions d'installation

Smeg

Smeg S45MCX1 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHM2044 Manuel utilisateur

Sunbeam

Sunbeam SMW759 Manuel utilisateur

Gallet

Gallet FMOE230S Manuel utilisateur

Bosch

Bosch CEG732X.1B Manuel utilisateur

Dometic

Dometic Roadmate 230 Manuel utilisateur

Samsung

Samsung SJ0396W Manuel utilisateur

Sanyo

Sanyo EM-P494WS Manuel utilisateur

Sharp

Sharp R-240 Manuel utilisateur

Electrolux

Electrolux EMS2840 Manuel utilisateur

Daewoo

Daewoo KOC-984T2S13 Manuel utilisateur
