Panasonic NN-K584SF Manuel utilisateur

ORDERNO.PHAMOS0507026A3

Microwave Oven

NN-K584SF / NN-K575MF / NN-S575MF / NN-S565JF

WTT(Taiwan)

Please fileand use thismanual together with the service manual for

Model No. / NN-G463/S443/S423/S413/413, Order No. SIMMC

0303011C7.

SPECIFICATIONS

2005 PanasonicHome Appliances Microwave Oven (Shanghai)

distribution isaviolation of law.

1. SCHEMATIC DIAGRAM

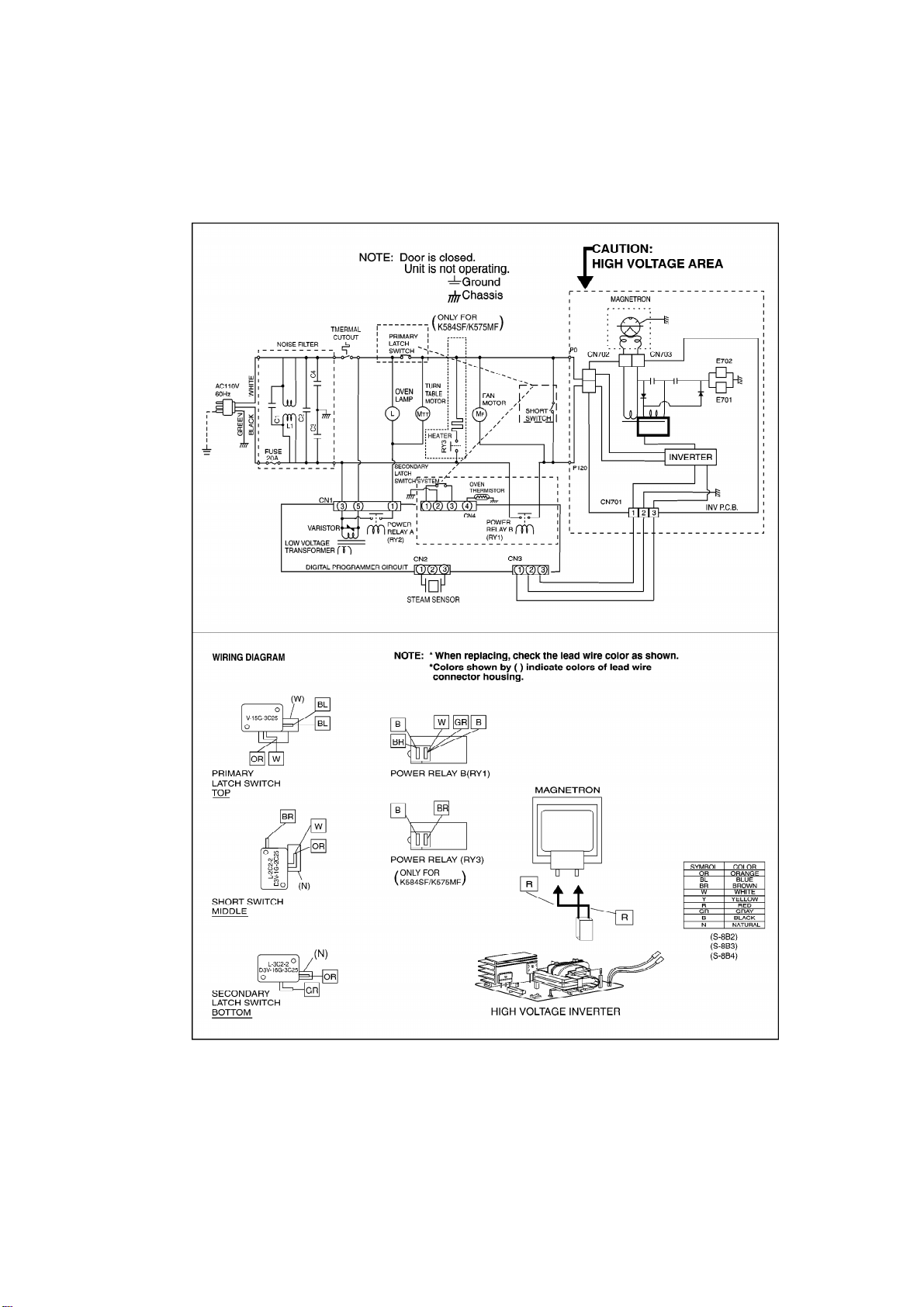

1.1. (NN-K584SF/K575MF/S575MF)

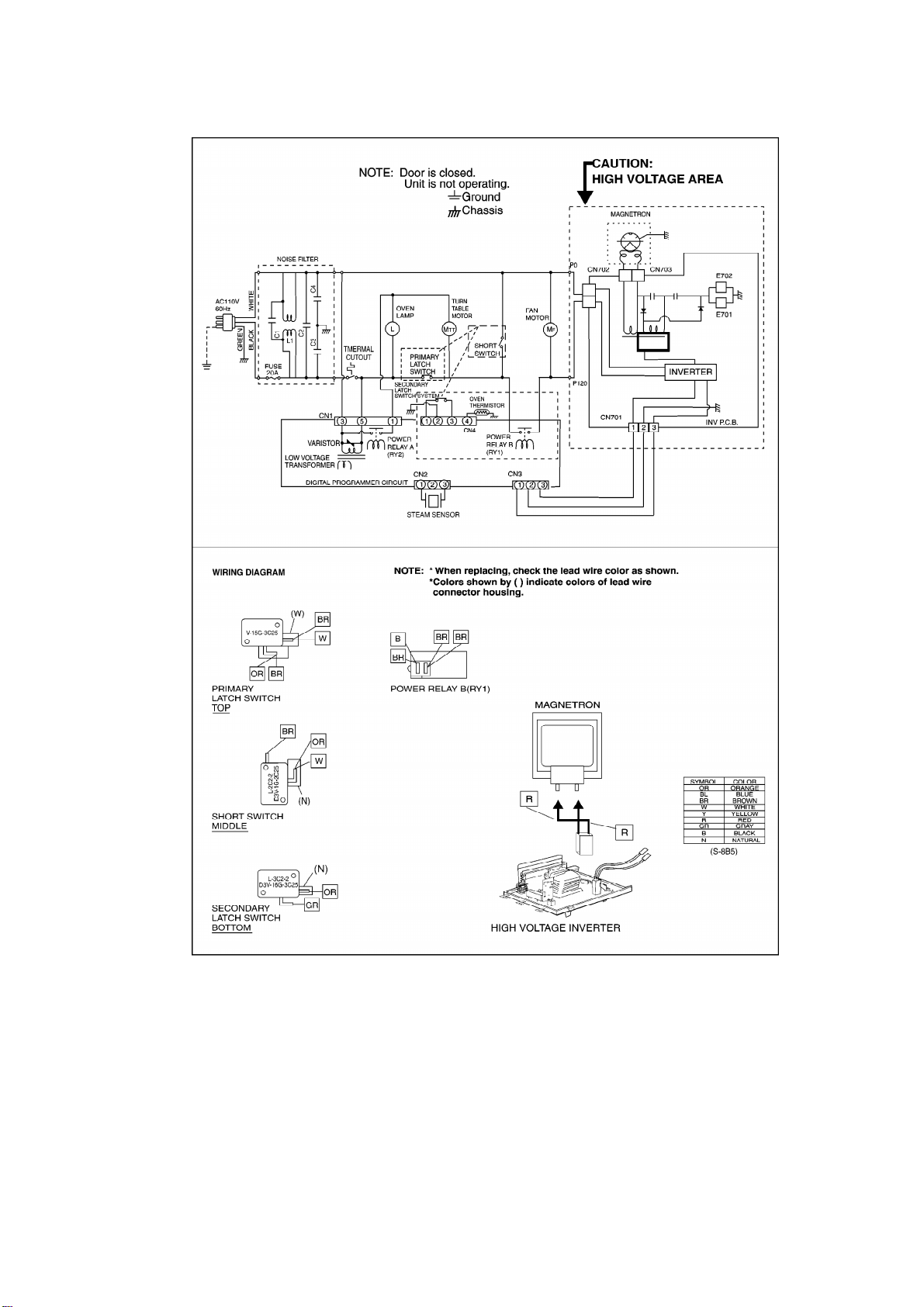

1.2. (NN-S565JF)

2. MEASUREMENTS AND ADJUSTMENTS

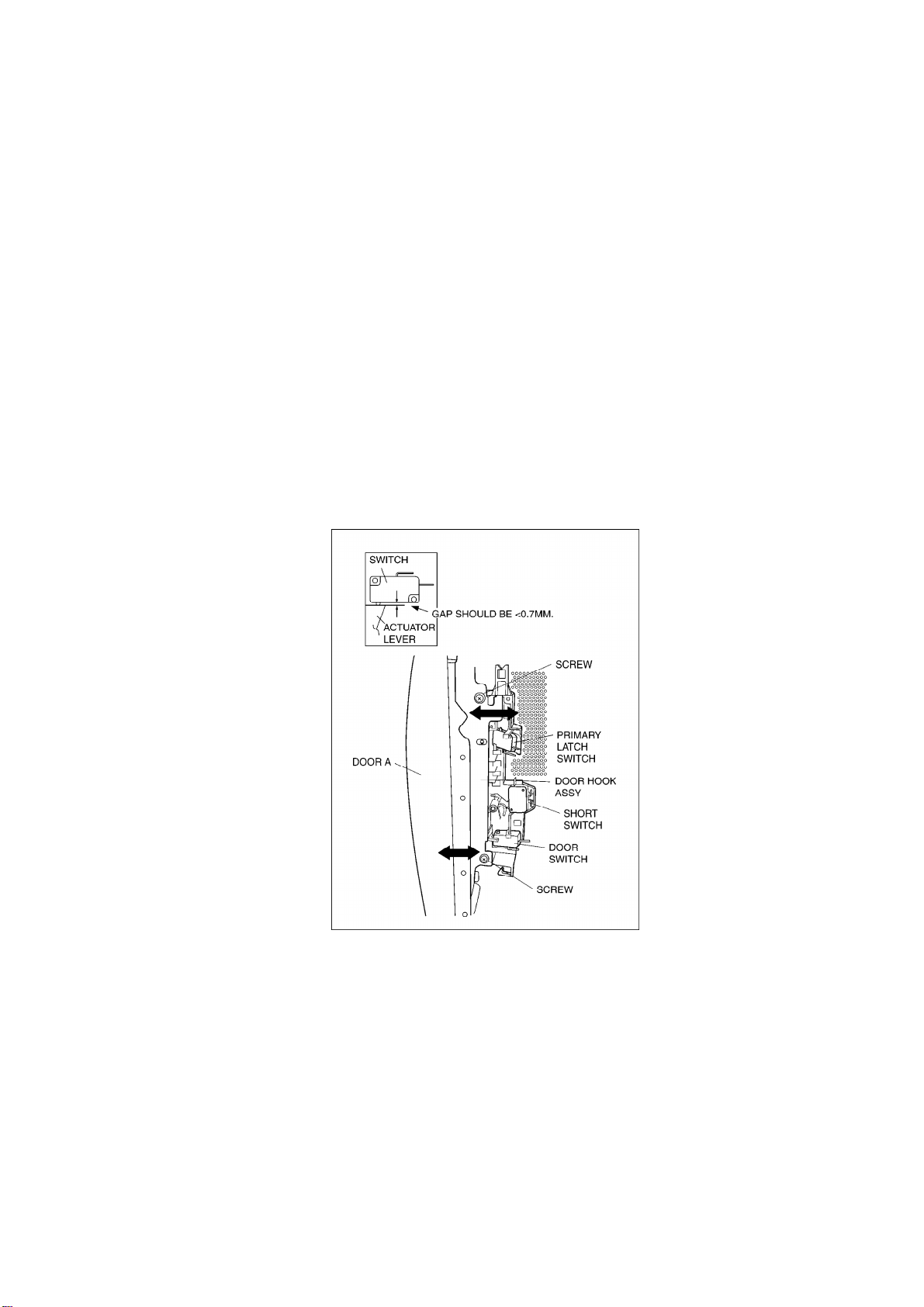

2.1. Adjustment of primarylatch switch, door switch and short

switch.

1. Mount the Primarylatch switch, the door switch and the short

switch to the door hook assemblyas showninILL.

NOTE:

Nospecificindividual adjustments during installation of the

Primarylatch switch, door switch or short switch to the door hook

are required.

2. When mounting the door hook assemblyto the oven assembly,

adjust the door hook assemblybymoving itinthe direction of the

arrowsinthe illustration, so that the oven door will not have any

playinit. Check for playinthe door bypulling the door assembly.

Make sure that the latch keysmove smoothlyafter adjustment is

completed. Completelytighten the screwsholding the door hook

assemblyto the oven assembly.

3. Reconnect the short switch and check the continuityof the

monitor circuitand all latch switches againbyfollowing the

component test procedures.

2.2. Measurement of microwave output

The output powerof the magnetron canbe determinedbyperforming IEC standardtest

procedures. However,due tothe complexityof IEC test procedures, it is recommendedtotest

the magnetron using the simple method outlinedbelow.

NecessaryEquipment:

*1 literbeaker*Glass thermometer/ *Wrist watchorstopwatch

NOTE:

Check the line voltage under load.Low voltage will lower the

magnetron output. Take the temperature readings and heating time

as accuratelyas possible.

1. Fill the beaker with exactlyone liter of tap water.Stirthe water

using the thermometer and record the water’stemperature.

(recorded as T1).

2. Place the beaker on the center of glass tray. / Set the oven for

High power and heat itfor exactlyone minute.

3. Stirthe water againand read the temperature of the water.

(recorded as T2).

4. The normal temperature rise at High power level for each model,

isas shownintable.

TABLE (1L-1min.test)

RATED OUTPUT TEMPERATURE RISE

1100W(IEC705-88) Min.16.9°F (9.4°C)

1200W(IEC705-88) Min.18.5°F (10.3°C)

3. EXPLODED VIEW AND PARTS LIST

3.1. EXPLODEDVIEW

3.2. PARTS LIST

NOTE:

1. When ordering replacement part(s), please use part number(s)

showninthispart list.

Donot use description of the part.

2. Important safetynotice:

Components identified bymark have special characteristics

important for safety.

When replacing anyof these components, use onlymanufacture’s

specified parts.

Ref. No. PartNo. PartName& Description Pcs/Set Remarks

1F00066S10WT CAUTION LABEL 1

4F00078B20SWT NAMEPLATE 1 K584SF

4F00078B30SWT NAMEPLATE 1 K575MF

4F00078B40SWT NAMEPLATE 1 S575MF

4F00078B50NWT NAMEPLATE 1 S565JF

6F10016M60AP BASE 1 EXCEPTS565JF

6F10015Q00AP BASE 1 S565JF

7F10084T00AP RUBBER FOOT 4

8F110D6W70SXP CABINETBODY 1 K584SF, K575MF

8F110D6W80SXP CABINETBODY 1 S575MF

8F110D6W80NXP CABINETBODY 1 S565JF

9F200A8B20WT OVEN 1 K584SF

9F200A8B30SWT OVEN 1 K575MF

9F200A8B50SWT OVEN 1 S575MF, S565JF

10 F20555Q00AP COVER 1

11 F21315G10XN PULLYSHAFT 1

12 F290D5Q00AP ROLLER RING (U) 1

13 F30205Q00AP DOOR HOOK 1

14 F31365Q00AP HOOK LEVER A 1

15 F400A5G60AP FAN MOTOR 1

16 F40085G10XN FAN BLADE 1

17 F40255Q00AP AIR GUIDEA 1

18 F2177-F80 WASHER 1 K584SF , K575MF

19 F612E5G40AP INCANDESCENTLAMP(U) 1

20 F40425Q00AP AIR GUIDEF 1

21 F41445Q00AP UPPER ORIFICE 1

22 F42095Q00AP LOWER ORIFICE 1 S565JF

23 F64505Q00AP SENSOR COVER B 1

24 F65434W00AP SENSOR COVER C 1

25 A607S4T00AP STEAMSENSOR 1

26 J61424T00AP MICRO SWITCH 1 (PRIMARYLATCH SWITCH)(V-15G-3C25)

27 J61414T00AP MICRO SWITCH 1 (SECONDARYLATCH SWITCH)(D3V-16G-3C25)

28 J61784T00AP MICRO SWITCH 1 (SHORTSWITCH)(D3V-1G-2C25)
