Panasonic SV-MP710VGC Manuel utilisateur

TD0503016C3

Digital AudioPlayer

SV-MP710VGC / SV-MP710VGK / SV-MP710VGH / SV-

MP710VGD / SV-MP710VGN

Colour

(W)................... White Type

(A).................... Blue Type

SPECIFICATIONS

Specifications

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Memorysize: 256 MB

Supportedsampling frequency:

MP3; 32 kHz, 44.1kHz, 48 kHz,

WMA; 8kHz to44.1kHz

Supportedbit-rates: MP38kbpsto320 kbps(128

kbpsisrecommend) WMA32

kbpsto192 kbps(96 kbpsis

recommend)

No. of channels: Stereo, 2channels(MUSIC, FM

RADIO), Mono 1channel (IC

RECORDER)

Frequencyresponse: 20 Hz to20,000 Hz (+0dB, -6dB)

(MUSIC), 300 Hz to4,300 Hz (IC

RECORDER,HQ mode)

MicS/N: 30 dB (IC RECORDER,HQ mode)

RadioFrequencyrange(FM): 87.9MHz to107.9MHz (200kHz

steps),87.5MHz to108.0MHz

(50/100 kHz steps),

Output: 4.5mW+ 4.5mW(16 ,M3

jack)

Power supply: DC 1.2V (onerechargeable

battery)

Approximateplaytimes: 10 hours (MUSIC),

5hours (FM RADIO)

Approximaterecording times: 9hours (IC RECORDER, HQ

mode)

5hours (FM RADIO)

Cabinet dimensions(WxHxD): 70.0x22.2x14mm

Mass: 36.2gwithbattery/ 23.5g

without battery

AC adaptirinput: AC110V ~ 240V,50 Hz/ 60 Hz

Power consumption instandby

mode: 0.2W

-Specificationsaresubject to changewithoutnotice.

-Theplaytimes shown depend on operating conditions.

-Mass and dimensionsareapproximate.

-MB meansonemillion bytes. Useablecapacitymaybeless.

-Thisproduct iscompatiblewith thefollowing character code. The

displaymaynotappear correctlywith other character codes.

-(When thesupplied rechargeablebatteryisfullycharged.)

2005 Matsushita ElectricTAIWAN Industrial Co., Ltd. All rights

reserved. Unauthorized copying and distribution isaviolation of

law.

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

1. Accessories

-Stereo earphones

(L0BAB0000188) ............................................................. 1pc.

-USBCable

(K1HA05AD0003)............. ................................................ 1pc.

-Neck Strap

(RFAT0006-Q) ....................................................................1pc.

-CD-ROMDriver

(RFET0002) ...................................................................... 1pc.

-AC Adaptor

(N0JZCD000001) ...........................................................[GK].

(N0JZCD000002) ...........................................................[GD].

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

(N0JZCD000003) ...........................................................[GC].

(N0JZCD000004) ...........................................................[GH].

(N0JZCD000005) ...........................................................[GN].

-BatteryAss’y

(ZBRP-BP65HE)................................................................1pc.

-BatteryCase

(RFCT0005-H) ............................................................ 1pc.

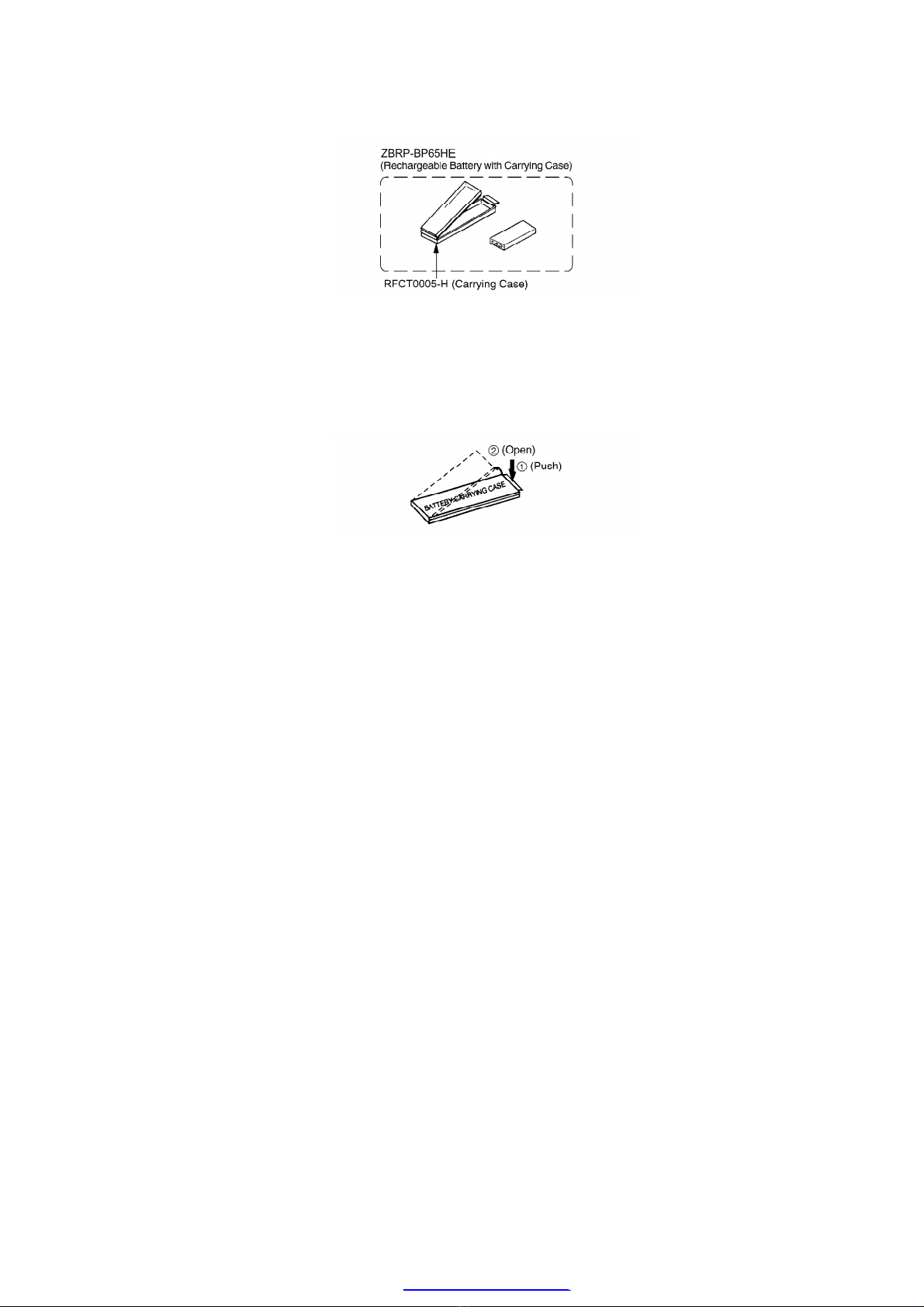

2. Supply of Rechargeable Battery as Replacement

Parts

-Please take note of the following points relating to Carrying Case

to be used for protection of RechargeableBatteryfrom shorting.

Replacement Parts:

-RechargeableBattery(ZBRP-BP65HE) to be supplied will be

provided with Carrying Case (RFCT0005-H).

-Noreplacement parts will be supplied for RechargeableBattery

without Case.

-Replacement parts will be supplied for Carrying Case (RFCT0005-

H)without RechargeableBattery.

-To your customers, deliveryRechargeableBatterytogether with

Carrying Case to prevent shorting accidents that mayoccur when

RechargeableBatteryiscarried about without Carrying Case.

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

3. Caution in Use of Rechargeable Battery

-Take RechargeableBatteryout of Carrying Case and use iy. Be

sure to carryRechargeableBatteryinthisCarrying Case. Ifnot,

mayeither head or ignite byshorting with ametal.

4. Location of Controls

5. Operation Checks and Component Replacement /

Procedures

1. Thissection describes procedures for checking the operation of

the major printed circuitboards and replacing the main

components. /

2. For reassemblyafter operation checks or replacement, reverse

the respective procedures special ressemblyprocedures are

described onlywhen required.

3. Select item from the following index when checks or replacement

are required.

Contents

1. Checking for the mainP.C.B.

2. Checking for the memoryP.C.B.

3. Checking for the tuner P.C.B.

4. Checking for the LCD ass’y.

5. Checking for the prevent electrostaticdischarge.

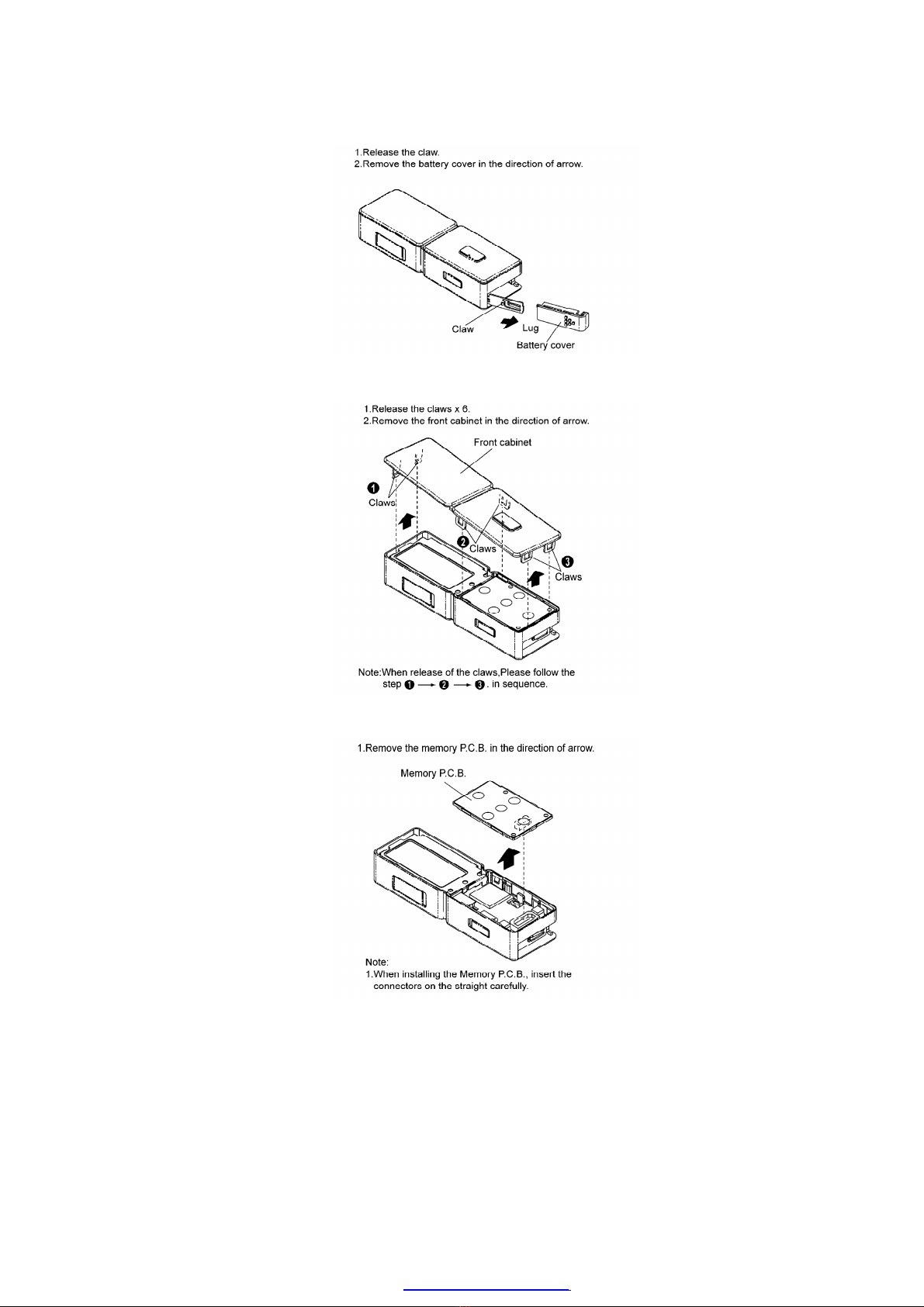

5.1. Removal of the batterycover

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

5.2. Removal of the front cabinet

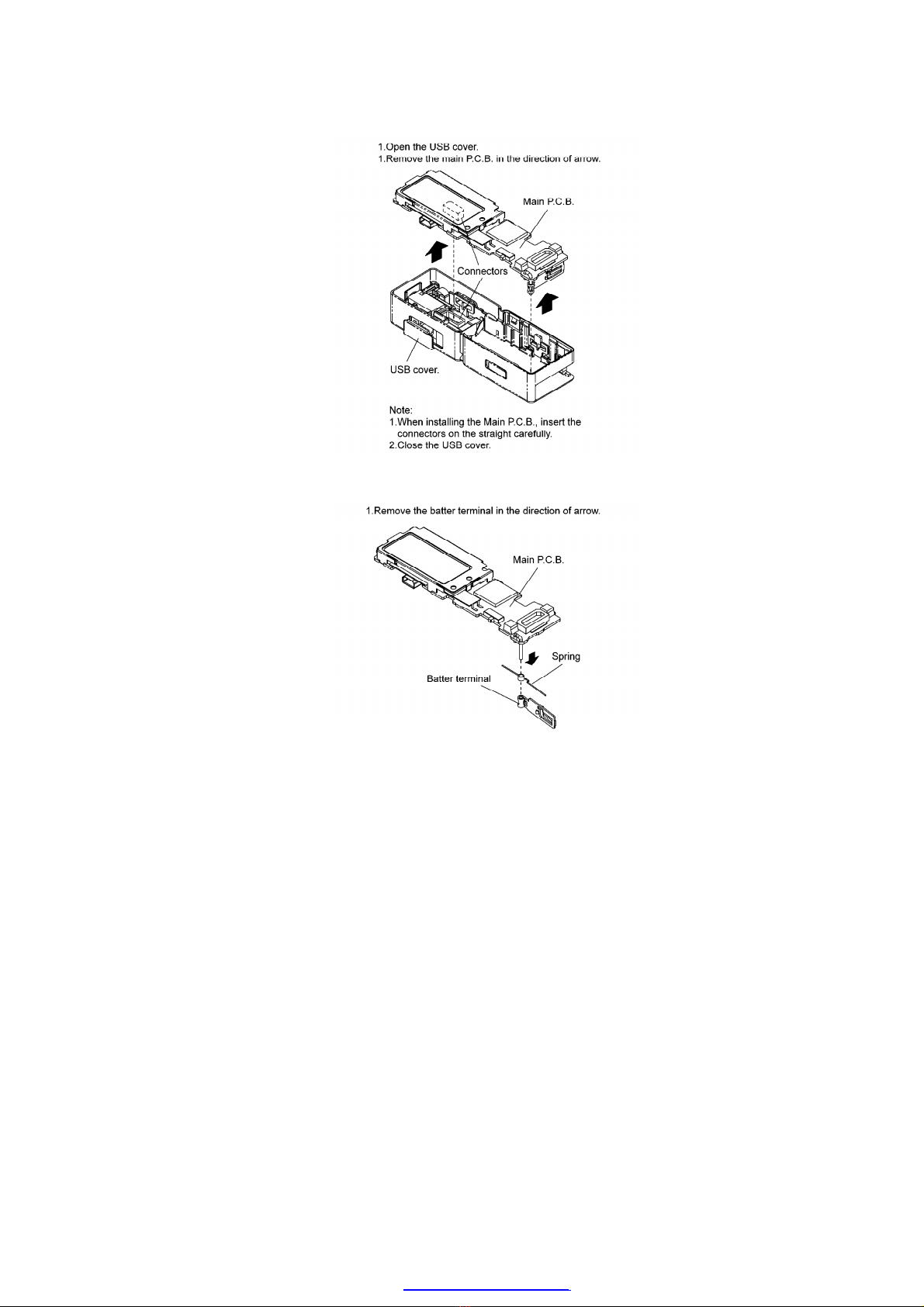

5.3. Removal of the memoryP.C.B.

5.4. Removal of the mainP.C.B.

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

5.5. Removal of the batteryterminal.

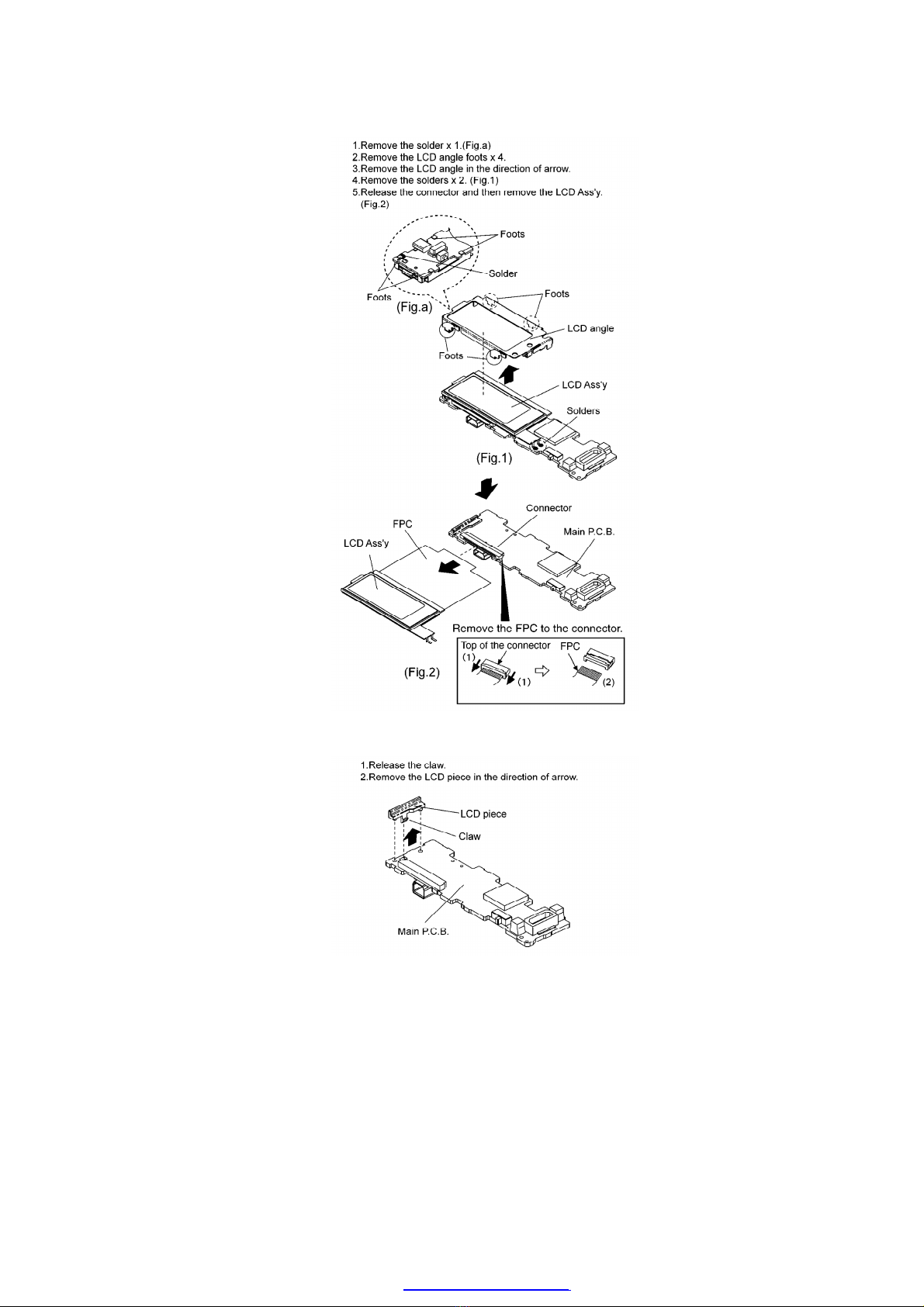

5.6. Removal of the LCD Ass’y

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

5.7. Removal of the LCD Piece

5.8. Removal of the mode button and holdknob

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

5.9. Removal of the USBfixpiece and USBcover

5.10. Removal of the RECbutton

5.11. Removal of the tuner P.C.B. and MICass’y

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

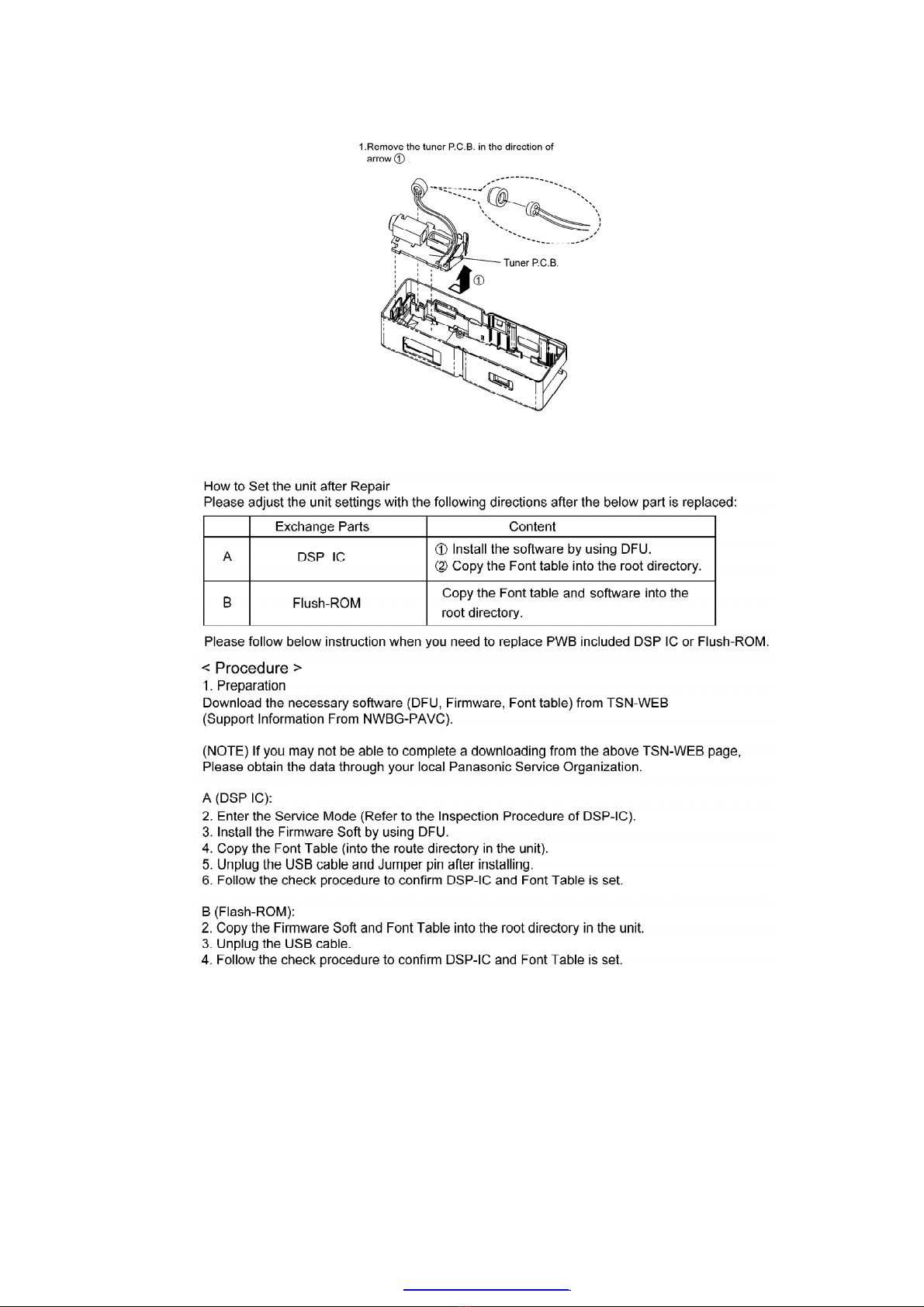

6. Instructions for Repair Service

7. Service Position

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com
