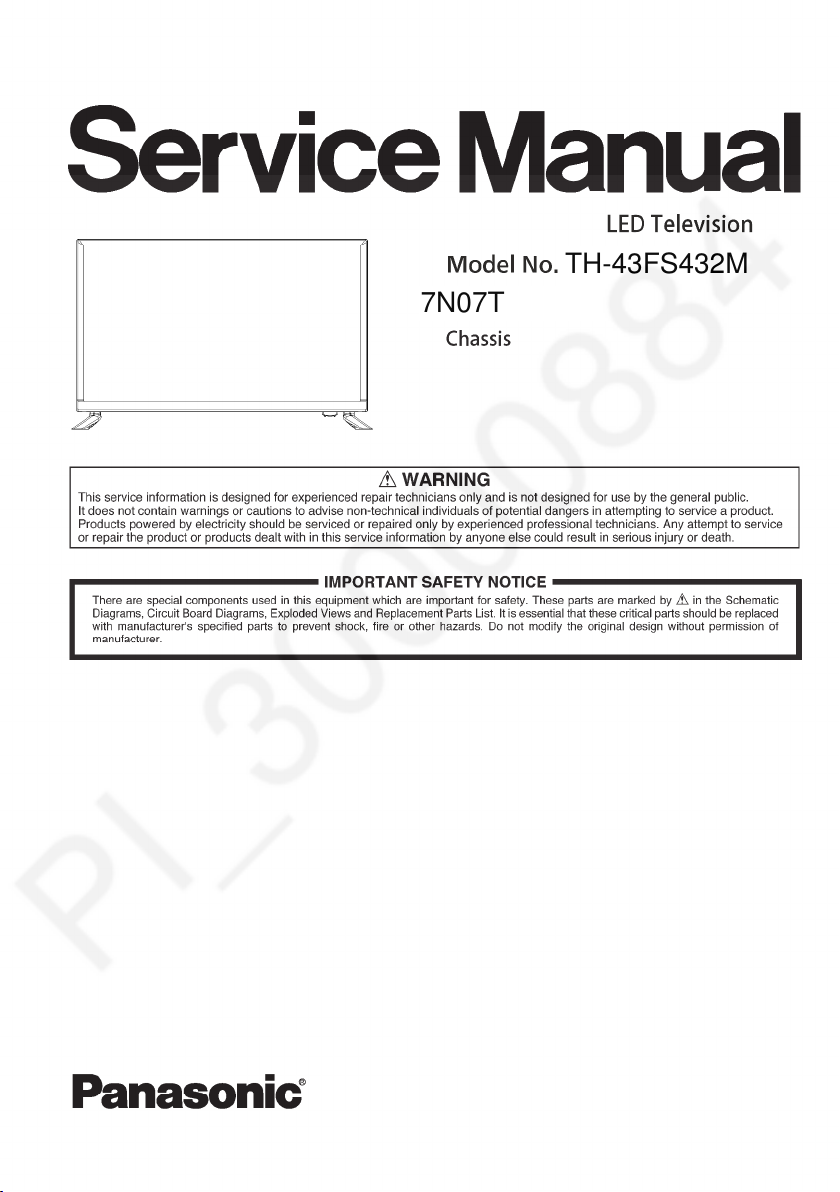

Panasonic TH-43FS432M Manuel utilisateur

TH-43FS432M

7N07T

-2-

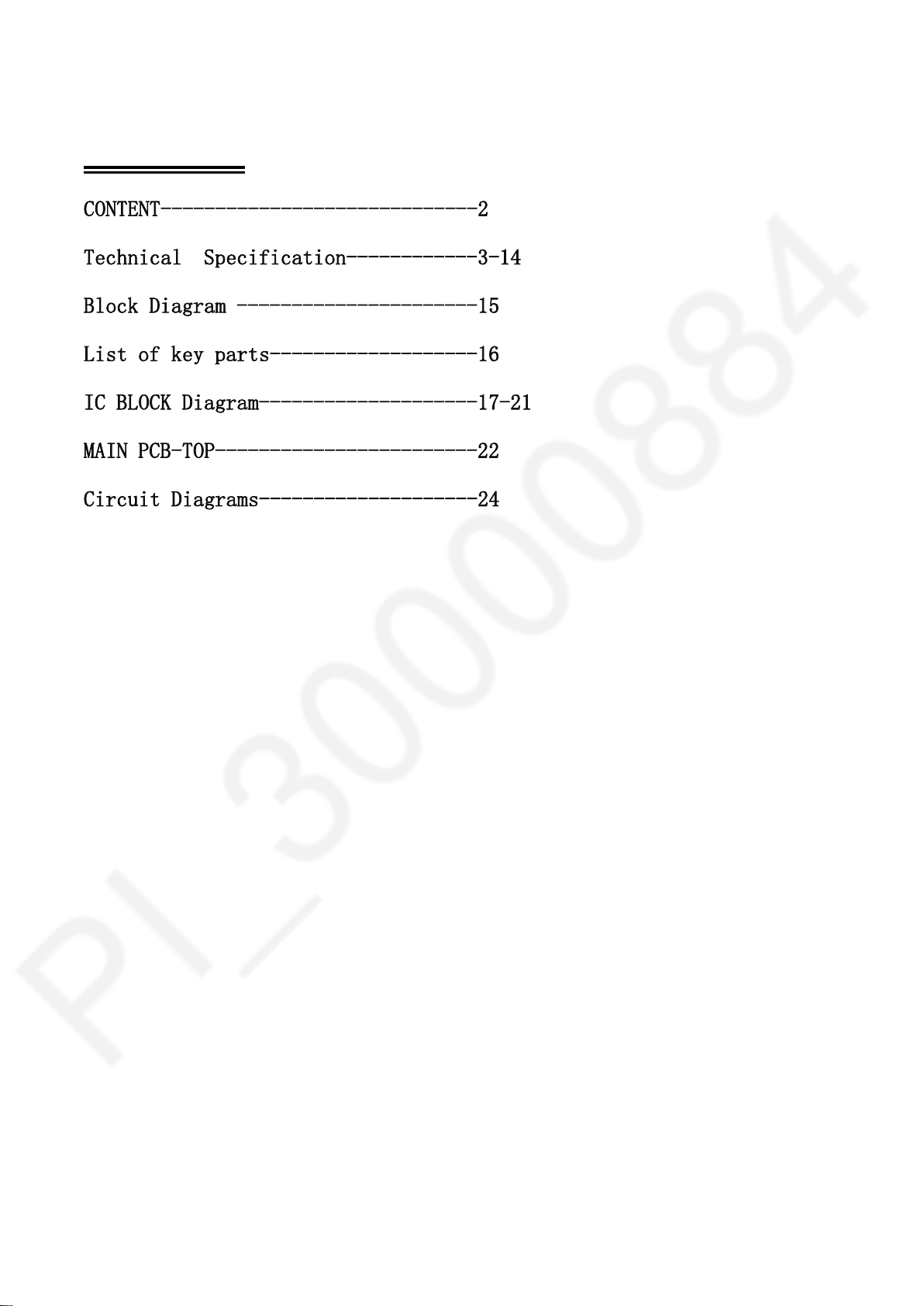

CONTENT

CONTENT-----------------------------2

Technical Specification------------3-14

Block Diagram ----------------------15

List of key parts-------------------16

IC BLOCK Diagram--------------------17-21

MAIN PCB-TOP------------------------22

Circuit Diagrams--------------------24

-3-

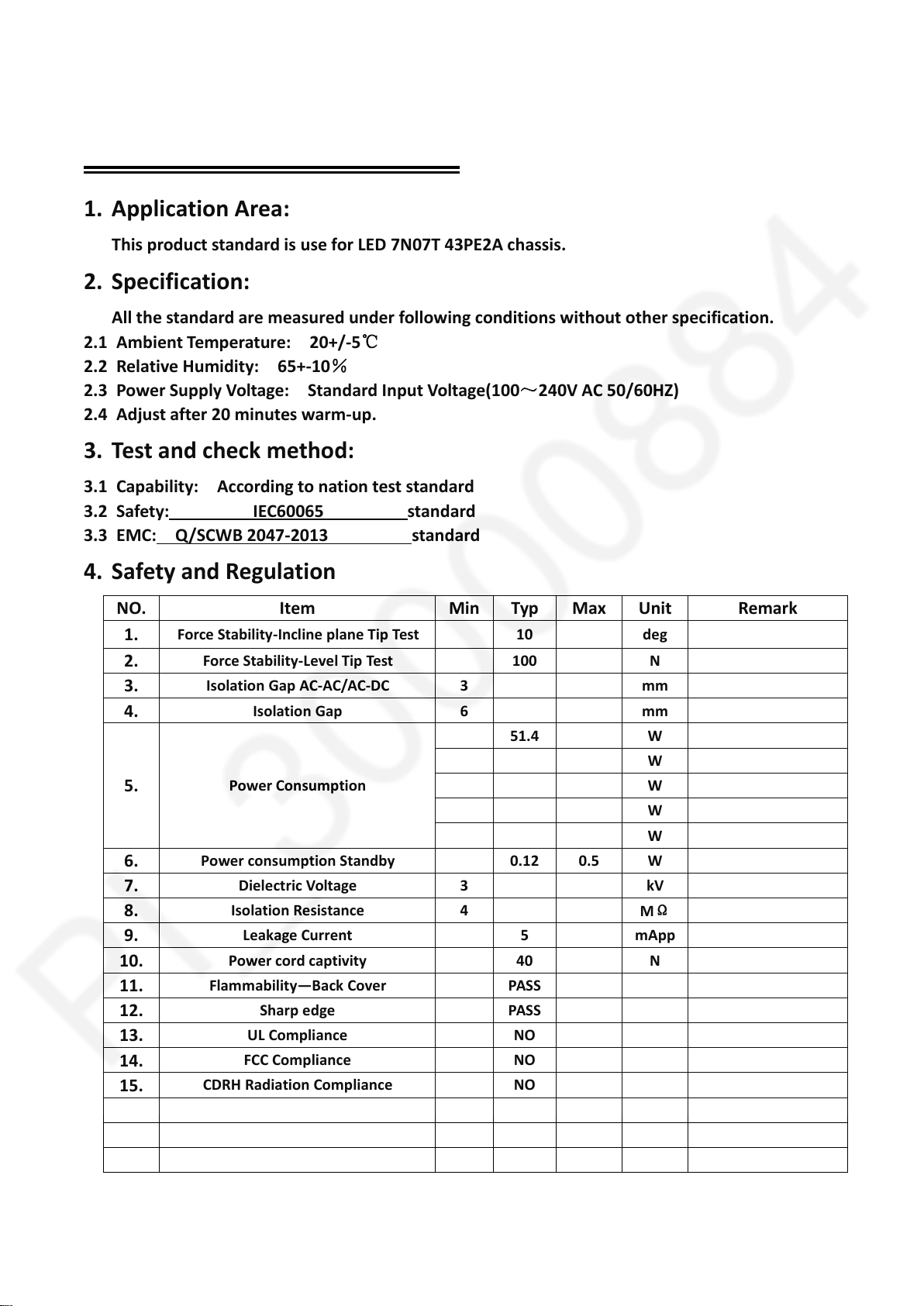

Technical Specification

1. Application Area:

This product standard is use for LED 7N07T 43PE2A chassis.

2. Specification:

All the standard are measured under following conditions without other specification.

2.1 Ambient Temperature: 20+/-5℃

2.2 Relative Humidity: 65+-10％

2.3 Power Supply Voltage: Standard Input Voltage(100～240V AC 50/60HZ)

2.4 Adjust after 20 minutes warm-up.

3. Test and check method:

3.1 Capability: According to nation test standard

3.2 Safety: IEC60065 standard

3.3 EMC: Q/SCWB 2047-2013 standard

4. Safety and Regulation

NO.

Item

Min

Typ

Max

Unit

Remark

Force Stability-Incline plane Tip Test

deg

Force Stability-Level Tip Test

100

Isolation Gap AC-AC/AC-DC

Isolation Gap

Power Consumption

51.4

Power consumption Standby

0.12

0.5

Dielectric Voltage

Isolation Resistance

MΩ

Leakage Current

mApp

10.

Power cord captivity

11.

Flammability—Back Cover

PASS

12.

Sharp edge

PASS

13.

UL Compliance

14.

FCC Compliance

15.

CDRH Radiation Compliance

16.

CSA Compliance

17.

CEB Compliance

18.

CE Compliance

Base on different orders

-4-

19.

CB Compliance

YES

5. Video

NO.

Item

Min

Typ

Max

Unit

Remark

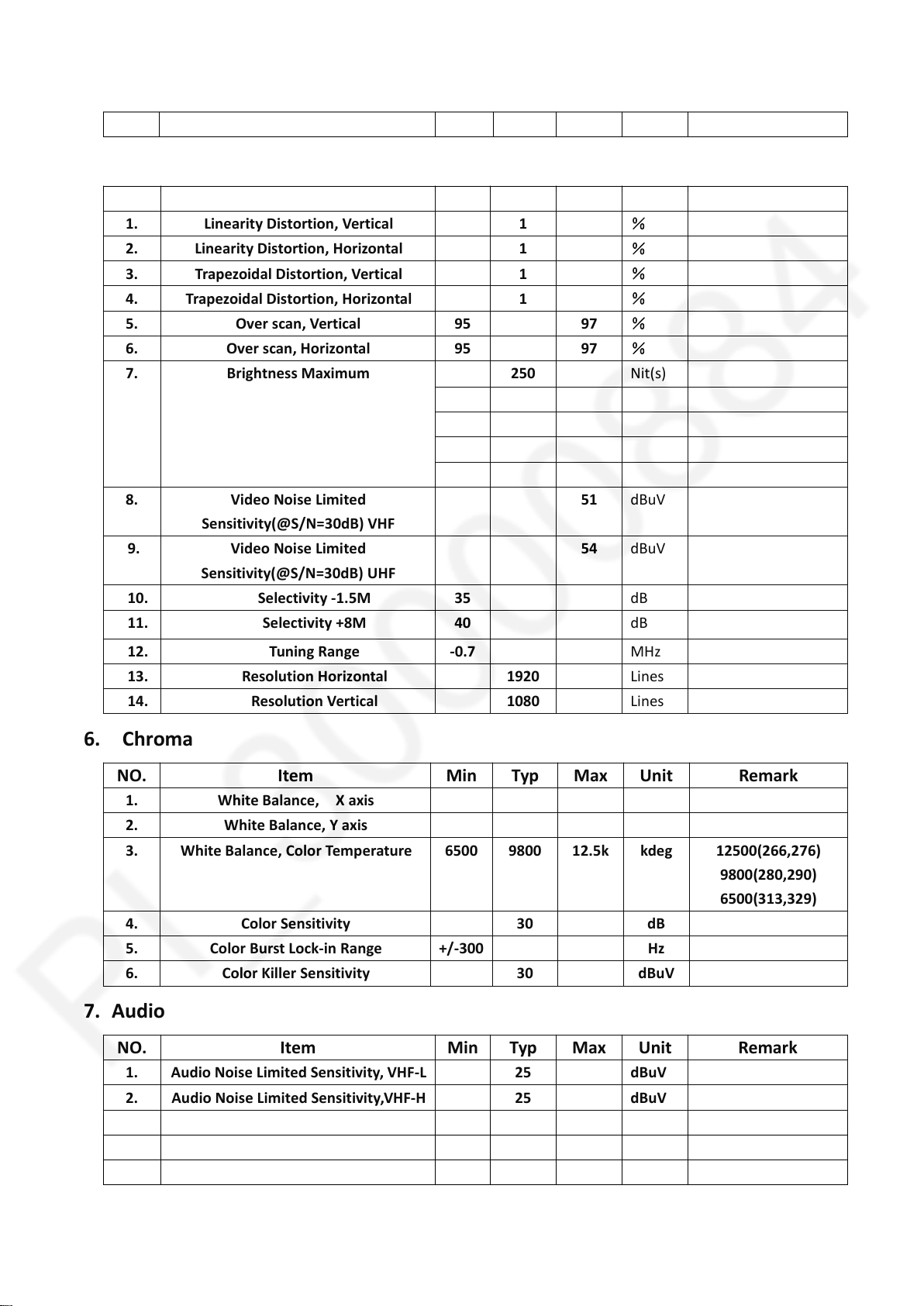

Linearity Distortion, Vertical

％

Linearity Distortion, Horizontal

％

Trapezoidal Distortion, Vertical

％

Trapezoidal Distortion, Horizontal

％

Over scan, Vertical

％

Over scan, Horizontal

％

Brightness Maximum

250

Nit(s)

Video Noise Limited

Sensitivity(@S/N=30dB) VHF

dBuV

Video Noise Limited

Sensitivity(@S/N=30dB) UHF

dBuV

10.

Selectivity -1.5M

11.

Selectivity +8M

12.

Tuning Range

-0.7

MHz

13.

Resolution Horizontal

1920

Lines

14.

Resolution Vertical

1080

Lines

6. Chroma

NO.

Item

Min

Typ

Max

Unit

Remark

White Balance, X axis

White Balance, Y axis

White Balance, Color Temperature

6500

9800

12.5k

kdeg

12500(266,276)

9800(280,290)

6500(313,329)

Color Sensitivity

Color Burst Lock-in Range

+/-300

Color Killer Sensitivity

dBuV

7. Audio

NO.

Item

Min

Typ

Max

Unit

Remark

Audio Noise Limited Sensitivity, VHF-L

dBuV

Audio Noise Limited Sensitivity,VHF-H

dBuV

Audio Noise Limited Sensitivity, UHF

dBuV

Buzz(S/N Ratio)

Distortion

％

-5-

Audio ouput,L/R,at 10％ THD

Audio ouput,Center

Stereo Separation

Speaker Impedance

ohm

10.

Speaker Power rating

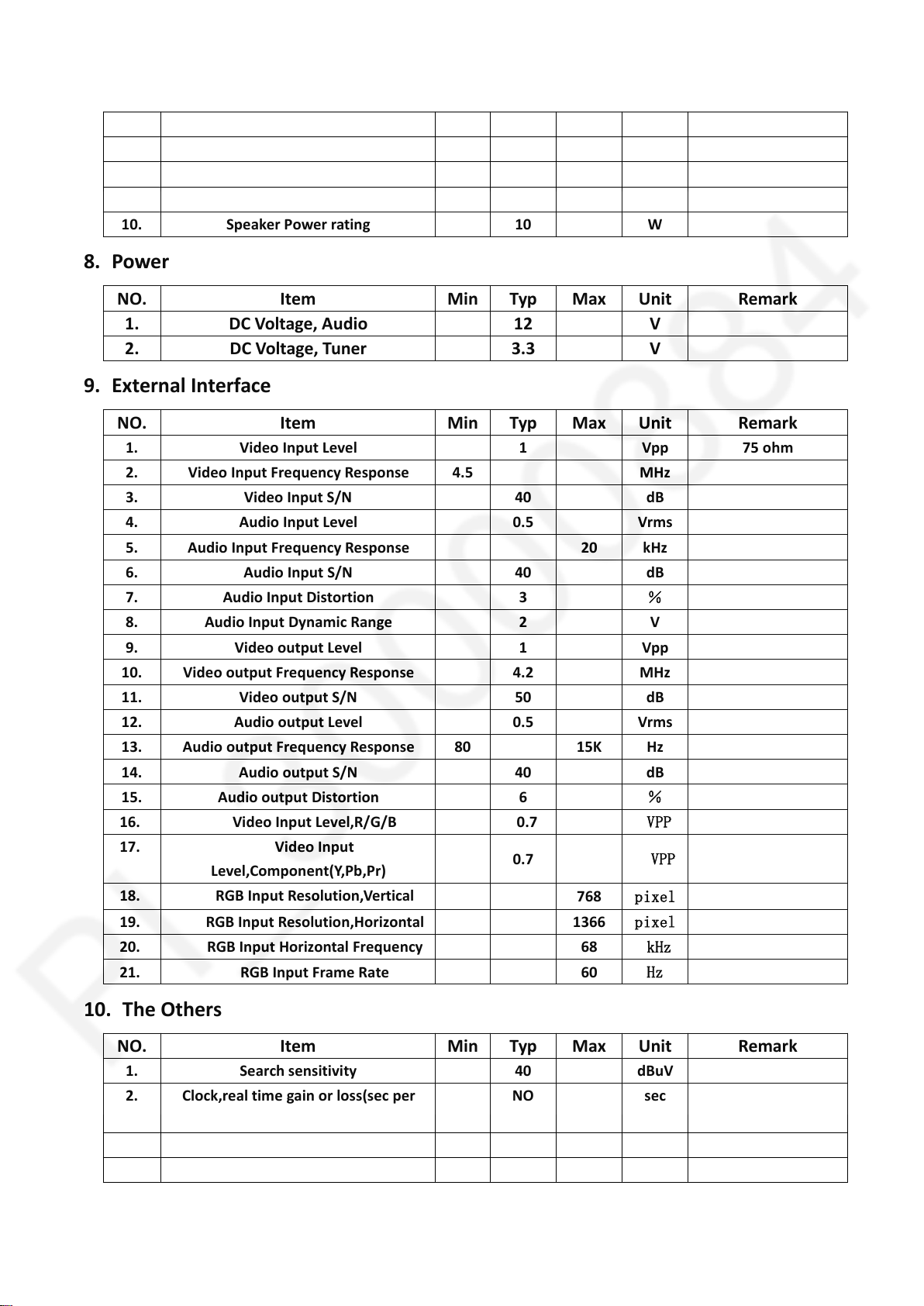

8. Power

NO.

Item

Min

Typ

Max

Unit

Remark

DC Voltage, Audio

DC Voltage, Tuner

3.3

9. External Interface

NO.

Item

Min

Typ

Max

Unit

Remark

Video Input Level

Vpp

75 ohm

Video Input Frequency Response

4.5

MHz

Video Input S/N

Audio Input Level

0.5

Vrms

Audio Input Frequency Response

kHz

Audio Input S/N

Audio Input Distortion

％

Audio Input Dynamic Range

Video output Level

Vpp

10.

Video output Frequency Response

4.2

MHz

11.

Video output S/N

12.

Audio output Level

0.5

Vrms

13.

Audio output Frequency Response

15K

14.

Audio output S/N

15.

Audio output Distortion

％

16.

Video Input Level,R/G/B

0.7

VPP

17.

Video Input

Level,Component(Y,Pb,Pr)

0.7

VPP

18.

RGB Input Resolution,Vertical

768

pixel

19.

RGB Input Resolution,Horizontal

1366

pixel

20.

RGB Input Horizontal Frequency

kHz

21.

RGB Input Frame Rate

10. The Others

NO.

Item

Min

Typ

Max

Unit

Remark

Search sensitivity

dBuV

Clock,real time gain or loss(sec per

day)

sec

Software Functionality Test

YES

REMOCON Working

-6-

sensitivity,Straight

REMOCON Working

sensitivity,T/B/L/R

Close caption sensitivity

dBuV

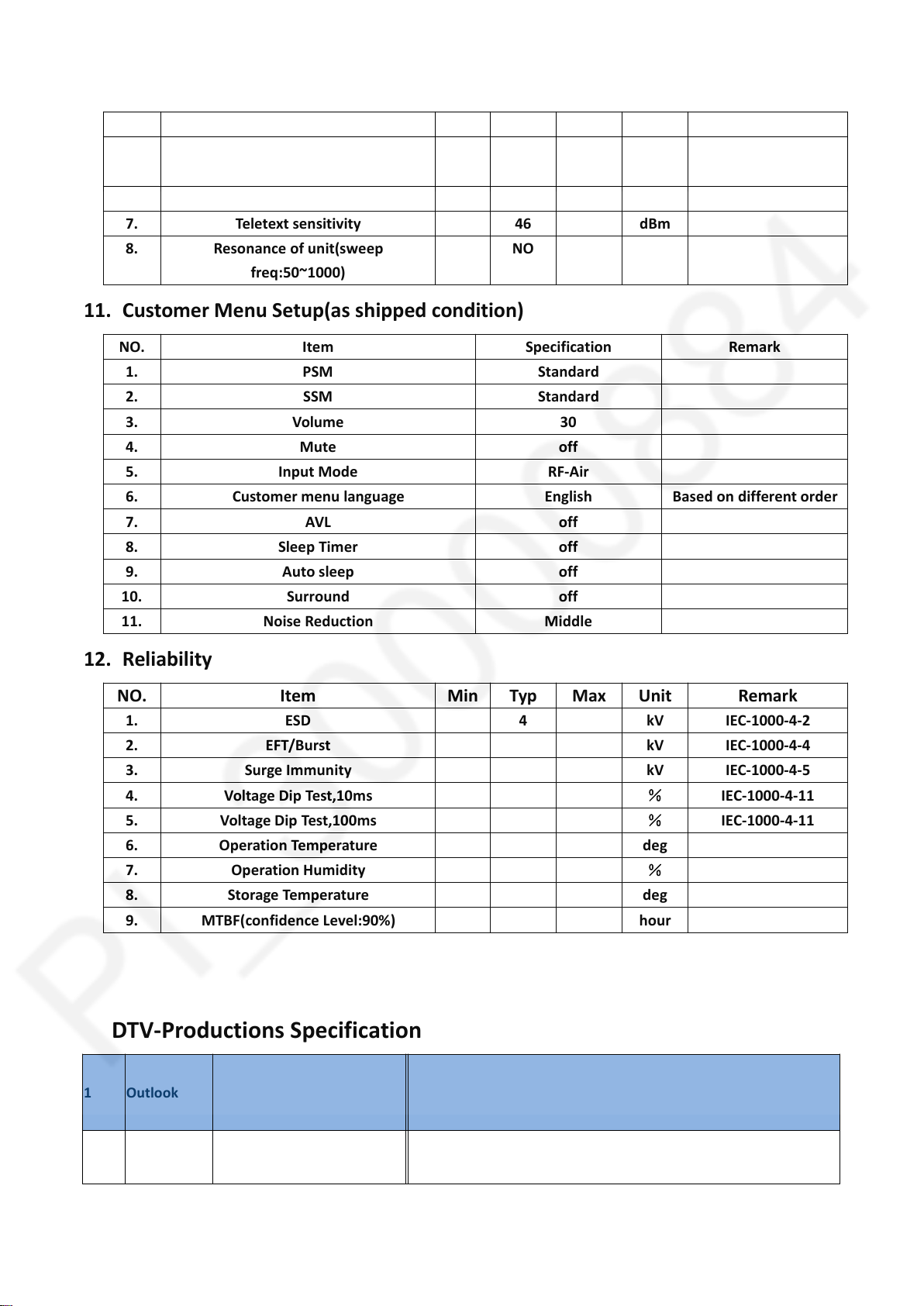

Teletext sensitivity

dBm

Resonance of unit(sweep

freq:50~1000)

11. Customer Menu Setup(as shipped condition)

NO.

Item

Specification

Remark

PSM

Standard

SSM

Standard

Volume

Mute

off

Input Mode

RF-Air

Customer menu language

English

Based on different order

AVL

off

Sleep Timer

off

Auto sleep

off

10.

Surround

off

11.

Noise Reduction

Middle

12. Reliability

NO.

Item

Min

Typ

Max

Unit

Remark

ESD

IEC-1000-4-2

EFT/Burst

IEC-1000-4-4

Surge Immunity

IEC-1000-4-5

Voltage Dip Test,10ms

％

IEC-1000-4-11

Voltage Dip Test,100ms

％

IEC-1000-4-11

Operation Temperature

deg

Operation Humidity

％

Storage Temperature

deg

MTBF(confidence Level:90%)

hour

DTV-Productions Specification

Outlook

Please refer

to the

Table des matières
