Model No. LCD-201803

OLED-201806

Order No. ITD1803902GE

Circuit Operation and Troubleshoot

2018 - LCD TV / OLED TV

Ver. 2.0

Revision History

Version Issued/Revised

date

Revised content

Ver. 1.0 27th. Mar. 2018 First version

Ver. 2.0 11th. Jun. 2018 Add new models (except OLED)

P.5, 11, 16, 19, 51: Add new models

P.20, 55-57, 76, 77: Add pages for new models

Add OLED models information

P.5, 11, 16, 19, 29, 38, 42, 49, 51, 70: Add OLED models

P.10, 20, 27, 28, 46, 47, 61-63, 68, 71, 78-87: Add pages for OLED models

INDEXINDEX

1.Board Layout

2.Video Signal Processing

2-1. Picture signal flow

2-2. Troubleshoot of Picture Problem

3.Power Supply

3-1. Power Board Structure

3-2. Stand by / Start up Operation

3-3. SOS Protection Circuit and Troubleshoot of Power Problem

4.Handling and Rear Cover Disassemble and Assemble

5.Information for OLED Model

1. Board Layout

Board Layout -1

The presence of GK board is depend on the model and region.

LDP

49/43/32/24FS***/F4**,

40FS***/F4** (Europe and Oceania)

40FS***/F4** (Latin and Asia)

55/49/43/40FX6**

65/55/49/43/40FX7**/FX8**

55FZ**

50FS***

65FX6**, 75FX7**/FX8**

LDP

65FZ***

Board Name Function

A-Board Main Board

P-Board Power supply, Backlight Drive, Power key, Control key

K-Board Remote Receiver, Power LED

A02

A12

A10

AC input

K10

Speaker Speaker

A15

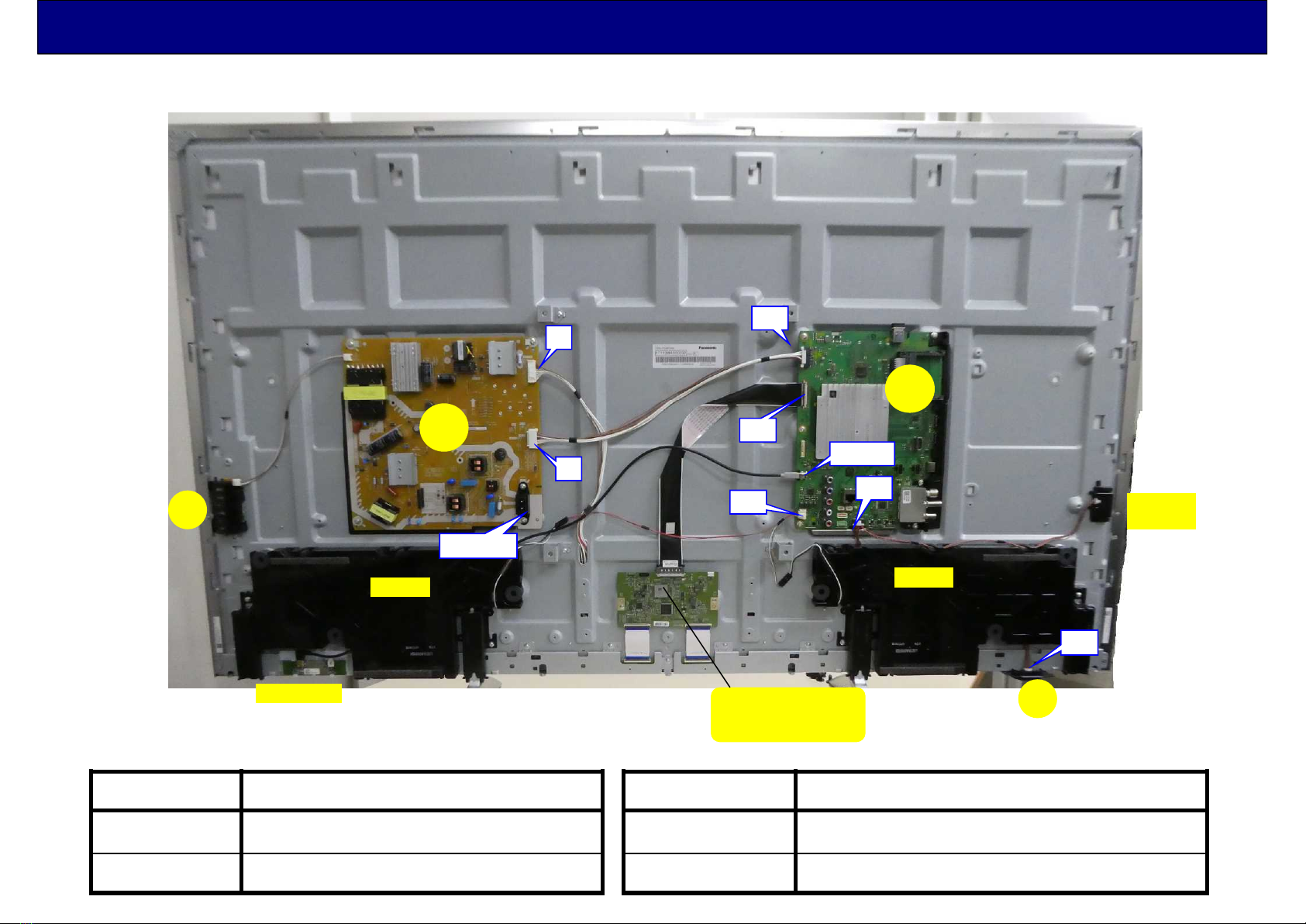

Board Layout -2

( 32F400 )

( A+P )

(T-CON)

Not repairable,

One of the panel module

A10

A02

A12

AC input

K10

WiFi Module

Speaker Speaker

(T-CON)

Not repairable,

One of the panel module

A16

Board Layout -3

( 55FX700 )

( A+P )

GK Bluetooth

Module

Board Name Function

A-Board Main Board

P-Board Power supply, Backlight Drive

Board Name Function

K-Board Remote Receiver, Power LED

GK-Board Power key, Control key

JK8705

Board Name Function

A-Board Main Board

P-Board Power supply, Backlight Drive, Power key, Control key

K-Board Remote Receiver, LED

A02

A10

DC input,

Connect the

AC adapter

K10

Speaker Speaker

A11

Board Layout -4

( 40F400 )

( A+LDP )

GK LDP1

(T-CON)

Not repairable,

One of the panel module

LDP

A02

A16

A12

A10

AC input

K10

WiFi Module

Speaker Speaker

(T-CON)

Not repairable,

One of the panel module

LDP5

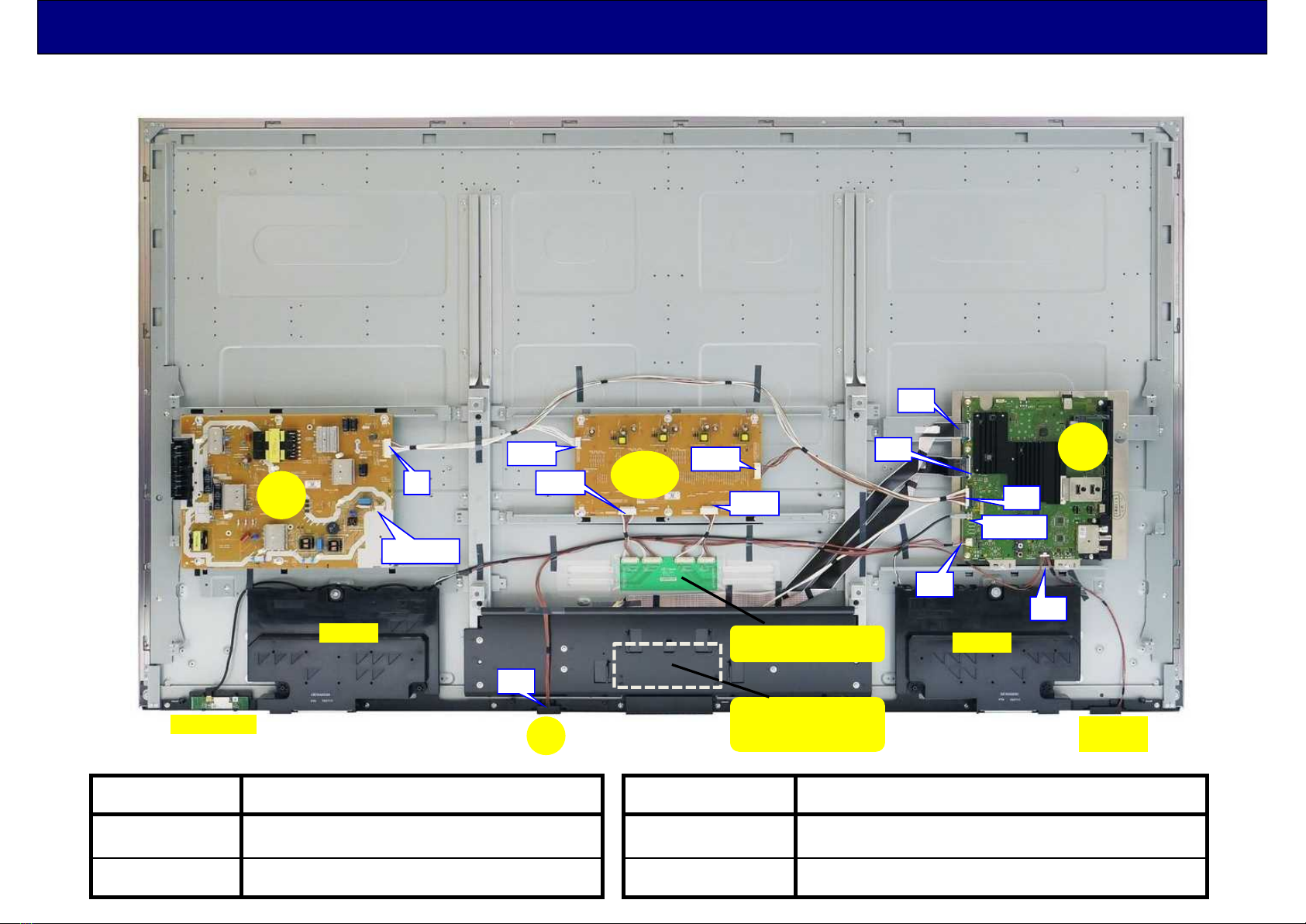

Board Layout -5

LDP

LDP3 LDP2

Board Name Function

A-Board Main Board

P-Board Power supply for Signal Process

Board Name Function

LDP-Board Power supply for Backlight Drive

K-Board Remote Receiver, Power LED

( 75FX750 )

( A+P+LDP )

LDP4

Bluetooth

Module

Not repairable,

One of the panel module

A15

JK8705

Board Name Function

A-Board Main Board

P-Board Power supply for Signal Process

PB-Board Power supply for Panel

Board Layout -6

Board Name Function

GK-Board Key

K-Board Remote Receiver, Power LED

PB A

WiFi Module

(T-CON)

Not repairable,

One of the panel module

( 65FZ series )

There is no PB board in 55FZ series

(A+P+PB)

Bluetooth Module

AC input

P6 PB6

PB5

PB4GK4

K10

A02

A15

A12

A10

A16

OLED

(The Speaker of FZ1000 is separated.)

JK8705

CN11

CN5

CN10

CN6
