Reference Manual

Personal Computer

Model No. CF-52 Series

We recommend that this Reference Manual be printed.

Descriptions

• For common procedures and screens for Windows 7 and

Windows XP, this Reference Manual uses the procedures

and screens of Windows 7.

• Some menus may differ for Windows XP.

• Windows XP does not require clicking operation to of

the notification area.

Introduction

This manual explains using the Windows 7 or Windows XP default setting.

In these instructions, the names are referred as follows.

z“Windows®7 Professional” as “Windows” or “Windows 7”

z“Microsoft®Windows®XP Professional” as “Windows” or “Windows XP”

You can update to the latest patches and service packs for Windows with the following menus.

Click (Start)*1 - [All Programs] - [Windows Update].

Do not apply “Driver Updates” even if a message to update a driver appears. If a driver update is required, contact your

technical support office.

*1 Windows XP: [start]

Sound and Video

zSound (e.g. MP3, WMA) and video (e.g. MPG, WMV) recorded in PC Cards and SD Memory Cards may be interrupted

during playback. If this happens, copy them to the hard disk drive and play back.

zDepending on the processing status on Windows, sound may be interrupted at Windows startup. You can mute the sound

at startup.

ARight-click the desktop and click [Personalize] - [Sounds].

BRemove the check mark from [Play Windows Startup sound], and click [OK].

When high-frequency sound occurs

If high-frequency sound occurs around keyboard while using the computer, check the settings for the USB power saving

function.

A standard user needs to enter an administrator password and click [OK].

zSet [USB selective suspend setting] to [Enabled].

AClick (Start) - [Control Panel] - [System and Security] - [Power Options].

BClick [Change plan settings] of the current power plan.

Windows Update

Regarding Windows 7

Introduction

CIn [Change settings for the plan], click [Change advanced power settings].

DIn [Advanced settings], double-click [USB settings].

EDouble-click the displayed [USB selective suspend setting].

FChange settings of [On battery] and [Plugged in] to [Enabled].

GClick [OK] and exit the [Advanced settings] screen.

Key Combinations

NOTE

zDo not repeatedly press the keys in quick succession.

zDo not use the key combinations together with touch pad (external mouse) or other key operations.

Do not use the key combinations before you log on to Windows. Wait until the drive indicator turns off. On the Setup

Utility screen, you can use the key combinations of

and

. By using the key combinations of

, the display is switched between the internal LCD, simultaneous display

and the external display.

zThe key combinations may not work with some applications.

zThe pop-up icon appears after logging on to Windows. It may not appear in some application conditions.

*1 CF-52P/Q/R series only

Key Function Pop-up icon

LCD brightness

(

= down /

= up)

Display mode switching (Îpage 45)

When an external display (a projector etc.) is connected, you can change the dis-

play mode.

APress

BClick the display mode. (Computer only/Duplicate/Extend/Projector only)

The change you made may not be effective until

Enter

is pressed.

You can also change the display mode by pressing +

Internal LCD Simultaneous display External display

NOTE

zWhen an external display is connected to an optional port replicator (CF-

VEB522), the display switching may work differently from the above. For

further information, refer to the instruction manual of the port replicator.

CAUTION

zDo not press any keys until the display has finished switching.

zDo not use this function:

• When playing motion video such as DVD or MPEG.

• When an external display is not connected.

• When showing a game screen such as pinball.

• When using the Extended Desktop.

Key Combinations

*2 Windows XP: standby

Speaker on/off

NOTE

zBeeps do not sound if you turn off the speaker sound. OFF

(MUTE)

Volume

(

= down /

= up)

NOTE

zWhen fine-tuning the sound volume, press and hold

, and press

intermittently.

zThis does not work on beeps or speakers connected to the USB port.

Activate sleep*2 (Îpage 9)

Remaining battery charge

(When the battery pack is inserted in the computer)

Îpage 15

F10

Activate hibernation (Îpage 9)

Key Function Pop-up icon

Key Combinations

You can make 2 settings:

•Fn key lock

When you press

, the key is locked (pressed-down) until you press another key. Use this when pressing difficult key

combinations.

• Pop-up icon on/off

1Start up the Hotkey Settings.

Click (Start)*3 - [All Programs] - [Panasonic] - [Hotkey Settings].

2Make the settings.

[Use Fn key lock]

zWhen using an

key combination

APress

once. (Locked)

BPress another key. (Lock released)

zWhen using successive

key combinations

APress

twice. (Locked)

BPress another key.

Fn key remains locked until you press

again.

[Notification]

[Make sounds when Fn key is pressed]*4

[Show status on screen]: Displays the Fn key status when on the notification area is clicked.

•:

is locked.

•:

is not locked.

[Disable popup]

The pop-up icon will not be displayed.

3Click [OK].

NOTE

zYou can have different settings for each user.

*3 Windows XP: [start]

*4 If the speakers are muted, beeps do not sound.

Hotkey Settings

Sleep and Hibernation Functions

The sleep*1 or hibernation functions allow you to shut off the computer without closing programs and documents. You can

quickly return to the programs and documents that you were working on before sleep*1 or hibernation.

*1 Windows XP: standby

Sleep

1Click or on the notification area, and click [More power options].

2Click [Change plan settings] of the power plan you want to change.

3Select the setting for [Put the computer to sleep], and then click [Save changes].

zThe setting for hibernation may change unexpectedly when you change the setting for sleep. Confirm that the

time to enter hibernation is 1,080 minutes (default setting) or longer (below).

Hibernation

1After the step 2of “Sleep” setting (above), click [Change advanced power settings].

2Double-click [Sleep], and double-click [Hibernate after].

3Click the item and select the setting.

4Click [OK].

1Click [start] - [Control Panel] - [Performance and Maintenance] - [Power Options] -

[Advanced].

Starting Up Your Computer Quickly

Function Data is saved to Recovery time Power supply

Sleep*1 Memory Short Required. (If power is not supplied, all data will be lost.)

Hibernation Hard disk Rather long Not required. (However power is slightly consumed to

keep the hibernation.)

Setting Sleep or Hibernation

Sleep and Hibernation Functions

2Select [Stand by] or [Hibernate] for [When I close the lid of my portable computer] / [When

I press the power button on my computer], and then click [OK].

NOTE

zYou do not need to make the setting if you use the Windows menu to enter standby or hibernation.

zConnect the AC adaptor if the computer will be in sleep*2 for a long period of time. If you cannot use the AC adaptor, use

hibernation instead.

zUsing sleep*2 or hibernation repeatedly may cause malfunction of the computer. To stabilize computer operation, restart

Windows regularly (about once a week) without using sleep*2 or hibernation.

zSave the necessary data.

zClose files you have opened from removable disks and network drives.

zDo not enter sleep*2 or hibernation in the conditions below, otherwise the data or file may be corrupted, sleep*2 or hiberna-

tion may not work, or malfunction may occur in the computer or the peripheral devices.

• When any of the drive indicator or the SD Memory Card indicator is on.

• When playing/recording audio files or displaying motion video such as MPEG files.

• When playing a DVD-Video.

• When writing to a disc.

• When using communication software or network functions.

• When using peripheral devices.

(If peripheral devices fail to work normally, restart the computer.)

• When an external mouse is connected to the serial port.

zThe password you set in the Setup Utility is not requested at resuming. To enable it, select [Enabled] in [Password On

Resume] in the [Security] menu of the Setup Utility (Îpage 85).

CAUTION

The following problems will occur when you fail the password input (failing three times or leaving the computer unat-

tended for one minute or more) while resuming from sleep*2 or hibernation.

zFailing the password input while resuming from hibernation:

• At the next resume, Panasonic boot screen will appear. At this time, do not start the Setup Utility and do not change

settings. Otherwise, resume may not operate correctly.

• Cannot resume from hibernation by the Wake Up from wired LAN function, the Task Scheduler or the operation to

open the display.

zFailing the password input while resuming from sleep*2:

• Cannot resume from sleep*2 using the USB devices.

*2 Windows XP: standby

Precautions

Sleep and Hibernation Functions

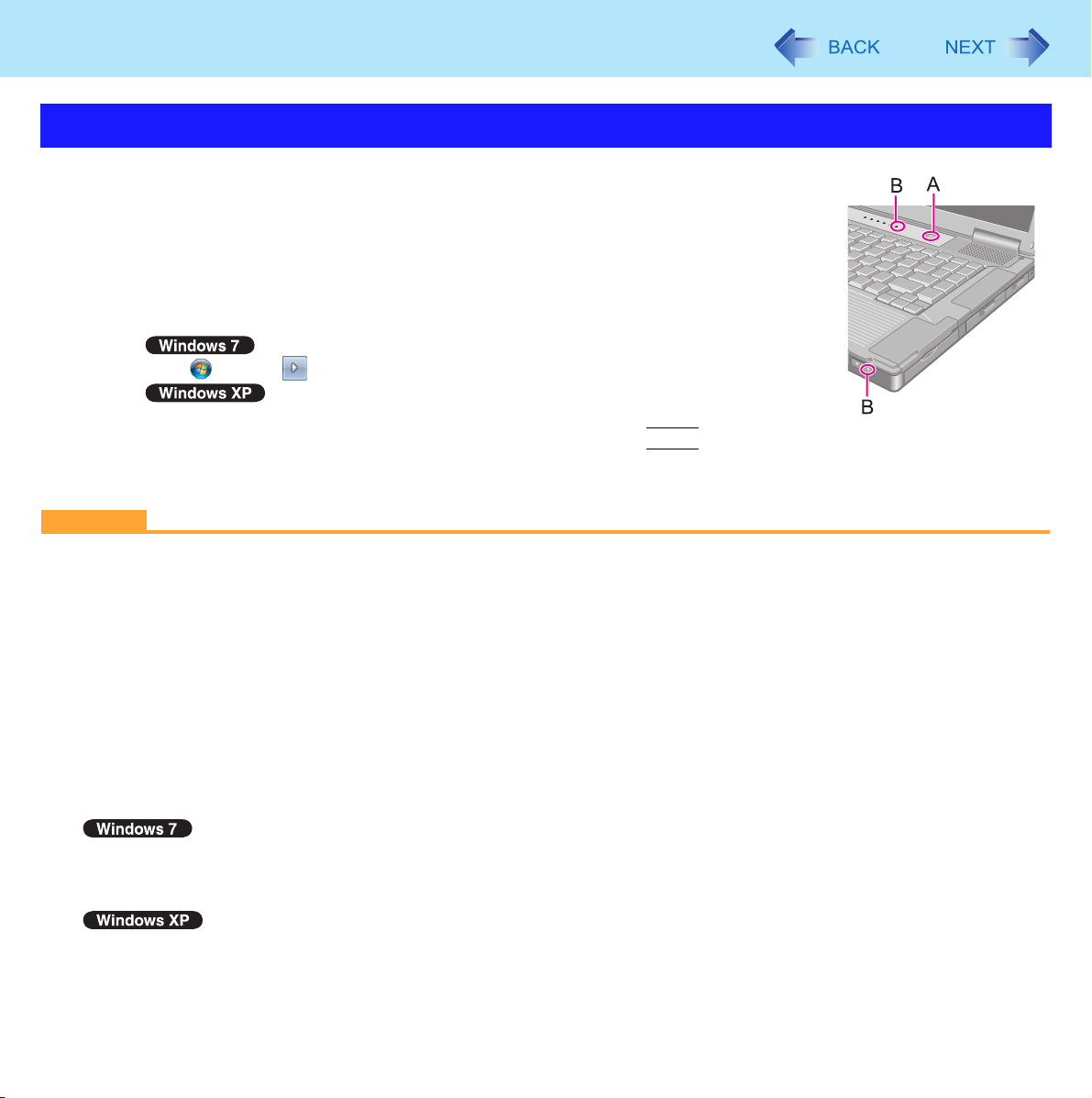

To enter sleep*3 or hibernation

1Close the display, or press the power switch (A) until a beep*4

sounds.

Sleep*3: The power indicator (B) blinks green.

Hibernation: The power indicator (B) goes off.

zYou can alternatively use the Windows menu to enter sleep*3 or hibernation.

Click (Start) - - [Sleep] / [Hibernate].

To enter standby, click [start] - [Turn Off Computer] - [Stand By]. To enter hiber-

nation, click [start] - [Turn Off Computer], then press and hold

Shift

and click

[Hibernate].

CAUTION

While the computer is entering sleep*3 or hibernation

zDo not:

• Touch the keyboard, touch pad or power switch.

• Use an external mouse or other peripheral devices.

• Connect or disconnect the AC adaptor.

• Operate the wireless switch.

• Close or open the display.

• Insert and remove the SD Memory Card.

Wait until the power indicator blinks green (sleep*3) or goes off (hibernation).

zIt may take 1 or 2 minutes to enter sleep*3 or hibernation. Do not touch any key though the screen becomes dark.

zAt the beep*4, immediately release the power switch. After releasing the switch, do not operate it until the power indi-

cator blinks or goes off.

If you press and hold the power switch for longer than 4 seconds, the computer will forcibly shut down and unsaved

data will be lost even if you have set [When I press the power button] to any item in [Change what the power button

does].

If you press and hold the power switch for longer than 4 seconds, the computer will forcibly shut down and unsaved

data will be lost even if you have set any item in [When I press the power button on my computer] (Îpage 7 “Setting

Sleep or Hibernation”).

Entering/Resuming from Sleep or Hibernation

Sleep and Hibernation Functions

In sleep*3 or hibernation

zDo not attach or remove a multimedia pocket device and peripheral devices. Doing so may cause malfunction.

zPower is consumed in sleep*3. Power consumption may increase when a PC Card is inserted. When power is

exhausted, the data retained in memory will be lost. Connect the AC adaptor when using the sleep*3 function.

zDo not turn on/off the wireless switch.

To resume from sleep*3 or hibernation

1Open the display, or press the power switch (A).

zIn the default setting, the Windows password will be requested to resume.

When [Stand by] or [Hibernate] is selected as the setting for [When I close the lid of

my portable computer] (

page 7), you can resume operation opening the display.

CAUTION

zDo not perform the following operations until resuming is complete. After the display is resumed, wait approximately

30 seconds (normally) or 60 seconds (when the computer is on a network).

• Touch the keyboard (except for password input), touch pad or power switch.

• Use an external mouse or other peripheral devices.

• Connect or disconnect the AC adaptor.

• Close or open the display.

• Shut down or restart Windows.

• Enter sleep*3 or hibernation (Wait approximately 1 minute).

• Operate the wireless switch.

• Insert and remove the SD Memory Card.

zIf the computer enters sleep*3 while a USB keyboard or mouse is connected, touching the USB keyboard keys or

mouse will resume the computer.

NOTE

z<Only for model with Bluetooth>

After resuming from sleep or hibernation, the message “TosBtMng has stopped working” may appear.

Click [Close program].

If Bluetooth connections are cut off, click (Start)*5 - [All Programs] - [Bluetooth] - [Bluetooth Settings], and connect

to the Bluetooth devices again.

*3 Windows XP: standby

*4 If the speakers are muted, beeps do not sound.

*5 Windows XP: [start]

Autres manuels pour Toughbook CF-52EKMBGAM

Ce manuel convient aux modèles suivants

194

Table des matières

Autres manuels Panasonic Ordinateur portable

Panasonic

Panasonic CF-07 Series Manuel utilisateur

Panasonic

Panasonic Toughbook CF-51PF66EBM Manuel utilisateur

Panasonic

Panasonic CF-W7 Series Manuel

Panasonic

Panasonic Toughbook CF-H1ADBBZCM Manuel utilisateur

Panasonic

Panasonic CF-R1 Series Manuel utilisateur

Panasonic

Panasonic Toughbook CF-19KHRAG2M Manuel

Panasonic

Panasonic Toughbook CF-51PF66EBM Manuel utilisateur

Panasonic

Panasonic Toughbook CF-W8EWEZZAM Manuel utilisateur

Panasonic

Panasonic Toughbook CF-Y7BWAZAJM Manuel utilisateur

Panasonic

Panasonic Toughbook CF-28 Series Manuel utilisateur

Panasonic

Panasonic CF-71 Series Manuel utilisateur

Panasonic

Panasonic Toughbook CF-74CCB02BM Manuel utilisateur

Panasonic

Panasonic CF-T5 Series Manuel utilisateur

Panasonic

Panasonic Toughbook CF-T4GWCTZBM Manuel utilisateur

Panasonic

Panasonic Toughbook CF-T8EWATZJM Manuel utilisateur

Panasonic

Panasonic Toughbook CF-28 Series Manuel utilisateur

Panasonic

Panasonic CF-19FDGAXCM Manuel utilisateur

Panasonic

Panasonic Toughbook CF-T8EWATZJM Manuel utilisateur

Panasonic

Panasonic CF-W2 Series XP Manuel utilisateur

Panasonic

Panasonic Toughbook CF-48N4FKUEM Manuel utilisateur

Panasonic

Panasonic Toughbook CF-Y5LWEZABM Manuel utilisateur

Panasonic

Panasonic Toughbook CF-19A6UCG1M Manuel utilisateur

Panasonic

Panasonic Toughbook CF-30CTQAZBM Manuel utilisateur

Panasonic

Panasonic Toughbook CF-07LZ5ZYEM Manuel utilisateur

Manuels Ordinateur portable populaires d'autres marques

HP ze2401xt - Pavilion Notebook PC Manuel utilisateur

Velocity

Velocity NoteMagix M10 Manuel utilisateur

Dell

Dell Alienware 17 R2 Manuel utilisateur

Toshiba

Toshiba A105-S2236 Manuel utilisateur

HP ENVY 17 Manuel

Winbook

Winbook LM Manuel utilisateur

Dell

Dell Inspiron 1464 Manuel utilisateur

Dell

Dell Inspiron 15R 5537 Manuel utilisateur

HP PROBOOK 4520S Manuel

Dell

Dell Latitude ATG D620 Manuel utilisateur

Sony

Sony VAIO PCG-FX270 Manuel utilisateur

Dell

Dell Latitude 7310 Manuel utilisateur

Dell

Dell Precision GU806 Manuel utilisateur

Sony

Sony VAIO PCG-R505JLK Manuel utilisateur

Lenovo

Lenovo THINKPAD X32 Manuel utilisateur

HP Compaq tc4200 Guide de démarrage rapide

Toshiba

Toshiba mini NB300 Manuel utilisateur

Lenovo

Lenovo ThinkPad X201 Tablet Manuel
