Please read these instructions carefully before using this product, and save this manual for future use.

Useful Information

Troubleshooting

Appendix Getting Started

Getting Started

Introduction

Thank you for purchasing this Panasonic product. For optimum performance and safety, please

read these instructions carefully.

In these instructions, the names are referred as follows.

indicates Windows®8.1 Operating System.

indicates Windows®7 Operating System.

■Terms and illustrations in these instructions

CAUTION : Conditions that may result in minor or moderate injury.

NOTE : Useful and helpful information.

Enter

: Press [Enter] key.

: Press and hold [Fn] key, and then press [F5] key.

●Display “Charm”: Align the pointer to the top right (or bottom right) corner of the

screen to display Charm menu. Alternatively, flick toward the

center of the screen from the right edge.

●- : Click (Settings) and then click (Power).

(Start) - [All Programs] : Click (Start), and then click [All Programs]. You may need to

double-click in some cases.

è: Page in these Operating Instructions or in the Reference Manual.

: Reference to the on-screen manuals.

●Some illustrations are simplified to help your understanding and may look different from the

actual unit.

●If you do not log on as an administrator, you cannot use some functions or cannot display

some screens.

●Refer for the latest information about optional products to the catalogs, etc.

●In these instructions, the names and terms are referred as follows.

•“Windows®8.1 Pro Update 64-bit” as “Windows” or “Windows 8.1”

•“Windows®7 Professional 32-bit Service Pack 1” and “Windows®7 Professional 64-bit

Service Pack 1” as “Windows” or “Windows 7”

•“Multilanguage User Interface” as “MUI”

•For models with the flash memory drive, read the terms “hard disk” and “hard disk drive” as

“flash memory drive”.

●

Screen messages are explained in [English (United States)].

(Depending on the language preference, some screen messages in these instructions are

different from the actual screen messages. For example, [Flight mode] may be displayed

instead of [Airplane mode] in some language preference.)

■Disclaimer

Computer specifications and manuals are subject to change without notice. Panasonic

Corporation assumes no liability for damage incurred directly or indirectly from errors, omissions

or discrepancies between the computer and the manuals.

Getting Started

■Trademarks

Microsoft®, Windows®, the Windows logo, and IntelliMouse are registered trademarks of Microsoft

Corporation of the United States and/or other countries.

Intel, Core and PROSet are either registered trademarks or trademarks of Intel Corporation.

SDXC Logo is a registered trademark of SD-3C, LLC.

Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of

Adobe Systems Incorporated in the United States and/or other countries.

Bluetooth®is a registered trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to

Panasonic Corporation.

HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LLC in the United States and other countries.

Names of products, brands, etc., appearing in this manual are trademarks or registered

trademarks of their respective own companies.

■On-screen Manual

For further information about the computer, you can refer to the on-screen manual.

●Reference Manual

The Reference Manual contains the practical information to help you fully enjoy the

computer’s performance.

●Important Battery Tips

The Important Battery Tips will provide you with the battery information so that you can use

the battery in the optimum condition to obtain longer operation time.

To access the on-screen manuals, follow the steps below.

Double-click [Manual Selector] on the desktop, and select the on-screen manual.

Alternatively, click the [Manual Selector] tile, on the Start screen and select the on-screen manual.

NOTE

•[Contents] tab or [Search] tab of the on-screen manuals is displayed on the left side of the

window. Select tab and display the desired item.

Getting Started

Description of Parts

A: Speaker

B: Function Keys

Reference Manual “Key Combinations”

C: Keyboard

D: Windows Button

E: Camera

Reference Manual “Camera”

F: Microphone

G: Camera Indicator

H: Ambient Light Sensor

The ambient light sensor is equipped

with an automatic brightness adjustment

function that adjusts the display screen.

I: LCD (with touchscreen)

Reference Manual “Screen Input Operation”

J: Strap Holder (Both sides)

Mounting holder for a hand strap (optional).

K: DC-IN Jack

L: VGA Port

Reference Manual “External Display”

M: LAN Port

èReference Manual “LAN

”

N: HDMI Port

Reference Manual “External Display

”

O: USB 3.0 Port

USB 3.0 Port (USB Charging)

èReference Manual “USB Devices

”

•Keep USB memory cards away from

infants and small children.

•Do not insert any foreign object in the

USB port.

P: Microphone Jack

A condenser microphone can be used.

If other types of microphones are used,

audio input may not be possible, or

malfunctions may occur as a result.

Q: Headphone Jack

You can connect headphones or amplified

speakers. When they are connected, audio

from the internal speakers is not heard.

R: Wireless Switch

WIRELESS

èReference Manual “Disabling/

Enabling Wireless Communication

”

Getting Started

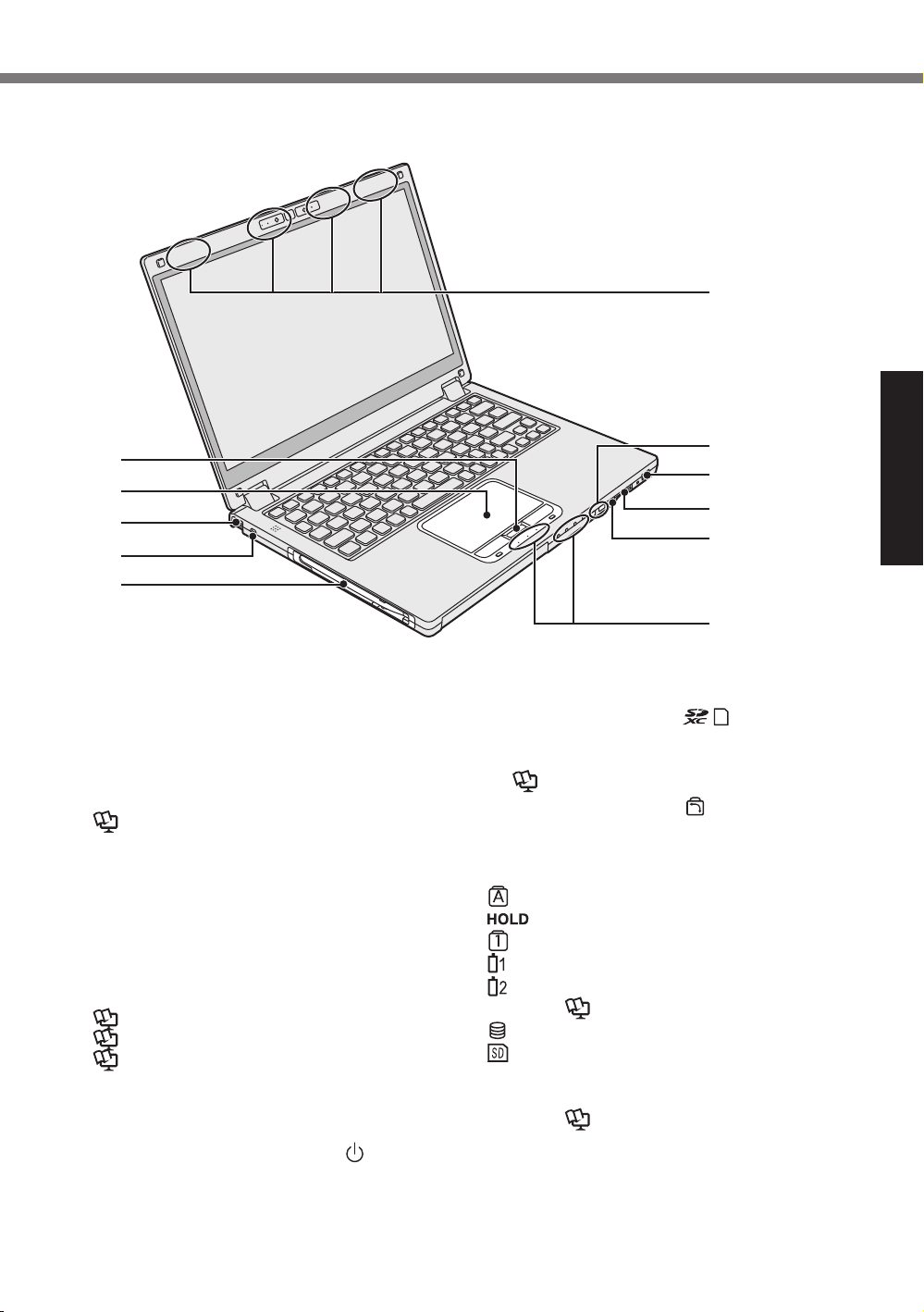

A: HOLD Button

You can press the HOLD button to disable

the keyboard and touchpad or only the

touchpad.

B: Touchpad

Reference Manual “Using the Touch Pad”

C: Strap Holder (Both sides)

Mounting holder for a hand strap (optional).

D: Security Lock

A Kensington cable can be connected. For

further information, read the manual that

comes with the cable.

E: Stylus Holder

F: Wireless Antenna

èReference Manual “Wireless LAN”

èReference Manual “Bluetooth”

Reference Manual “Wireless WAN

<Only for model with wireless WAN>”*1

*1Only for model with wireless WAN

G: Volume Button

H: Power Switch/Power Indicator

Off: Power off/Hibernation, Green: Power

on, Blinking Green: Sleep, Blinking green

rapidly: Cannot power on or resume due to

low temperature.

I: SD Memory Card Slot

Keep SD Memory Cards away from infants

and small children.

Reference Manual “SD Memory Card”

J: Rotation Lock Button

The Rotation Lock button allows you to

lock the screen display.

K: LED Indicator

: Caps lock

: Hold Mode

: Numeric Lock (NumLk)

: Battery Indicator 1

: Battery Indicator 2

Reference Manual “Battery Power”

: Drive Indicator

: SD Memory Card Indicator

(Blinking: During access or a password

is requested)

Reference Manual “SD Memory Card”

Getting Started

Description of PartsDescription of Parts

Bottom side

A: Battery Pack

èReference Manual “Battery Power”

B: Battery Latch

C: Ventilation Hole (Exhaust)

D: Dust Cover

Getting Started

First-time Operation

■Preparation

Check and identify the supplied accessories.

If you do not find the described accessories, contact your support office.

• AC Adaptor.......1

Model No: CF-AA6413C

• AC Cord .........1• Battery Pack .....1

Model No: CF-VZSU92EA

• Soft Cloth ........1• Stylus ...........1

• OPERATING INSTRUCTIONS - Basic Guide (This book)...................1

1 Insert the battery pack

Flip the computer over, and slide the battery pack in the

direction of the arrow to install it.

Insert the battery pack so that the grooves on its left and right

sides (A) align with the protrusions on the computer (B).

CAUTION

●Make sure the latch is securely locked. Otherwise the battery

pack may fall when you carry the computer.

●Do not touch the terminals of the battery pack and the

computer. Doing so can make the terminals dirty or

damaged, and may cause malfunction of the battery pack

and the computer.

Getting Started

First-time Operation

2 Connect your computer to a power outlet

The battery charging starts automatically.

CAUTION

●Do not disconnect the AC adaptor and do not switch the

wireless switch to on until the first-time operation procedure

is completed.

●When using the computer for the first time, do not connect

any peripheral device except the battery pack and AC

adaptor.

●Handling the AC adaptor

Problems such as sudden voltage drops may arise during

periods of thunder and lightning. Since this could adversely

affect your computer, an uninterruptible power source (UPS)

is highly recommended unless running from the battery pack

alone.

●When the DC plug is not connected to the computer,

disconnect the AC cord from your electrical outlet. Power is

consumed simply by having the AC adaptor plugged into an

electrical outlet.

3 Open the display

Hold the computer by its sides, and open the display while

holding (A).

CAUTION

●Do not apply excessive pressure to the LCD. Do not open or

close the computer holding the edge of the LCD segment.

Getting Started

㻮

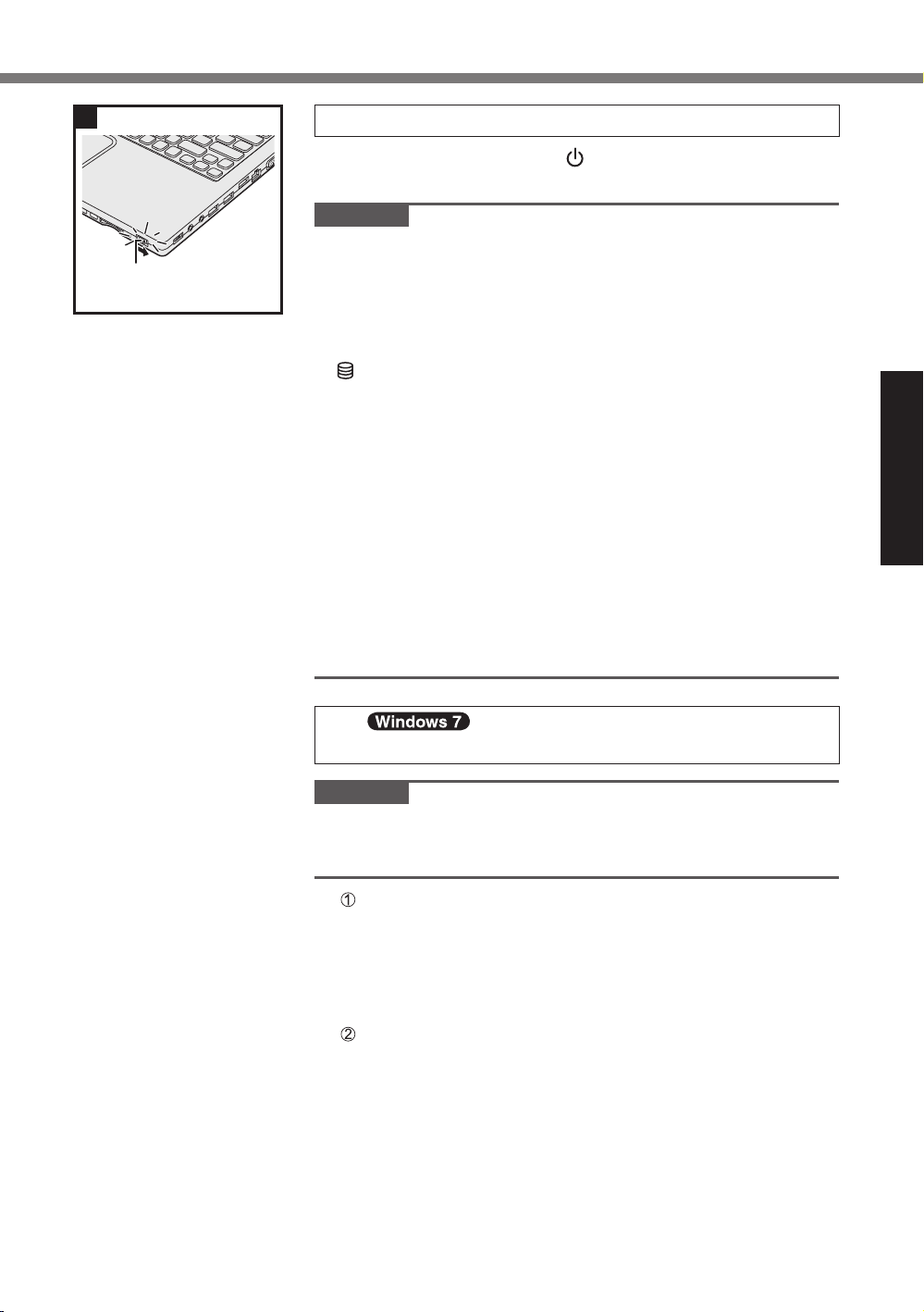

44 Turn on the computer

Slide and hold the power switch (B) until the power indicator

lights.

CAUTION

●Do not slide the power switch repeatedly.

●The computer will be forcibly turned off if you slide and hold

the power switch for 4 seconds or longer.

●Once you turn off the computer, wait for 10 seconds or more

before you turn on the computer again.

●Do not perform the following operation until the drive indicator

turns off.

•Connecting or disconnecting the AC adaptor

•Sliding the power switch

•Touching the keyboard, touchpad, touchscreen <only for

model with touchscreen> or external mouse

•Closing the display

•Turn on/off the wireless switch

●When the CPU temperature is high, the computer may not

start up to prevent overheating of the CPU. Wait until the

computer cools down, and then turn the power on again. If

the computer does not power on even after cooling down,

contact Panasonic Technical Support (èpage 41).

●Any changes from the default setting of the Setup Utility must

not be made until the First-time Operation is completed.

Select language and OS (32-bit or 64-bit)

CAUTION

●Carefully choose your language because you cannot change

it later. If you set a wrong language, you need to reinstall

Windows.

Select language and OS (32-bit or 64-bit) on “Select OS”

screen and click [OK].

The language setting will start by clicking [OK] on the

confirmation screen.

The language and OS setting will be completed in about

15 minutes.

When termination screen is displayed, click [OK] to turn

off the computer.

Getting Started

First-time Operation

6 Setup Windows

Select language and click [Next].

Turn on the computer.

Follow the on-screen instructions.

●The computer restarts several times. Do not touch the

keyboard or touchpad, and wait until the drive indicator

has turned off.

●

After the computer is turned on, the screen remains black

or unchanged for a while, but this is not a malfunction. Wait

for a moment until the Windows setup screen appears.

●During setup of Windows, use the touchpad and clicking

to move the pointer and to click an item.

●Setup of Windows will take approximately

5 minutes / 20 minutes.

Go to the next step, confirming each message on the

display.

●You can set the Wireless Network after the setup of

Windows is complete.

If “Get online” is displayed, select “Skip this step”.

“Join a wireless network” screen may not appear.

●Verify the time zone, date and time.

CAUTION

●You can change the user name, password, image and

security setting after setup of Windows.

●Remember your password. If you forget the password,

you cannot use Windows. Creating a password reset disk

beforehand is recommended.

●Use standard characters as a computer name: numbers 0

through 9, uppercase and lowercase letters from A to Z, and

the hyphen (-) character. If the error message “The computer

name is not valid” appears, check if characters other than

the above are not entered. If the error message still remains

on the display, set the key entry mode to English (“EN”) and

enter characters.

●When setting up the keyboard, choose the appropriate one to

your computer.

Otherwise, input by the keyboard may become unavailable.

●Do not use the following words and characters for user

name: CON, PRN, AUX, CLOCK$, NUL, COM1 to COM9,

LPT1 to LPT9, LPT, @, &, space. In particular, if you create

a user name (account name) that includes the “@” mark, a

password will be requested at the log-on screen, even if no

password has been set. If you try to log on without entering

a password, “The user name or password is incorrect.” may

be displayed and you will not be able to sign in /

log on to Windows (èpage 30).

Autres manuels pour CF-MX4 series

Table des matières

Autres manuels Panasonic Ordinateur portable

Panasonic

Panasonic Toughbook CF-71DJ48AAM Manuel utilisateur

Panasonic

Panasonic Toughbook CF-W2DWAZZKM Manuel utilisateur

Panasonic

Panasonic Toughbook CF-F9KWHZG1M Manuel utilisateur

Panasonic

Panasonic Toughbook CF-18BDKZXMM Manuel utilisateur

Panasonic

Panasonic Toughbook CF-19KHRAG2M Manuel utilisateur

Panasonic

Panasonic CF-R1 Series Manuel utilisateur

Panasonic

Panasonic Toughbook CF-74ECBAXBM Manuel utilisateur

Panasonic

Panasonic CF-19CDBAXVM - Toughbook 19 Tablet PC... Manuel utilisateur

Panasonic

Panasonic Toughbook CF-73NCQTSKM Manuel utilisateur

Panasonic

Panasonic CF-45 Series Manuel utilisateur

Panasonic

Panasonic Touchbook CF-50 Series Manuel utilisateur

Panasonic

Panasonic TOUGHBOOK CF-52AJYZDZM Manuel utilisateur

Panasonic

Panasonic CF-C2 series Manuel utilisateur

Panasonic

Panasonic Toughbook CF-72VCJUZQM Manuel utilisateur

Panasonic

Panasonic CF-30CTQAZ1 TOUGHBOOK Manuel utilisateur

Panasonic

Panasonic Toughbook CF-Y4HWPZZBM Manuel utilisateur

Panasonic

Panasonic Toughbook CF-48 Series Manuel utilisateur

Panasonic

Panasonic Toughbook CF-74CCB02BM Manuel utilisateur

Panasonic

Panasonic Toughbook CF-H2ALFHA1M Manuel utilisateur

Panasonic

Panasonic CF-T1 Series Manuel utilisateur

Panasonic

Panasonic ToughBook CF-72 Series Manuel utilisateur

Panasonic

Panasonic CF-74 Series Schéma de câblage

Panasonic

Panasonic CF-19 series Schéma de câblage

Panasonic

Panasonic Toughbook CF-H2ALFHA1M Manuel utilisateur

Manuels Ordinateur portable populaires d'autres marques

HP ze2401xt - Pavilion Notebook PC Manuel utilisateur

Velocity

Velocity NoteMagix M10 Manuel utilisateur

Dell

Dell Alienware 17 R2 Manuel utilisateur

Toshiba

Toshiba A105-S2236 Manuel utilisateur

HP ENVY 17 Manuel

Winbook

Winbook LM Manuel utilisateur

Dell

Dell Inspiron 1464 Manuel utilisateur

Dell

Dell Inspiron 15R 5537 Manuel utilisateur

HP PROBOOK 4520S Manuel

Dell

Dell Latitude ATG D620 Manuel utilisateur

Sony

Sony VAIO PCG-FX270 Manuel utilisateur

Dell

Dell Latitude 7310 Manuel utilisateur

Dell

Dell Precision GU806 Manuel utilisateur

Sony

Sony VAIO PCG-R505JLK Manuel utilisateur

Lenovo

Lenovo THINKPAD X32 Manuel utilisateur

HP Compaq tc4200 Guide de démarrage rapide

Toshiba

Toshiba mini NB300 Manuel utilisateur

Lenovo

Lenovo ThinkPad X201 Tablet Manuel
