Panasonic KX-T7667 Manuel utilisateur

Installation Instructions

Model No.

KX-T7667

Important Information

Digital Proprietary Telephone

When you ship the product:

Carefully pack and send it prepaid, adequately insured and preferably in the original carton.

Attach a postage-paid letter, detailing the symptom to the outside of the carton.

DO NOT send the product to the Executive or Regional Sales offices. They are NOT

equipped to make repairs.

Product service:

Panasonic Servicenters for this product are listed in the servicenter directory.

Consult your certified Panasonic dealer for detailed instructions.

WARNING:

TO PREVENT POSSIBLE FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE.

THIS HANDSET EARPIECE IS MAGNETIZED AND MAY RETAIN SMALL FERROUS

OBJECTS.

DISCONNECT THE TELEPHONE LINE CORD FROM THIS PRODUCT IF THIS

PRODUCT EMITS SMOKE, AN ABNORMAL SMELL OR MAKES UNUSUAL NOISE.

THESE CONDITIONS CAN CAUSE FIRE OR ELECTRIC SHOCK. CONFIRM THAT

SMOKE HAS STOPPED AND CONTACT AN AUTHORIZED SERVICENTER.

IMPORTANT NOTICE:

During a power failure, this telephone will not operate. Please ensure that a separate

telephone, not dependent on local power, is available for use in an emergency.

Included Accessories: (for extra orders, call toll free 1-800-332-5368)

Handset . . . . . . . . . . . . . . . 1 Handset Cord . . . . . . . . . 1

Telephone Line Cord . . . . . 1 Stand . . . . . . . . . . . . . . . . 1

Thank you for purchasing the Panasonic KX-T7667 Digital Proprietary Telephone.

Please read this manual before using and save for future reference.

This product can be used with a Panasonic KX-TDA series PBX. For operation,

refer to the User Guide for your PBX.

Panasonic Telephone Systems

www.voicesonic.com

Phone: 877-289-2829

Panasonic KX-T7667, KX T7667, KXT7667, KXDT321, KX-DT333, KX-DT343, KX-T7603, KX-T7640

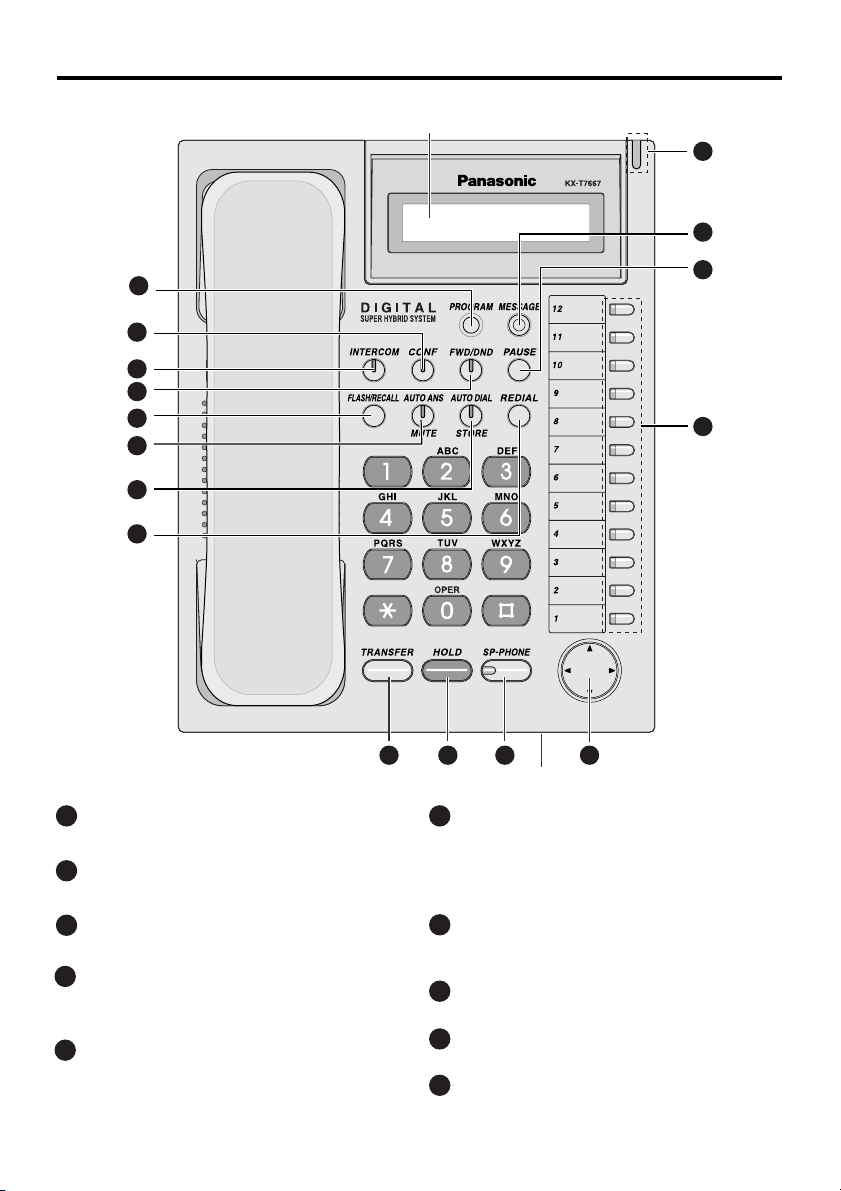

Location of Controls

1PROGRAM: Used to enter and exit

the personal programming mode.

4FWD/DND (Call Forwarding/Do Not

Disturb): Used to perform Call

Forwarding or Do Not Disturb.

2CONF (Conference): Used to

establish a multiple party conversation.

3INTERCOM: Used to make or receive

intercom calls.

6AUTO ANS (Auto Answer)/MUTE:

Used to receive an incoming call in

hands-free mode or mute the

microphone/handset during a

conversation.

5FLASH/RECALL: Used to disconnect

the current call and make another call

without hanging up.

7AUTO DIAL/STORE: Used for

System/Personal Speed Dialing or

storing program changes.

8REDIAL: Used to redial the last

dialed number.

TRANSFER: Used to transfer a call

to another party.

HOLD: Used to place a call on hold.

9 1210 11

Microphone

LCD (Liquid Crystal Display) with Backlight

—2 —

SP-PHONE (Speakerphone): Used

for the hands-free operation.

Navigator Key: Used to adjust the

volume and select desired items for

each function.

PAUSE: Used to insert a pause

during dialing.

MESSAGE: Used to leave a message

waiting indication or call back the

party who left the message waiting

indication.

Flexible Outside (CO) Line Button:

Used to make or receive an outside

call. Pressing this button seizes an

idle outside line automatically. (Button

assignment is required.) Also used as

feature buttons. (Button assignment is

required.)

Location of Controls

Message/Ringer Lamp: When you

receive a call, the lamp flashes red.

When someone has left you a

message, the lamp stays on red.

Tilt Angle

< LOW > < HIGH >

The tilt angle of the unit can be adjusted.

To adjust the angle, insert the stand into the desired holes as shown below.

HIGH

LOW

PUSHPUSH

PUSH

HIGH

LOW

—3 —

Connection

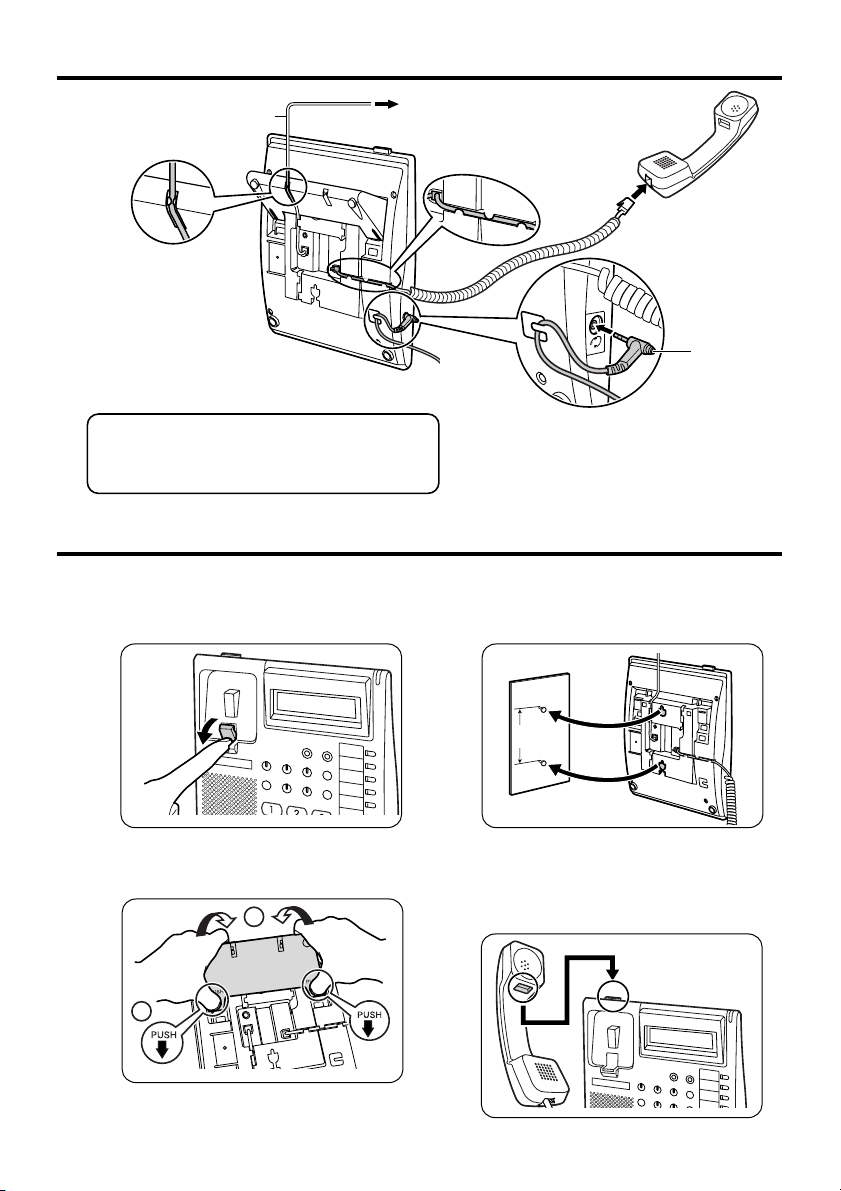

Wall Mounting

Pull down the handset hook until it locks,

so the tab holds the handset.

Remove the attached stand.

Mount the unit on the wall.

To temporarily place the handset down

during a conversation, hook it over the

top edge of the phone as shown.

CAUTION

Ensure the cord is inserted in the groove

to prevent damage to the connector.

To the main unit ( )

The telephone line cord

(included)

< Back view >

TO MAIN UNIT

/PABX

Headset

Headset (not included)

Recommendable: KX-TCA86, KX-TCA91,

KX-TCA92

Not compatible: KX-T7090

83 mm

(3-1/4 in)

—4 —

Important Safety Instructions

When using this unit, basic safety

precautions, including those below, should

always be followed to reduce the risk of

fire, electric shock and injury to persons.

1. Read and understand all instructions.

2. Follow all warnings and instructions

marked on this unit.

3. Unplug this unit from the main unit

before cleaning. Do not use liquid or

aerosol cleaners. Clean with a damp

cloth.

4. Do not use the unit near water, for

example, near a bathtub, kitchen sink,

or laundry tub, in a wet basement, or

near a swimming pool.

5. Place this unit on a flat surface.

Serious damage and/or injury may

result if the unit falls.

6. The unit should never be placed near

or over a radiator or other heat source.

7. Do not allow anything to rest on the

extension cord. Do not locate this unit

where the cord may be stepped on or

tripped on.

8. To reduce the risk of fire or electric

shock, do not overload wall outlets and

extension cords.

9. Do not insert objects of any kind into

this unit through openings, as they

may touch dangerous voltage points or

short out parts that could result in a

risk of fire or electric shock. Never spill

liquid of any kind on the unit.

10. To reduce the risk of electric shock, do

not disassemble this unit. Only

qualified personnel should service this

unit. Opening or removing covers may

expose you to dangerous voltages or

other risks. Incorrect reassembly can

cause electric shock.

11. Unplug this unit from the main unit

and have the unit serviced by

qualified service personnel in the

following cases:

A. When the extension cord is

damaged or frayed.

B. If liquid has been spilled on the

unit.

C. If the unit has been exposed to rain

or water.

D. If the unit does not work normally

by following the manual. Adjust

only controls covered by the

manual. Improper adjustment may

require repair by an authorized

servicenter.

E. If the unit has been dropped, or

damaged.

F. If the unit's performance

deteriorates.

12. Avoid using a telephone (other than

a cordless type) during an electrical

storm. There is a remote risk of

electric shock from lightning.

13. Do not use the telephone in the

vicinity of a gas leak to report the

leak.

SAVE THESE

INSTRUCTIONS

—5 —

FCC Information

NOTE:

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

To assure continued compliance with FCC rules, do not make any unauthorized

changes or modifications to this equipment would void the user's authority to

operate this device.

When programming emergency numbers and/or making test calls to emergency

numbers:

1) Remain on the line and briefly explain to the dispatcher the reason for the call

before hanging up.

2) Perform such activities in the off peak hours, such as early morning hours or

late evenings.

—6 —

Customer Information

Hearing Aid Compatibility:

This telephone provides magnetic coupling for hearing aids.

Use only handsets or other acoustic devices with this equipment that are

compliant with the hearing aid compatibility requirements of FCC Part 68.

This equipment complies with Part 68 of the FCC rules and the requirements

adopted by the ACTA. On the bottom of the cabinet of this equipment is a label

that contains, among other information, a product identifier in the format

US: AAAEQ##Txxxx. If requested, this number must be provided to the telephone

company.

If trouble is experienced with this equipment KX-T7667, for repair or warranty

information, please contact:

If the equipment is causing harm to the telephone network, the telephone company

may request that you disconnect the equipment until the problem is resolved.

—7 —

For more information call 877-289-2829 or visit www.voicesonic.com

Other Information

PSQX3928ZA KK0306SY0

SERIAL NO.

(found on the bottom of the unit)

DATE OF PURCHASE

NAME OF DEALER

For your future reference

DEALER'S ADDRESS

DEALER'S TEL. NO.

If you are having problems making calls, unplug the extension and connect a known

working telephone. If the known working telephone operates properly, have the

defective telephone repaired by an authorized Panasonic Factory Servicenter. If the

known working telephone does not operate properly, check the PBX System and the

internal extension wiring.

Keep the unit away from heating appliances and devices that generate electrical

noise, such as fluorescent lamps, motors and televisions. These noise sources can

interfere with the performance of the unit. It also should not be placed in rooms

where the temperature is less than 5

C (41

F) or greater than 40

C (104

F). Allow

10 cm (3-15/16 in) clearance around the unit for proper ventilation.

Avoid environments with excessive smoke, dust, mechanical vibration, shock, or

direct sunlight.

Wipe the unit with a soft cloth. Do not clean the unit with abrasive powders or with

chemical agents such as benzine or thinner.

Use only the correct Panasonic handset.

Do not disassemble this unit. Dangerous electrical shock could result. The unit must

only be disassembled and repaired by qualified service technicians.

If damage to this unit exposes any internal parts, immediately disconnect the

telephone line and mains supply. Then return the unit to a servicenter.

Panasonic Manuals

www.voicesonic.com

Phone: 877-289-2829

3DQDVRQLF7HOHSKRQH6\VWHPV

Autres manuels pour KX-T7667

Table des matières

Autres manuels Panasonic Téléphone IP

Panasonic

Panasonic KX-NT543 Manuel utilisateur

Panasonic

Panasonic KX-TGP550 Manuel utilisateur

Panasonic

Panasonic KX-UT113 Manuel utilisateur

Panasonic

Panasonic KX-UT136-B Manuel utilisateur

Panasonic

Panasonic VA-309UK Manuel utilisateur

Panasonic

Panasonic KX-UTG300 Manuel utilisateur

Panasonic

Panasonic KX-NT136 Manuel utilisateur

Panasonic

Panasonic KX-T7730 Manuel utilisateur

Panasonic

Panasonic KX-T7667 Manuel utilisateur

Panasonic

Panasonic KX-UT248 Manuel utilisateur

Panasonic

Panasonic KXDT321 - DIGITAL PROPRIETARY TELEPHONE Manuel utilisateur

Panasonic

Panasonic KX-DT 343 Series Manuel utilisateur

Panasonic

Panasonic KX-NT321 Manuel utilisateur

Panasonic

Panasonic KX-UDT131 Manuel utilisateur

Panasonic

Panasonic KX-TPA60 Manuel utilisateur

Panasonic

Panasonic BBGT1500 - GLOBARANGE CORDLESS PHONE Manuel utilisateur

Panasonic

Panasonic KX-NCP0158 Manuel utilisateur

Panasonic

Panasonic KX-T7625 - Digital Proprietary Speakerphone 24... Manuel utilisateur

Panasonic

Panasonic KX-TGP500 Manuel utilisateur

Panasonic

Panasonic KX-TGP600 Manuel utilisateur

Panasonic

Panasonic KX-NCS1101 Manuel utilisateur

Panasonic

Panasonic KX-NT543 Manuel utilisateur

Panasonic

Panasonic KX-TGA301C Manuel utilisateur

Panasonic

Panasonic KX-UT123 Manuel

Manuels Téléphone IP populaires d'autres marques

Alcatel

Alcatel 4028 Manuel utilisateur

Polycom

Polycom Polycom VVX 600 Manuel utilisateur

Polycom

Polycom SoundPoint IP 450 Manuel utilisateur

Cisco

Cisco SPA-500 Series Manuel utilisateur

Polycom

Polycom SoundPoint IP 650 Manuel utilisateur

Proximus

Proximus Maestro 3016 IP Manuel utilisateur

Fanvil

Fanvil X4 Manuel utilisateur

Cisco

Cisco 7962 Manuel utilisateur

Snom

Snom 320 Manuel utilisateur

Yealink

Yealink Yealink SIP-T46G Manuel utilisateur

Avaya

Avaya 4625SW Manuel utilisateur

Yealink

Yealink SIP-T52S Manuel utilisateur

Nortel

Nortel 1140E Manuel utilisateur

Nexotek

Nexotek NT-P500 Manuel utilisateur

Avaya

Avaya Integral 5 R3.0 Manuel utilisateur

GE 28320EE2 - Dect 6.0 InfoLink 2 Manuel utilisateur

Avaya

Avaya 4600 Series Manuel de service

Mitel

Mitel MIVOICE OFFICE 400 6940 SIP Manuel utilisateur
