Thank you for purchasing a Panasonic product.

 This guide explains some basic features and operations, but not all of them. For further

details, see the Japanese operating instructions.

 This product is designed for use in Japan.

Panasonic cannot provide service for this product if used outside Japan.



Any details given in this guide are subject to change without notice.

VL-V571L VL-V554L VL-MWD701KL VL-WD614

Quick Reference Guide

Model No.

VL-SWD701KL/VL-SWD701KS

VL-SVD701KL/VL-SVD701KS

Wireless Video Intercom System

Video Intercom System

Table of Contents

Main Monitor Station/Door Station (Doorphone)

Parts Descriptions .......................................................................................2

Basic Operations .........................................................................................3

Sub Monitor Station

Parts Descriptions .......................................................................................4

Basic Operations .........................................................................................4

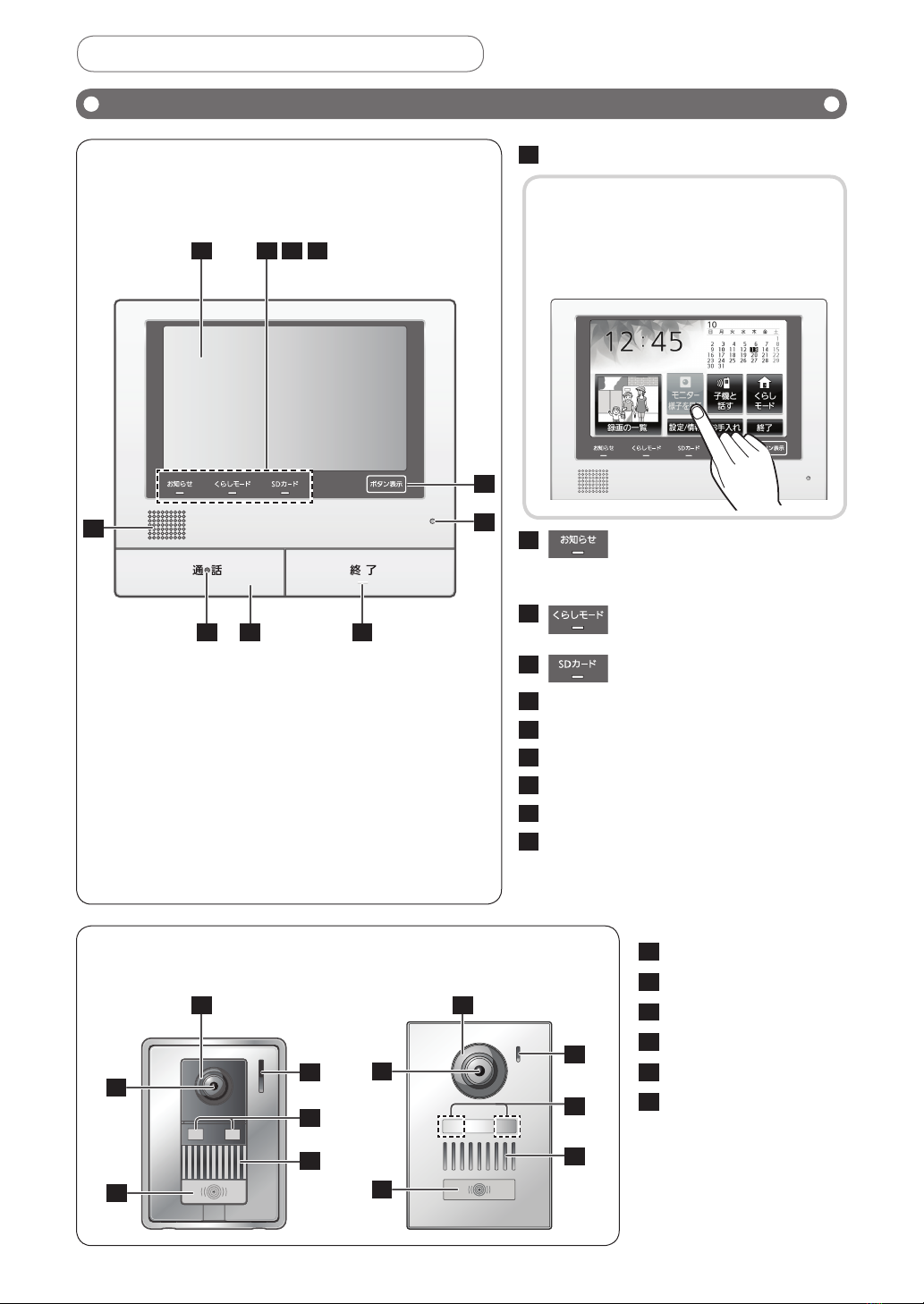

Parts Descriptions

1Lens cover

2Camera lens

3Call button & indicator

4Microphone

5LED lights

6Speaker

Main Monitor Station

■ VL-V554L

■ VL-V571L

1Display (Touch Panel)

To use the touch panel

Touch the desired item as shown below.

●

A touch sound is heard and the touched

item is highlighted.

2Notification indicator

● Flashes when there is a

notication.

3Living mode (Home, Night,

Out) indicator

4SD card indicator

5Speaker

6Talk indicator

7Talk button

8OFF button

9Microphone

Guidance off button

● Hides the button guidance that

overlaps the image.

1 3 42

76 8

Main Monitor Station/Door Station (Doorphone)

Door Station (Doorphone)

Basic Operations

■ To answer a call from a doorphone

When the ringtone is heard and the display turns on, press (7).

■ To monitor outside images

Touch the display (touch panel) ( 1).

Touch

［モニター様子を見る］

(To talk to the visitor, press .)

● When an optional camera or more than one optional doorphone is connected

After touching

［モニター様子を見る］

, touch the desired doorphone number, then touch

the doorphone image.

■ To monitor camera images

Touch the display (touch panel).

Touch

［モニター様子を見る］

Touch the camera image.

● When more than one camera is connected

After touching

［モニター様子を見る］

, touch the desired camera image.

■ To record a displayed image manually

Touch

［録画］

while monitoring an outside image.

■ To play back recorded images when the notification indicator flashes and

is displayed

Touch the display (touch panel).

Touch

［録画の一覧］

Touch

［再生］

â The recorded images are automatically played back.

■ To call the sub monitor station

Touch the display (touch panel). â Touch

［子機と話す］

, and speak to the other party.

â After the other party answers, start talking.

●

When more than one optional sub monitor station is registered

After touching

［子機と話す］

, touch the image of where the desired sub monitor station is

located, and speak to the other party.

●The number after the button shows the location of the button described in the previous page.

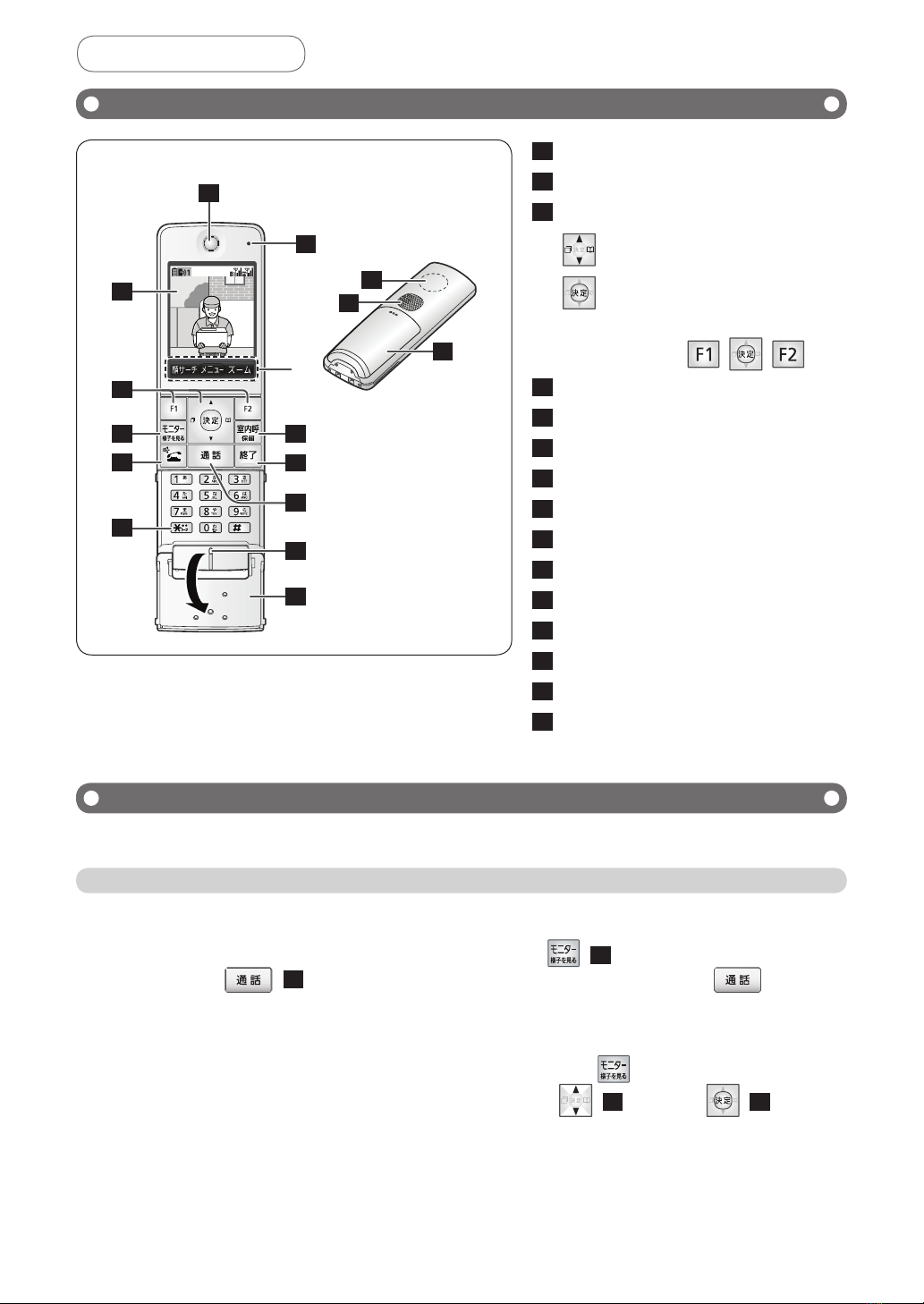

Parts Descriptions

1Earpiece

2Display

3Multifunction buttons

Navigator button

Set button

6 displays functions that can be

operated by , , .

4Monitor button & indicator

5Talk button & indicator (Telephone)

Tone button (To switch to DTMF tone)

7Charge lamp

8Antenna (built-in)

9Speaker

Battery cover

Intercom/Hold button

OFF button

Talk button & indicator (Doorphone)

Microphone

Flip

Sub Monitor Station

Basic Operations

●The number after the button shows the location of the button described above.

Doorphone function

■ To answer a door call

When the ringtone is heard and the display

turns on, press (

■ To monitor outside images

Press ( 4).

(To talk to the visitor, press .)

●

When an optional camera or more than

one optional doorphone is connected

After press , select the desired doorphone

using

(

)

and press

(

Sub Monitor Station

ヒヒパヒピ

ቈ᯺◜バ

ヒパパパ

⿉

ɷȬɑ⒙ᰳ˛

Doorphone function

■ To monitor camera images

After press , select the desired camera

using and press .

■

To record a displayed image manually

Press (

メニュー

) while monitoring an

outside image. â Select

［録画］

using ,

and press .

■ To play back recorded images when

新着の未確認画像あり

is displayed

Press (

録画一覧

) ( 3). â Press to

select the date and then press .

â Press .

■ To call the main monitor station

Press (

※

â Speak to the other party.

â After the other party answers, start talking.

●

When more than one optional sub

monitor station is registered

After pressing , select

［親機］

using

and press .

■ To call another sub monitor station

Press .※â Select the desired sub

monitor station using , and press

â Speak to the other party. â After the

other party answers, start talking.

※

When the sub monitor station is registered

to both the main monitor station and base

unit (Telephone/Fax)

After pressing

select

［ドアホン室内呼］

using , and press

Telephone function

■ To make a call

Lift the sub monitor station from the charger

and press ( 5). â Open the flip (

)

and dial.......To end the call, press (

■ To receive a call

When the phone rings... â Press .

â Talk.......To end the call, press .

■ To switch to the speakerphone

(Hands-free talk)

During a call, press for approx. 2

seconds.

â Talk to the microphone.

● To switch to the earpiece

Press for approx. 2 seconds again.

■ To place the current call on hold

Press during a call.

■ To retrieve the held call

Press .

■

To transfer the held call to the base unit

Press during a call. â After pressing

(

内線呼出

) ( 3)

, select

［親機］

using ,

and press . â After the other party

answers, press .

■ To transfer the held call to another

sub monitor station

Press during a call. â After pressing

(

内線呼出

), select the desired sub

monitor station using , and press .

â After the other party answers, press .
