Panasonic SC-BTT775 Instructions d'utilisation

VQC8275

F0111SB0

12 34













FRONT

Lch →

 



Easy Setting Guide

The order of setting

Model No. SC-BTT775

Prepare the

speakers

See below

Place the speakers

See below

Connect the

cables

See over

Turn on the

main unit

See over

Easy setup

See Easy setup screen

Prepare the speakers Place the speakers

Refer to the rear label of the speaker before connecting

the corresponding cable.

Verify the type of speaker with the label on the rear of

the speaker.

Speakers 

Front speakers FRONT/AVANT

Centre speaker CENTER/CENTRE

Surround speakers SURROUND/AMBIOPHONIE

e.g.,

GREEN

GREY

RED

WHITE

PURPLE

BLUE

Recommended

Front speakers

(L, R)

60

120

Surround speakers

(LS, RS)

Label each speaker cable

by attaching the numbered

sticker at the position

indicated in the illustration. Be

sure to match the number on

each sticker with the circled

number in the illustration.

Connect the speaker cables.

Insert the wire fully, taking care

not to insert beyond the wire

insulation.

: White

: Blue line

e.g., Front speaker

Lch

PUSH!

Front speakers Surround speakersCentre speakerSubwoofer

STEP 3

STEP 4

STEP 1 STEP 2

WHITE

White

Blue line

Tighten securely.

Leave about 80 mm Tighten securely.

Front/

surround

speaker

Stand

Base

speaker

Lch

WHITE

Rch

RED

Rch

GREY

GREENPURPLE

Press into the groove.

Insert the wire fully, taking

care not to insert beyond

the wire insulation.

: White

: Blue line

Lch

BLUE

PUSH!

Back of the base

Pull the cable straight

along the line and slide

into the groove.

Blu-rayDiscTM Home Theater Sound System

VQC8275eng.indd2-3VQC8275eng.indd2-3 2011/01/1220:42:392011/01/1220:42:39

12 4

VIDEO IN

AUDIO OUT

HDMI

(ARC)

HDMI

OPTICAL

OUT

SUBWOOFER

6 5 2 1 4 3

RLR L

ΩΩΩΩ

CENTER

SURROUND

FRONT

AUX

FM ANT



R6/LR6, AA





LAN

RETURN

Easy setup

Would you like to start easy setup?

Yes

It is possible to play back 3D videos and 3D still pictures by connecting this unit with a 3D compatible TV.

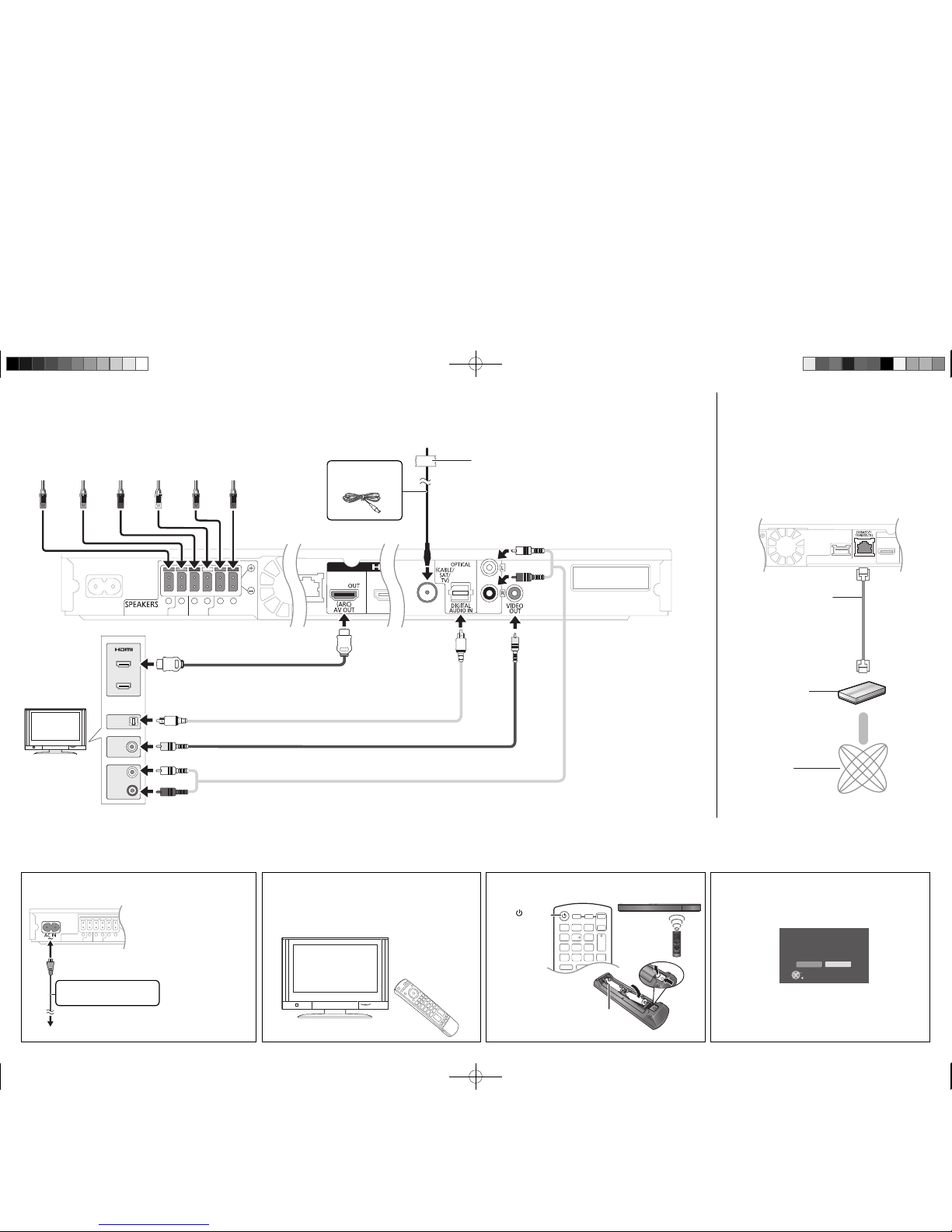

Connect the cables by colour or by the numbers indicated in the illustration

to the appropriate terminals on the rear panel of the unit.

Main unit

PURPLE GREEN RED WHITE GREY BLUE

Connect the cables For detailed information, refer to the operating instructions.

FM indoor antenna

(supplied)

Adhesive tape

Turn on the main unit

Connect the AC mains lead

Connect the AC mains lead to the

main unit before connecting to the

household mains socket.

AC mains lead (supplied)

To a household mains socket

Turn on the TV

Turn on your TV and select the appropriate video input mode

(e.g., VIDEO 1, AV 1, HDMI, etc.) to suit the connections to this

unit.

Broadband Network Connections

By connecting this unit to the network, you can optimise the

internet features of this unit.

•Use category 5 or above straight LAN cables (STP)

when connecting to peripheral devices.

•When using the wireless LAN function, the LAN cable that

connected to the main unit is not necessary.

Main unit

Press [, ] to select [Yes] and press [OK].

Other connection

Press [ ] to turn

on the main unit.

Installing batteries in the

remote control

The Easy setup starts

The on screen display will guide you through the steps.

Turn on the main unit

Video cable*1(not supplied)

HDMI cable (not supplied)

(Recommended for highest quality picture)

Optical digital audio cable (not supplied)

Audio cable (not supplied)

Audio connection

For best quality audio, use the HDMI

cable (with an ARC compatible TV)

or an optical digital audio cable.

If your TV does not support the

above, use the audio cable.

Make sure that the video cable connection is made

to view photos/videos from the iPod/iPhone.

If the HDMI terminal is labeled “HDMI (ARC)”, you can enjoy TV sound

and pictures with a single HDMI cable.

If the HDMI terminal is not labeled “HDMI (ARC)”, an “Audio cable” or

“Optical digital audio cable” is required to listen to sound from the TV.

LAN cable

(not supplied)

Broadband router, etc.

Internet

VQC8275eng.indd4-5VQC8275eng.indd4-5 2011/01/1220:42:402011/01/1220:42:40
