Panasonic SA-HT800VP Manuel utilisateur

ORDERNO. MD0306227C1

DVD/VCR HomeTheaterSound System

SA-HT800VP

Color

(S)... SilverType

SPECIFICATIONS

Specifications

AMPLIFIERSECTION

RMSoutputpower, 10 %total harmonicdistortion

1kHzFL/FR 45 W perchannel 6

1kHzCenter 60 W perchannel 6

1kHzSL/SR 45 W perchannel 6

100 HzSubwoofer 160 W perchannel 4

Total RMSDolbyDigital mode

power 400 W

FTCoutputpower, 1%total harmonicdistortion

120 Hz-20 kHzFL/FR 25 W perchannel 6

120 Hz-20 kHzCenter 30 W perchannel 6

120 Hz-20 kHzSL/SR 25 W perchannel 6

45 Hz-120 kHzSubwoofer 90 W perchannel 4

Total FTCpowerin Dolby

Digital mode(Band 1%THD) 220 W

Inputsensitivity

AUX 250 mV

Inputimpedance 47 k

FMTUNERSECTION

Frequencyrange 87.9-107.9MHz(200-kHzstep)

87.5-108.0MHz(100-kHzstep)

Sensitivity 2.5 V(IHF)

S/N26 dB 2.2V

Antennaterminals 75 (unbalanced)

Presetstation 15

AMTUNERSECTION

Frequencyrange 520 -1710 kHz(10-kHzstep)

AMSensitivityS/N20 dBat

1000 kHz 560 V/m

Presetstation 15

DISCSECTION

Disc played (onelayerperside)

DVD-VIDEO/AUDIO 8cm/12 cm, single/double-

sided, single/doublelayer

CD/VCD/MP3/WMA 8cm/12 cm, CD-R/RW

DVD-RAM/R(DVD-VIDEOformatted discs)

HighMAT Level 2(Audio and Image)

Video

Signal system NTSC

Outputlevel Compositevideo;1Vp-p (75 )

S-video;1Vp-p (Y), 0.286 Vp-p (C)(75 )

Componenetvideo;1Vp-p (Y)(75 )

0.7Vp-p (PB/CB, PR/CR)(75 )

Audio

Sampling frequency

CD 44.1kHz

44.1

kHz

MP3 32 kHz, 44.1kHz, 48 kHz

DVD 48 kHz, 96 kHz(video), 192 kHz

(audio)

Bitrate

MP3 32-320 kbps

Decoding 16/20/24 bitlinear

Pick up

Beam Source SemiconductorLaser

Wavelength

CD/VCD 780 nm

DVD 658 nm

Numberofchannels 5.1ch (FL, FR, SL, SR, C, SW)

Frequencyresponse 20 Hz-20 kHz(+1, -2dB)

Wowand flutter Less than possible

measurementdata

Digital filter 8fs

D/Aconverter Deltasignal DAC

VCR SECTION

Video recording system 2rotaryheads, helical scanning

system

Video heads 4heads

Audio heads 2heads

Tapespeed SP;33.35 mm/s, EP;11.12 mm/s

Tapeformat VHStape

Recording/playback time SP;120 min. with NV-T120

EP;360 min. with NV-T120

FF/REW time Approx. 54 s. with NV-T120 (FF/

REW)

Approx. 36 s. with NV-T120 (JET

REW)

VIDEO

Television system EIA;Standard (525 lines, 60

fields), NTSCcolorsignal

Modulation system Luminance;FMazimuth

recording

Colorsignal;converted subcarrierphase shift recording

Inputlevel VIDEOIN(PHONE); 1Vp-p, 75

Outputlevel VIDEOOUT(PHONE); 1Vp-p, 75

Antennareceiveinput VHF 2-13 CH, 75

UHF 14-69 CH, 75

CATV5Aand A-5-EEE CH, 75

AUDIO

Inputlevel AUDIOIN(PHONO); -10 dBV, 47

Outputlevel AUDIOOUT(PHONO); -8dBV, 1

Audio track 1 track (normal-mono only),

2channels(Hi-Fi sound stereo)

Video horizontal resolution Color;morethan 200 lines

Signal-to-Noise ratio Video;morethan 40 dB/SP

Audio;morethan 60 dB/Hi-Fi

Audio frequencyresponse 20 Hz-20 kHz/Hi-Fi

Wowand flutter 0.005 %Wrms/Hi-Fi

GENERAL

Powersupply AC120 V, 60Hz

Powerconsumption

Main unit 38 W

Activesubwoofer(SB-WA310) 160 W

Dimensions(W xHxD) 430 x93 x356 mm

(16-15/16”x3-21/32”x14-1/32”)

Mass 4.6kg (10.1lb.)

Powerconsumption in standbymode

BRIGHTmode Approx. 3.7W

DIMmode Approx. 3.5W

OFF mode Approx. 2.4W

SYSTEM

SC-HT800V(P) Main unit: SA-HT800V(P)

Satelliespeaker:SB-HT800V(P)

Activesubwoofer:SB-WA310 (P)

SB-HT800V(P)consistsof SB-FS803 (P)x4and SB-PC803

(P)x1

Notes:

1. Specificationsaresubjectto changewithout notice. / Mass and

dimensionsareaproximate.

2. Total harmonicdistortion ismeasuredbythedigital spectrum

analyzer.

1. Powering Upof the MainUnit

1.1. Checking PlayerwithActiveSubwoofer

1. Thisunituses theactivesubwoofertosupplythepowerofthe

component, and theactivesubwoofershouldbeconnectedtothe

componenttocheck operational conditionsofthecomponent.

2. Connect bothACpowersupplycordstoenjoyall thefeatures of

thissystem. / Thisspeakersand tunerwill notworkunless you

connect thesubwoofertoahouseholdACoutlet.

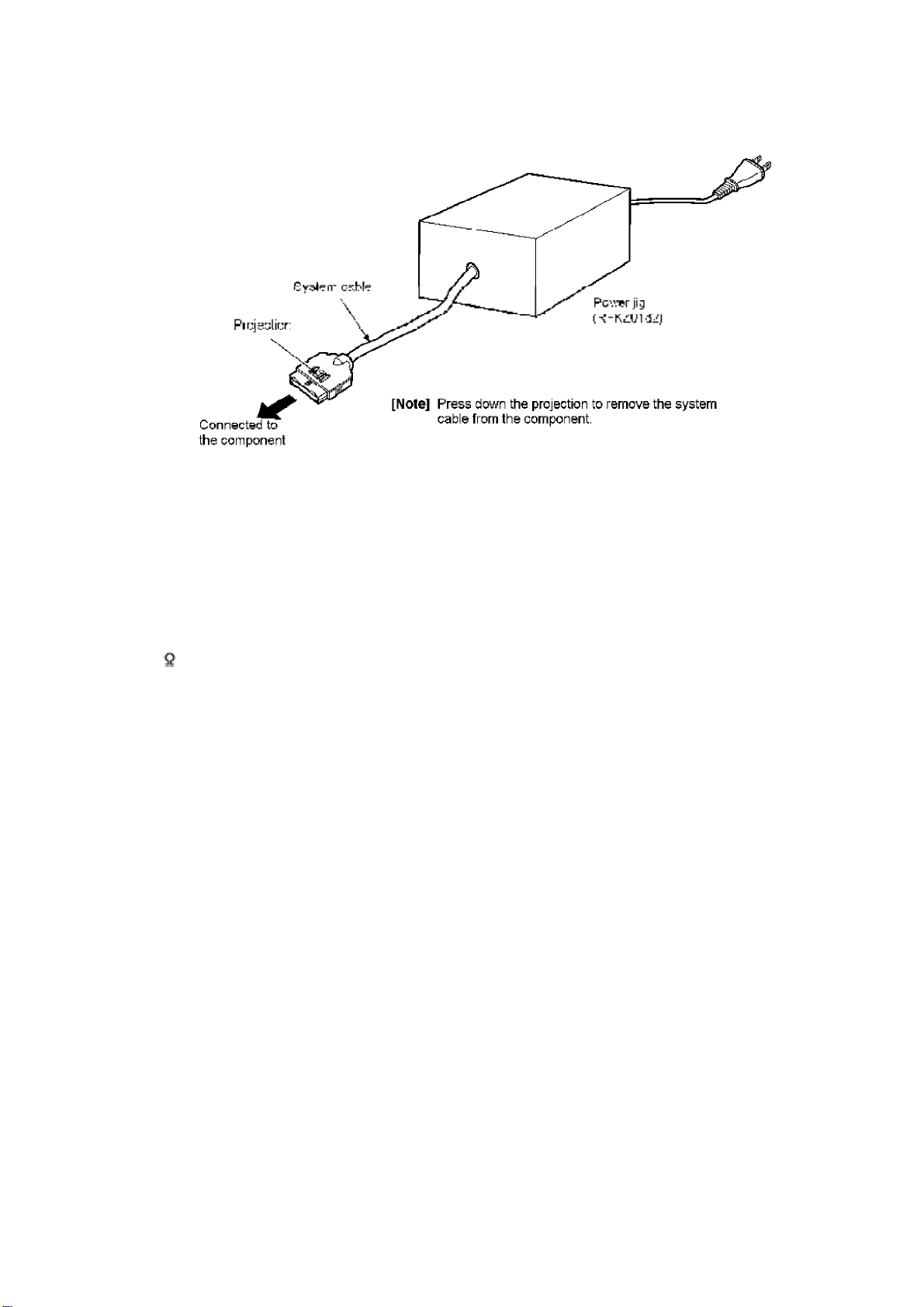

1.2. Using ofPowerJig

1. Iftheactivesubwooferisnotavailableduetorepairoftheunit,

use thefollowing equipment.

Jigproductnumber

RFKZ0182 (110V , 127V, 220V, 230V -240V for for overseas domesticuse)

2. BeforeRepairand Adjustment (Using Active

SubwooferUnit)

DisconnectACpower, dischargePowerSupplyCapacitorsC546 , C547, C548 &C549 through a

10 , 1Wresistor toground.

DONOTSHORT-CIRCUITDIRECTLY(withascrewdriverblade, for instance), as thismay destroy

solidstatedevices.

Afterrepairsarecompleted, restorepowergraduallyusing avariac, toavoidovercurrent.

Currentconsumption atAC120V, 60HzinNOSIGNALmodeshouldbe~1000 mA.

3. Protection Circuitry

Theprotection circuitrymay have operatedifeitherofthefollowing conditionsisnoticed:

-Nosound isheardwhenthepowerisswitchedON.

-Sound stopsduring aperformance.

Thefunction ofthiscircuitryistopreventcircuitrydamageif, for example, thepositive and

negative speakerconnection wires are

shorted, or ifspeakersystemswithanimpedance less thantheindicatedratedimpedance ofthis

unitareused.

Ifthisoccurs, followtheprocedureoutlines below:

1. SwitchOFF thepower.

2. Determinethecause oftheproblemand correct it.

3. SwitchONthepoweronce again.

Note:

Whentheprotection circuitryfunctions, theunitwill notoperateunless thepowerisfirst

switchedOFF and thenONagain.

4. SafetyPrecautions

4.1. General Guidelines

1. Whenservicing, observetheoriginal leaddress. Ifashortcircuit

isfound, replace all parts whichhavebeenoverheatedor

damagedbytheshortcircuit.

2. Afterservicing, see toitthat all theprotectivedevices suchas

insulation barriers, insulation papersshieldsareproperlyinstalled.

3. Afterservicing, make thefollowing leakagecurrentchecks to

preventthecustomerfrombeing exposedtoshock hazards.

(This“SafetyPrecaution”isappliedonlyinU.S.A.)

1. Beforeservicing, unplug thepowercordtopreventanelectric

shock.

2. Whenreplacing parts, use onlymanufacturer’srecommended

components forsafety.

3. Check thecondition ofthepowercord. Replace ifwearordamage

isevident.

4. Afterservicing, besuretorestoretheleaddress, insulation

barriers, insulation papers, shields, etc.

5. Beforereturning theservicedequipmenttothecustomer, besure

tomake thefollowing insulation resistance test topreventthe

customerfrombeing exposedtoashock hazard.

4.1.1. LeakageCurrentColdCheck

1. Unplug theACcordand connect ajumperbetweenthetwoprongs

on theplug.

2. Measuretheresistance value, withanohmmeter, betweenthe

jumperedACplug and eachexposedmetalliccabinet parton the

equipmentsuchas screwheads, connectors, control shafts, etc.

Whentheexposedmetallicparthas areturnpathtothechassis,

thereading shouldbebetween1M and 5.2M . / Whenthe

exposedmetal does nothaveareturnpathtothechassis, the

reading must be . Fig. 1

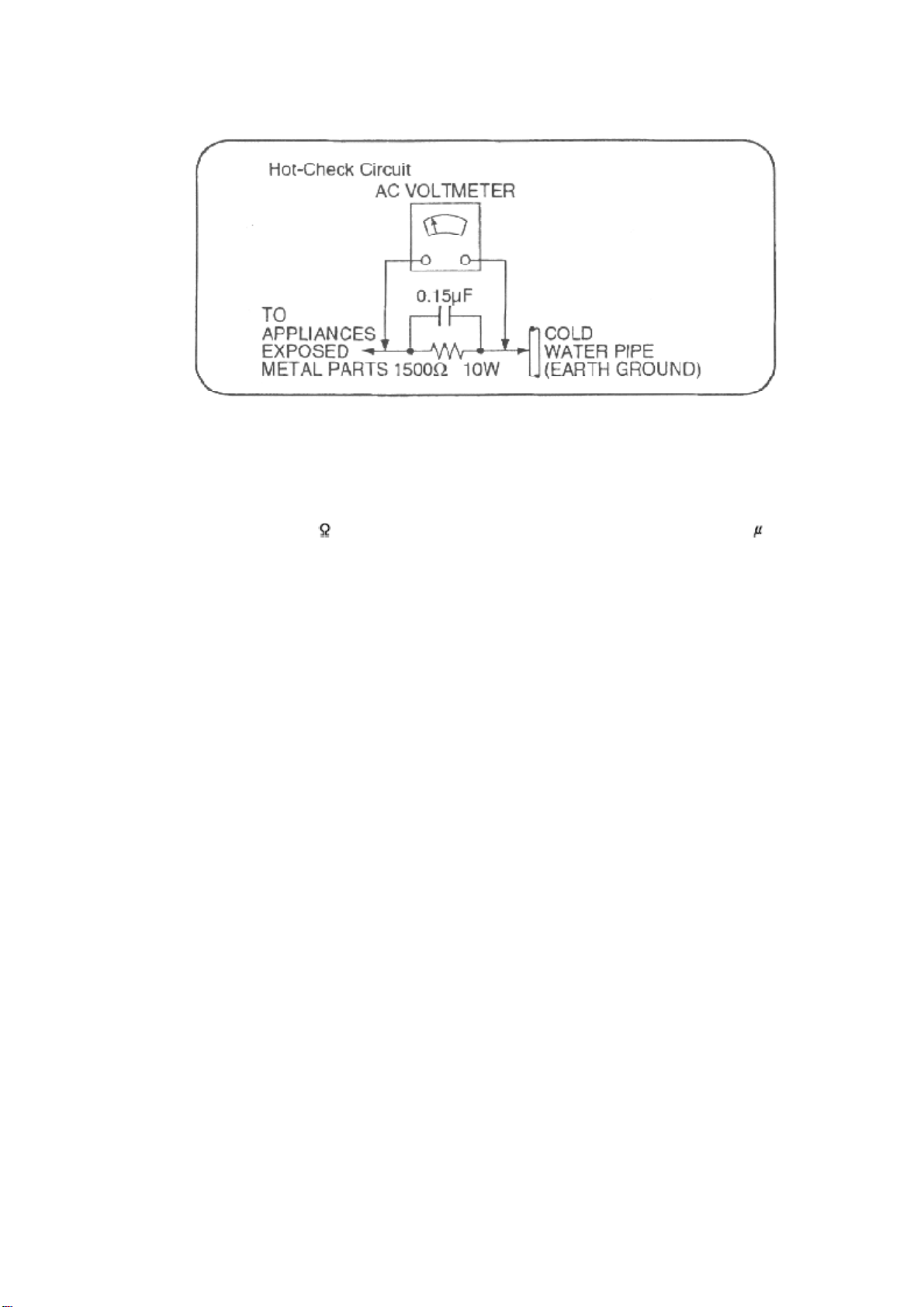

4.1.2. LeakageCurrentHotCheck (See Figure1)

1. Plug theACcorddirectlyintotheACoutlet. Donotuse an

isolation transformerforthischeck.

2. Connect a1.5k , 10 watts resistor, inparallel witha0.15 F

capacitor, betweeneachexposedmetallicparton theset and a

good earthground suchas awaterpipe, as showninFigure1.

3. Use anACvoltmeter, with1000 ohms/voltormoresensitivity, to

measurethepotential across theresistor.

4. Check eachexposedmetallicpart, and measurethevoltageat

eachpoint.

5. Reverse theACplug intheACoutlet and repeat eachoftheabove

measurements.

6. Thepotential at anypointshouldnotexceed0.75 volts RMS. A

leakagecurrenttester(Simpson Model 229 orequivalent) maybe

usedtomake thehotchecks, leakagecurrentmust notexceed1/2

milliamp. Incase ameasurementisoutofthelimits specified,

thereisapossibilityofashock hazard, and theequipmentshould

berepairedand recheckedbeforeitisreturnedtothecustomer.

5. Handling the Lead-free Solder

5.1. Aboutleadfree solder(PbF)

Distinction ofPbF P.C.B.:

P.C.B.s(manufactured)using leadfree solderwill have aPbF stampon theP.C.B.

Caution:

-Pbfree solderhas ahighermelting pointthanstandardsolder;

Typicallythemelting pointis50 -70°F(30 -40°C)higher. Please

use ahigh temperaturesoldering iron. Incase ofsoldering iron

withtemperaturecontrol, please set itto700 ±20°F(370 ±10°C).

-Pbfree solderwill tend tosplashwhenheatedtoo high (about

1100°F/600°C).

-Whensoldering orunsoldering, please completelyremoveall ofthe

solderon thepinsorsolderarea, and besuretoheat thesoldering

points withthePbfree solderuntil itmelts enough.

6. Prevention of ElectroStaticDischarge (ESD) to

ElectrostaticallySensitive(ES) Devices

Somesemiconductor (solidstate)devices canbedamagedeasilybyelectricity. Such

componentscommonlyarecalledElectrostaticallySensitive (ES)Devices. Examples oftypical

ES devices areintegratedcircuitsand somefield-effecttransistorsand semiconductor “chip”

components. Thefollowing techniques shouldbeusedtohelpreduce theincidence of

componentdamagecausedbyelectro staticdischarge(ESD).

1. Immediatelybeforehandling anysemiconductorcomponentor

semiconductor-equipedassembly, drainoff anyESDon yourbody

bytouching aknownearthground. Alternatively, obtainand wear

acommerciallyavailabledischarging ESDwrist strap, which

shouldberemovedforpotential shock reasonspriortoapplying

powertotheunitundertest.

2. Afterremoving anelectrical assemblyequipedwithES devices,

place theassemblyon aconductivesurface suchas aluminium

foil, topreventelectrostaticchargebuildup orexposureofthe

assembly.

3. Use onlyagrounded-tipsoldering iron tosolderorunsolderES

devices.

4. Use onlyananti-staticsolderremoverdevice. Somesolder

removal devices notclassifiedas “anti-static(ESDprotected)”can

generate electrical chargetodamageES devices.

5. Donotuse freon-propelledchemicals. These cangenerate

electrical charges sufficienttodamageES devices.

6. DonotremoveareplacementES device fromits protective

packageuntil immediatelybeforeyou arereadytoinstall it. (Most

replacementES devices arepackagedwithleadselectrically

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Système de cinéma maison

Panasonic

Panasonic SC-PT170 Manuel utilisateur

Panasonic

Panasonic SCHTB500 - HOME THEATER AUDIO SYSTEM Manuel utilisateur

Panasonic

Panasonic SA-BTT775GA Manuel utilisateur

Panasonic

Panasonic SC-BTT268 Manuel utilisateur

Panasonic

Panasonic SC-HTB250GA Manuel utilisateur

Panasonic

Panasonic SCELS10 - HOME THEATER AUDIO SYSTEM Manuel utilisateur

Panasonic

Panasonic SCBT235 - BLU RAY HOME THEATER SYSTEM Instructions d'utilisation

Panasonic

Panasonic SC-PT160 Manuel utilisateur

Panasonic

Panasonic SC-PT650 - CD-DVD Home Theater Manuel utilisateur

Panasonic

Panasonic SC-BTT465 Manuel utilisateur

Panasonic

Panasonic SA-HT855E Manuel utilisateur

Panasonic

Panasonic SCPTX5 - DVD HOME THEATER SOUND SYSTEM Manuel utilisateur

Panasonic

Panasonic SC-BTT560 Manuel utilisateur

Panasonic

Panasonic SC-HT530 Manuel utilisateur

Panasonic

Panasonic SCHT744 - RECEIVER Manuel utilisateur

Panasonic

Panasonic SC-HT885W Manuel utilisateur

Panasonic

Panasonic SH-FX82 Manuel utilisateur

Panasonic

Panasonic SA-HT640WPL Manuel utilisateur

Panasonic

Panasonic SAPT660 - DVD HOME THEATER SOUND SYSTEM Guide de démarrage rapide

Panasonic

Panasonic SC-BT100 Manuel utilisateur

Panasonic

Panasonic SCPTX5 - DVD HOME THEATER SOUND SYSTEM Manuel utilisateur

Panasonic

Panasonic SAHT730 - DVD THEATER RECEIVER Guide de démarrage rapide

Panasonic

Panasonic SC-XH10 Manuel utilisateur

Panasonic

Panasonic SC-BTT190 Instructions d'utilisation

Manuels Système de cinéma maison populaires d'autres marques

Samsung

Samsung HT-ES4200K Manuel utilisateur

Harman Kardon

Harman Kardon HS 100 Manuel utilisateur

Samsung

Samsung HT-P10 Manuel utilisateur

Philips

Philips HTS5131 Mode d'emploi

Goodmans

Goodmans GDVD19SWS Manuel utilisateur

Moxi

Moxi media center Manuel utilisateur

Samsung

Samsung HT-EM35 Manuel utilisateur

LG HE903PAW Manuel utilisateur

Bose

Bose SoundTouch 520 Manuel utilisateur

Sony

Sony BDV-N990W Manuel utilisateur

Manta

Manta GK-500 Manuel utilisateur

Sharp

Sharp SBW800 Manuel utilisateur

Philips

Philips HTS3541 Manuel utilisateur

LG LHT799 Manuel utilisateur

Samsung

Samsung HT-TWZ415 Manuel utilisateur

Loewe

Loewe REFERENCE 52 SL FHD+ 200 NMP Manuel utilisateur

Samsung

Samsung AH68-02166R Manuel utilisateur

RCA

RCA 600-Watt Manuel utilisateur
