Panasonic EH-HV51 Manuel utilisateur

Order Number PEWT151205CE

(

Household

)

Multi-St

lin

Strai

htener

Model No. EH-HV51

CIS

Middle East

Asia

TABLE OF CONTENTS

age

1 Warning………………………………………………

…

2 Specifications………………………………………

…

3 Troubleshooting Guide……………………………

…

4 Disassembly and Assembly instructions………

…

5 Wiring Connection Diagram………………………

…

6 Schematic Diagram…………………………………

…

7 Explode View and Replacement Part List……… 10

copying

and distribution is a violation of law.

1. Warning

Caution:

- Pb free solder has a higher melting point that standard solder Typical the melting point is 50 - 70°F (30 - 40℃)

a higher. Please use soldering iron with temperature control and adjust it to 750 ±20°F (400 ± 10℃).

In case of using high temperature soldering iron, please be careful not to heat too long.

- Pb free solder will tend to splash when heated too high (about 1100°F / 600℃).

Model

Sales Area

Power source / Power consumption

Iron Plate temperature

Body size (mm.)

Weight

MEDIUM CURL

Cord length 2.0 m

2.0 m

S3(SF629) Plug

B2(SF822) Plug

B2(SF82) Plug

VOLUMIZER

LARGE CURL

EXTRA LARGE CURL

Without Attachment

S3 Plug(SF629) Without Attachment

B2 Plug(SF82) Without Attachment

B2 Plug (SF822) Without Attachment

STRAIGHTENER

2. Specifications

AC 100-130V ~ 50-60Hz 45W

Asia

140-160-180-200-230℃(5 level settings)

287×42×45

AC 220-240V ~ 50-60Hz 45W

EH-HV51

29 g

33 g

28 g

31 g

32 g

421 g

370 g

365 g

3. TROUBLESHOOTING GUIDE

Refer to WIRING CONNECTION DIAGRAM.

LED at 140 º C

No operation

(LED does not light)

< CHECKING PROCEDURE > < CHECKING METHOD > < REMEDY >

Check the Power cord. Check the conductivity

of Power cord.

Check the Power Switch

(0/1)

Hold the On/off switch (Tag Switch)

pressed longer and check if LED

(Power Lamp) lights. LED at * 140ºC

will start blinking (LED will turn from

BLINK to LIGHT after round one

minute).

LED light, but Iron

Plate(Heater)

does not become hot

Check Iron plate of Heater

A : Housing side Replace Heater A ass'y b/k

Check if resistance value between

lead wires of the Housing side assy is

approx. 20.0±1.0

Check the Lead Wire Check connecting of Lead Wire Replace Heater A ass'y b/k

or Heater B ass'y b/k

Replace Heater B ass'y b/k

Check Circuit assembly b/k Replace Circuit assembly

b/k

LED dose not light , Iron

Plate(Heater A,B) Replace Circuit assembly

b/k

Check the Power Switch

button of the Housing side Check the operation of On/off Switch

button of Housing side.

(Check if it works smoothly)

Replace the Power Cord

Figure1

Check Iron plate of Heater

B : Press plate side Check if resistance value between

lead wires of the Press plate side

assy is approx. 20.0±1.0

Replace the Housing A

Replace Circuit assembly

b/k

Temperature dose not

change even though the

Temperature level

adjustment switches

is pressed.

Check the Temperature

level Adjustment Switch

(Tag Switch)

Check Circuit assembly b/k Replace Circuit assembly

b/k

< CHECKING PROCEDURE > < CHECKING METHOD > < REMEDY >

Check Circuit assembly b/k Replace Circuit assembly

b/k

Figure2

All LEDs blinks.

Check Heater A

: Housing side Check connecting of Thermistor Replace Heater A :

Housing side

LED lights, but the Iron

plate (Heater A,B) dose

not become hot.

Check the operation of LED(Temp.

Level Lamp) by pressing Tag switch

of the Temperature level adjustment

switch on Circuit assembly b/k longer

with fingers (Figure2)

Replace Circuit assembly

b/k

4 Disassembly and Assembly instructions

4.1 Disassembly instruction

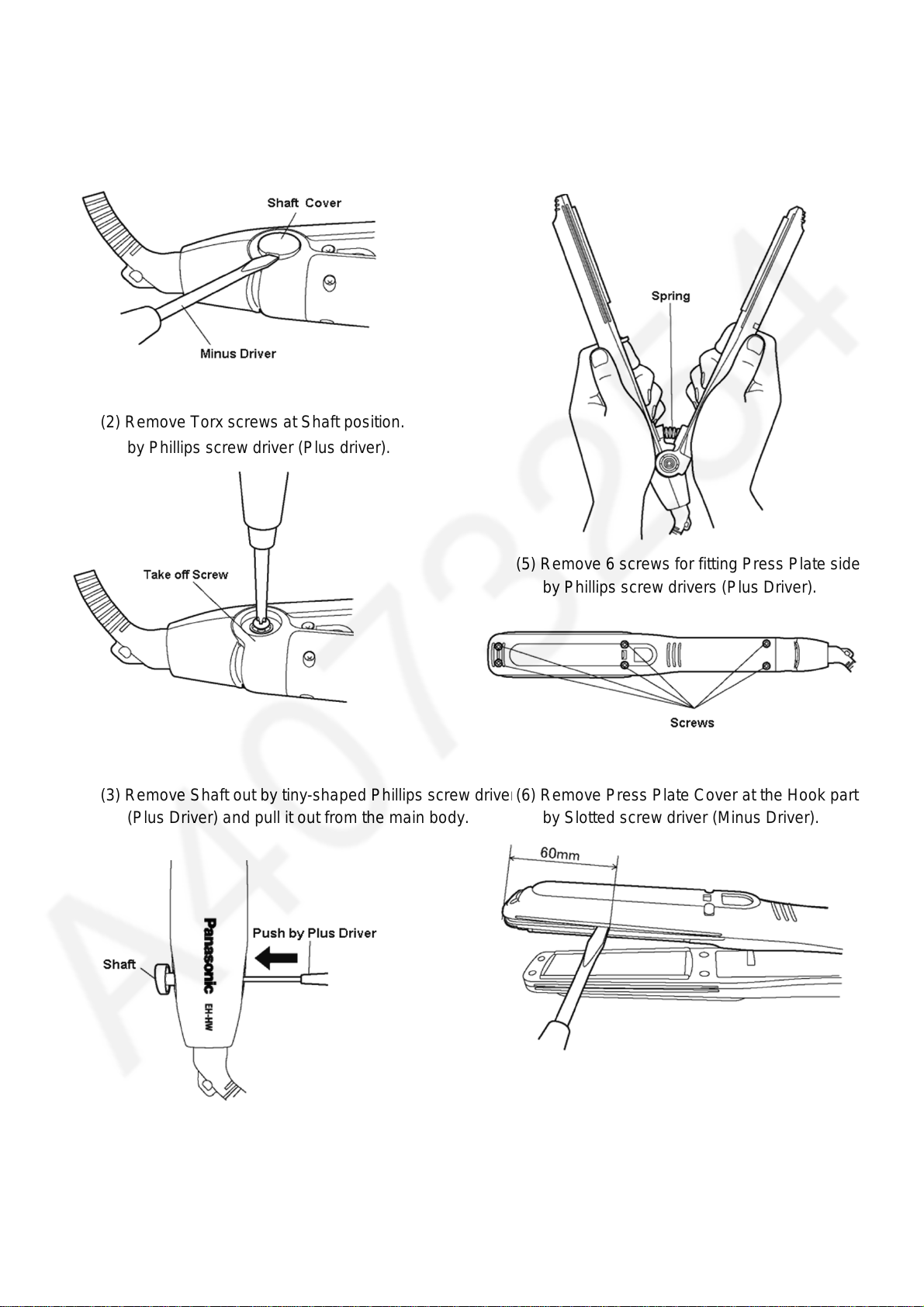

(1) Remove Shaft Cover from Main Body (4) Remove Pivot spring by gripping

by Slotted screw driver (Minus Driver.) and pulling it out from the Main body

(2) Remove Torx screws at Shaft position.

by Phillips screw driver (Plus driver).

(5) Remove 6 screws for fitting Press Plate side

by Phillips screw drivers (Plus Driver).

(3) Remove Shaft out by tiny-shaped Phillips screw drive

(6) Remove Press Plate Cover at the Hook part

(Plus Driver) and pull it out from the main body. by Slotted screw driver (Minus Driver).

(7) Remove Lock Button and Lock Button Spring. (10) Take off Press Plate.

(8) Remove Iron Plate of Heater B from Hook.

(11) Remove 2 screws of the Housing side

by Phllips screw driver (Plus Driver).

(9) Remove Slide Plate and Slide Spring.

(12) Remove 6 Screws by Phllips screw driver

(Plus Driver).

(13) Remove Housing A from Housing B in Grip (14) Take off Iron Plate and Circuit assembly b/k

follow as below drawing. from Housing A.

4.2 ASSEMBLY instruction

(1) Shaft Cover fixing point.

(2) Housing B Assembly Point.

4.3 Lead wire of Iron Plate(Heater A , Heater B) and Circuit arrangement po

(1) Lead wire of Iron Plate(Heater A assembly b/k) and Circuit assembly b/k

arrangement follow as below.

(2) Lead wire of Iron Plate(Heater B assembly b/k) arrangement follow as below.

(3) Shaft Cover must be control direction follow as below.

Red

White White

VioletGreen

Red

White Blue

Black

5. WIRING CONNECTION DIAGRAM

6. SCHEMATIC DIAGRAM

Iron Plate (Heater A side)

Iron Plate (Heater B side) Black

White Violet

(HTA_1)

Green

(HTA_2)

White Blue (HTB_2)

Black

(HTB_1)

Blue (AC2)

White (AC1)

TH+

TH-
