Panasonic ES-WH80 Manuel utilisateur
© Panasonic Corporation, 2015. All rights reserved.
Unauthorized copying and distribution is a violation
of law.
Order Number PCD1507A60CE
IPL HAIR REMOVAL SYSTEM
Model No. ES-WH80
MIDDLE EAST
ASIA
TABLE OF CONTENTS PAGE PAGE
1 Warning-------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide----------------------------------------- 3
4 Disassembly and Assembly Instructions ---------------- 7
5 Exploded View and Replacement Parts List ------------ 8
ES-WH80
2
1Warning
Caution:
- Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher.
Please use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C).
In case of using high temperature soldering iron, please be careful not to heat too long.
- Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

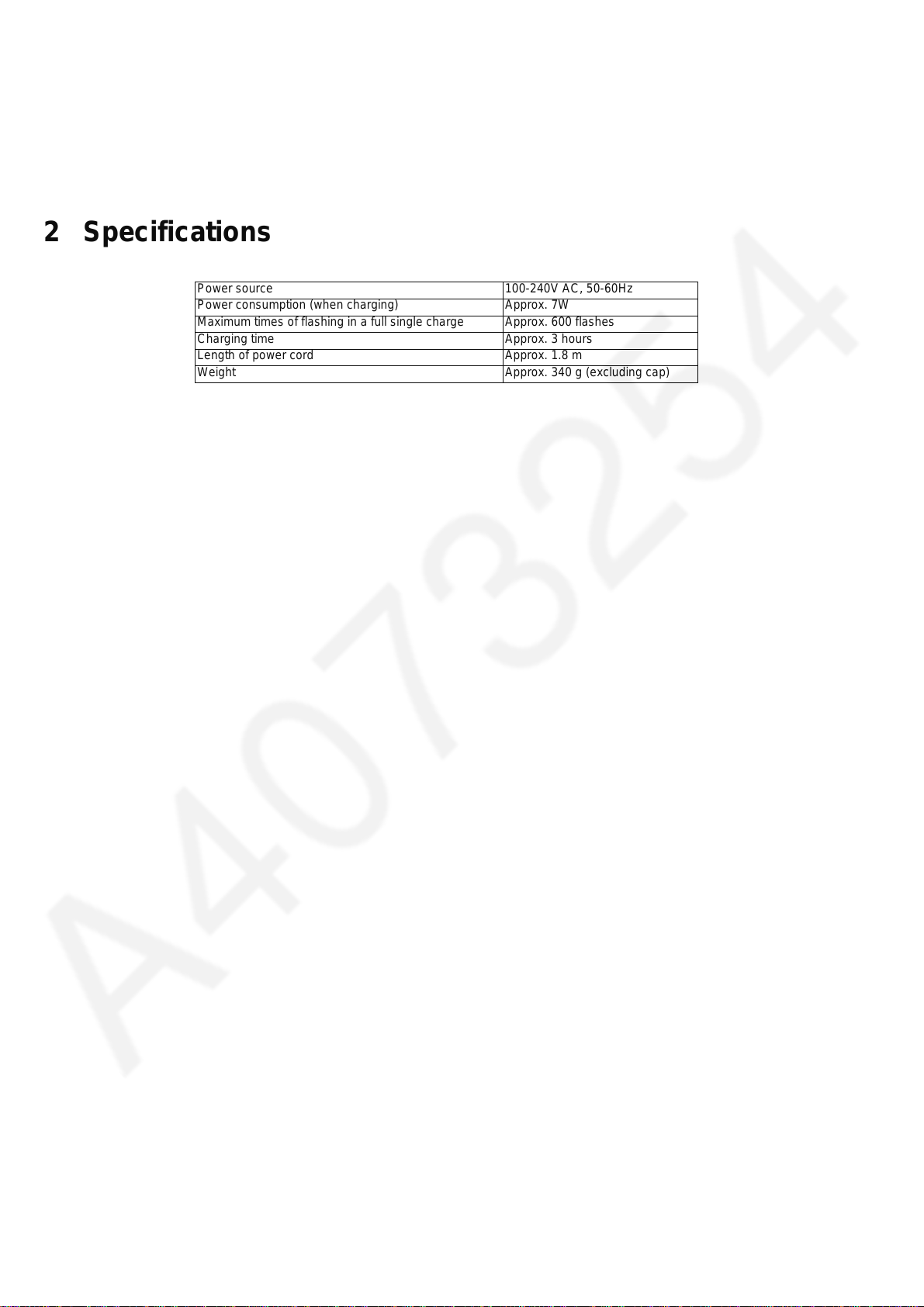

2 Specifications
Power source 100-240V AC, 50-60Hz
Power consumption (when charging) Approx. 7W
Maximum times of flashing in a full single charge Approx. 600 flashes
Charging time Approx. 3 hours
Length of power cord Approx. 1.8 m
Weight Approx. 340 g (excluding cap)
ES-WH80
3
3 Troubleshooting Guide

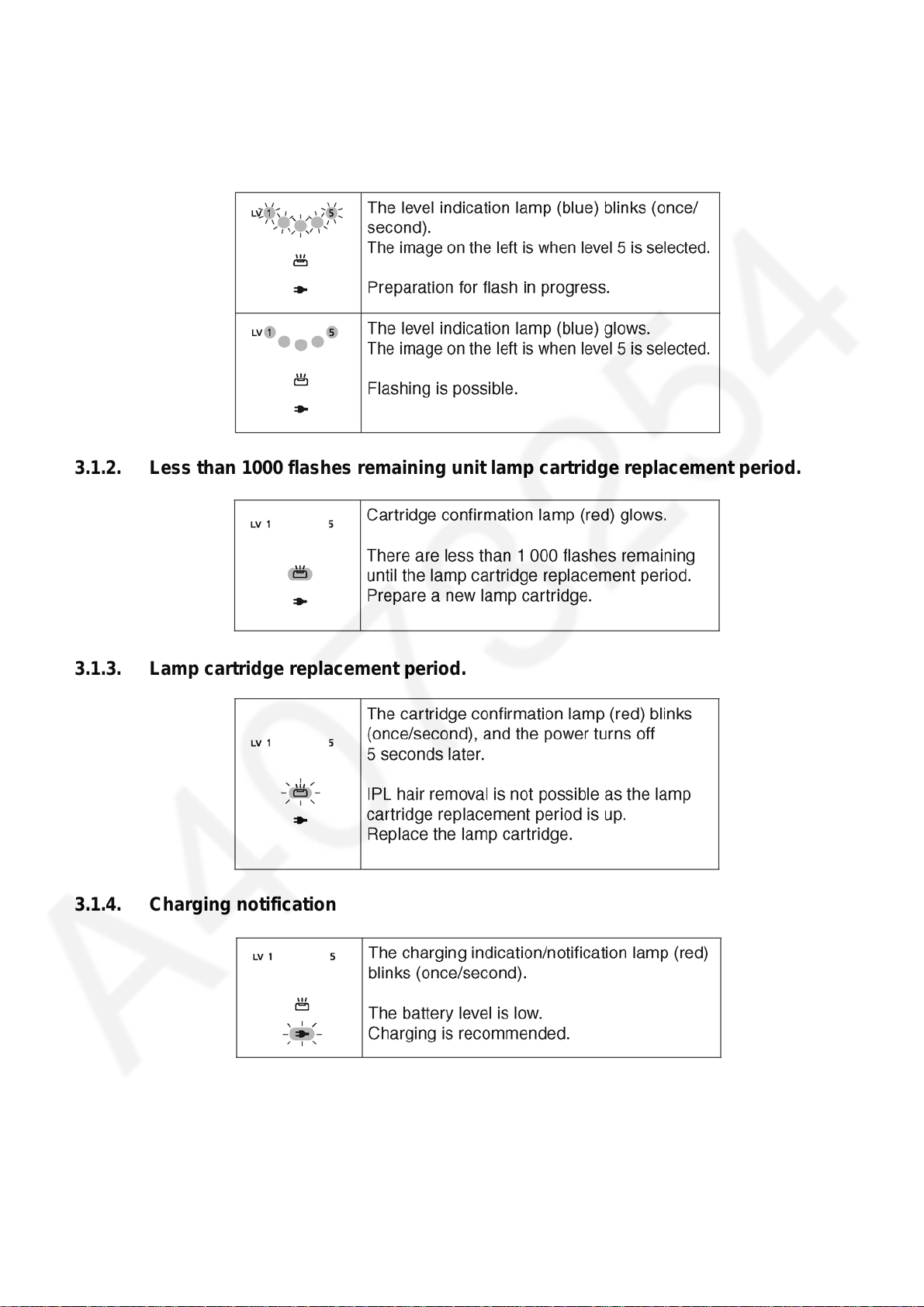

3.1. Lamp Indication
3.1.1. Normal indication
3.1.2. Less than 1000 flashes remaining unit lamp cartridge replacement period.
3.1.3. Lamp cartridge replacement period.
3.1.4. Charging notification
ES-WH80
4

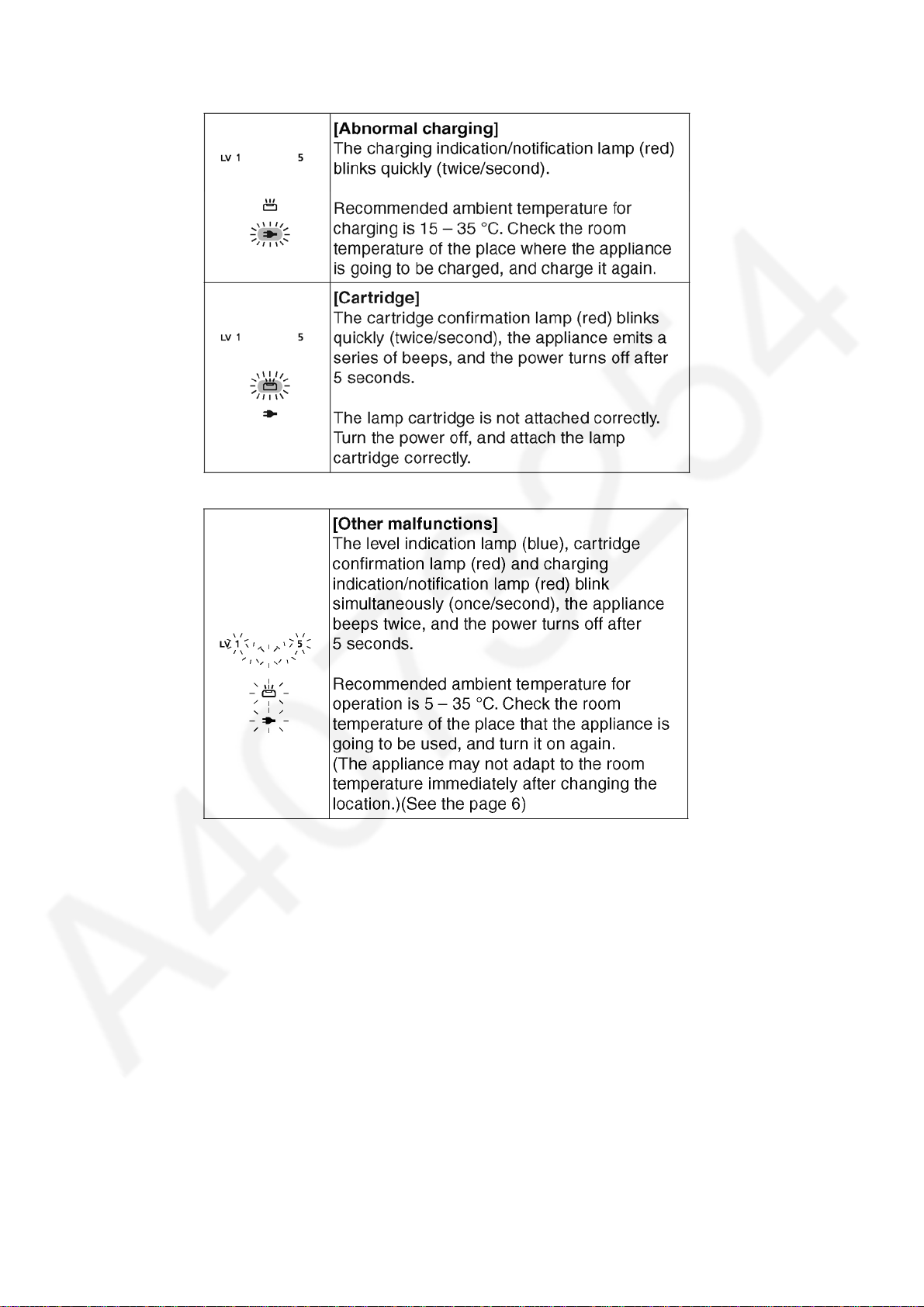

3.1.5. Malfunction display
ES-WH80
5

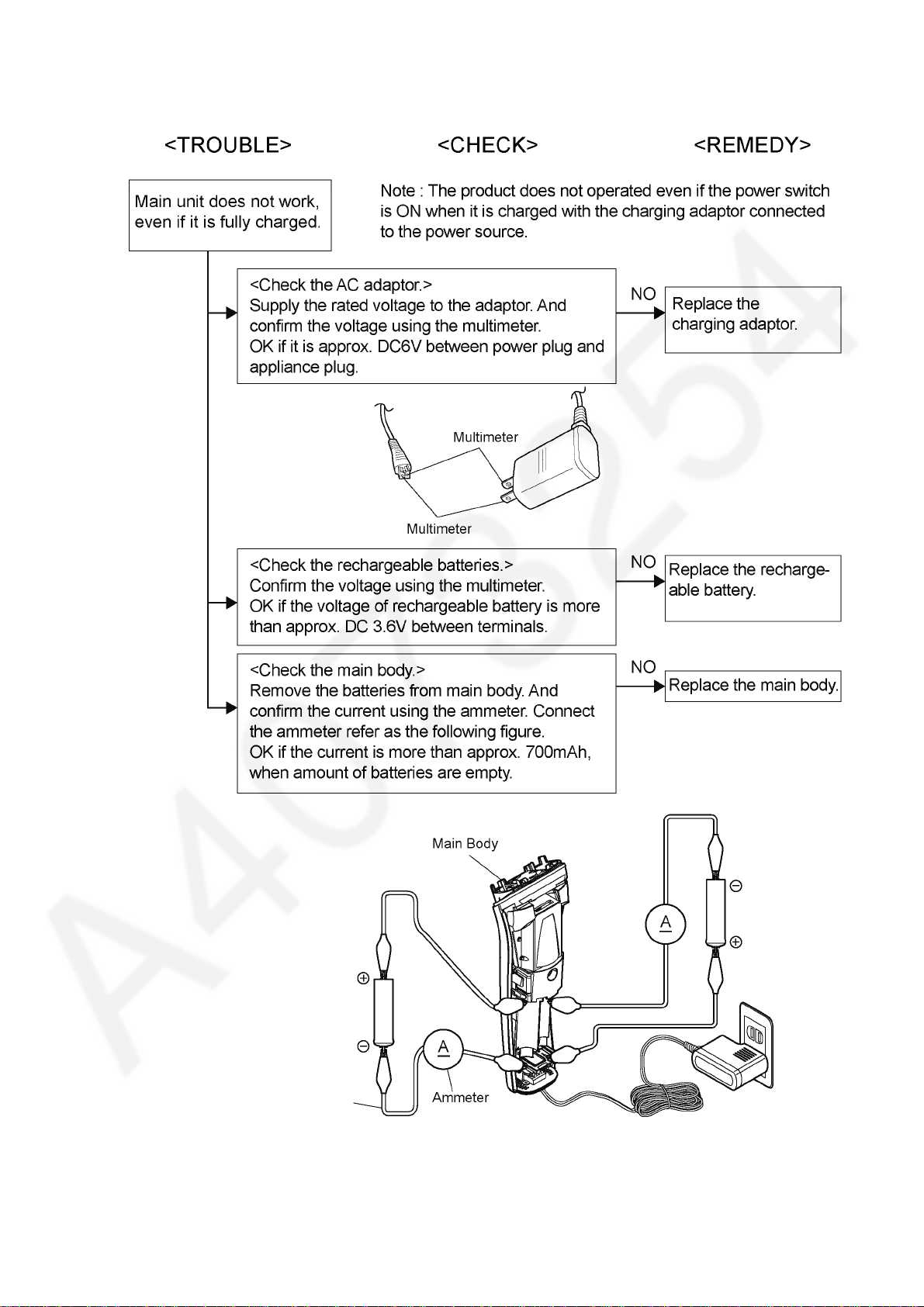

3.2. Main unit and charging adaptor
ES-WH80
6
ES-WH80
7
4 Disassembly and Assembly Instructions

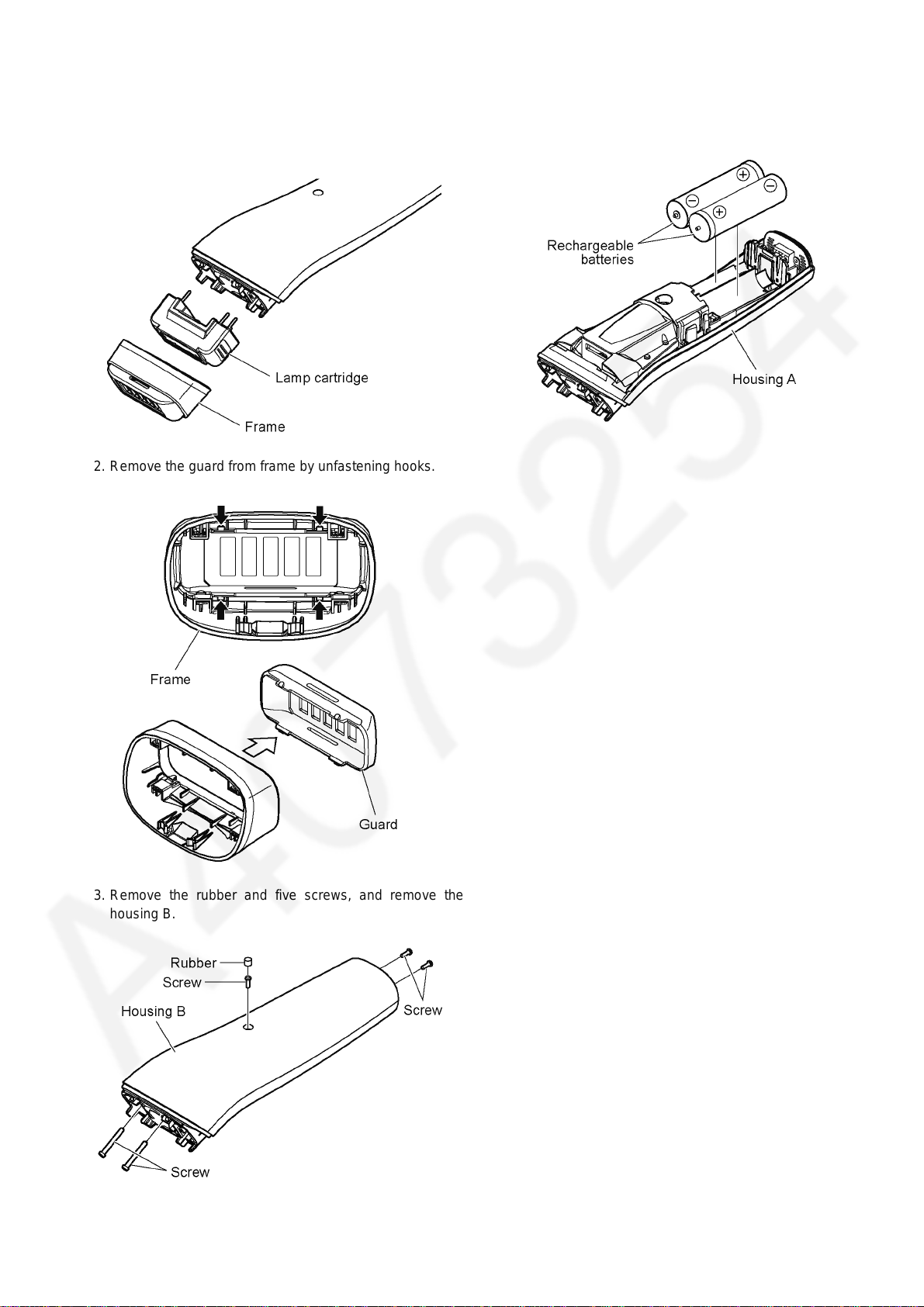

4.1. Disassembly method.
1. Remove the frame and lamp cartridge.
2. Remove the guard from frame by unfastening hooks.
3. Remove the rubber and five screws, and remove the
housing B.
4. Remove the batteries from main body.
ES-WH80
8
5 Exploded View and Replacement Parts List

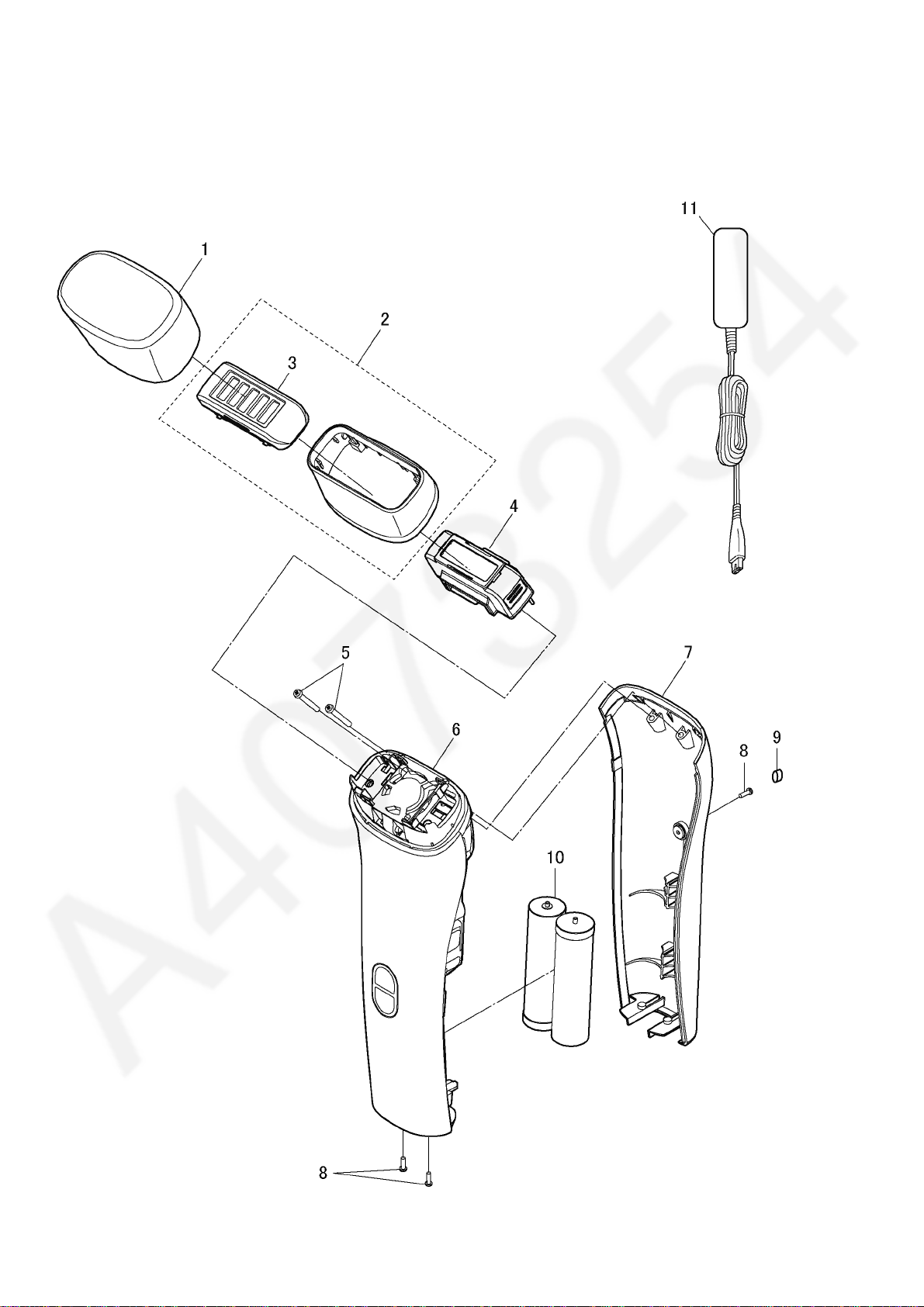

5.1. Exploded view
ES-WH80
9

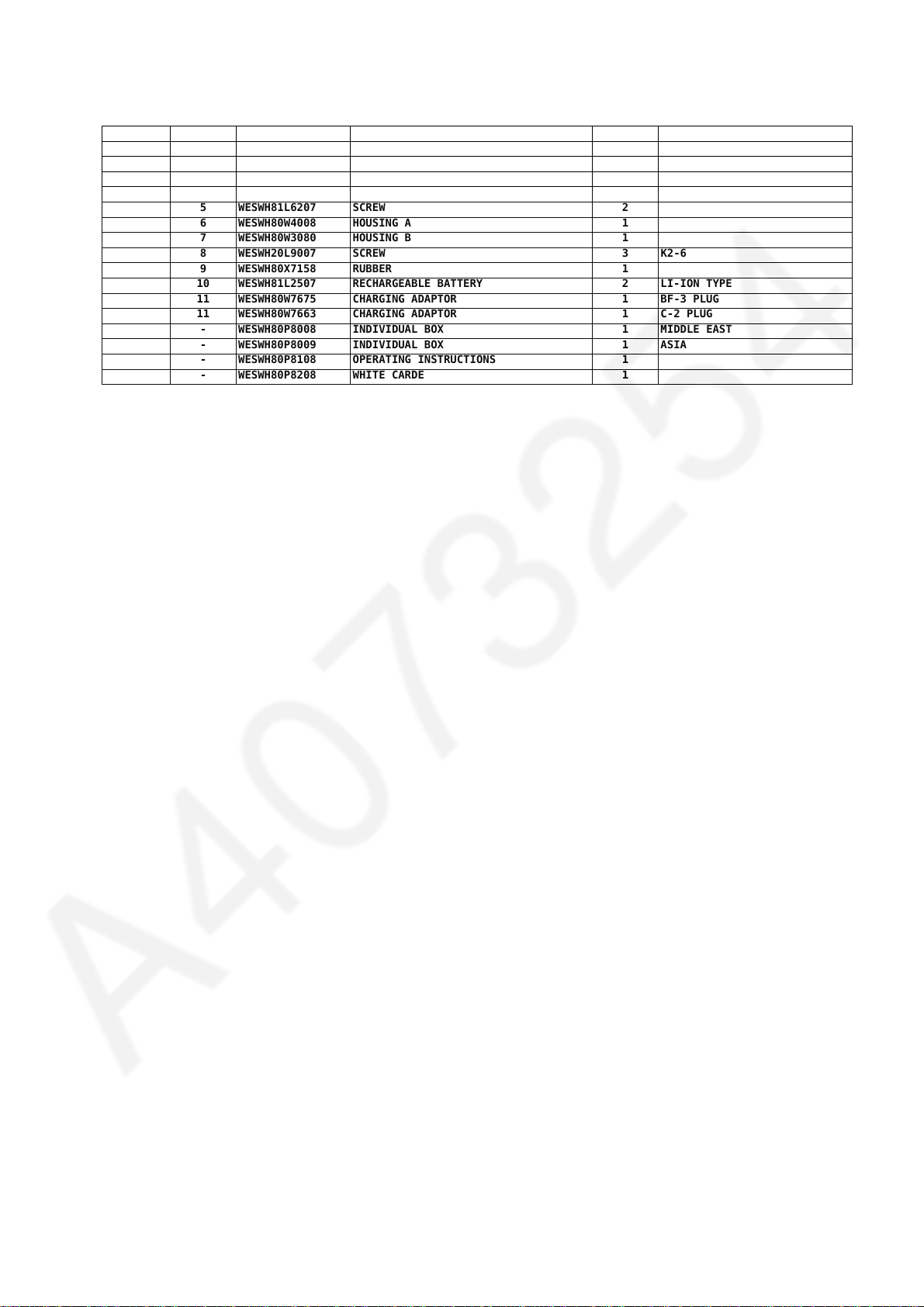

5.2. Replacement Parts List
Safety Ref. No. Part No. Part Name & Description Quantity Remarks
1 WESWH81P7157 CAP 1
2 WESWH81P3107 FRAME 1
3 WESWH81H3747 GUARD 1
4 WES2W13H803 LAMP CARTRIDGE 1
5 WESWH81L6207 SCREW 2
6 WESWH80W4008 HOUSING A 1
7 WESWH80W3080 HOUSING B 1
8 WESWH20L9007 SCREW 3 K2-6
9 WESWH80X7158 RUBBER 1
10 WESWH81L2507 RECHARGEABLE BATTERY 2 LI-ION TYPE
11 WESWH80W7675 CHARGING ADAPTOR 1 BF-3 PLUG
11 WESWH80W7663 CHARGING ADAPTOR 1 C-2 PLUG
- WESWH80P8008 INDIVIDUAL BOX 1 MIDDLE EAST
- WESWH80P8009 INDIVIDUAL BOX 1 ASIA
- WESWH80P8108 OPERATING INSTRUCTIONS 1
- WESWH80P8208 WHITE CARDE 1
