© Panasonic Eco Solutions Power Tools Co., Ltd.

2012. All rights reserved. Unauthorized copying and

distribution is a violation of law.

Order Number PTD1208X03CE

Flashlight

Model No. EY37C1

Europe

Oceania

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Disassembly and Assembly Instructions ---------------- 5

5 Schematic Diagram ---------------------------------------------- 6

6 Exploded View and Replacement Parts List ------------ 7

2

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

2 Specifications

3

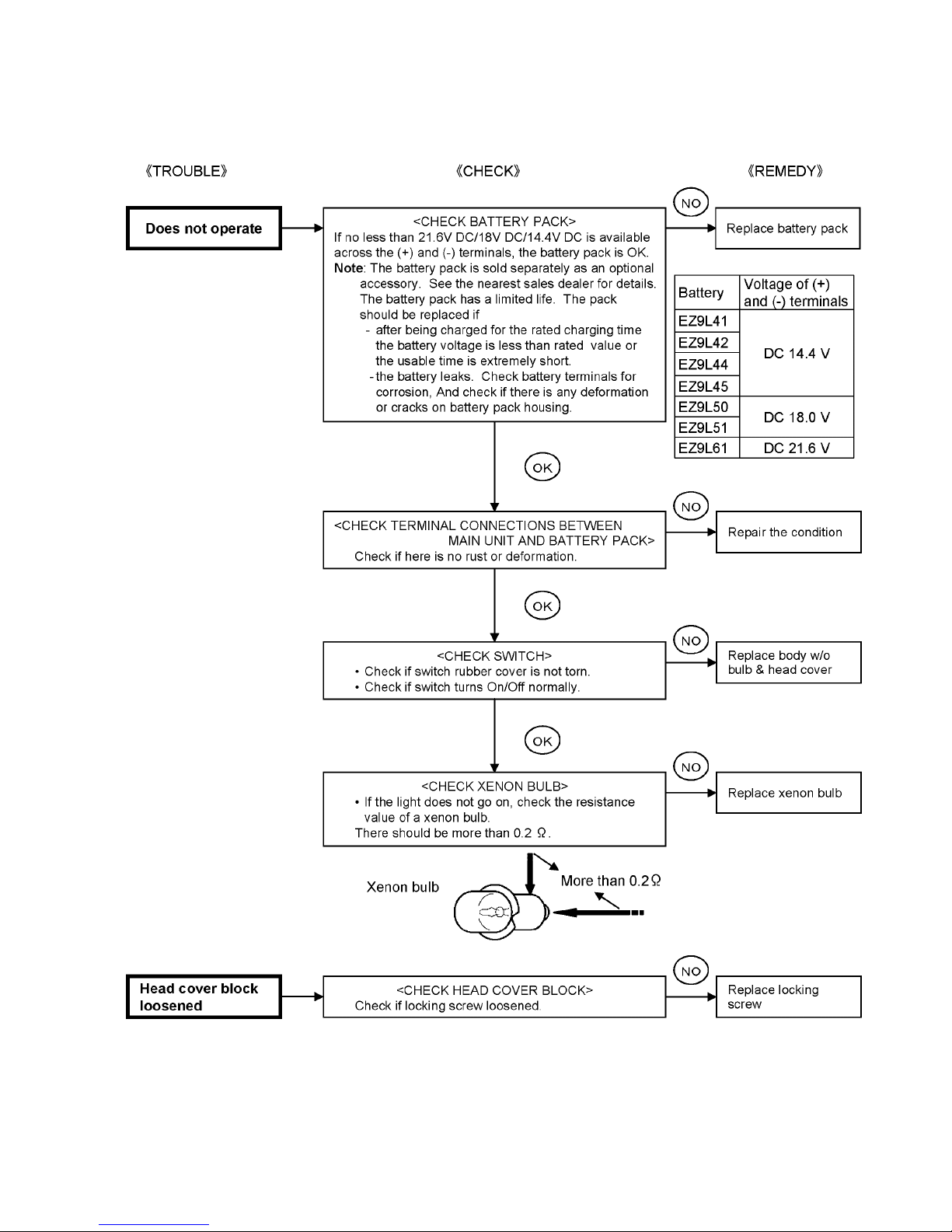

3 Troubleshooting Guide

3.1. Troubleshooting Guide

4

3.2. Trial Operation (After Checking Troubleshooting Guide)

5

4 Disassembly and Assembly Instructions

4.1. Replace of a xenon bulb of chargeable light for construction

* Xenon bulb of chargeable light for construction is abbreviated to xenon bulb below.

Removing a xenon bulb by force might cause break of a socket.

Please follow things below for replace of a xenon bulb.

• Be sure to remove a battery pack before replace.

• Be sure to use a genuine xenon bulb.

• Attach a xenon bulb and a head cover firmly.

6

4.2. Caution for assembly

5 Schematic Diagram

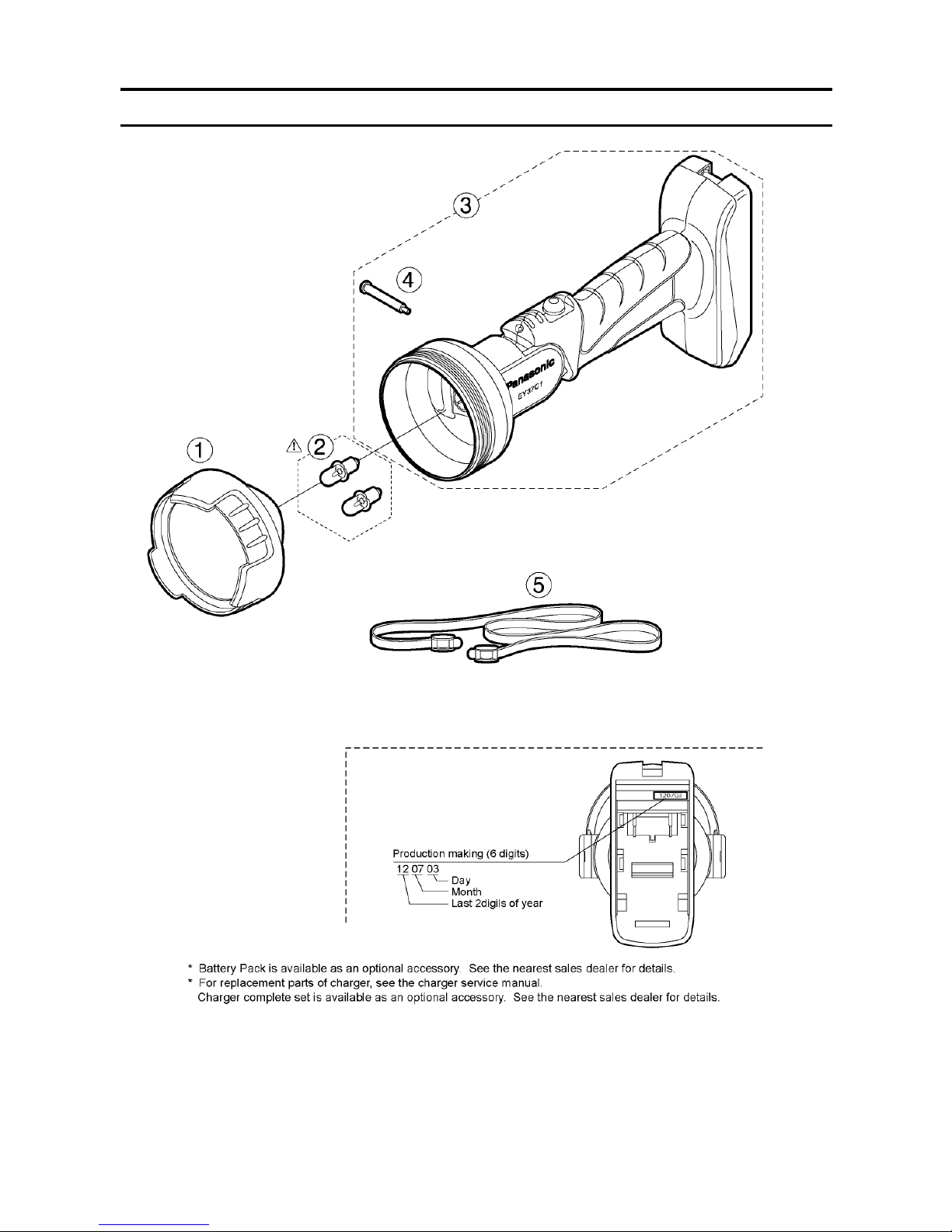

Model No. : EY37C1 Exploded View

7

6 Exploded View and Replacement Parts List

Model No. : EY37C1 Parts List

Safety

Ref.

No. Part No. Part Name & Description Q'ty Remarks

1 WEY37C1L4018 HEAD COVER 1

2 WEY37C1X7778 XENON BULB 2 (12V,0.7A) (2PCS/PR)

3 WEY37C1L4008 BODY W/O BULB & HEAD COVER 1

4 WEY3740L0338 LOCKING SCREW 1

5 WEY3794K0227 SHOULDER STRAP 1

- WEY37C1L8108 OPERATING INSTRUCTIONS 1

8
