Facsimile

Quick Reference Guide

Model No.

KX-PW708DLE5

KX-PW708DWE5

KX-PW708DLE5

Main unit:

Portable handset:

KX-PW708

KX-FKN516

Thank you for purchasing a Panasonic facsimile.

This guide explains some basic features and operations, but not all of them.

For further details, see the Japanese operating instructions.

This product is designed for use in Japan.

Panasonic cannot provide service for this product if used outside Japan.

Any details given in this guide are subject to change without notice.

This unit is equipped with the voice guide features. (Japanese only)

For details about voice guide, please see page 10.

Table of Contents

Finding the controls …………………………………………………………… 2

Installations and connections ………………………………………………… 4

Setting the date and time……………………………………………………… 7

Setting your facsimile telephone number …………………………………… 7

Setting your logo ……………………………………………………………… 8

Character input and command key table …………………………………… 9

Voice guide…………………………………………………………………… 10

Automatic dialing on the main unit ………………………………………… 11

Automatic dialing on the portable handset (KX-FKN516) ……………… 12

Repeat call dialing ………………………………………………………… 13

Intercom ……………………………………………………………………… 14

Sending faxes ……………………………………………………………… 15

Receiving faxes ……………………………………………………………… 16

Operating the built-in answering device ………………………………… 17

Night mode…………………………………………………………………… 18

Call block …………………………………………………………………… 19

Specifications ……………………………………………………… Back cover

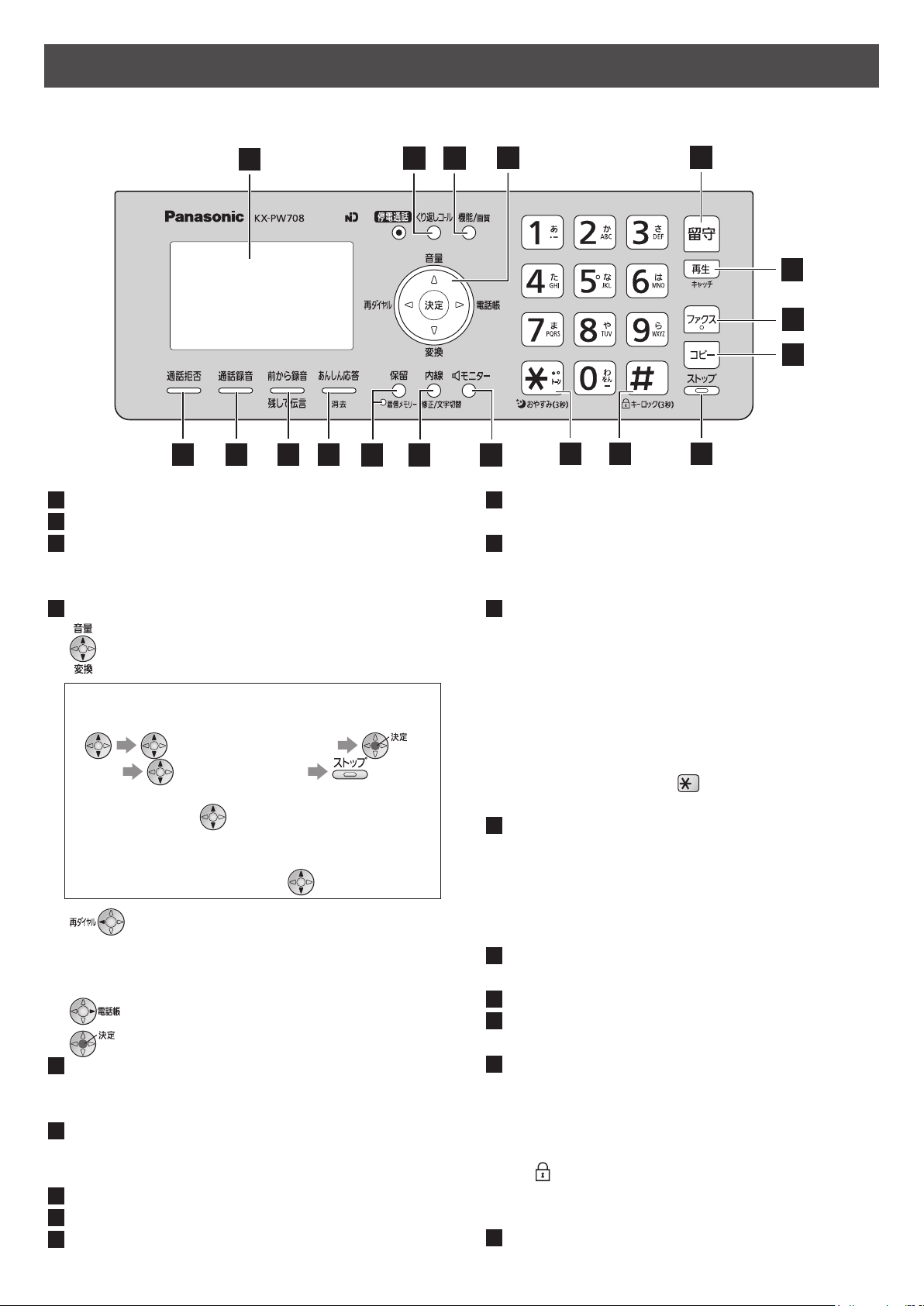

Finding the controls

Main unit

Liquid crystal display

Repeat call button

Function button initiates programming.

Resolution button selects the resolution

when faxing or copying.

Volume/Change/Redial/Phonebook key

To adjust the volume (see below).

To change Hiragana into Kanji.



To adjust the ringer volume when the unit

is on stand by

(Select “”)

(Set) (press repeatedly)



To adjust the receiver volume while

talking, press repeatedly.

To adjust the speaker volume while

listening to the recorded messages or

using the monitor, press repeatedly.

To redial the phone numbers in

the redial list. The last 10 phone

numbers dialed are stored in

memory.

To use the phonebook.

To store a parameter.

Auto Answer button & indicator

—light on: answering device activated.

—light off: used as a regular telephone.

Playback button plays back recorded

messages.

Flash button (For call waiting service users.)

Fax button starts faxing.

Copy button starts copying.

Block button for the undesired call

Record button records a telephone

conversation.

Enhanced Record button records

the previous 60 seconds of telephone

conversation.

Secure button

While the unit is ringing, press this button.

The unit announces a message to the caller.

The message is announced in Japanese

and means “This unit is currently set to

Caller Verifying mode. Could you please

speak out your name?”.

To talk to the caller, lift the handset.

To hang up, press .

Erase button

Hold button

Call Memory button starts a search in the

Number Display (Caller ID) log.

Call Memory indicator lights when a call

was missed.

(For Number Display service users.)

Intercom/Edit/Character Input Mode

button

Monitor button

Tone button switches to tone dialing.

Night mode button

Sharp button

Key lock button can lock the main unit so

that no calls or settings can be made. To

turn key lock on, press this button for about

3 seconds until a single beep is heard.

“ ” is displayed.

To turn key lock off, press this button for

about 3 seconds.

Stop button

111091413

12 3

1716

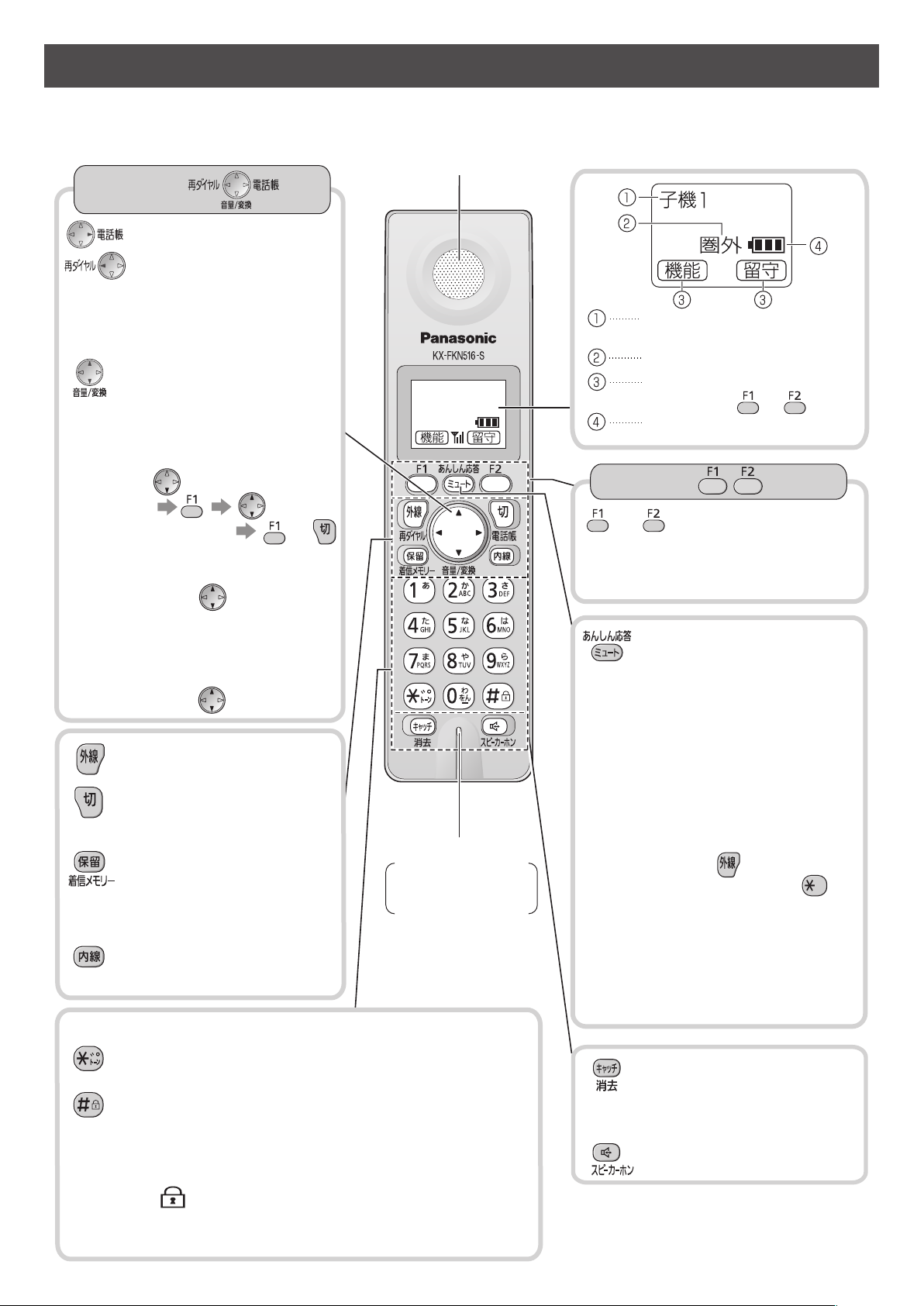

Finding the controls

Portable handset (KX-FKN516)

●



To change Hiragana into

Kanji.

●



To adjust the volume.

●



To redial the phone

numbers in the redial

list. The last 10 phone

numbers dialed are

stored in memory.

●



To make/answer calls.

●



To put a call on hold.

●



To start a search in the

Number Display log.

(For Number Display

service users.)

●



To use the speakerphone.

●



For call waiting service

users.

●



To clear letters/numbers.

Sharp button

Key lock button

●To lock the portable handset so that no calls or setings

can be made. To turn key lock on, press this button for

about 3 seconds until a single beep is heard.

●“ ” is displayed.

●To turn key lock off, press this button for about 3

seconds until a single beep is heard.

●



To use the phonebook.

and buttons refer to the function

displayed on the bottom of the display.

They function differently depending on

the mode.

Dial buttons

Earpiece Liquid crystal display

Microphone

Do not cover the

microphone while

talking.

Function menu that is

controlled by or

Portable handset number

(and name)

No link to the main unit

Battery strength

Tone button

●To switch to tone dialing.

●



To end a call.

●



To end or exit from editing or

other operations.

How to use key

How to use buttons

Secure button

●



While the portable handset is

ringing, press this button.

The portable handset

announces a message to the

caller . The message is

announced in Japanese and

means “This unit is currently

set to Caller Verifying mode.

Could you please speak out

your name?”

To talk to the caller,

press .

To hung up, press .

Mute button

●



To mute your voice to the

other party by pressing this

button for about 2 seconds.

(To release the mute,

press this button again.)

●



To page the main unit

and/or portable handset(s).

■To adjust the ringer

volume when the portable

handset is on stand by

(Select “呼出音量”)

(press

repeatedly) or

■To adjust the receiver

volume while talking,

pressrepeatedly

■To adjust the speaker

volume while listening to

the recorded messages or

using the speakerphone,

press repeatedly

Installations and connections

When the unit runs out of ink film, the following message will be displayed.

    





 

  

Install a new ink film.

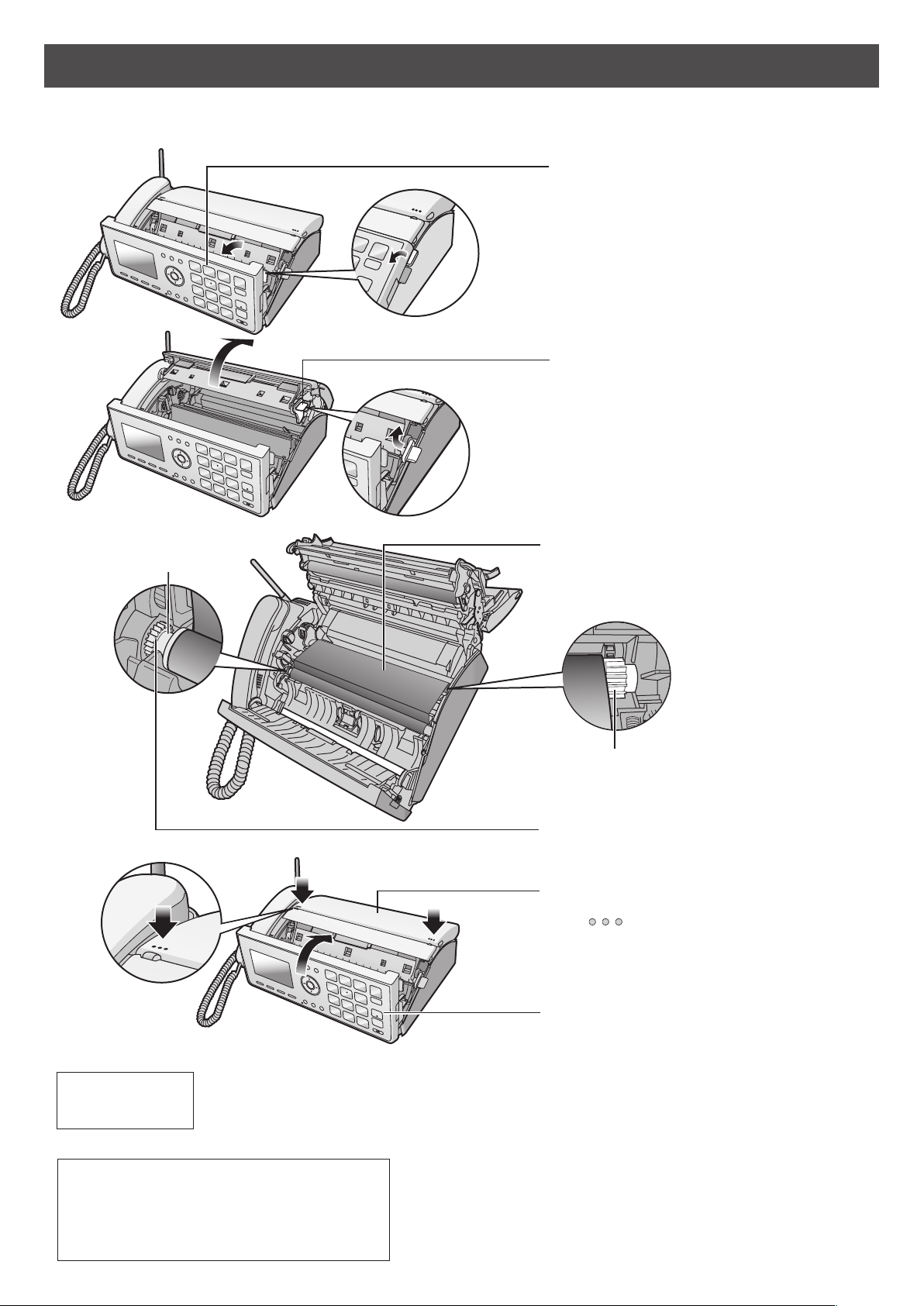

Installing the ink film

1Open the control panel.

2Open the back cover.

3Insert the ink film.

If the ink film is slack, tighten it by

winding this gear (orange).

Insert the white gear into the right slot

of the main unit.

Insert the orange

gear into the left slot

of the main unit.

5Close the back cover pressing

“ ” down on both sides

until it clicks into place.

6Close the control panel.

Replacement ink film:

KX-FAN190 (15 m) 714

KX-FAN190W (15 m X 2) 1,208

KX-FAN191 (15 m) (*1) 893

KX-FAN191W (15 m X 2) (*1) 1,523 As of October 2008. Tax included.

*1 KX-FAN191/KX-FAN191W leaves a fainter print trail on the film

than does the KX-FAN190/190W.

Installations and connections

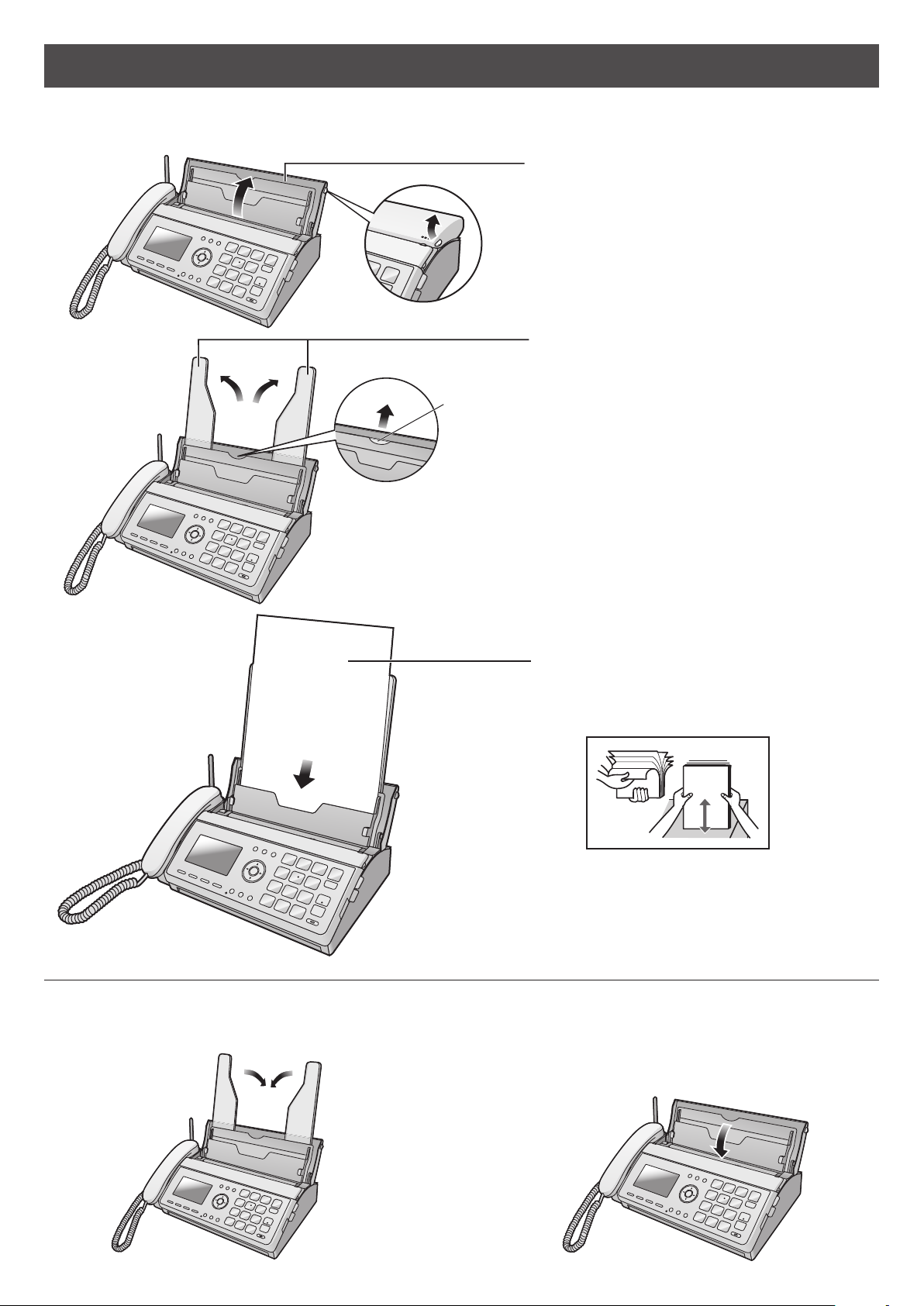

Installing recording paper (A4 size)

2Set up the recording paper stands.

Pull out the front stand first.

3Insert the recording paper into the

recording paper tray. (Up to 15 sheets)

�Fan the stack of recording paper.

Recording paper

� Printing side is

on the back.

1Open the recording paper tray.

1Remove the recording paper and fold the recording

paper stands in.

2Close the recording paper tray.

Folding the recording paper tray

Installations and connections

After the Power On...

1This unit will automatically select the dialing

mode (Pulse/Tone).

2When the following is displayed, press

(Stop). 

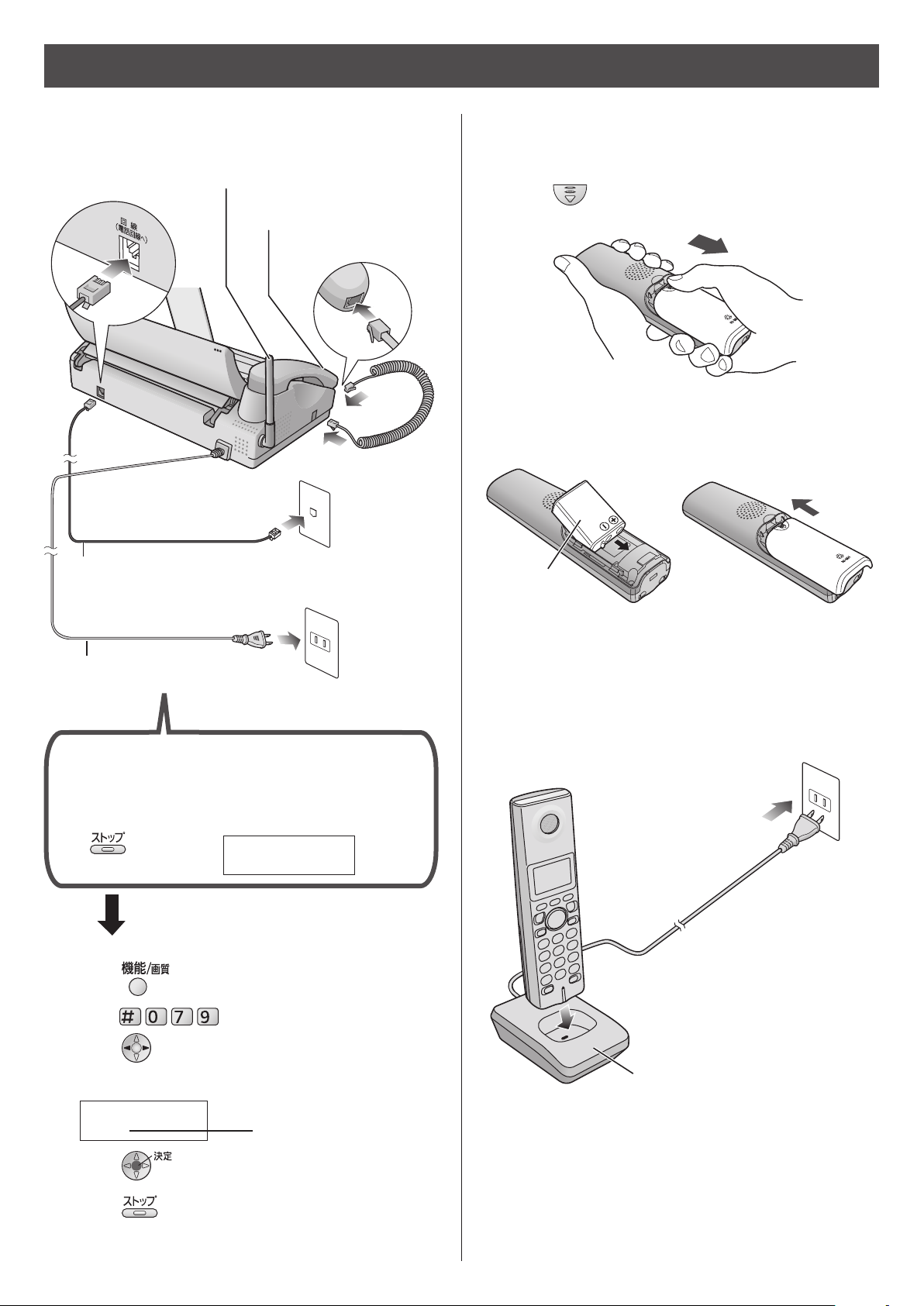

Connecting the main unit Setting up the portable handset

(KX-FKN516)

1Raise the antenna.

Power cord

Telephone line cord

(supplied accessory)Wall jack

Power outlet

(AC 100 V)

3Connect the telephone line cord.

4Connect the power cord.

2Connect the cord and

place the handset on

the main unit.

1Press on the battery cover and slide the cover.

2Insert the battery into the compartment and close the

battery cover.

After your Panasonic battery is fully charged,

it will last up to about 5 hours of conversation.

Battery

If you cannot make a call...

Set the dialing mode with the main unit.

1. Press (Function/Resolution).

Press

3. Press (Search button) repeatedly until the

desired setting is selected.

4. Press (Set).

5. Press (Stop).

Power outlet

(AC 100 V)

Charger

3Connect the charger to the power outlet, then place

the portable handset on the charger for about

10 hours.

Example :

 : Tone

  : Pulse (20 PPS)

 : Pulse (10 PPS)

: Auto (Default)













































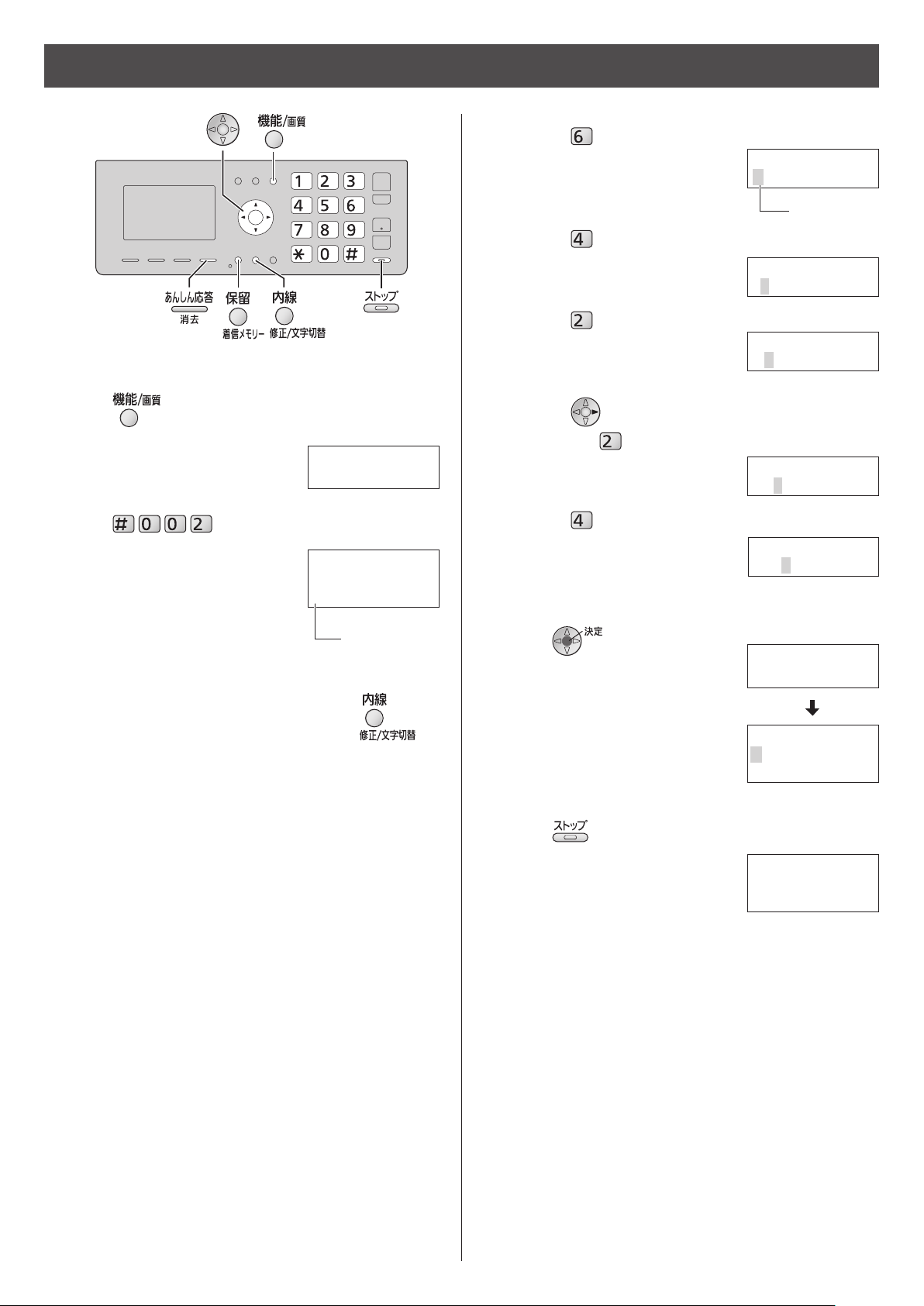

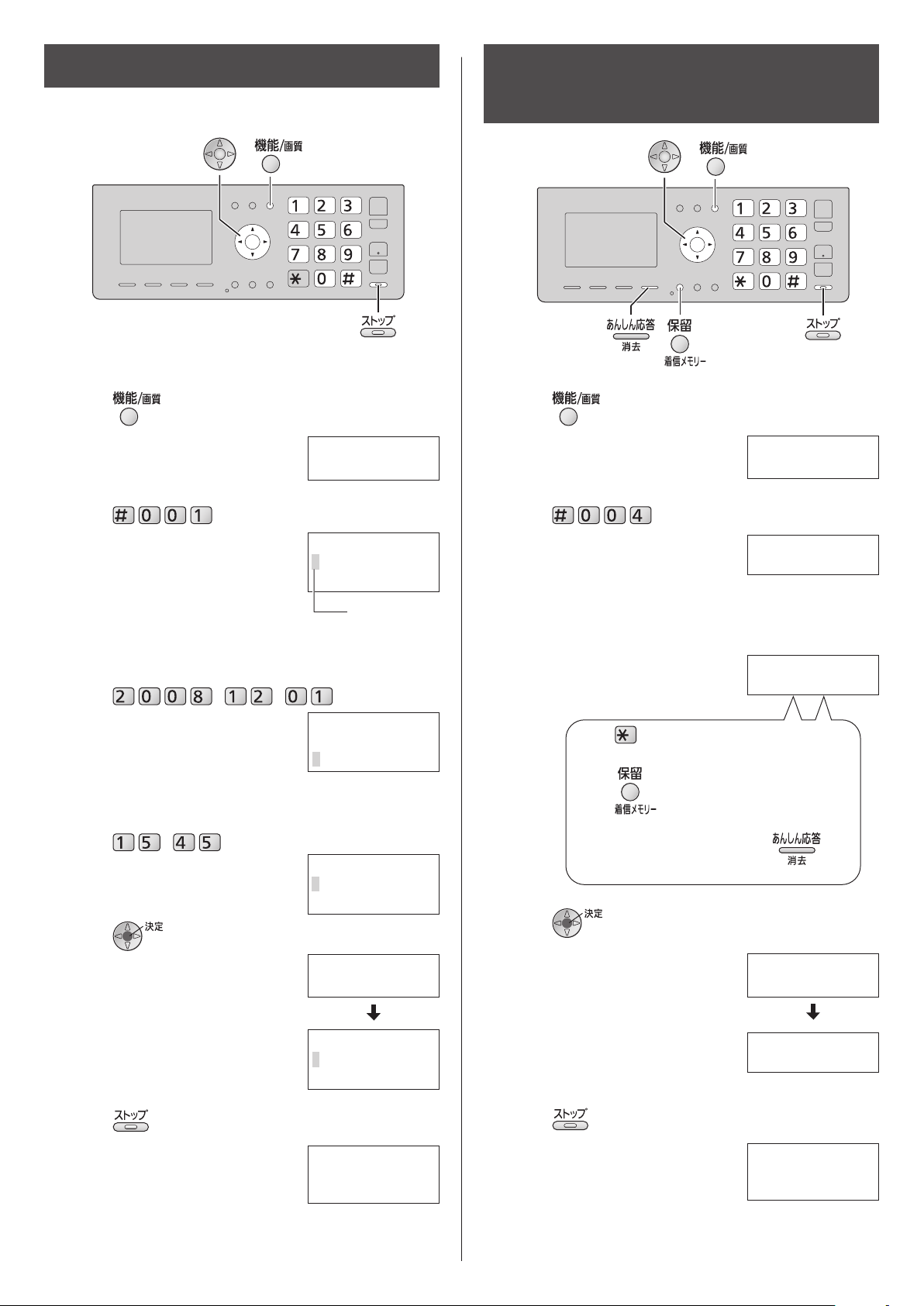

Setting the date and time Setting your facsimile

telephone number

1Press (Function/Resolution). 1Press (Function/Resolution).

5Press (Stop).

6Press (Stop).

Example :

3Enter your facsimile telephone number, up to

20 digits.

Example: +098 7654··

3Enter the correct year/month/day.

Example: December 1, 2008

Press .

2Press .

4Enter the correct hour/minute in a 24-hour clock entry.

Example: 15:45 (3:45 PM)

Press .

5Press (Set). 4Press (Set).

2Press .

Example :



Cursor

Example :



























































 







The (Tone) button replaces

the digit with “+”.

The (Hold/Call memory) button

replaces the digit with a space.

To correct a mistake, press

(Secure/Erase).













 



















































































































































3Enter your logo, up to 30 characters, using the dial

keypad.

To enter English characters easily, press

(Intercom/Edit/Character input mode) repeatedly

and select “英” (English and sign input mode).

For details, see the table on page 9 for instructions.

Setting your logo

1Press (Function/Resolution).

5Press (Stop).

Example: Micah

1. Press once.

2. Press six times.

3. Press six times.

4. Press to move the cursor to the next space

and press four times.

5. Press five times.

4Press (Set).

2Press .

Example :

Cursor

















 







Character input and command key table

Pressing the dial keys will select a character as shown below.

Character Hiragana Katakana English Numbers

Display of the

main unit and the

portable handset

［漢］［カナ］［英］［数］

Dial key

Main

(

unit

)

Portable

handset

(

KX-FKN516

)







 @ . _ – & $ ¥ % + = ~^

      

        

       

        

    

       

      

      

              ’”

     

   

Command keys

(Main unit), (Portable handset)

Used to change the character input

mode.

(Main unit), (Portable handset) Used to move the cursor to the left

and right.

(Main unit), (Portable handset) Used to delete a character.

(Main unit), (Portable handset) Used to insert a space.

The characters on the display are somewhat different from those shown in the character input and command key table.

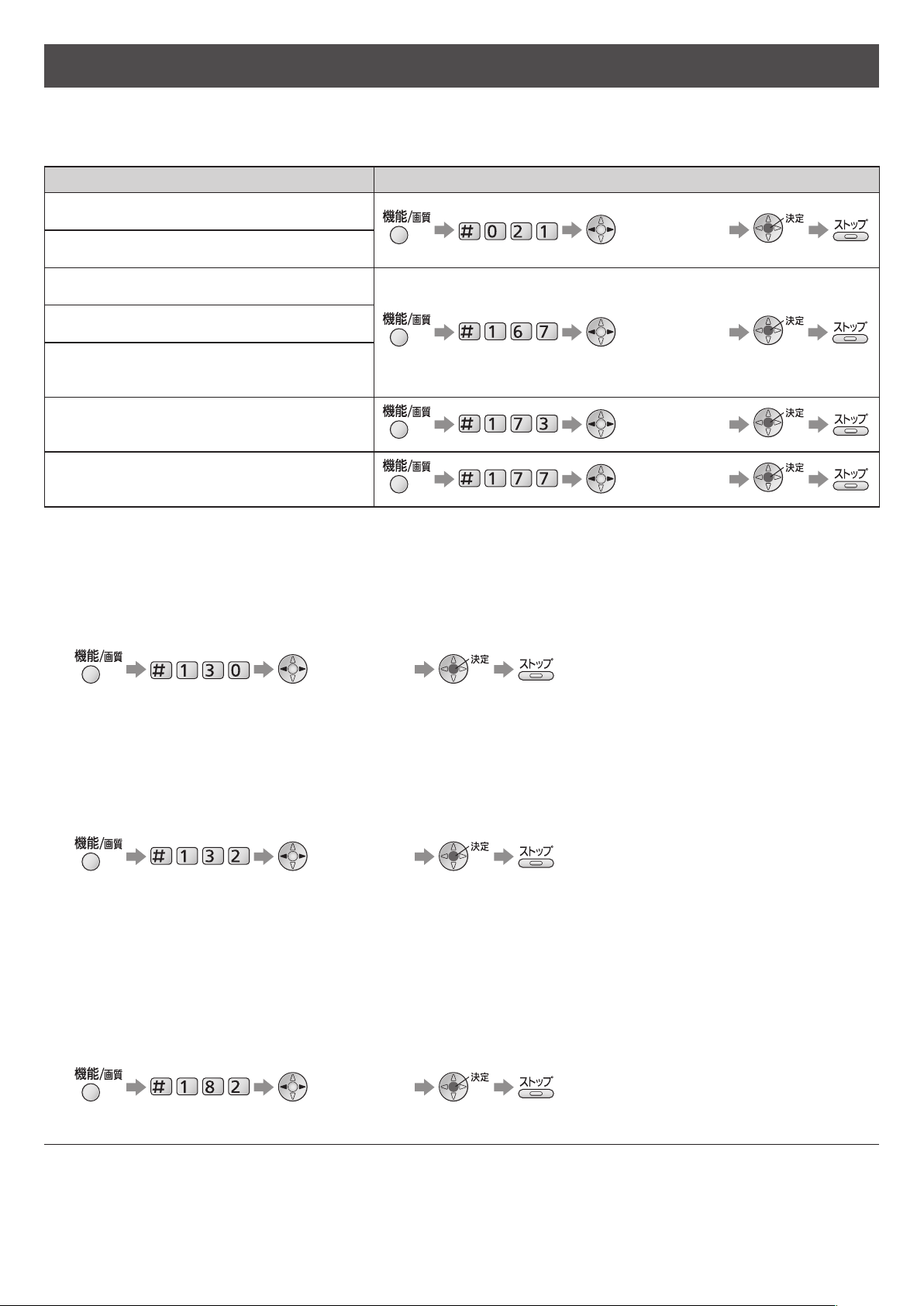

Operation guide

The unit starts the following voice guidance in Japanese:

Operations To cancel the operation guide (using the main unit)

Send a fax

(Select “なし ”)

Copy

Add entries to the phonebook

(Select “なし ”)

Store entries in the repeat call dialer

Make a call using the phonebook/redial/

call memory

Change a ink film (Select “なし ”)

Print fax documents from the main unit

memory (Select “なし ”)

Reading-out dial

The unit announces the number dialed in Japanese, when you make a call with the main unit.

To cancel the reading-out dial

(Select “なし”)

Reading-out phonebook

The unit reads out stored names* when the phonebook is searched.

To cancel the reading-out phonebook

(Select “なし”)

Incoming name announcement (for Number Display service

subscribers only)

The unit announces the caller’s name* when a call is received from a caller whose name and phone number are

stored in the phonebook.

To cancel the incoming name announcement

(Select “なし”)

Voice guide

* Names will only be read out when their “ フリガナ ” (readings) are stored in katakana in the phonebook.

English, numbers and signs in “ フリガナ ” are not read out.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Télécopieur

Panasonic

Panasonic KX-F780 Manuel utilisateur

Panasonic

Panasonic KXF1050 - FAX Manuel utilisateur

Panasonic

Panasonic KX-F910BX Manuel utilisateur

Panasonic

Panasonic KX-PD701DL Manuel utilisateur

Panasonic

Panasonic Panafax UF-550 Manuel utilisateur

Panasonic

Panasonic KX-FC255AL Manuel utilisateur

Panasonic

Panasonic KX-PW12CL, KX-PW12CLW, KX-PW22 Manuel utilisateur

Panasonic

Panasonic KX-FPG175 Instructions d'utilisation et d'installation

Panasonic

Panasonic Panafax DX-800 Instructions d'installation et d'entretien

Panasonic

Panasonic KX-FT21HK Manuel utilisateur

Panasonic

Panasonic Panafax UF-150 Mode d'emploi

Panasonic

Panasonic KX-F206TW Manuel utilisateur

Panasonic

Panasonic Panafax UF-S2 Manuel utilisateur

Panasonic

Panasonic KX-F500 Manuel utilisateur

Panasonic

Panasonic KX-FT502ML Manuel utilisateur

Panasonic

Panasonic KX-FPC161 Manuel utilisateur

Panasonic

Panasonic Panafax UF-490 Manuel utilisateur

Panasonic

Panasonic KX-FP205 Manuel utilisateur

Panasonic

Panasonic KX-FC228FX Manuel utilisateur

Panasonic

Panasonic KX-FPC165 Manuel d'utilisation et d'entretien

Panasonic

Panasonic KX-FLB881E Manuel utilisateur

Panasonic

Panasonic KX-PD503DL Manuel utilisateur

Panasonic

Panasonic KX-F750 Manuel utilisateur

Panasonic

Panasonic KX-FP711CX Manuel utilisateur

Manuels Télécopieur populaires d'autres marques

Samsung

Samsung SF-515 Manuel utilisateur

Radio Shack

Radio Shack TFX-1031 Manuel utilisateur

imagistics

imagistics 2030 Manuel

Furuno

Furuno FAX-30 Manuel utilisateur

Savin

Savin 3740 Manuel

Sharp

Sharp FO-51 Manuel utilisateur

Muratec

Muratec MFX-C3035 Manuel utilisateur

Canon

Canon FAX-L400 Manuel utilisateur

Ricoh

Ricoh 1000L Guide de démarrage rapide

Sharp

Sharp FO-3150 Manuel utilisateur

Kyocera

Kyocera KM-F1060 Manuel utilisateur

Sharp

Sharp FO-2970M Manuel utilisateur

Canon

Canon JX510P Manuel utilisateur

Mita

Mita LDC-870 Manuel

Brother

Brother MFC 640CW - Color Inkjet - All-in-One Manuel utilisateur

Samsung

Samsung FX100 Manuel

Sharp

Sharp MX-FXX1 Manuel utilisateur

Develop

Develop ineo 25e Manuel utilisateur
