Quick Reference Guide

Facsimile

Model No.

Table of Contents

Finding the controls ……………………………………………………………2

Installations and connections …………………………………………………4

Setting the date and time ………………………………………………………7

Setting your facsimile telephone number ……………………………………7

Setting your logo…………………………………………………………………8

Character input and command key table ……………………………………9

Automatic dialing on the main unit……………………………………………10

Automatic dialing on the portable handset …………………………………12

Intercom between the main unit and portable handset ……………………14

Sending faxes …………………………………………………………………15

Receiving faxes ………………………………………………………………16

Operating the built-in answering device ……………………………………17

Specifications …………………………………………………………………19

Thank you for purchasing a Panasonic facsimile.

●This guide explains some basic features and operations, but not all of them.

For further details, see the Japanese operating instructions.

●This product is designed for use in Japan.

Panasonic cannot provide service for this product if used outside Japan.

●Any details given in this guide are subject to change without notice.

KX-PW501DL

KX-PW501DW

Finding the controls

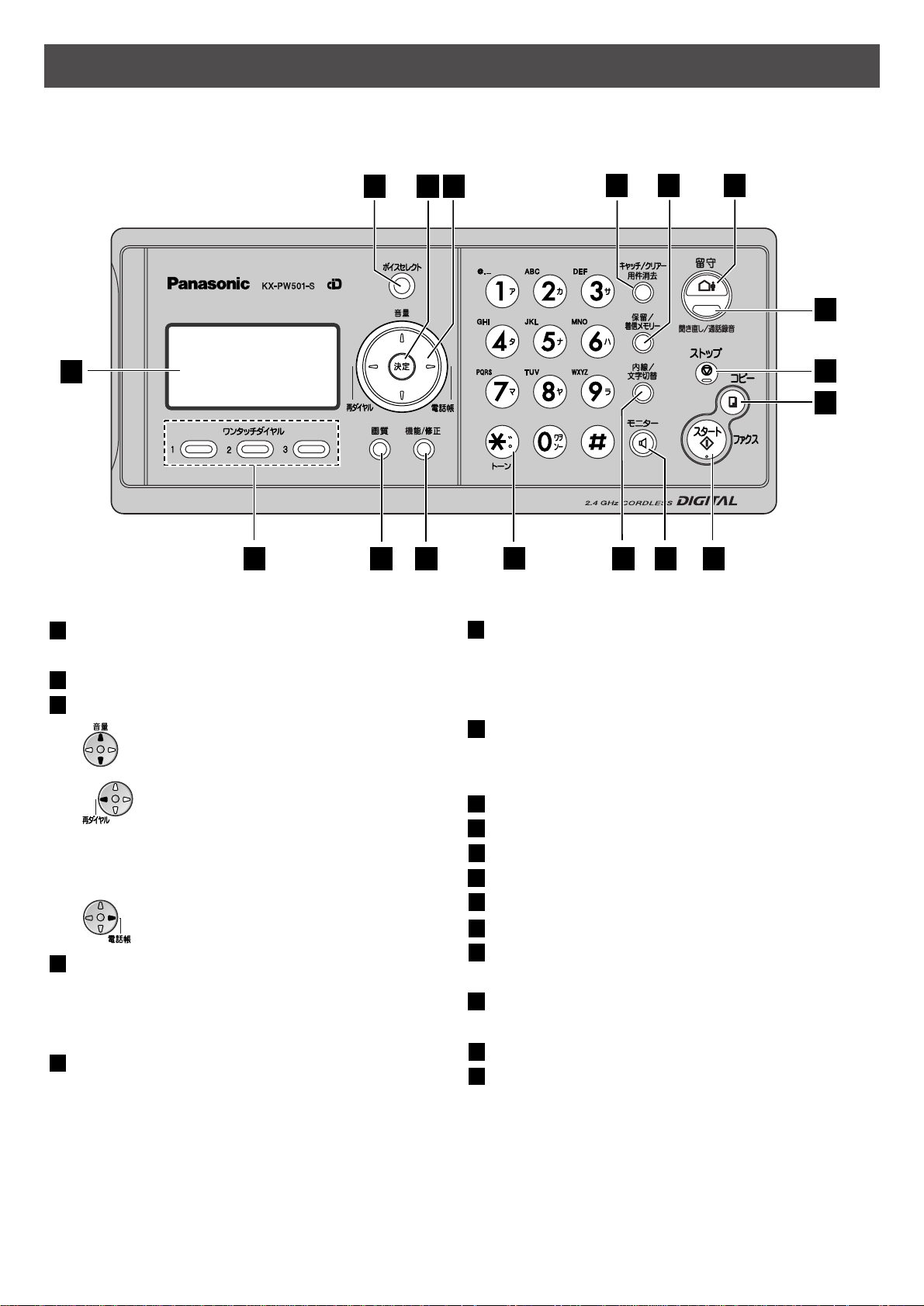

Main unit (control panel)

156

1112

1415

Voice select button adjusts the receiver

tone quality.

Set button

Volume/Redial/Phonebook key

To adjust the volume.

To redial the phone numbers in

the redial list. The last 10 phone

numbers dialed are stored in

memory.

To use the phonebook.

Flash button

(For call waiting service users.)

Clear button

Erase button

Hold button

Call Memory button starts a search in

the Number Display log.

(For caller ID display service users.)

Auto Answer button & indicator

—light on: answering device activated.

—light off: used as a regular telephone.

Pause button

Replay button plays back recorded

messages.

Record button records telephone calls.

Stop button

Copy button starts copying.

Start/Fax button starts faxing.

Monitor button

Intercom/Character Input Mode button

Tone button switches to tone dialing.

Function button initiates programming.

Edit button

Resolution button selects the resolution

when faxing or copying.

One-touch dial buttons

Liquid crystal display

Finding the controls

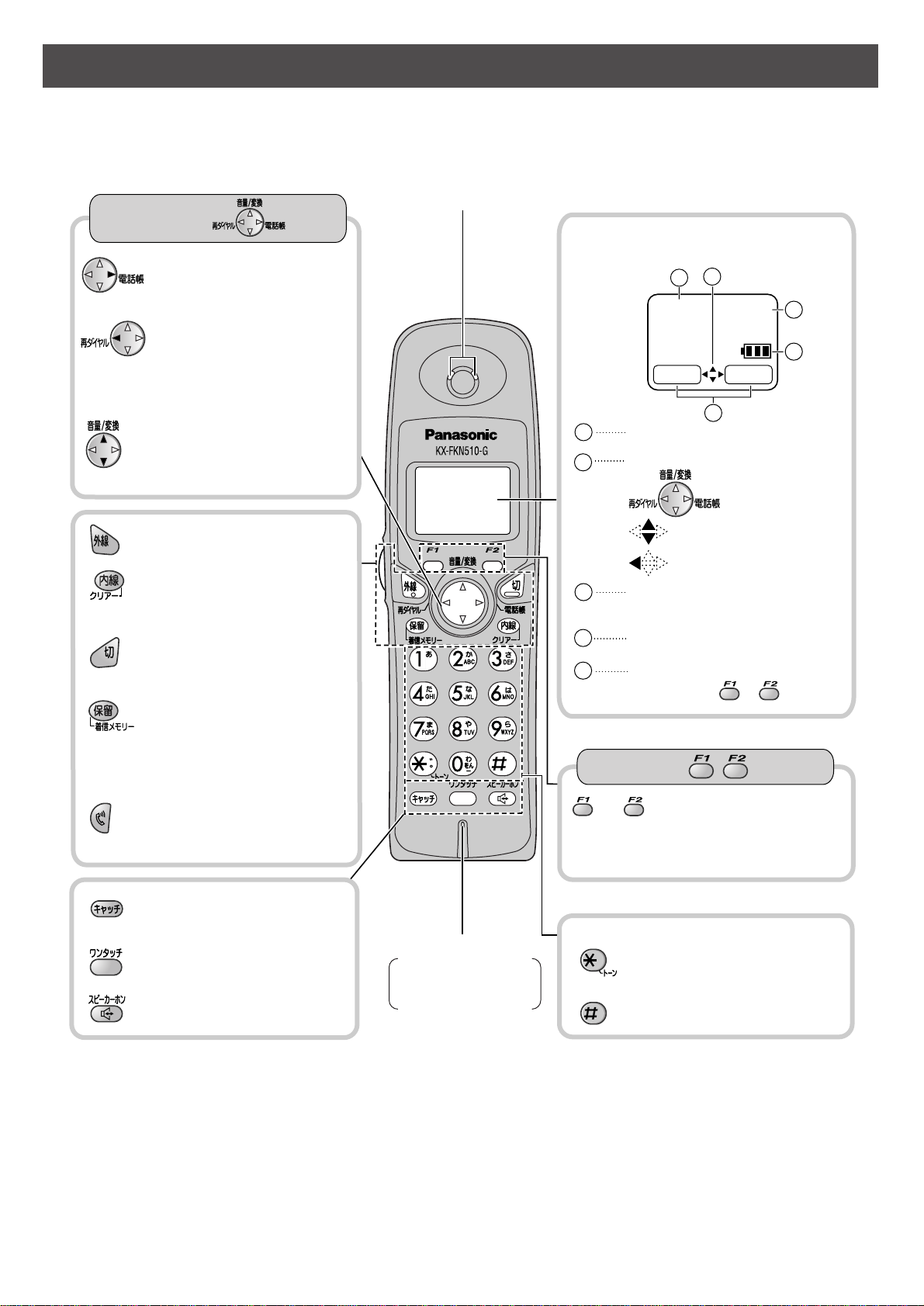

Portable handset



●



For call waiting service

users.

●



To use the one-touch dial.

●



To use the speakerphone.

LCD (with back light)

Earpiece

Microphone

Do not cover the

microphone while

talking.



●



Displays battery strength, telephone

numbers etc.

1Portable handset number



●



To adjust the volume.

●



To change Hiragana into

Kanji.

●



To redial the phone

numbers in the redial

list. The last 10 phone

numbers dialed are

stored in memory.

●



To use the phonebook.



How to use key

機能

子機

圏外

留守



Function menu that is

controlled by or .

4Battery strength

2Indicates which directions the

key can be tilted.

up and down

left

3Out of range

(Walk closer to the main unit.)

Note:

●



If you use the portable handset near a microwave oven which is being used, noise may be heard from

the earpiece or the speaker. Move away from the microwave oven and closer to the main unit.



How to use buttons

and buttons refer to the function

displayed on the bottom of the display.

They function differently depending on

the mode.

Sharp button

Dial buttons



Tone button

●



To switch to Tone dialing mode.



●



To make/answer calls.

●



To page the main unit or

another portable handset.

●



To clear letters/numbers.

●



To end a call.

●



To end or exit from editing or

other operations.

●



To put a call on hold.

●



To start a search in the

Number Display log.

(For caller ID display service

users.)

Voice select button

●



To adjust the receiver tone

quality.

Installations and connections

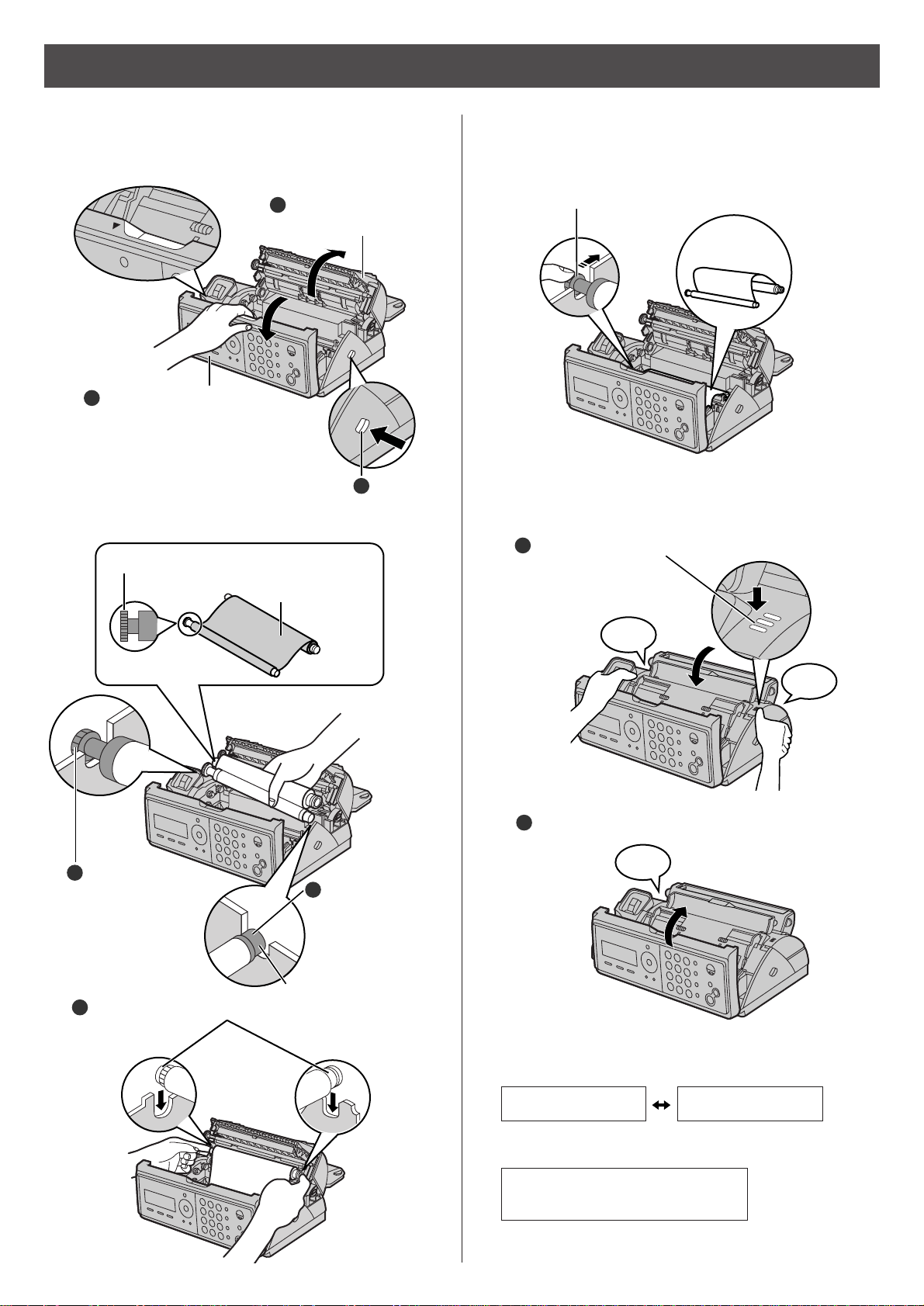

Installing the ink film

2Insert the ink film.

1Open the control panel and the back cover.

押す

Click

開く

Open the control

panel until it locks.

3If the ink film is slack, tighten it by winding the “T”

shaped gear.

4Close the back cover and the control panel until they

lock.

●When the unit runs out of ink film, the following

message will be displayed.

Install a new ink film.

・As of December 2003. ・Tax not included.

Replacement ink film:

KX-FAN142 (35 m) ¥1250

Open the back cover

until it locks.

Press here.

Find the “T”shaped gear (blue).

Ink film

Blue core

Insert the “T”

shaped gear

(blue) into the

left slot of the

main unit.

Insert the white core into the slots.

Insert the blue

core into the

right slot of the

main unit.

Click

To close the back cover, press here.

Close the control panel until it locks.

Do not

be slacken.

ﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀ

ﾋﾝﾊﾞﾝ

KX-FAN142

ﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀ

ｺｳｶﾝｼﾃｸﾀﾞｻｲｼ

U23

Installations and connections

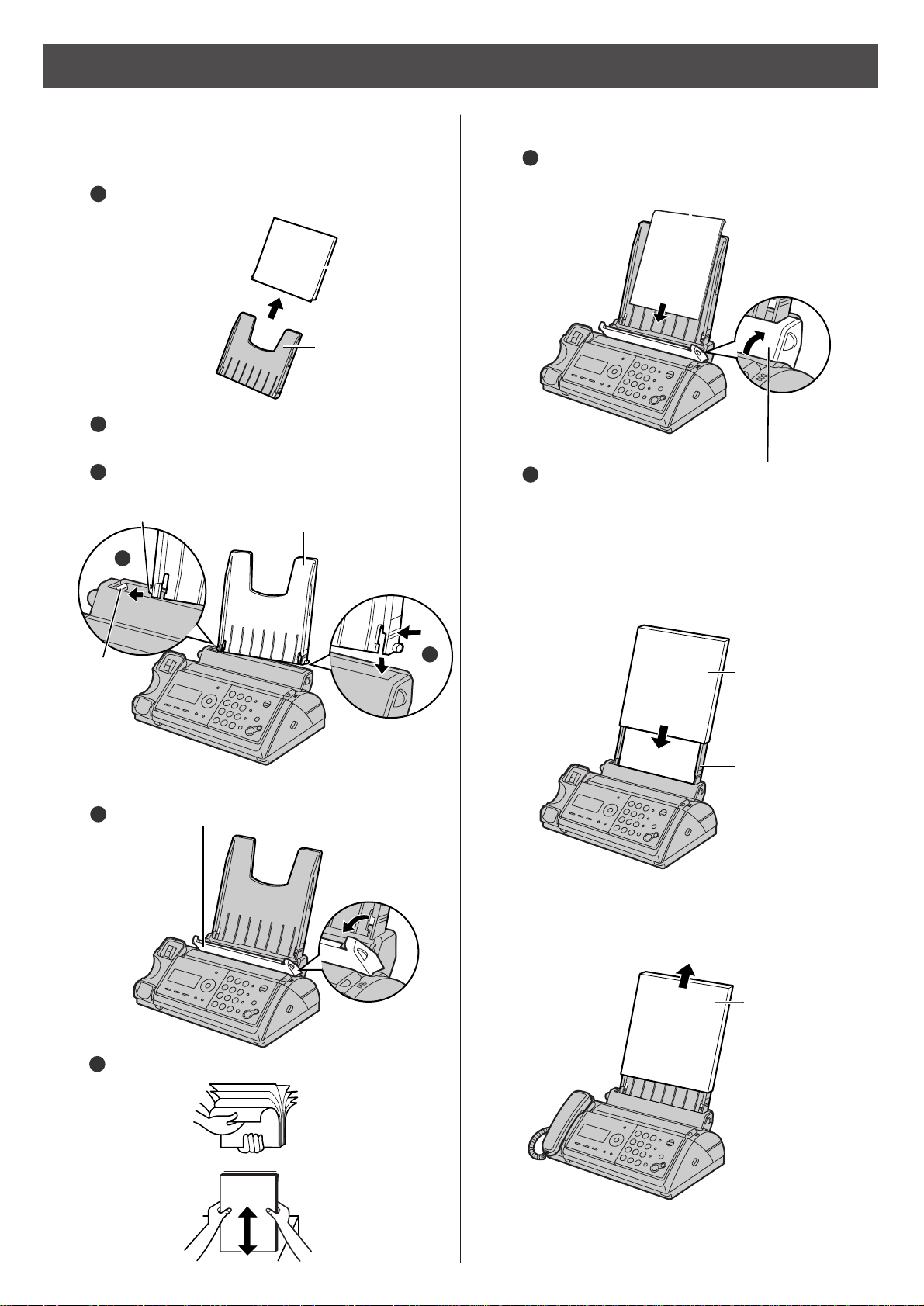

Installing recording paper

(A4

size)

3Install the recording paper cover on the recording

paper tray by sliding it down from the top.

Recording

paper cover

Recording

paper tray

Printing

side is on

the back



Fan the stack of recording paper (A4 size).

Insert the recording paper into the recording

paper tray. (Up to 30 sheets)

Close the paper entrance cover by leaning it

back.

2Insert the recording paper into the recording paper tray.

Open the paper entrance cover until it locks.

1Install the recording paper tray.

Separate the recording paper cover from the

recording paper tray.

Insert the left tab on the recording paper tray into

the left slot of the main unit.

Insert the right tab into the right slot of the main unit.

Recording

paper tray

Tab

Slot Recording

paper cover

Recording

paper tray

●To add paper

Remove the

recording paper

cover, then follow

steps 2 to 3.

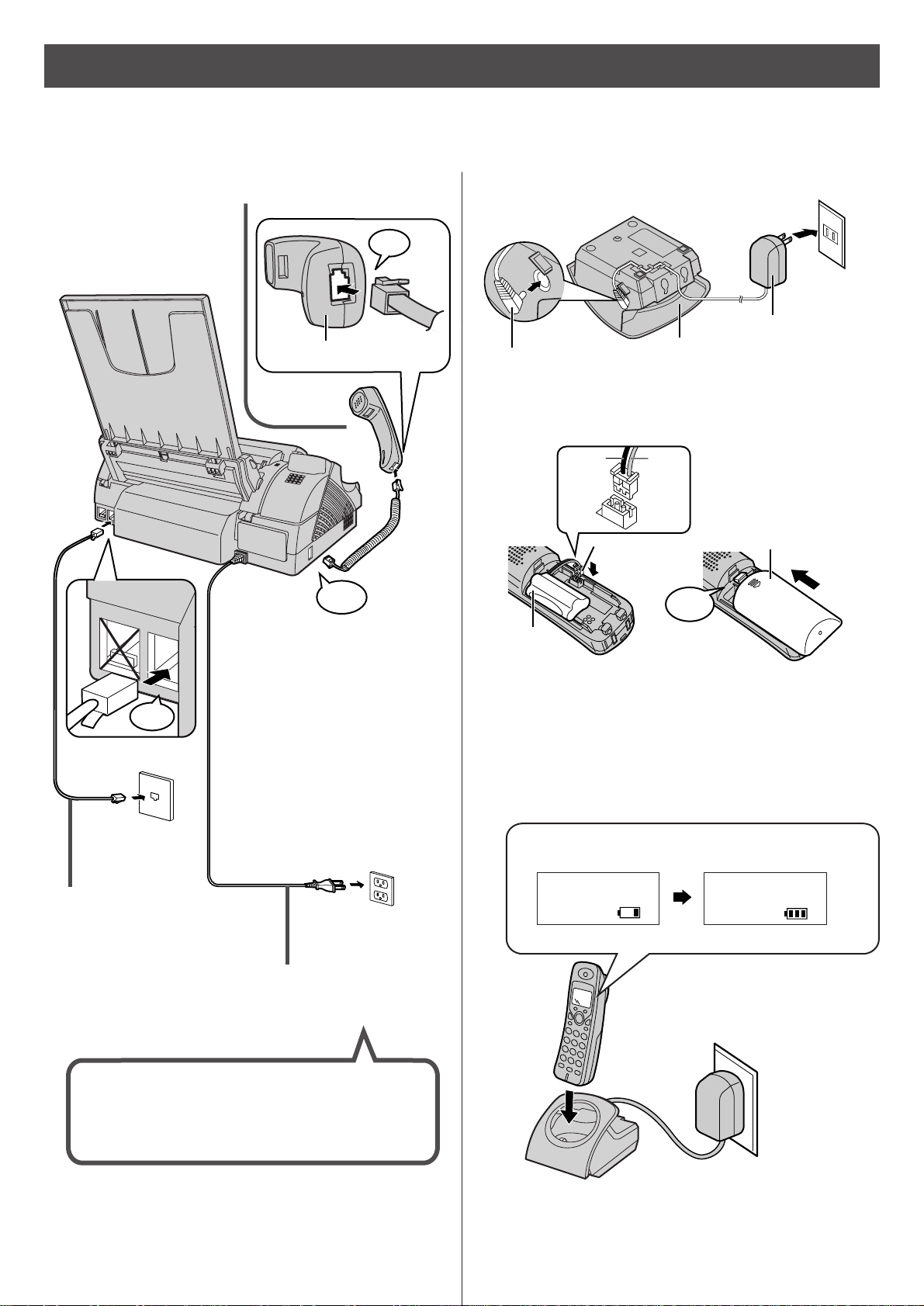

Connecting the main unit

Installations and connections

3Charge the battery in the charger for 10 hours.

Plug Charger

AC adaptor

Power outlet

(AC 100 V)

Connector

Battery

Battery cover

Click

Black

Red

Setting up the portable handset

●After your Panasonic battery is fully charged,

it will last up to about 7 hours of conversation.

Power cord

Telephone

line cord

Wall jack

Power outlet

(AC 100V)

3Connect the power

cord.

2Connect the telephone line

cord (Supplied accessory).

1 Connect the cord and place the handset on the

main unit.

Click

停電用

電話機回線

（電話回線へ）

Click

Handset

Click

After the Power On...

This unit will automatically select the dialing

mode (Tone/Pulse).

充電中充電完了

●While charging. ●Charging completed.

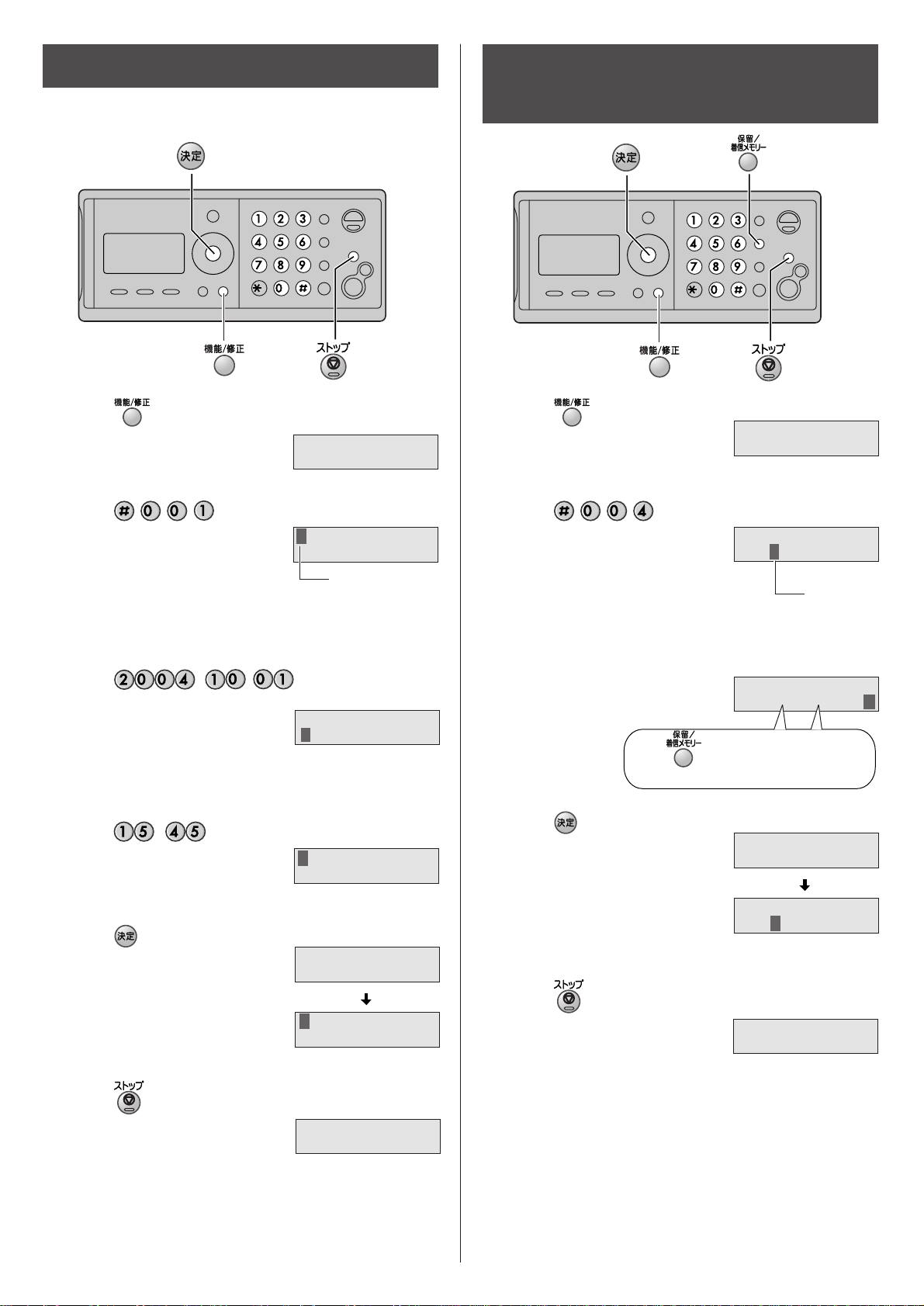

Setting the date and time

1Press (Function/Edit).

2Press .

3Enter the correct year/month/day.

Example: October 1, 2004

Press .

3Enter your facsimile telephone number, up to 20

digits.

Example: 098 765 43 · ·

4Enter the correct hour/minute in a 24-hour clock entry.

Example: 15:45 (3:45 PM)

Press . 4Press (Set).

5Press (Set).

6Press (Stop).

5Press (Stop).

Setting your facsimile

telephone number

Example :

1Press (Function/Edit).

2Press .

ｷﾉｳｱﾄｳﾛｸｱﾓｰﾄﾞ

ｶｲｾｼｼｼｼｼｼ[

▼▲

]ｵｽ

2004

年

月

日

20:10

Cursor

2004

年

月

日

00:10

2004

年

月

日

15:45

2004

年

月

日

15:45

ﾄｳﾛｸｱｼﾏｼﾀ

月

日

0015:45

ﾖｳｹﾝ

ﾛｸｵﾝ

0000

ｹﾝ

Example :

ｷﾉｳｱﾄｳﾛｸｱﾓｰﾄﾞ

ｶｲｾｼｼｼｼｼｼ[

▼▲

]ｵｽ

ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ?

TEL=．．．．．．．．．．．

Cursor

ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ?

TEL=80765043

The (Space) button replaces

the digit with a space.

ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ?

TEL=098.765.43

ﾄｳﾛｸｱｼﾏｼﾀ

月

日

0015:45

ﾖｳｹﾝ

ﾛｸｵﾝ

0000

ｹﾝ

Example :

4. Press to move the cursor to the next space

and press four times.

2Press .

3Enter your logo, up to 30 characters, using the dial

keypad.

●To enter English characters easily, press

(Character input mode) repeatedly and select

“英” (English and sign input mode).

●For details, see the table on page 9 for instructions. 5Press (Stop).

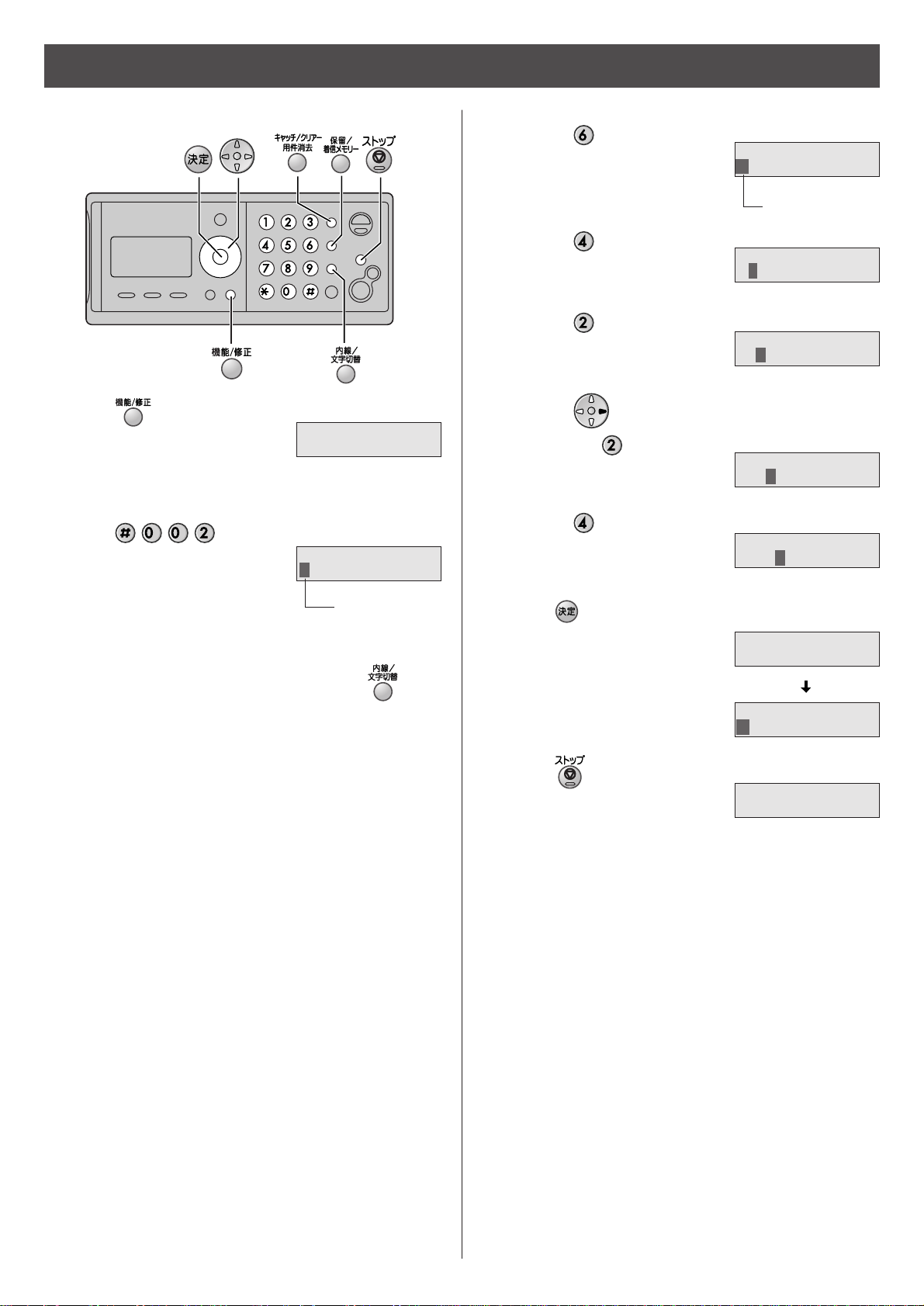

Setting your logo

2. Press six times.

3. Press six times.

5. Press five times.

Example: Micah

1. Press once.

4Press (Set).

1Press (Function/Edit). ｷﾉｳｱﾄｳﾛｸｱﾓｰﾄﾞ

ｱｱｱｱｱｱｱｼｼ[

▼▲

]ｵｽ

ｱﾅﾀﾉﾅﾏｴ?

Cursor

ｱﾅﾀﾉﾅﾏｴ?

Mic

ｱﾅﾀﾉﾅﾏｴ?

Mica

ｱﾅﾀﾉﾅﾏｴ?

Micah

ﾄｳﾛｸｱｼﾏｼﾀ

Cursor

月

日

0015:45

ﾖｳｹﾝ

ﾛｸｵﾝ

0000

ｹﾝ

Example :

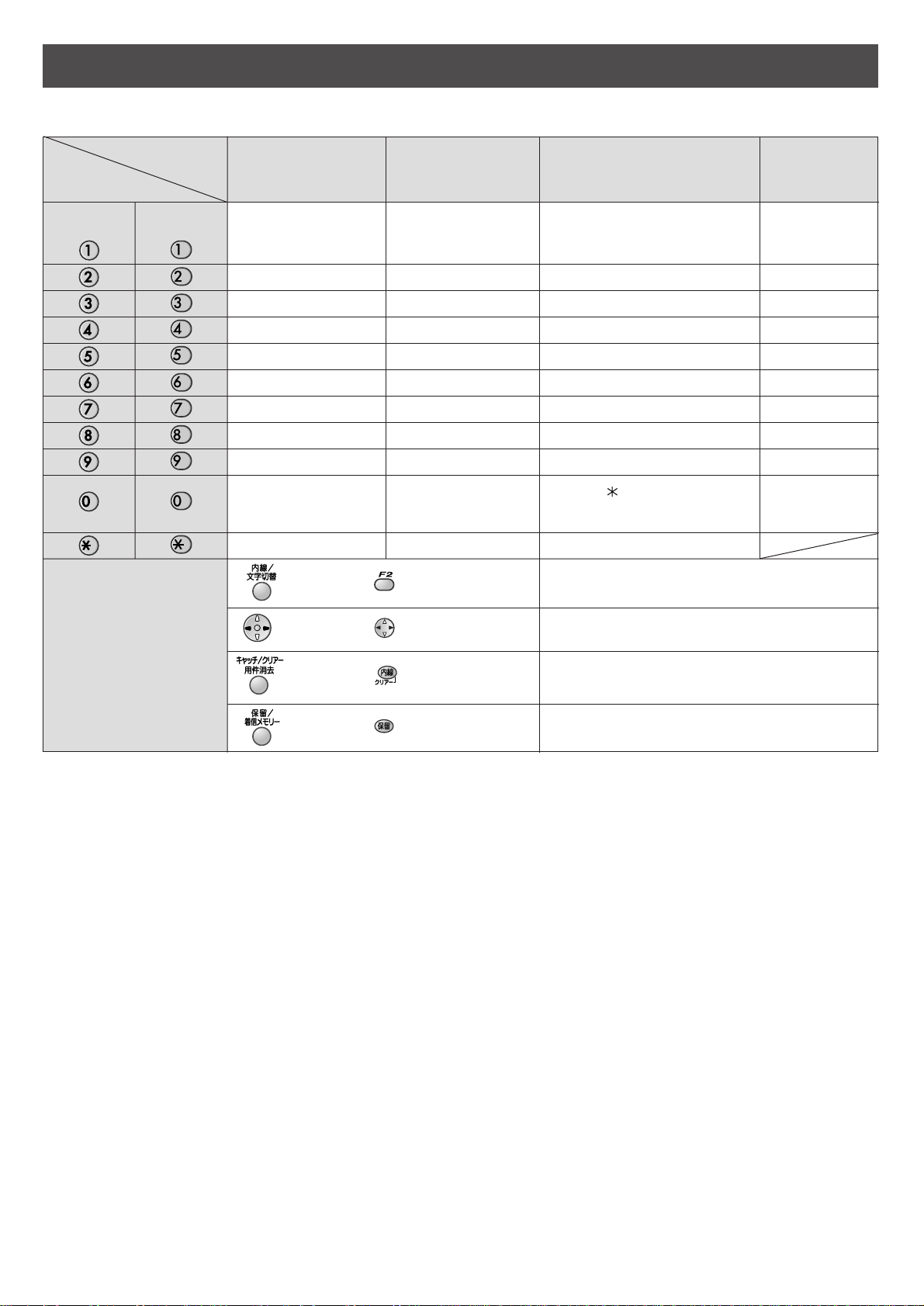

Character input and command key table

、、。、。

“かな”

Hiragana

(For the portable

handset only)

“英”

English

“カナ”

Katakana

“数”

Numbers

!？/ー#‚;: ｜・’”

（）

[]

｛｝〈〉「」

ワヲンー！？ ( )

あいうえおぁぃぅぇぉ

かきくけこ

さしすせそ

たちつてとっ

なにぬねの

はひふへほ

まみむめも

やゆよゃゅょ

らりるれろ

わをんー！？ ( )

アイウエオァィゥェォ @・ｰ&＄¥%＋=

〜^

DEFde f

GHI gh i

JKL j k l

MNOmn o

PQRSpqrs

TUVtuv

WX Y Z wx y z

カキクケコ

サシスセソ

タチツテトッ

ナニヌネノ

ハヒフヘホ

マミムメモ

ヤユヨャュョ

ラリルレロ

ABCabc

、。

Character

Dial key

Used to change the character input mode.

Used to move the cursor to the left and right.

Used to delete a character.

Used to insert a space.

Command keys

(Main unit), (Portable handset)

●The characters on the display are somewhat different from those shown in the character input and command

key table.

Portable

(

handset

)

Main

(

unit

)

Pressing the dial keys will select a character as shown below.

、、。、。

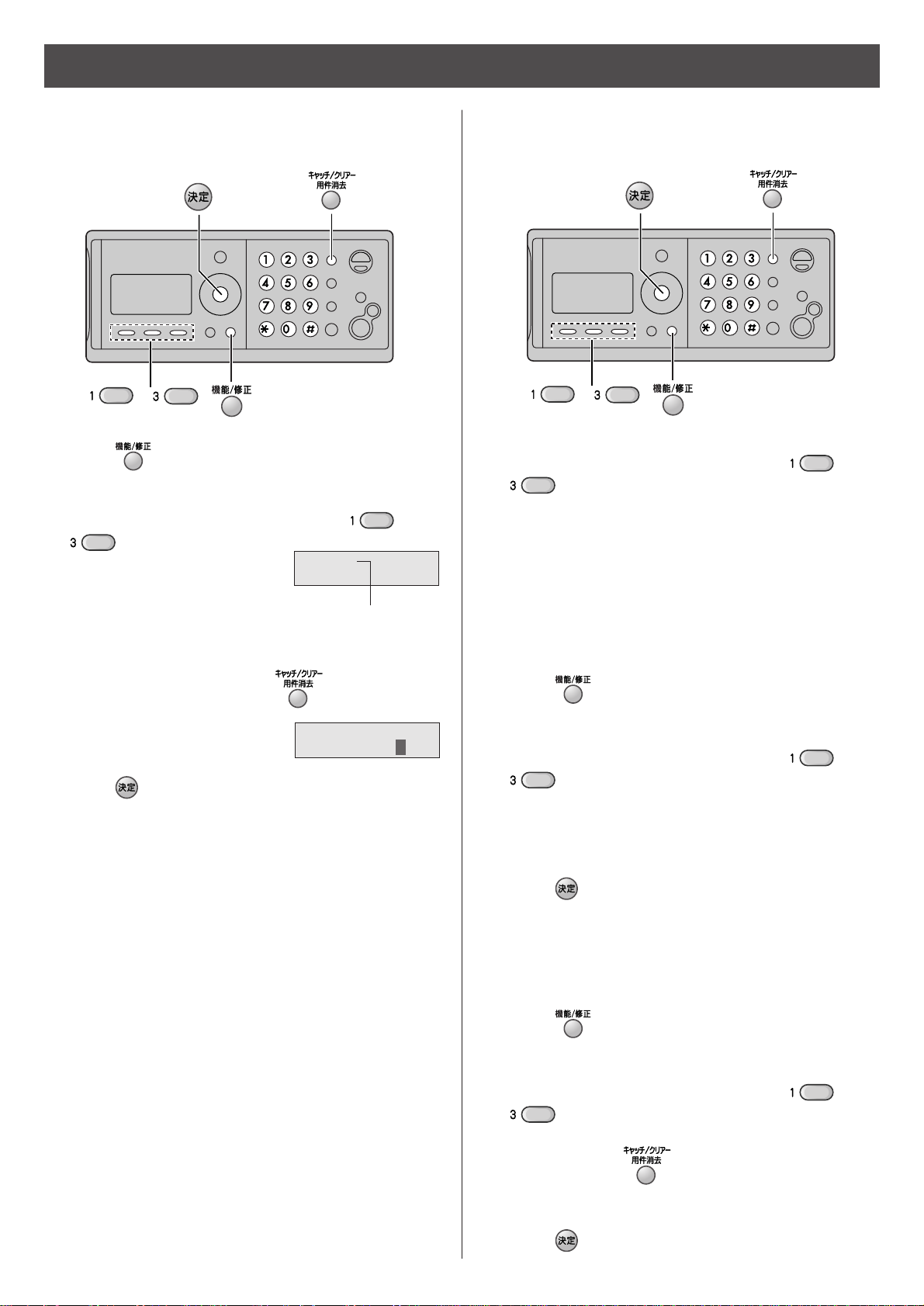

Automatic dialing on the main unit

Storing telephone numbers in the

one-touch dial

Making a voice call using the

one-touch dial

1Press (Function/Edit).

3Enter the telephone number, up to 24 digits.

●To correct a mistake, press (Clear).

4Press (Set).

Editing a stored number in the

one-touch dial

3Edit the telephone number.

2Press the desired one-touch dial button ( to

Example: One-touch dial 1

1Press the desired one-touch dial button ( to

●The unit will start dialing.

2When the other party answers, lift the handset.

1Press (Function/Edit).

2Press the desired one-touch dial button ( to

4Press (Set).

Erasing a stored number in the

one-touch dial

3Press and hold (Erase) until the telephone

number has been erased.

1Press (Function/Edit).

2Press the desired one-touch dial button ( to

4Press (Set).

ﾜﾝﾀｯﾁ

ﾄｳﾛｸｻﾚﾃｲﾏｾﾝ

Button number

ﾜﾝﾀｯﾁ

ﾄｳﾛｸ

09876543

･･･

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Télécopieur

Panasonic

Panasonic KX-FP145C Manuel utilisateur

Panasonic

Panasonic KXF1000 - FAX Manuel utilisateur

Panasonic

Panasonic KX-FM131RS Instructions d'utilisation

Panasonic

Panasonic KX-F230BX Manuel utilisateur

Panasonic

Panasonic KX-F1000BX Manuel utilisateur

Panasonic

Panasonic Panafax UF-880 Manuel utilisateur

Panasonic

Panasonic Auto-Logic KX-F115 Manuel utilisateur

Panasonic

Panasonic KX-FC238HK Manuel utilisateur

Panasonic

Panasonic KX-FLM663HX Manuel utilisateur

Panasonic

Panasonic KX-FPG376 Manuel utilisateur

Panasonic

Panasonic Panafax UF-580 Manuel utilisateur

Panasonic

Panasonic DX 1000 - PanaFax B/W Laser Printer Manuel utilisateur

Panasonic

Panasonic KX-FP81AL Manuel utilisateur

Panasonic

Panasonic KX-L6CL Manuel utilisateur

Panasonic

Panasonic KX-PD205DL Manuel utilisateur

Panasonic

Panasonic KX-PD702DL Manuel utilisateur

Panasonic

Panasonic KXF250 - CONSUMER FACSIMILE Manuel utilisateur

Panasonic

Panasonic Panafax UF-4000 Manuel utilisateur

Panasonic

Panasonic KX-PW37CL Manuel utilisateur

Panasonic

Panasonic KX-F155BA Manuel utilisateur

Panasonic

Panasonic UF-8300 Manuel utilisateur

Panasonic

Panasonic KX-F790 Manuel utilisateur

Panasonic

Panasonic KX-F2710NZ Manuel utilisateur

Panasonic

Panasonic Facsimile UF-590 Manuel utilisateur

Manuels Télécopieur populaires d'autres marques

Samsung

Samsung SF-515 Manuel utilisateur

Radio Shack

Radio Shack TFX-1031 Manuel utilisateur

imagistics

imagistics 2030 Manuel

Furuno

Furuno FAX-30 Manuel utilisateur

Savin

Savin 3740 Manuel

Sharp

Sharp FO-51 Manuel utilisateur

Muratec

Muratec MFX-C3035 Manuel utilisateur

Canon

Canon FAX-L400 Manuel utilisateur

Ricoh

Ricoh 1000L Guide de démarrage rapide

Sharp

Sharp FO-3150 Manuel utilisateur

Kyocera

Kyocera KM-F1060 Manuel utilisateur

Sharp

Sharp FO-2970M Manuel utilisateur

Canon

Canon JX510P Manuel utilisateur

Mita

Mita LDC-870 Manuel

Brother

Brother MFC 640CW - Color Inkjet - All-in-One Manuel utilisateur

Samsung

Samsung FX100 Manuel

Sharp

Sharp MX-FXX1 Manuel utilisateur

Develop

Develop ineo 25e Manuel utilisateur
